Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Report :-

At initial level, we understand, provide a class A Surface by applying the boundary Wether it’s closed or not

As the Class A surface boundary condition is satisfied. We proceed the same for the tooling axis creation

While working on tooling axis initially locate the point where the coordinate system can be mounted so that the intersection of the provided class A surface can be taken with the reference planes of the coordinate system

Tooling Axis

After locating the coordinate systems to an intersection of the class, a surface with the reference planes.

Onwards took an intersection between the provided class A and the reference planes

1. for one plane draw line using two point method on both sides of intersection generated. onwards drawn a bisecting line for these two lines at origin of co-ordinate axis defined and considered it as Dummy Tooling Axis 1.

2. for another plane draw line using two point method on both sides of intersection generated. onwards drawn a bisecting line for these two lines at origin of co-ordinate axis defined and considered it as Dummy Tooling Axis 2.

now as we have to 2 dummy tooling axis we took an bisecting line for this two dummy tooling axis and generatetd our Tooling Axis

3. Onwards, with the help of draft analysis, tools lock the compass on the dummy tooling access and proceed for the trial. Draft analysis

4. The draft analysis reports found satisfactory with the assumed a dummy tooling axis and hence proceed further with considering the dummy tooling axis

Now, with the part design thickness tool converted provided class A to Part and proceed for Dog House design

Now to defined tooling axis is found to be okay with the final plastic products designed

5. now as our dog house tooling axis are perpendicular to the main tooling axis and hence we created an another tooling axis perpendicular to the main tooling axis in direction to the open side of the dog house and named it as side core axis

this side core axis helps our dog house to maintain the internal sides draft

with this side core axis we applied a drafts for the internal surfaces of the dog house for which we are unable to apply draft with main tooling axis

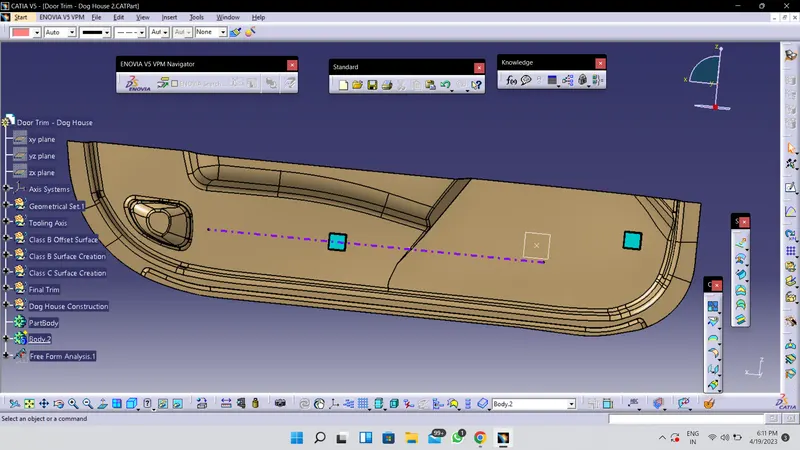

For the same process to the draft analysis of the final plastic product designed with the help of tooling axis and the side core axis and the draft analysis report found satisfactory

The green coloured services gives the positive draft man. Red coloured services shows the negative draft directions.

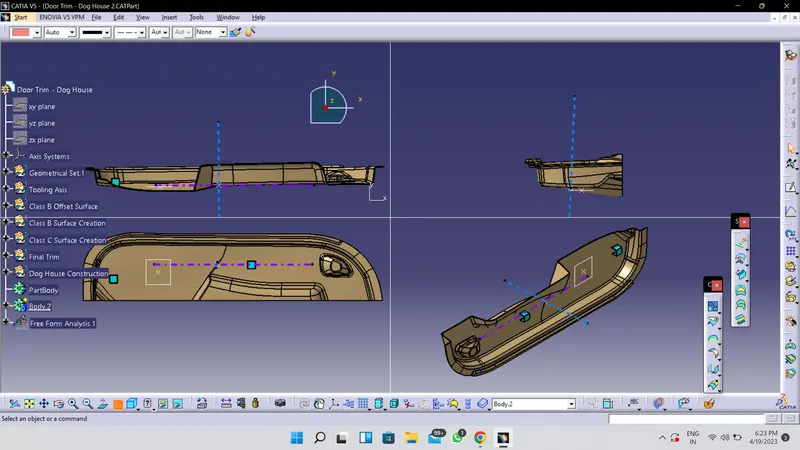

• Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View)
