Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

INPUT GIVEN:

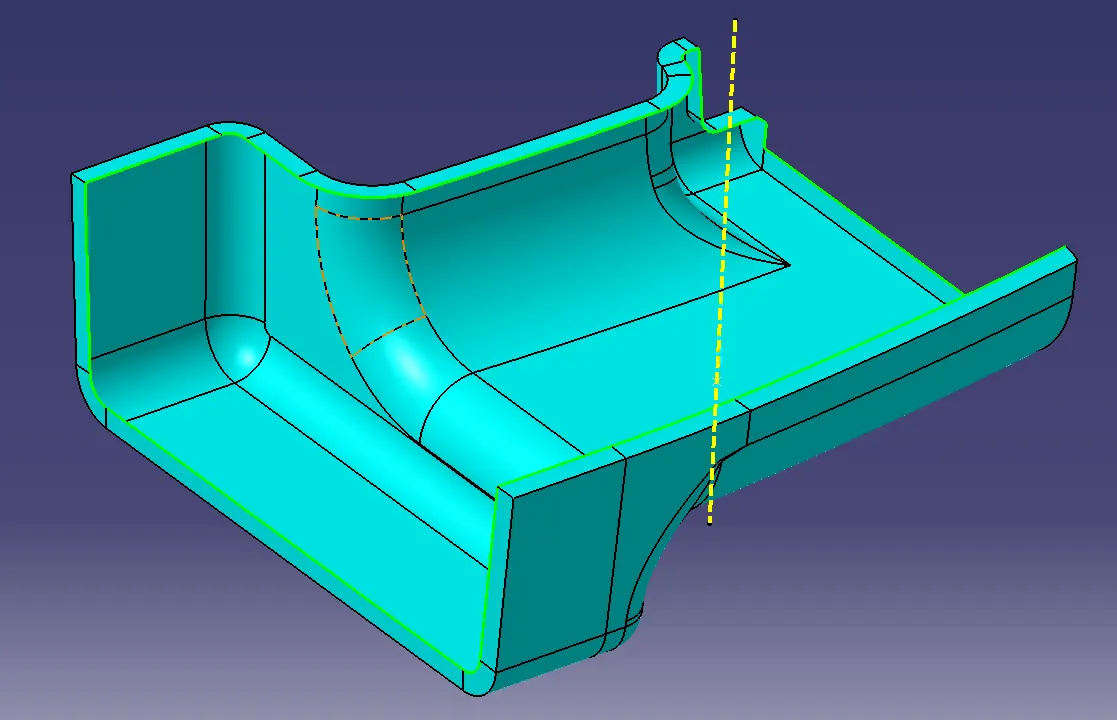

 CLASS A SURFACE

REFERENCE PIC OF THE FINAL PART

WORK NEED TO DONE:

SOLID PART USING CLOSED SURFACE COMMAND.

NEED TO CREATE B SIDE FEATURE AS PER STANDARDS LEARNED(RIBS AND SCREW BOSSES).

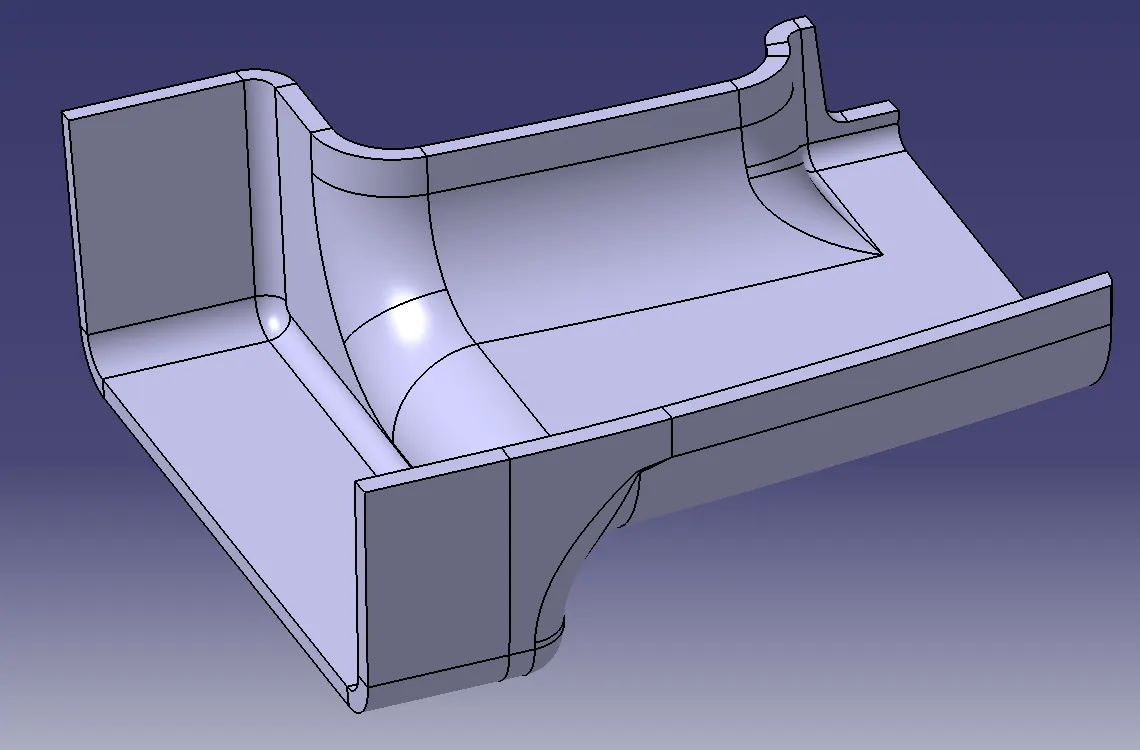

CLASS A SURFACE:

THERE ARE NO GAPS IN GIVEN  CLASS A SURFACE.

TOOLING AXIS CREATION:

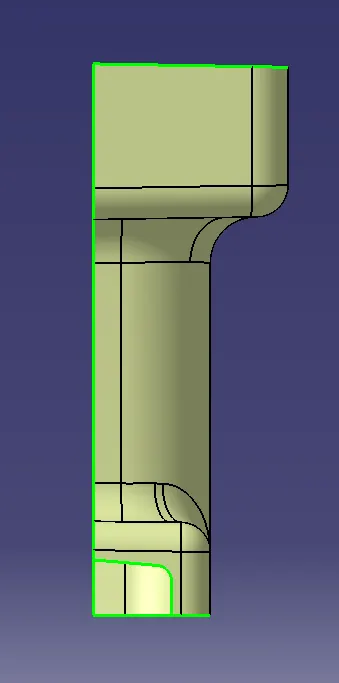

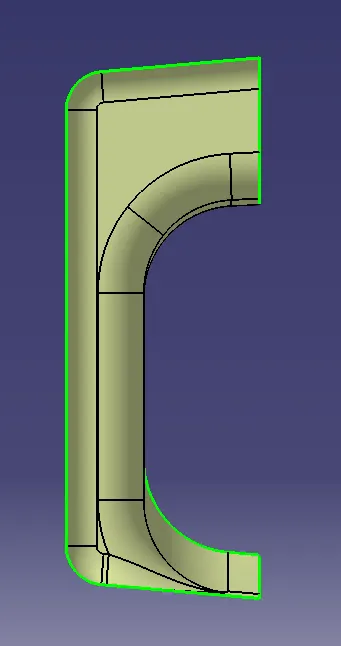

SEEING ALL (X, Y, Z) AXIS VIEWS

IN THE Y AXIS ONLY MORE SURFACES ARE VISIBLE.

X AXIS

Y AXIS



Z AXIS

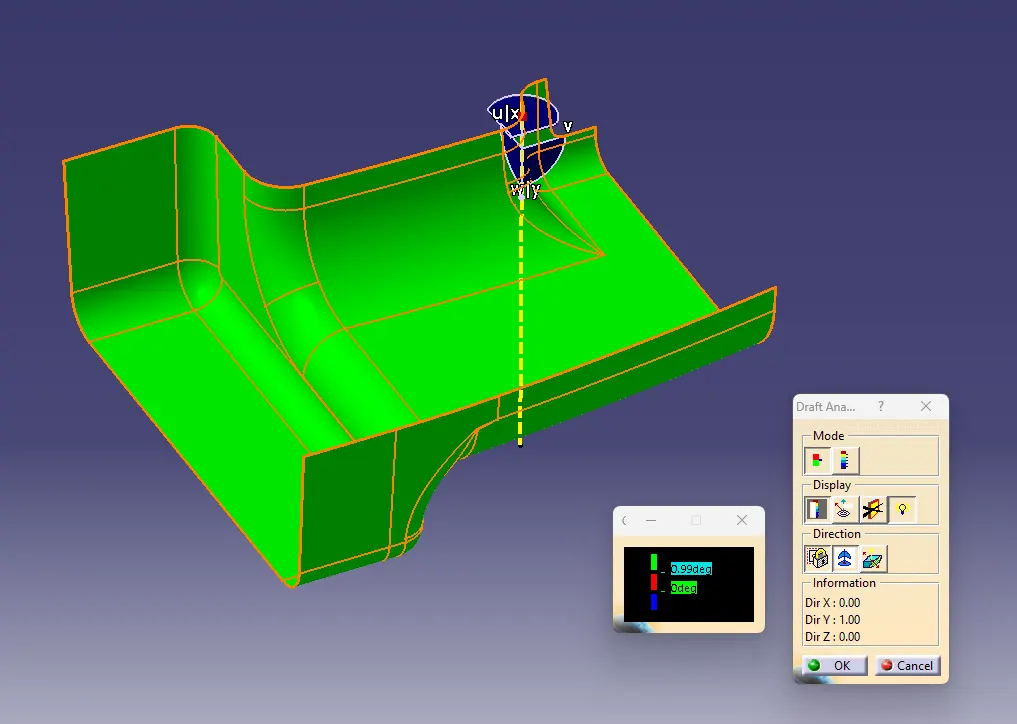

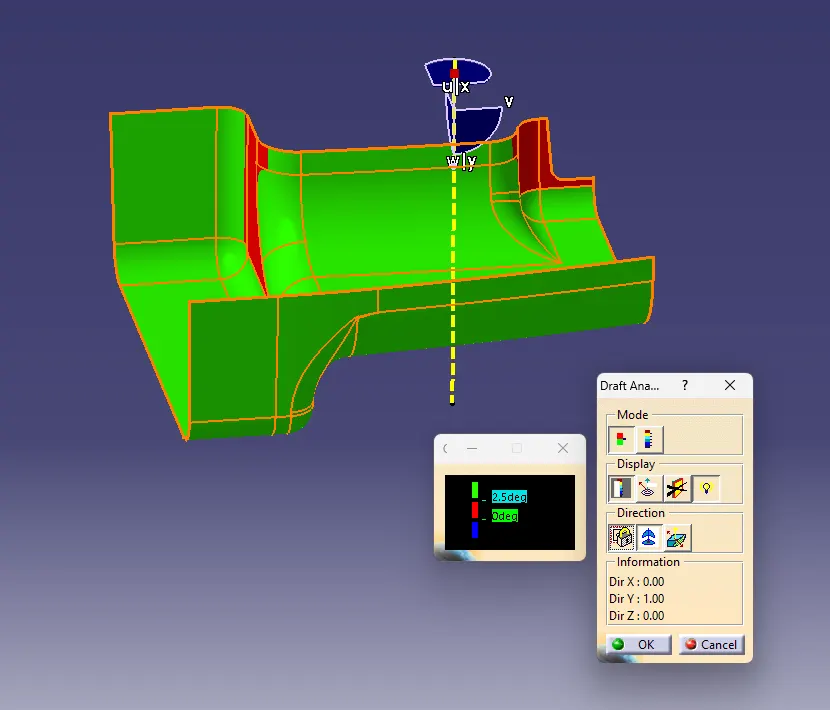

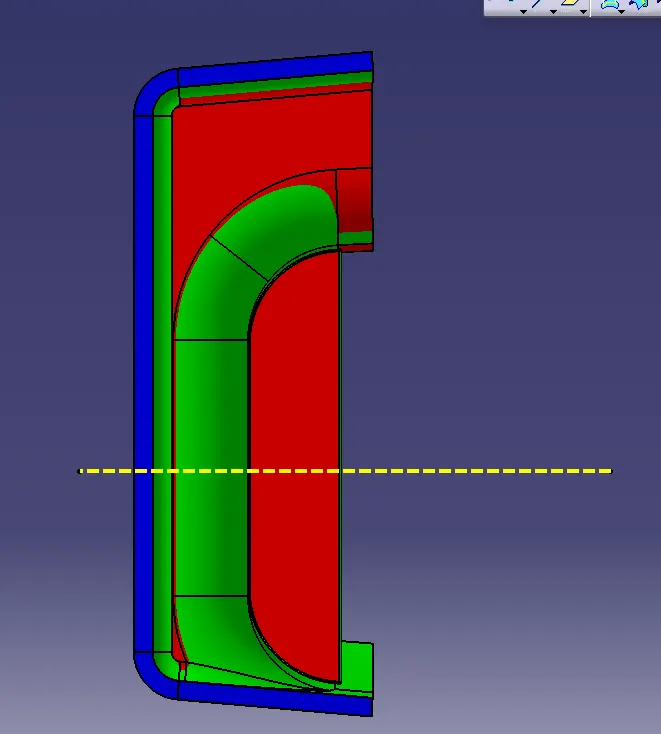

CLASS A DRAFT ANALYSIS:

CLEARS 0.99 DEGREE



FOR 2.5 DEGREES NOT CLEARING SOME FACES

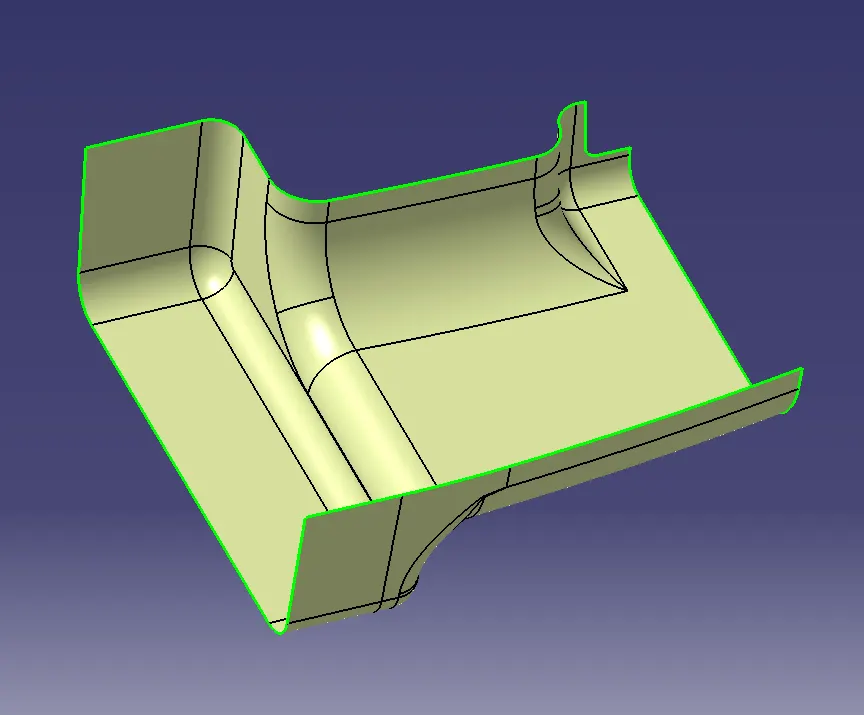

CLASS B SURFACE CREATION:

CLASS A SURFACE IS OFFSETTED FOR 2.5MM

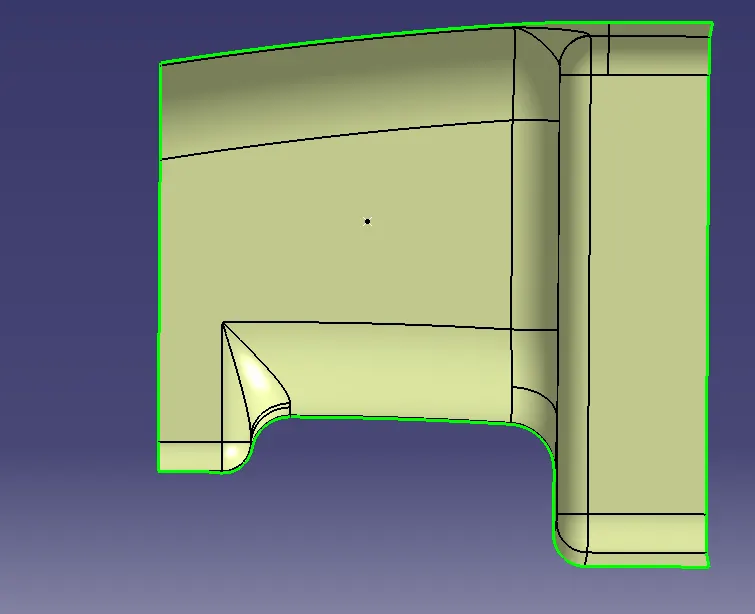

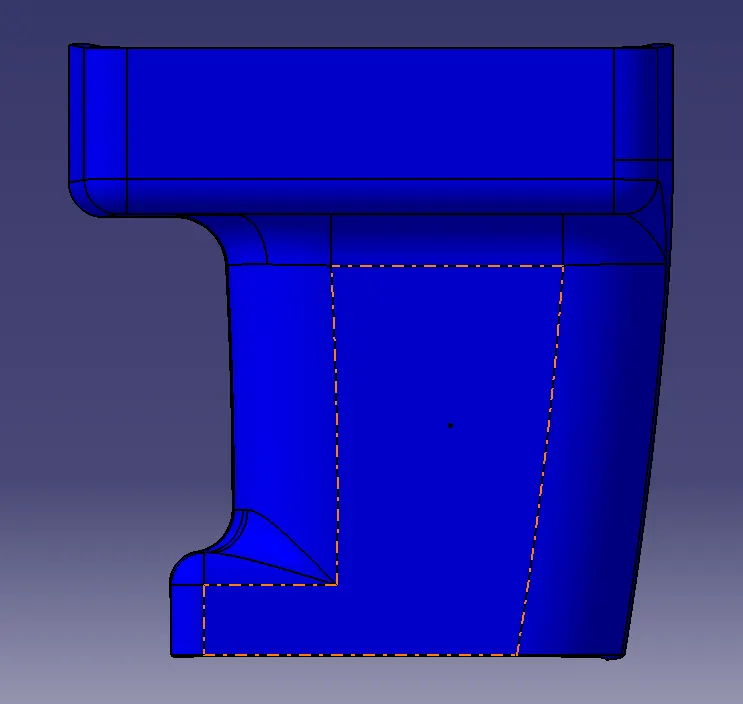

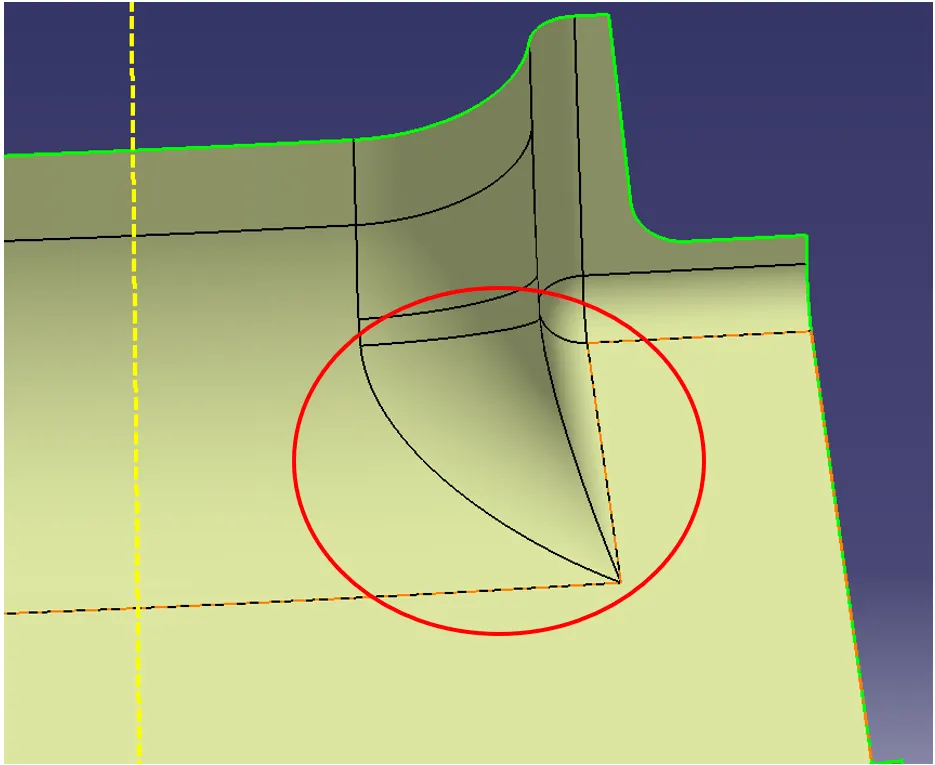

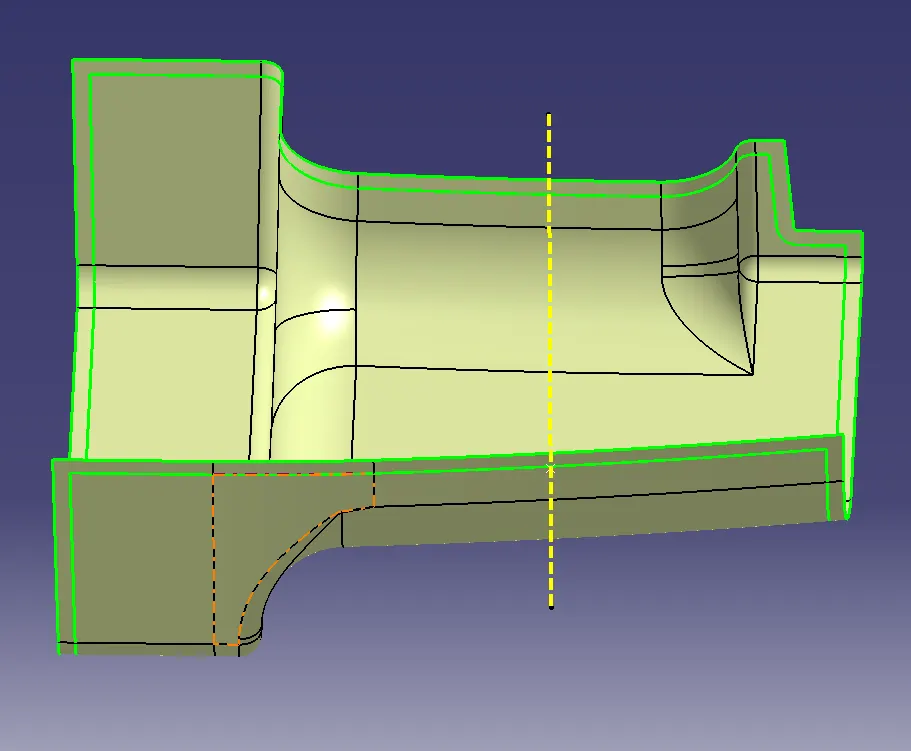

THERE IS GAP IN B SURFACE MARKED AREA IN (CLASS A IN BELOW IMAGE)

FILLED AND JOINED THE PATCH.

EXTENDED THE OUTER BOUNDARY.

CLASS C SURFACE CREATION:

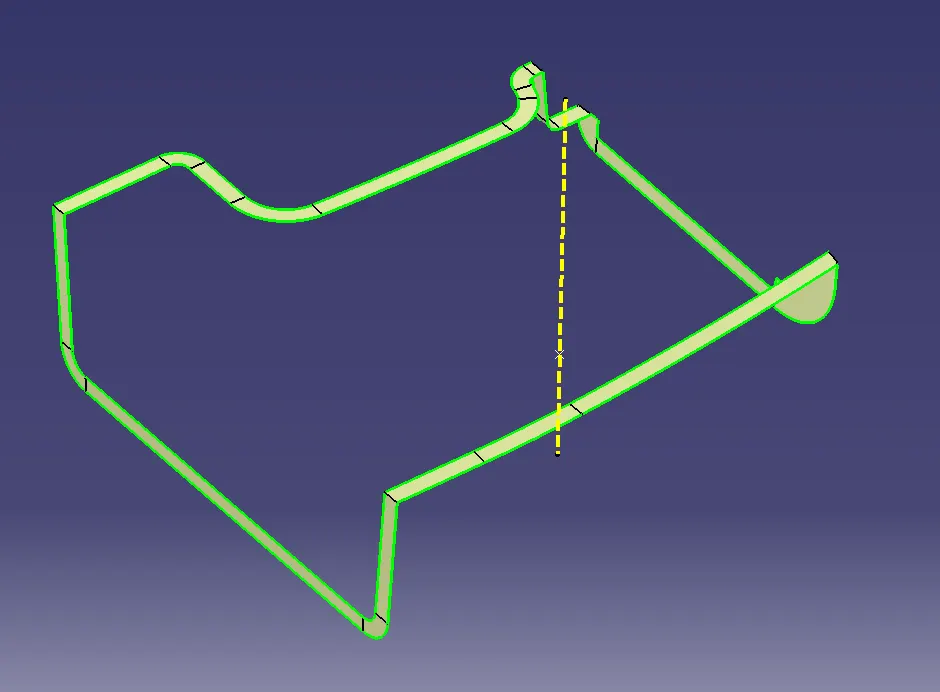

CLASS C SURFACE IS CREATED USING SWEEP COMMAND AND BOUNDARY OF CLASS A SURFACE.

EXTRAPOTED, TRIMMED AND JOINED.



CLASS A AND C JOIN:

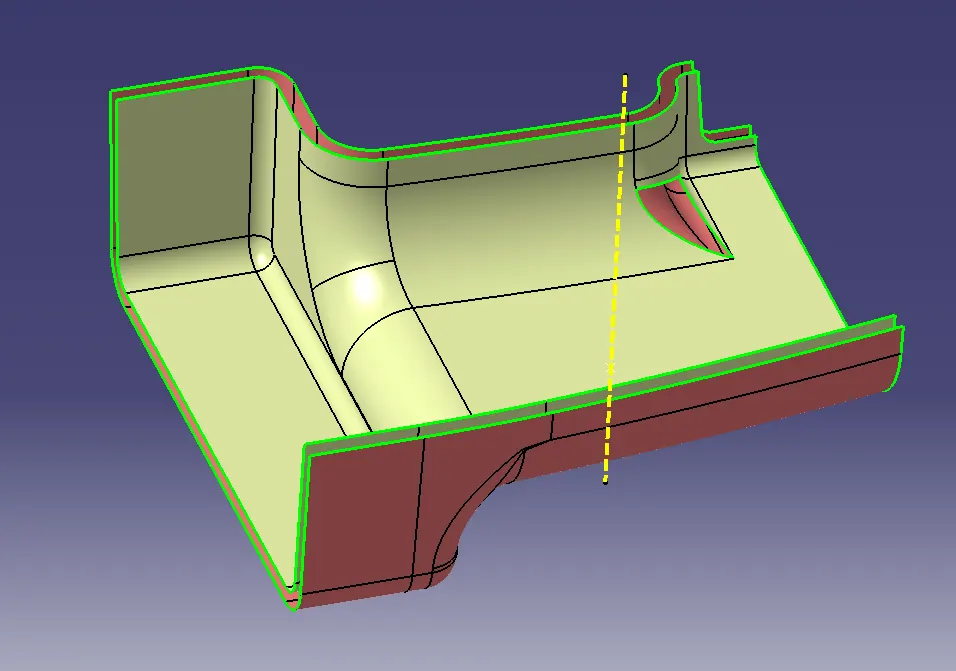

CLASS A+B+C:

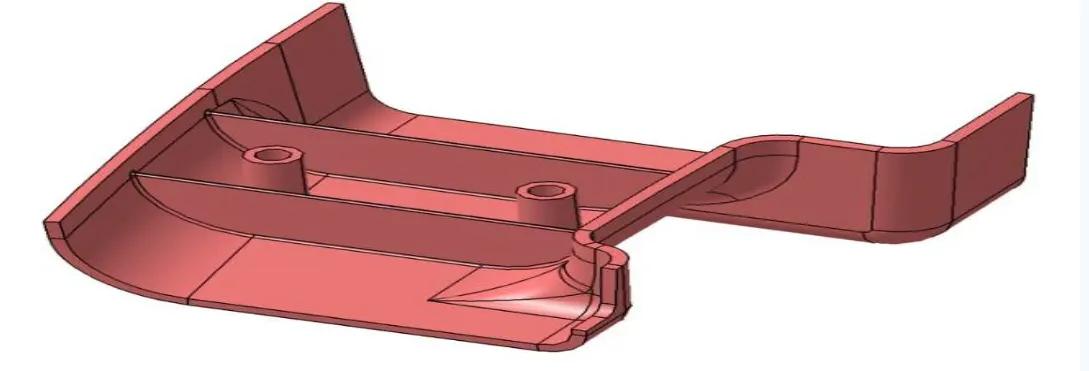

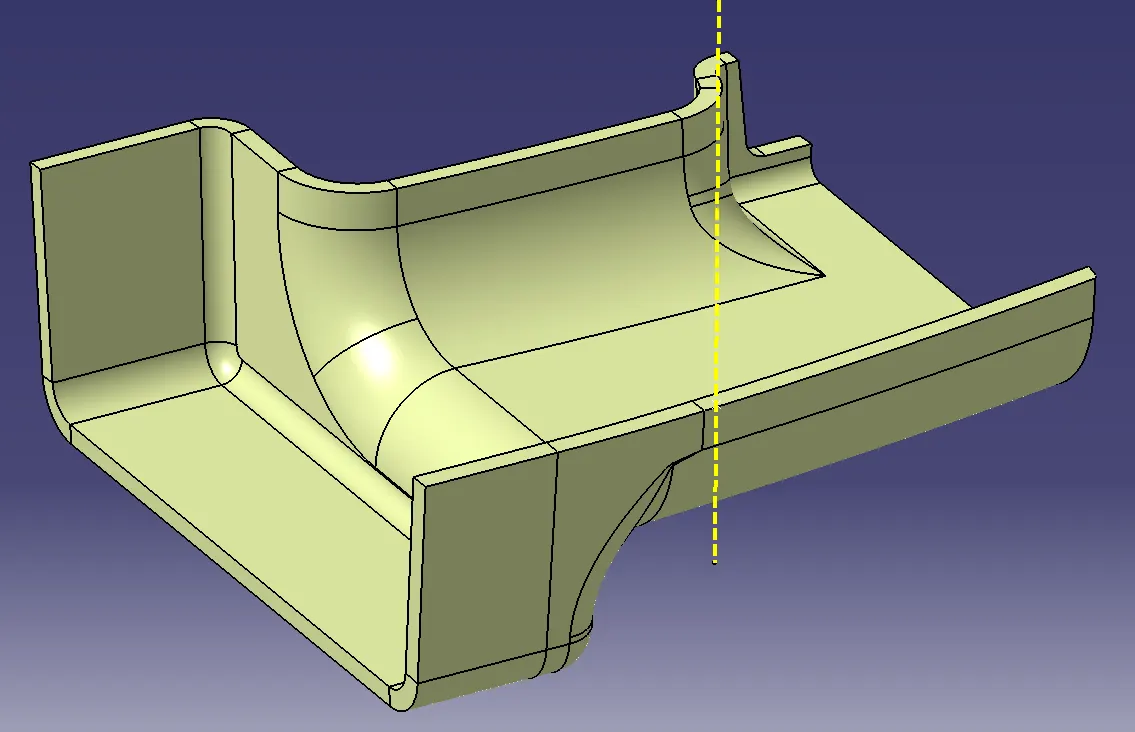

SOLID PART (CLOSED SURFACE):



ENGINEERING FEATURES:

IT IS USED ON B SIDE SO IT ALSO CALLED AS B SIDE FEATURES

IT IS USED FOR POSITION THE PART WITH THE COUNTERPART IN ASSEMBLY.

USED TO LOCK PARTS AND ALSO USED AS GUIDE

THERE ARE MANY ENGG FEATURES

• RIBS
• SCREW BOSS
• DOG HOUSE
• SNAP
• CLIP TOWER ETC.,

FOR NOW IN THIS EXERCISE WE ADDED RIBS AND SCREW BOSS AS PER GIVEN REQUIRMENT

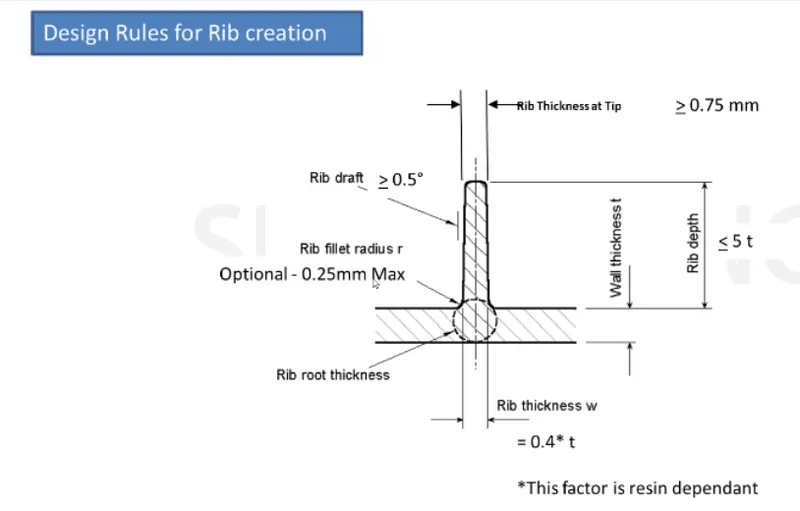

RIBS:

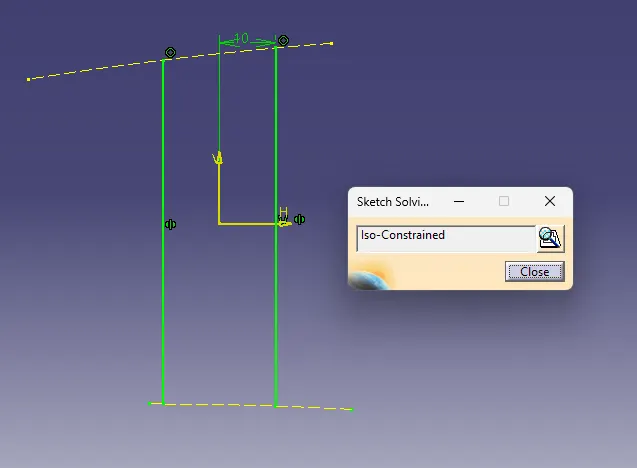

ISO CONSTRAINED SKETCH

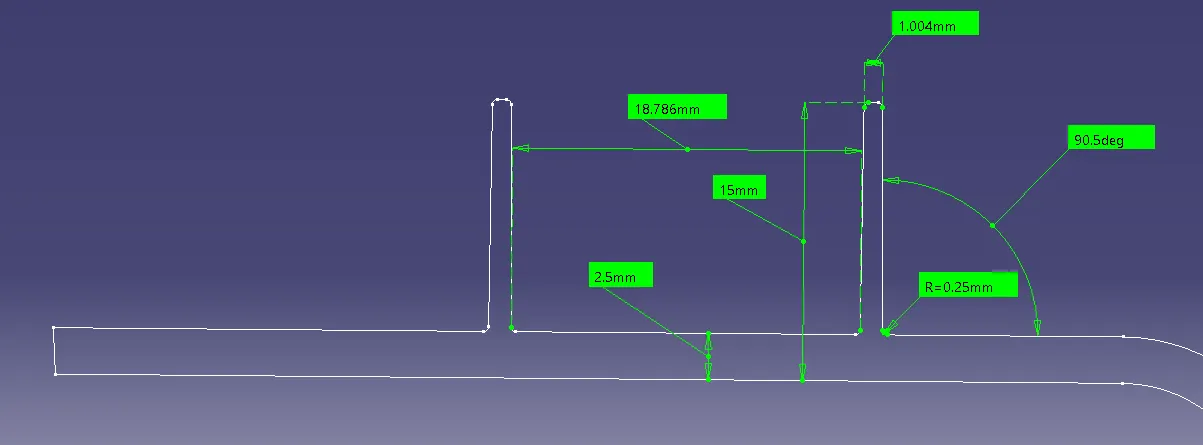

GAP BETWEEN RIBS IS - 2T

MEASURMENTS OF PART RIB:

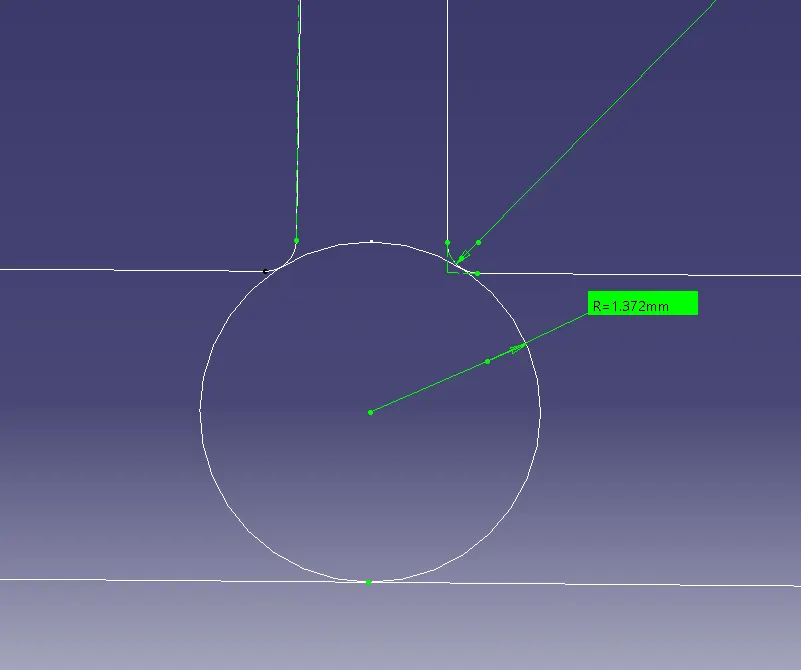

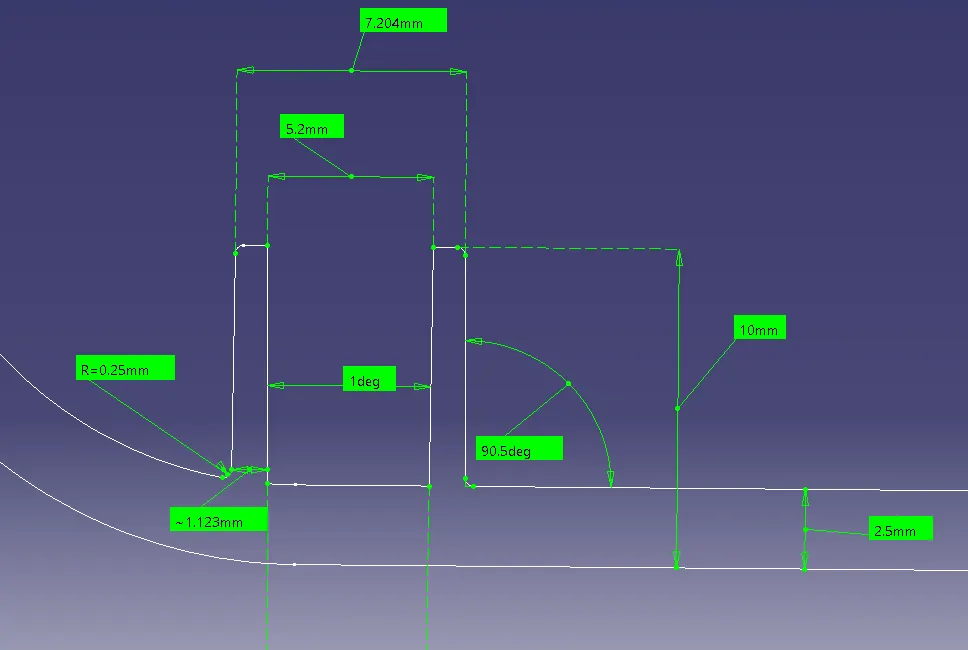

RIB ROOT THICKNESS:

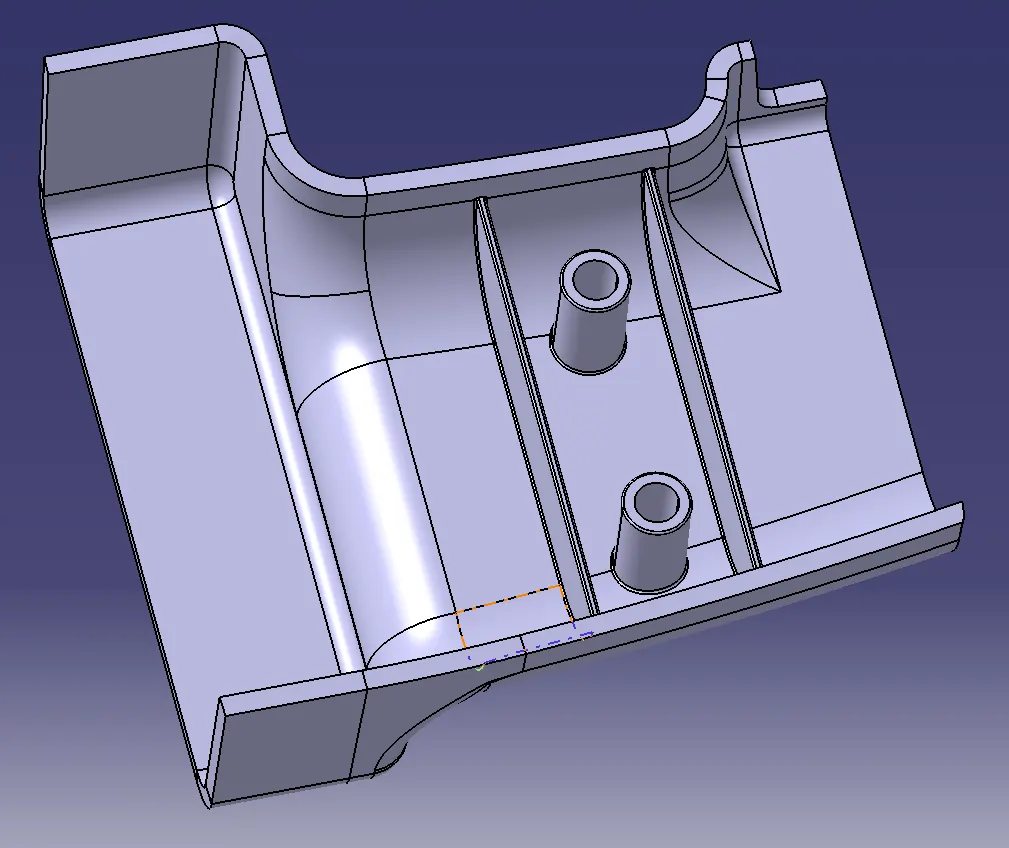

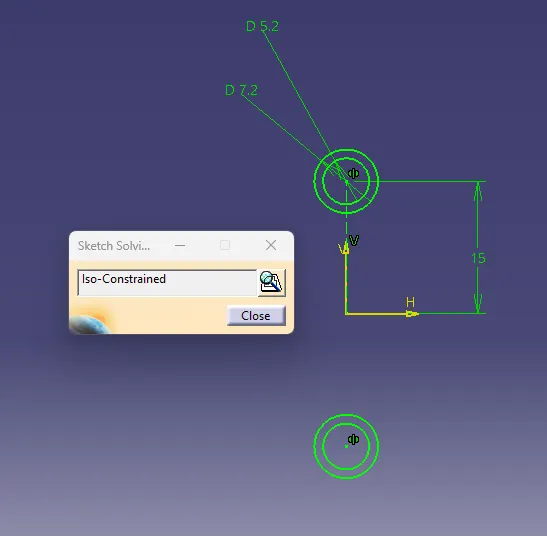

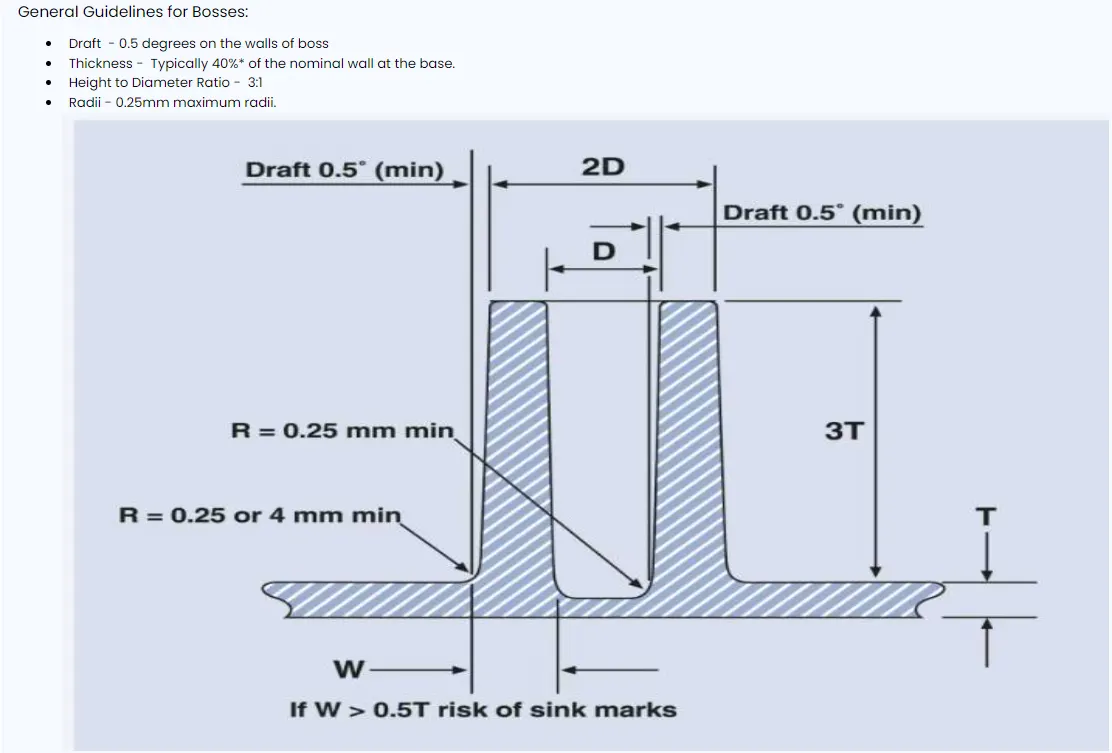

SCREW BOSSES:

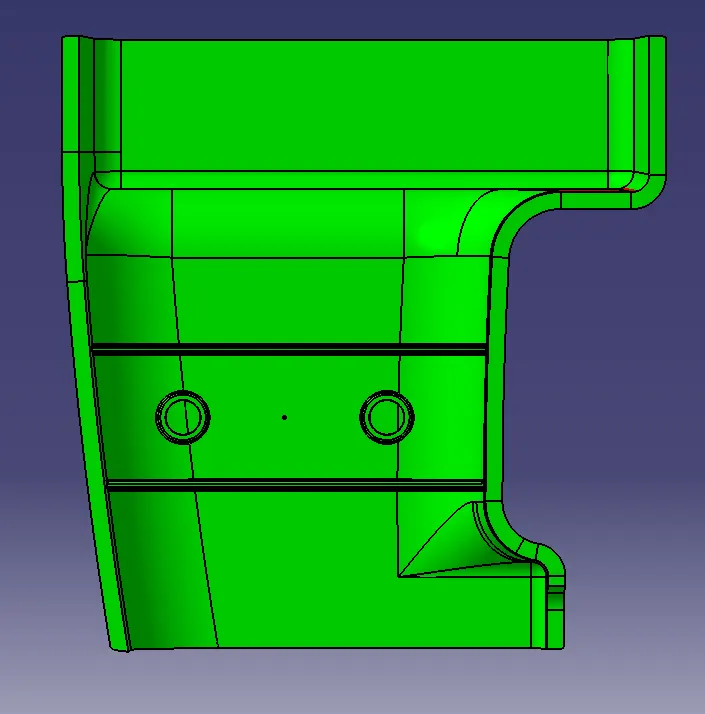

SCREW BOSSES ARE CREATED:

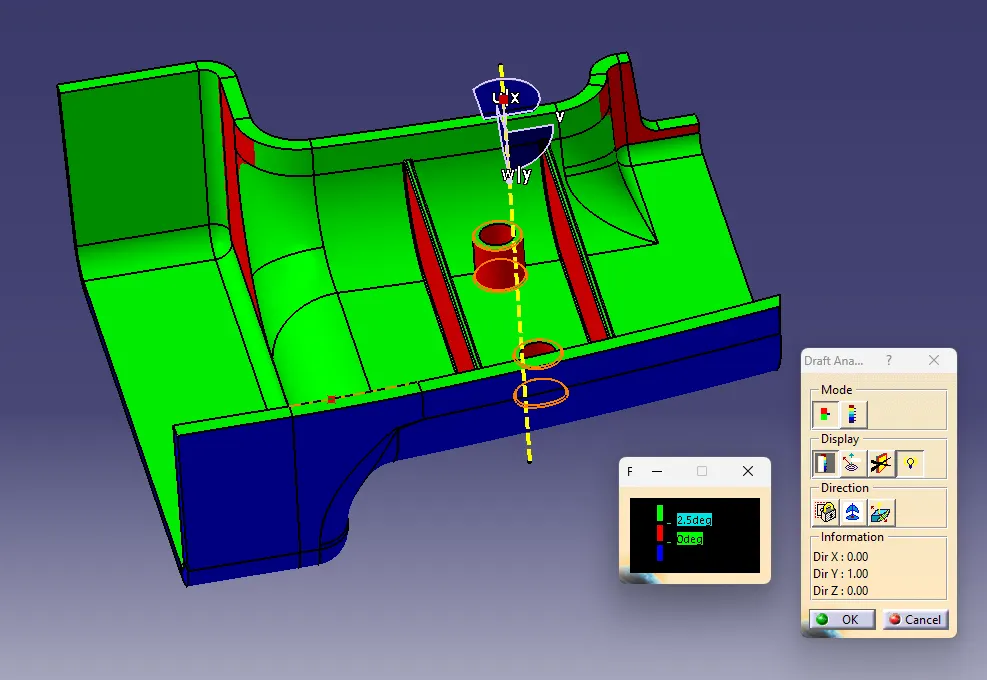

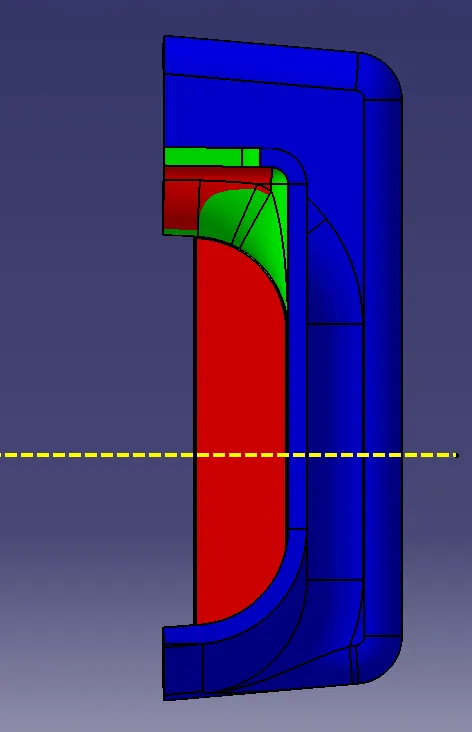

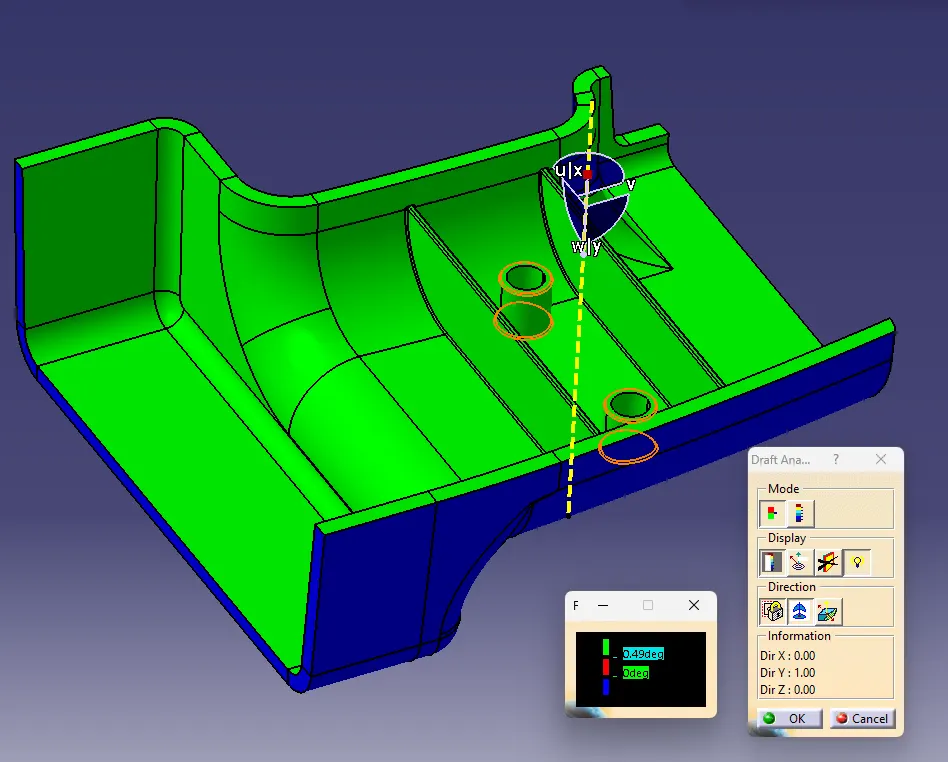

DRAFT ANALYSIS FOR FINAL COMPONENT:

0.49 DEGREE CLEARES CHECKED FOR RIBS AND SCREW BOSSES

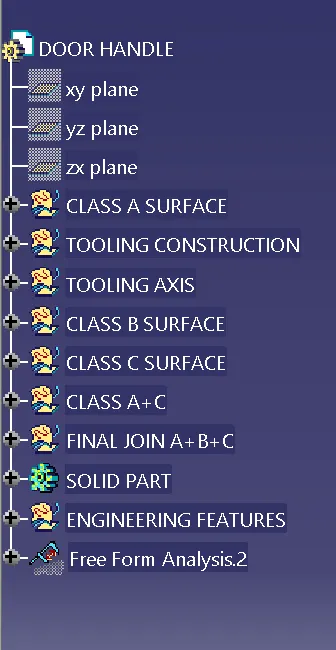

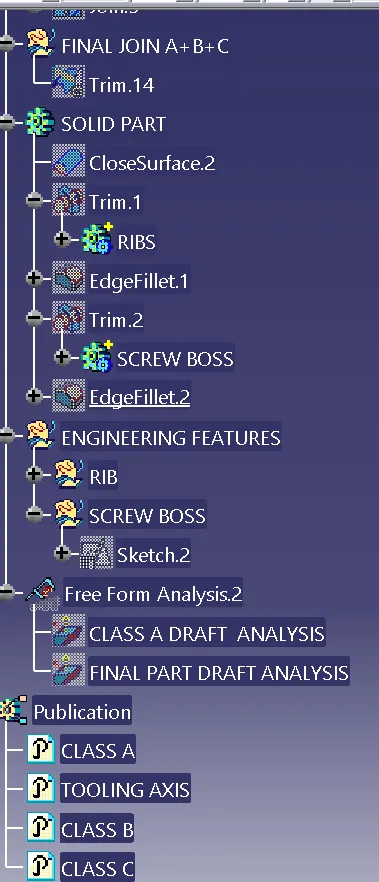

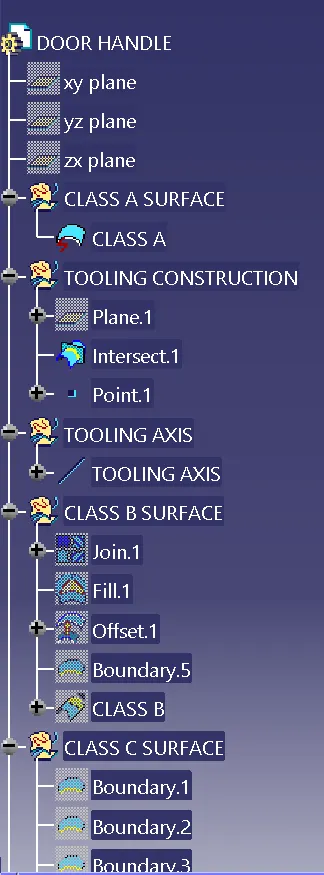

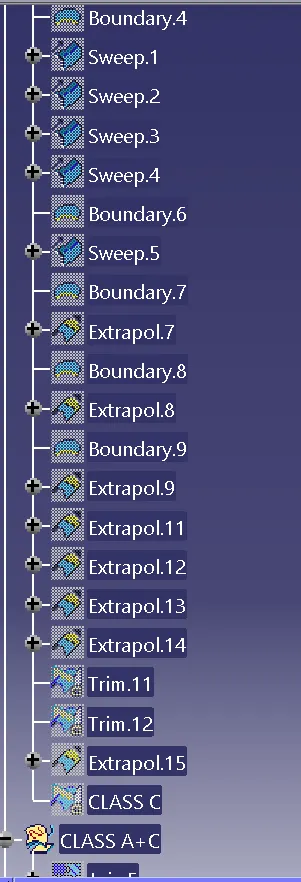

FEATURE TREE STRUCTURE (EXPANDED AND COLLAPSED):

CONCLUSION:

WITH THE GIVEN STYLING DATA SOLID PART IS CREATED.

RIBS AND SCREW BOSS ARE ADDED ON B SIDE.

DRAFT ANALYSIS REPORT IS DONE.

NEED TO SEND CLASS A DRAFT ANALYSIS TO STYLING TEAM FOR UPDATED CLASS A (CLASS A NOT HAVING ENOUGH DRAFT).
