Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Aim: To create the Ribs and Screw boss to the given feature.

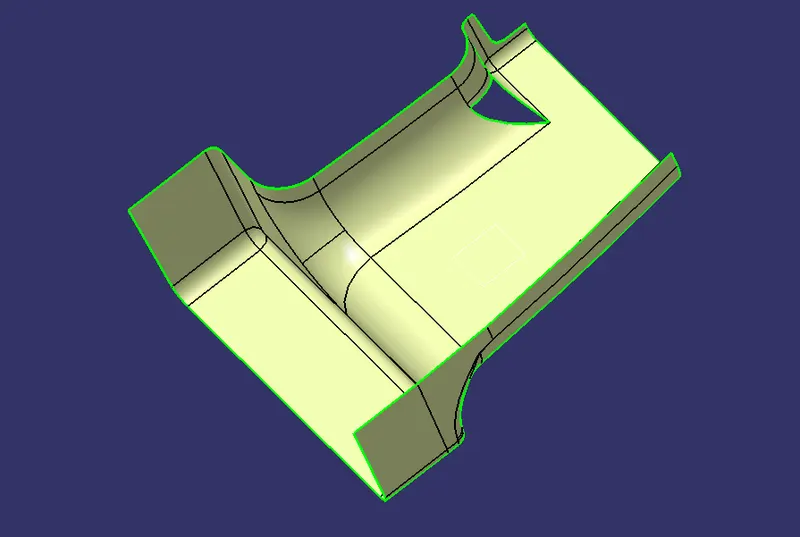

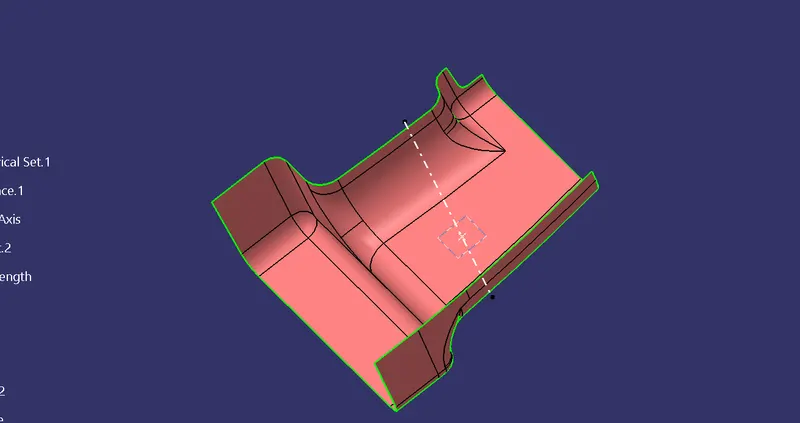

Tooling Axis: Initially A surface feature was given for the need to create a tooling axis. There are 3 types of methods there in this we used normal to the surface. After creating the tooling axis need to create a B surface.

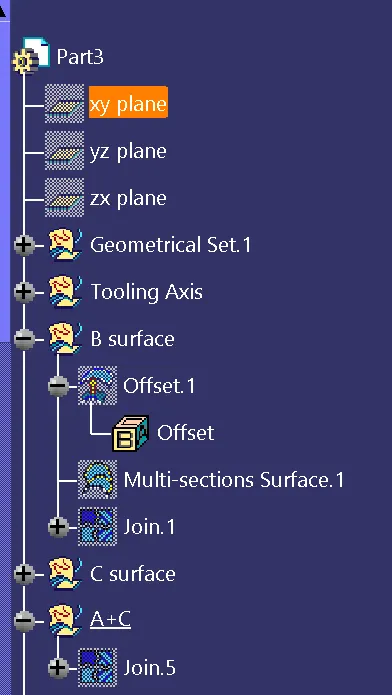

Creating B-Surface: For a given A surface need to create a B surface because all the engineering need to develop on the B side only. Need to offset the part with 2.5mm with respect to surface A, after offsetting there will be a small patch is appear to close this need to do multi section after that by using the joining command needed to join bot bodies. By this Class B was created.

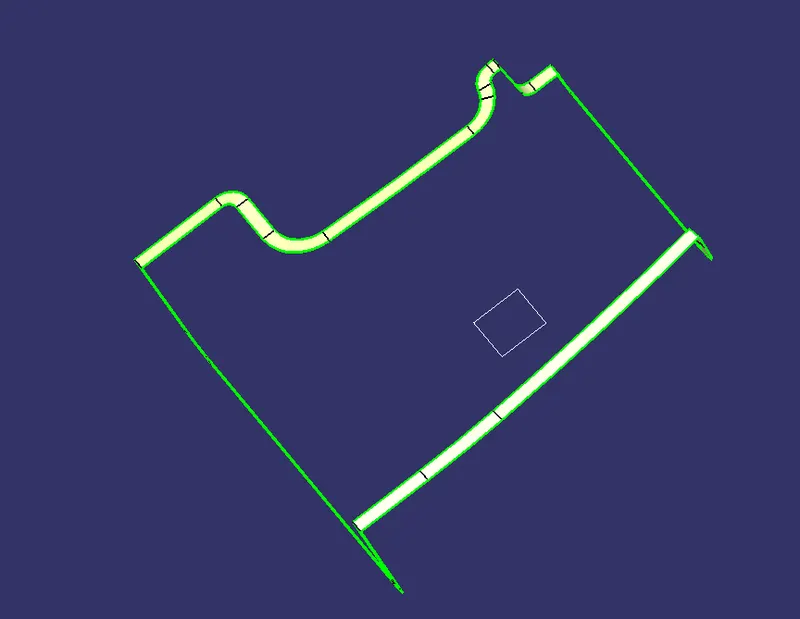

Class-C: Class-c is used to join Class-A and Class-B. Need to use boundary and Sweep commands to create overall sides after that need to join all sweep by using the joining command. After creating class C need to join with class A by using the join command.

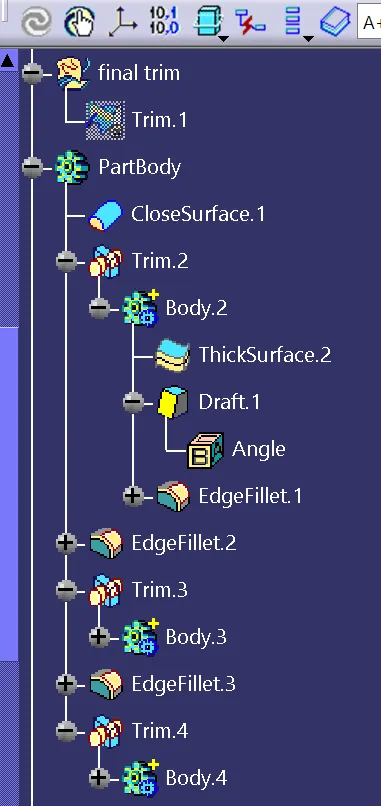

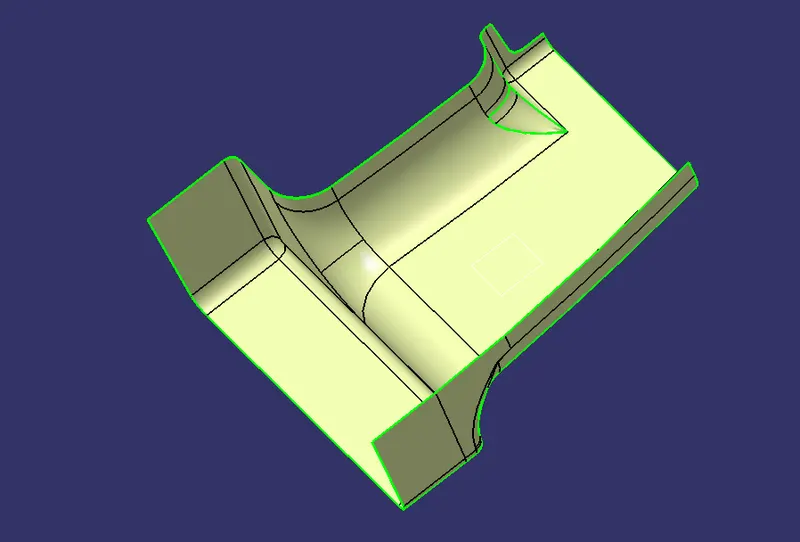

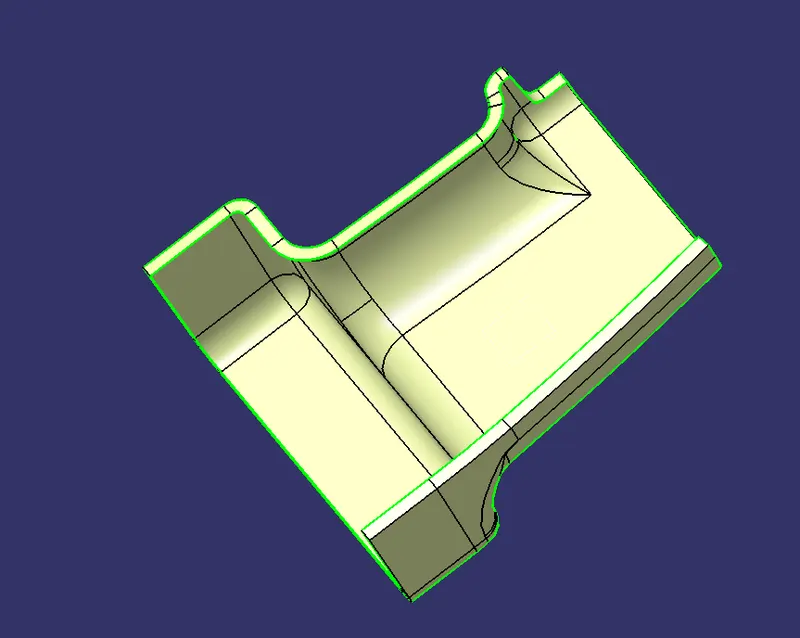

Finally, Class A+c and Class B need to trim by using the trim command, and after that need to do closed surface and convert to solid.

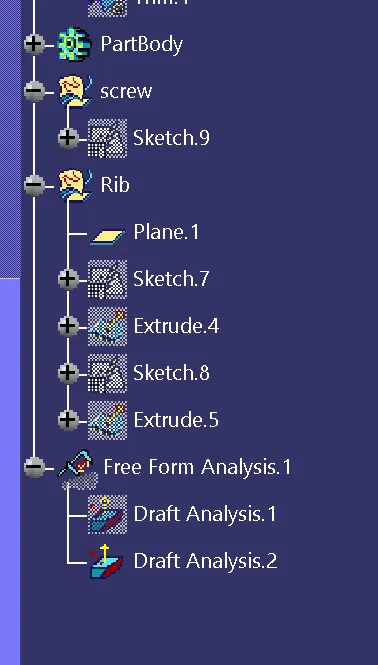

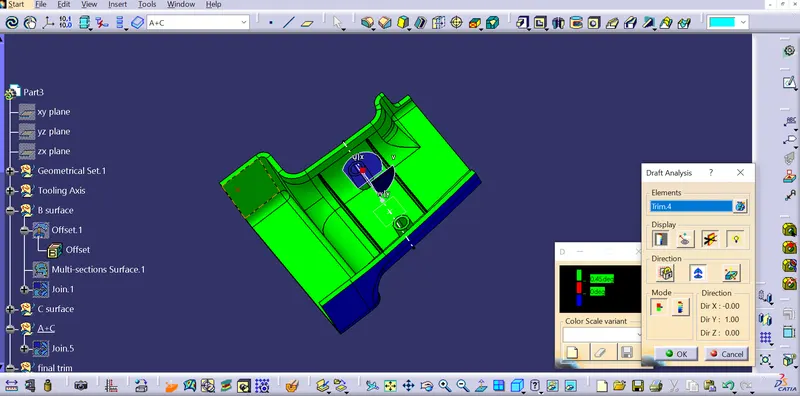

Creating the Ribs: For creating the Ribs need to follow the rib design rules. After that need to create do thicken finally need to do drafting, Same process need to do for creating a screw boss. Finally need to do a draft analysis with 0.45 degree.
