Week 10:- 2D Detailing Challenge
Aim:-
- Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.
- Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8
Aim:-
- Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.
- Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8.
<!--[endif]-->
Fig 01:- Fixture assembly Key sheet
<!--[endif]-->

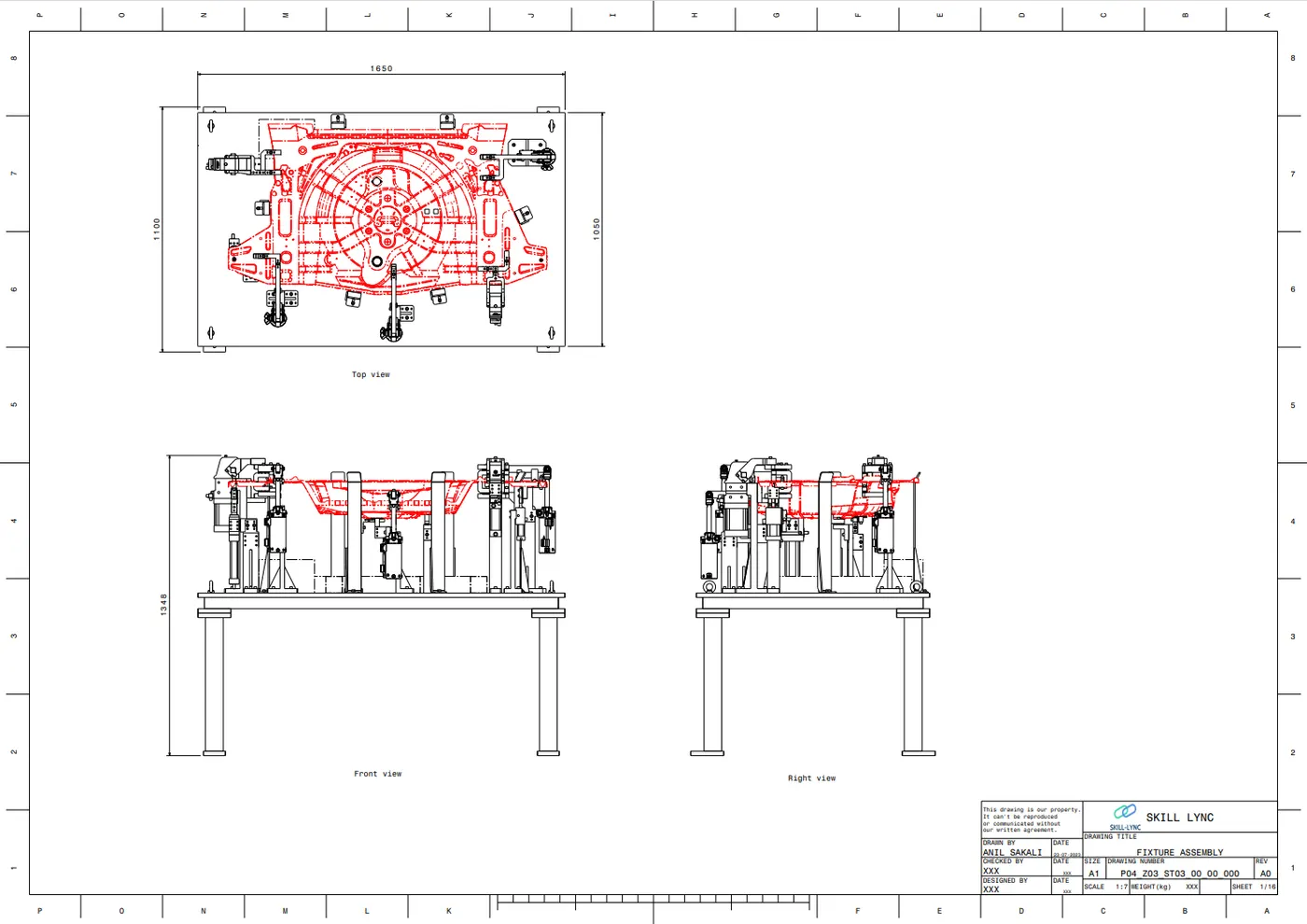

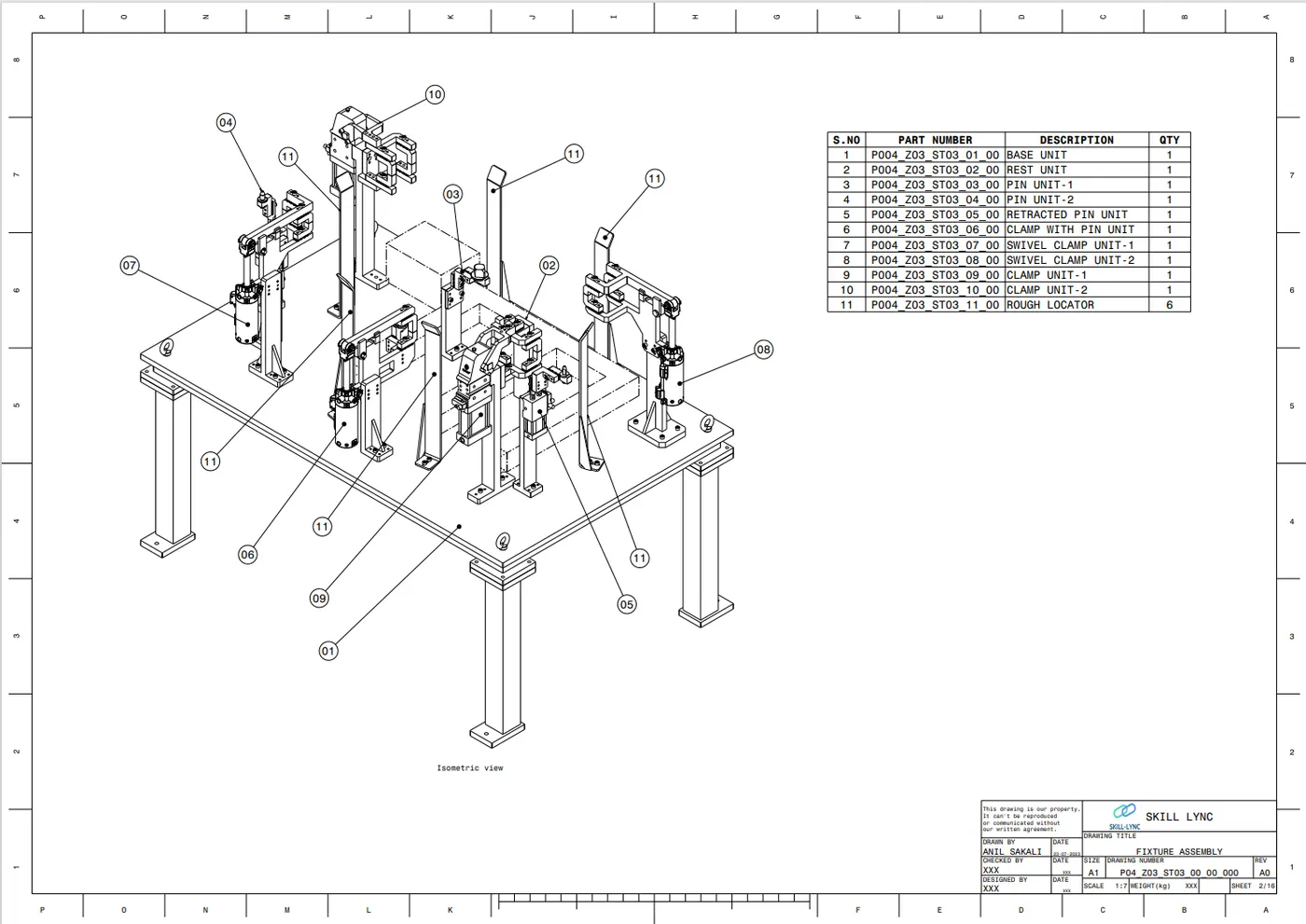

Fig 02:- Fixture assembly layout sheet
<!--[endif]-->
Fig 03:- Base assembly Key sheet
<!--[endif]-->

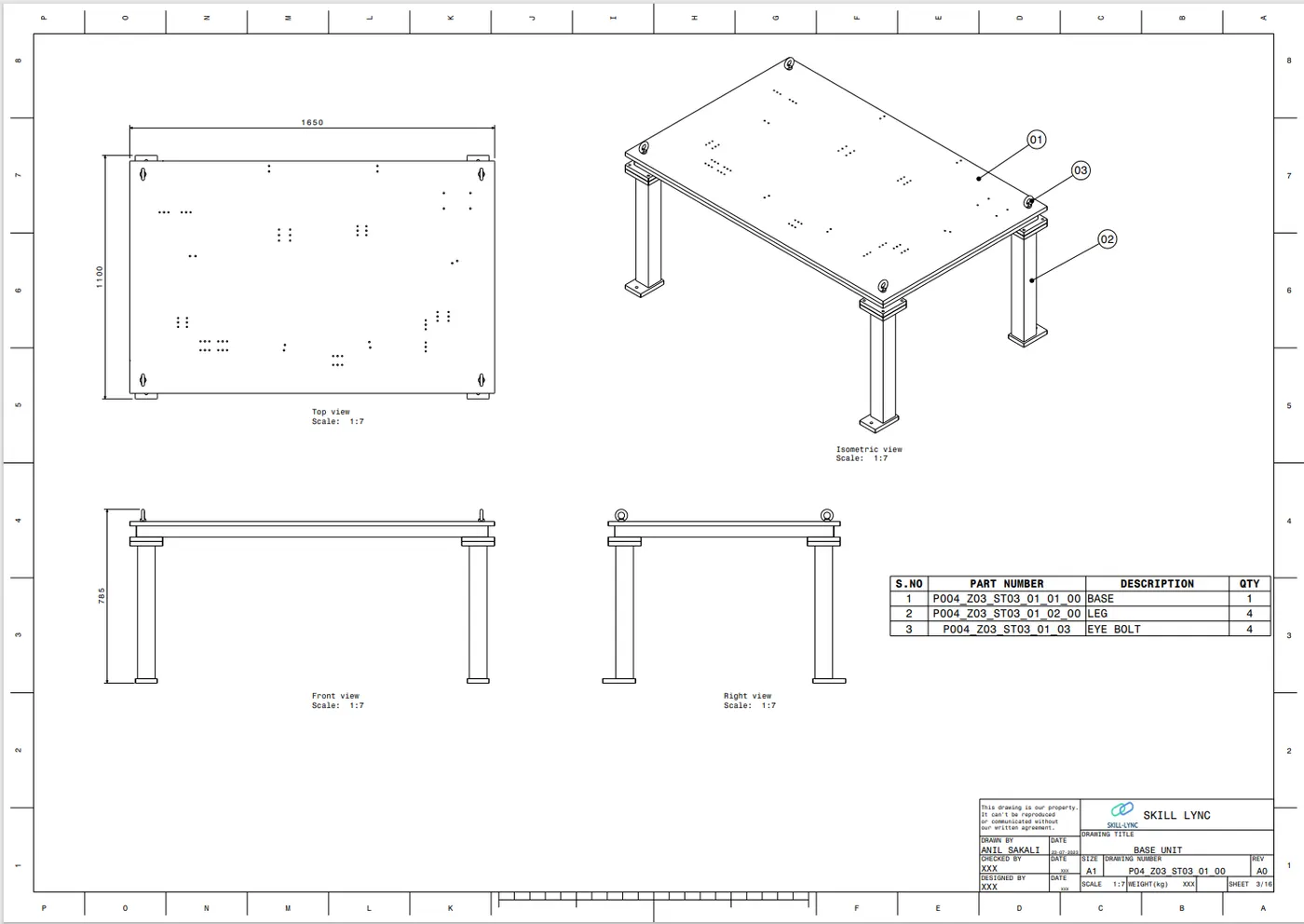

Fig 04:- Base assembly Layout sheet
<!--[endif]-->

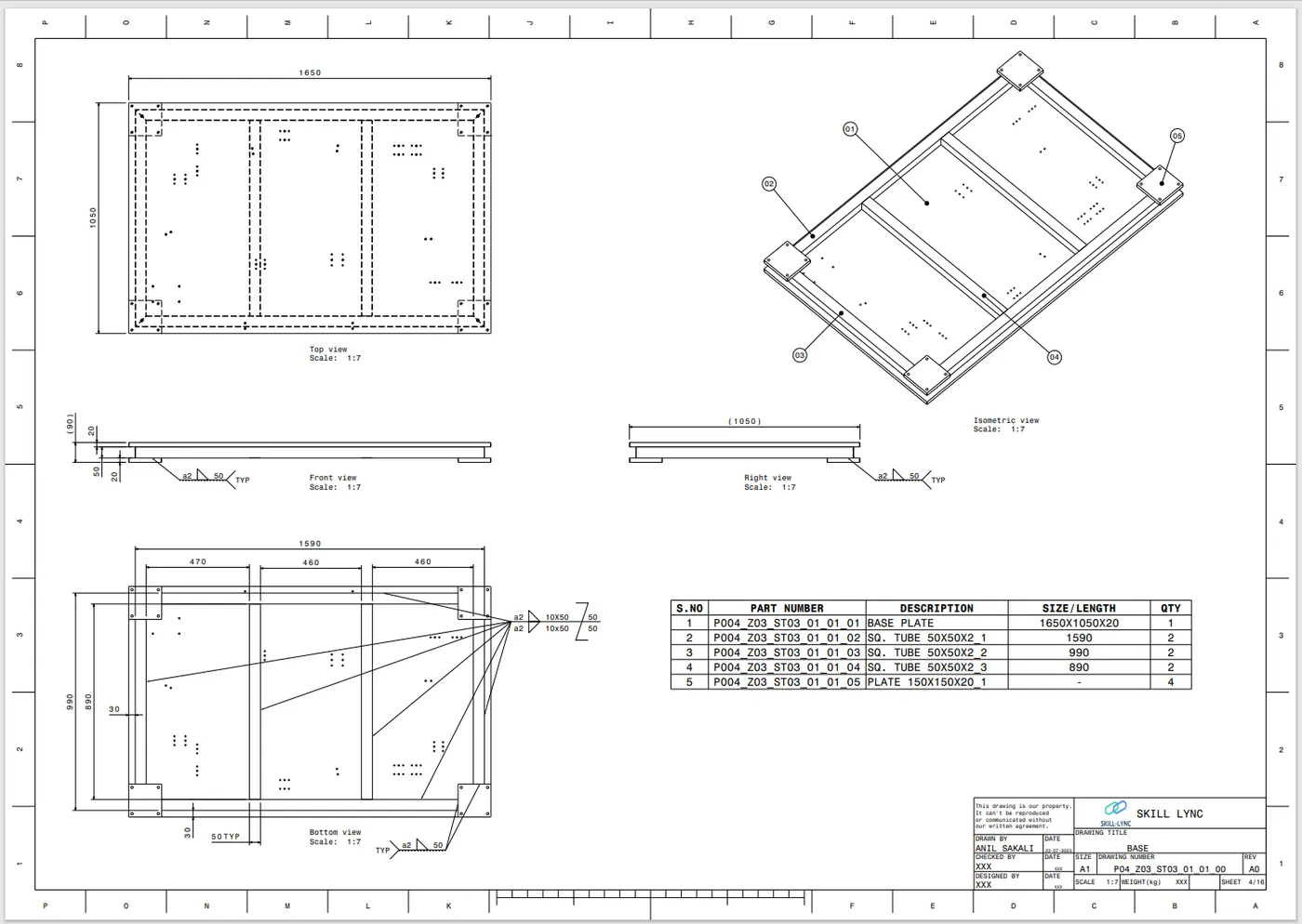

Fig 05:- Base assembly hole detailing
<!--[endif]-->

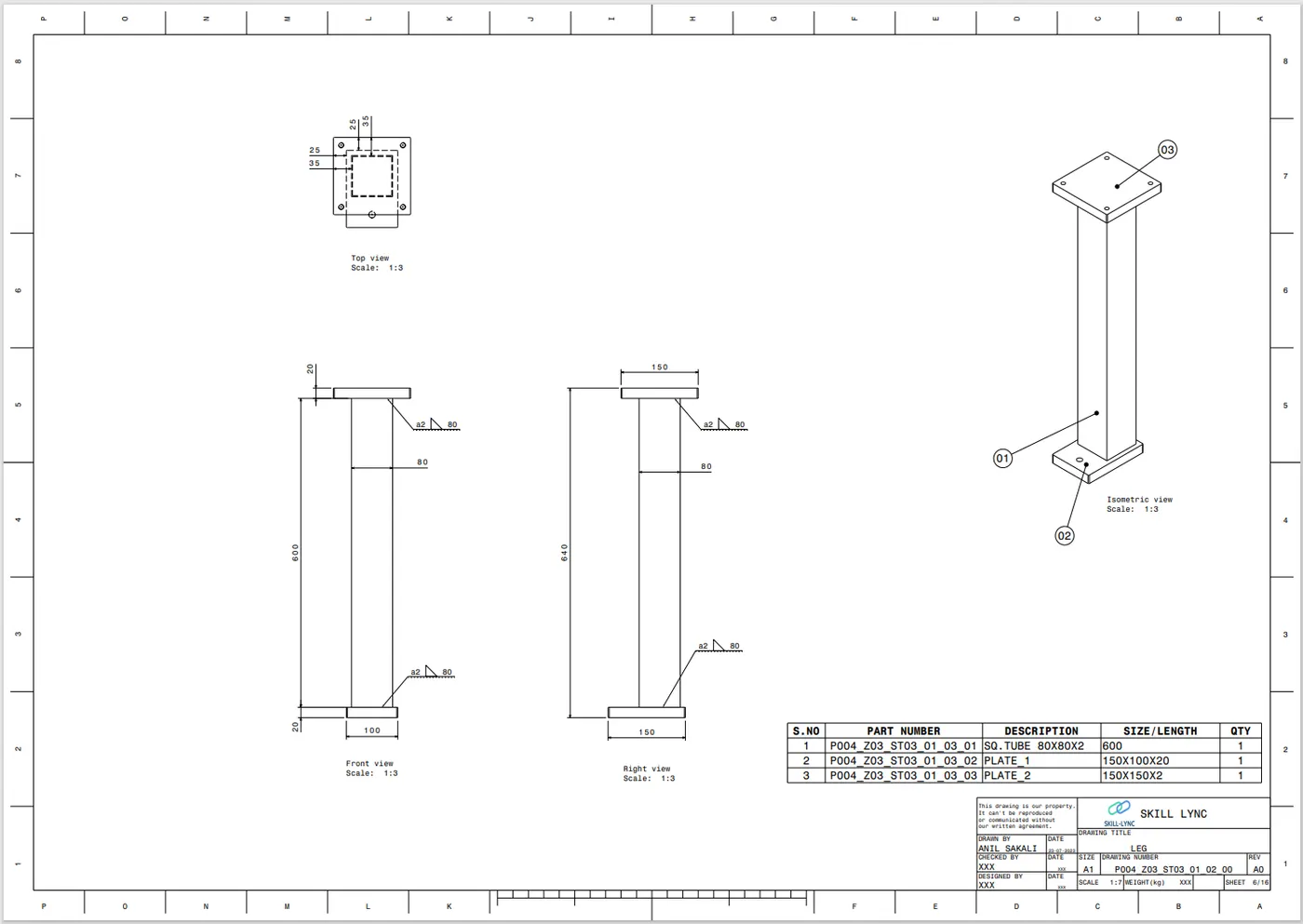

Fig 06:- Leg assembly detailing
<!--[endif]-->

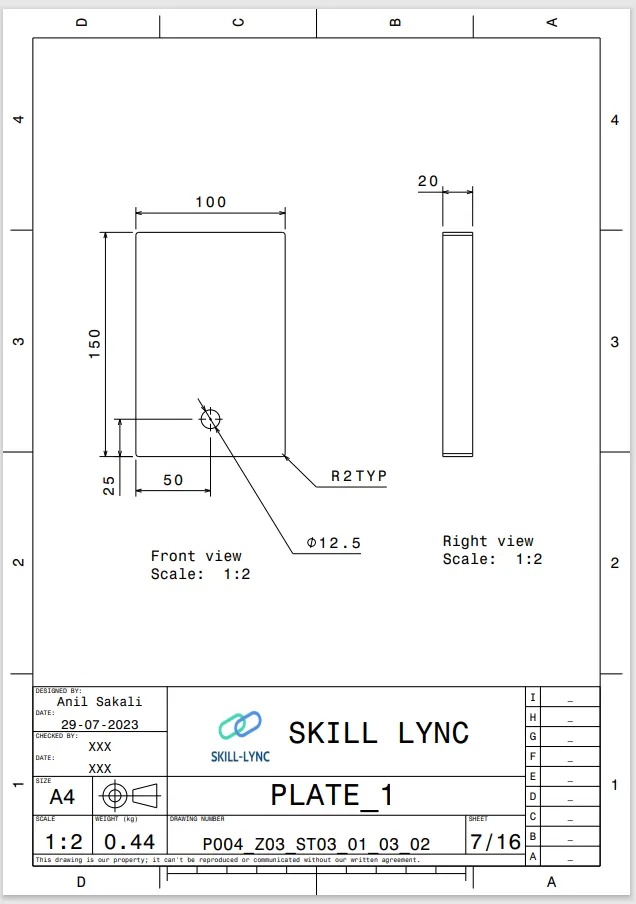

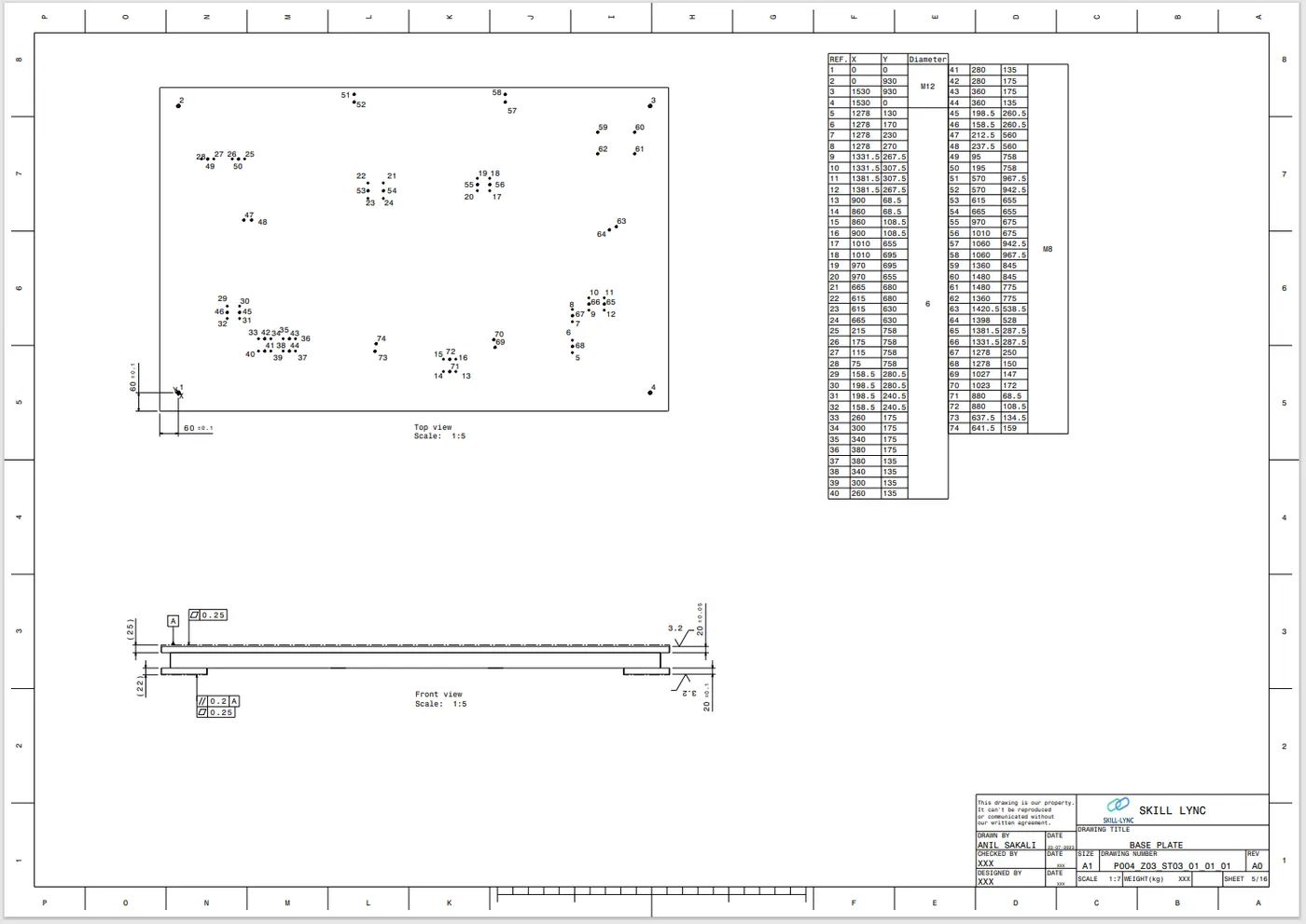

Fig 07:- Plate_1 detailing
<!--[endif]-->

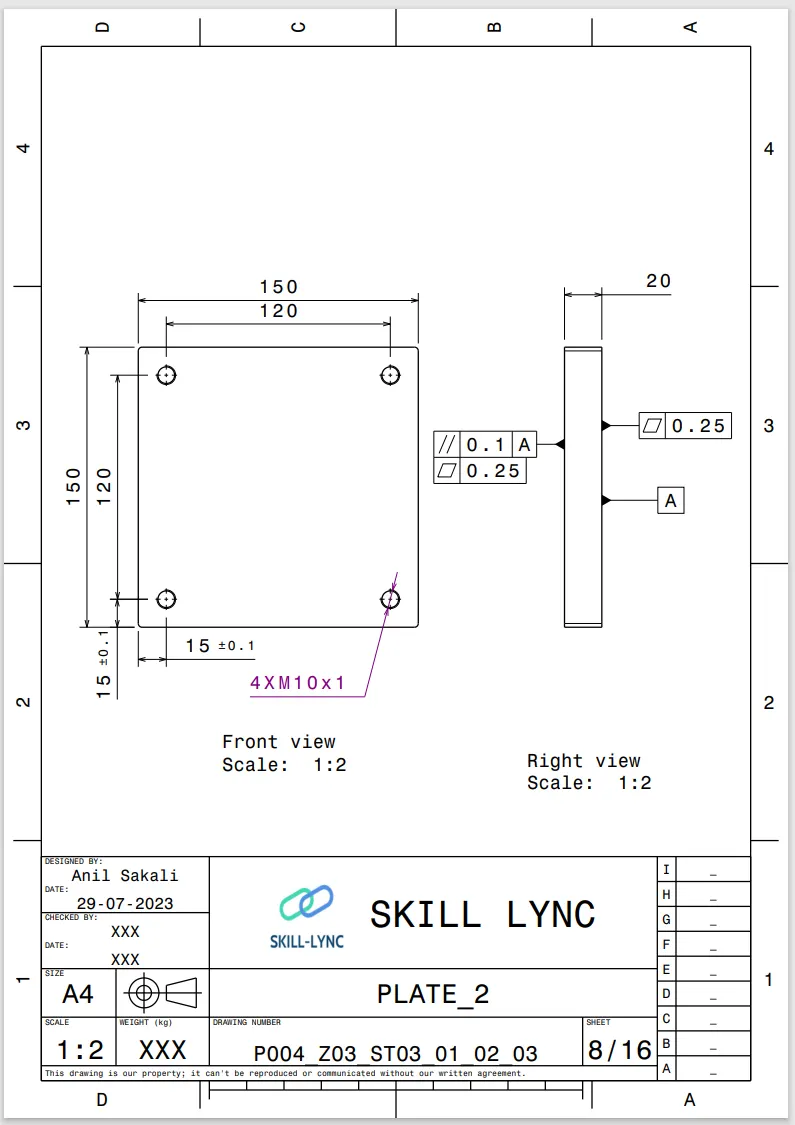

Fig 08:- Plate_2 detailing
<!--[endif]-->

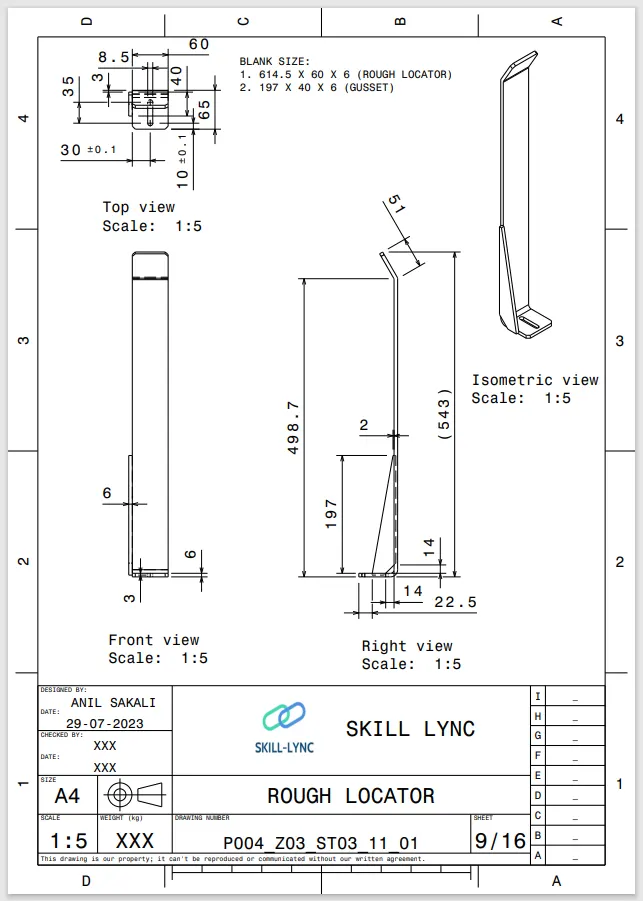

Fig 09:- Rough locator detailing
<!--[endif]-->

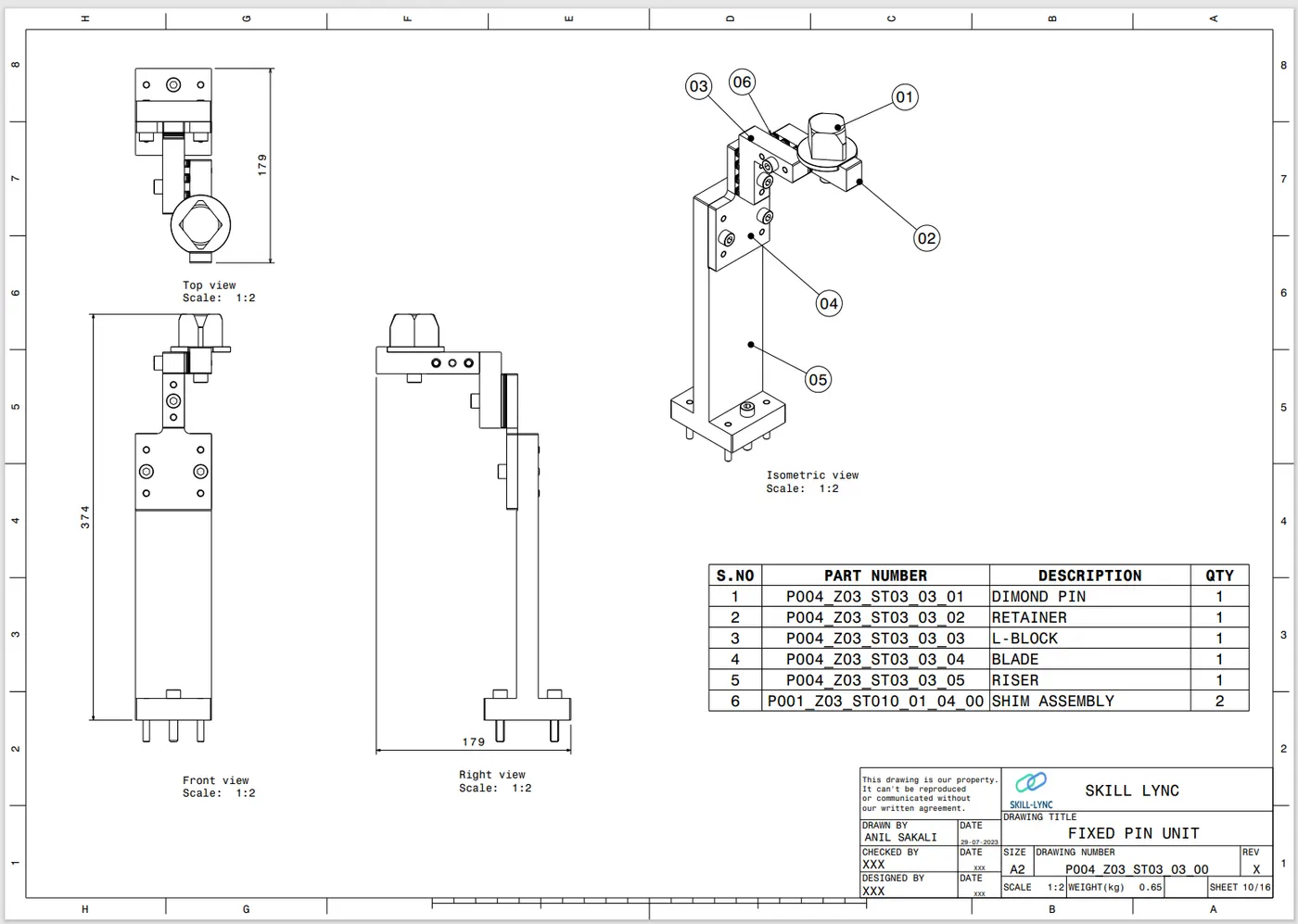

Fig 10:- Fixed Pin Unit Assy detailing
<!--[endif]-->

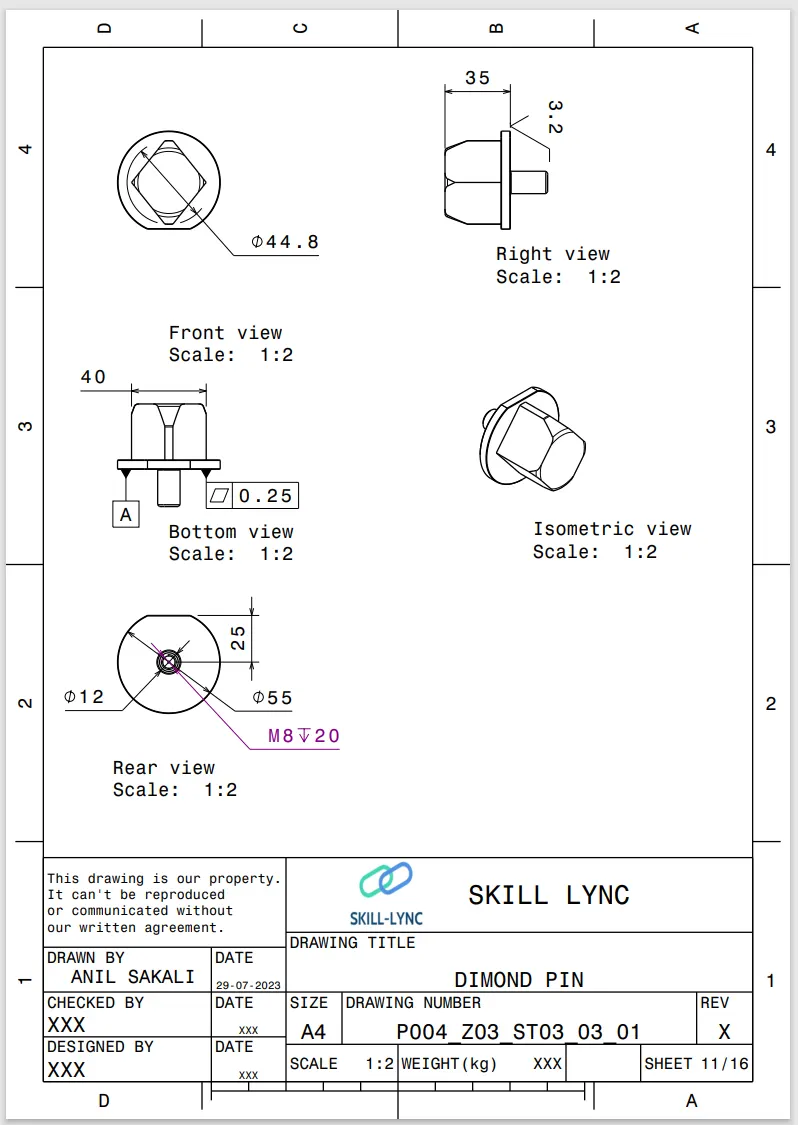

Fig 11:- Dimond Pin detailing
<!--[endif]-->

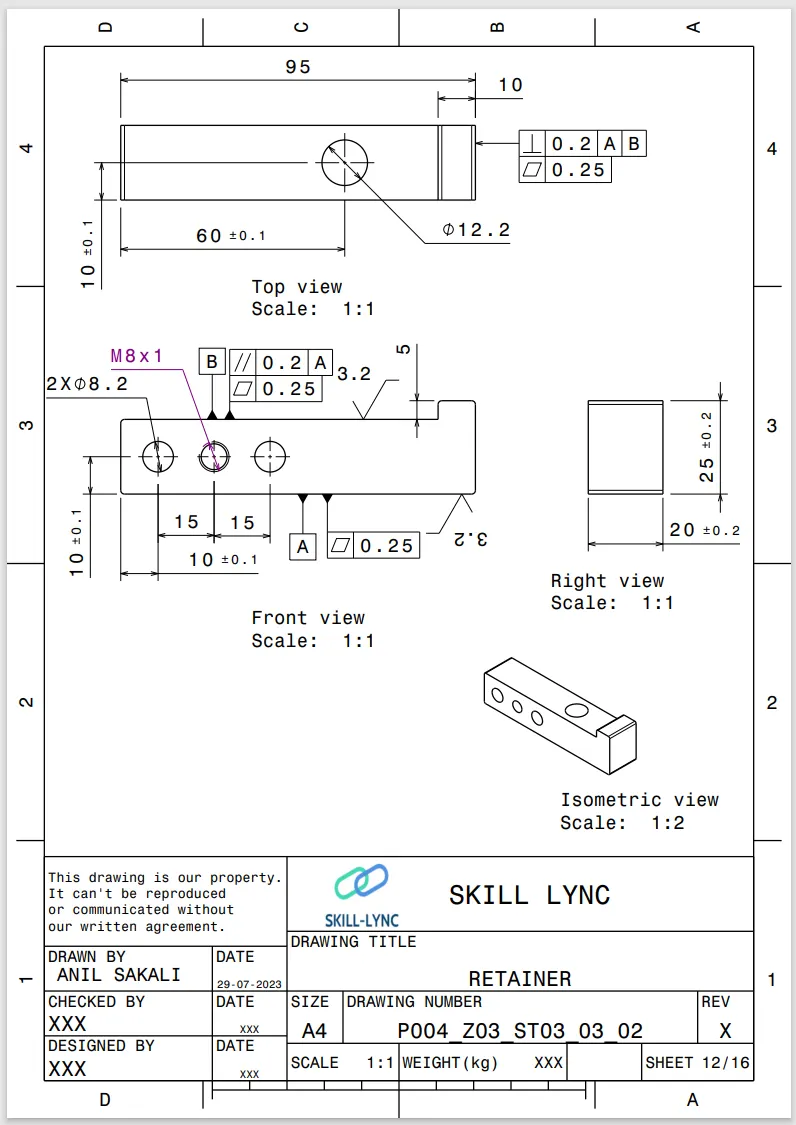

Fig 12:- Retainer detailing
<!--[endif]-->

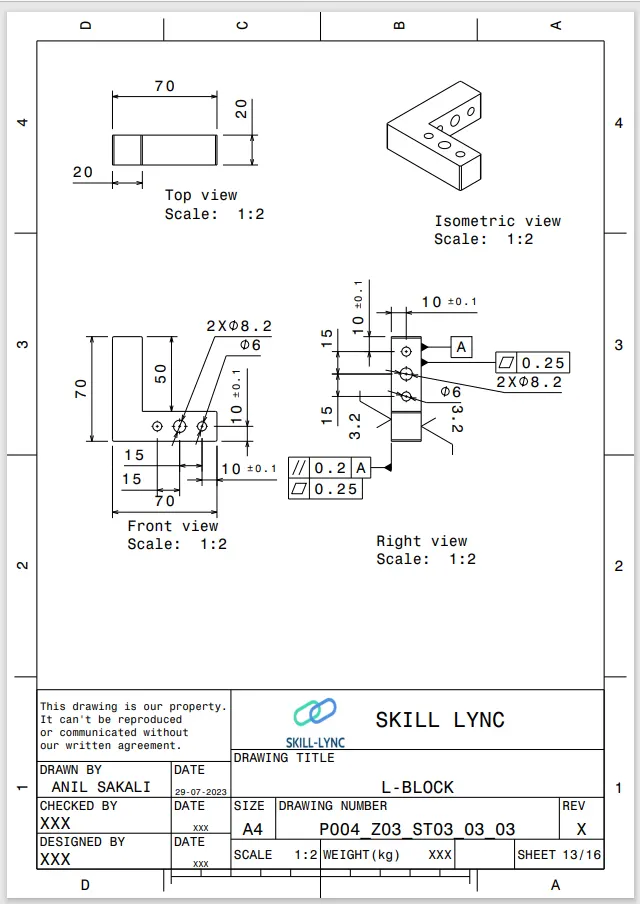

Fig 13:- L-Block detailing
<!--[endif]-->

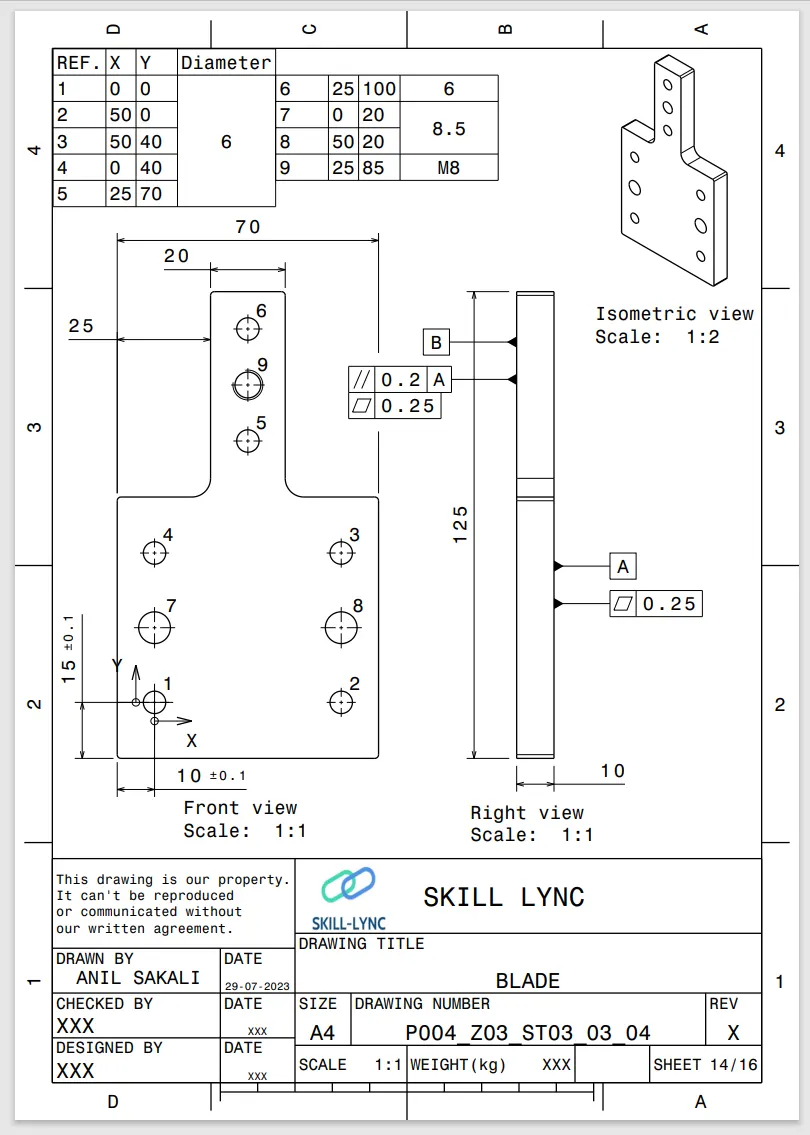

Fig 14:- Blade detailing
<!--[endif]-->

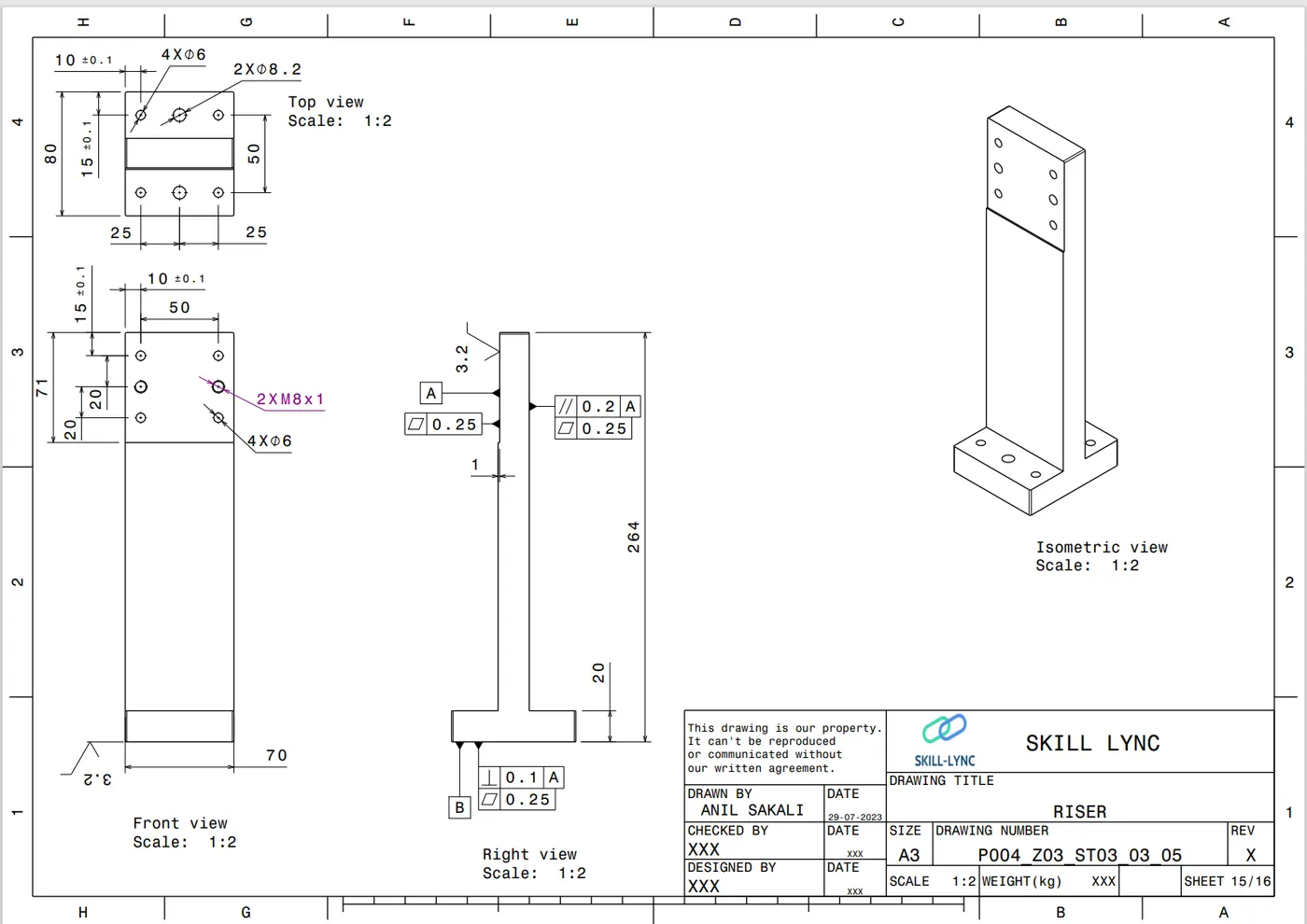

Fig 15:- Riser detailing<!--[endif]-->

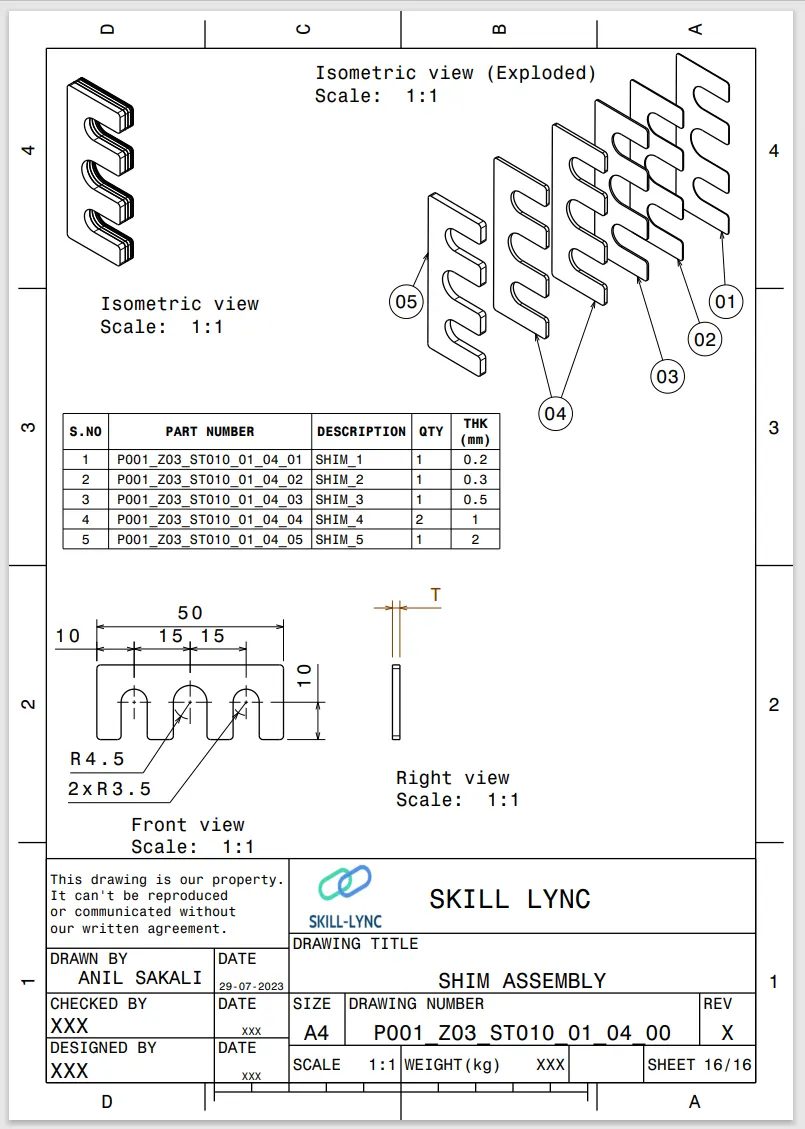

Fig 16:- Shim Assembly detailing
