Week 10:- 2D Detailing Challenge

OBJECTIVES:

• To draft a Key Sheet for the Complete Fixture assembly.
• To draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly of the given panel.

1. Key Sheet for the complete Fixture assembly: (P001_Z01_ST010_00_00)
Keysheet- It is an index of units and their placements on the tool base. It shows placement and location of that particular unit on the tool base where
exactly to be positioned. It has a standard template being used as per the company standards.
It shows orthogonal or isometric view of the entire fixture assembly.

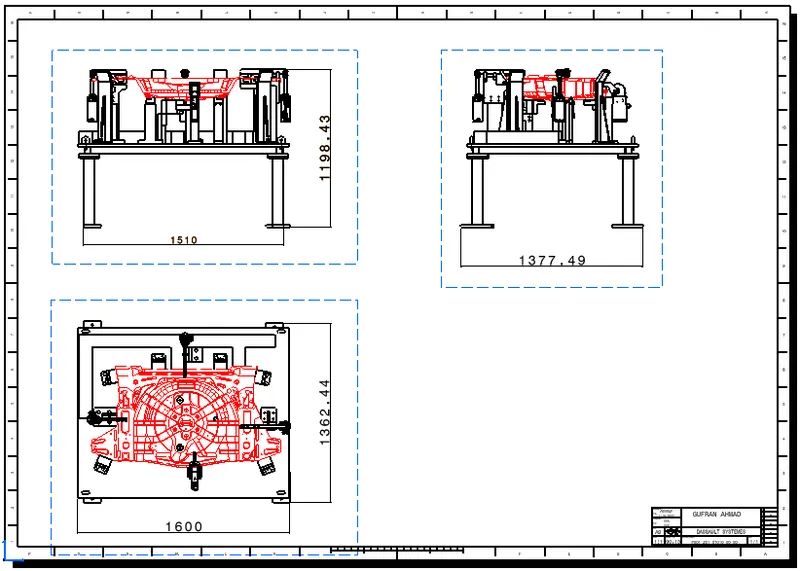

Orthographic projection view of fixture assembly: (Sheet.No: 1/2)

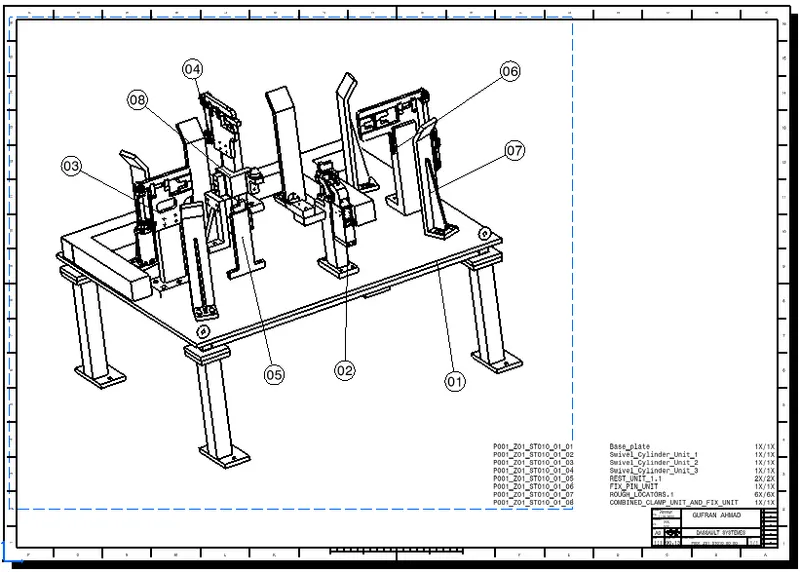

Isometric view of fixture assembly: (Sheet.No: 2/2)

2. Drafting a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly:
A. Base unit: (P001_Z01_ST010_01_00)

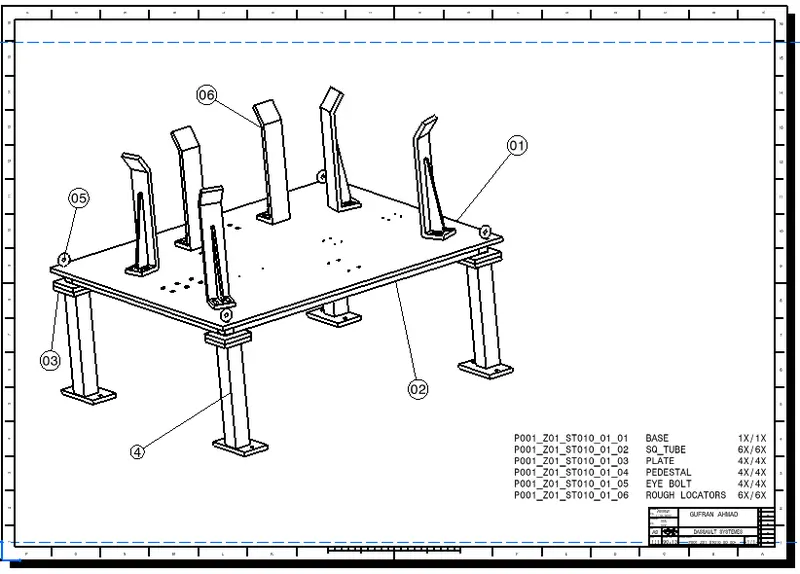

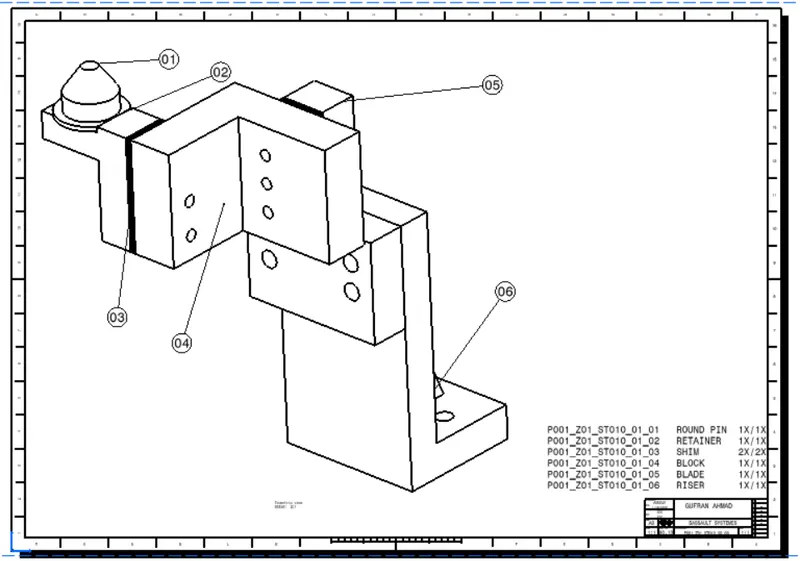

Isometric view of base unit

Orthographic view of base unit:

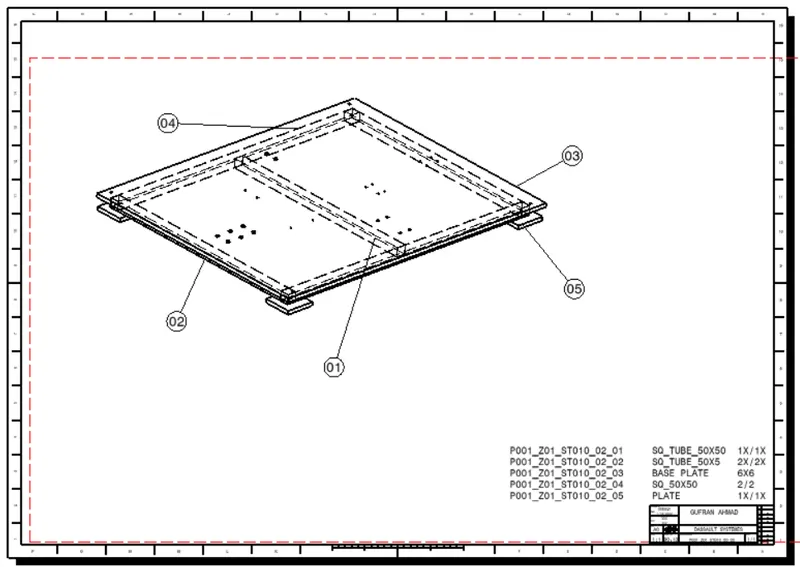

Isometric view of base plate:

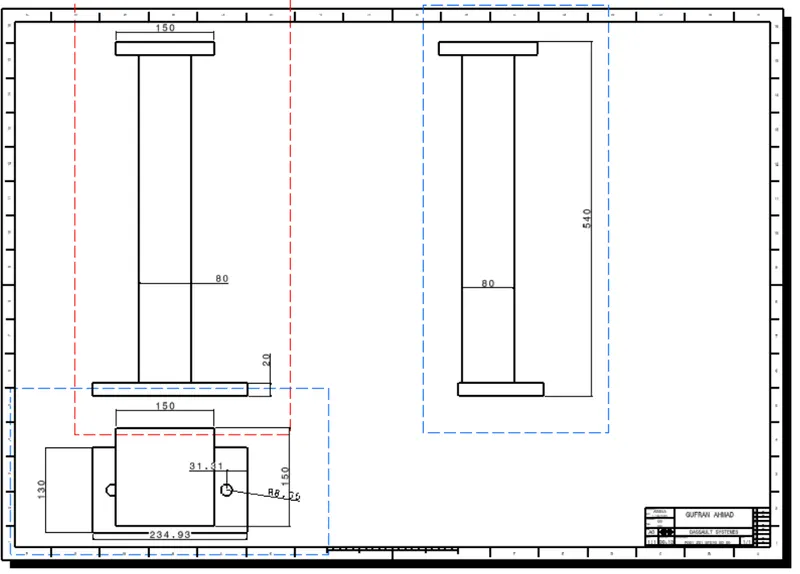

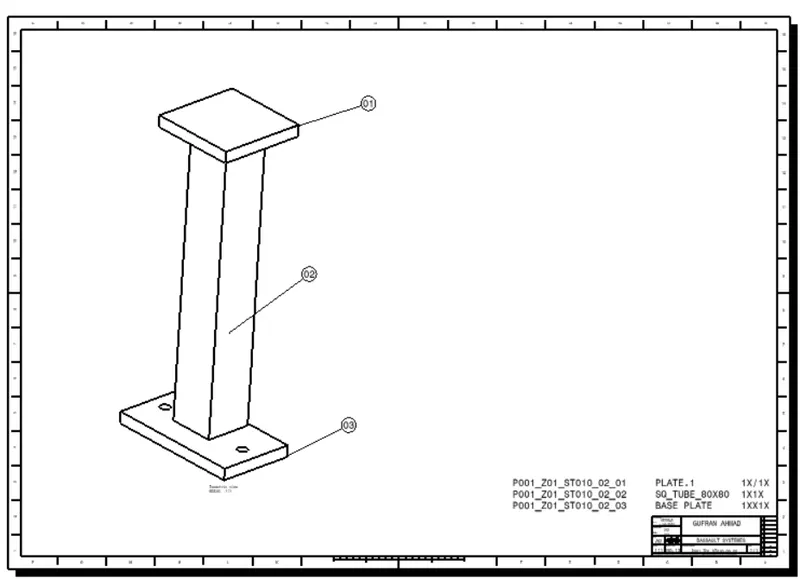

Isometric view of Pedestal: (Sheet.No: 1/9)

Orthographic view of Pedestal:

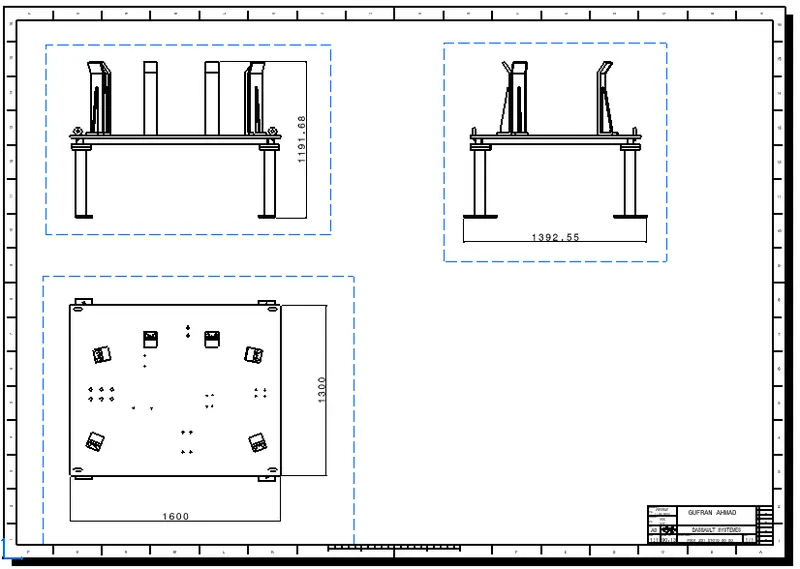

Orthographic view of base unit: (Sheet.No: 2/9)

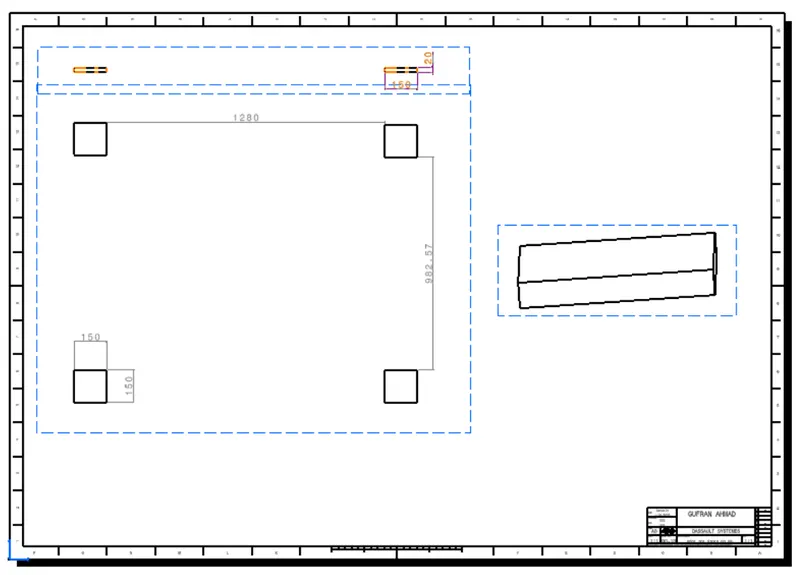

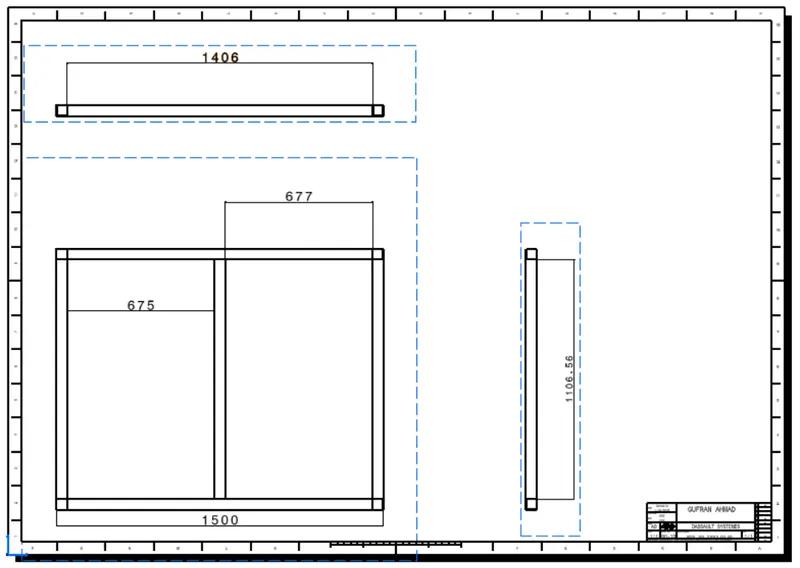

Orthographic view of base plate:

Isometric view of Fixed Pin unit:

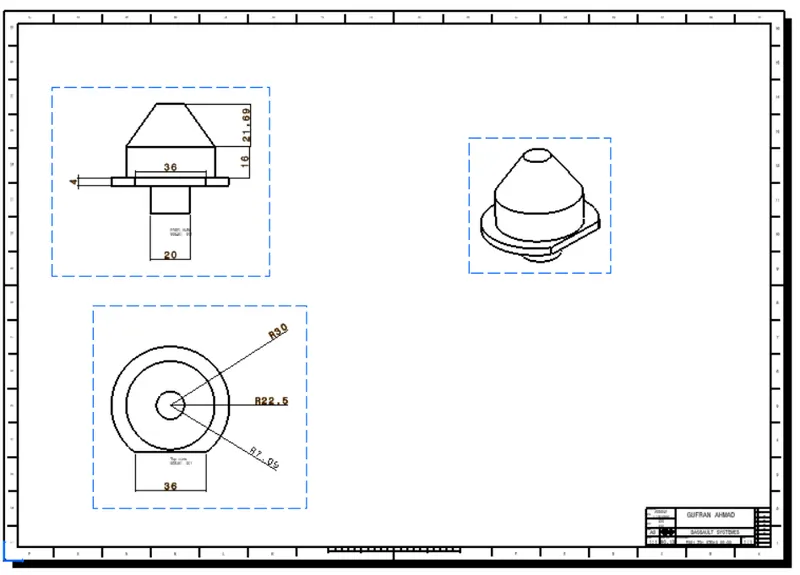

Orthographic view of Fixed Pin: (Sheet.No: 2/9)

Orthographic view of Fixed Pin retainer:

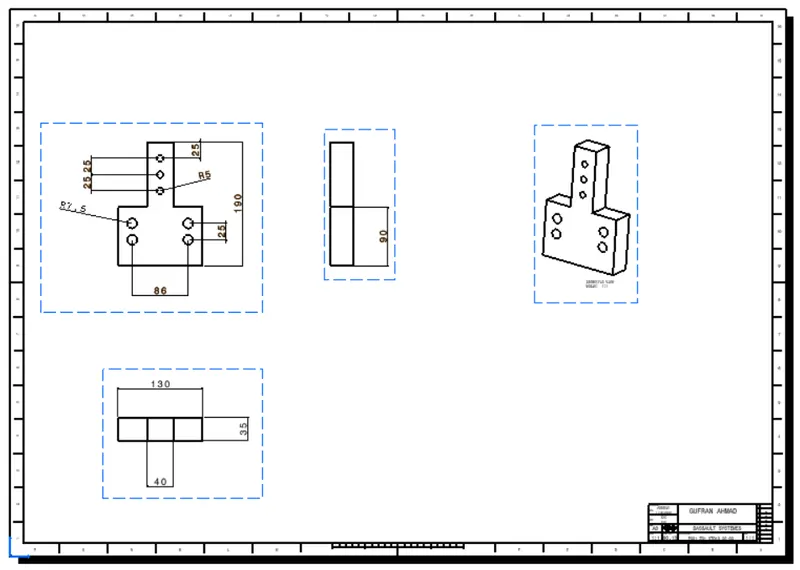

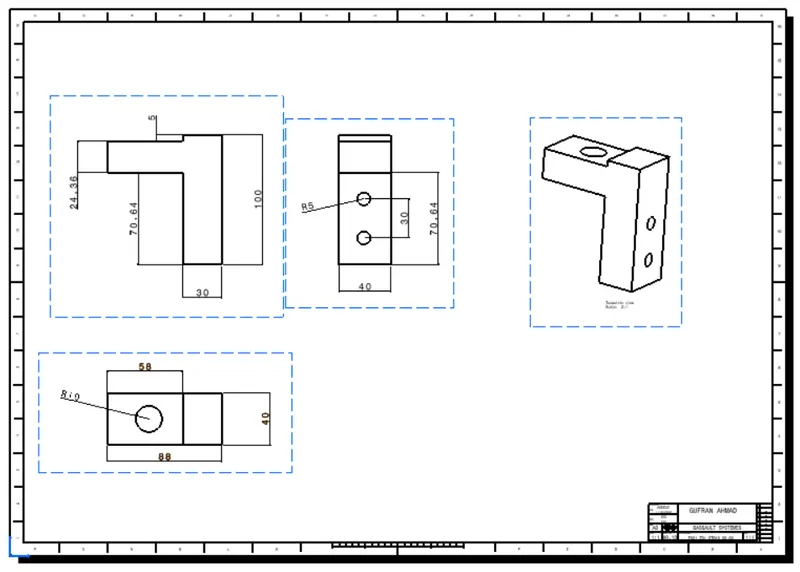

Orthographic view of BLOCK:

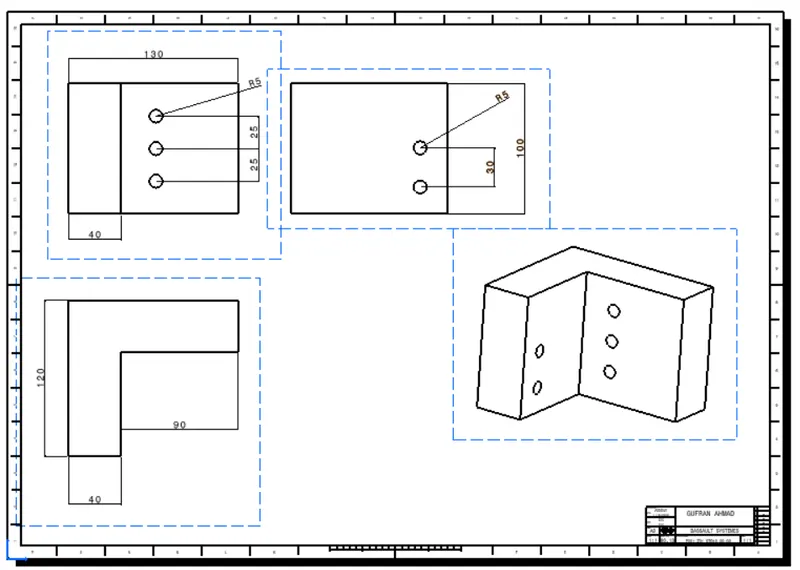

Orthographic view of Blade:

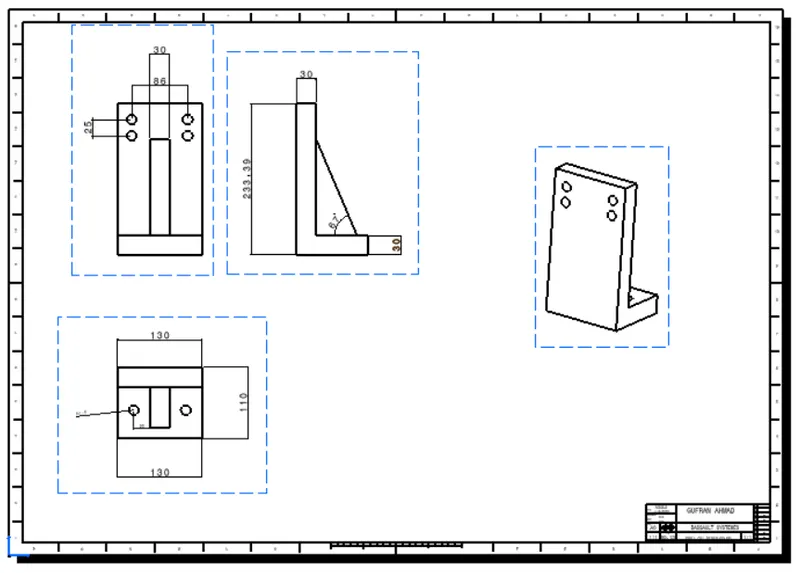

Orthographic view of Riser:

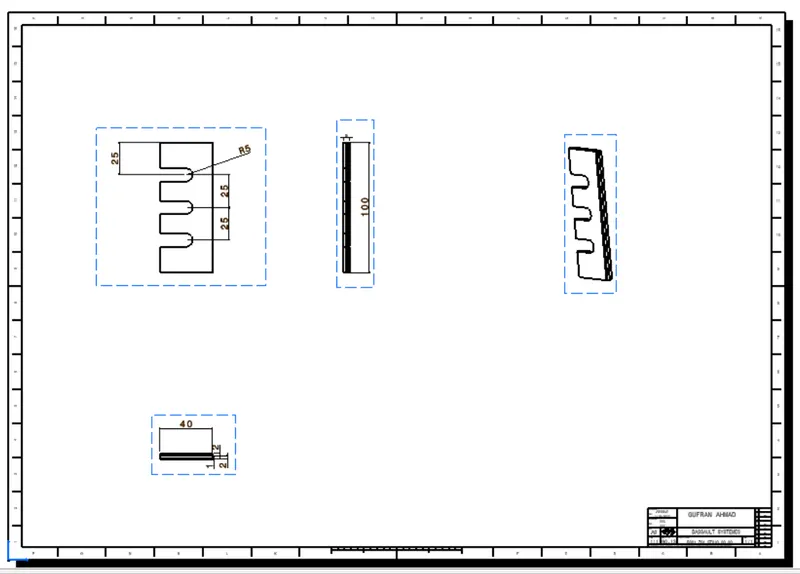

Orthographic view of Shim Pack: (Sheet.No: 2/9)

Conclusion:
Hence, drafting of keysheet for the complete fixture assembly is done along with detailed drawings of the base unit and fixed pin unit of the fixture.
