Week 8 - Challenge 2 - Base Bracket Design

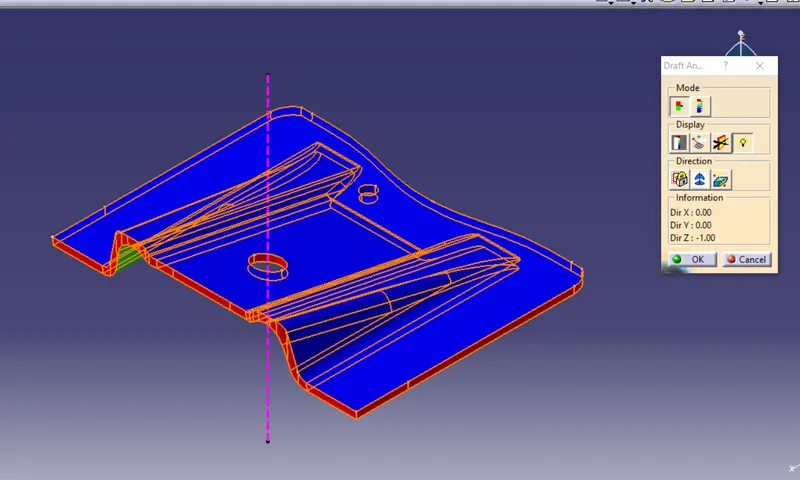

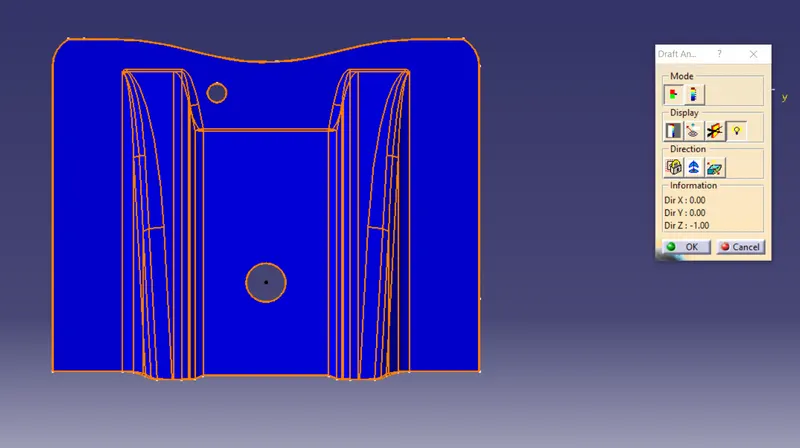

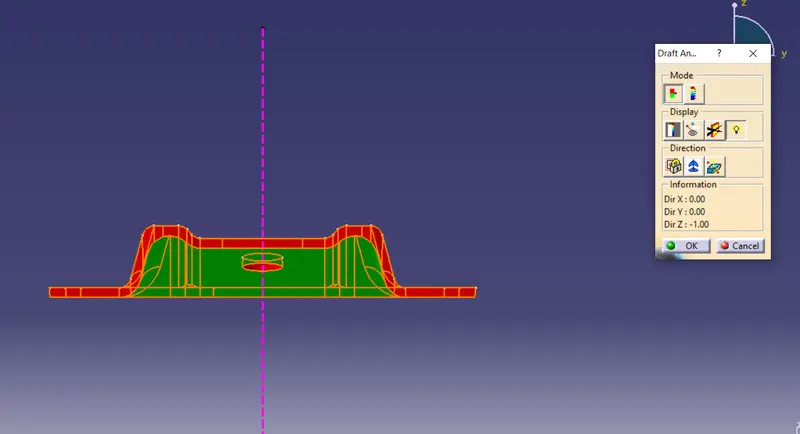

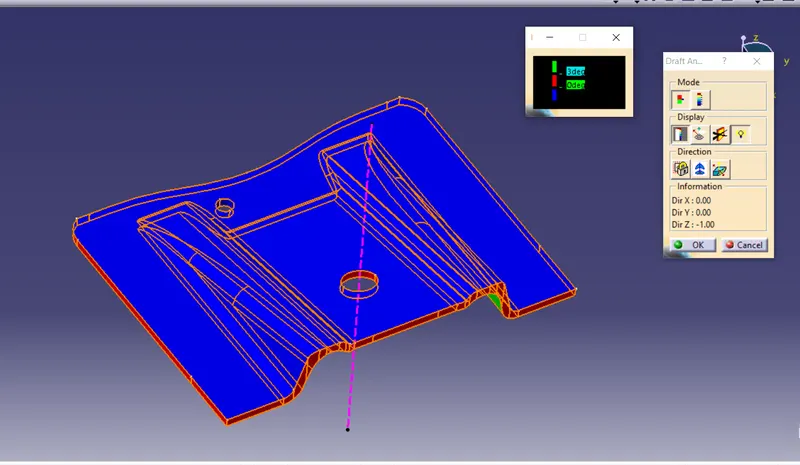

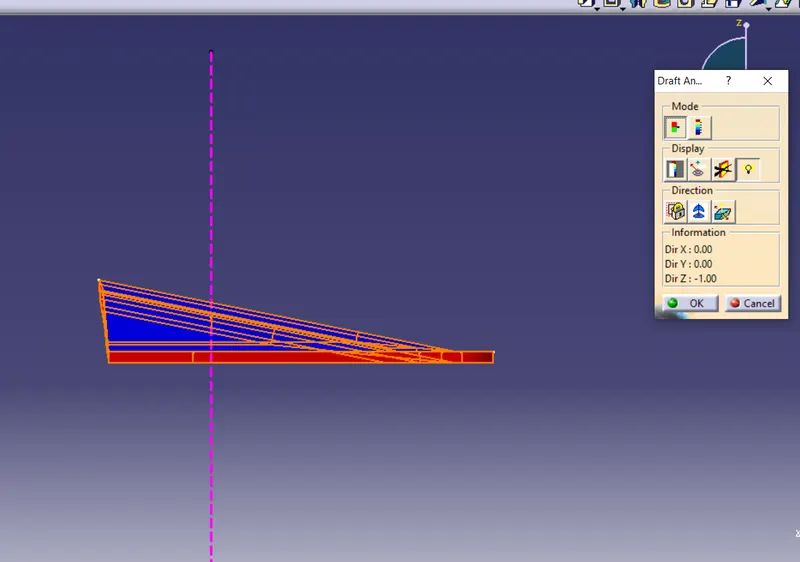

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

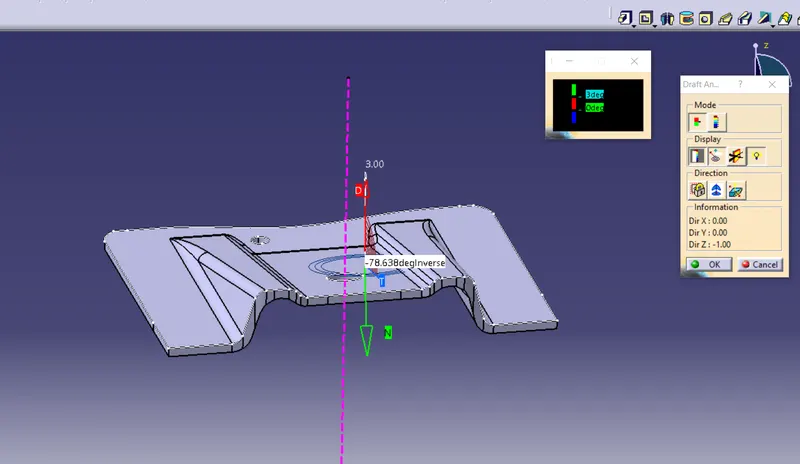

The tooling axis is defined as the direction in which the mold or core and cavity opens is the tooling axis.

The tooling axis is created by bisecting the two lines and point.
