Week 1 Understanding Different Battery Chemistry
|
BATTERY CHEMISTRY |
MATERIAL | ANODE | CATHODE |
| LTO | Lithium Titanium Oxide (Li4Ti5O12) is a anode material that has superior properties over graphite. It avoides SEI |
Li4Ti5O12 + 3Li+ + 3e- ↔ Li7Ti5O12 Li7Ti5O12 + 2Li+ + 2e- ↔ Li9Ti5O12 |
|
| LMO | Lithium Magnese Oxide is a cathode material. At anode Lithium Graphite is used | Lin C6 ↔ Li06C(Graphite) + nLi+ +n e- | Lim-nMnO4 + nLi+ + ne- ↔ LimMn2O4 |
| NCA | Lithium Nickel Cobalt Aluminium Oxide is a cathode material. Lithium Graphite is anode material. | Lin C6 ↔ Li06C(Graphite) + nLi+ +n e- | Lim-n(NixCoyALz)O2 nLi+ ne- ↔ Lim(NixCoyALz)O2 |
| NMC | Lithium Nickel Manganese Cobalt Oxide is a cathode material. Lithium Graphite is anode material. | Lin C6 ↔ Li06C(Graphite) + nLi+ +n e- | Lim-n (NixMnyCoz)O2 + nLi+ + ne- ↔ Lim(NixMnyCoz)O2 |
| LFP | Lithium Iron Phosphate is cathode material. Lithium Graphite is anode material. | Lin C6 ↔ Li06C(Graphite) + nLi+ +n e- | Lim-nFePO4 + nLi+ + ne- ↔ LimFePO4 |
| LCO | Lithium Cobal Oxide is a cathode material. Lithium Graphite is anode material. | Lin C6 ↔Li06C(Graphite) + nLi+ +n e- | Lim-n CoO2(s) + nLi+ + ne ↔ LimC6O2(s) |
DIFFERENCE BETWEEN EACH TYPE OF LITHIUM ION BATTERIES BASED ON THEIR CHARATERISTICS
There are trade off among five principal lithium ion technologies. They are given below.
- Cost.
- Specific Energy.
- Specific Power.
- Safety.
- Performance.
- Life Span.
| COST | SPECIFIC ENERGY | SPECIFIC POWER | SAFETY | PERFORMANCE | LIFE SPAN | |
| Lithium Nickel Manganese Cobalt Oxide(NMC) | Moderate | Excellent | Better | Better | Better | Better |
| Lithium Nickel Cobalt Aluminium Oxide(NCA) | Low | Excellent | Excellent | Good | Better | Excellent |
| Lithium Iron Phosphate.(LFP) | Low | Good | Excellent | Excellent | Good | Excellent |
|
Lithium Magnese Oxide.(LMO) |
Moderate | Better | Better | Better | Good | Good |
|
Lithium Titanium Oxide (Li4Ti5O12) (LTO) |
High | Good | Better | Excellent | Excellent | Excellent |

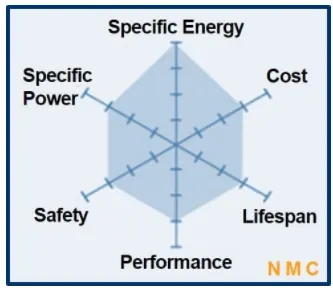

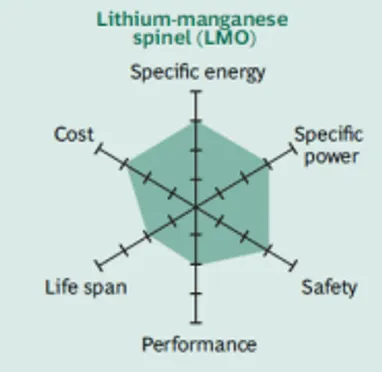

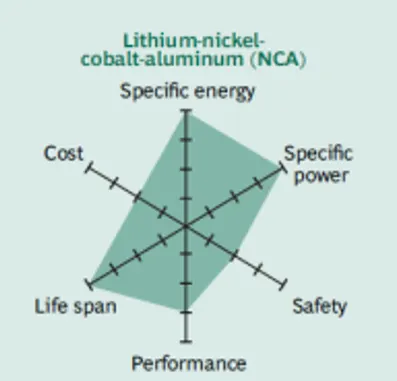

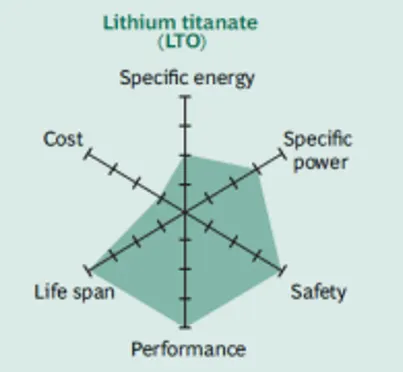

Below images showcase comparison of different lithium ion chemistry on above points. In given figure below the farther the colored region extends on the given scale the better is the performance is.
- Lithium Nickel Manganese Cobalt Oxide
2. Lithium Nickel Cobalt Aluminium Oxide
3. Lithium Iron Phosphate.
4. Lithium Magnese Oxide.
5. Lithium Titanium Oxide (Li4Ti5O12)
