Week 1 Understanding Different Battery Chemistry
1.Types of lithium ion cells:
The three primary functional components of a lithium-ion battery are the positive and negative electrodes and electrolyte. Generally, the negative electrode of a conventional lithium-ion cell is made from carbon. The positive electrode is typically a metal oxide. The electrolyte is a lithium salt in an organic solvent.The electrochemical roles of the electrodes reverse between anode and cathode, depending on the direction of current flow through the cell.
The reactants in the electrochemical reactions in a lithium-ion cell are materials of anode and cathode, both of which are compounds containing lithium atoms. During discharge, an oxidation half-reaction at the anode produces positively charged lithium ions and negatively charged electrons. The oxidation half-reaction may also produce uncharged material that remains at the anode.
Lithium ions move through the electrolyte, electrons move through the external circuit, and then they recombine at the cathode (together with the cathode material) in a reduction half-reaction. The electrolyte and external circuit provide conductive media for lithium ions and electrons, respectively, but do not partake in the electrochemical reaction. During discharge, electrons flow from the negative electrode (anode) towards the positive electrode (cathode) through the external circuit.
The reactions during discharge lower the chemical potential of the cell, so discharging transfers energy from the cell to wherever the electric current dissipates its energy, mostly in the external circuit. During charging these reactions and transports go in the opposite direction: electrons move from the positive electrode to the negative electrode through the external circuit.To charge the cell the external circuit has to provide electric energy. This energy is then stored as chemical energy in the cell.
The following equations exemplify the chemistry.
The positive electrode (cathode) half-reaction in the lithium-doped cobalt oxide substrate is,
The negative electrode (anode) half-reaction for the grapithe is,
The full reaction (left to right: discharging, right to left: charging) being
The overall reaction has its limits. Overdischarging supersaturates lithium cobalt oxide, leading to the production of lithium oxide,possibly by the following irreversible reaction:
Overcharging up to 5.2 volts leads to the synthesis of cobalt(IV) oxide, as evidenced by x-ray diffraction:
In a lithium-ion battery, the lithium ions are transported to and from the positive or negative electrodes by oxidizing the transition metal, cobalt (Co), in Li1-xCoO2 from Co3+to Co4+ during charge, and reducing from Co4+to Co3+ during discharge.
2.Characteristics of Lithium ion batteries:
There is a good variety of different types of lithium ion battery. The main differences are the anode and cathode materials.

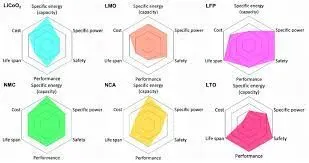

Each of the different types of lithium ion battery provide different characteristics and accordingly they tend to be used in different applications. The main types are summarised in the sections below.
Lithium Cobalt Oxide, LCO
The Lithium Cobalt Oxide, LiCoO2, battery is a type of lithium ion battery that find uses in many consumer items of electronic equipment. It provides a very high level of specific energy density along with a good level of safety.
The battery consists of a cobalt oxide cathode with a layered structure. The anode is graphite (carbon). During the discharge cycle, lithium ions move from the anode to the cathode, and in the reverse direction during charge.
One of the drawbacks of the LCO battery is that its current capability in both charge and discharge is limited. As a guide, it should not be charged or discharged at a greater rate than its capacity, i.e. a 2400mAh battery should not be charged or discharged with a current greater than 2400mA. Often figures of 0.8 of the charge level are recommended.
The LCO battery is now being supplanted in some applications by Lithium Manganese, as well as NMC and NCA types. This is occurring as a result of the improved performance of these other types as development improves the performance and as a result of cost.
| SUMMARY OF LITHIUM COBALT OXIDE BATTERY, LCO | |
|---|---|
| ATTRIBUTE | DETAILS |
| Key features | High energy density; high level of safety |
| Main disadvantages | Relatively short life-span; limited high load capability. |
| Main applications | Consumer electronics:- mobile phones, games, laptops, tablets, e-readers, etc. |
| Voltage | 3.60V nominal with typical operating rate between 3.0 - 4.2 V/cell |
| Specific energy (capacity) | 150 - 200Wh/kg typical |
| Battery life | 500 - 1000 cycles |
Lithium Iron Phosphate Battery, LFP
The Lithium Iron Phosphate, LFP type of lithium ion battery provides a low internal resistance and high current capability. In order to provide its high of current capability, this type of li-ion battery uses a nano-scale phosphate cathode material.In terms of performance this type of lithium ion battery provides a slightly lower terminal voltage and it has a slightly higher self-discharge rate than other forms. However against this it provides a high current rating, and good thermal stability combined with a good level of, and good thermal stability.
| SUMMARY OF LITHIUM IRON PHOSPHATE, LFP BATTERY | |
|---|---|
| ATTRIBUTE | DETAILS |
| Key features | High current capability, longer calendar lifespan. |
| Main disadvantages | Slightly higher self-discharge rate; low cell voltage (3.3V) |
| Main applications | Power tools, some medical tools, hobbyist |
Lithium Manganese Oxide, LMO
This type of lithium ion battery uses Lithium Manganese Oxide, LiMn2O4 as its cathode material. This type of lithium ion battery is structured to allow high currents to flow and this enables it to provide very high current levels and also to be fast charged as well.
It generally uses a three-dimensional spinel structure, i.e. one in which the crystal structure in the cubic, isometric, system, with the oxide anions arranged in a cubic close-packed lattice. This structure improves the flow of ions on the electrode, thereby increasing he current capability and lowering the internal resistance of the cell. A typical 1500mAh battery may be able to deliver steady currents of up to 20 A, obviously for a relatively short time because of the overall battery capacity.
The structure of this type of lithium ion battery also has the advantage that it improves the thermal stability and improves the safety of the cell.
However the disadvantage of the cell is the limited number of charge discharge / cycles as well as the limited calendar life, i.e. the degradation over time since manufacture.
| SUMMARY OF LITHIUM MANGANESE OXIDE, MNO BATTERY | |
|---|---|
| ATTRIBUTE | DETAILS |
| Key features | High current capability for charge and discharge. |
| Main disadvantages | Lower energy density than other types of lithium ion battery, low cycle life and calendar life. |
| Main applications | Power tools, some medical tools some vehicles. |
| Voltage | ~3.70V nominal |
| Specific energy | 100 - 150Wh/kg |
| Life expectancy | 400 - 750 cycles |
Lithium Nickel Cobalt Aluminium Oxide, NCA
The Lithium Nickel Cobalt Aluminium Oxide battery, or NCA, is a li-ion battery type that is rarely seen in consumer applications but is being investigated for the automotive industry. Its main advantage is that it has a good life span and high energy and power density figures.
However these features come at a cost and in view of the safety elements, it must be used with care. Further development is also required to bring it to a state where this type of li-ion battery can be more widely used.
| SUMMARY OF LITHIUM NICKEL COBALT ALUMINIUM OXIDE, NCA | |
|---|---|
| ATTRIBUTE | DETAILS |
| Key features | High energy density, high power density, good life span. |
| Main disadvantages | High cost; safety requires more care in the design and use. |
| Main applications | |
Lithium Nickel Manganese Cobalt Oxide, NMC
The lithium nickel manganese cobalt oxide lithium battery type uses a cathode comprising of a combination of nickel, manganese, and cobalt.
The key to this lithium ion battery type is the combination of nickel and manganese. Nickel is known for its high specific energy, but poor stability whereas manganese provides low internal resistance but at the cost of low specific energy. Combining both in a cell in the correct manner is able to provide the required balance of the properties of both metals.
The cathode combination often consists of a combination of nickel, manganese and cobalt in equal proportions in a combination known as 1-1-1. This combination reduces cost by reducing the cobalt content, whilst still retaining some of the key performance parameters.
Another popular combination consists of 5 parts nickel, 3 parts cobalt & 2 parts manganese (5-3-2).
The NMC type of lithium ion battery can be optimised for either to high specific power or high specific energy. With the high cost of cobalt, manufacturers are trying to move away from its use, often increasing the use of nickel, so this is often a major fact in the choice of composition of the battery.
| SUMMARY OF LITHIUM NICKEL MANGANESE COBALT OXIDE, NMC | |
|---|---|
| ATTRIBUTE | DETAILS |
| Key features | High specific power or energy. |
| Main disadvantages | Power / energy density not as high as some other types. |
| Main applications | Power tools and electric vehicles. |
| Voltage | 3.60 - 3.70 V |
| Specific energy | 160 - 230Wh/kg |
| Life expectancy | 1000 - 2000 cycles. |
These types of lithium ion battery are some of the more popular ones available. However as the technology is continually seeing more development, new lithium ion technologies are always being developed and those which exist are being developed.
