Week 1 : Exploring the GUI of GT-POWER
GT-SUITE is the industry-leading simulation tool with capabilities and libraries aimed at a wide variety of applications and industries.
It offers engineers functionalities ranging from fast concept design to detailed system or sub-system/component analyses, design optimization and root cause investigation.
Why you should choose GT-SUITE
Industry Tool of choice
- It is recognized worldwide as the industry standard for system simulations
- Used by most leading OEMs and suppliers
- Highly Acclaimed
Multi Physics plotform
The foundation of GT-SUITE is a versatile multi-physics platform for constructing models of general systems based on many underlying fundamental libraries:
- Flow library (any fluid, gas or liquid or mixture)
- Acoustics library (both non-linear and linear)
- Thermal library (all types of heat transfer)
- Mechanical library (kinematics, multi-body dynamics, frequency domain)
- Electric and Electromagnetic library (circuits, electromechanical devices)
- Chemistry library (chemical kinetics)
- Controls library (signal processing)
- Built-in 3D CFD and 3D FE (thermal and structural)
Modern software and unique capabilities
1. Fusion of 1D and 3D simulation in one tool
2.Imports solid models from CAD to create 1D and 3D models
3.Performs embedded 3D(CFD) and 3D FE thermal /Structural modeling with all boundary conditions provided by the simulated surrounding complete system.
GT Suite License

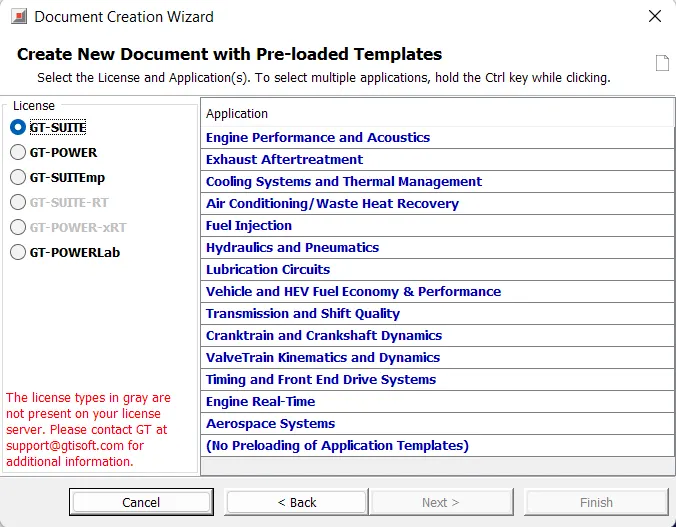

Tempelates in GT Suite

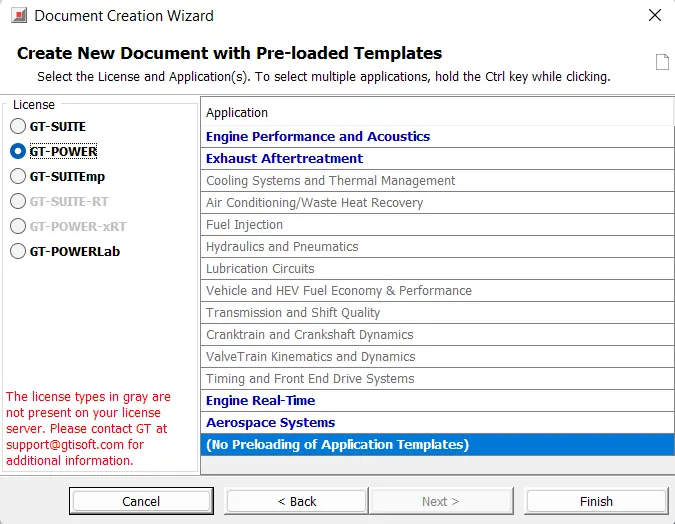

GT Power License
Tempelates in GT Power
GT Power EMP

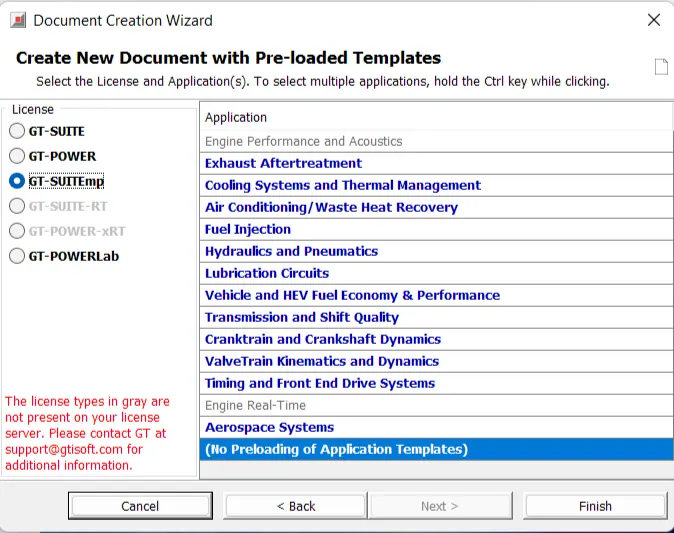

Tempelates in GT Emp

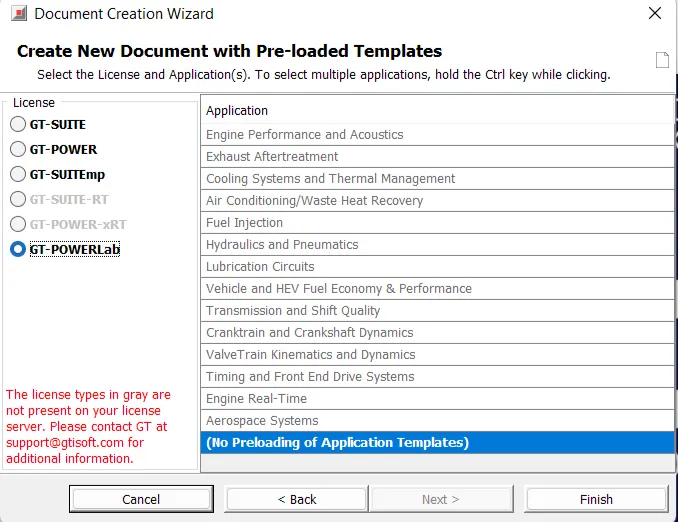

GT PowerLab License
Tempelates in GT PowerLab
Above Templates are used by different companies according to their applications.
Locate the settings

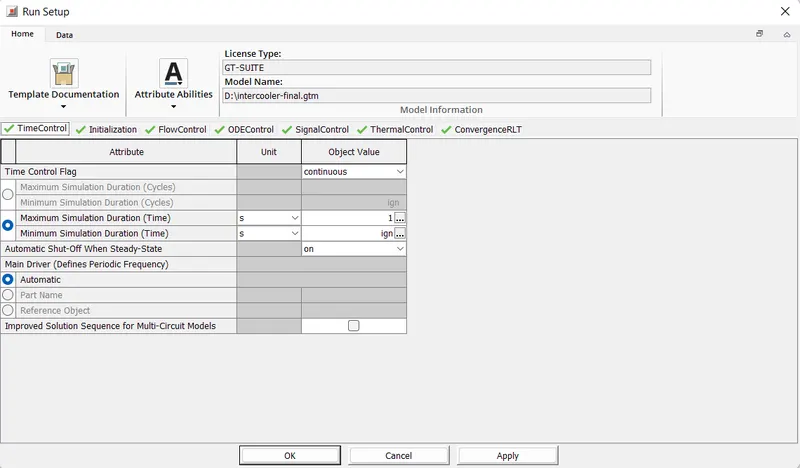

Time control
- Open the GUI of GT_suite and open the flow contro Tab>Home Tab>Runsetup>Timecontrol. In the given table the time control flag is available.

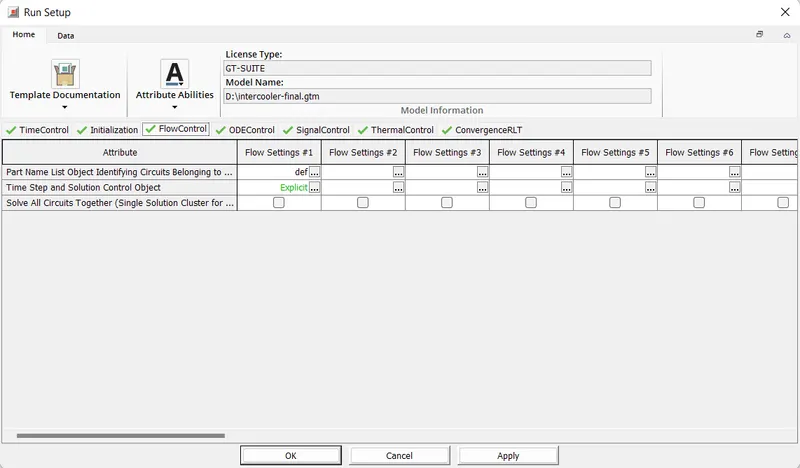

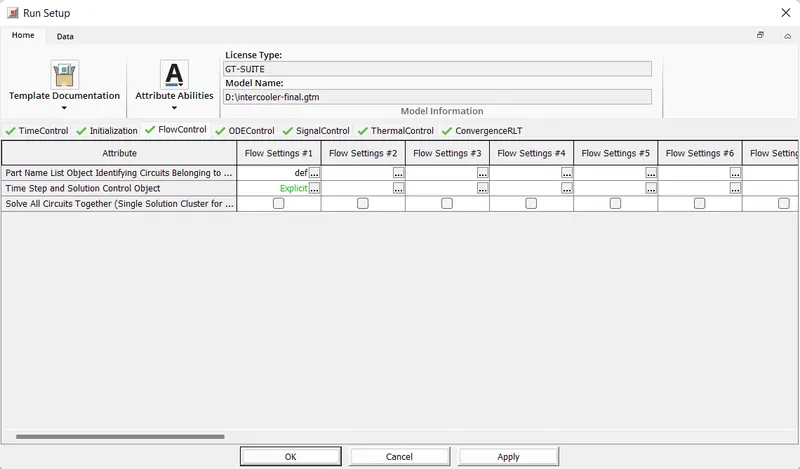

Flow control
- Open the GUI of GT_suite and open the flow contro Tab>Home Tab>Runsetup>Flow. In the given table the Flow control is available.

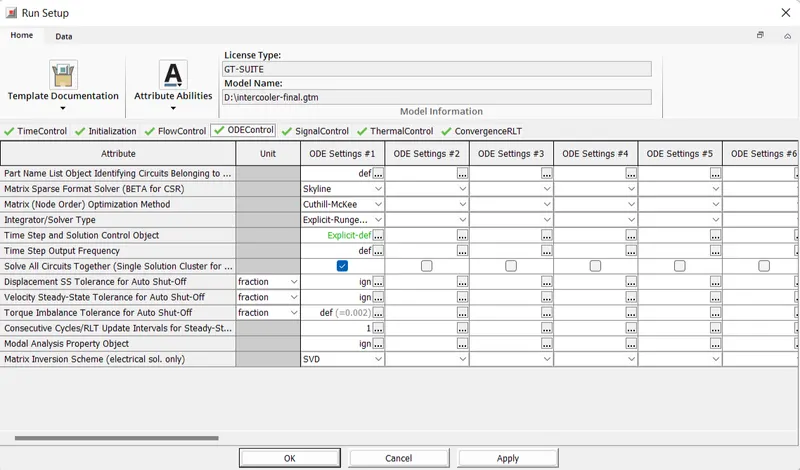

ODE control
- Open the GUI of GT_suite and open the flow contro Tab>Home Tab>Runsetup>ODE Control. In the given table the solver control is available.

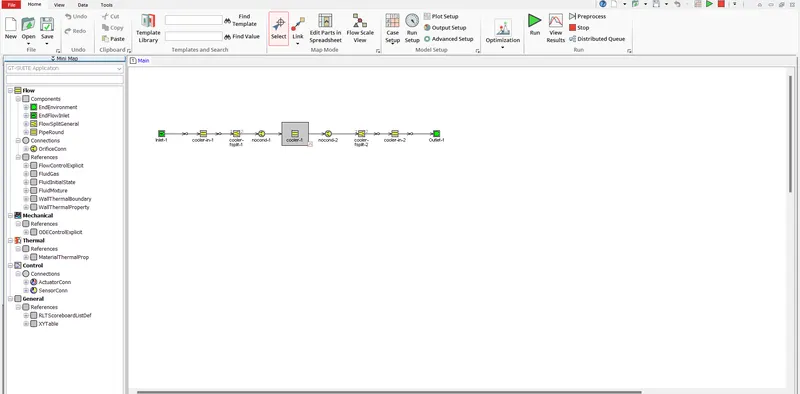

Explore intercooler tutorial

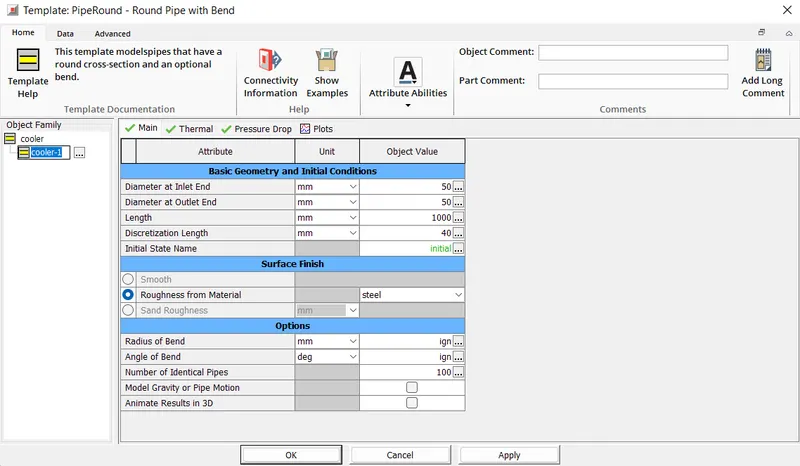

- Open Intercooler tutorial as shown below and define all input parameters
- Inlet and Outlet Diameter = 50mm and Length = 1000mm

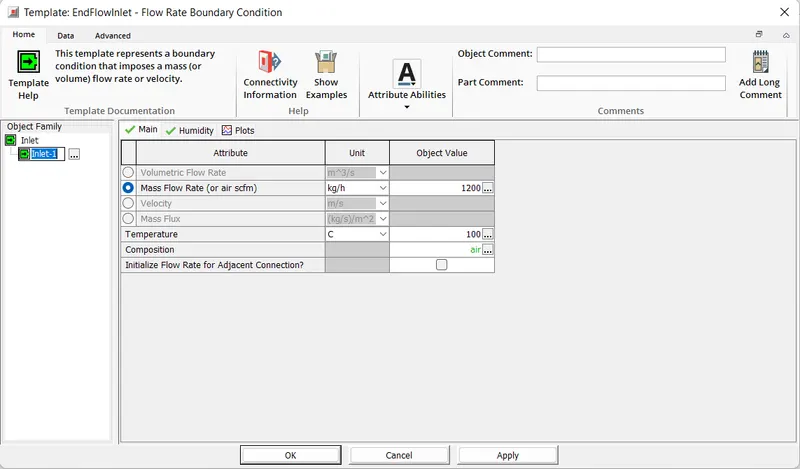

- Inlet Mass flow rate = 1200kg/h and Temperature = 100' C
- Outlet Diameter = 2bar and Temperature = 30' C
Run setup
Time control

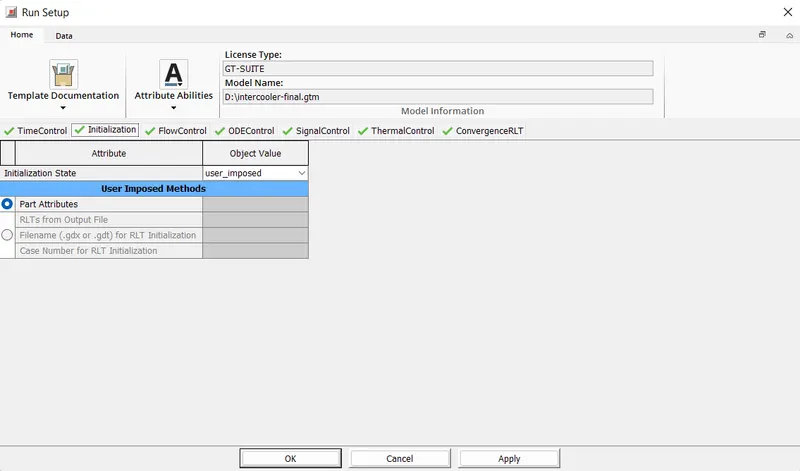

Initialization
Flow control
ODE control

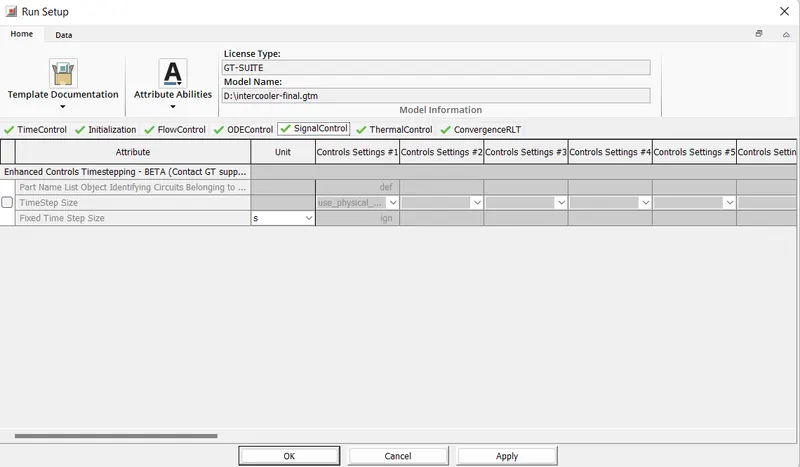

Signal control

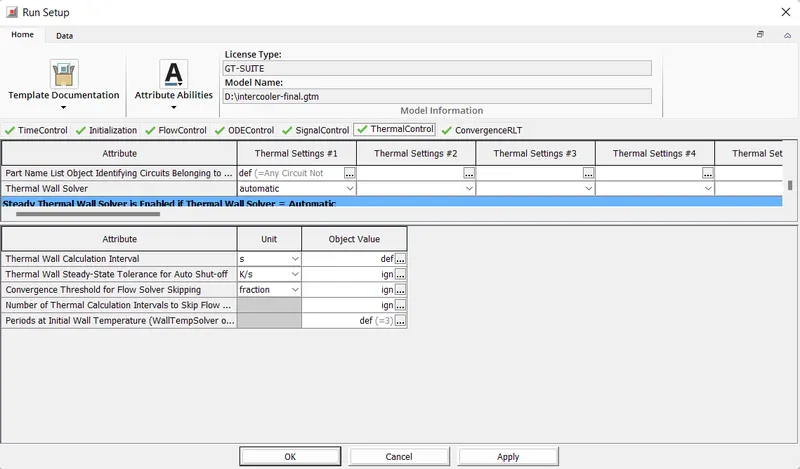

Thermal control

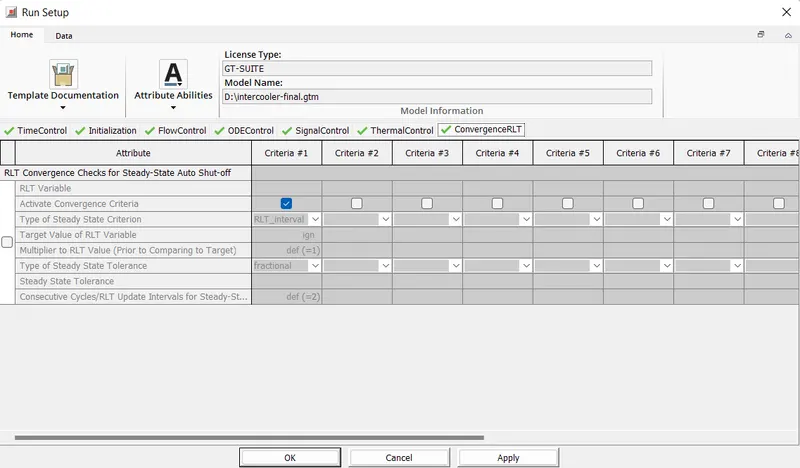

ConvergenceRLT
Advanced Setup

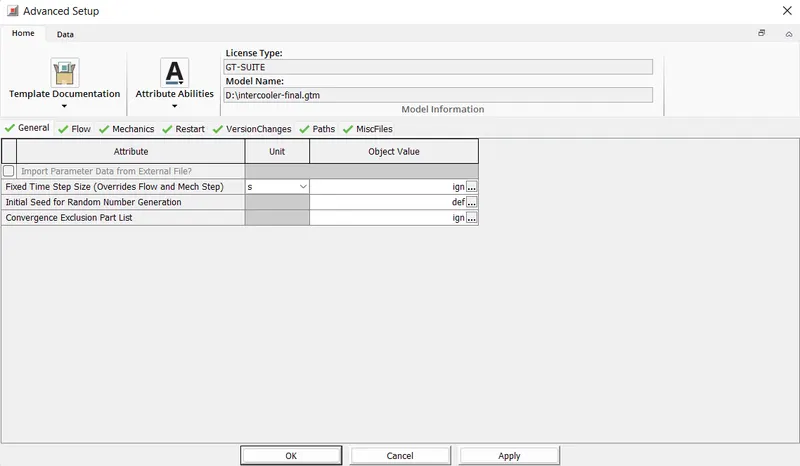

General

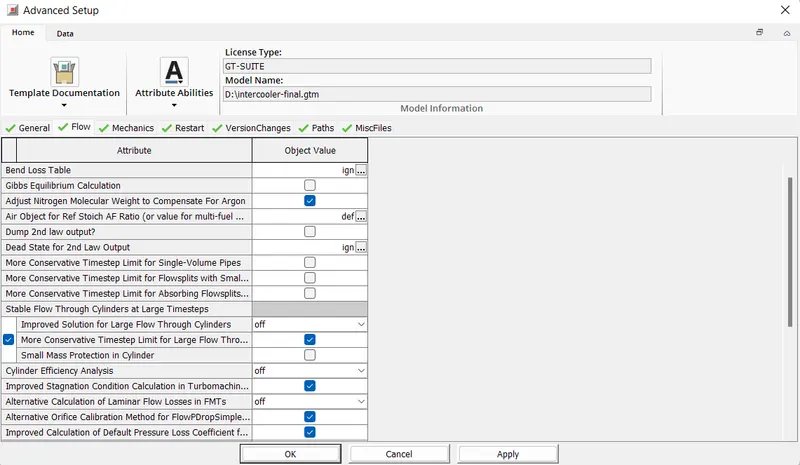

Flow

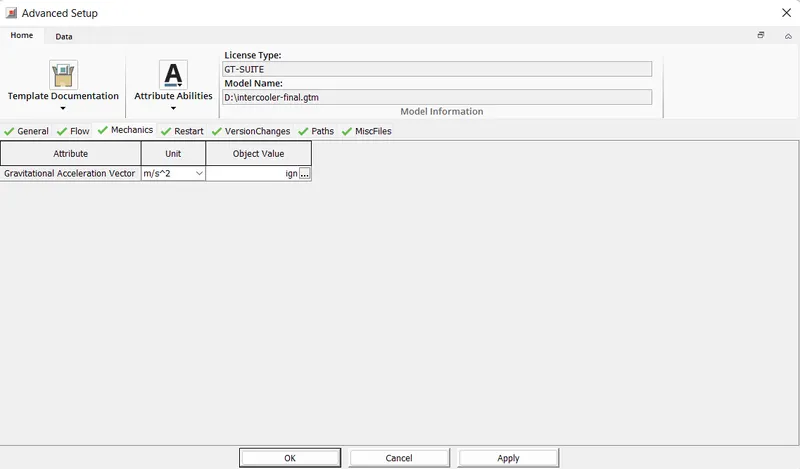

Mechanics

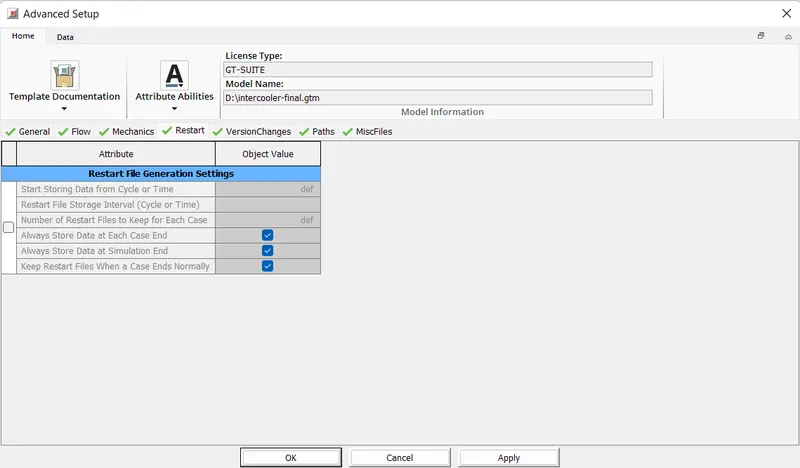

Restart

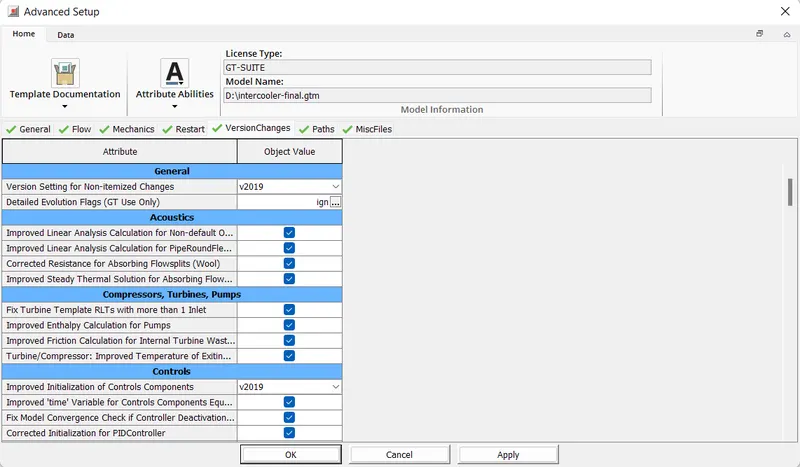

Version changes

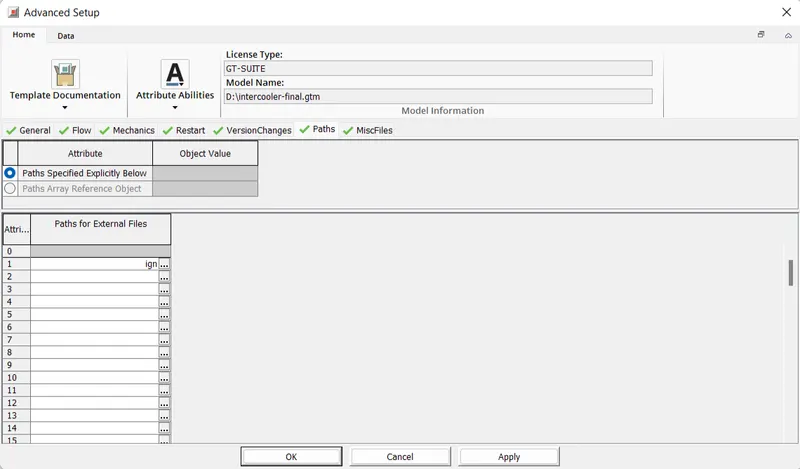

Paths

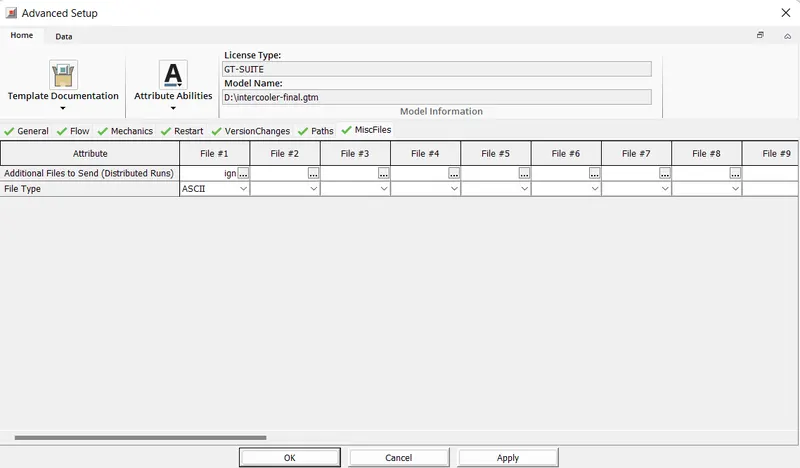

Misc files

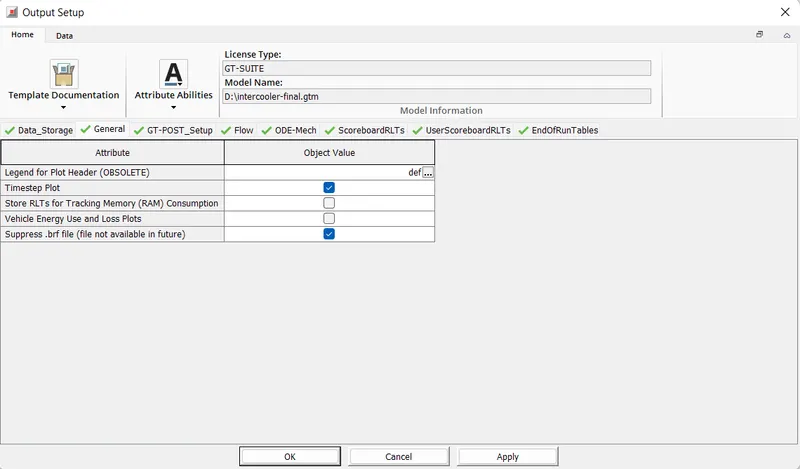

Output setup

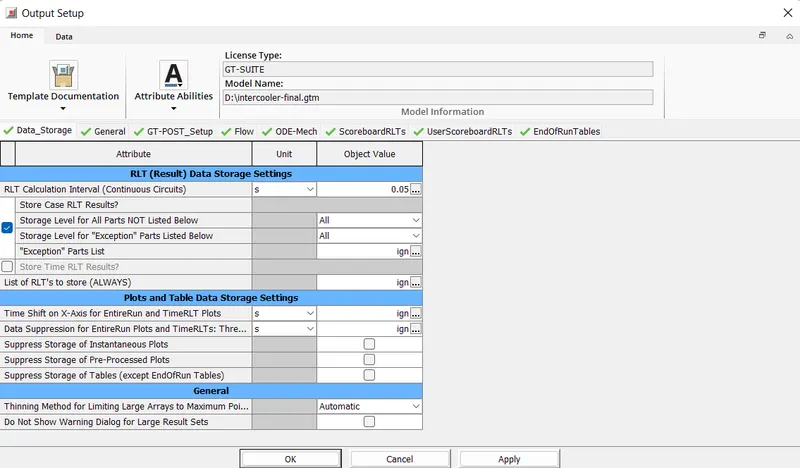

Data storage
General

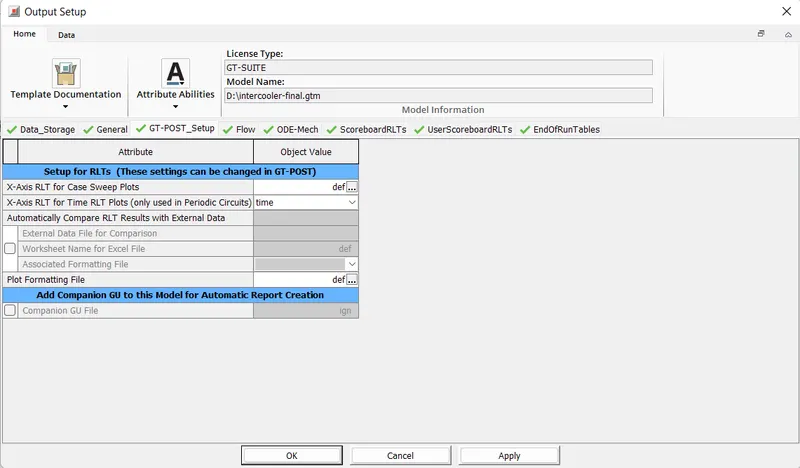

GT-post setup

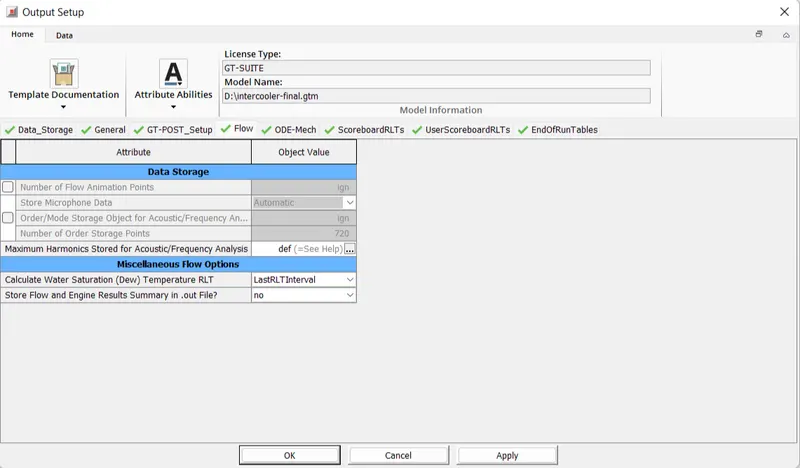

Flow

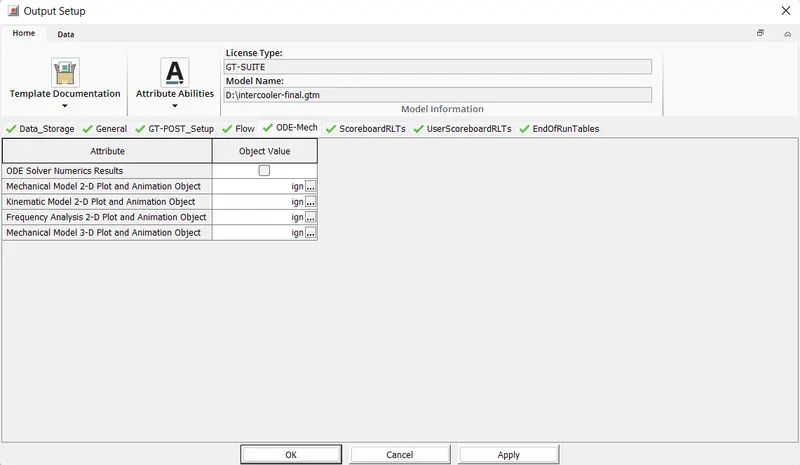

ODE mech

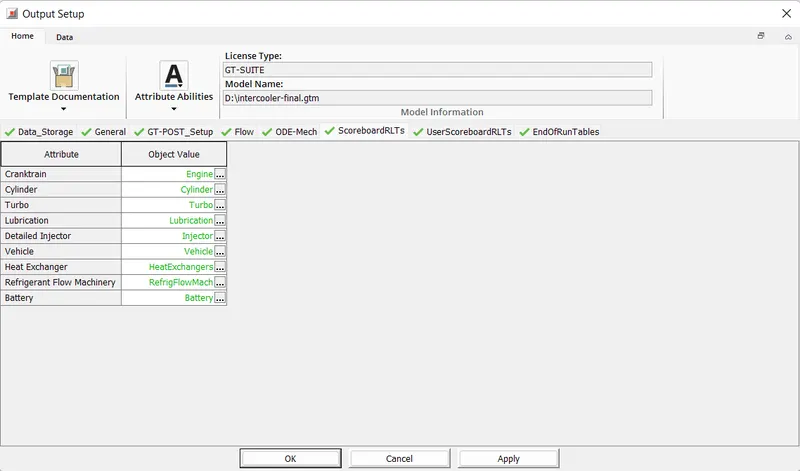

Scoreboard RLTs

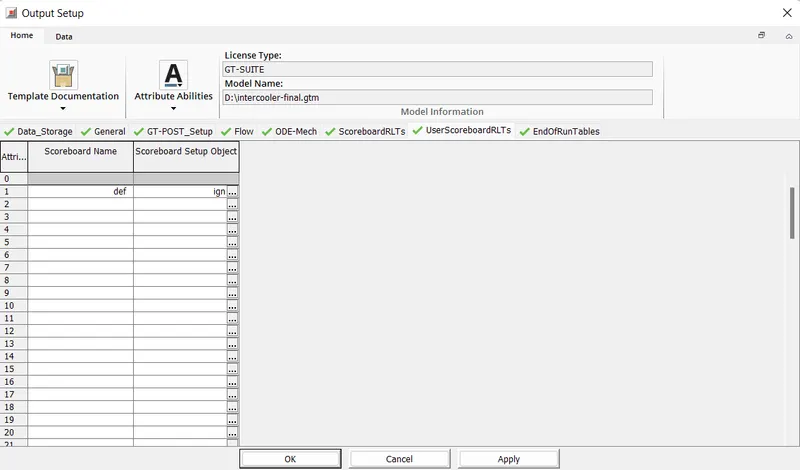

UserScoreboardRLTs

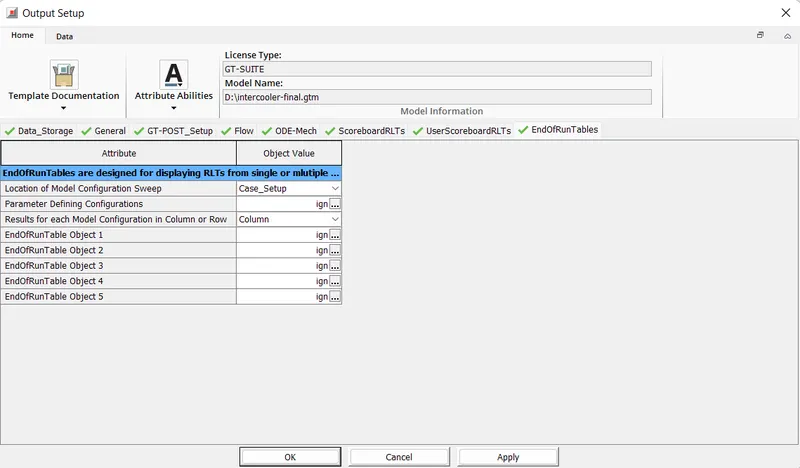

EndofRunTables

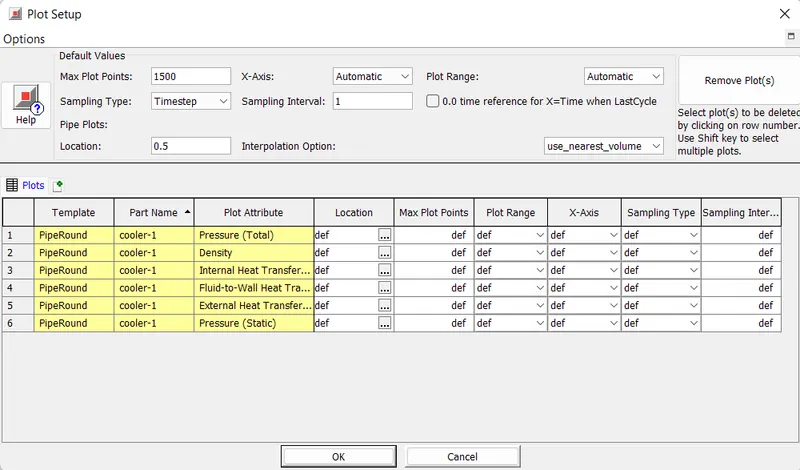

Plot setup
Final Run setup
Results

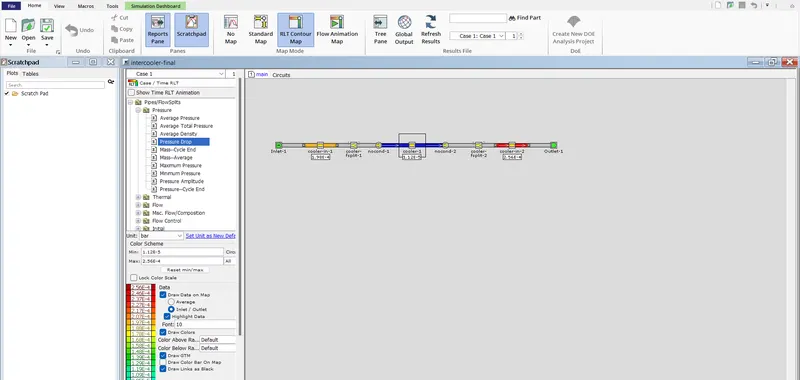

- Pressure Drop between boundaries is 1.12 e-5 bar as shown below

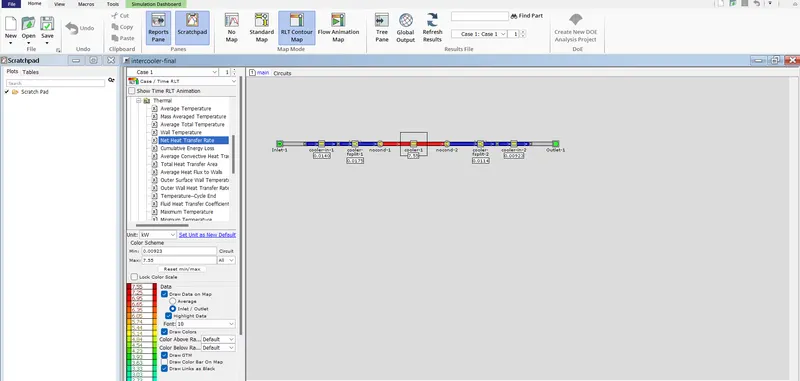

- Average Heat Transfer rate is 7.55 kw as shown below
