Week 1 Challenge
Q.1
1. Write the steps involved to upload a .std file through web mail?
Ans
> Steps for uploadindg a .std file through web mails are as under
- > Open the STAAD PRO software
- > Click the share option available on the introduction screen
- > Select send mail option
- > Browse for the. Std file from PC
- > send
-
2. Name the different materials that can be designed using STAAD Pro.
Ans
> Different materials that can be designed using STAAD PRO are
i. Concrete- ii. Steel
- iii. Aluminium
- iv. Timber
- v. Composite sections
-
3. Is it possible to capture images in STAAD Pro? If yes how?
Ans
- > Yes, it is possible to capture images in STAAD PRO
- > We are able to take pictures of models and structural results in STAAD PRO using the take picture command OR the same is available in the utility panel with a camera symbol
-
4. Name the three ways by which you can create a model.
Ans
Three ways by which you can create a model in as STAAD PRO are
- i. Analytical model
- ii. Physical model
- iii. Building planner model
-
5. Write the steps followed to assign properties in a model.
Ans
- > Go to the properties panel
- > Click on materials
- > Select a desired material from the list Concrete or steel or aluminum or stainless steel
- > Check the assignment method based on your preference like use cursor / assign to view
- > Assign the material property to your model
- Q.2
-
-
1. Name any six design parameter involved in RCC design.
Ans
The six Design parameter involved in RCC design are
> Clear cover, - > Code of practice,
- > End conrete design,
- > FY Tensile Strength of steel
- > FC compressie strength of concrete
- > Max main Dia of bar
-
-
2. What are the different cursor types available in STAAD Pro?
Ans
The different cursor types that are available in STAAD PRO are
-
- > Geometry cursor
- > Plates cursor
- > Solids cursor
- > Nodes cursor
- > Physical Member cursor
- > Loads cursor
- > Beams cursor
- > Plates and Solid cursor
-
3. How will you generate different views for a model? State the steps involved.
-
Ans
> Go to view option in the ribbon there are options available like
- >Top view
- >Botttom view
- >Right View
- >Front view
- >Left view
- >Back view
- >Isometric view
-
4. Explain the procedure to define a “Simply Supported” condition in STAAD Pro
Ans
> Go to the support command in the tool palet command
-
> Create support command
- > There are options like fixed support, pin support, Fixed but Enforced, Inclined support
-
5. Name any five topics that you will include while creating DBR.
Ans
> DBR is the Design Basis Report.
-
> DBR is a short brief about why you are going to make, where you are going to make. In short it is detail of our project.
-
> The five topics that will be included creating DBR are
- i. Name of the project and the location of the project
- ii. Introduction to the construction methodology
- iii. Budget of the Project
- iv. Quality Assurance and Quality Control
- v. Structural Layout
-
Ans
- > It is used for 3D model generation, analysis and multi material design
- > The STAAD PRO supports several steel, concrete and timber material in a seprate member
- > This seprate member will cordinate and the formed in a structure
- Q.3
-
1. Name the structure systems in STAAD Pro? Explain each system?
Ans
The structure systems in STAAD Pro software are
-
- Trusses : Trusses are created by arranging the structural elements in the triangle forms which can take loads in both compression and tension.
- Plane Frames : Plane frames are RCC or steel frame structures. It is a two-dimensional structure which is constructed with straight elements which are conected by the rigid or the hinged connections.
- Space Frames : Space frames are the three-dimensional truss like structures that is designed to carry loads for the longer spans without any intermediate supports. They are rigid and ligh-weight in nature and it is structurally effective. It has low transportation cost.
-
2. Explain the coordinate system adopted in STAAD Pro software.
Ans
the co-ordinate system adopted in STAAD Pro software are
- Global Axis : Mainly global axis are fixed in the co-ordinate system.
- Local Axis : Local axis is variable in nature. We can change the local axis but not the global axis.
-
3. Elaborate DBR and its uses.
Ans
DBR ( Design Basis Report ) is a document whic consist of various informations regarding the the structure.
-
It is detailed report with the minute details of the ongoing project work.
-
It defines the final stage in the process of defining the Client's requirement for the project.
-
It consists of all the major and important structural details that is relevant, special requirements if any, the technical detail, components detail, the project detail
-
and the other issue of project.
4. Explain the different types of analysis options in STAAD pro.
Ans
The different types of analysis options in STAAD PRO software are
- P-Delta analysis
- Linear Elastic analysis
- Buckling analysis
-
5. Explain the difference between Fixed and Fixed But condition.
Ans
Fixed condition :
Fixed condition in the STAAD PRO is the condition in which all the degrees of freedom like horizontal or vertical or moment are fixed. We cannot change accordingly.
Fixed-But condition:-
Fixed-end condition we can customize its end conditions accordingly. In this condition we can change the end condition it is not restrained. We can release some of the required degree of freedom.
- Practical
1. Create a STAAD Model with the following Specification
a. A beam of span 16m
b. Support : Fixed on one end and Roller support(Horizontal) on the other end
c. A point load of 50 kN at the mid-point
d. Draw SFD and BMD using software
- Aim : Tp create a STAAD Model with the given specification
- Introduction : It is work of a common modelling
-
Procedure
-
- > Open STAAD PRO Software and Create a New Model
- > Initiate the project in STAAD PRO
- > Click create to start a new project.

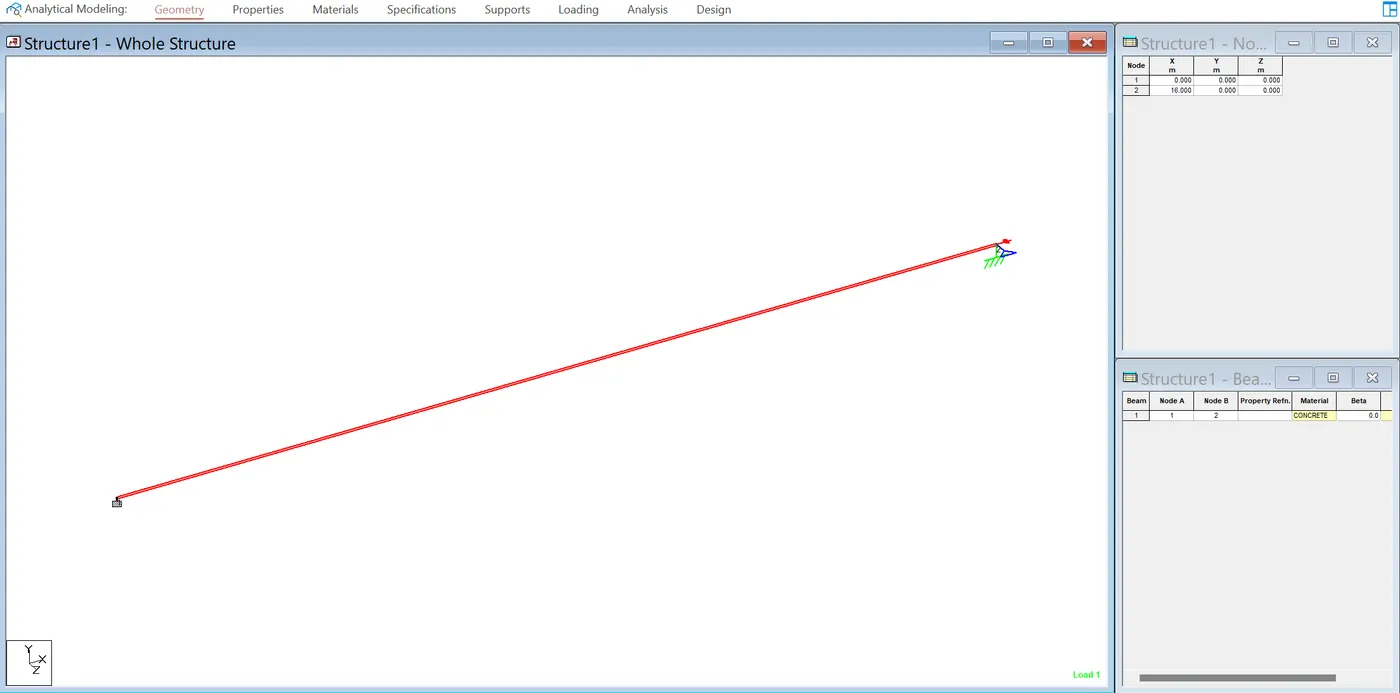

- > Draw the Beam of Required Span
- > To model the proposed beam, go to geometry and create the first node at X-0, Y-0, and Z-0
- > Select the created node by switching to the node cursor
- > Specify the span length that is 16 meters in the X-direction press enter
- > Both the ends of the required beams are created now go to add beam
- > Select first node and then second to create a beam of the proposed length
- > Go to support > add > fixed > select one node > assign to selected nodes > enter
- > Create another node > fixed but > release moments and horizontal restraints > ok > select the other node > assign to selected > ok
- > Give properties to the beam with and thickness
- > Give materials to the beam as a concrete

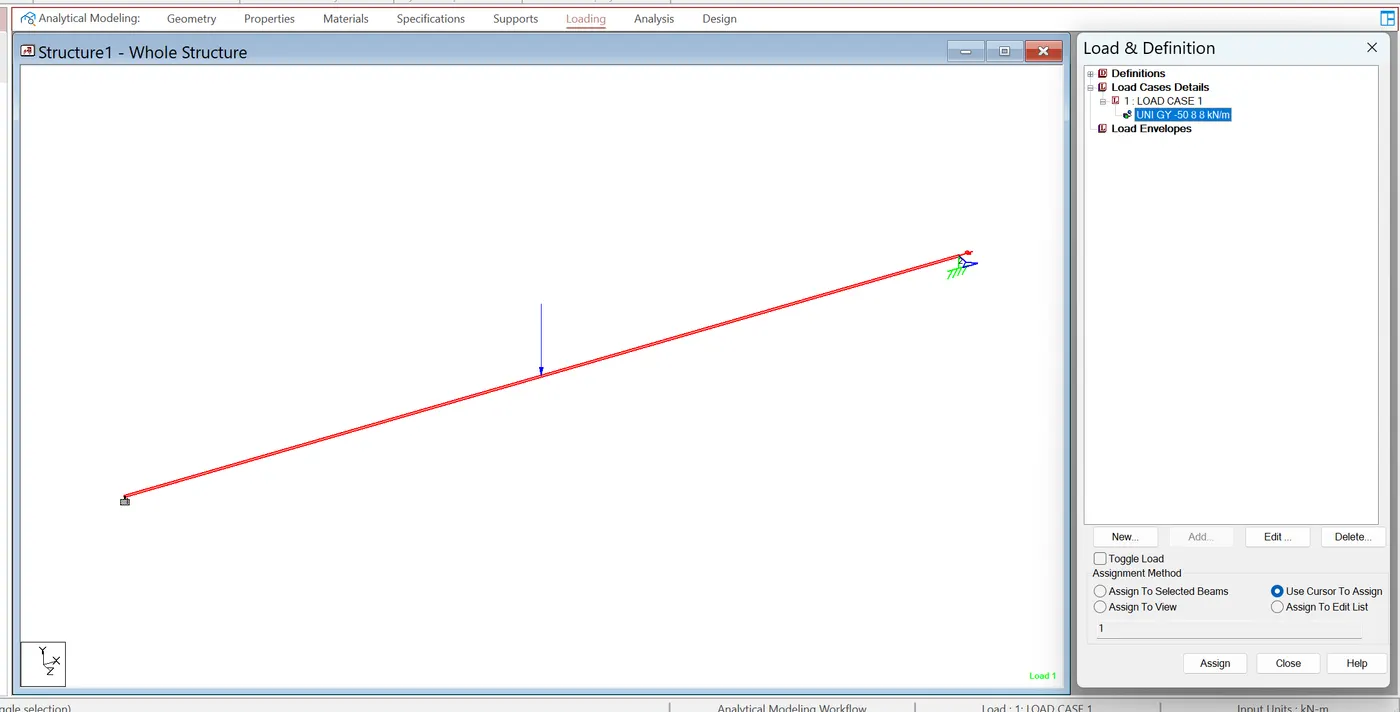

- > Go to loads > create > member load > globa Y> -50KN > d1- 8, d2 -8 > ok
- > Select the load and beam and check the radio button for assign to selected > apply > ok

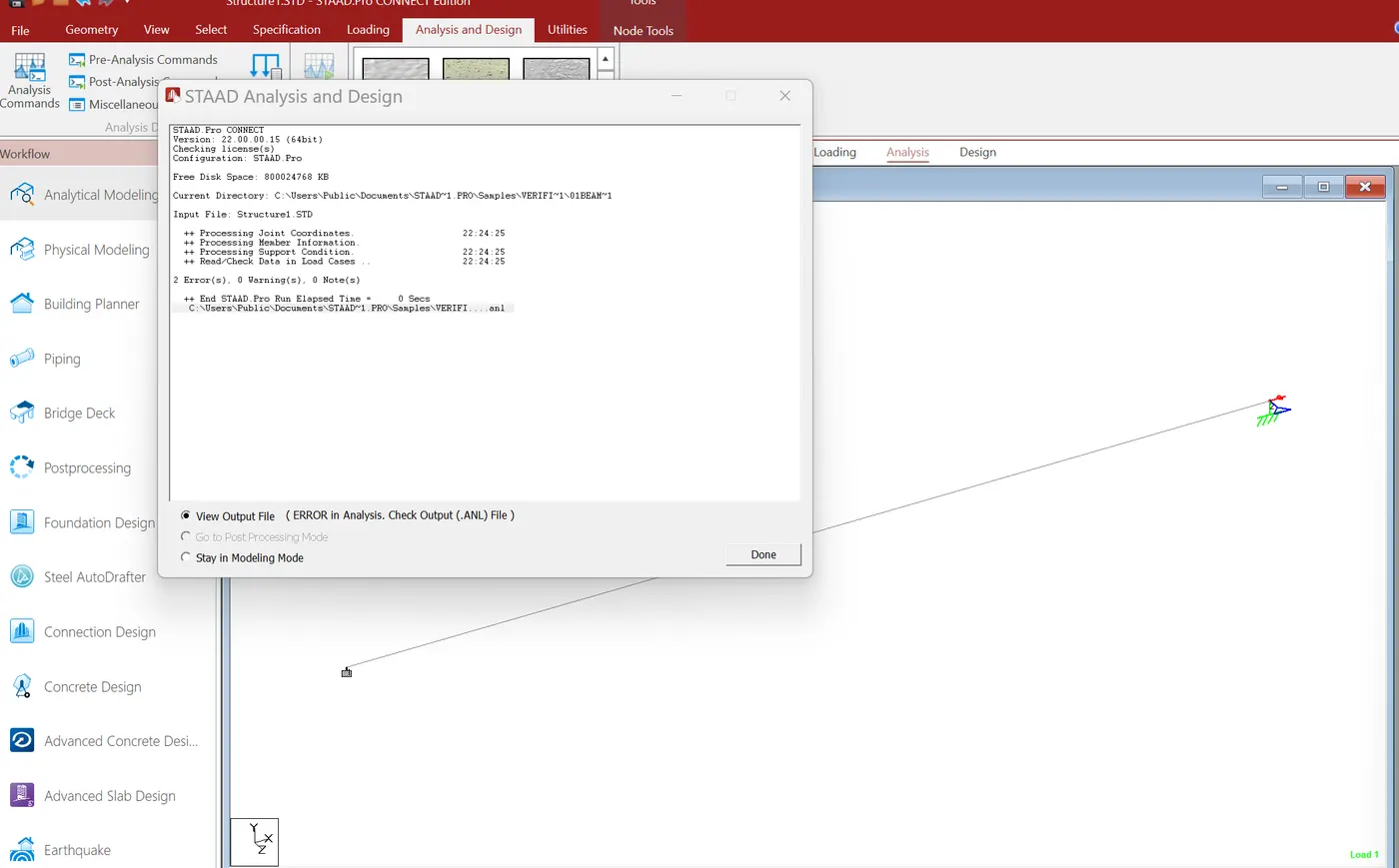

- > Select the analysis method that is perform analysis from the design and analysis panel
- > Once you are done with setting up the analysis method, go ahead and run the analysis from the analysis and design panel.
- > Wait for the analysis to get complete and look for errors and warnings
- > If there are no errors or warning, you're good to go.

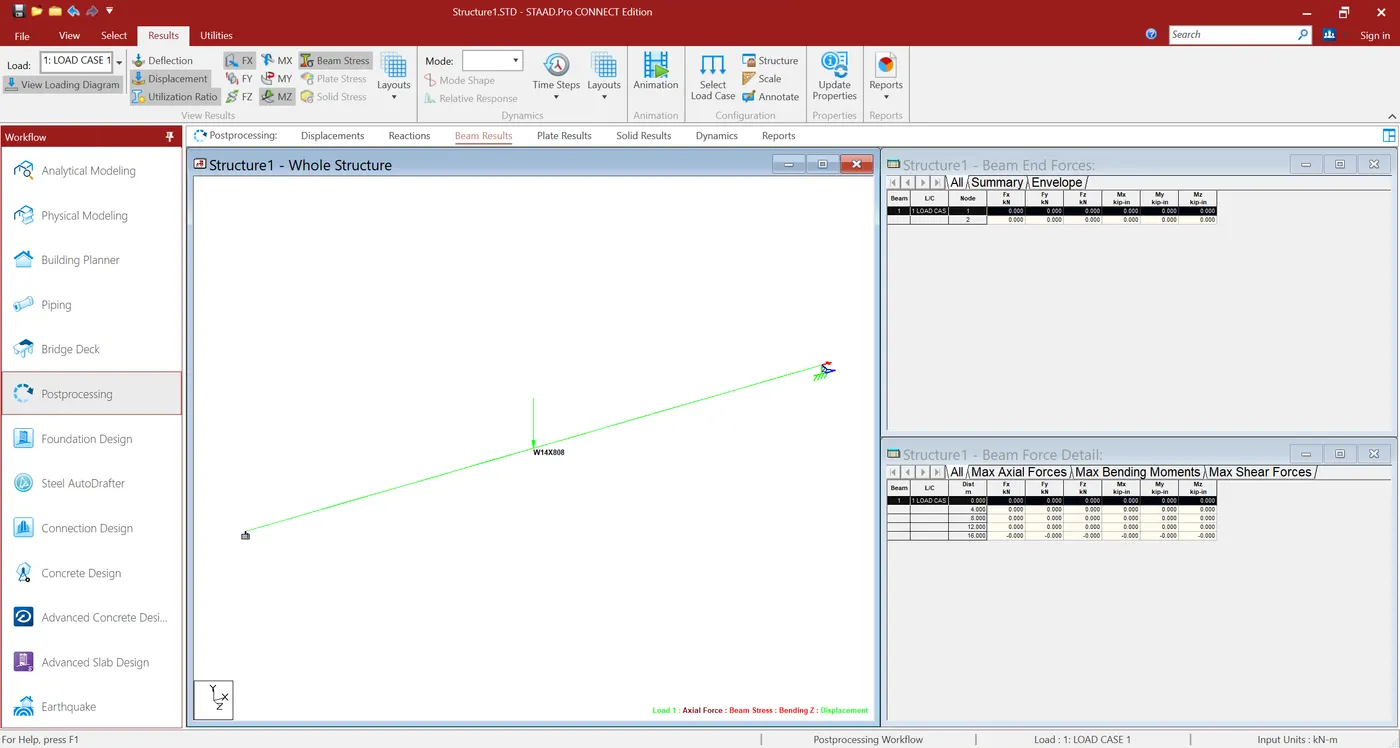

- > Now, go to the post-processing mode > select the load cases > click apply > ok
- > Then, all the analysis results will be automatically visible on your staad screen
- > Select beam results > Mz for bending moment > Fy for shear force diagram
-
