Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class.

Aim: To export Revit Architectural and Structural model to Navisworks Cache file.

Introduction: The procedure to export Revit Architectural and Structural model to Navisworks Cache file is Explained in detail and the final result is given.

Procedure:

• Select and open Arcthitectural and structural model files of the office building Created.

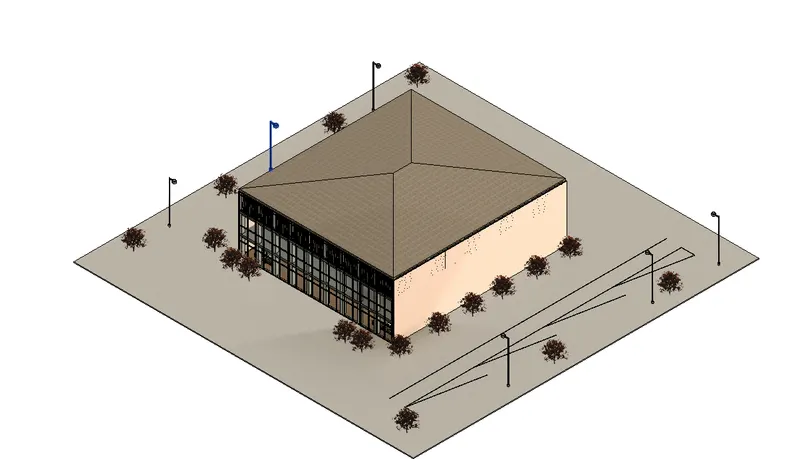

Architectural

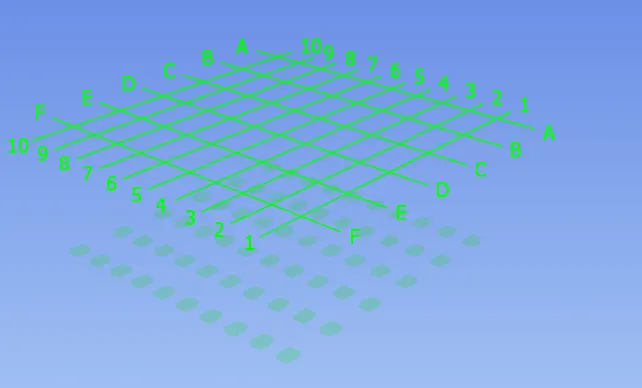

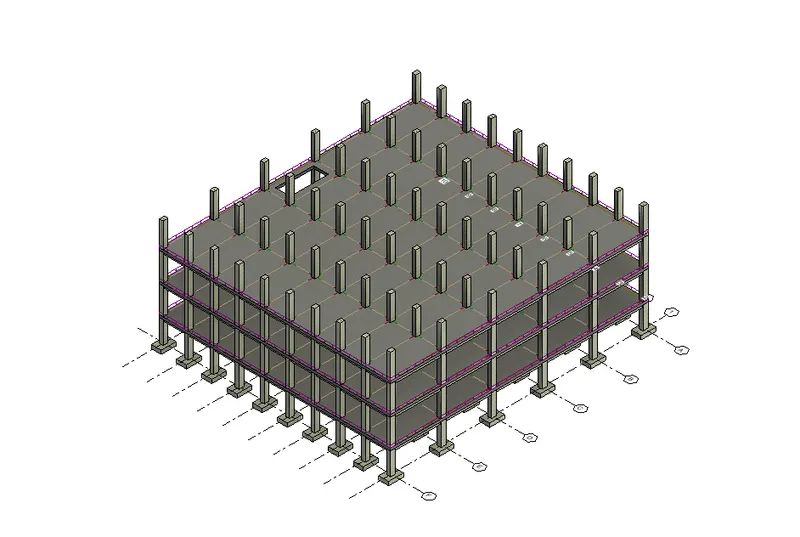

Structural

• First go to the Architectural File.
• Project Browser>3D view.
• Go to File>Export>NWC.
• Create a New folder and save the architectural file as .nwc file.
• Similarly go to the Structural file.
• Project Browser>3D view.
• Go to File>Export>NWC.
• Create a new Folder and Save the Structural file as .nwc File.
• The Structural model will be exported as a NWC file.

Result:

It has been clearly explained with detailed procedure as how to export the Revit architectural and Structural model to Navisworks Cache File.

-------------------------------------------------------------------------------------------------------------------------------------------

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

Aim: To use the Navigate tool and Walk around the model and Walk through the rooms created and record the moving as animation in the Navisworks file .

Introduction: The procedure to use the Navigate tool to walk around the model and walk through the rooms created and record the moving animation in the navisworks file is Explained in detail and the final result is given.

Procedure:

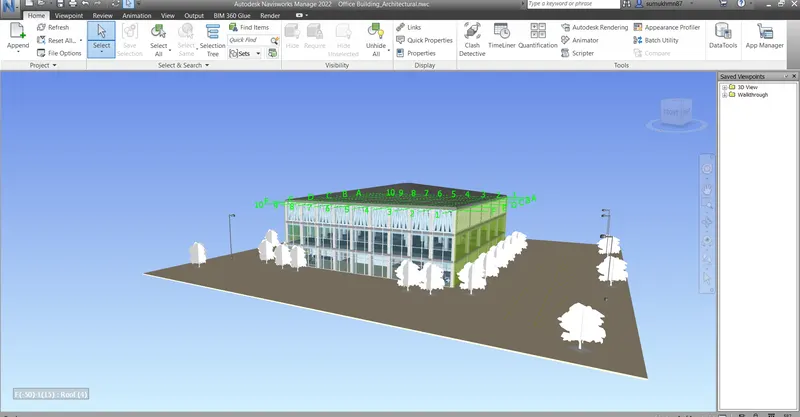

• Go to application menu>open>open navisworks project.
• Select and open the Architectural model exported as Navisworks file previously.

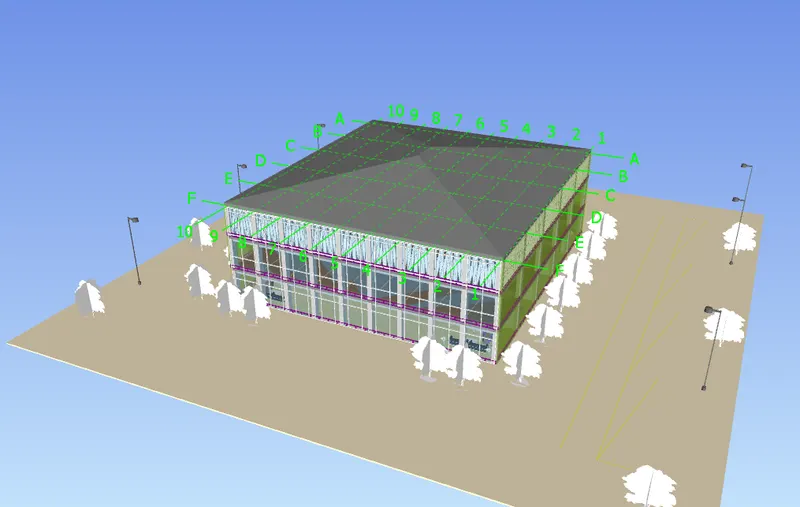

• The architectural model will be displayed.

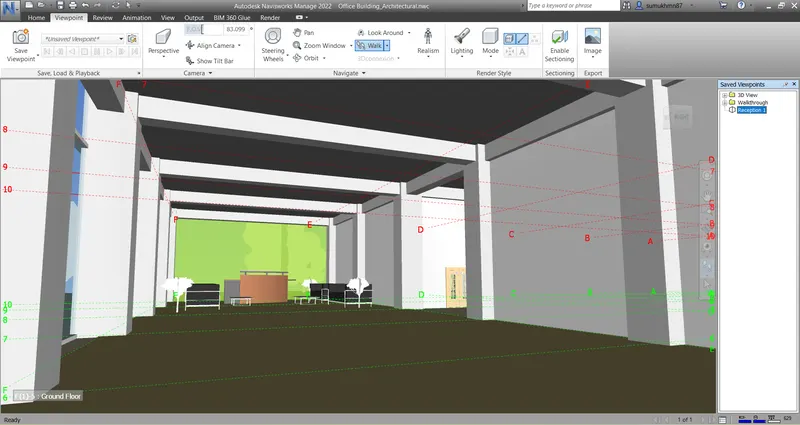

• Go to view point>Walk.
• Go to Save View point>Record.

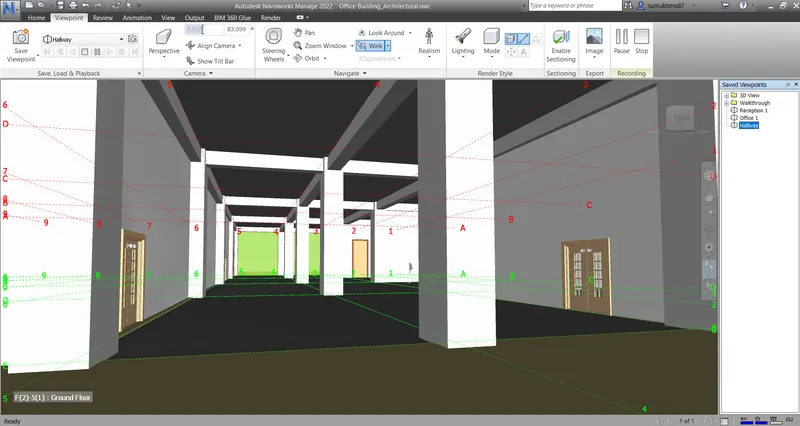

• Walk and pan Around the Building.

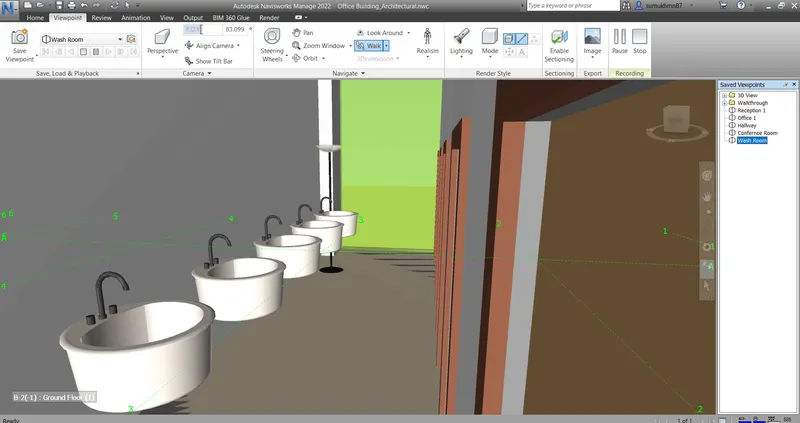

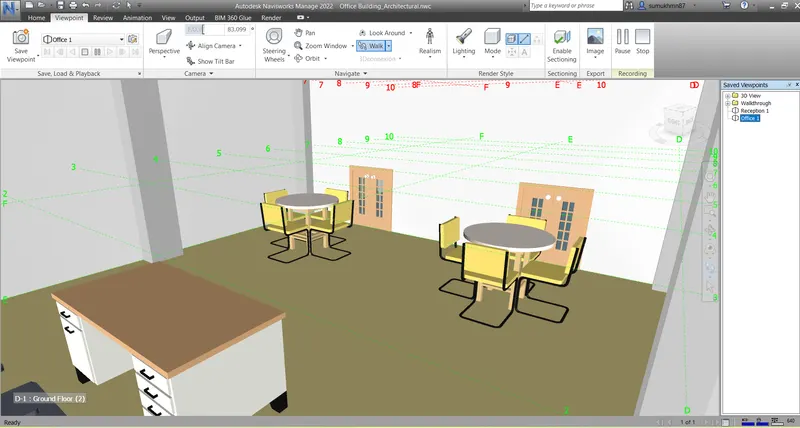

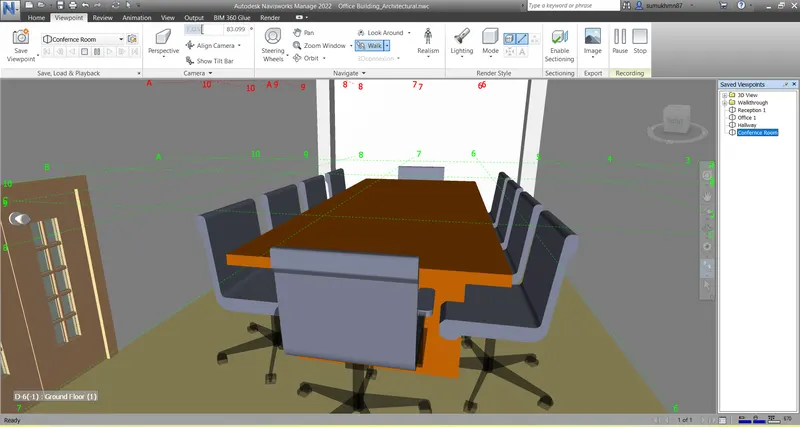

• The view of each room in a building can be saved as a viewpoint while walking around the building using the save viewpoint option.
• Rename the Viewpoints Accordingly.
• Once finished moving around the building, Stop the recording.
• Go to animation.
• Select the office walk animation created.
• Click on the play Button.
• Go to animation>Export animation.

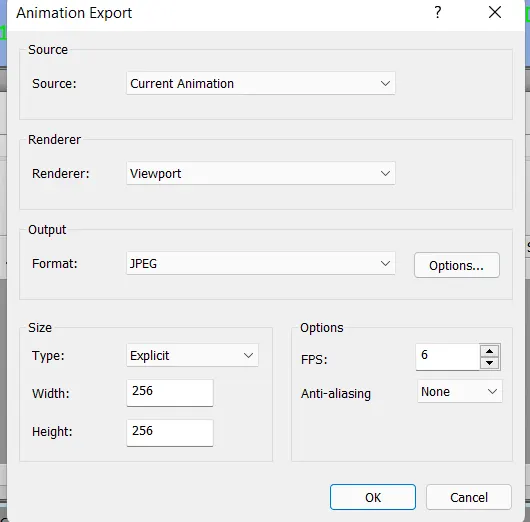

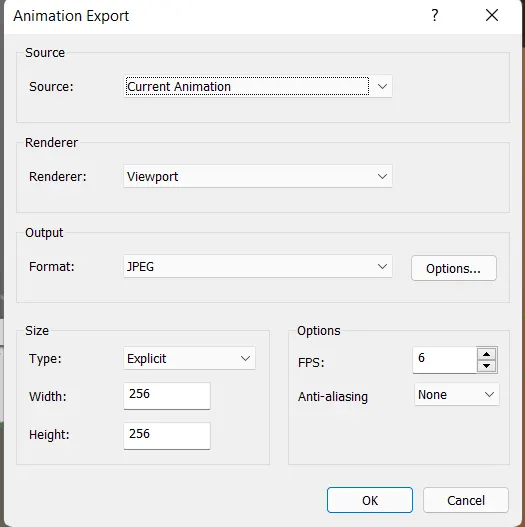

• Make desired adjustments in the animation export dialog box>Ok.
• Save the exported file in the appropriate location.

Result:

It has been Sucessfully illustrated with detailed procedure how to use the Navigate tool and walk around the model and walk through the rooms created and record the moving as animation in the navisworks file.

-------------------------------------------------------------------------------------------------------------------------------------------

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

Aim: To Navigete using Realisim feature to walk through the model and record your moving as animation in Navisworks file .

Introduction: The procedure to Navigate using Realisim feature to walk through the model and record the moving as animation in navisworks file is Explained in detail and the final result is given.

Procedure:

• Open the Original 3D View of the model in Navisworks.

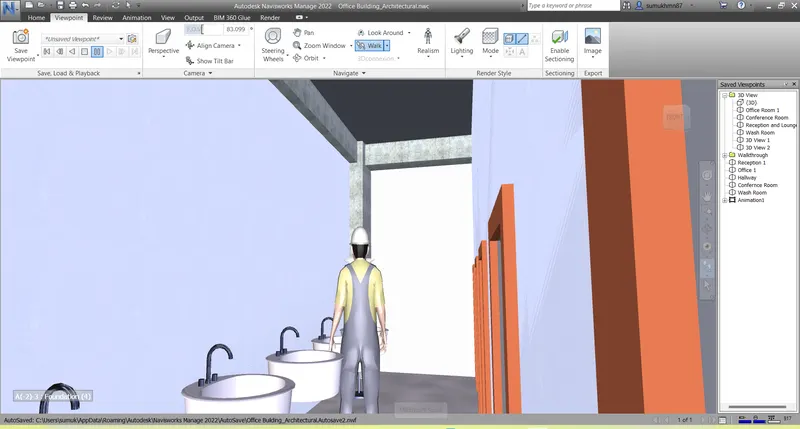

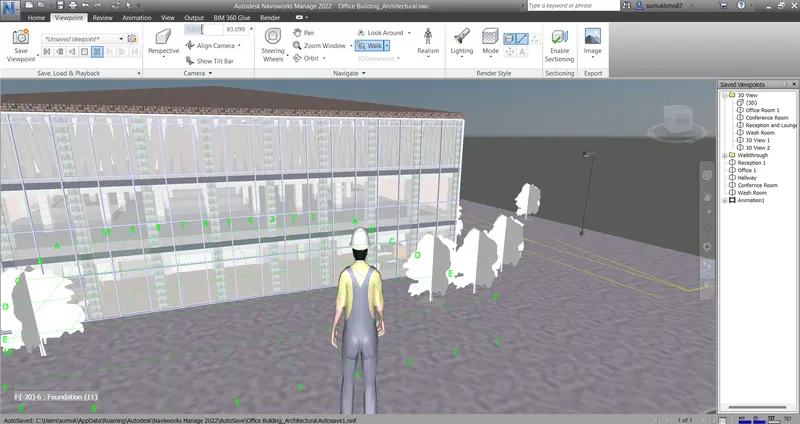

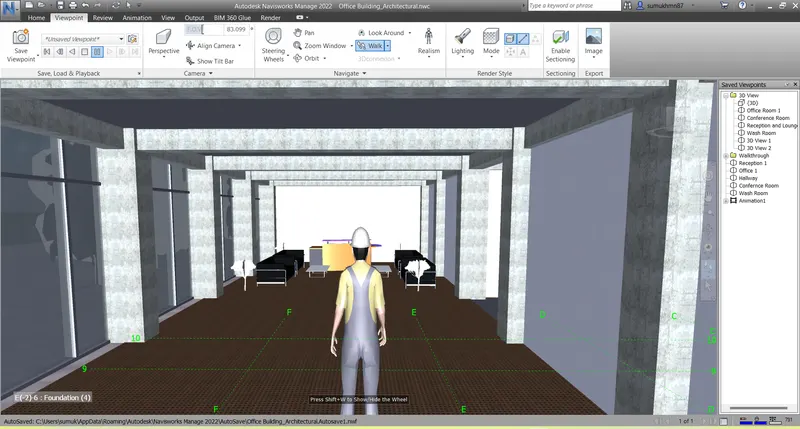

• go to Viewpoint>Walk and then Click on Realism icon.

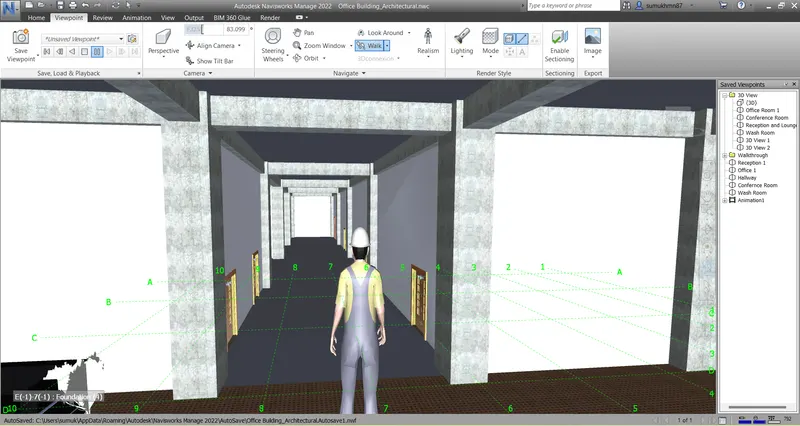

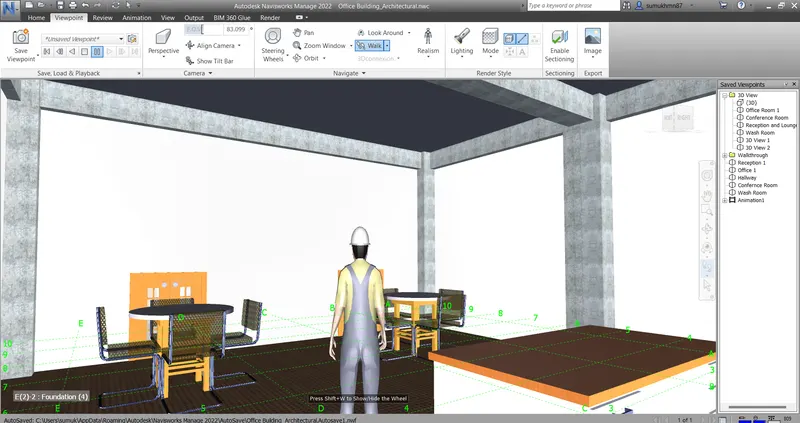

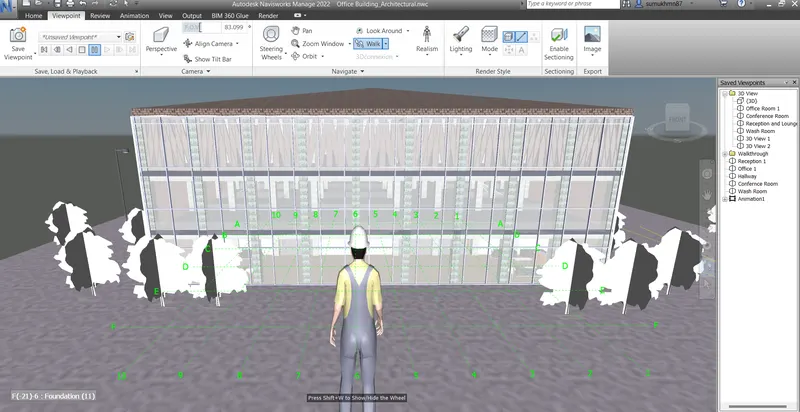

• Select the Third Person option.
• Go to Save Viewpoint>Record.

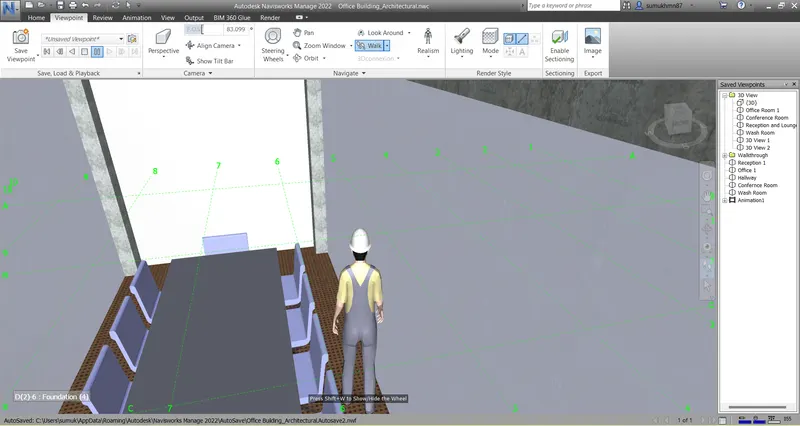

• Walk arund the building using Realism.
• Use the pan tool When necessary.
• Stop the Recording.
• Rename the saved recording in the saved viewpoints window.
• Go to Animation.
• Select the Realism walk animation Created.
• Click on the play Button.
• Go to animation>Export animation.
• Make desired adjustments in the animation export dialog box>Ok.
• Save the exported file in the appropriate location.

Result:

It has been Sucessfully illustrated with detailed procedure how to use the Navigate Realism feature to walk through the model and record the moving as animation in the navisworks file.

-------------------------------------------------------------------------------------------------------------------------------------------

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks.

Aim: To Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models.

Introduction: The procedure to Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models is Explained in detail and the final result is given.

Procedure:

• Go to Home tab> Append.
• Select and open the Structural model file of the office building to the existing architectural file in Navisworks.
• The Structural model will be Appended to the Architectural model.

a. Run the Clash Detction test.

• Go to Home Clash>Detective.

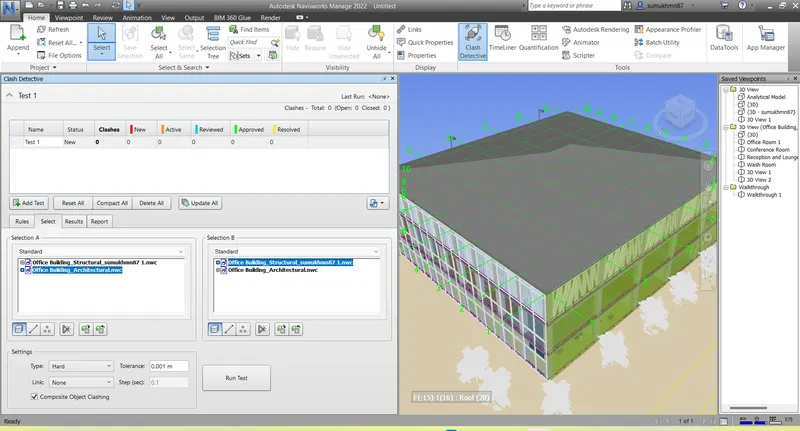

• In the Clash Detective window Click on Add test.
• Next Select the Architectural model for Section A and Structural model for Section B.
• Select the Surfaces Option.
• Then Click on Run Test.

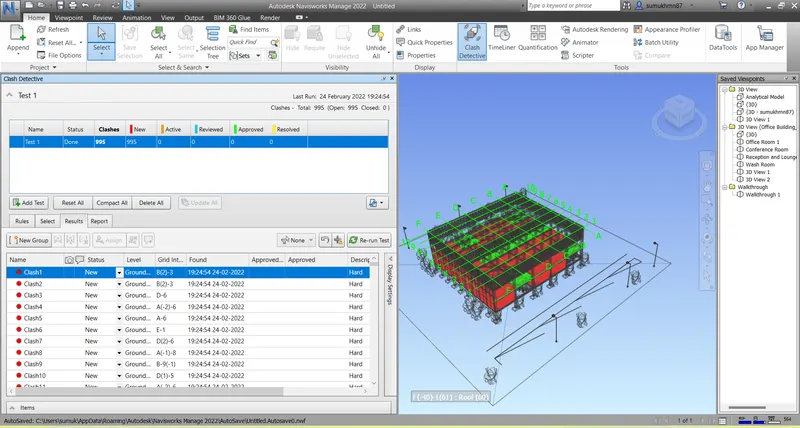

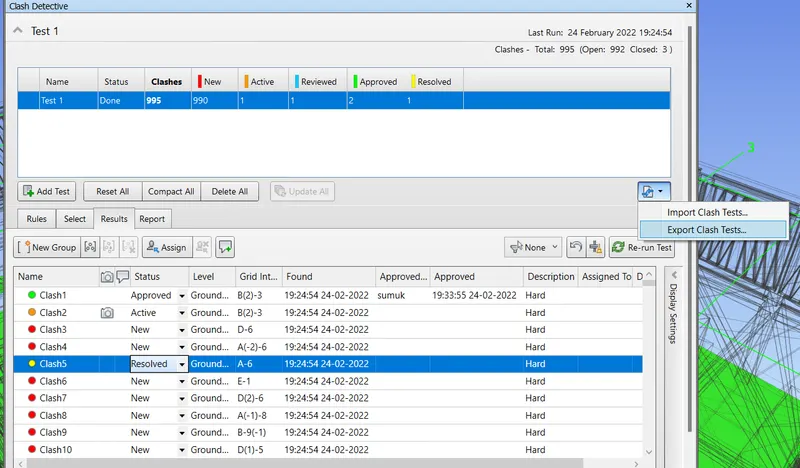

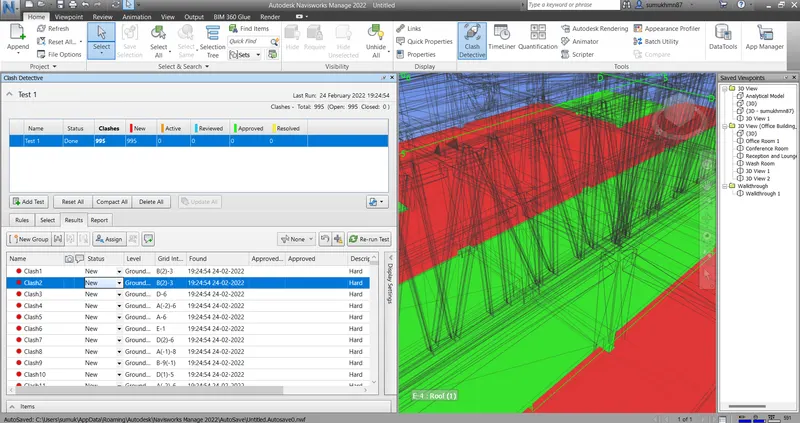

• The Total number of Clashes detected will be listed in Window.

b. Study the Clash between the two models.

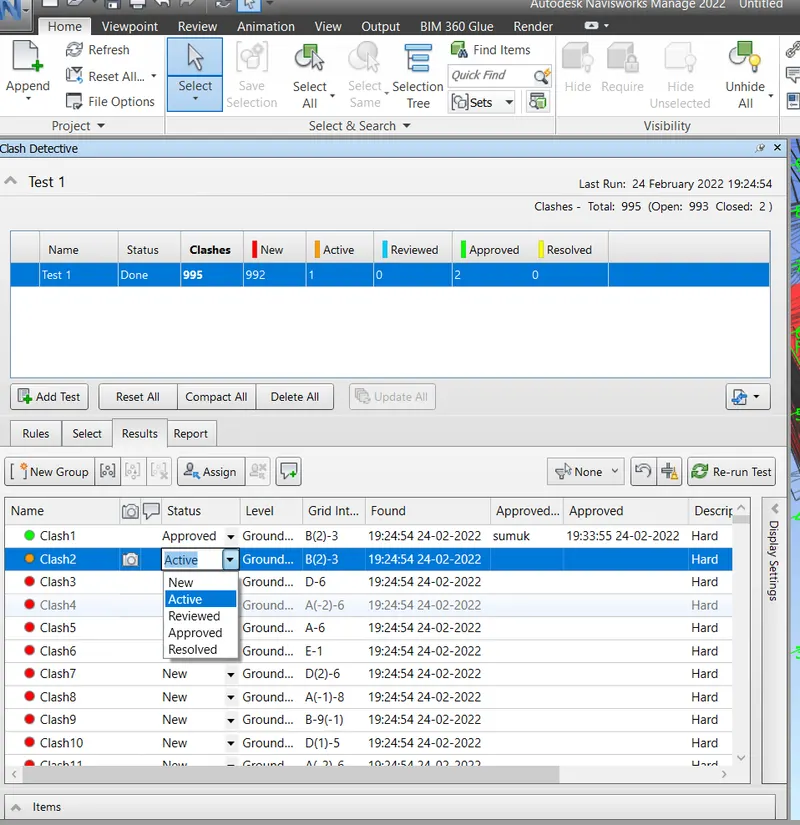

• From the clash detection results,Check all the Clashes that are listed in the Window one by one.

c. List Which of the Clashes could be approved.

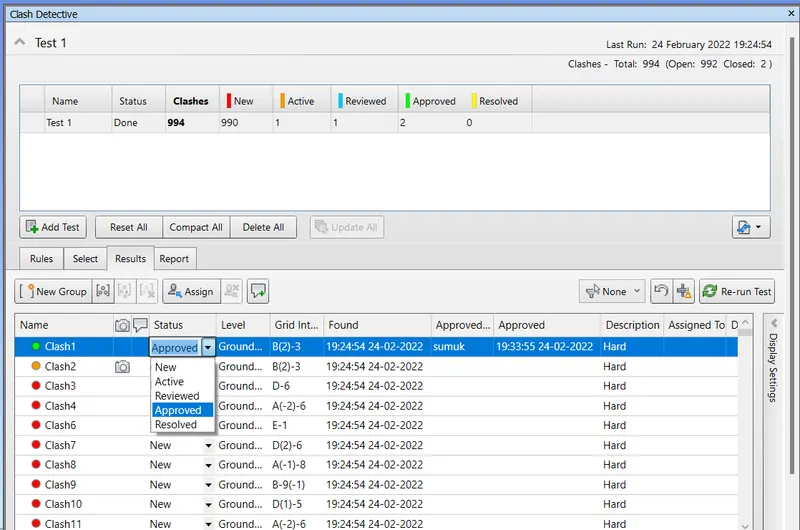

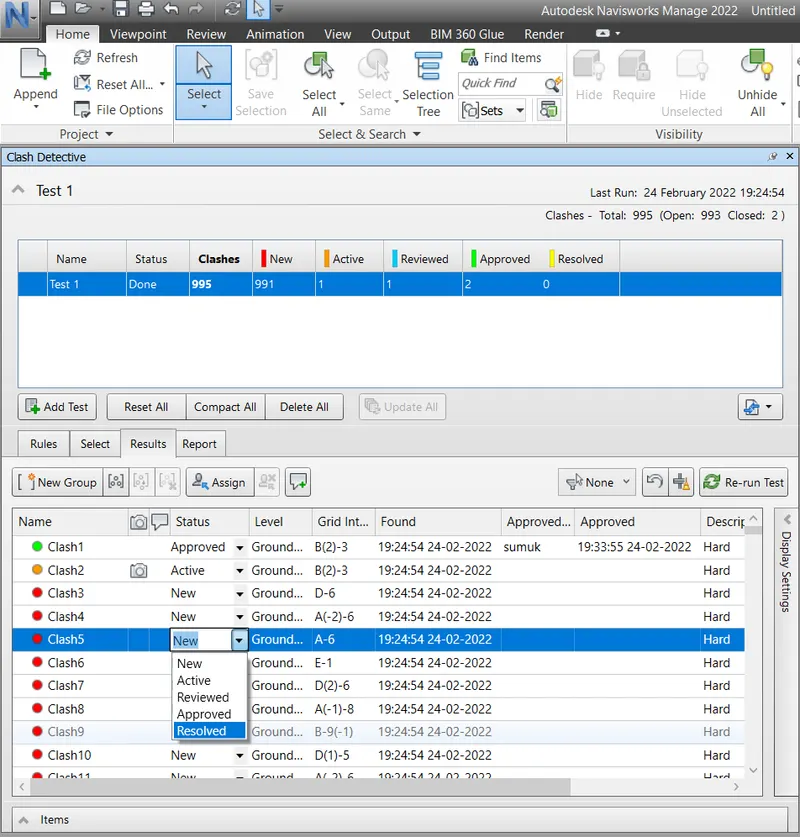

• To Change the Status of the Clashes to approved,Select the Clashes that can be approved,individually, and under the Status tab Change the Status to approved.

d. List Which of the Clashes Could be neglected (Will be taken Care later).

• To change the Status of the Clashes to approved ,Select the Clashes that can be taken care of later, individually, and under the Status tab Change the Status to Active/Reviewed.

e. List which of the Clashes can be Resolved.

• To change the Status of the Clashes to approved, Select the Clashes that are resolved,individually, and under the Status tab Change the Status to Resolved.

f. Save the results after Color coding the Clashes to the Navisworks file.

• The Colour Coded Clash test Results can be exported as an .xml file by Clicking on the Export icon and Saving the Exported File.

g. In case of Resolution annotate the Clash and Save the view to defined View in Navisworks.

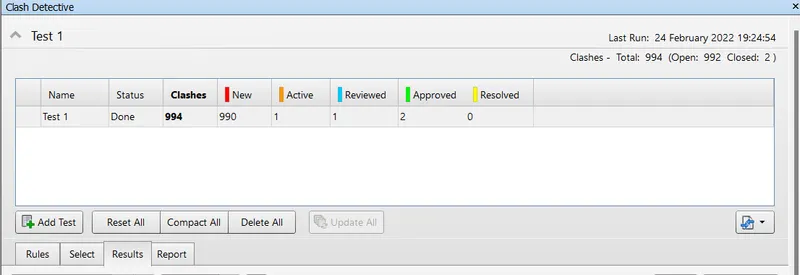

• Resolved Clashes can be Cleared from the list by using the Compact option.
• Resolved Clashes Viewpoints can be Created by Click on the Camera icon Column.

Result:

It has been Sucessfully illustrated with detailed procedure how to embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models .

-------------------------------------------------------------------------------------------------------------------------------------------

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

Aim: To prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file .

Introduction: The procedure to prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file is Explained in detail and the final result is given.

Procedure:

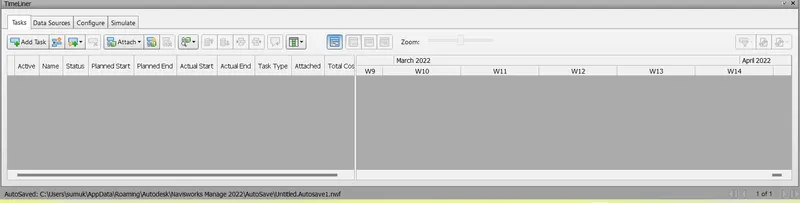

• Go to Home tab>Timeliner.
• Next go to Home tab> Selection tree.
• The selection tree window will open.
• In the timeliner window Click on add task.
• In the timeliner window Click on add task.
• Add new tasks.
• Rename the tasks appropriately in the correct chronological order.

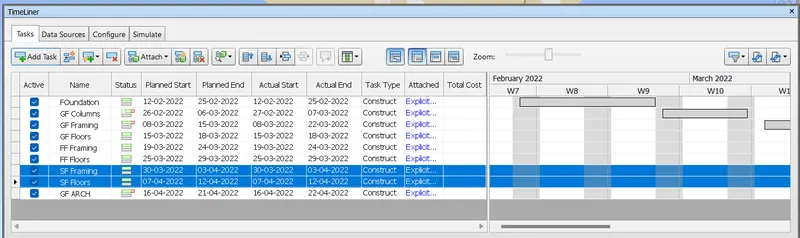

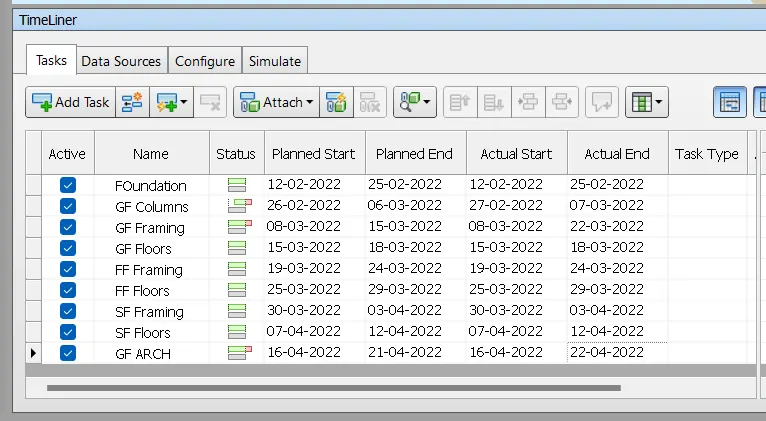

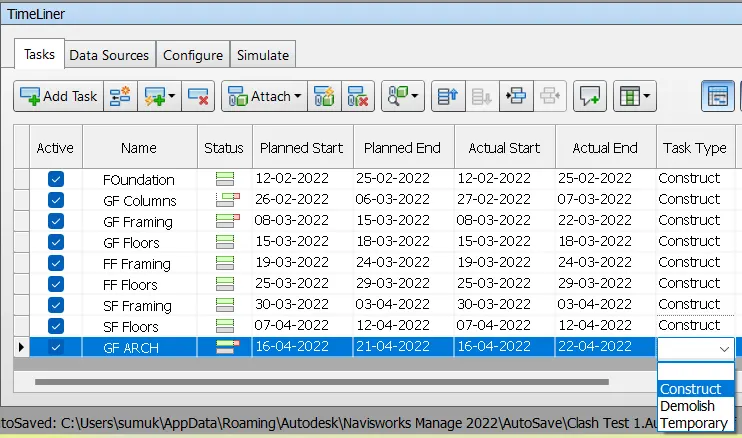

• Enter the dates for planned start,planned end, actual start, actual end for each task.
• Change the task type of each of the activites as Construct.
• From the Selection tree window,select Foundation.
• In the timeliner window select the foundation task.
• Again in the timeliner window,click on attach option>Attach to current selection.
• Similarly,attach all the building components to their specific tasks.
• The Timeliner Schedule is ready.

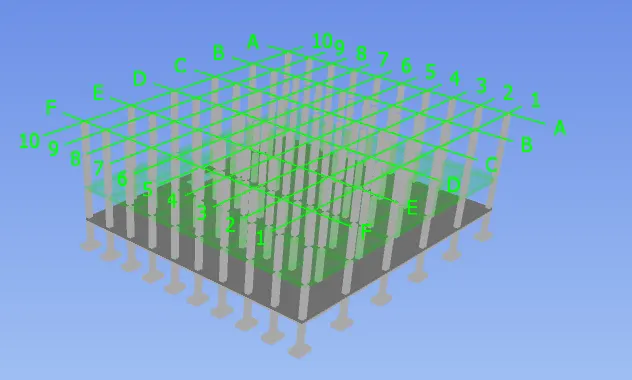

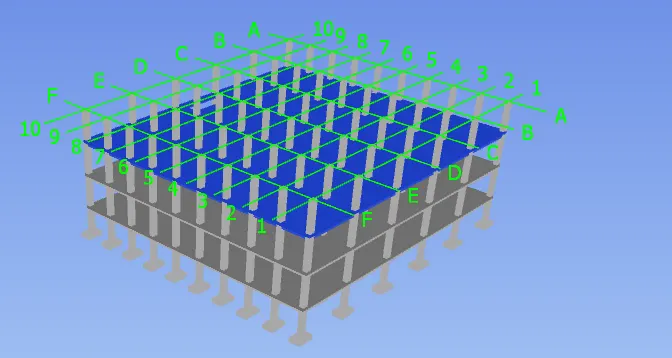

• Go to timeliner window,select the Simulate option>Play.
• The timeliner Simulation will start playing.
• Go to timeliner window, Select the Export animation.
• In the Animation Export dialog box, Select the Source as Timeliner Simulation option.
• Select Format as Windows AVI>Ok.

Result:

It has been Sucessfully illustrated with detailed procedure how to prepare a schedule for the project developed in week 6 to 8 by adding resonable assumptions for task start date and end date using the timeliner feature in navisworks and to simulate the task completion as a visual simulation which is then recorded and saved.
