Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

QUESTIONS

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

ANSWERS

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class ?

ANS -

AIM : To use the architecture/structural project file developed from week 6-8, Export the Revit file to Navisworks cache file.

TOOL USED :

Architectural file.

file.

Open

Export.

NWC.

Navisworks.

View.

3D view.

PROCEDURE :

Open the File which need to convert in navisworks nwc.

Click on File.

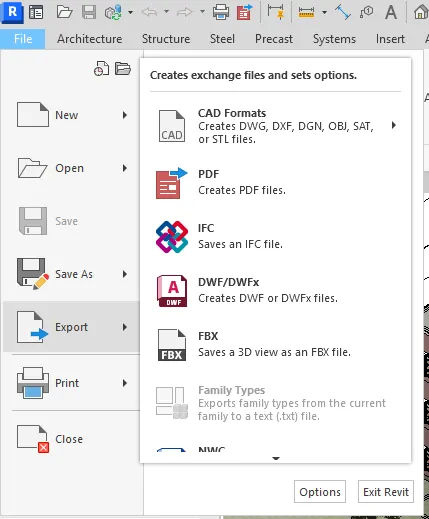

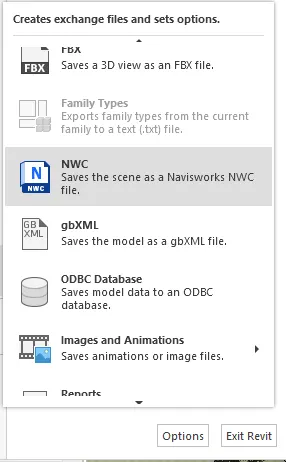

Click on Export, and select nwc. option.

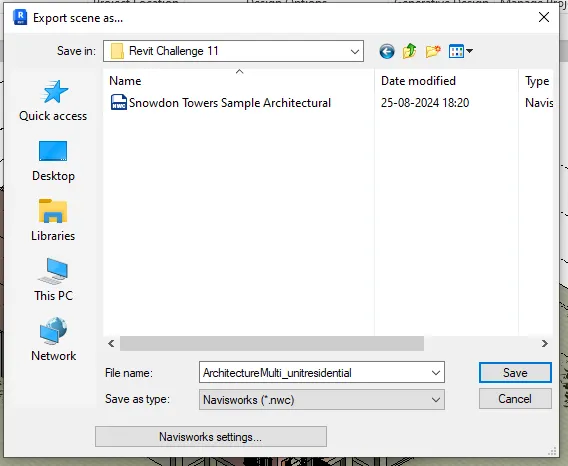

Save the nwc. file in your computer.

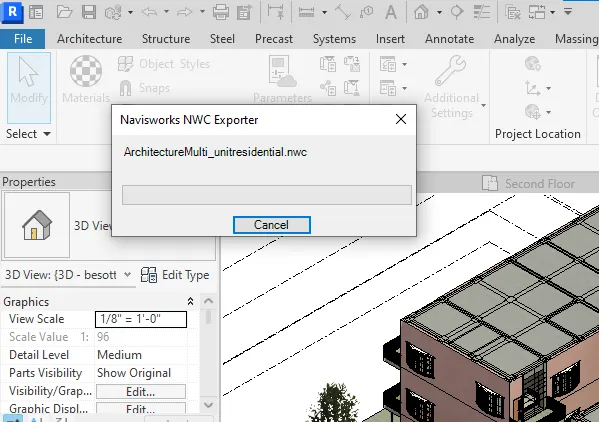

Navisworks NWC Exporter is converting Revit file

Now open Navisworks manage 2024

And click on file

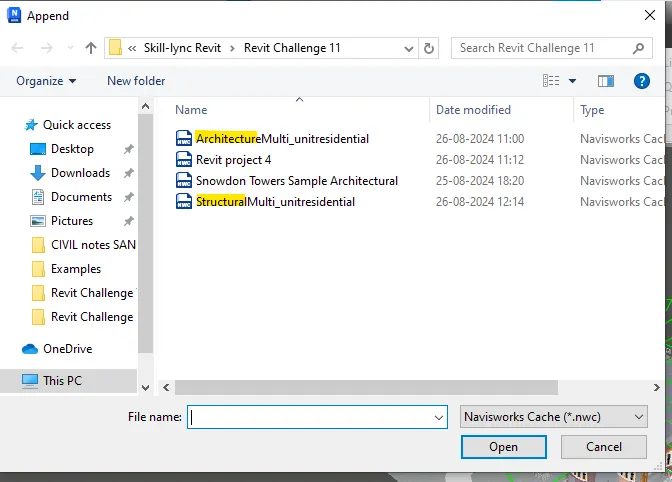

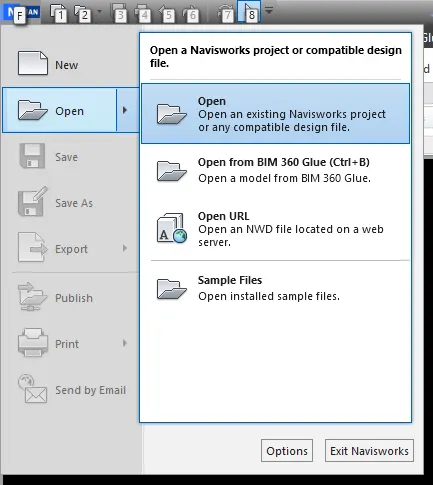

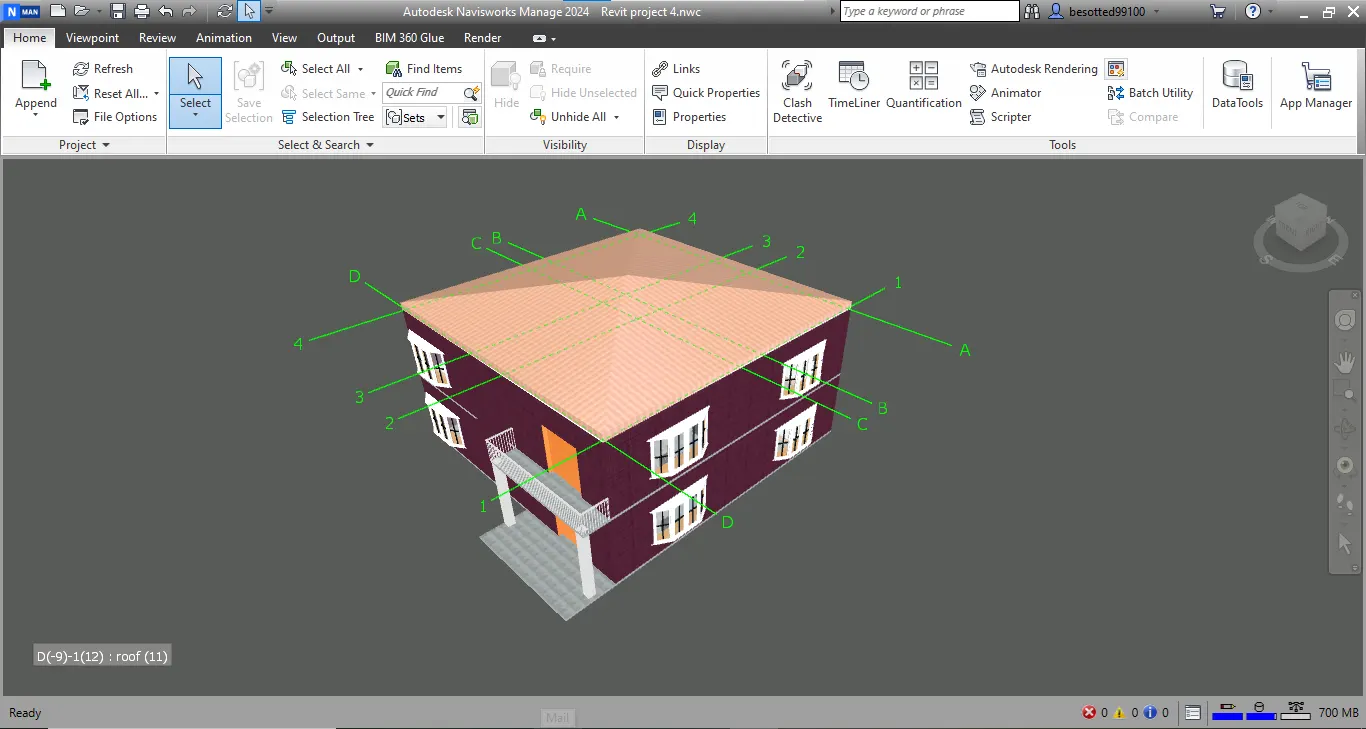

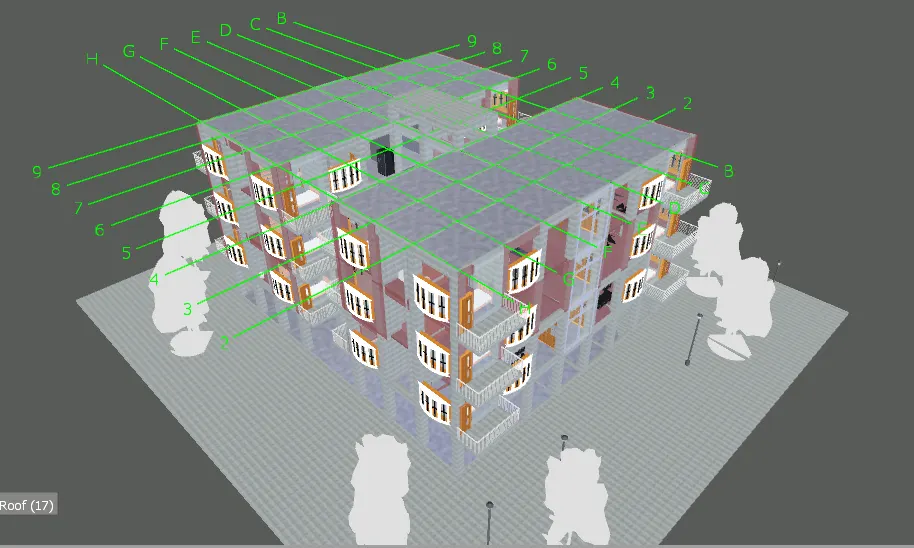

Select open, then open the nwc. file saved in the computer

RESULT :

We have successfully exported Revit architectural and structural model to Navisworks cache file with the help of Navisworks software.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file ?

ANS -

AIM : To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

TOOL USED :

Architecture file.

Navisworks.

Viewpoint.

save viewpoint.

Walk.

Record.

Stop.

Arrow keys for movement.

PROCEDURE :

Open the architecture file which we want to export to Navisworks.

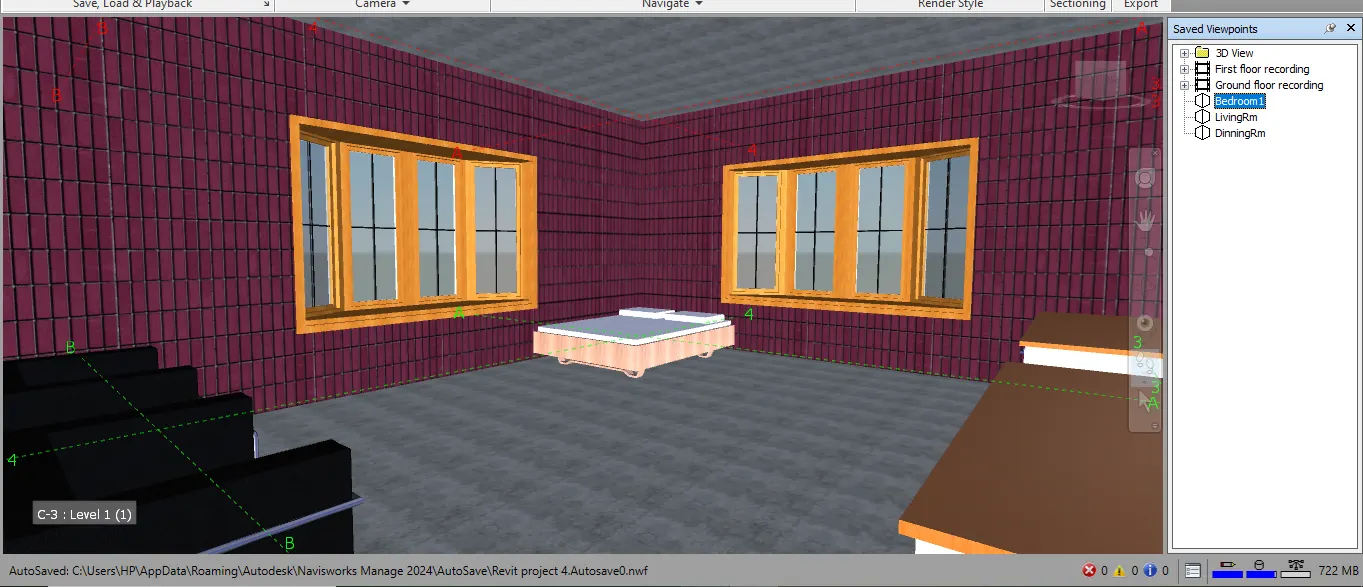

Then Click on the viewpoint tool and select save viewpoint option.

With the help of the record option, we could record the walk then The pictures will be saved as frames.

Views are to be saved by giving appropriate names.

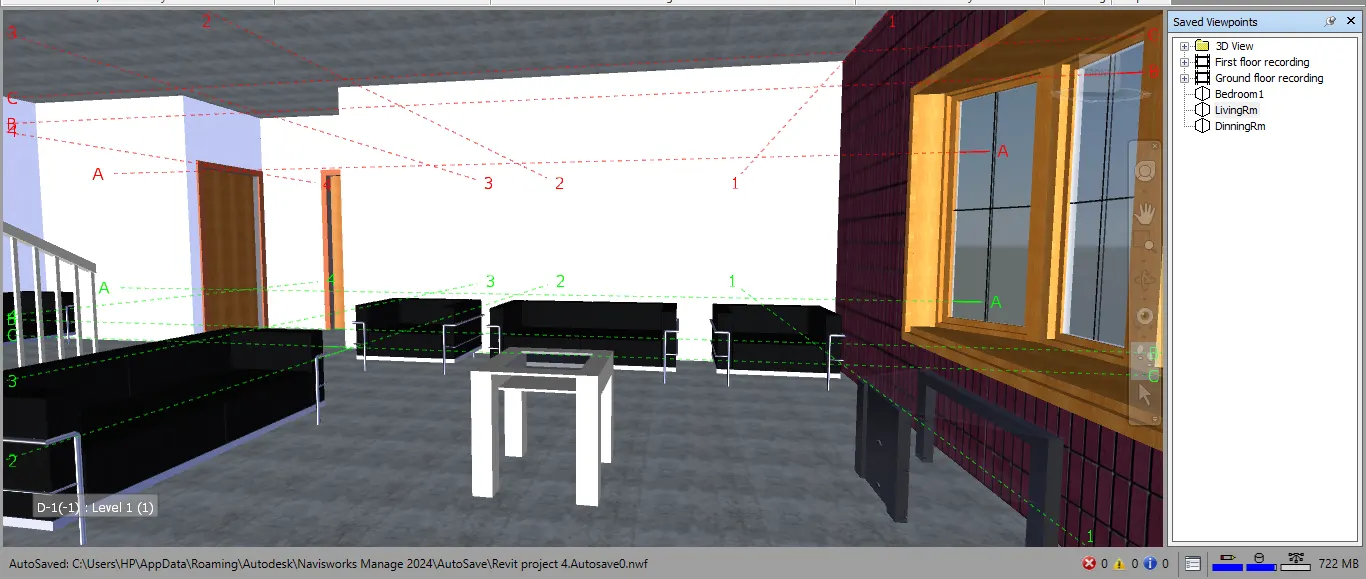

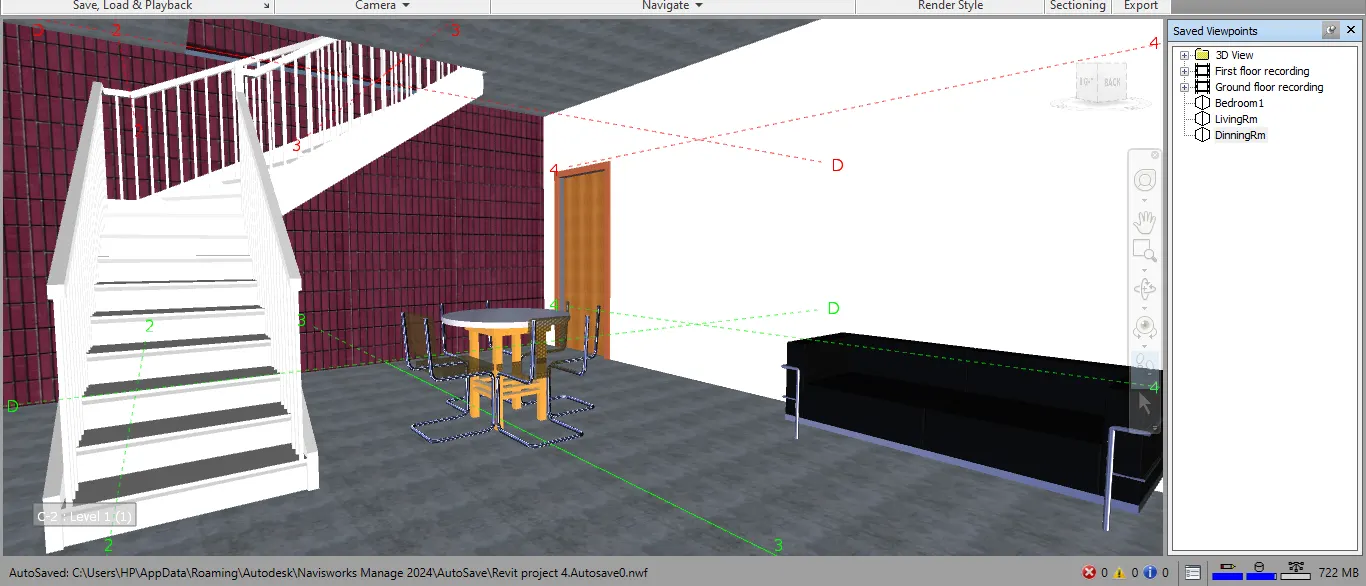

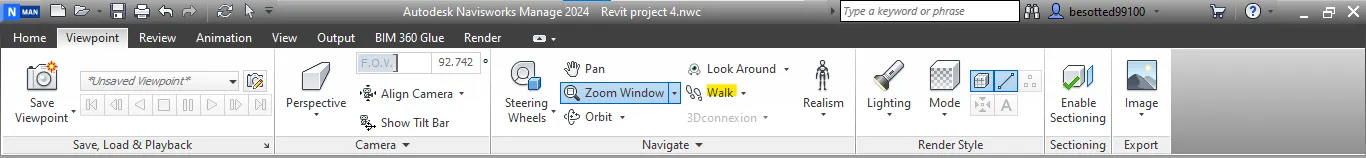

Now select walk option and use the cursor to select where we want to start the walk. with the help of arrow keys, the view in the project can be moved.

Now with the help of walk tool we can move to the desired position where we wish and change the design according to our wish.

RESULT :

With the help of navigate tool we have created walk through to rooms and recorded moving as animation in Navisworks file.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file ?

ANS -

AIM : To use navigate tool to use the realistic feature to walk through the model and record our movings as animation in navisworks file.

TOOL USED :

Navisworks.

Viewpoint.

Save view point.

Walk.

Record.

Stop.

Arrow keys for movement.

PROCEDURE :

The architecture file which we want to export to the Navisworks is to be opened.

Then click on viewpoint tool and followed by selecting save view point option.

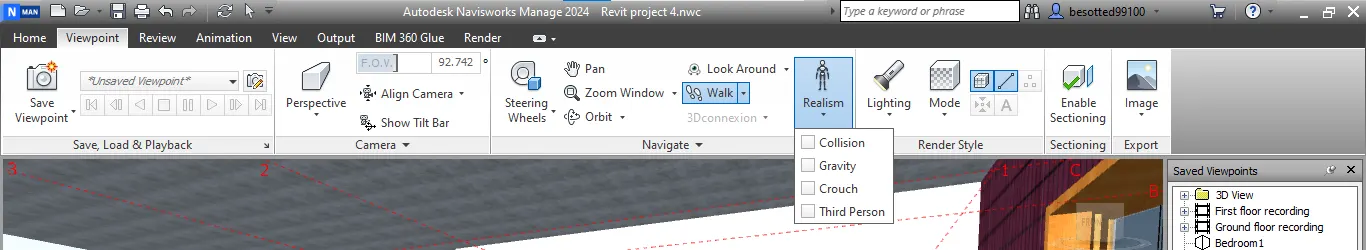

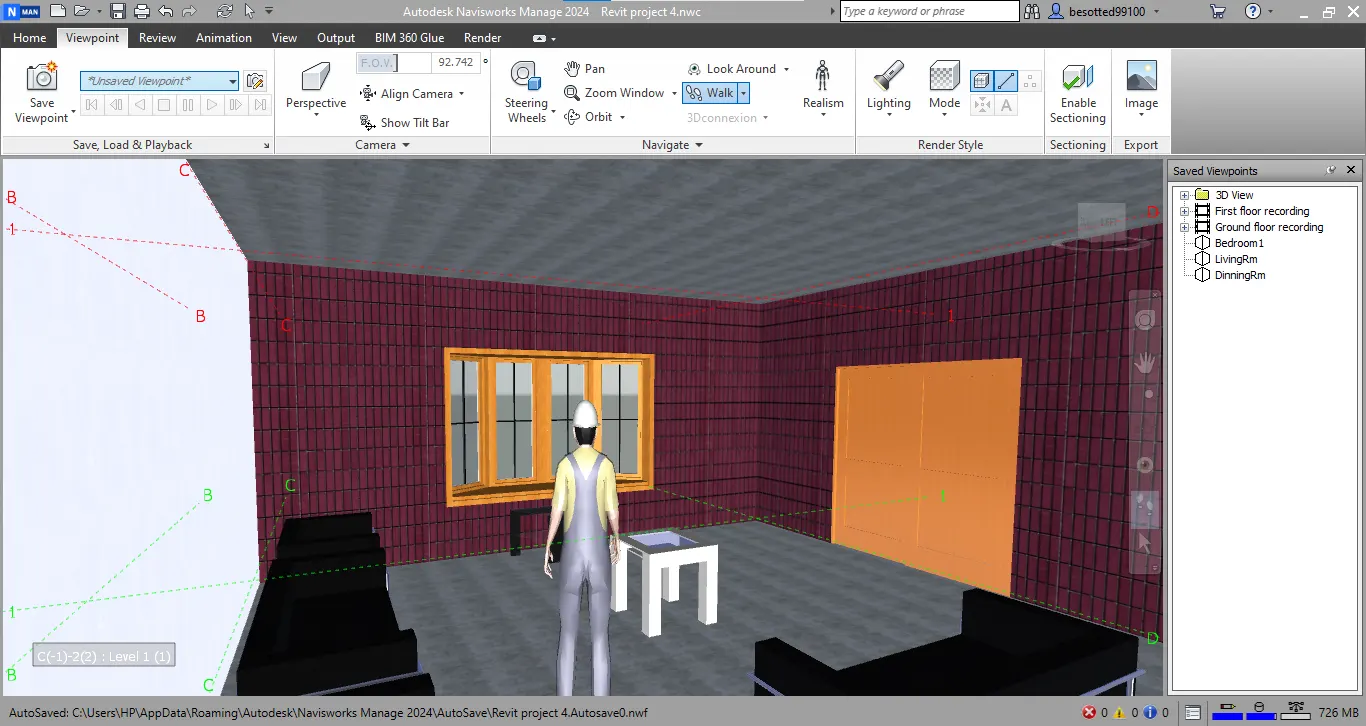

Save the view with appropriate name and click enter, click on the realistic option from the ribbon and select third-person option.

Now select walk option and use the cursor to select where want to start the walk.

We can move the view in the project with the help of arrows.

With the help of walk tool we can move to the desired position where we wish to change the design according to our wish.

Now we can use the record option and record the walk with the help of realistic third person, The pictures will be saved as frames.

RESULT :

With the help of Navigation tool, we have used realistic feature to walk through the model and recorded our moving as animation in Navisworks file.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks ?

ANS -

AIM : To create a clash detection test between the two models

a. Run the Clash Detection Test

b. Study the clashes between the two models

c. List which of the clashes could be approved

d. List which of the clashes could be neglected ( will be taken care later)

e. List which of the clashes can be resolved

f. Save the results after color coding the clashes to the Navisworks file

g. In case of resolution annotate the clash and save the view to defined views in Navisworks

TOOL USED :

Open.

architecture file

home

add test

Append.

Clash detection.

clash detection dialog box

Run test.

PROCEDURE :

Once load and open the structure and architecture files, we can start the clash test.

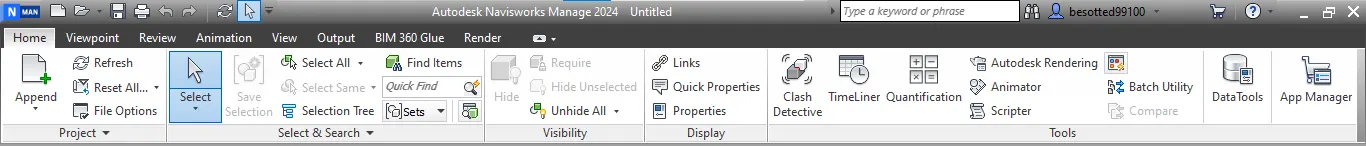

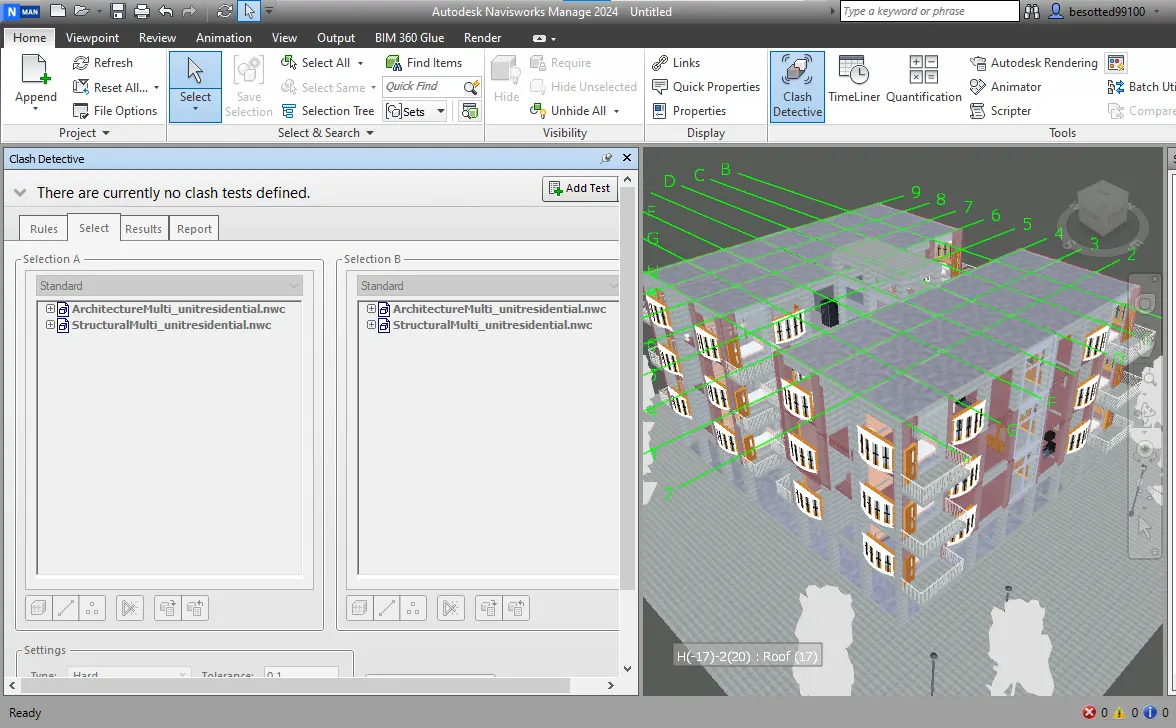

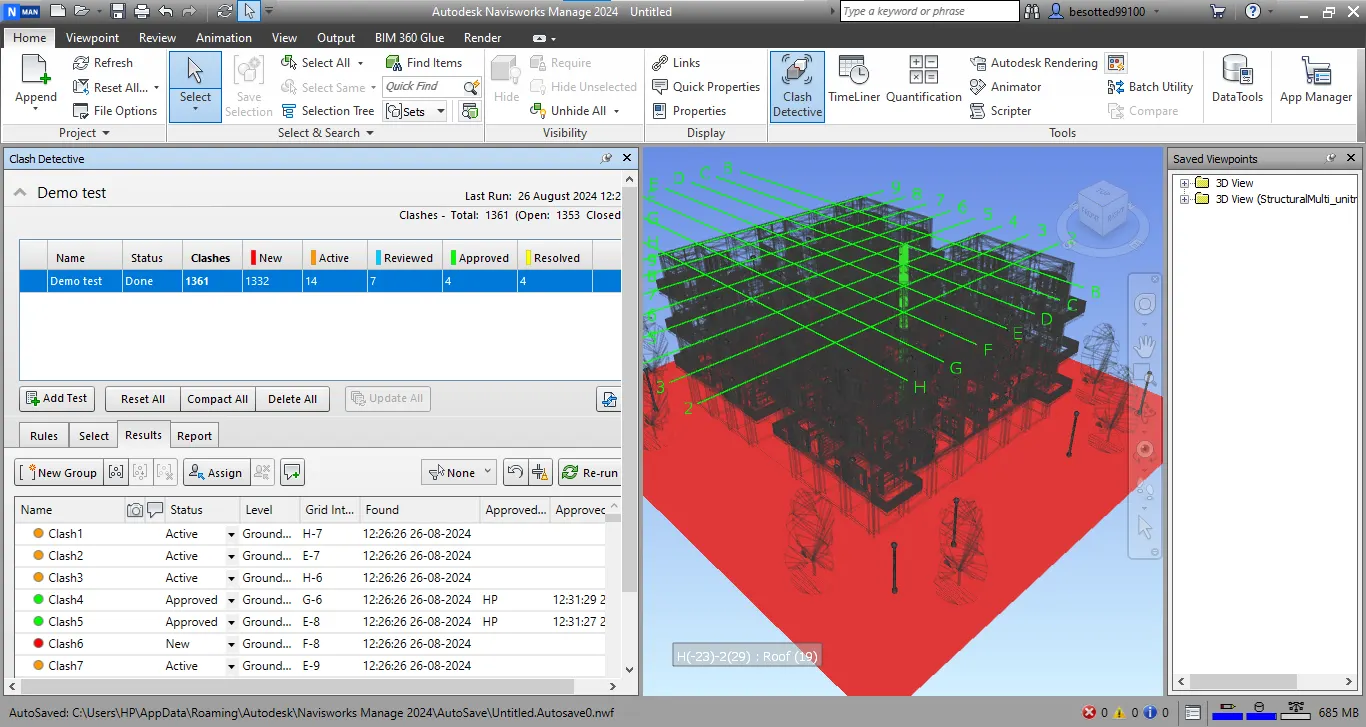

Then Go to home menu and select clash detective, Clash detective dialog box appears.

Click on add test option.

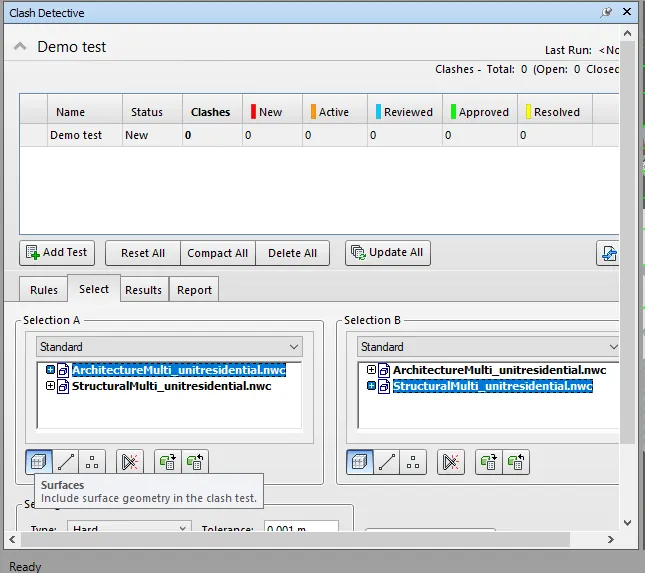

Then select the files which we want to test then click on run test.

Clashes can be approved as part of the construction, these clashes will not appear anymore. it turns into green color once we click approve

The clashes which will not cause any disturbance to the project can be neglected.

Clashes can be resolved which can change model boundary conditions, these clashes can be excluded from the detective test.

Once we change all the clashes we can save the Navisworks file. Now, this file is ready and can be sent for review.

We can annotate and save the place where we can clash are visible and is viewed personally and will be rectified by the design engineer.

RESULT :

We have successfully performed the clash detection test where we can resolve the problems and send the file to the design engineer for corrections.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file ?

ANS -

AIM : To use the Timeliner feature in Navisworks we can prepare a schedule for the project by adding reasonable assumptions like taks start and end date and simulate the task.

TOOL USED :

Home.

Navisworks

Timeliner dialog box

simulate

Timeliner.

Add task.

Selection tree.

PROCEDURE :

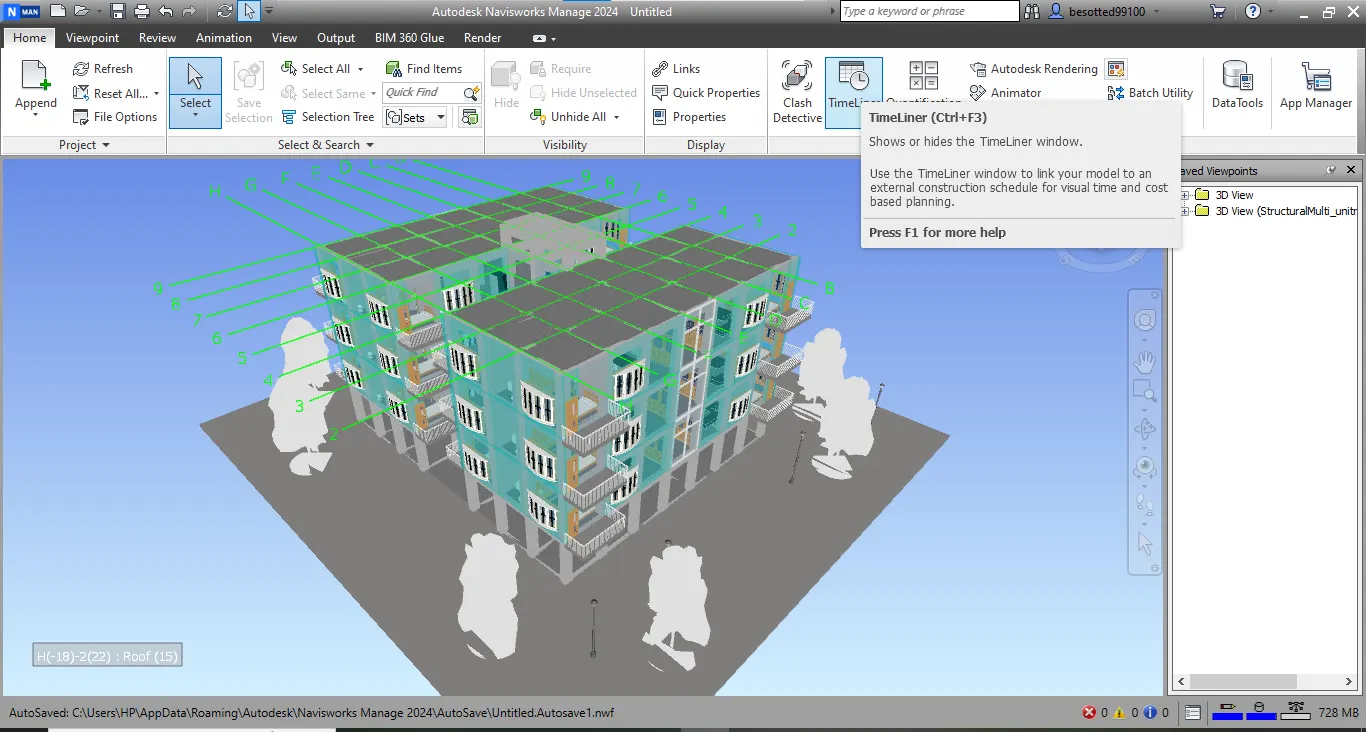

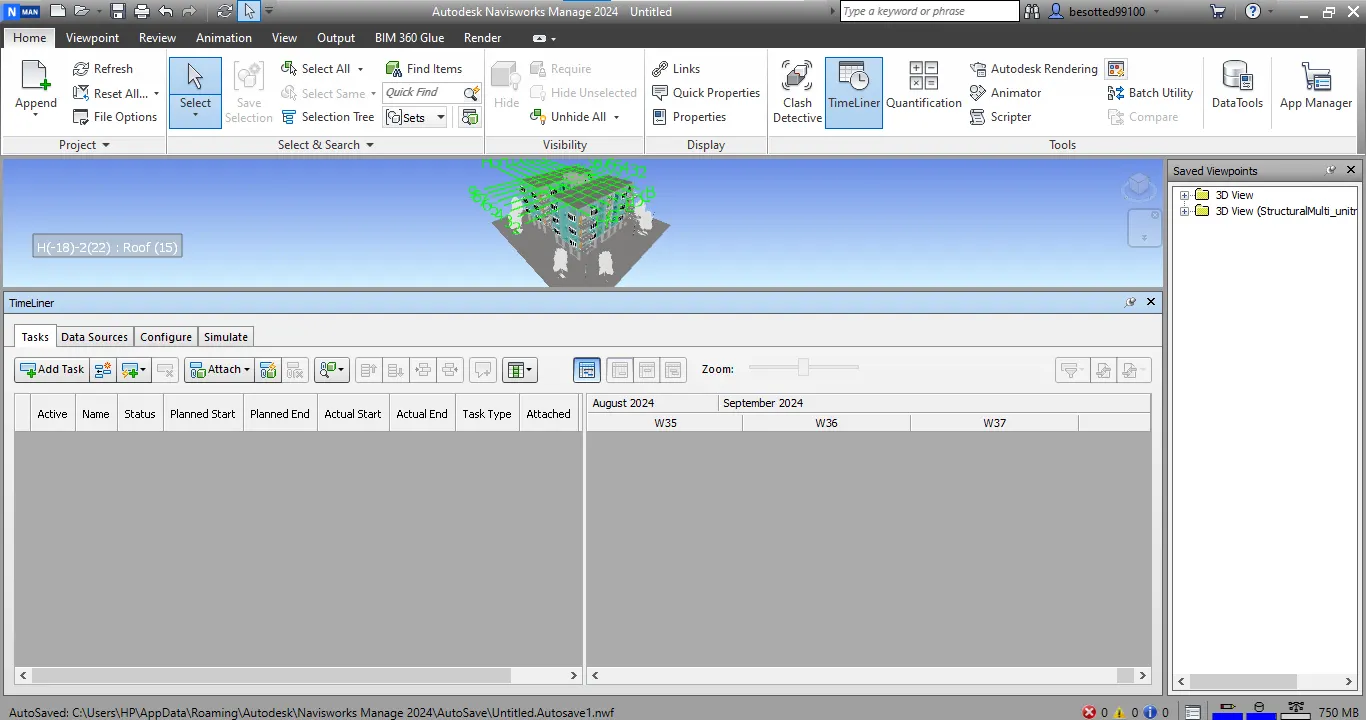

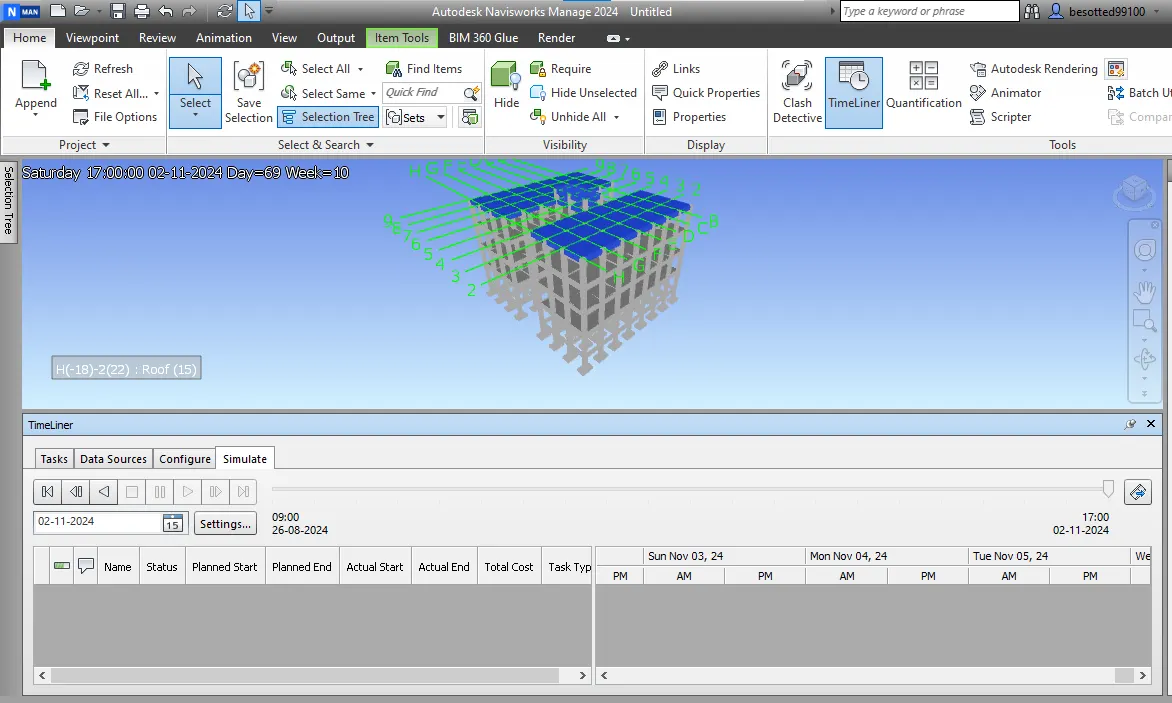

Open the Navisworks file and click on timeliner tool from the home menu, Now timeliner dialog box appears.

Select the components by Clicking on the Selection tree and add them to the timeliner.

Then click on add task to add the first work in the project, We can add the actual and planned start and end dates, We can select the task type for construction.

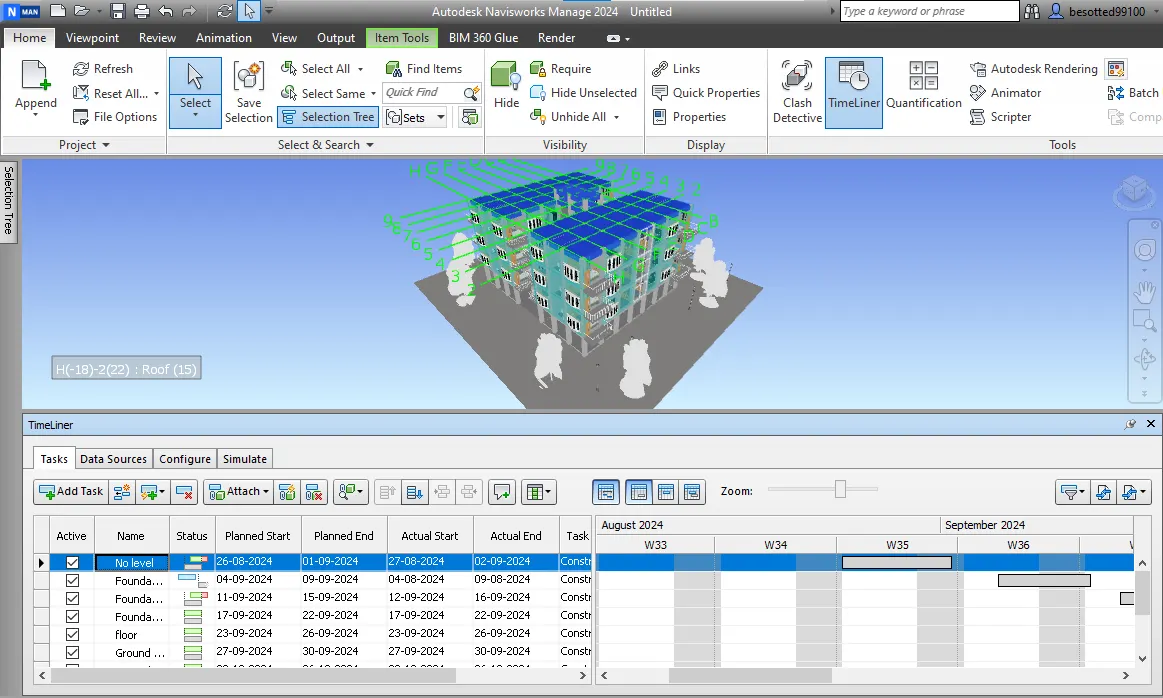

Once we fill all the details in the timeliner dialog box we can click simulate option.

The simulation begins and we can see the construction from the starting date to ending date in the form of video.

RESULT :

Used timeliner feature in navisworks to prepare a schedule for the project developed in previous weeks and added some reasonable assumptions for the task like start date and end date and simulated the task completion as a visual simulation and saved the timeliner simulation to Navisworks file
