Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

Challenge 11

1.

Aim: To export the Revit architecture and structure model to Navisworks Cache file following the export settings

Procedure:

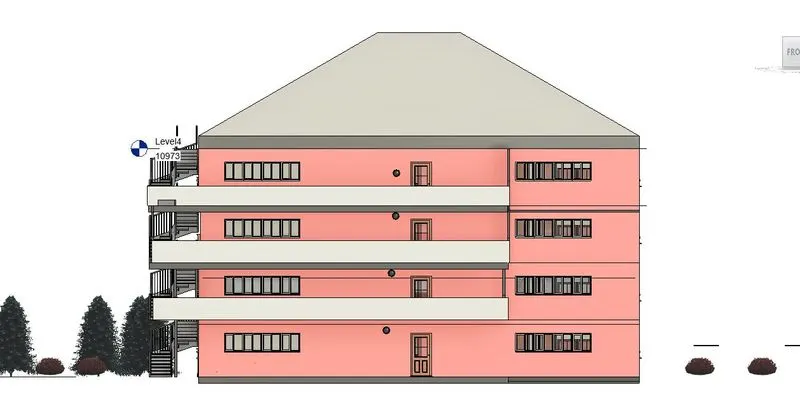

• Open the Revit software and open the architectural model

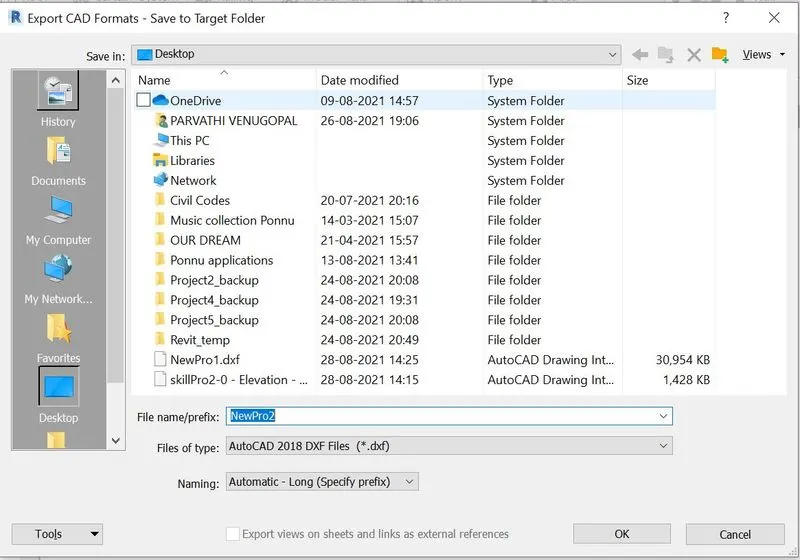

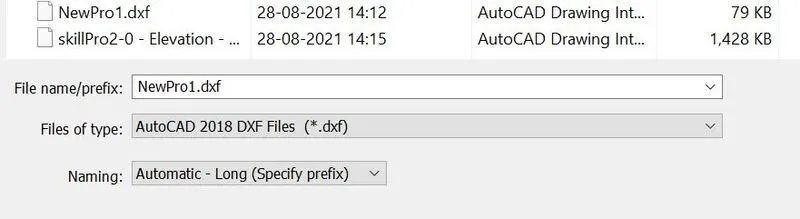

• Now click on the file option and export the model as CAD Format , open the DXF.
•

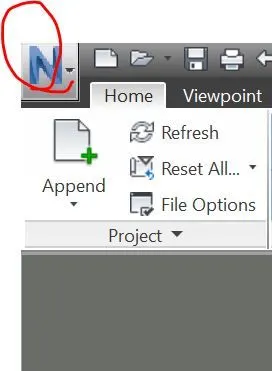

• Now take the Naviswork, select the Open menu

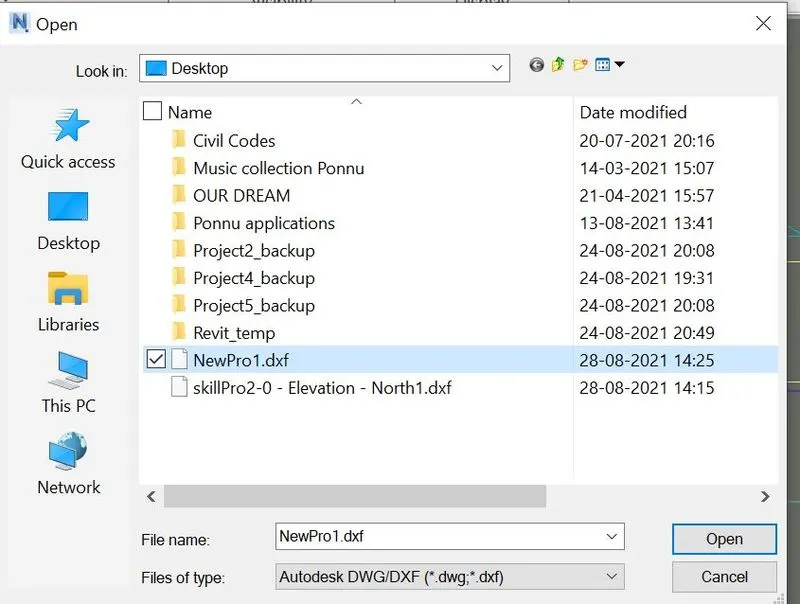

• and open the file and change the file type to dxf. and click open
•
•
•

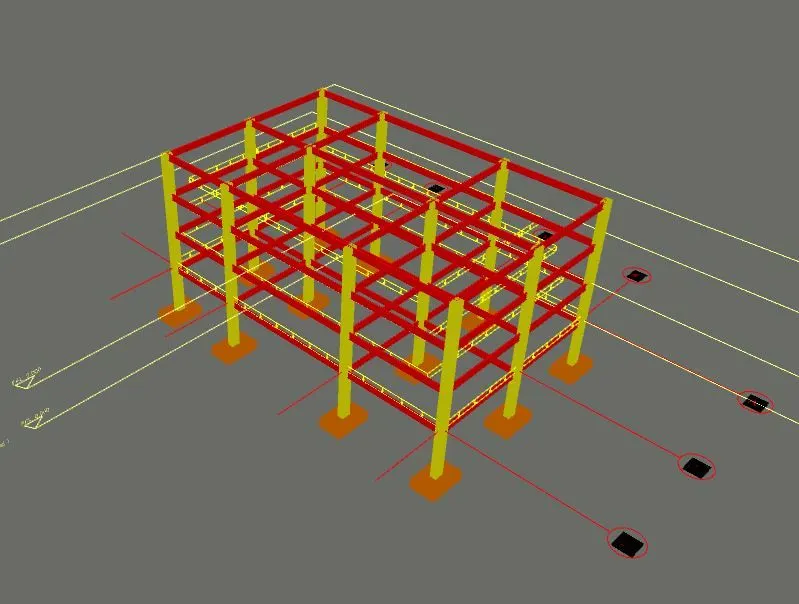

• Similarily open the Revit software and open the structural model
• Click on the file option and export the model as DXF file and rename
•
• Now Open the Naviswork manage and click open and open the saved file
•

RESULT: Revit Architecture and Structure model are successfully exported to the naviswork cache file

2.

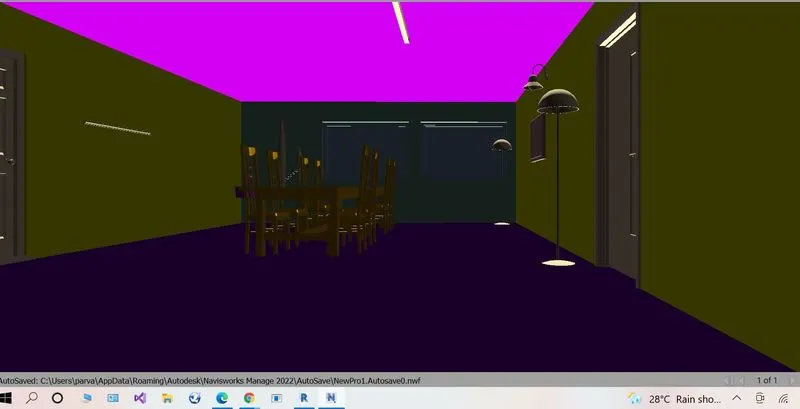

Aim: Using the Navigate tool, to walk around the model and walk throught the rooms created and record moving as animation in Navisworks file

Procedure:

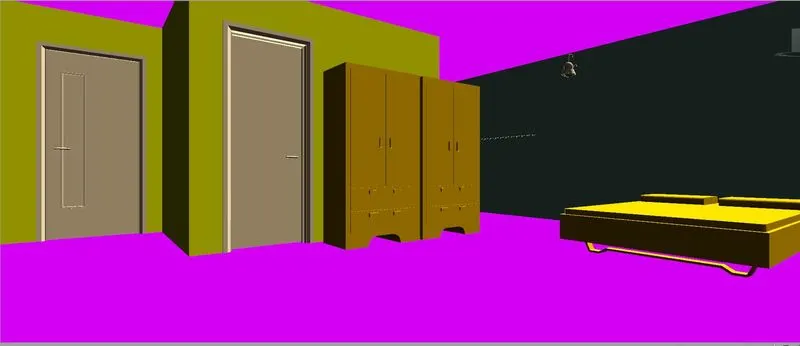

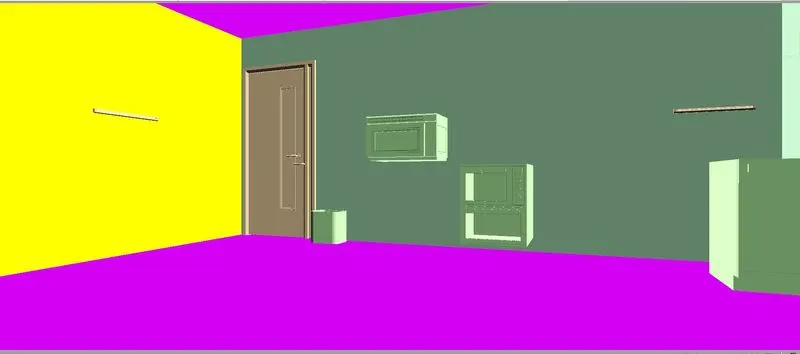

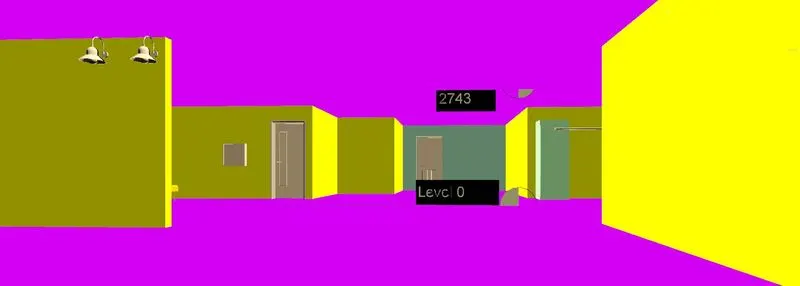

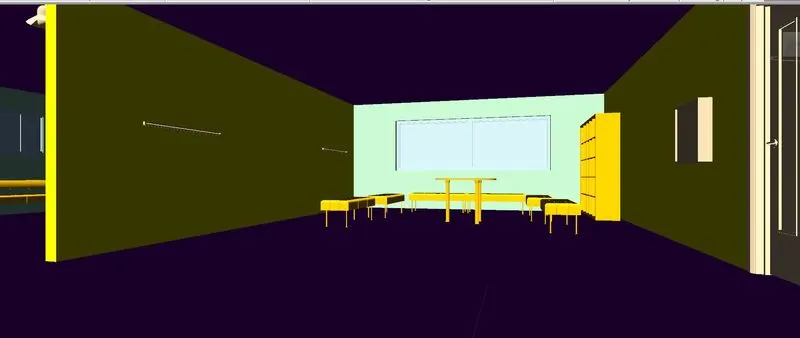

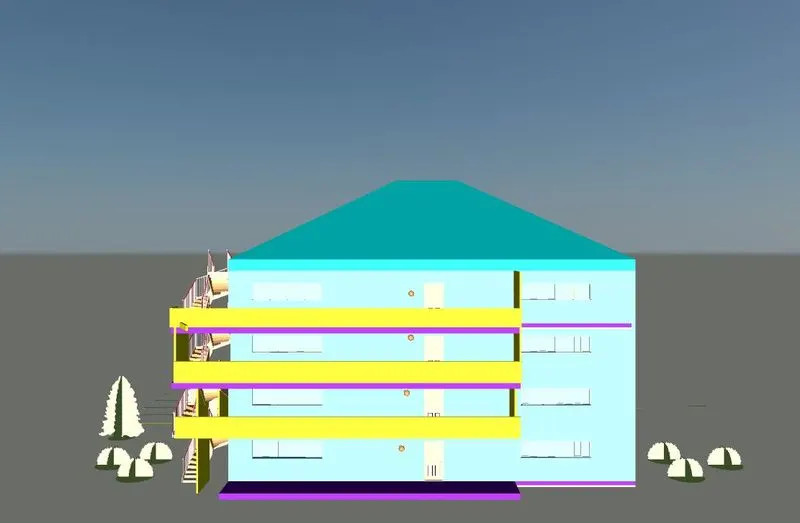

• Open the architectural model in the naviswork and click on the walk tool
•
• Use the Record option in the viewport tool to record the moving as animation in each and every room
•
•
•
•
•
•
• Now again go to the animation bar and start record
•

RESULT: Navigate Tool was used to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

3.

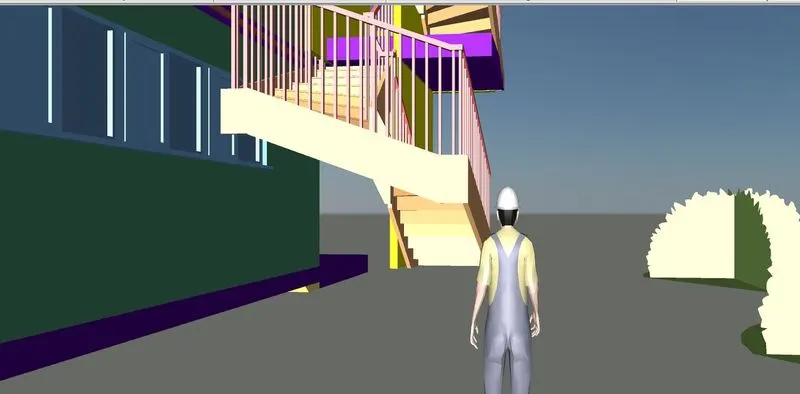

Aim: To use realism feature to walk through the model and record the moving as animation in Navisworks file

Procedure:

• Open the Naviswork and open the file saved as project

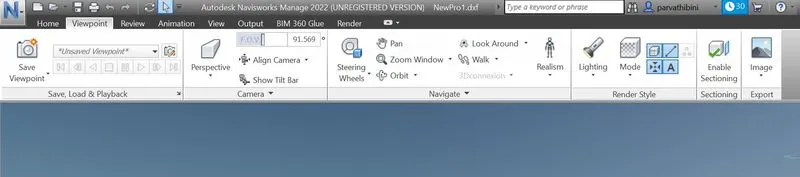

• Goto Viewpoint toolbar and select wall through

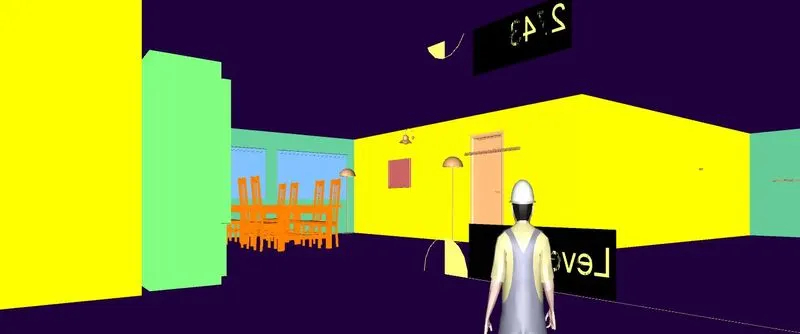

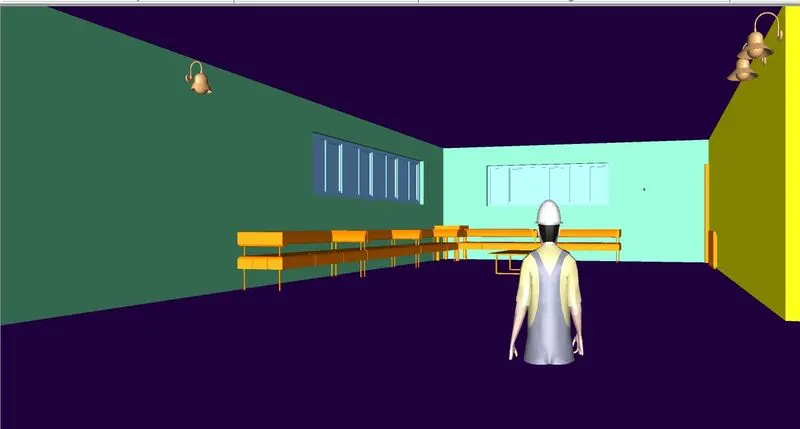

• Use the Realism toolbar and select third person

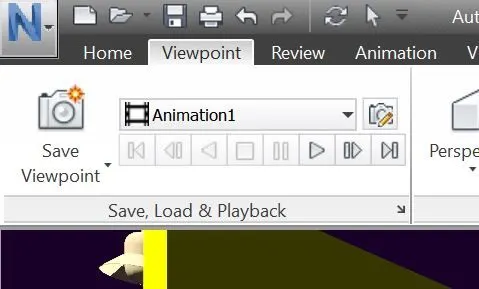

• Goto animation and record
•
•
•
•

4.

Aim: To create a clash detection test between the two models

Procedure:

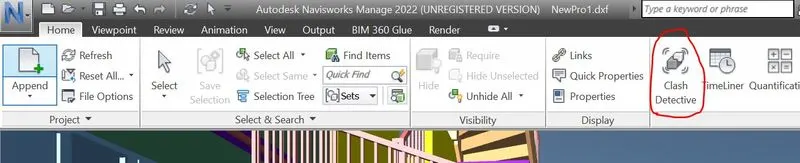

• Goto the home tab and select clash detective
• Run the clash detection test
•
• Study the cash between the two models
• Now list down the clashes which are aproved and neglected
• List down the clashes which are resolved as well

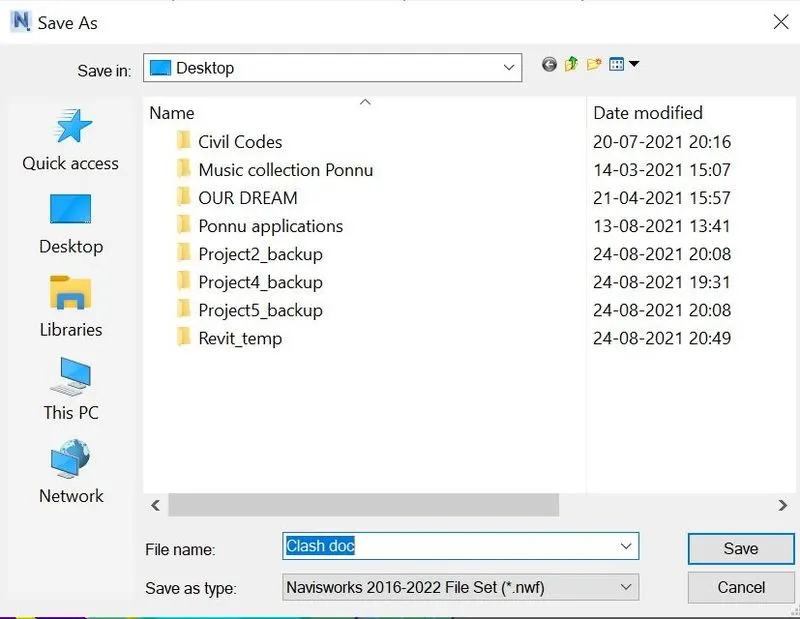

• Now save the results after color coding the clashes to the Naviswork file
•

RESULT: Clash detect is done

5.

Aim: To use the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation and to record it and save the timeline simulation to Navisworks file

Procedure:

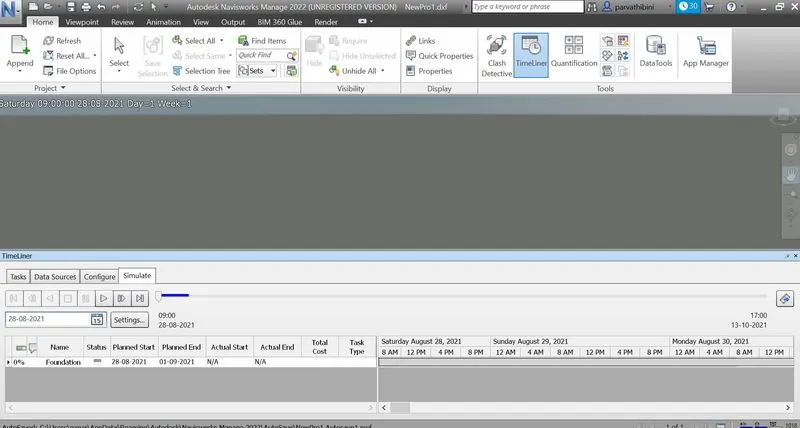

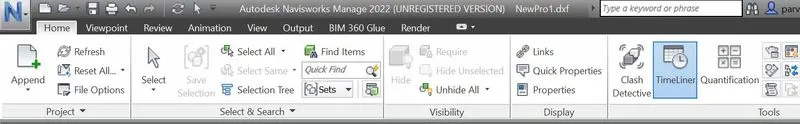

• Click on the timeliner
•
• Click on attach and select the desired levels and components

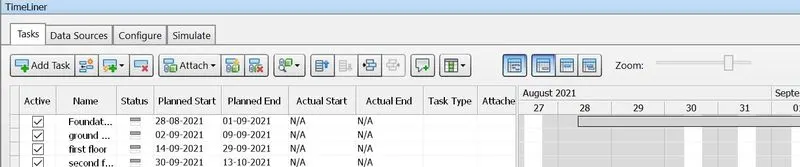

• Now add the start and end date.
•
• Click on simulate and record it
• Now save this naviswork file
•
