Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
1. Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
Aim:To export the revit architecture and structure model to navisworks cache file.
Introduction:
- Navisworks is a review and coordination software and it is used to improve the BIM project delivery.
- Navisworks is used for coordination and clash detection test, Reviewing the model, simulation and analysis purposes and quantification purposes.
- To view revit rvt. file to Naviswork file that is .nwc we required Navisworks NWC Export Utility.
Procedure:
Step.1

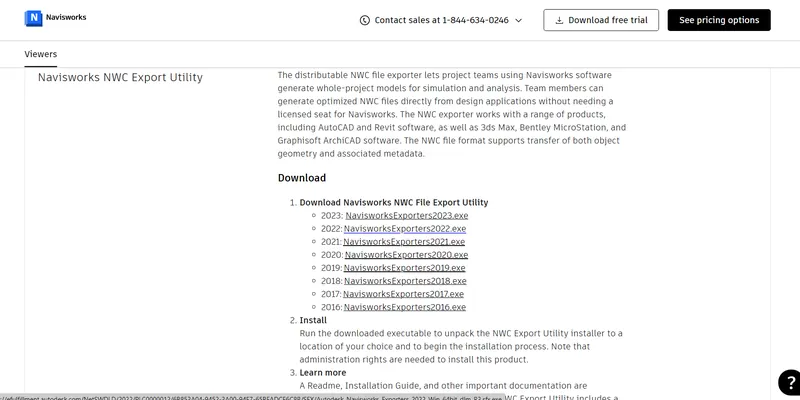

- First we downlord the NWC Export utility appplication for converting .rvt to .nwc.
- Installed the application .After install the application it automatically show in Revit Export pannel.
Step.2
Step.3
- Open revit software.
- Open the architectural and structural project created in week 7.

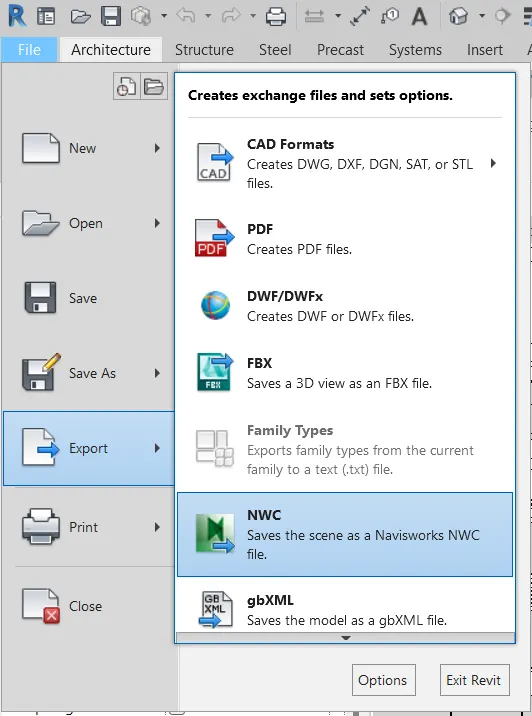

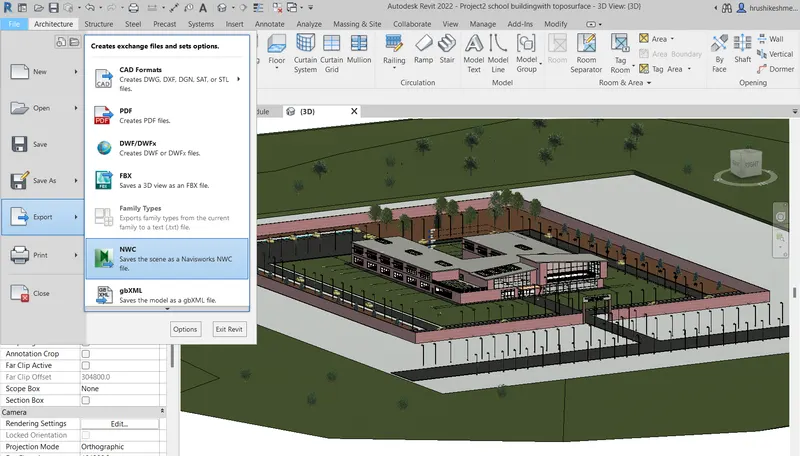

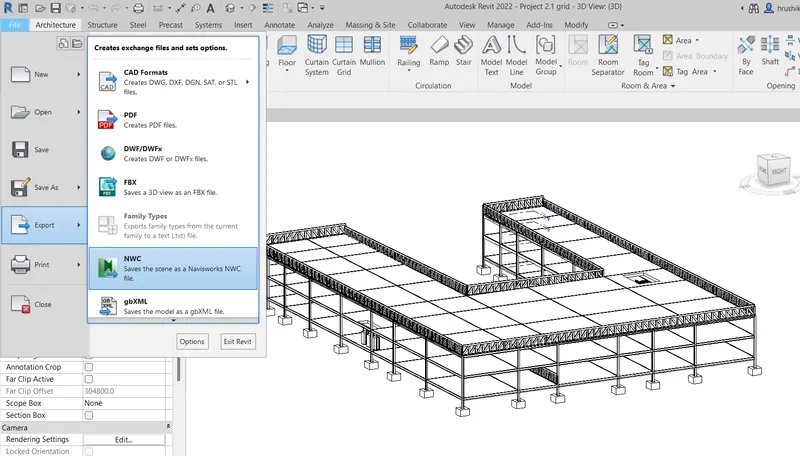

- Click the file menu.
- Select 'export' option.
- Then select 'NWC'

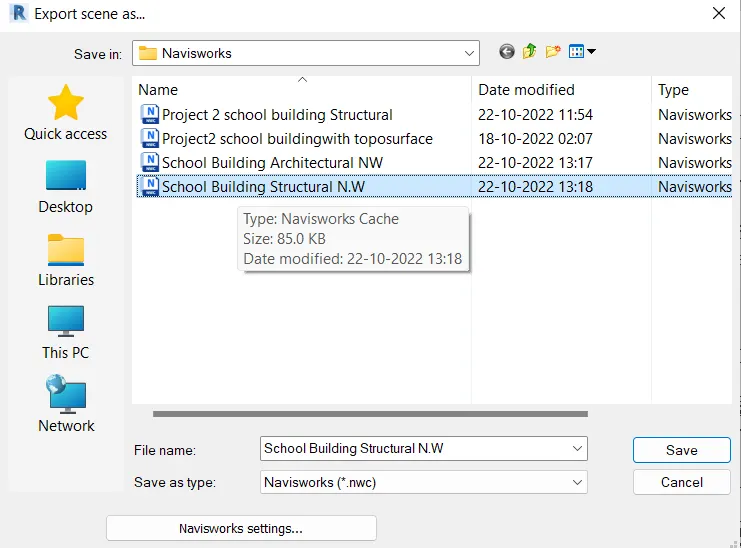

Step.4
- Now the 'Export scene as' dialouge box is opend.
- Select the 'save as type' as 'Navisworks (*.nwc)'
- Type the file name as 'School Building Structural N.W'
- Click save button.
Step.5
- The file is exported as navisworks cache file.
- Similarly export the architectural file as navisworks cache file.
- Open architectural file.
- Select export option in the file menu and select NWC.

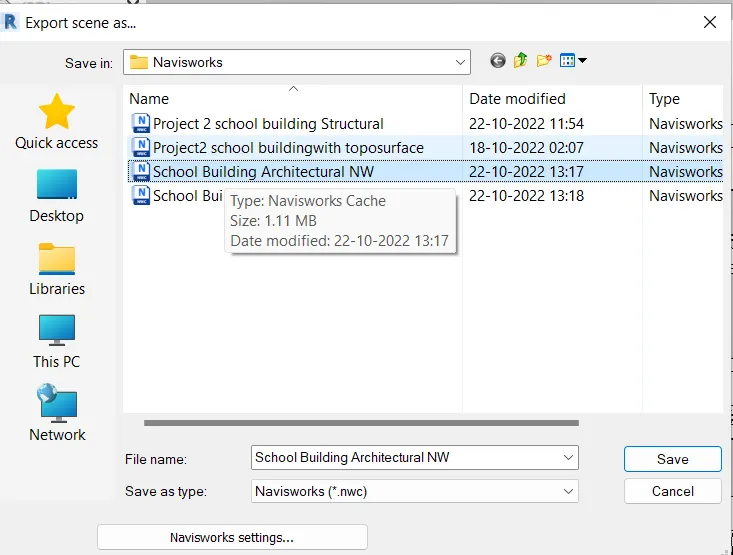

Step.6
- Save the file as navisworks (*.nwc)
- Type the file name as 'School Building Architectural N.W'
Step.7

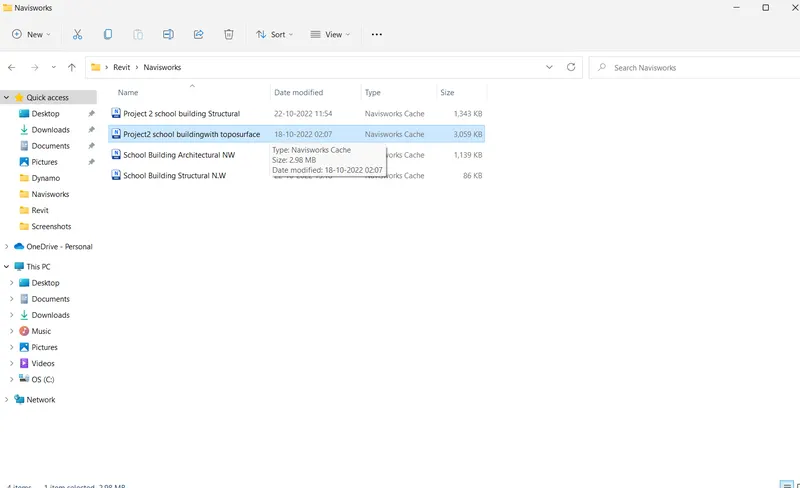

- Now both the architectural and structural file is exported as navisworks cache files.
- We can open the file in navisworks and do the operations like reviewing, clash detection test.
Result:
The revit architectural and structural model is expoted to navisworks cache file.
2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
Aim: To create the walk through the model. And to record the animation by using navigate tool.
Introduction: To create the walk through the model. And to record the animation by using navigate tool. By using naviswork softer.
Procedure:
step 1:
- Open the navisworks software.

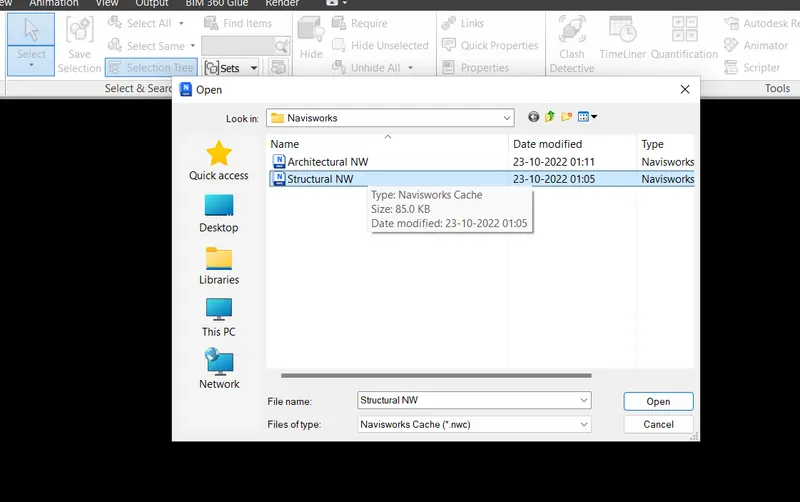

- Click the file menu and select open option.
- Select the architectural.nwc file and click open.
Step.2
- The Architectural.nwc file is opened in nawisworks software.
Step 3:

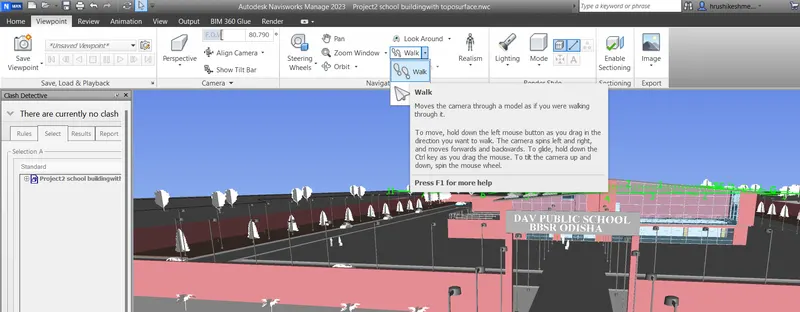

- Go to Viewpoint Tab.
- Select walk option.
- Dropdown the save viewpoint option under viewpoint tab.
- Click record option, this will record the walk as animation by frame by frame.

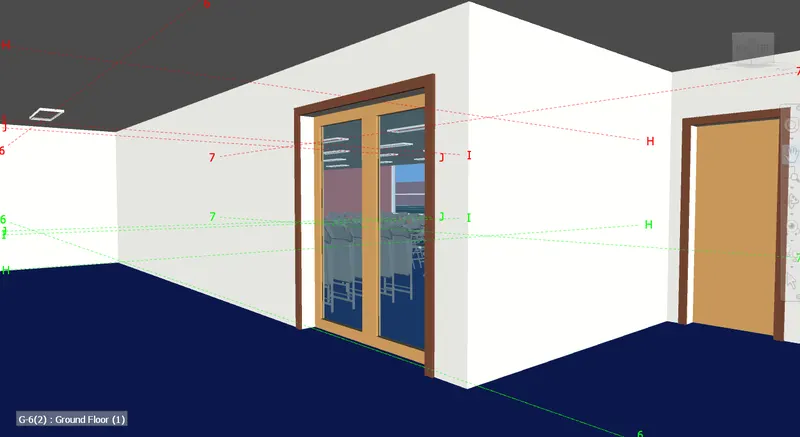

Step 4:
- Start walk around the model by click the mouse button or by using keyboard buttons.

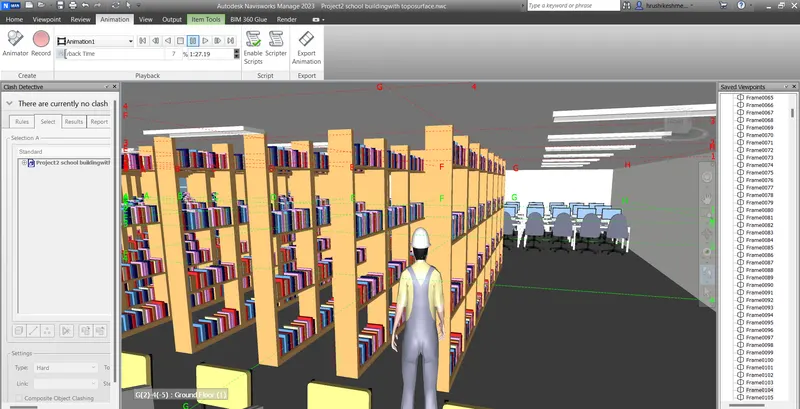

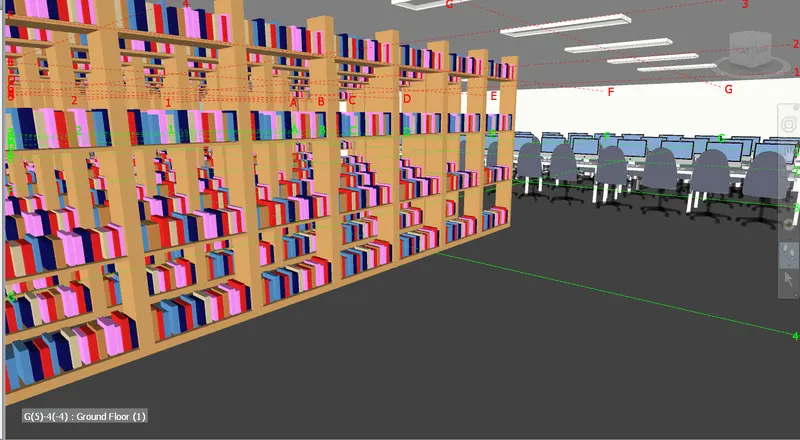

- Walk through Library view.1
- Walk through Library view.2

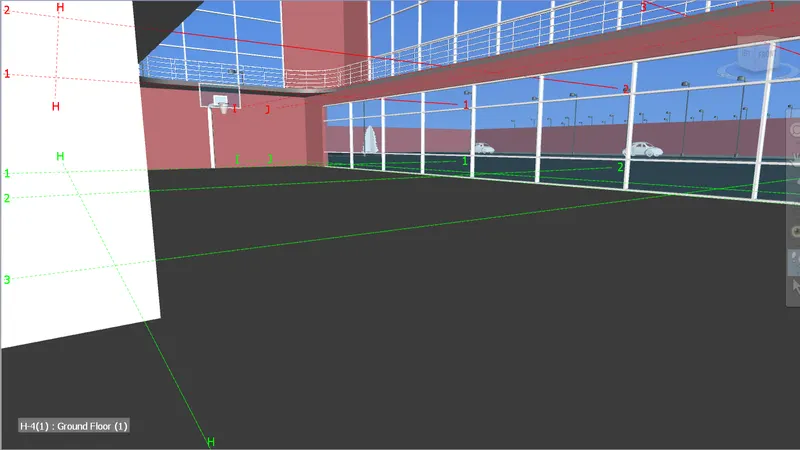

- Walk through basketball court

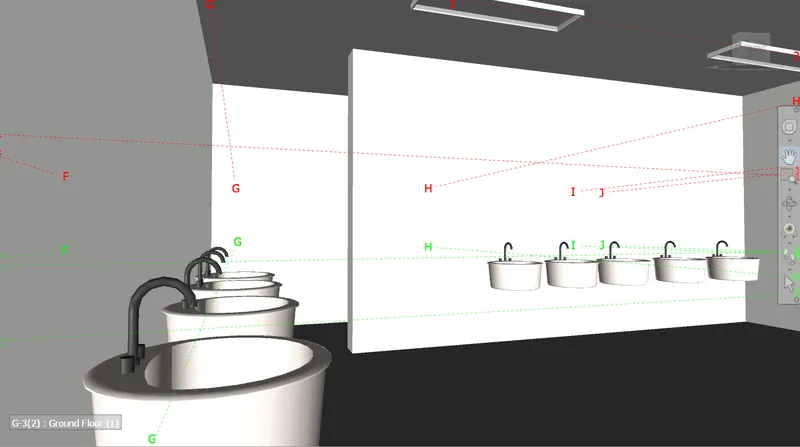

- Walk through Washroom

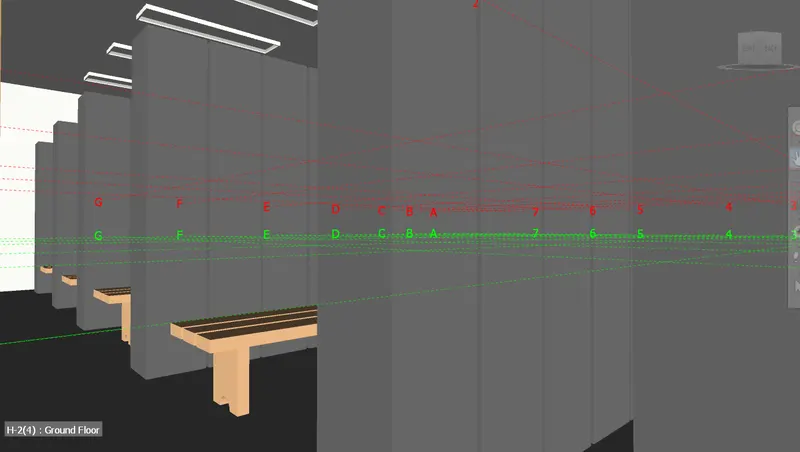

- Walk through Girls changing Room

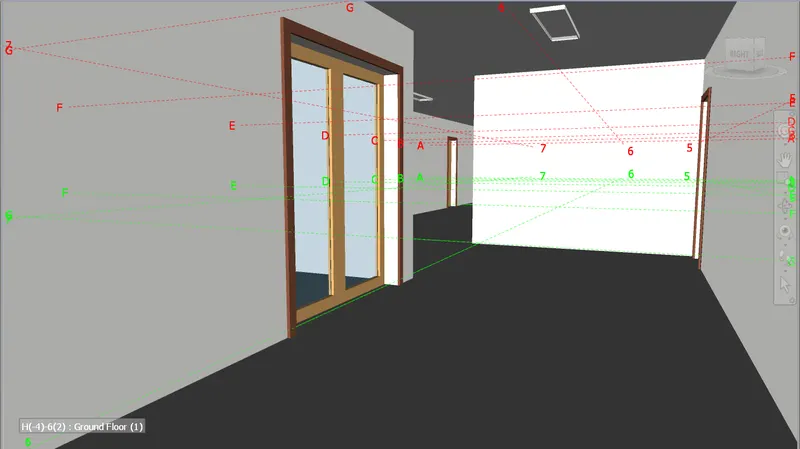

- Walk through Coridor

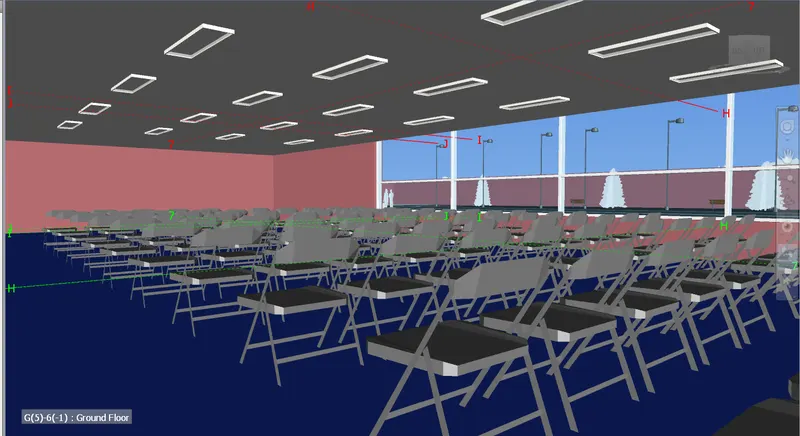

- Walk through Confarence hall view.1
- Walk through Confarence hall view.2

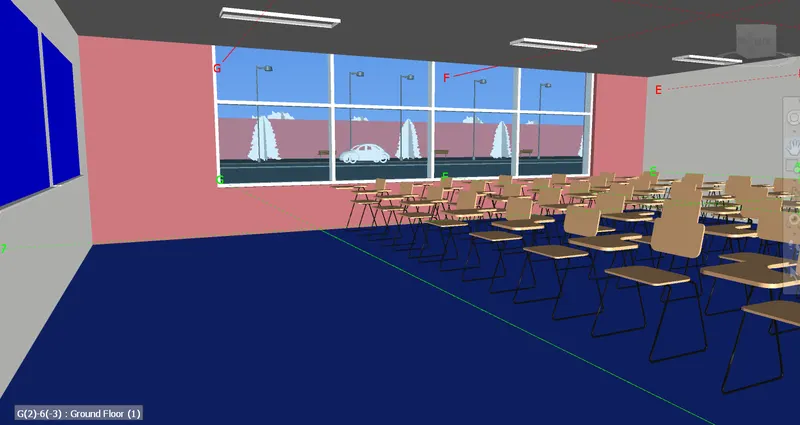

- Walk through Class Room
Result:
- From the above process we recorded the walkthrough animation of model by using navigate tool
3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.
Aim:
To use realism feature to walk through the model and record the moving as animation in navisworks file.
Introduction:
- Realism feature enables the gravity, collision and third person.
- It will helps to walk the model in a reality manner.
- Like the walk option we can save the view and used to clarify the clashes.
Procedure:
Step.1

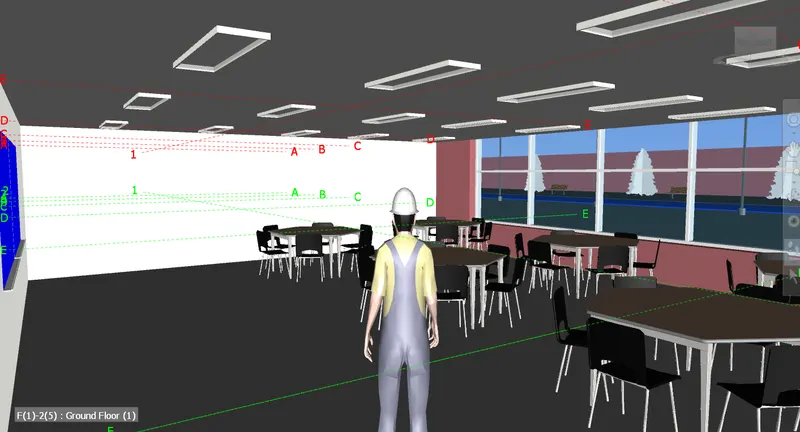

- Drop down the realism option under the viewpoint tab.
- Check collision, gravity and third person.
Step.2
- Now dropdown the save viewpoint option under viewpoint tab.
- Click the record option.
- This will record the walk through in the animation form.
- Select walk option under viewpoint tab.
- Start walk through the model.

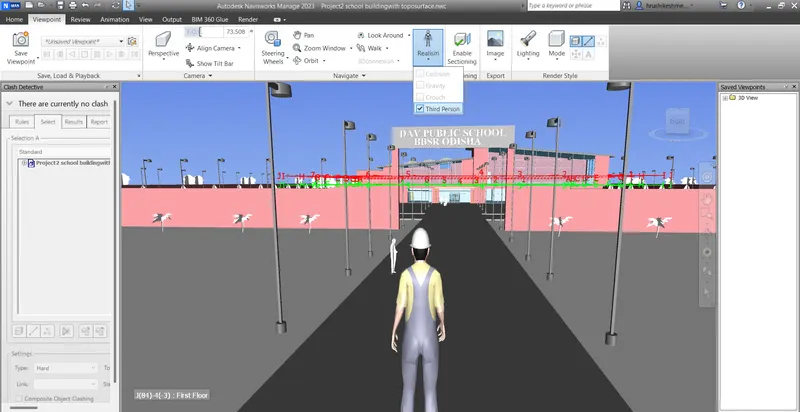

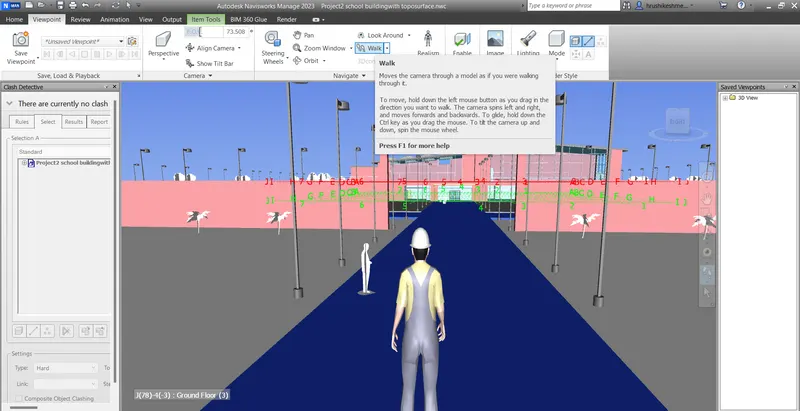

- Front Gate of the School

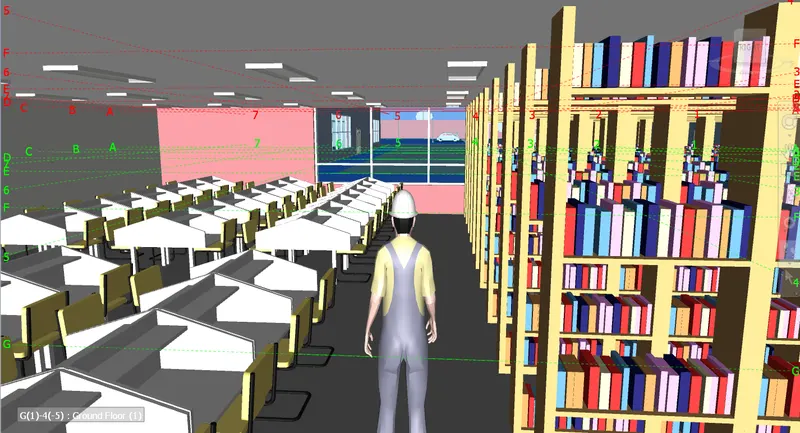

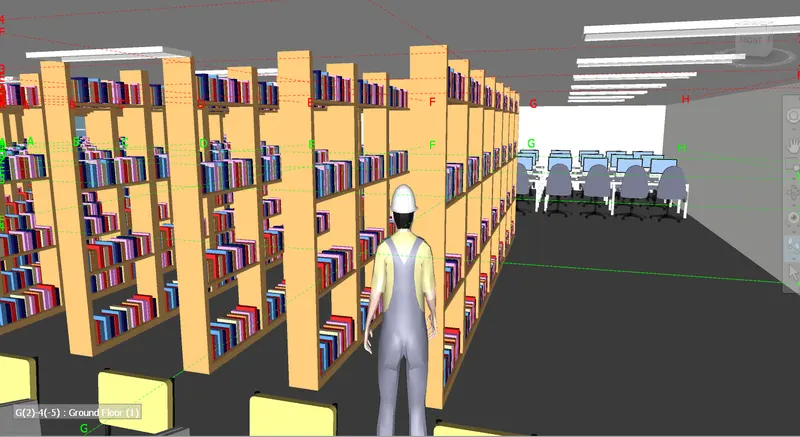

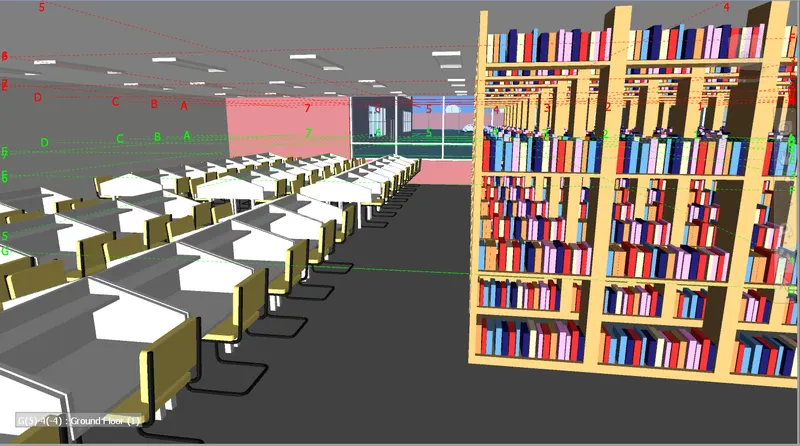

- Walk through Library view.1
- Walk through Library view.2

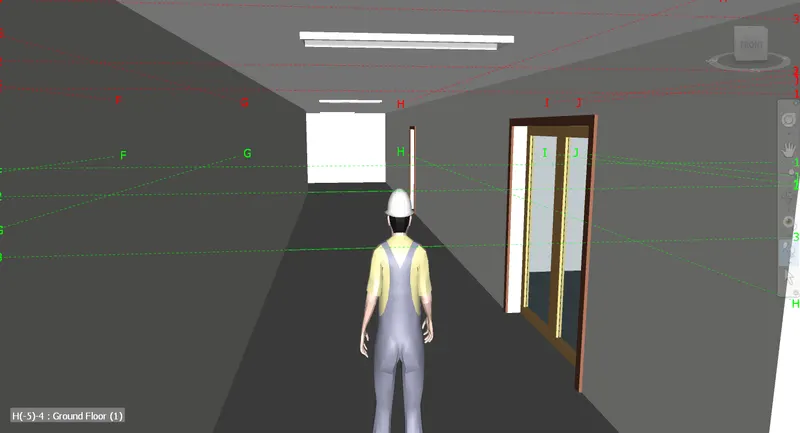

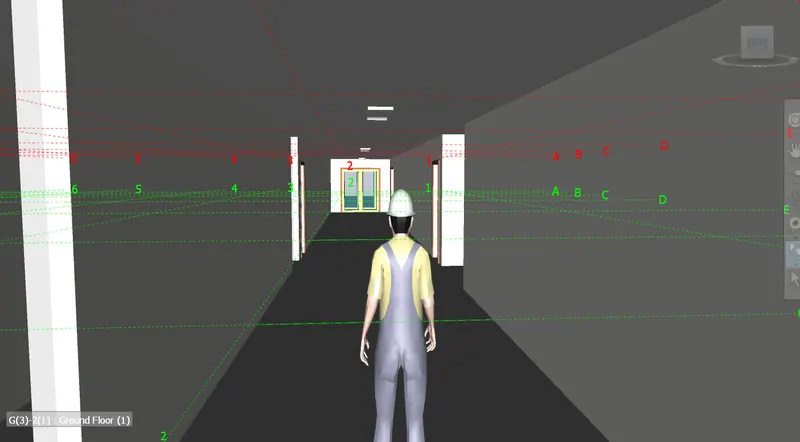

- Walk through Coridor

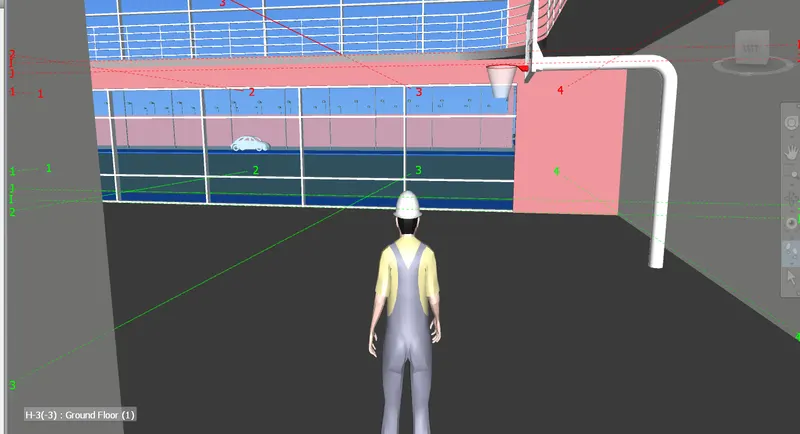

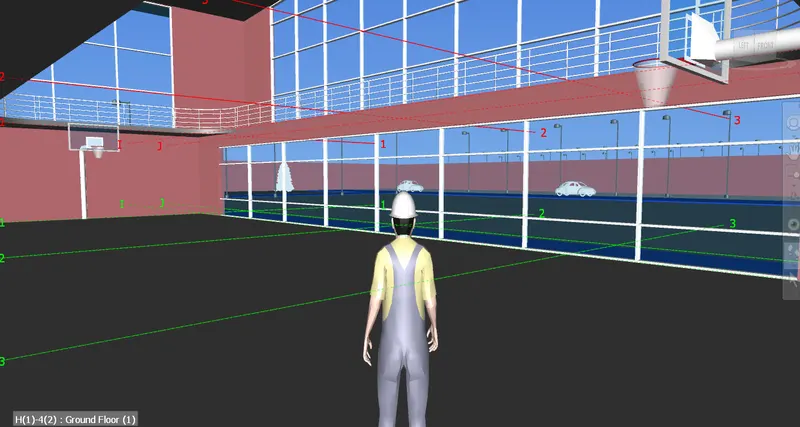

- Walk through Basketball court view.1
- Walk through Basketball court view.2

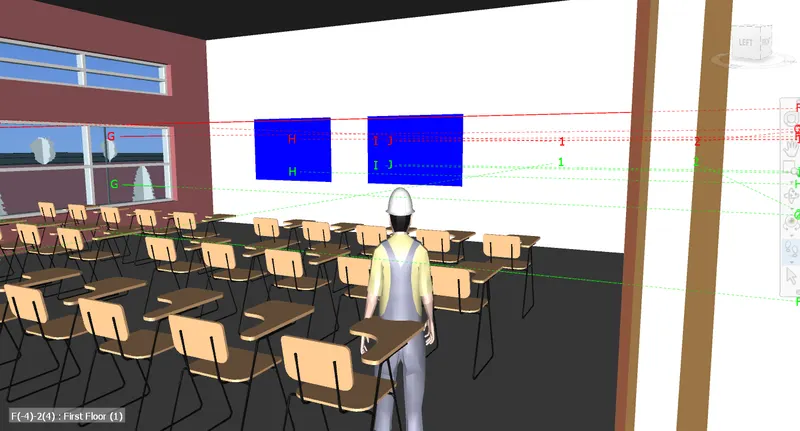

- Walk through junior class Room

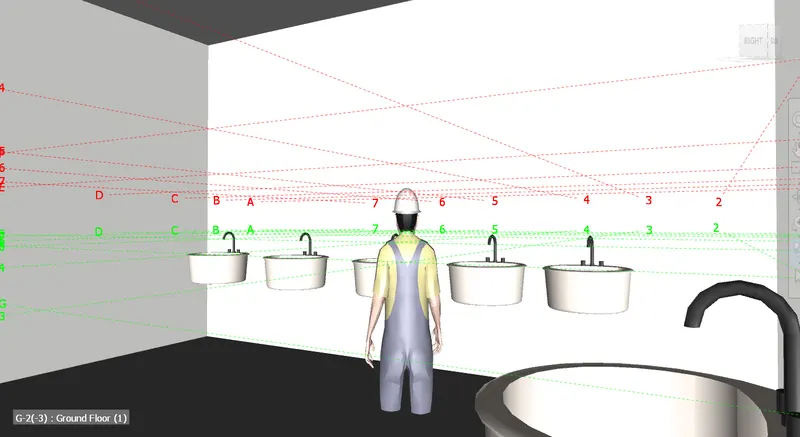

- Walk through Wash room
- Walk through Senior Class Room
- The walk through is saved as a animation file.

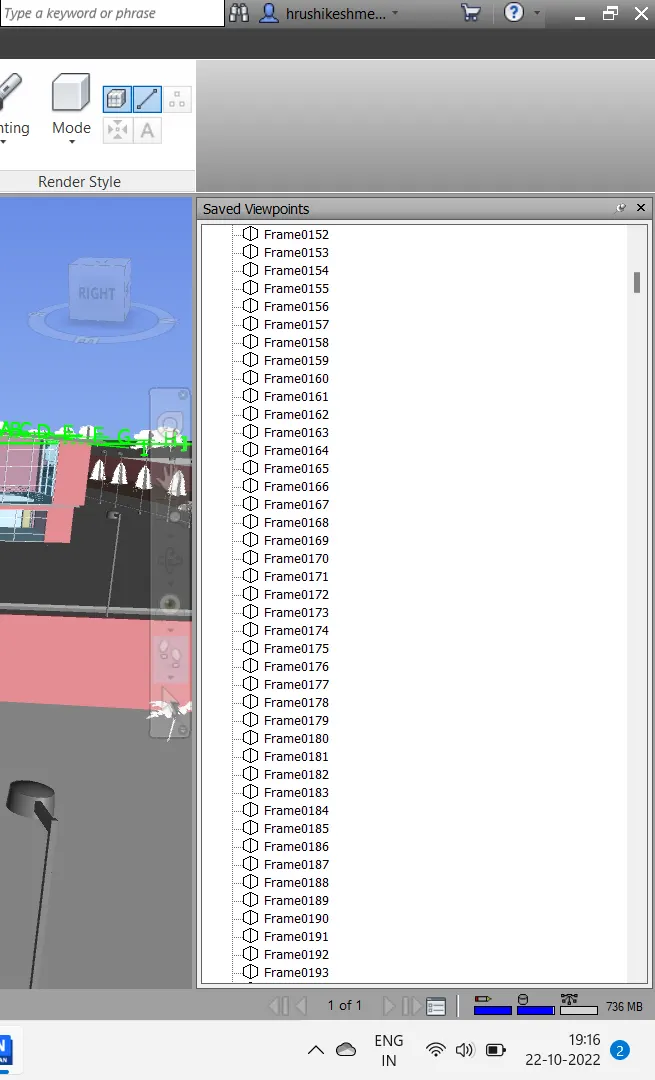

- The animation will be saved by frame by frame.
- We can export the animation file.
Result:
- Walk through the model is done by the use of realism feature and the moving is recorded as animation in navisworks file.
4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Aim:
To create a clash detection test between architectural and structural model.
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Introduction:
- The clash detective tool enables to search through the entire project model, identify the clashes earlier in the design stage.
- Clash detection aids to identifying, inspecting and reporting the clashes in the project model effectively.
- It is useful in checking work status and wanes down human errors during model inspections.
- Clash detection is important in BIM because it integrates several discipline models.
Procedure:
Step 1.
- Open the Architecture File in Naviswork .

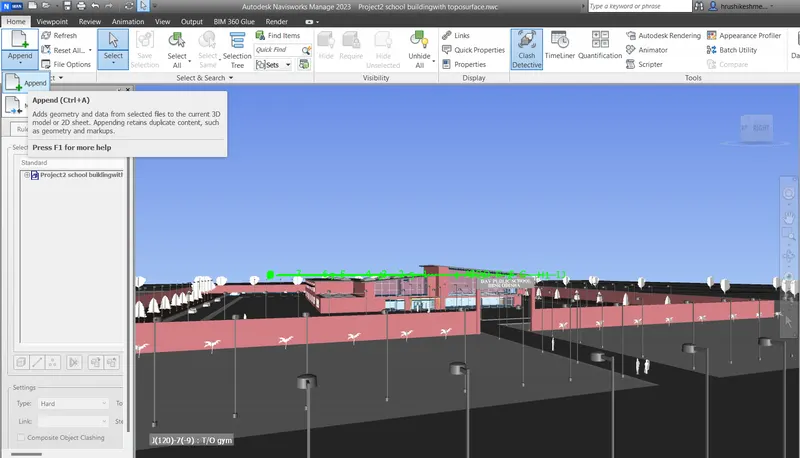

Step 2.

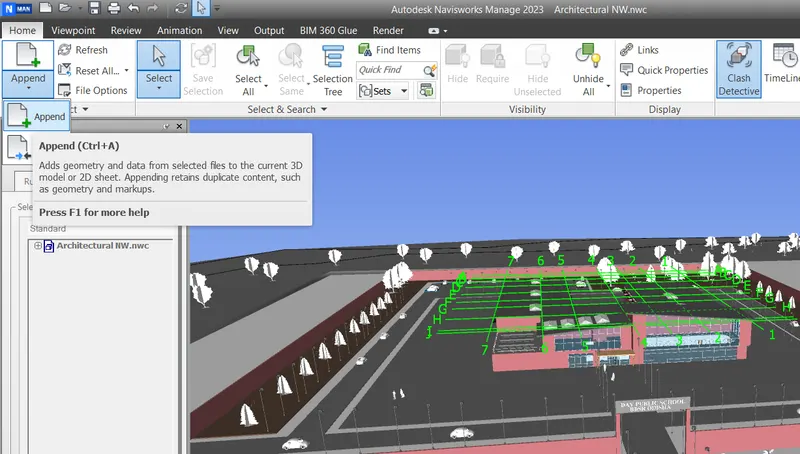

- Once file is open Click on the Home tab select Append
Step 3.

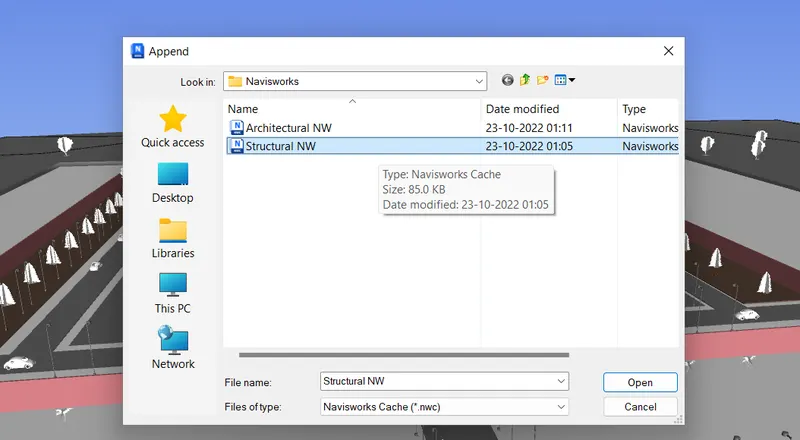

- Append the Structural file .
Step 4

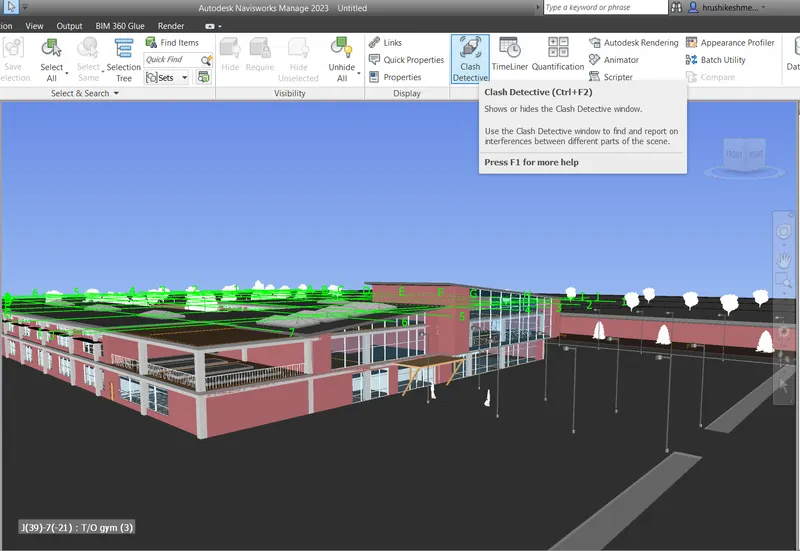

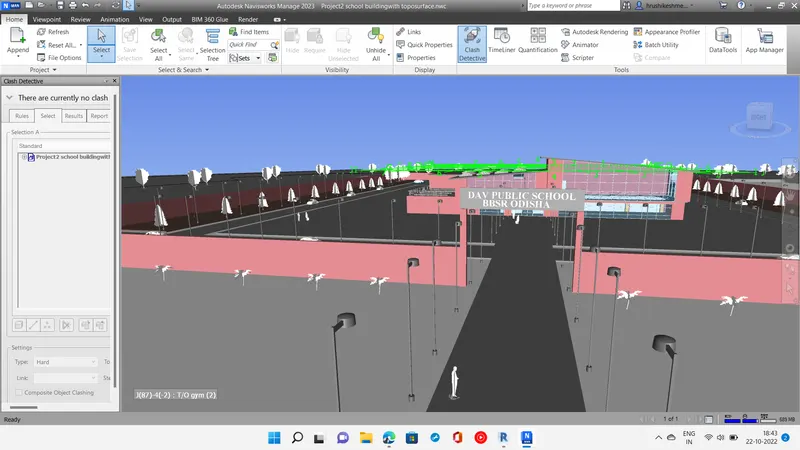

- Click on Clash Detective option the Home tab to start the test.
Step.5

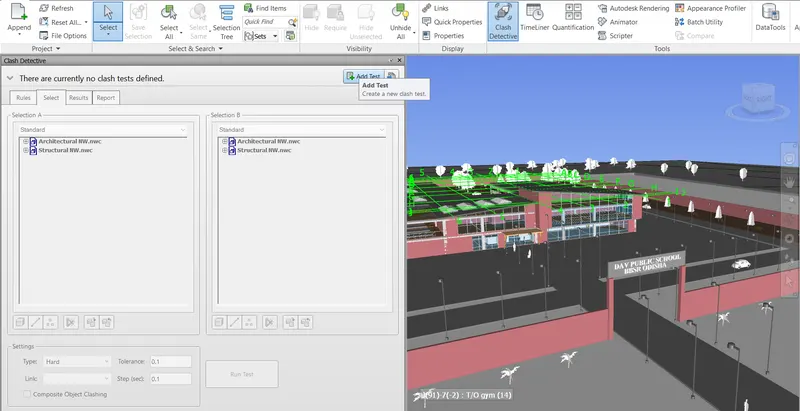

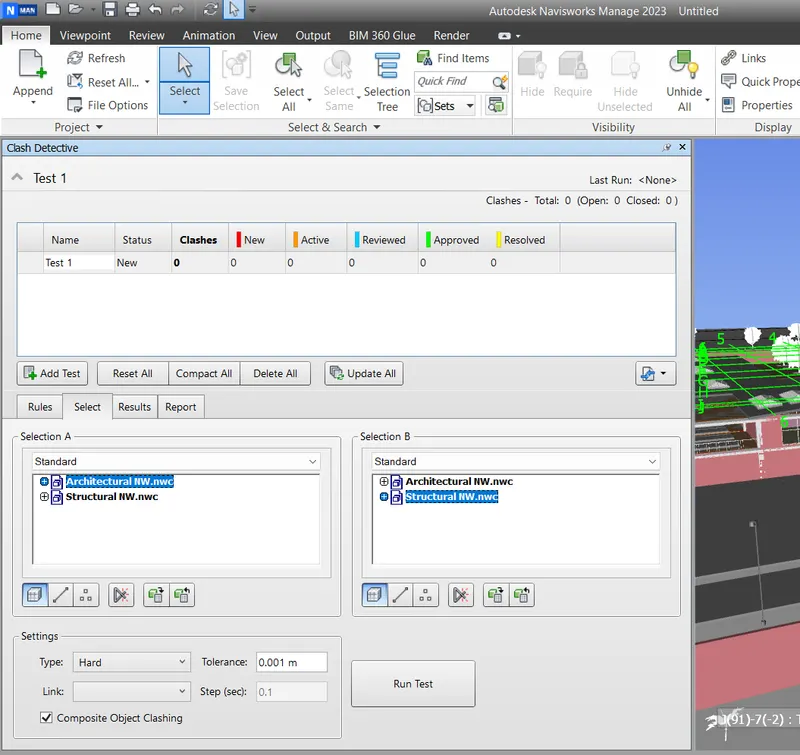

- Add the test
- Select Architecture and Structural file in Standard A and B
Step 6

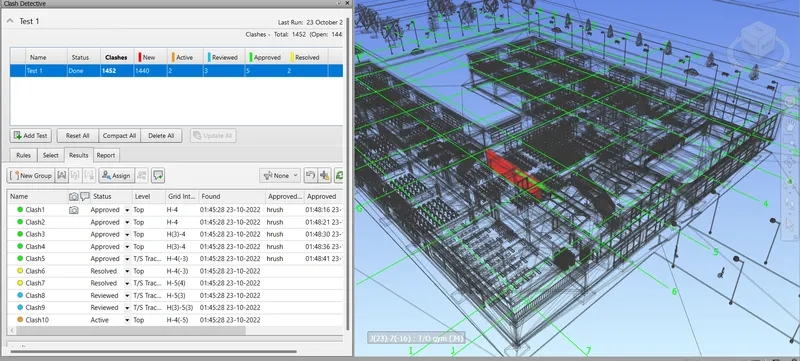

- Click on Run test
- As we have created error to see the clas detection.

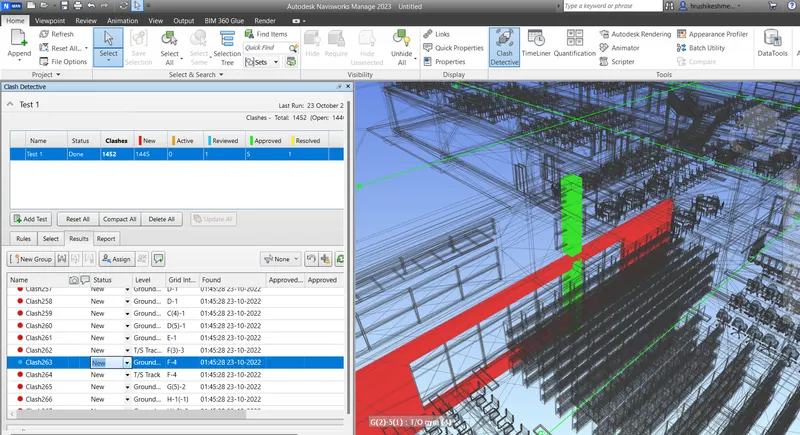

Step 7
- As you can see that this column is overlapping in between Architecture walls and Structural Columns
- You can resolve it later .
Step 8
- Select those clashes which we can edit it later and it won't be seen in next Run Test
- Those Clashes can be marked as Approved Clashes
- Here we approved 1st 5 Clashes
Step 9.
- Mark those clashes which are Resolved
Results - A Clash Detection test has been done Successfully .
- a.We have Rin Clash Detection Test ------------>
- b.Clashes has been studied between models As you can see that this overlapping in between Architecture walls and Structural Columns ------------>
- c.List which of the clashes could be approved-------->
- Clashes can be approved as part of construction, these clashes will not appear again and will turn to green colour once we click on approve
d.List which of the clashes could be neglected ( will be taken care later) ------>
- The clashes which will not cause any issue to the project can be easily neglected.
e.List which of the clashes can be resolved -------->
i.Clashes can be resolved which can change model boundary conditions these clashes can be excluded from the detective test.------------->
5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
Aim - Using the Timeliner feature in Navisworks prepare a schedule for the project developed.
Introduction -
- Navisworks is a software tool which is generally used by Management files people .
- It helps us to coordinate or manage the project with more efficiency .
- It allows users to open and combine 3D models, navigate around them in real-time and review the model using a set of tools .
- It is a project review software that allows Architecture, Engineering and Construction professionals holistically review integrated models and data with stakeholders during preconstruction to better control project outcomes.
Procedure
Step 1.
- Open the Structural file in Navisworks .

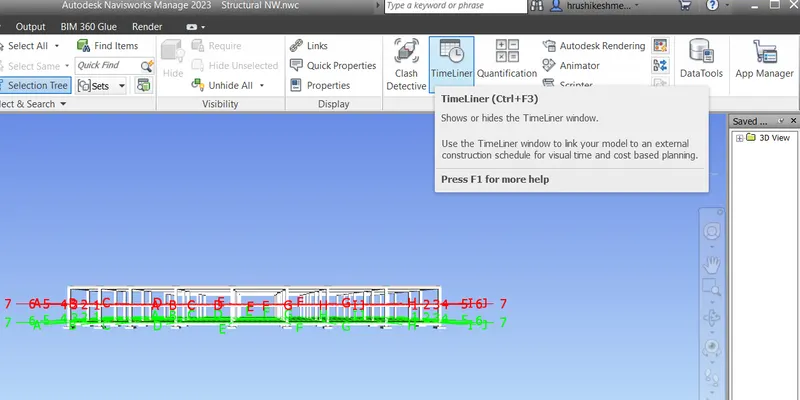

Step 2.

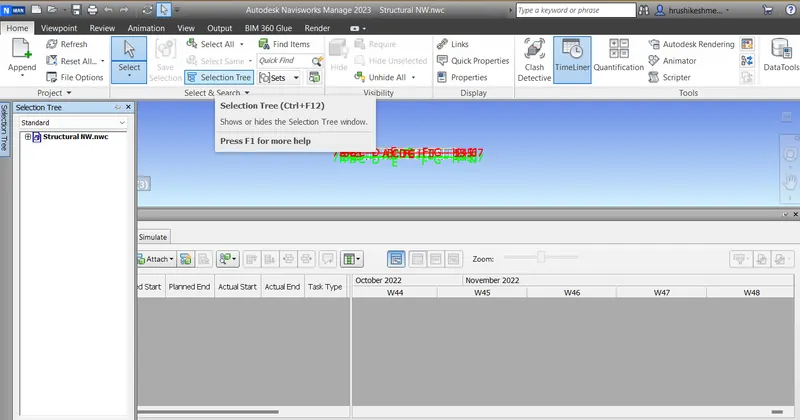

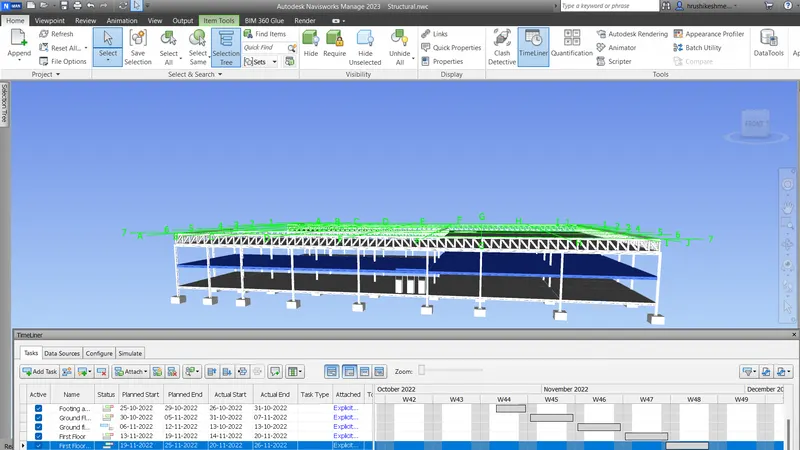

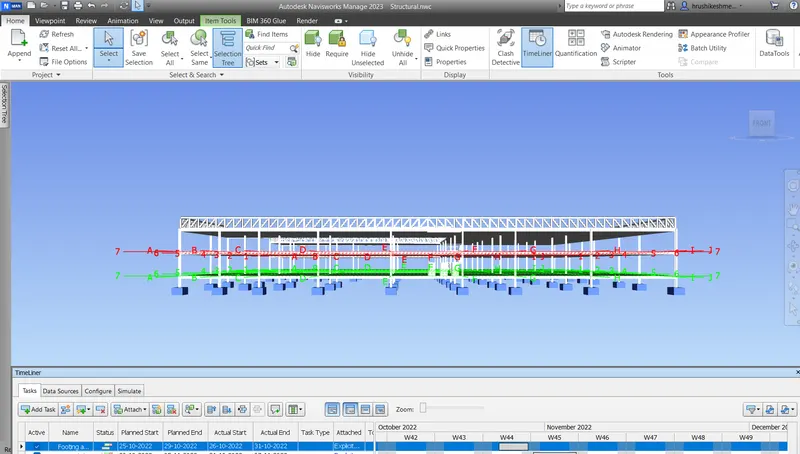

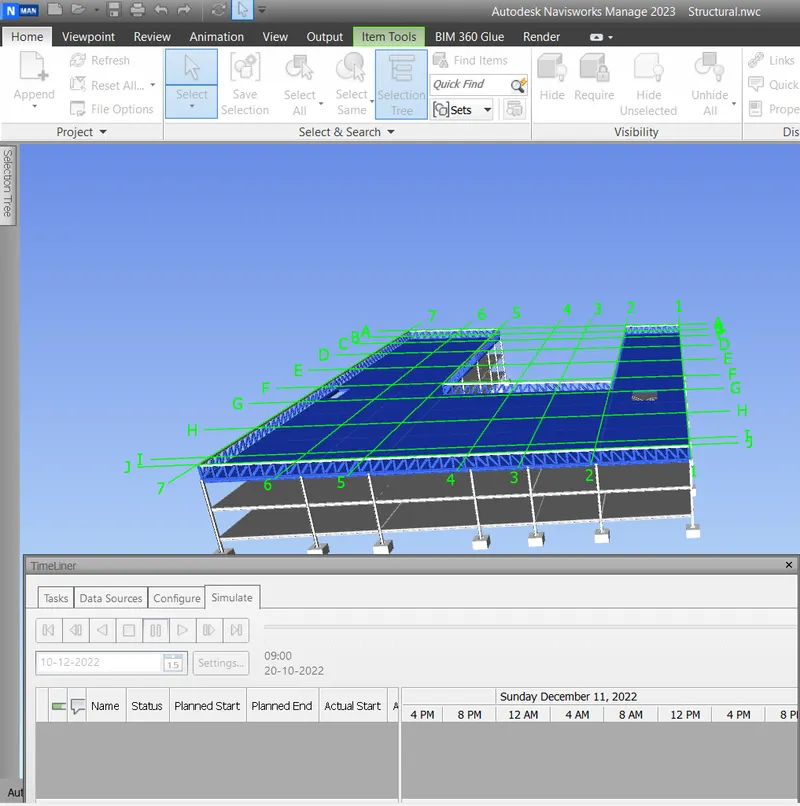

- Click Home tab and then-------> click on Timeliner option

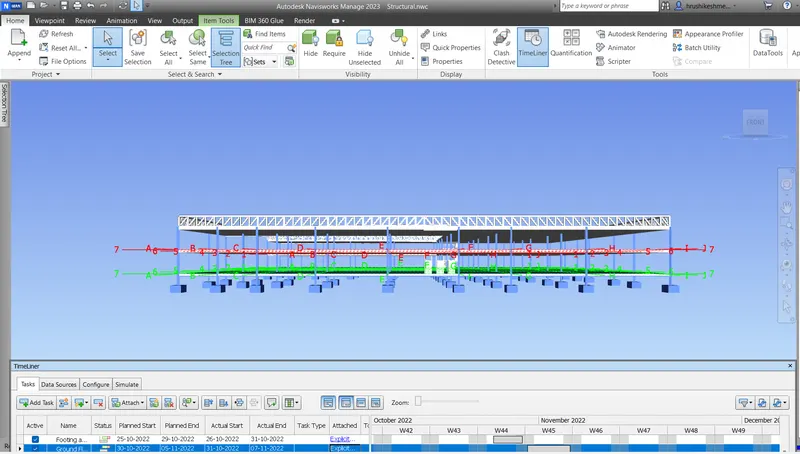

Step 3.

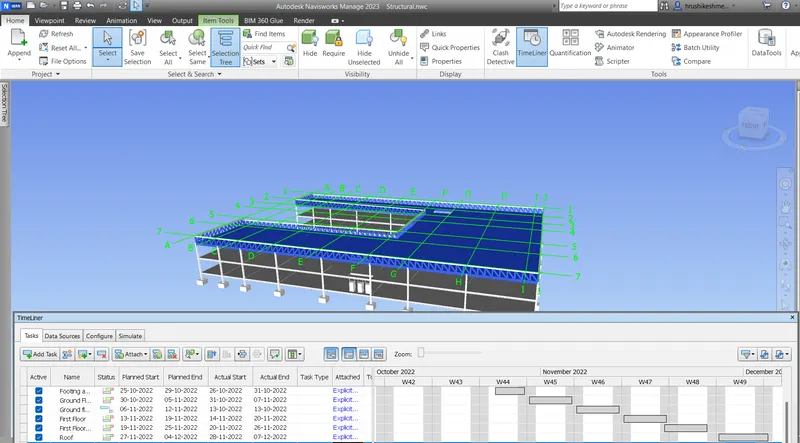

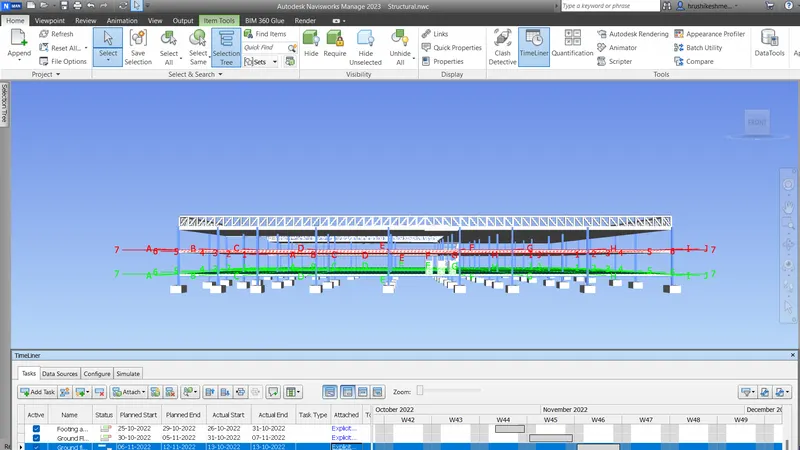

- Once you click on Timeliner -------> see a Timeliner box as follows

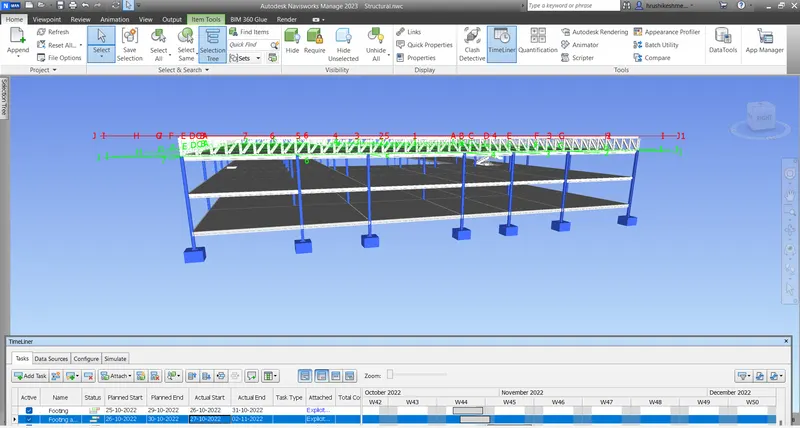

- Now click on add task in the timeliner to add new tasks
- Add task as---------> Footing
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 4

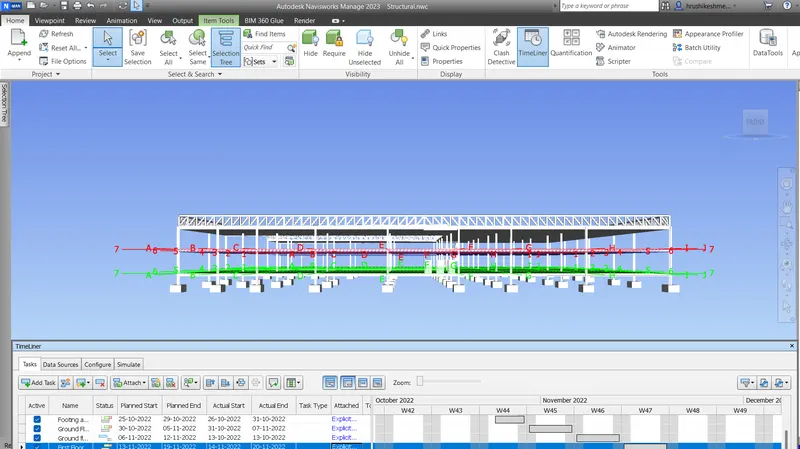

- Now click on add task in the timeliner to add new tasks
- Add task as -------->Footing Column
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 5
- Now click on Add task in the timeliner to add new tasks
- Add task as --------->Floor of Ground Floor
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 6
- Now click on Add task in the timeliner to add new tasks
- Add task as --------->Ground Floor + Column
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 7
- Now click on Add task in the timeliner to add new tasks
- Add task as --------->First Floor
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 8)
- Now click on Add task in the timeliner to add new tasks
- Add task as ------>First Floor + Columns
- Assume the Planned start date and End Date and Give the Actual start and End dates .
Step 13
- Now click on Add task in the timeliner to add new tasks
- Add task as -------->Roof
- Assume the Planned start date and End Date and Give the Actual start and End dates .
- Now click on Add task in the timeliner to add new tasks
- Add task as-------> Roof Level and Framing
- Assume the Planned start date and End Date and Give the Actual start and End dates .

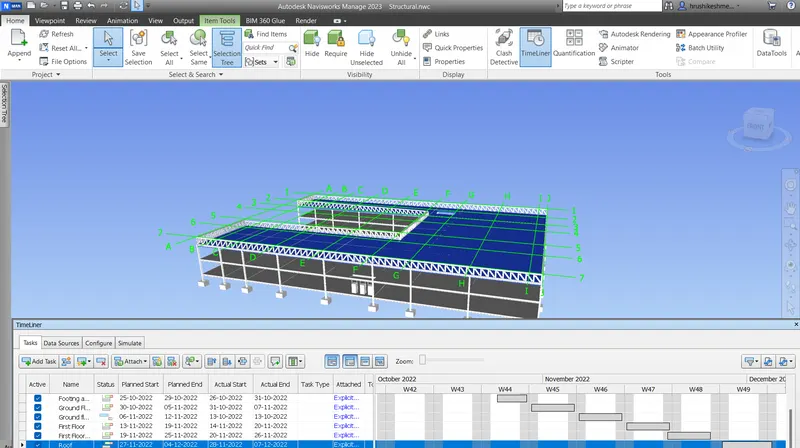

Step 14

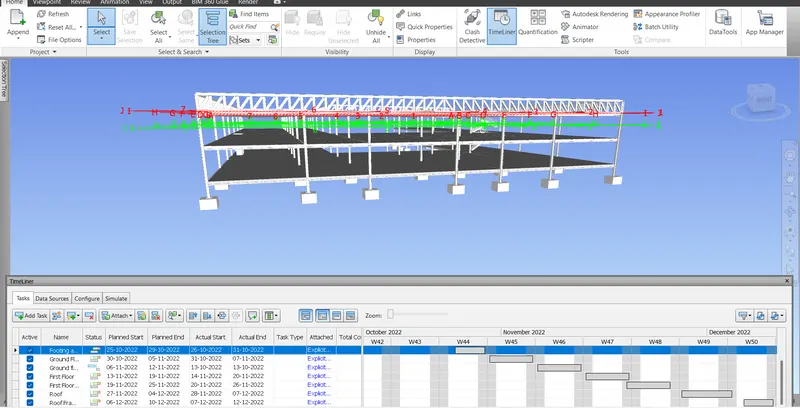

- As all the task are assigned
- Now Click on Stimulate and Record the work and Save it
Results -
- We have prepared the Schedule of Week 7 to Week 8 by using Timeliner
- We have add the task and perform the Visula Stimulation .
- We have saved it and recorded too .
