Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

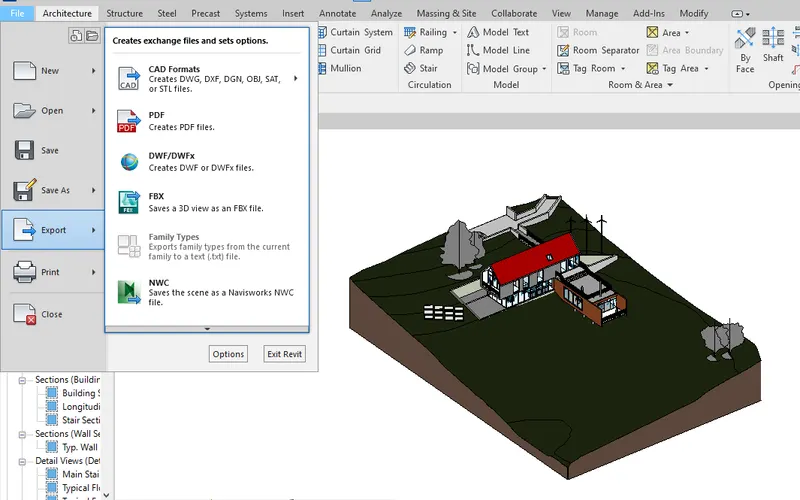

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

Ans:- To export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class.

Procedure:- open revit and the open structural or architectural file in revit and then go to file and then export to NWC and create a folder and then save the file as NWC format.export both architectural and structural files too.

Result:- Finally i got to know about how to convert the revit file into navisworks manage.

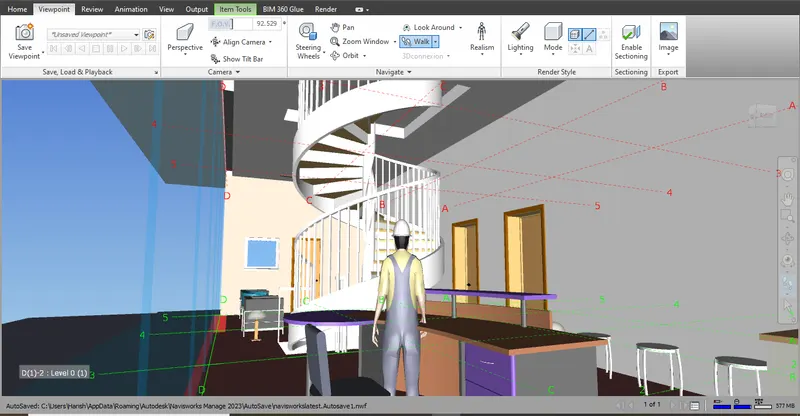

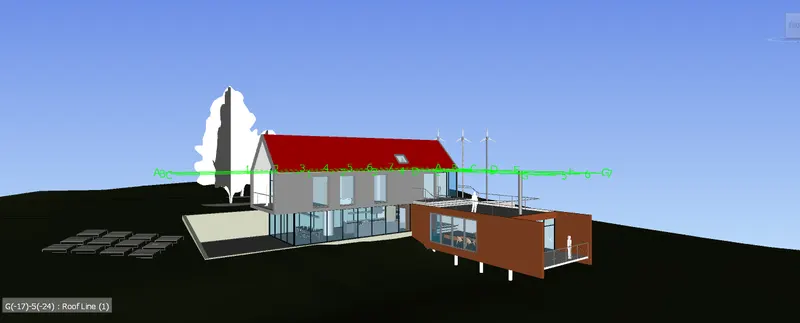

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

Ans:-

Aim:- To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

Procedure:-

Open navis work

import the file from revit

by using mouse scroll go inside of the building

by clicking on view point option

and select walk option

save view point by rename it as by location of room name

click on record option

by using the curser walk inside

by using pan tool we can change the direction

to stop recording we can use the stop button

if we want to see the video it will available in animation option

by clicking on export animation option we can export to video into pc as individual file.

Result:- finally i got to know about how to Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

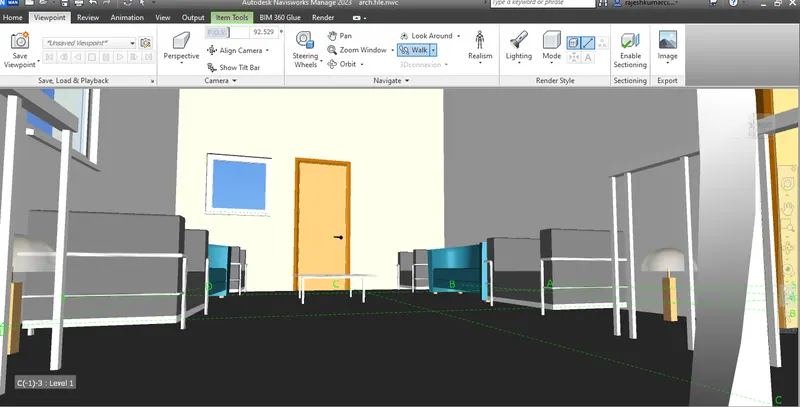

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Aim:-To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Procedure:- Realism is similar to walk through

go inside the room first

open view point

click on realism and tick on third person

save view point and rename it as per room name

walk

by using pan we can change the orientation

by using the mouse we can walk through

record everything and save the file

in animation tab there is export option to save the view individually.

Result:- Finally i got to know about realism and walk through

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

Aim:- To Create a clash detection test between the two models

Procedure:-

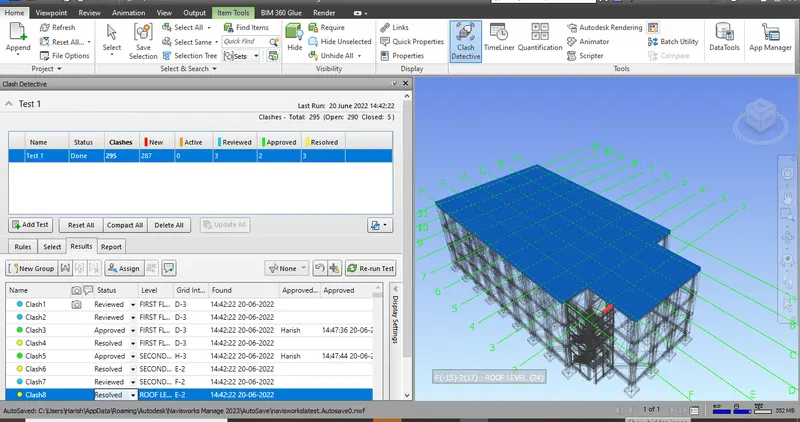

In home tab clash detective option is available

in dilogue box click on add test

Name: Demo test

From selection A ; archiectural .nwc

From selection B : structural .nwc

choose surface option and click on run test.

clashes will be shown then change the every clash as like reviewed or approved or resolved.

Result:- Finally i got to know about clash detection in navis works.

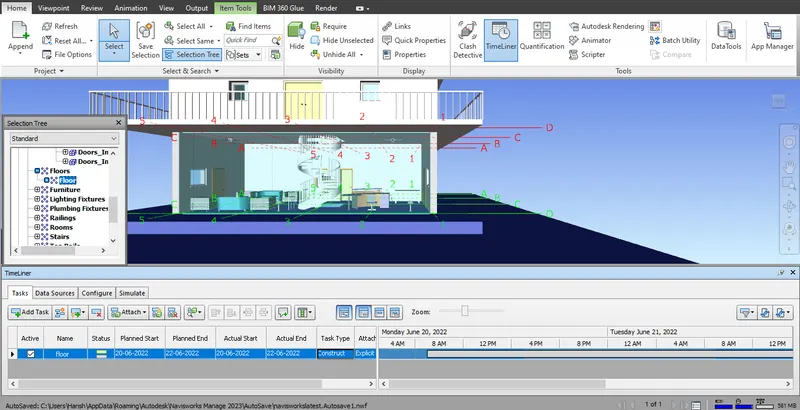

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

Aim:- To create by Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

Procedure:-

open navis works

import architectural file

home

time liner

selection tree

add task

rename accordingly

status planned start

planned end

actual start date

actual end date

task type as construct

similarly for other buiding elements too

attach the selection tree to tasks by using attach

attach current selection.

after the tasks selection click on the simulate button

click on play and then it will show the animated ideo as per diven schedule duration

if we want to save this video click on expert animation to save the video individually in our pc.

Result:- Finally i got to know about how to scheduling of project by using navis works.
