Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1.
AIM: To Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

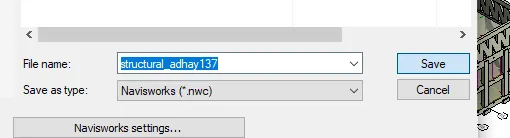

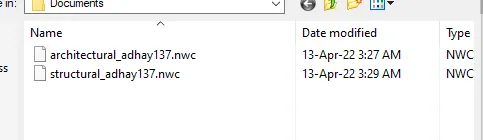

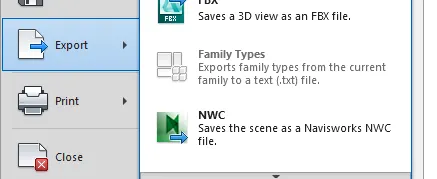

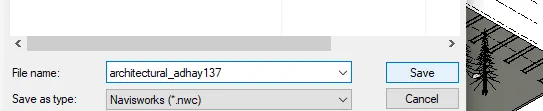

PROCEDURE: open the architectural file created in week 6 to 8 and then from the file menu go to export option and select NWC option.and then save the fike as nwc file in the selected folder. similarly export the structural file and save it as NWC file.
RESULT:

2.
AIM: To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
PROCEDURE: Open navisworksmanage file and then open the previous architectural NWC file saved in it.

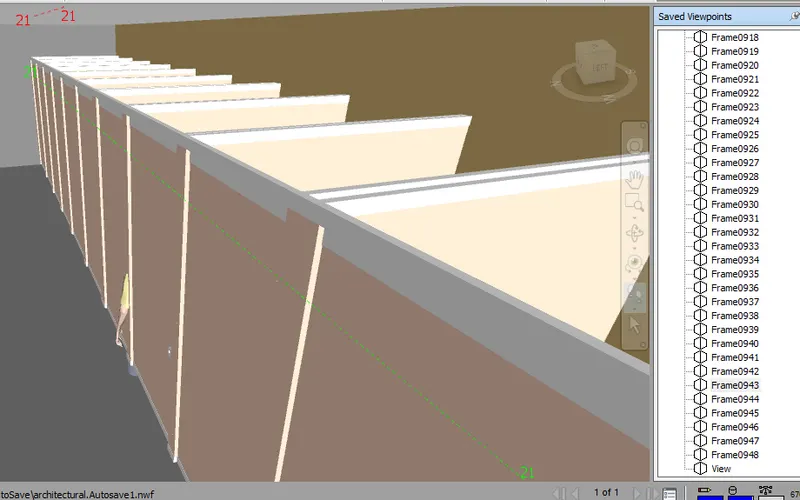

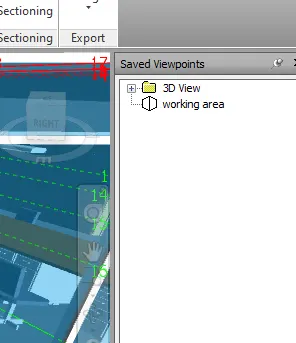

then go to the viewpoint tab and select walk option then selct the save view port option and using the mouse cursor walkthrough the project and use pan to adjust the height.

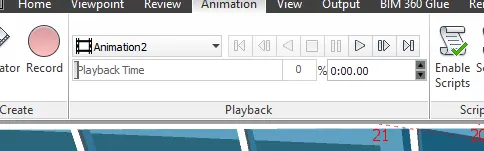

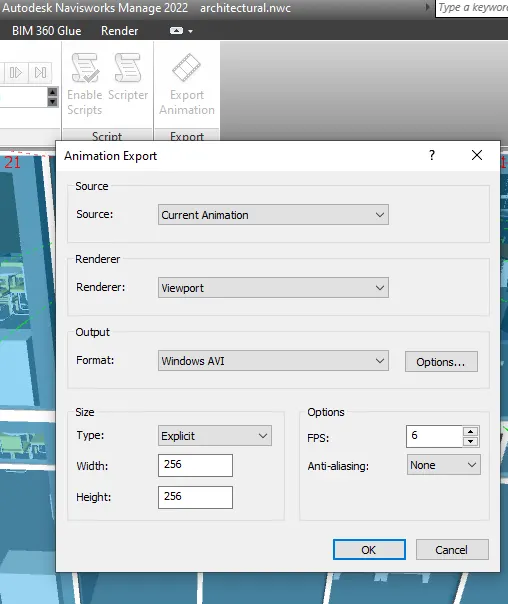

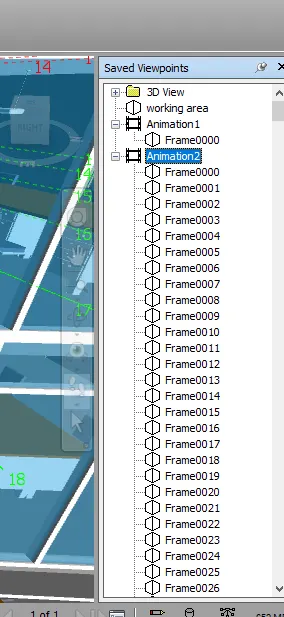

Then to record the animation go to animation option and select record option and the similarly walkthrough the project and the animation is recorded.you can play rthis video using playback option then export the file using export option and save it in required folder as windows AVI and select the desired folder hence the animation video is saved .
RESULT:

3.
AIM: To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
PROCEDURE: Open navisworksmanage file and then open the previous architectural NWC file saved in it.

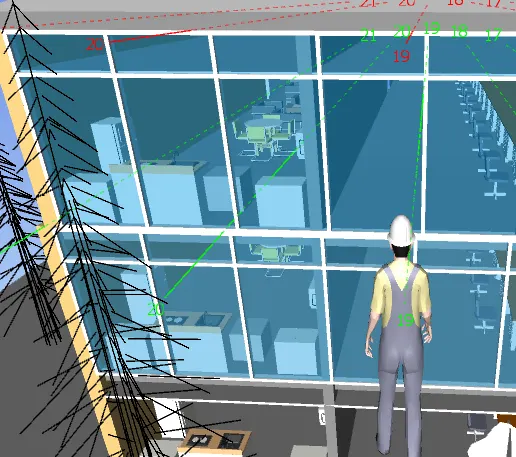

then go to the viewpoint tab and select Realism option a 3d view of the project is shown then select the walk option and then
Then to record the animation go to animation option and select record option and the similarly walkthrough the project and the animation is recorded.you can play rthis video using playback option then export the file using export option and save it in required folder as windows AVI and select the desired folder hence the animation video is saved .
RESULT:

4.
AIM: Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
PROCEDURE: using the append option add the structural file to the navisworks manage software.

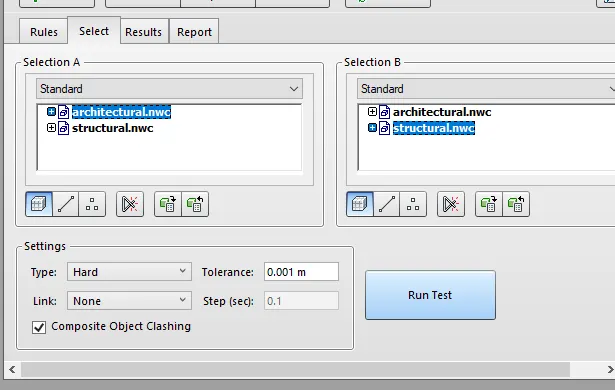

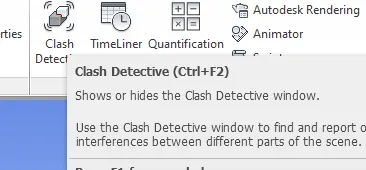

a. Go to the clas detective test then selct the selct the architectural file from a and stru tural file from B

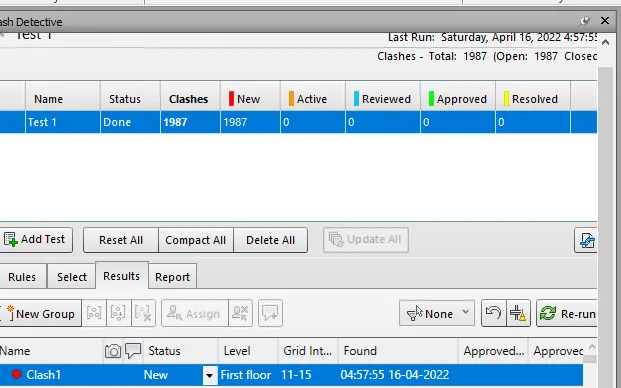

b. There are total 1987 np. of clashes

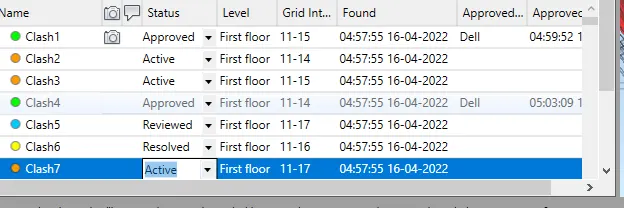

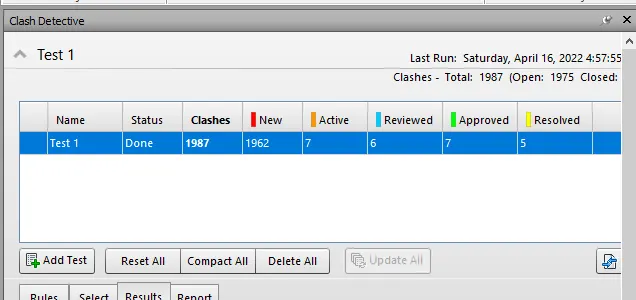

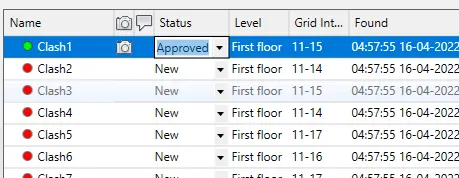

c. Then select all the clashes to be approved ans selct the approved option to it like this similarly for every clash.
d.Then select all the clashes to be neglected and selct the approved option to it like this similarly for every clash.
e.Then select all the clashes to be resolved and selct the approved option to it like this similarly for every clash.
f. Then after testing all the clashes we can save it as per the status

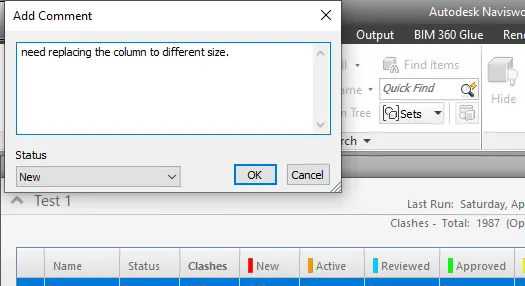

g. using the comment option we can a;so add annotation tto the clashlike this
RESULT:
a.
b.
c.
d.
e.
f.
g.

5.
AIM: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

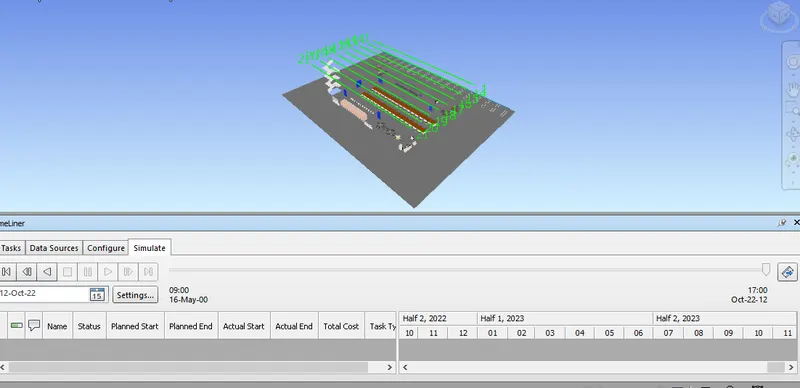

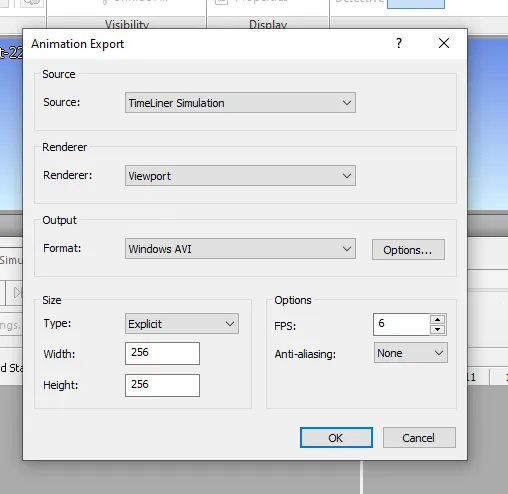

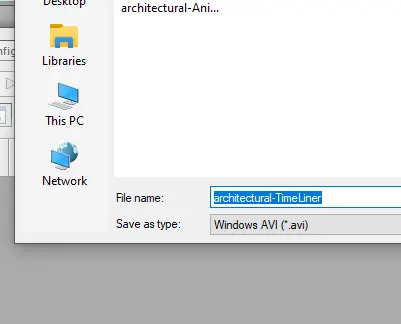

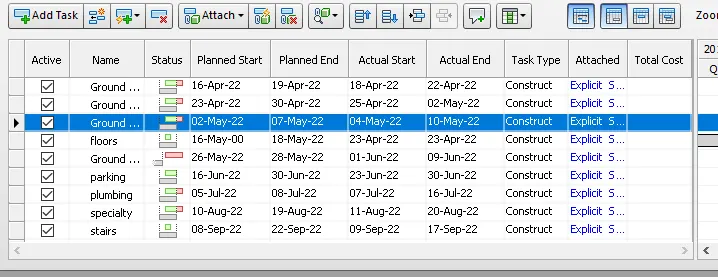

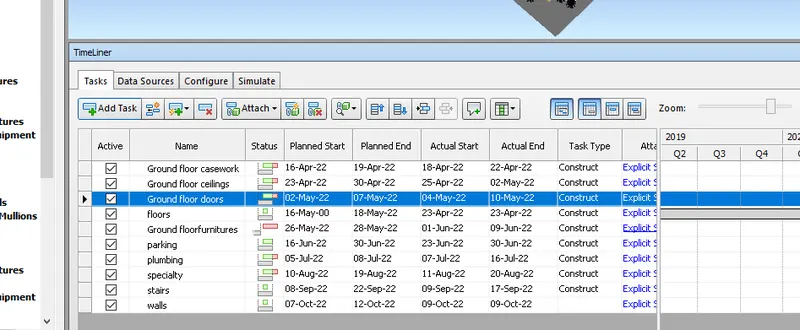

PROCEDURE: from the home ta go to the timleiner option and select the selecttion tree now add all the task from the selection treee one by one to the timeliner and give all the details such as start date end date actual start date actual end date and then attach the file using attach option and by selecting it from the selection tree. Then to see the animation go to the simulate option and play the recording now to save the file select the export animation option and select the file as timeline simulation and save the file
RESULT:
