Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
Ans.1.
Aim :- Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
Introduction :- Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
Procedure :-

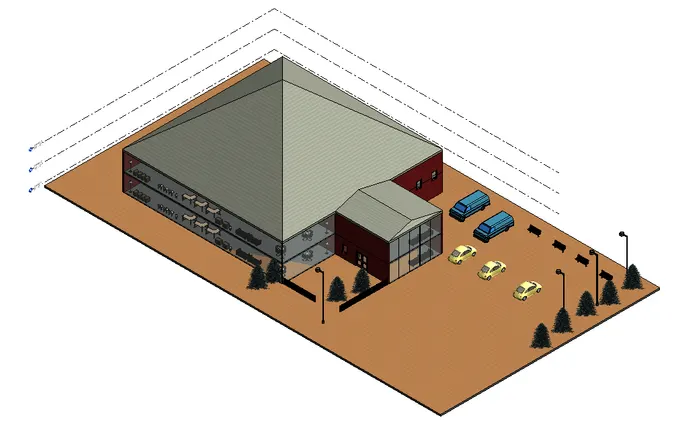

- Let us consider the example of Project 2.
- Now we have to export this file to navisworks.
- Just go to file option and in that go to naviswork.

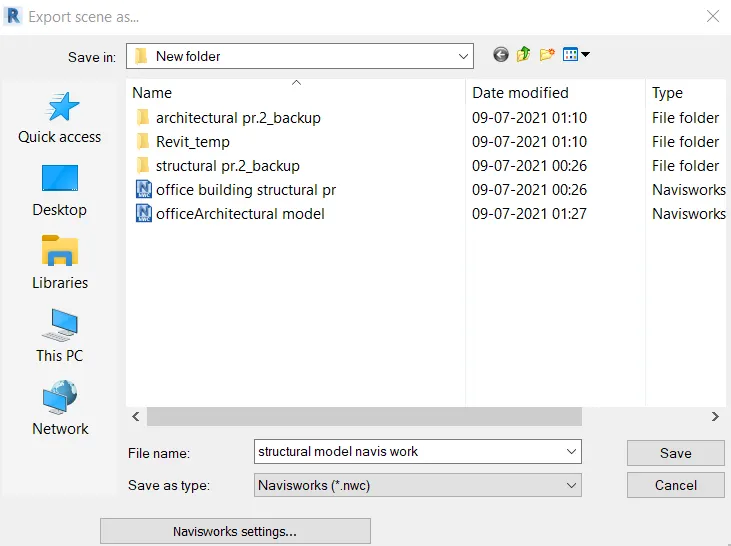

- now go to file option and click on NWC.

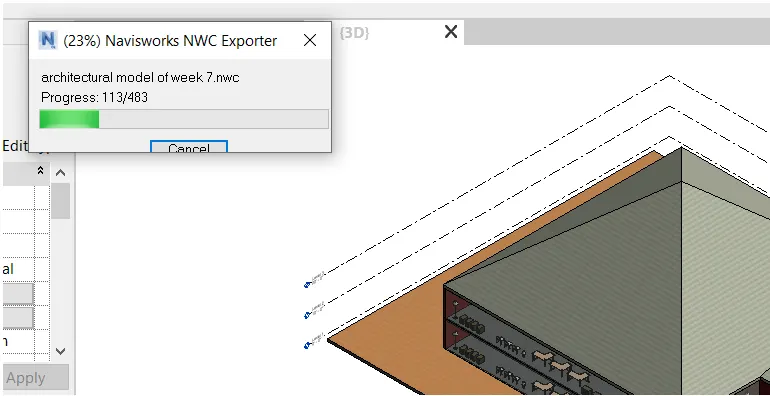

- File will start to export and then save the file.

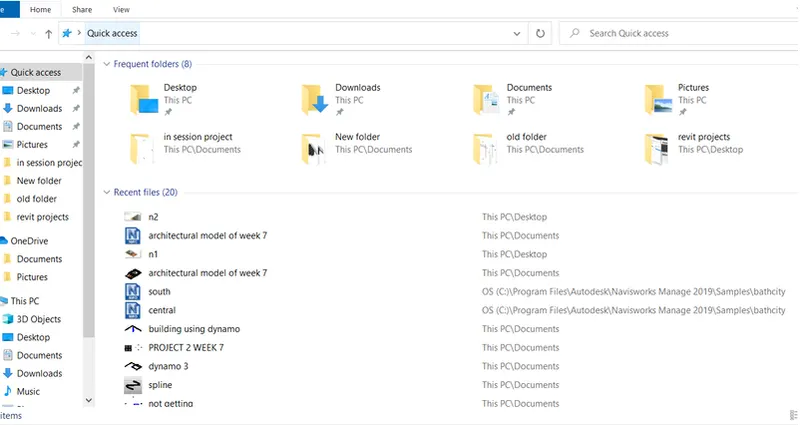

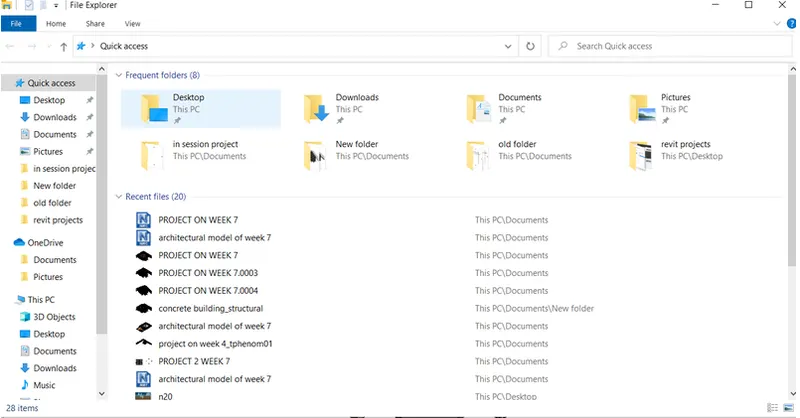

- Now go to file and click the saved file.

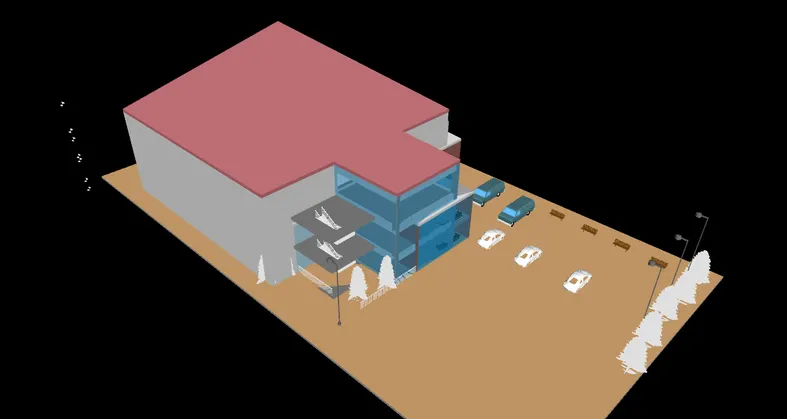

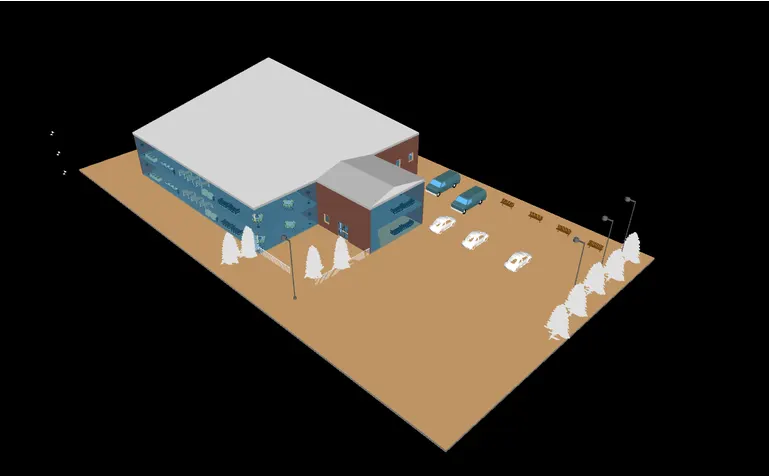

- Now the file will open in the naviswork as shown below.
Result :-
The Results are attached above.
2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
Ans.2.
Aim :- Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
Introduction :- Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
Procedure :-

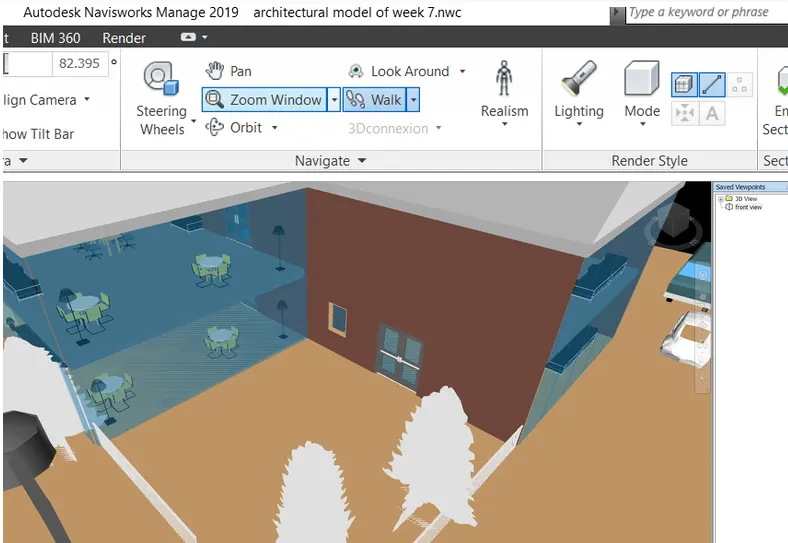

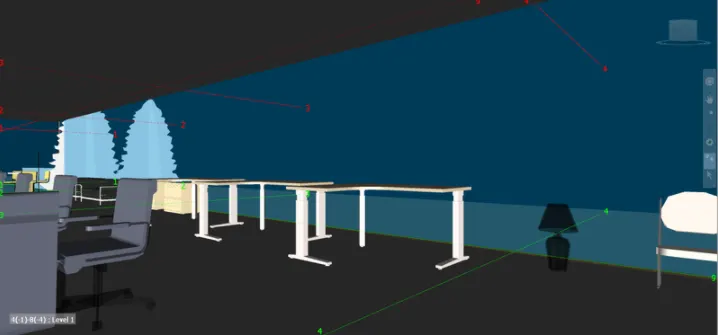

- Open navisworks and go to save viewpoints option, select record and after that seelct walk option.

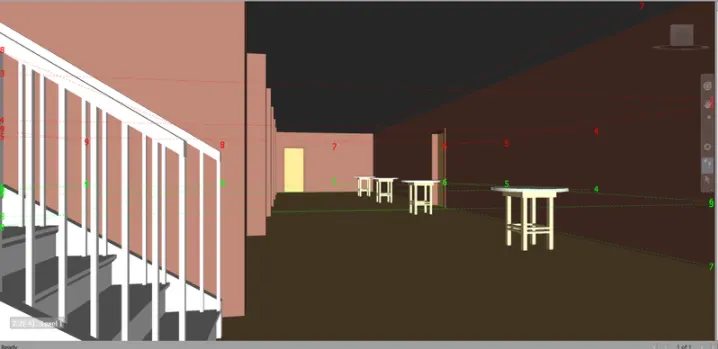

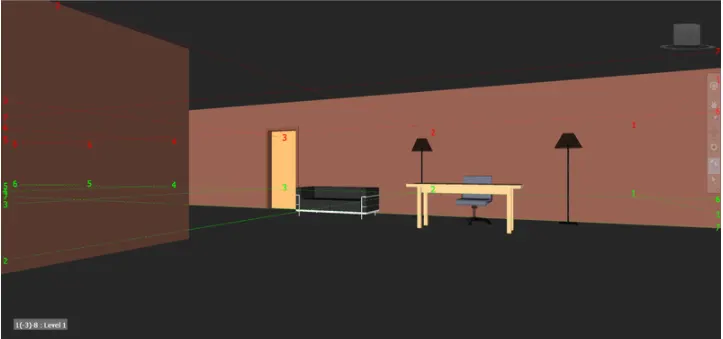

- Take a walk through differenet rooms of the buildung.
- After the walk is finished, click top option.

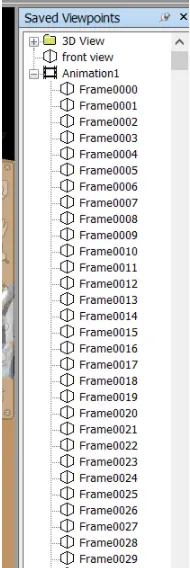

- We will get list of different frames of walk.
- Click on any of it to get the view.
- Frames are shown in the below.
Result :-
The Results are attached above.
3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.
Ans.3.
Aim :- Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.
Introduction :- Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.
Procedure :-

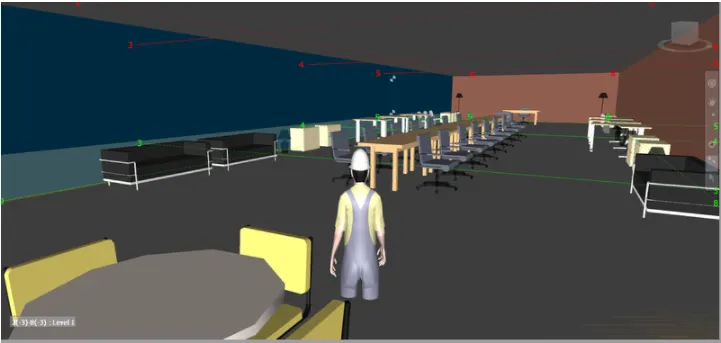

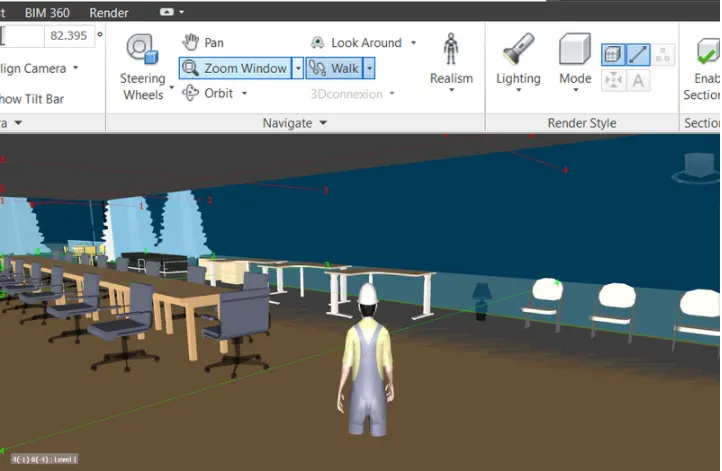

- Open naviswork, go to realism option besdie walk.

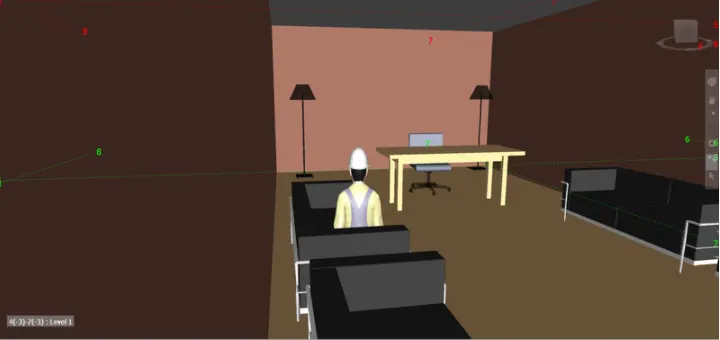

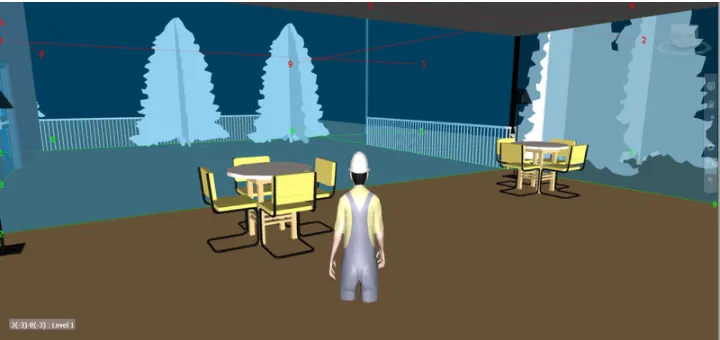

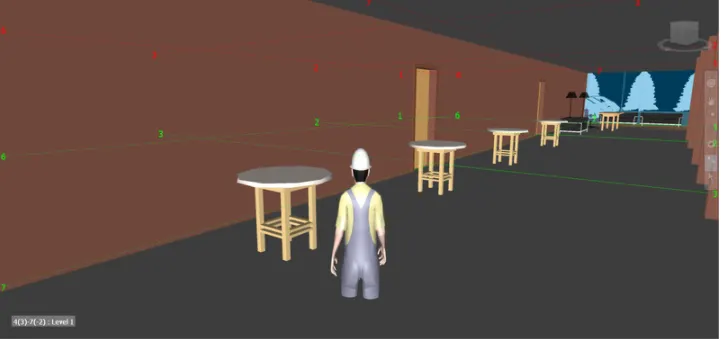

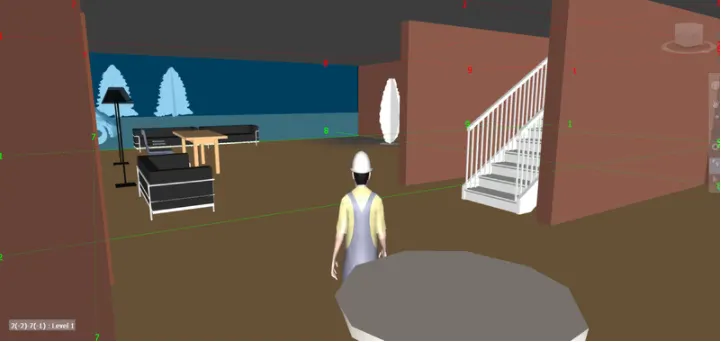

- Click thirs person and take walk through different rooms of the building.

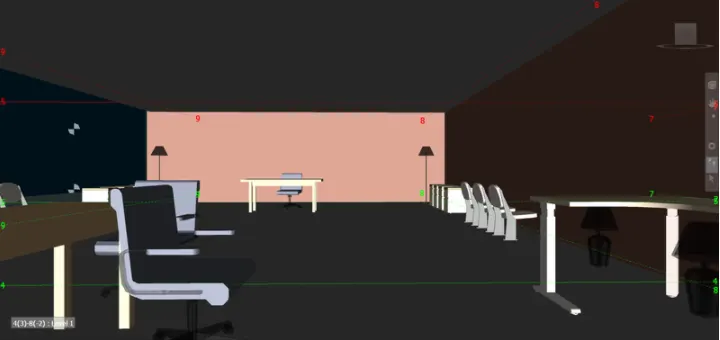

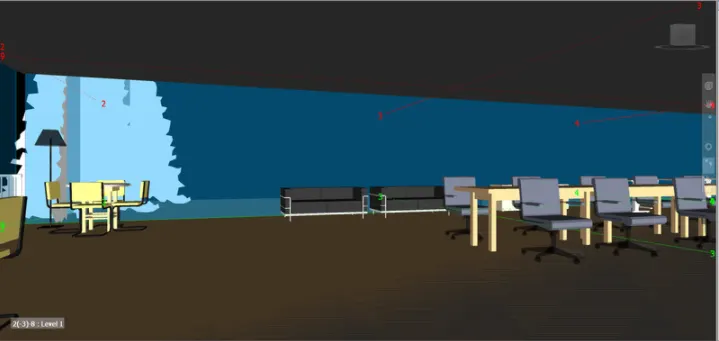

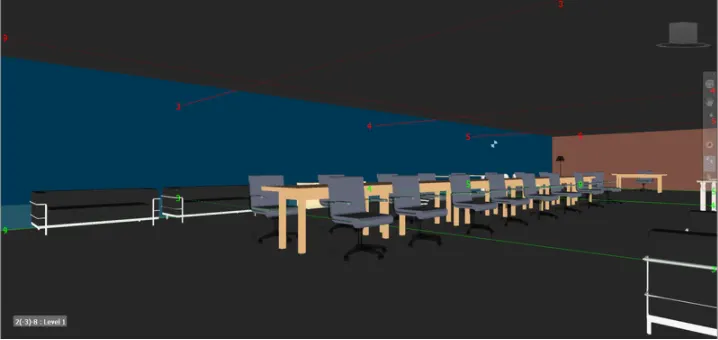

- Take the screenshot of all the rooms visited and being pasted below.
Result :-
The Results are attached above.
4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Ans.4.
Aim :- Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Introduction :- Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Procedure :-
- Go to architectural file in REVIT.

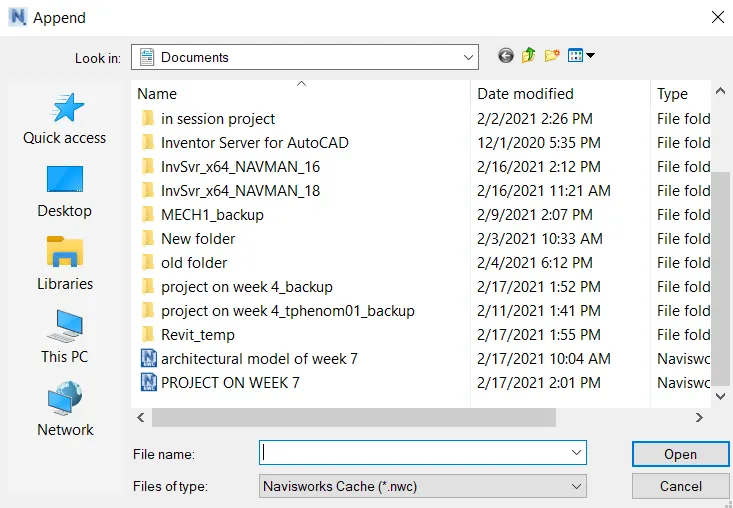

- Go to append and open Structural file.
- We will get combination of both the the figure shown below.

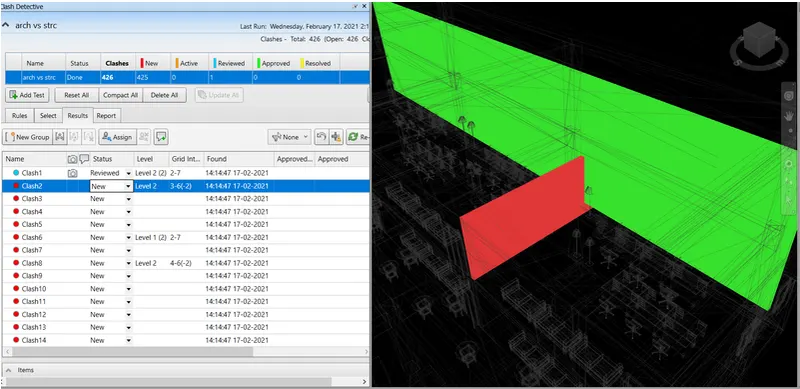

- Now go to clash detection option from the tab.

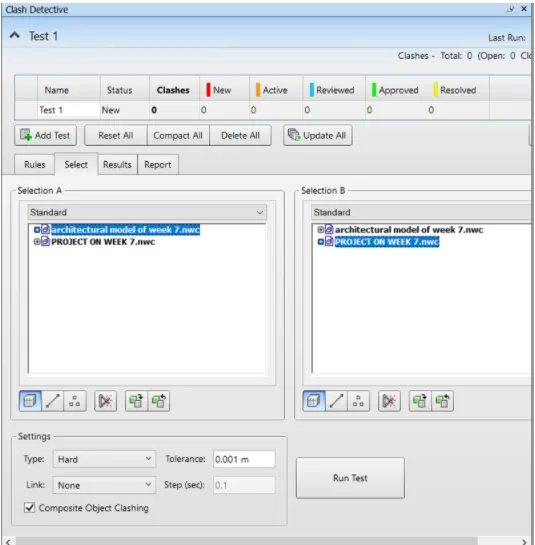

- Click on both the models and rename the test and click on run test.

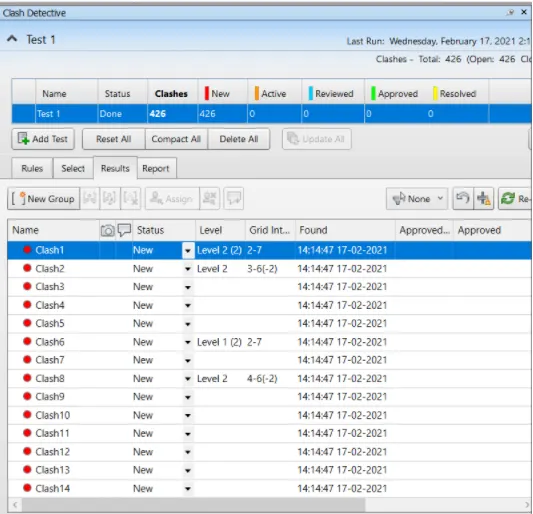

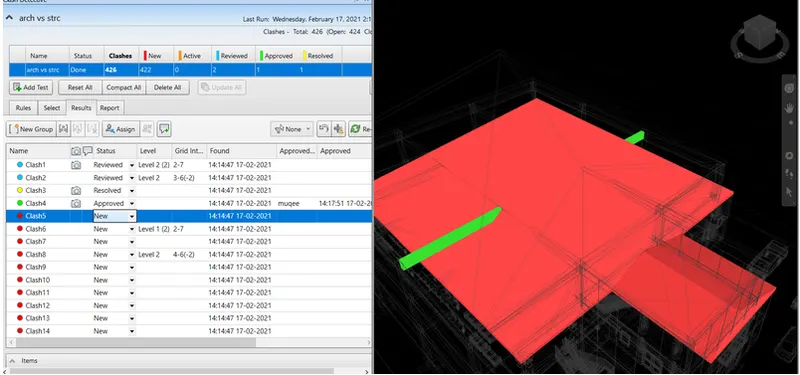

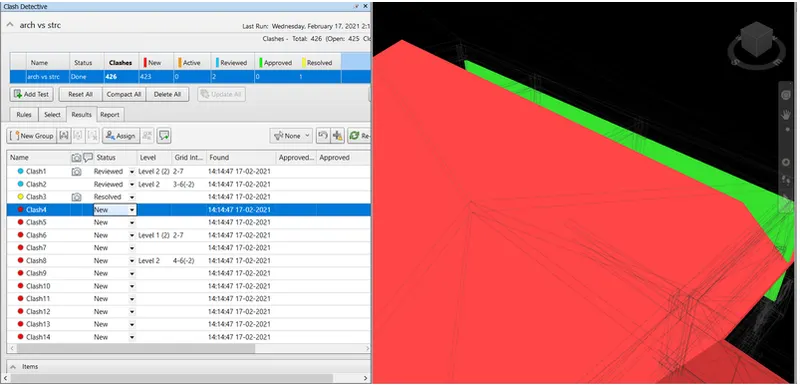

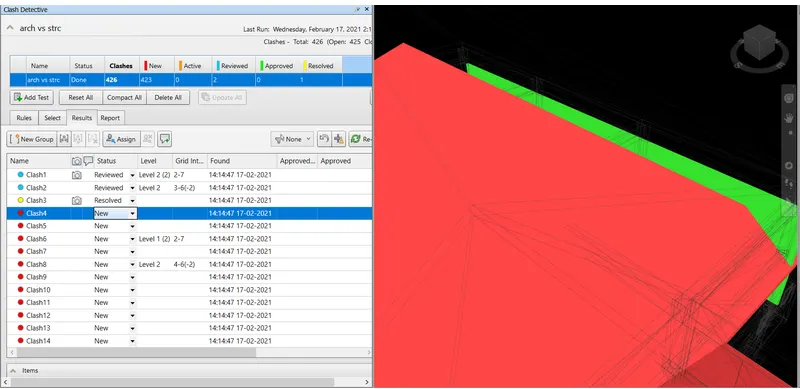

- We will get the list of all clashes, from here clashes can be approved and resolved as shown in attachment below.
Result :-
The Results are attached above.
5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
Ans.5.
Aim :- Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.
Introduction :- Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.
Procedure :-
- Open structural model in REVIT.
- Go to file menu then export it into NWC file.

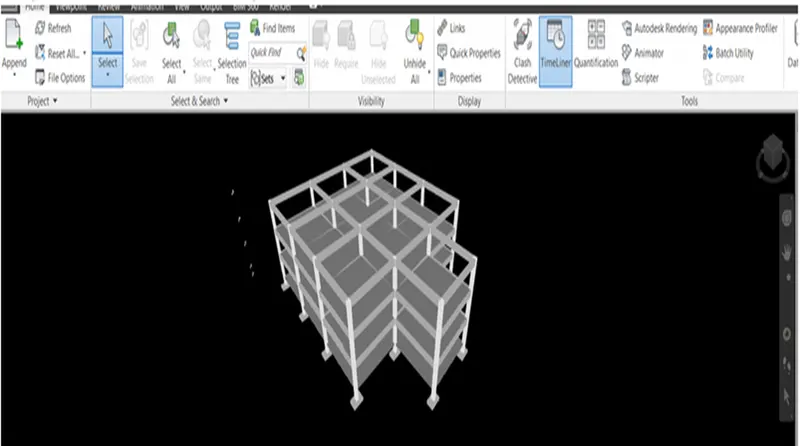

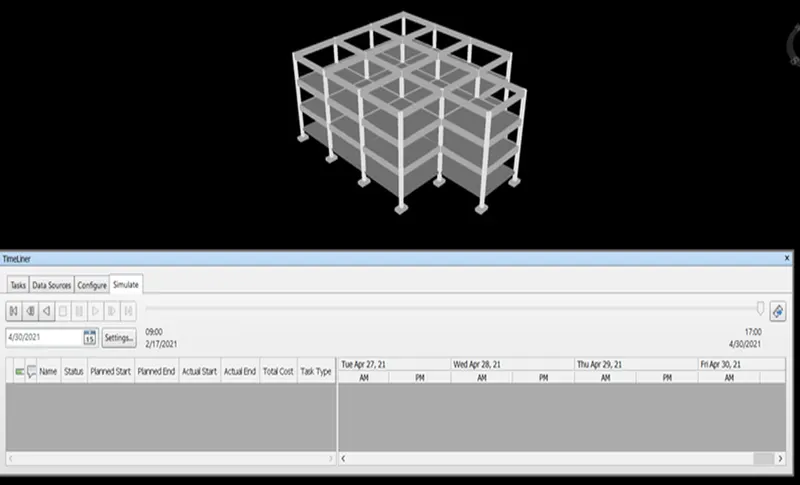

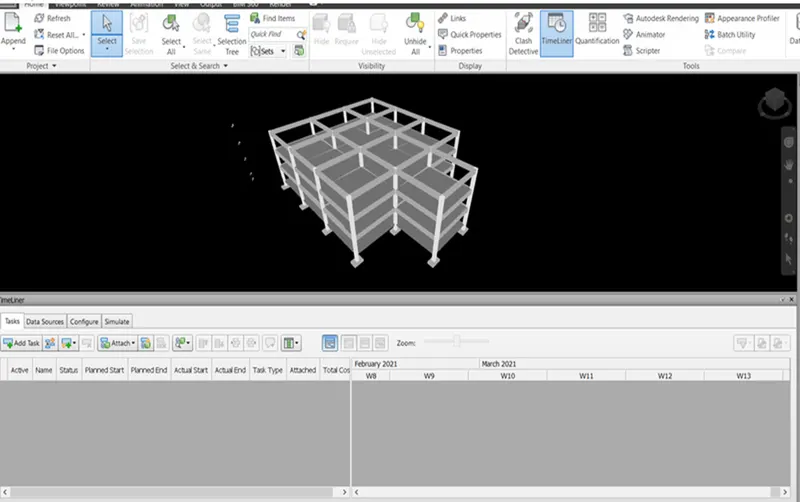

- Go to timeliner and click on it, we get a box as shown in figure.
- Click on add task and enter the name of component
- First we will enter as foundation.
- Now go to select tree and select the foundation and enter the start and end date.
- Enter the task type as construction.

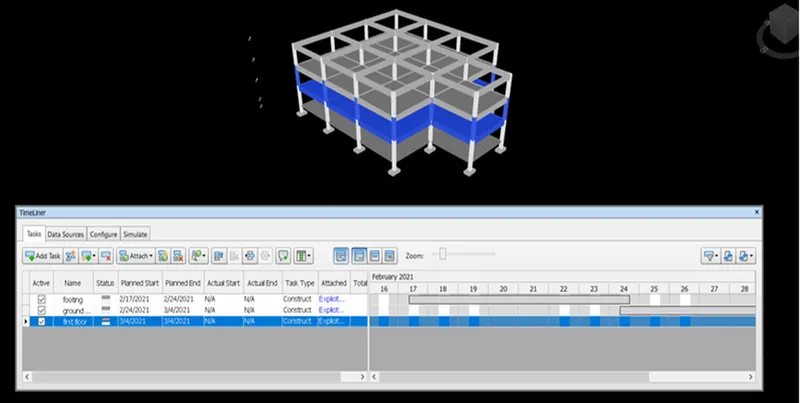

- Enter all the components with their dates and click on simulate.
- We will get the animation of building construction from start to end.
Result :-
The Results are attached above.
