Challenge

Creation of geometries by Coordinate system methods using AutoCad

PPallavi R Meshram22 Feb 2022

Creating the geometries from P1 to P2 using all the coordinates system methods

Aim

Create the geometries from P1 to P2 using all the coordinates system methods, we use line tool and find out the missing dimensions.

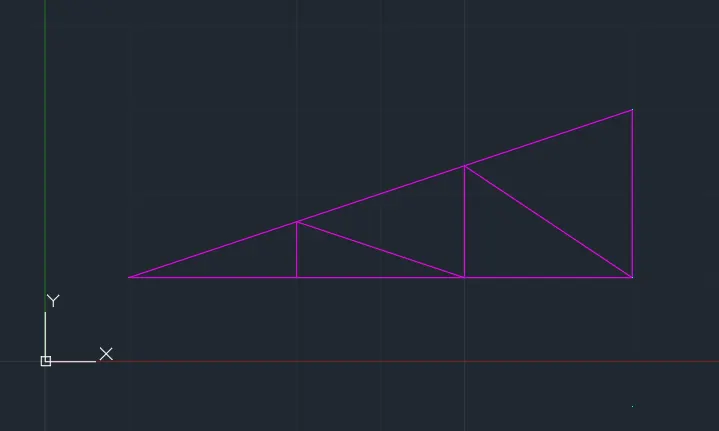

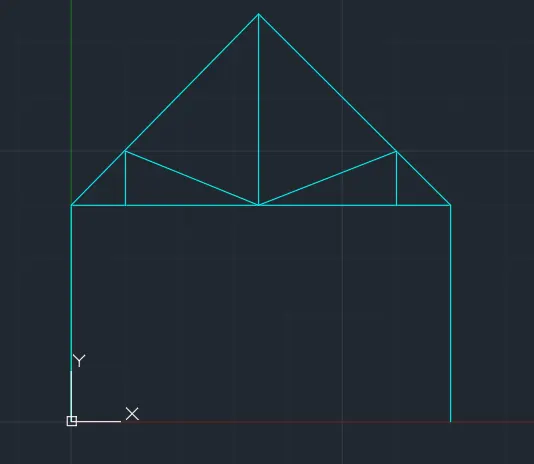

Civil relate- Draw the profile and the trusses using coordinate system method. The dimension are for refrenece.

Introduction

Before drawing on drawing done on AutoCAD, there are coordinates system i.e. Cartesian and Polar system.
To these coordinates systems the absolute and relative coordinates are applicable in AutoCAD.
Coordinates systems - coordinates systems is a system where numbers are used to determine the unique position of points and /or other geometric elements.
Also coordinates systems on AutoCAD can be set by using the mouse input, the values of coordinate in command line and enter coordinate using dynamic input.

There are two coordinate systems in AutoCAD

Absolute coordinates system
Relative coordinates system

Relative rectangular coordinates system
Relative polar coordinates system

Direct distance entry

Absolute coordinates system :- In this system all points are eastabalished at some distance in the X and Y axis (Sometimes on Z axis) from a common origin usually (0,0).

Relative coordinates system :- The location of relative coordinateis defined by its distance from a referene point. In AutoCAd, when using this system the first point of drg is always absolute i.e. it is estabalished w.r.t to origin (0,0) and then all the successive position are eatabalished w.r.t. their preceding point.

Relative rectangular coordinates system :- It is coordinates system that specifies each point by the pair of numerical coordinates in the X-axis and Y-axis. In this system the points succeding the first point are typed as '@x,y' in command line.

Relative polar coordinates system :- The system specifies the distance in length and angle of particular point w.r.t previous point.In This points are eatabalished by typing @ distance

Direct distance entry :- Basically, direct distance entry enables you to draw an object, such as a line, by pointing in a particular direction with the cursor and entering a distance at the command line.

Command used

Line command
Dimlinear command
Text command
Circle command

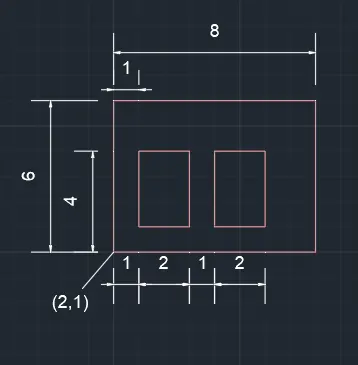

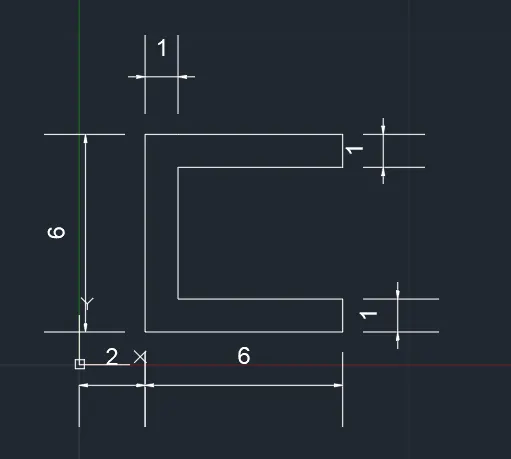

Ans P-1

Absolute coordinates system

Procedures

Select line from toolbar from ribbion tab or write line command by entering 'l' , it will specify the first point.
Now,Enter the first point as (2,1)
Next, the command is ask to enter the next point
Specify the next point as (8,1)
Then, specify the next point as (8,2)
Then, specify the next point as (3,2)
Then, specify the next point as (3,6)
Then, specify the next point as (8,6)
Then, specify the next point as (8,7)
Then, specify the next point as (2,7)
Then, specify the next point as (2,1) or click close option from command bar.

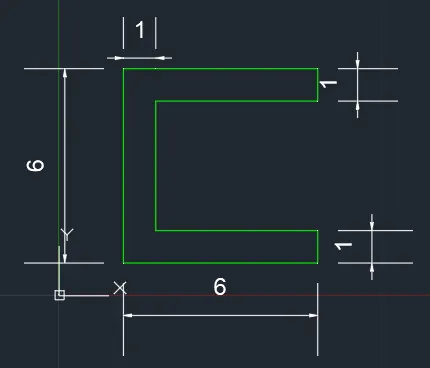

Result

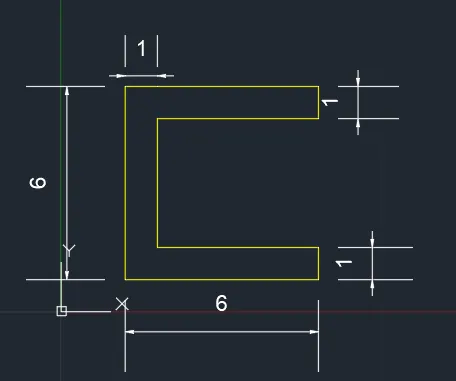

Relative rectangular coordinates system

Procedures

Select the line tool by entering line command in command tab
Specify the starting coordinate of point 1 as 2,1 in the command line
Specify the next coordinate of point 2 as @6,0 in the command line
Specify the next coordinate of point 3 as @0,1 in the command line
Specify the next coordinate of point 4 as @-5,0 in the command line
Specify the next coordinate of point 5 as @0,4 in the command line
Specify the next coordinate of point 6 as @5,0 in the command line
Specify the next coordinate of point 7 as @0,1 in the command line
Specify the next coordinate of point 8 as @-6,0 in the command line
Click close on command line

Result

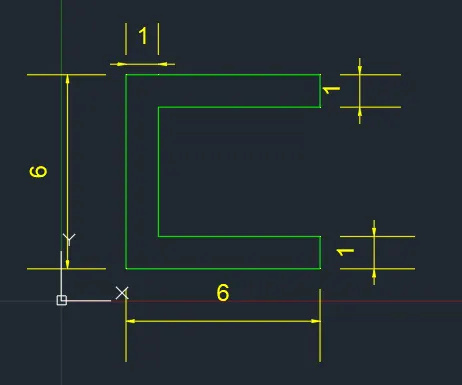

Relative polar coordinates system

Procedures

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 2.1 in the command line.
Specify the next coordinate of point 2 as @6<0 in the command line.
Specify the next coordinate of point 4 as @5<180 in the command line.
Click ‘Close’ on the command line.
Specify the next coordinate of Point 3 as @1<90 in the command line.
Specify the next coordinate of Point 5 as @4<90 in the command line.
Specify the next coordinate of Point 6 as @5<0 in the command line.
Specify the next coordinate of Point 7 as @1<90 in the command line.
Specify the next coordinate of Point 8 as @6<180 in the command line

Result

Direct distance entry

Procedure

Select the line tool by entering line command in command tab
Enter length of point 2 as 6 in command line towards +ve X-axis
Enter length of point 3 as 1 in command line towards +ve Y-axis
Enter length of point 4 as 5 in command line towards - ve X-axis
Enter length of point 5 as 4 in command line towards +ve Y-axis
Enter length of point 6 as 5 in command line towards +ve X-axis
Enter length of point 7 as 1 in command line towards +ve Y-axis
Enter length of point 8 as 6 in command line towards - ve X-axis
Click close on command line

Result

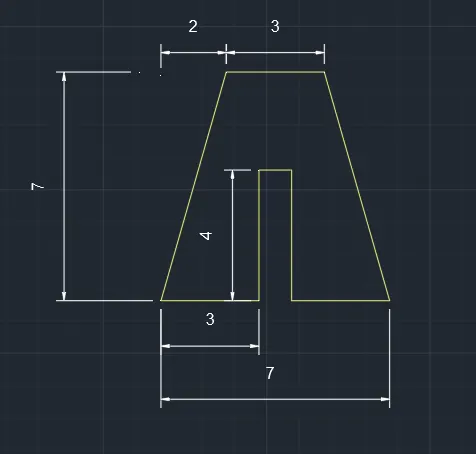

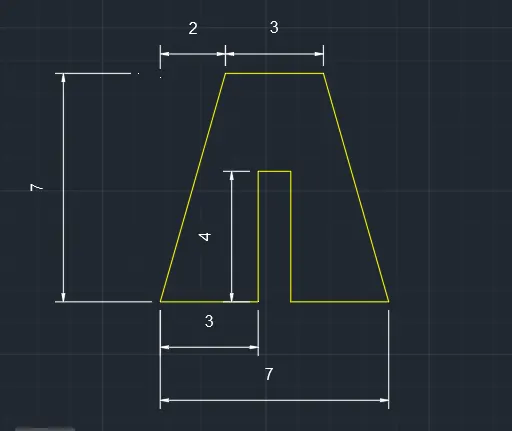

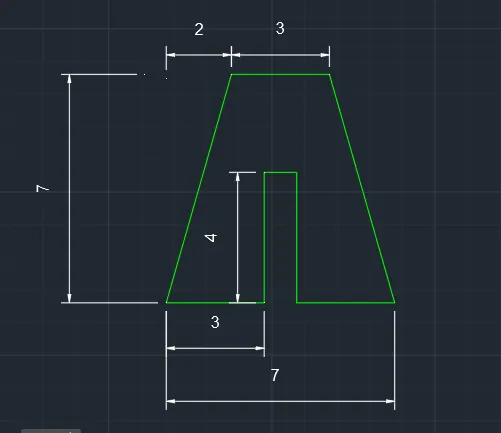

Ans P-2

Absolute coordinates system

Procedures

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as 5,1 in the command line.
Specify the next coordinate of point 3 as 5,5 in the command line.
Specify the next coordinate of Point 4 as 6,5 in the command line.
Specify the next coordinate of Point 5 as 6,1 in the command line.
Specify the next coordinate of Point 6 as 9,1 in the command line.
Specify the next coordinate of Point 7 as 7,8 in the command line.
Specify the next coordinate of Point 8 as 4,8 in the command line.
Click ‘Close’ on the command line.

Result

Relative rectangular coordinates system

Procedures

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as @3,0 in the command line.
Specify the next coordinate of point 3 as @0,4 in the command line.
Specify the next coordinate of Point 4 as @1,0 in the command line.
Specify the next coordinate of Point 5 as @0, -4 in the command line.
Specify the next coordinate of Point 6 as @3, 0 in the command line.
Specify the next coordinate of Point 7 as @-2,7 in the command line.
Specify the next coordinate of Point 8 as @-3, 0 in the command line.
Click ‘Close’ on the command line.

Result

Relative polar coordinates system

Procedures

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as @3<0 in the command line.
Specify the next coordinate of point 3 as @4<90 in the command line.
Specify the next coordinate of Point 4 as @1<0 in the command line.
Specify the next coordinate of Point 5 as @4<270 in the command line.
Specify the next coordinate of Point 6 as @3<0 in the command line.
Specify the next coordinate of Point 7 as @7<106 in the command line.
Specify the next coordinate of Point 8 as @3<180 in the command line.
Click ‘Close’ on the command line.

Result

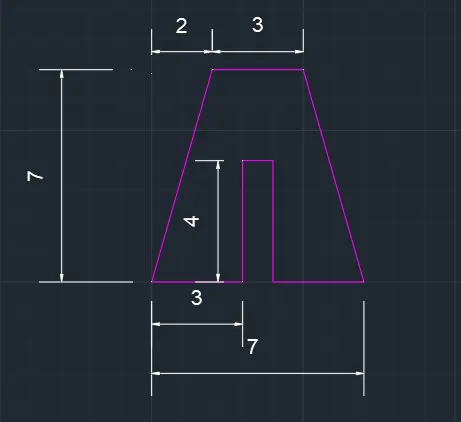

Direct distance entry

Procedure

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 2.1 in the command line
Enter the length of point 2 as 3 in the command line towards +ve x- axis.
Enter the length of point 3 as 4 in the command line towards +ve y- axis.
Enter the length of point 4 as 1 in the command line towards +ve x- axis.
Enter the length of point 5 as 4 in the command line towards -ve y- axis.
Enter the length of point 6 as 3 in the command line towards +ve x- axis.
Enter the length of point 7 as 7 in the command line an angle of < 106 from +ve x direction while keeping polar tracking on.
Enter the length of point 8 as 3 in the command line towards -ve x- axis.
Click ‘Close’ on the command line.

Result

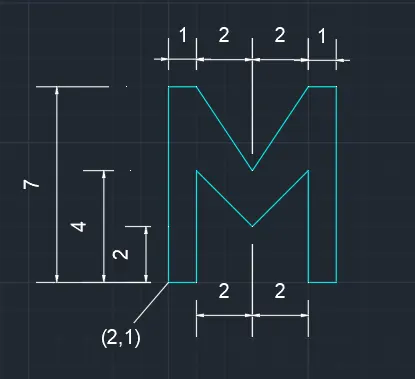

Ans P-4

Procedure

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as 3,1 in the command line.
Specify the next coordinate of point 3 as 3,5 in the command line.
Specify the next coordinate of Point 4 as 5,3 in the command line.
Specify the next coordinate of Point 5 as 7,5 in the command line.
Specify the next coordinate of Point 6 as 7,1 in the command line.
Specify the next coordinate of Point 7 as 3,1 in the command line.
Specify the next coordinate of Point 8 as 8,8 in the command line.
Specify the next coordinate of Point 9 as 7,8 in the command line.
Specify the next coordinate of Point 10 as 5,5 in the command line.
Specify the next coordinate of Point 11 as 3,8 in the command line.
Specify the next coordinate of Point 12 as 2,8 in the command line.
Click ‘Close’ on the command line.

Result

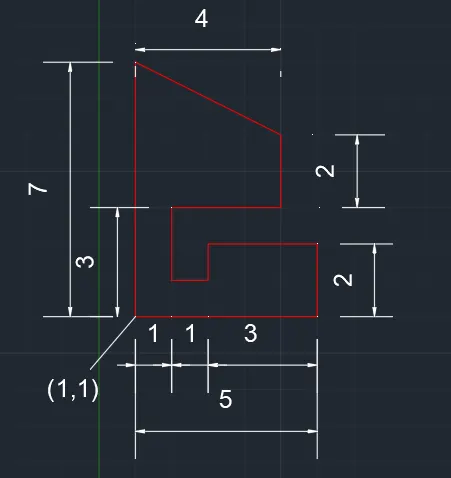

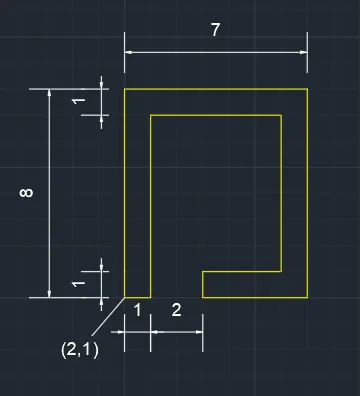

Ans P-5

Procedure

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as @1,0 in the command line.
Specify the next coordinate of point 3 as @0,7 in the command line.
Specify the next coordinate of Point 4 as @5,0 in the command line.
Specify the next coordinate of Point 5 as @0, -6 in the command line.
Specify the next coordinate of Point 6 as @3, 0 in the command line.
Specify the next coordinate of Point 7 as @0,-7 in the command line.
Specify the next coordinate of Point 8 as @4, 0 in the command line.
Specify the next coordinate of Point 9 as @0, 8 in the command line.
Specify the next coordinate of Point 10 as @-7, 0 in the command line.
Click ‘Close’ on the command line.

Result

Ans P-7

Procedure

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 2,1 in the command line.
Specify the next coordinate of point 2 as 10,1 in the command line.
Specify the next coordinate of point 3 as 10,7 in the command line.
Specify the next coordinate of Point 4 as 2,7 in the command line.
Click ‘Close’ on the command line.
Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the next coordinate of Point 5 as 3.2 in the command line.
Specify the next coordinate of Point 6 as 5.2 in the command line.
Specify the next coordinate of Point 7 as 5.5 in the command line.
Specify the next coordinate of Point 8 as 3.5 in the command line.
Click ‘Close’ on the command line.
Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the next coordinate of Point 9 as 6.2 in the command line.
Specify the next coordinate of Point 10 as 8.2 in the command line.
Specify the next coordinate of Point 11 as 8.5 in the command line.
Specify the next coordinate of Point 12 as 6,5 in the command line.
Click ‘Close’ on the command line.

Result

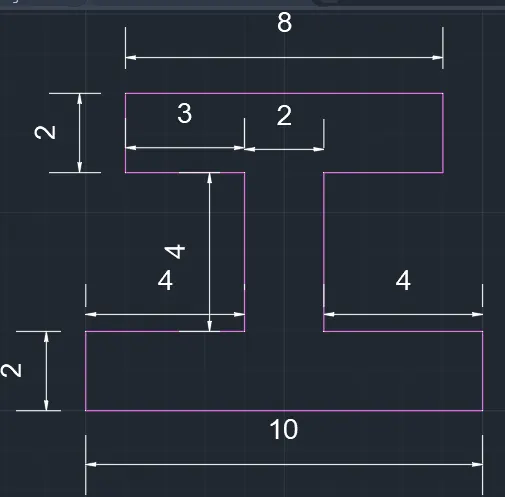

Ans P-8

Procedure

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 0,0 in the command line.
Specify the next coordinate of point 2 as @10,0 in the command line.
Specify the next coordinate of point 3 as @0,2 in the command line.
Specify the next coordinate of Point 4 as @-4,0 in the command line.
Specify the next coordinate of Point 5 as @0, 4 in the command line.
Specify the next coordinate of Point 6 as @3, 0 in the command line.
Specify the next coordinate of Point 7 as @0,2 in the command line.
Specify the next coordinate of Point 8 as @-8, 0 in the command line.
Specify the next coordinate of Point 9 as @0,-2 in the command line.
Specify the next coordinate of Point 10 as @3, 0 in the command line.
Specify the next coordinate of Point 11 as @0,-4 in the command line.
Specify the next coordinate of Point 12 as @-4, 0 in the command line.
Click ‘Close’ on the command line.

Result

Ans P-9

Procedure

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 1,1 in the command line.
Specify the next coordinate of point 2 as 6,1 in the command line.
Specify the next coordinate of point 3 as 6,3 in the command line.
Specify the next coordinate of Point 4 as 3,3 in the command line.
Specify the next coordinate of Point 5 as 3,2 in the command line.
Specify the next coordinate of Point 6 as 2,2 in the command line.
Specify the next coordinate of Point 7 as 2,4 in the command line.
Specify the next coordinate of Point 8 as 3,4 in the command line.
Specify the next coordinate of Point 9 as 5,6 in the command line.
Specify the next coordinate of Point 10 as 1,8 in the command line.
Click ‘Close’ on the command line.

Result

Ans P-10

Procedures

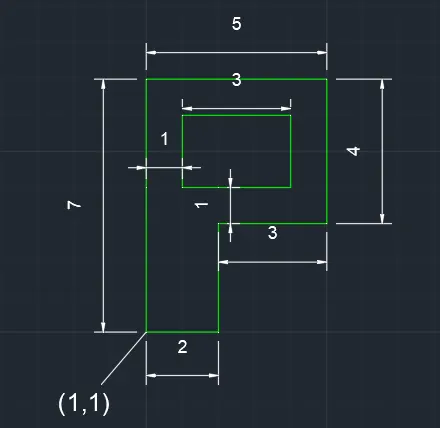

Select the Line tool by entering ‘LINE’ command in the command tab.
Specify the starting coordinate of point 1 as 1,1 in the command line.
Specify the next coordinate of point 2 as @2<0 in the command line.
Specify the next coordinate of point 3 as @3<90 in the command line.
Specify the next coordinate of Point 4 as @3<0 in the command line.
Specify the next coordinate of Point 6 as 5 -180 in the command line.
Click ‘Close’ on the command line.
Specify the next coordinate of Point 5 as @4<90 in the command line.
Select line by entering 'line' command in the command tab
Specify the next coordinate of Point 8 as @3<0 in the command line.
Specify the next coordinate of Point 7 as 5,2 in the command line.
Specify the next coordinate of Point 9 as @2<90 in the command line.
Specify the next coordinate of Point 10 as @3<180 in the command line.
Click ‘Close’ on the command line.

Result

Civil Related Problems

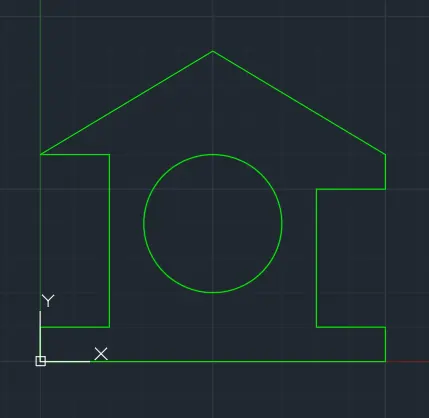

Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

Ans. Profile - WOOD

Procedure

Select the Line tool by entering ‘Line’ command in the command tab.
Specify the starting coordinate of point 1 as 0,0 in the command line
Enter the length of point 2 as 10 in the command line towards +ve x- axis.
Enter the length of point 3 as 1 in the command line towards +ve y- axis.
Enter the length of point 4 as 2 in the command line towards - ve x- axis.
Enter the length of point 5 as 4 in the command line towards +ve y- axis.
Enter the length of point 6 as 2 in the command line towards +ve x- axis.
Enter the length of point 7 as 831 in the command line an angle of < 149.036 from +ve x direction while keeping polar tracking on.
Enter the length of point 7 as 831 in the command line an angle of < 149.036 from +ve x direction while keeping polar tracking on.
Enter the length of point 8 as 5.831 in the command line an angle of < 210.964 from +ve x direction while keeping polar tracking on.
Enter the length of point 9 as 2 in the command line towards +ve x- axis.
Enter the length of point 10 as 5 in the command line towards -ve x- axis.
Enter the length of point 11 as 2 in the command line towards + ve x- axis.
Click ‘Close’ on the command line.
Select the circle tool by entering ‘circle’ command in the command tab.
Specify center point of circle 5,4
Specify radius as 2 or diameter as 4
