Understanding the concepts on Degrees of Freedom

AIM:

• To Understanding the concepts on Degrees of Freedom.

PROCEDURE AND DETAIL:

Question 1:

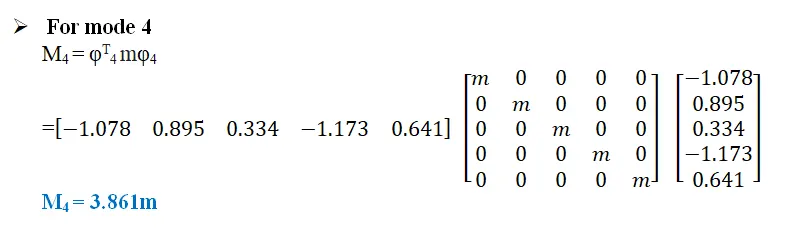

A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration T_n and their corresponding mode shapes, φ_n has been derived.

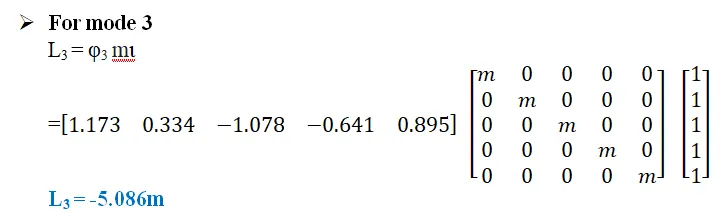

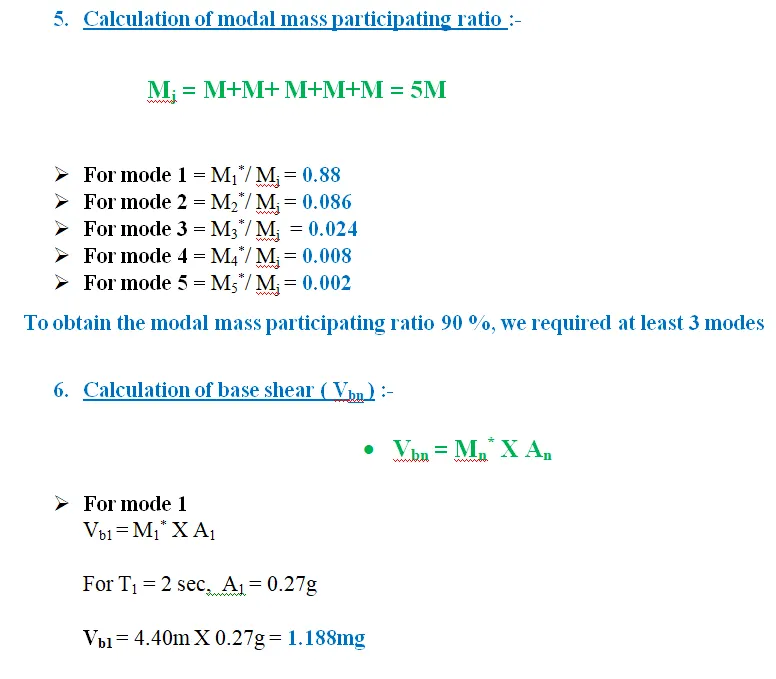

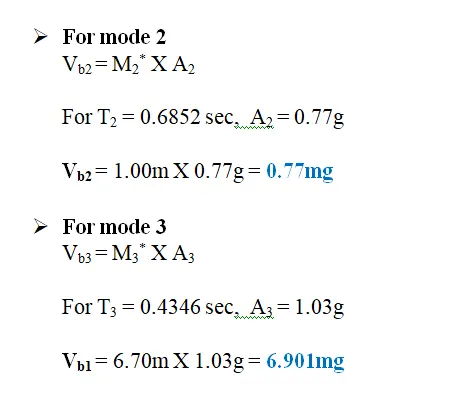

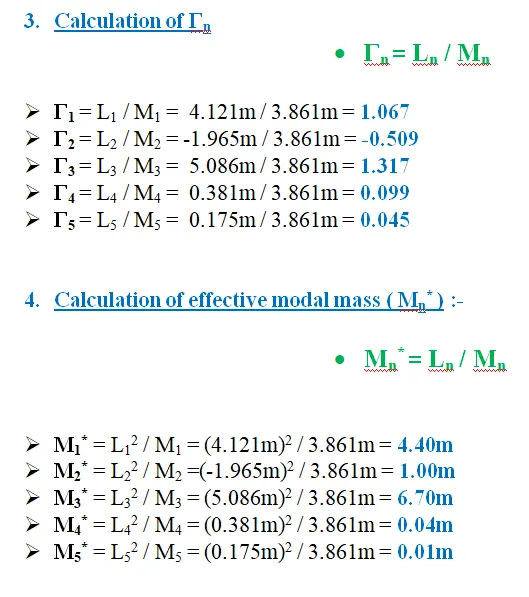

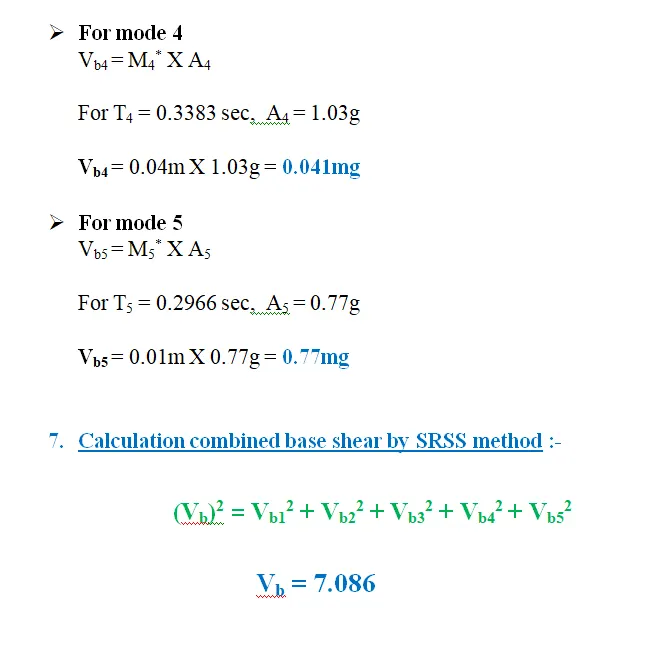

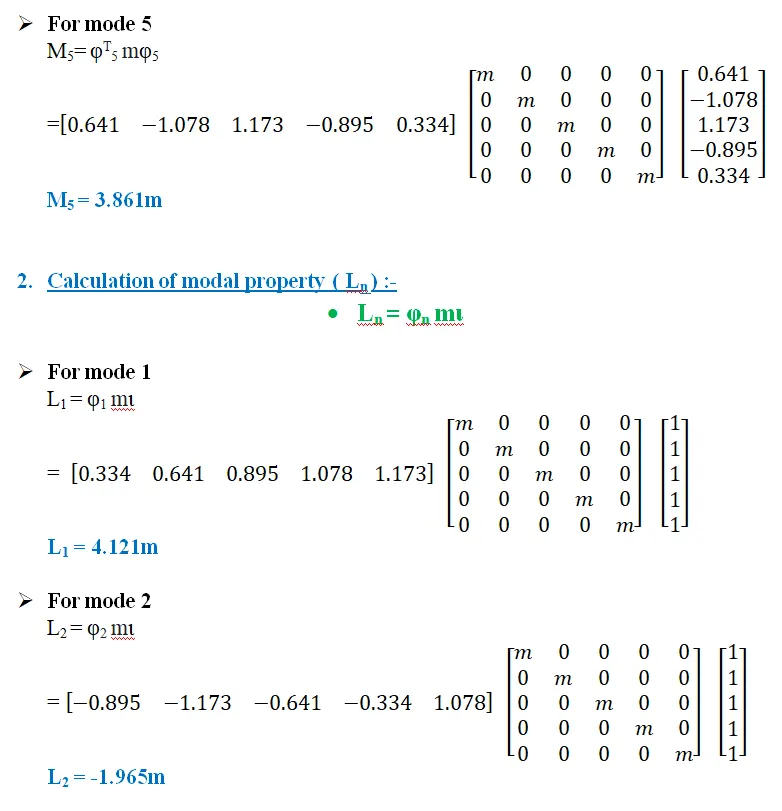

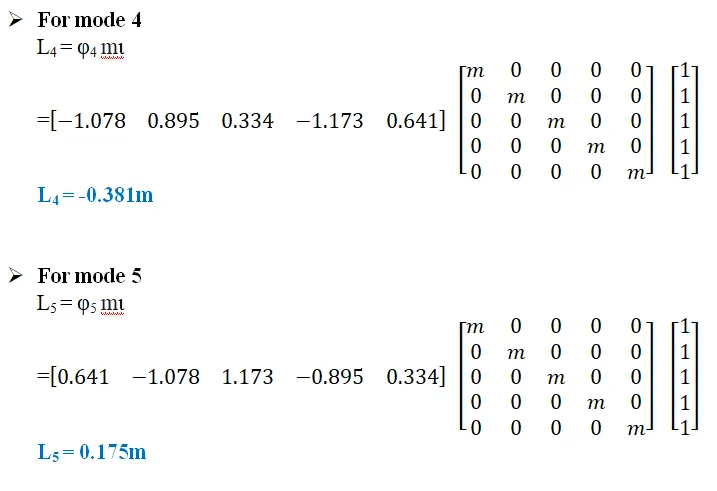

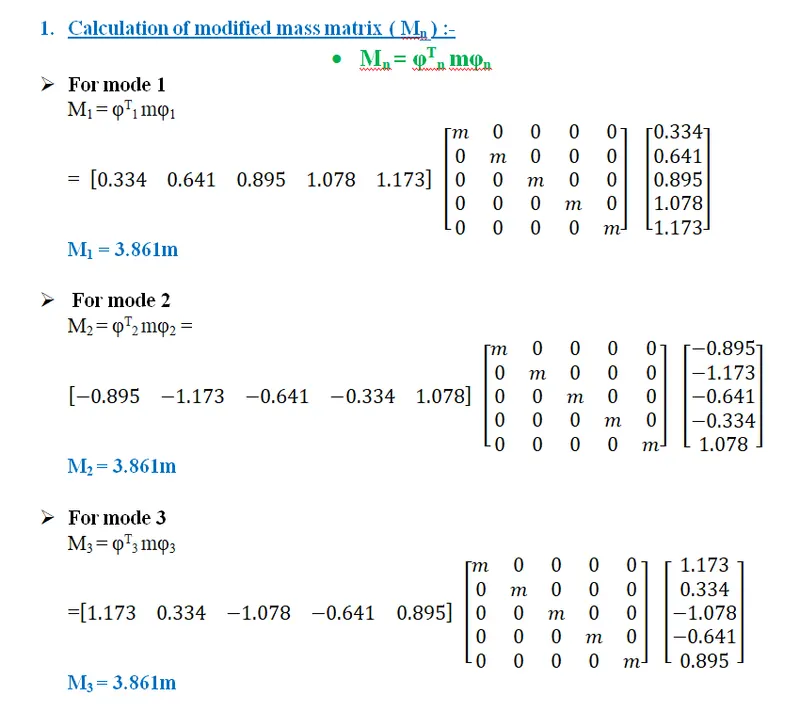

Answer :-

RESULT:

• Understanding the concepts on Degrees of Freedom Challenge is completed.
