Understanding the concepts on Degrees of Freedom

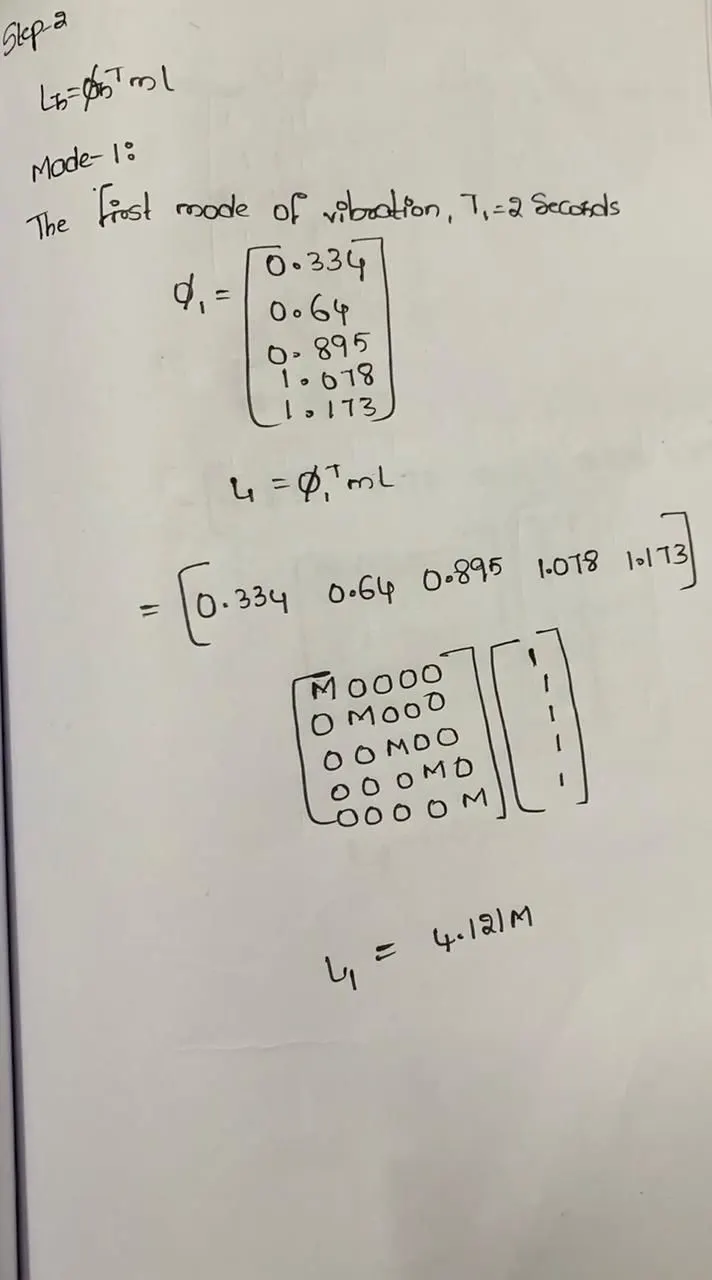

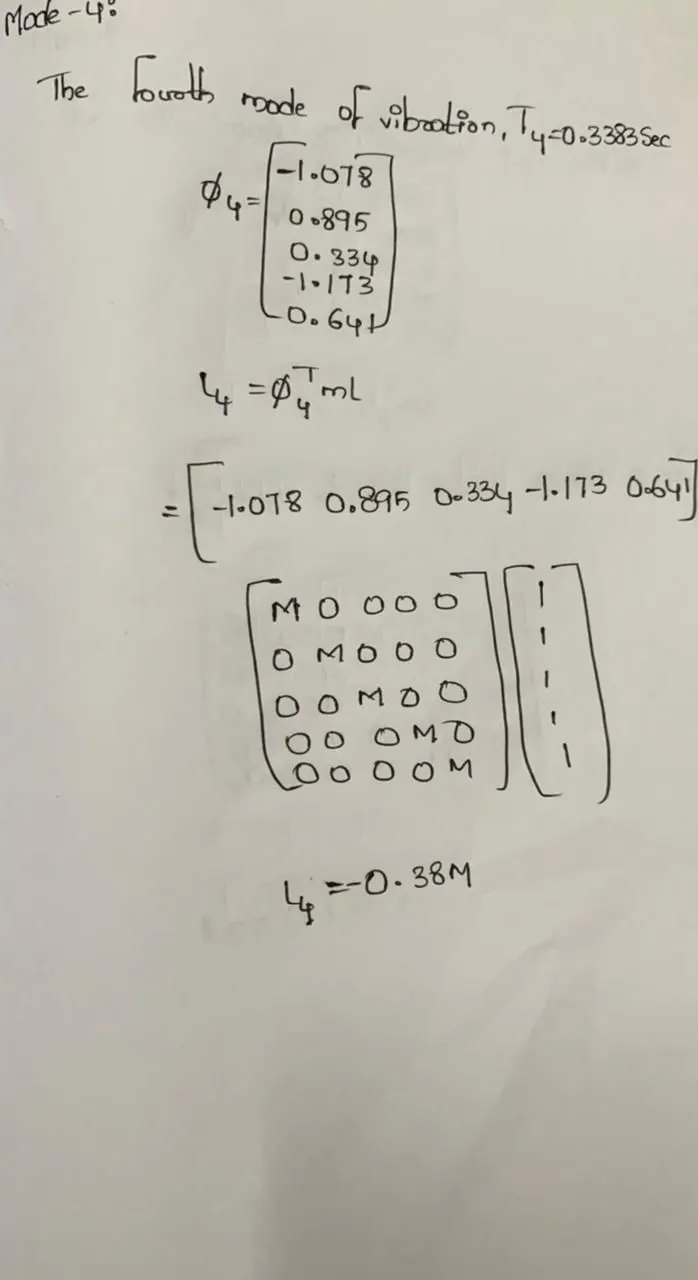

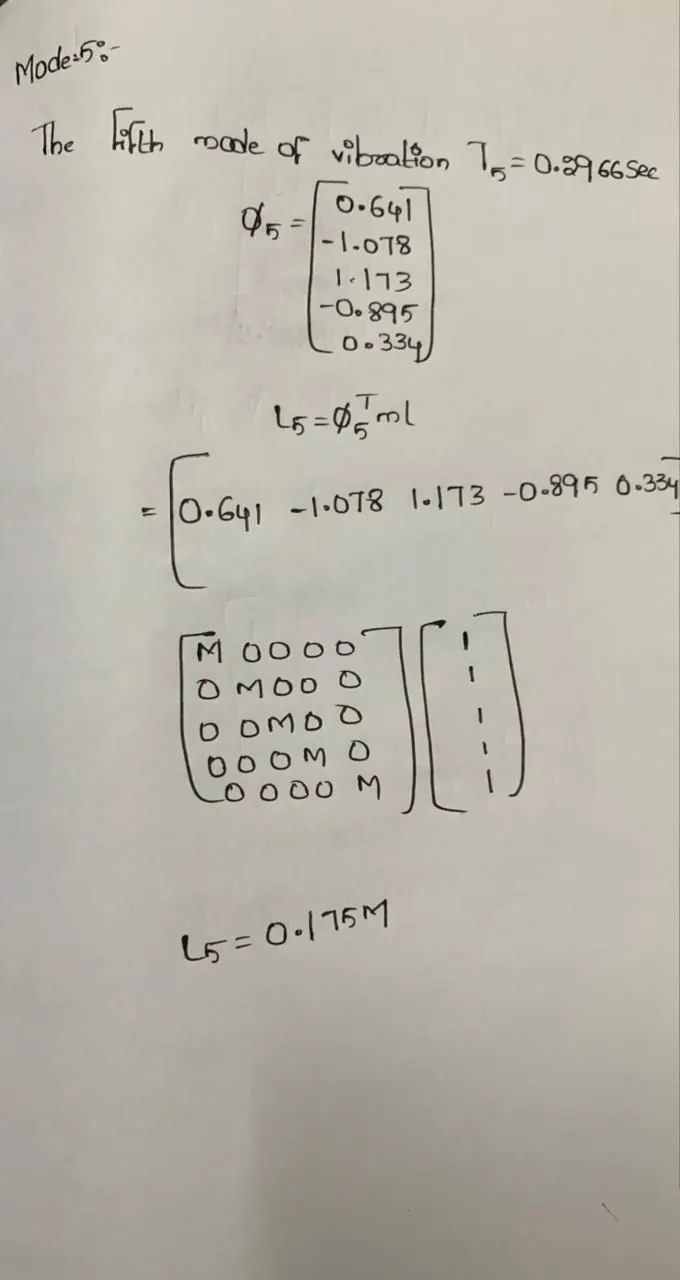

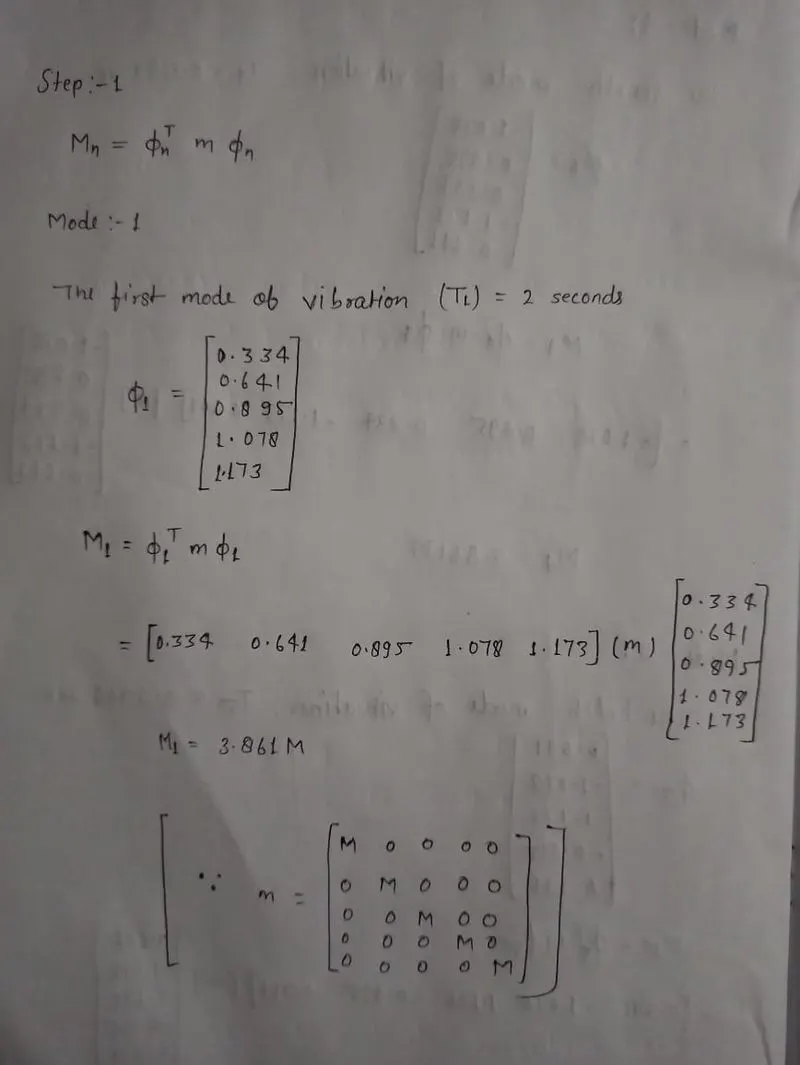

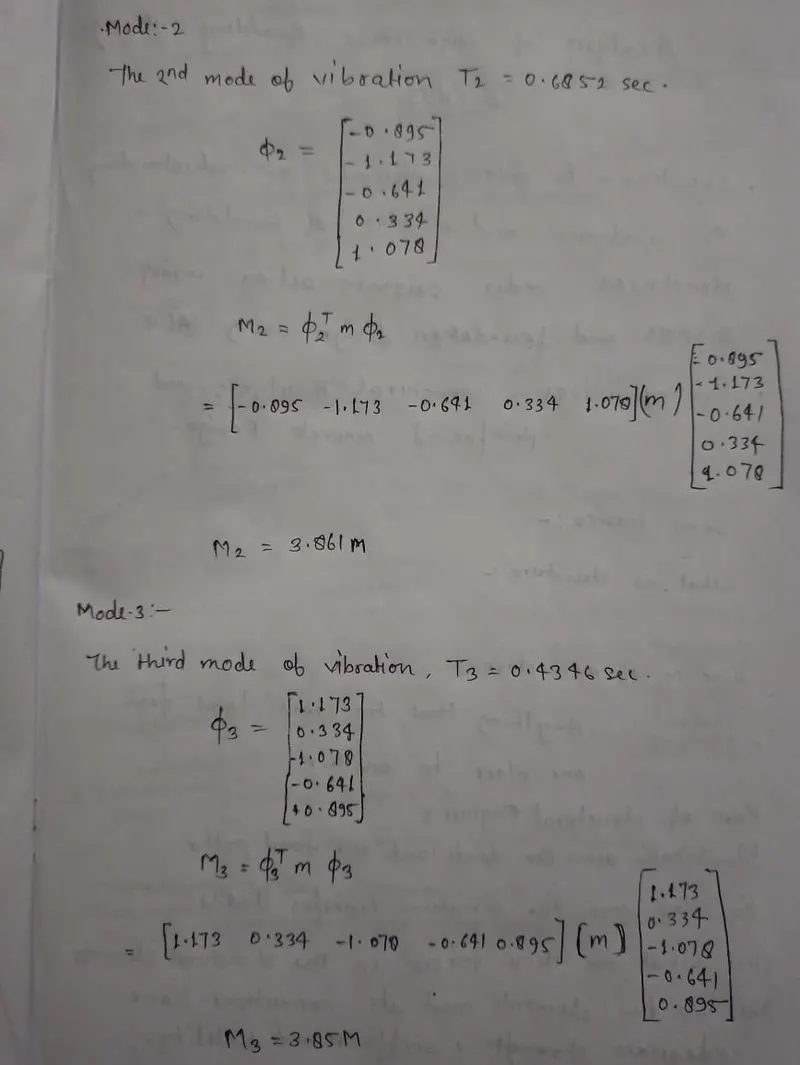

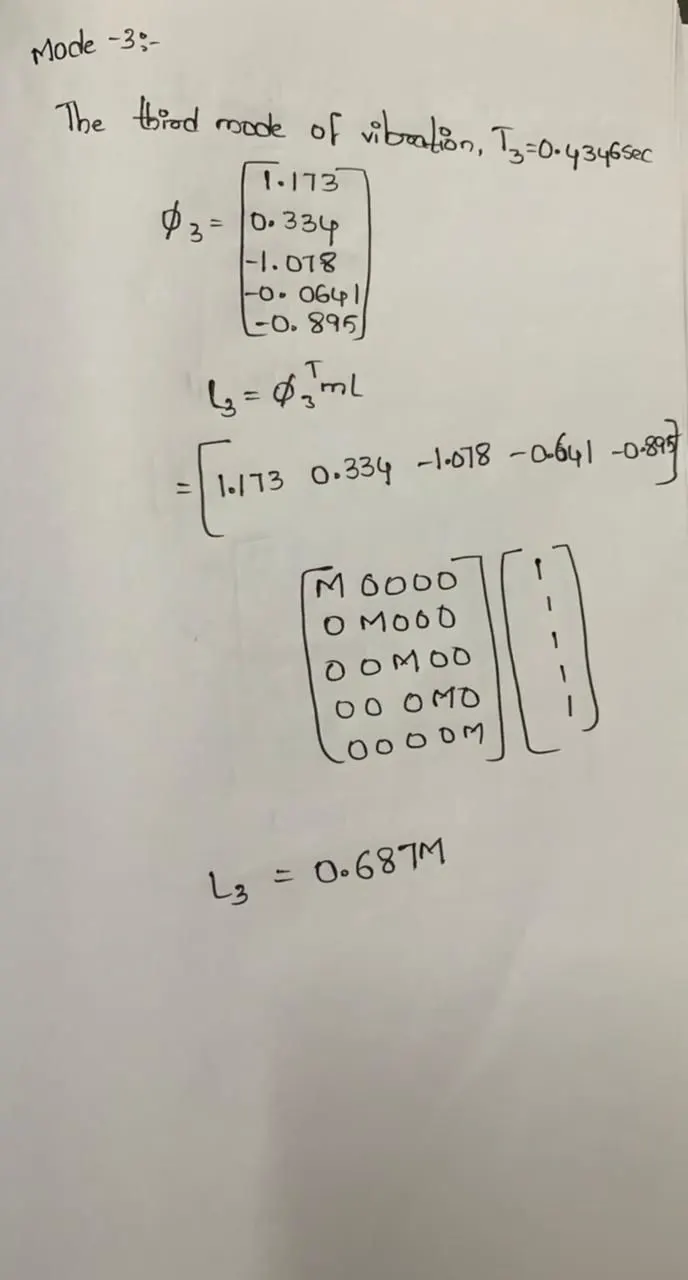

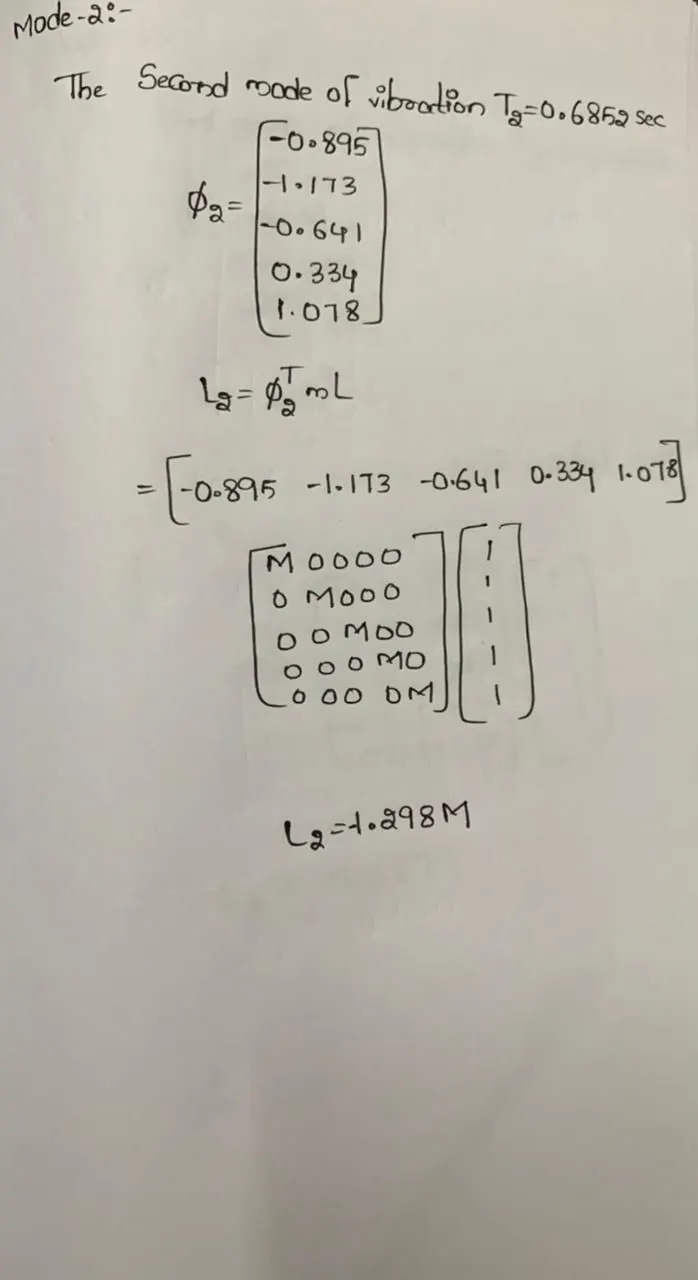

AIM:- .To compute L_n , M_n and Γ_n for each of the five modes from the given equations.

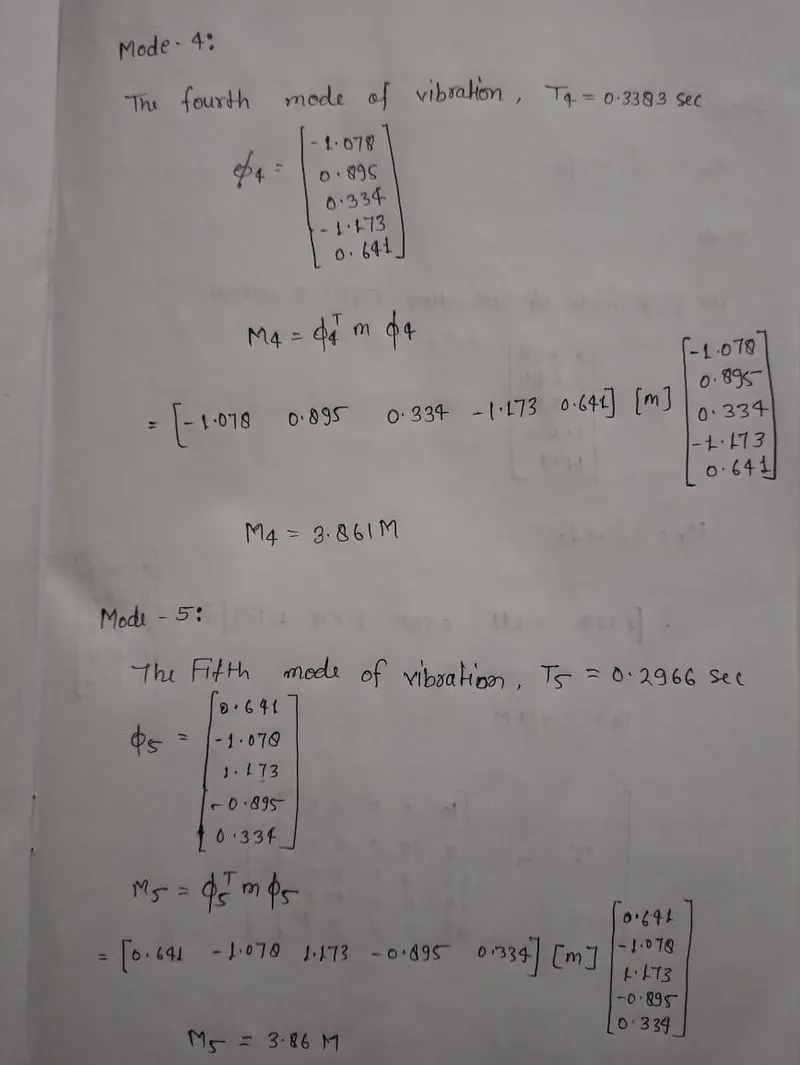

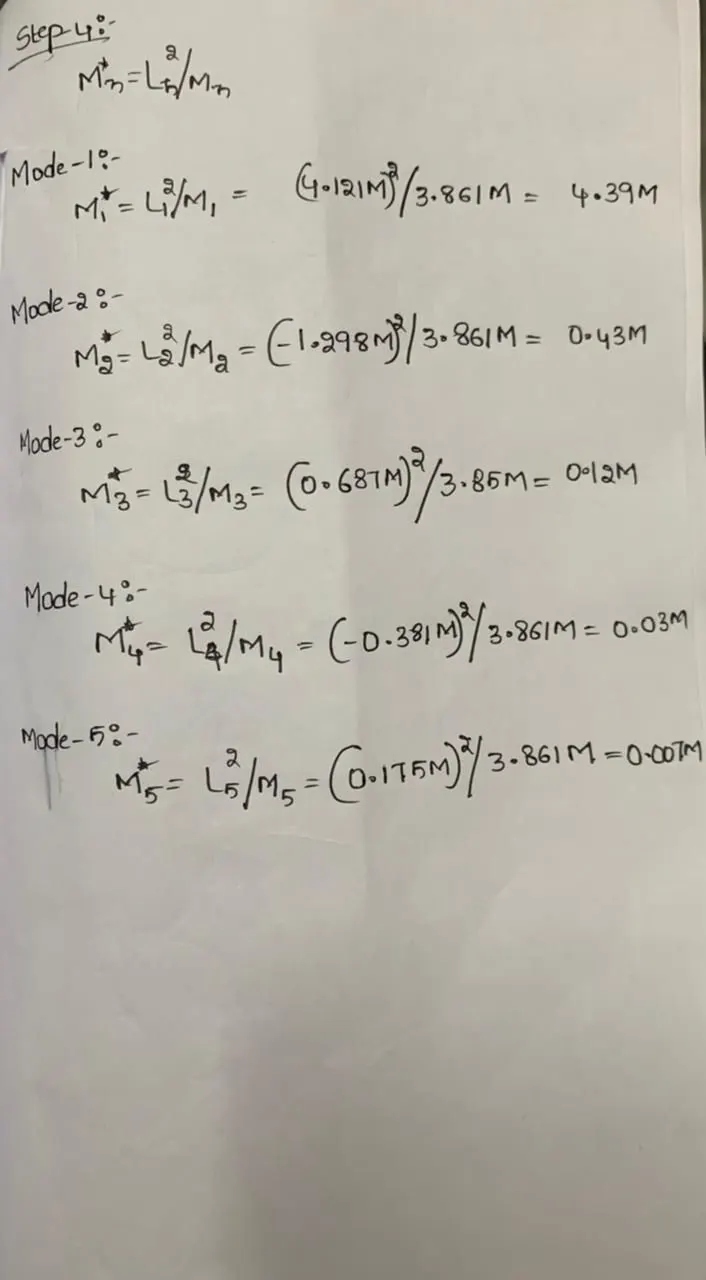

.To calculate the effective modal mass M_n* and the modal mass participating ratio for the 5 modes.

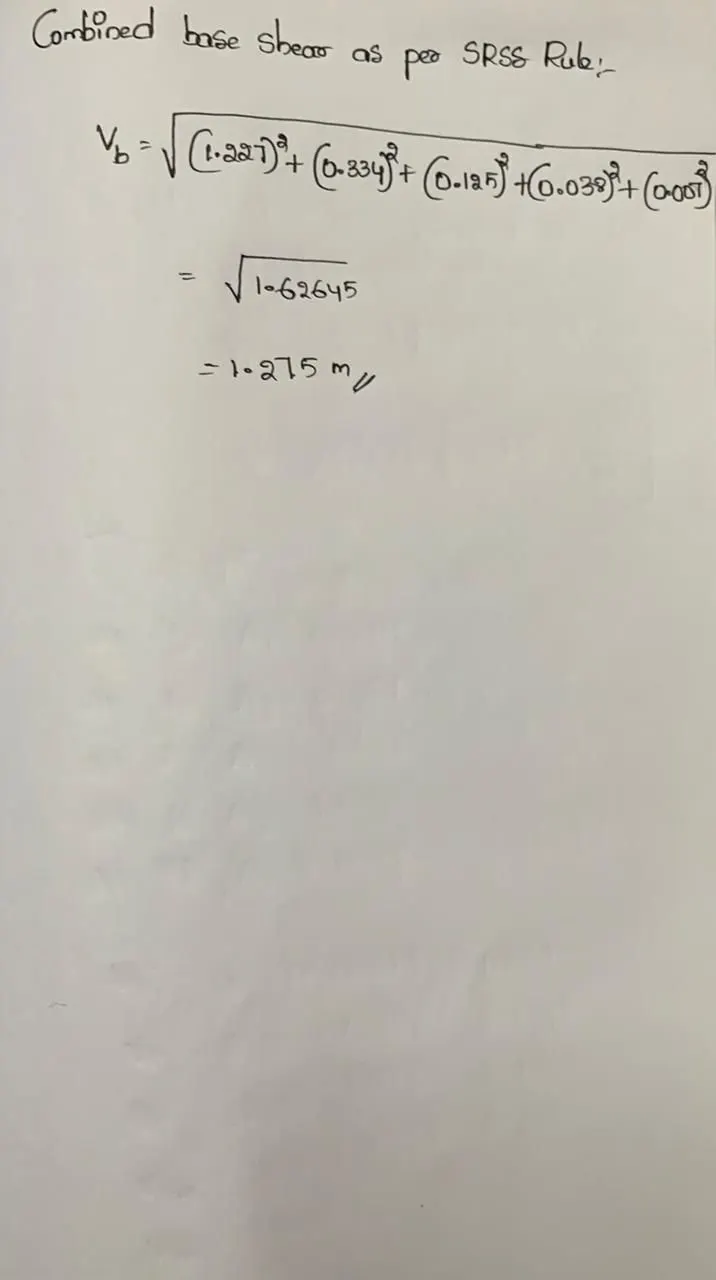

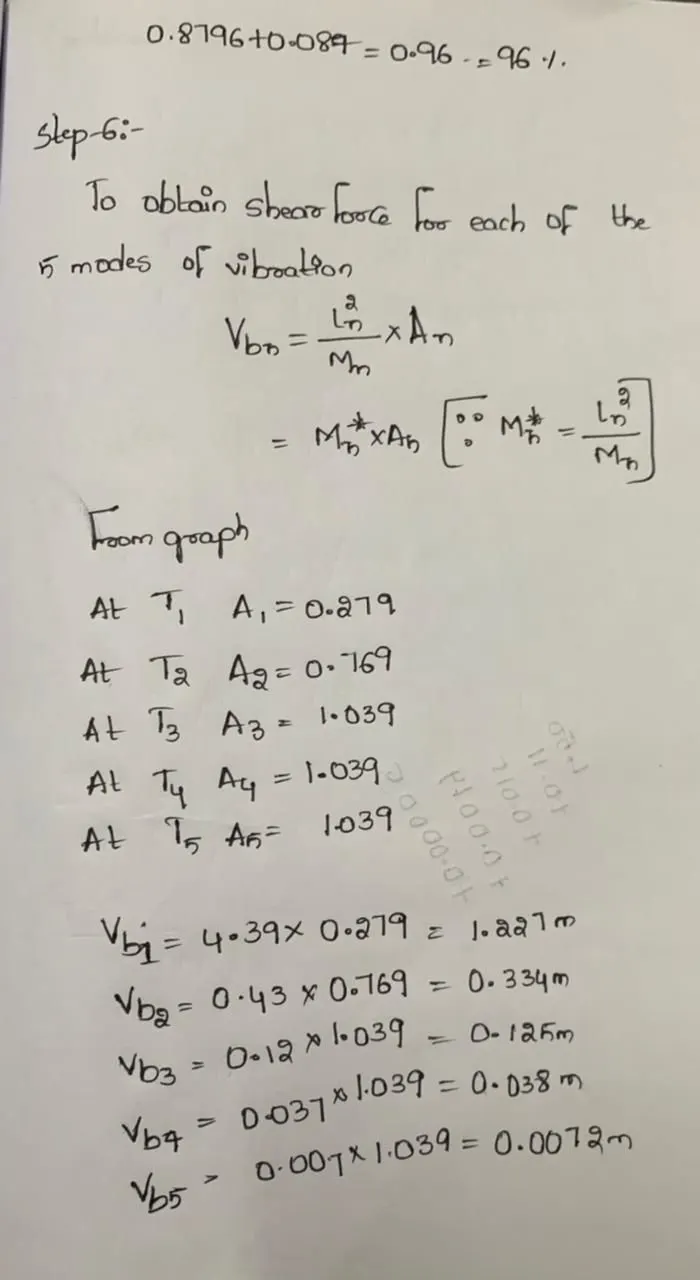

.To obtain the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.

Procedure:-

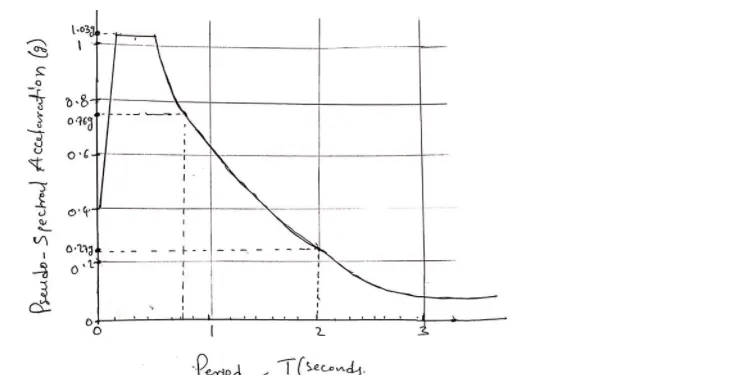

Step-2:

Step-3

Step-4

Step-5

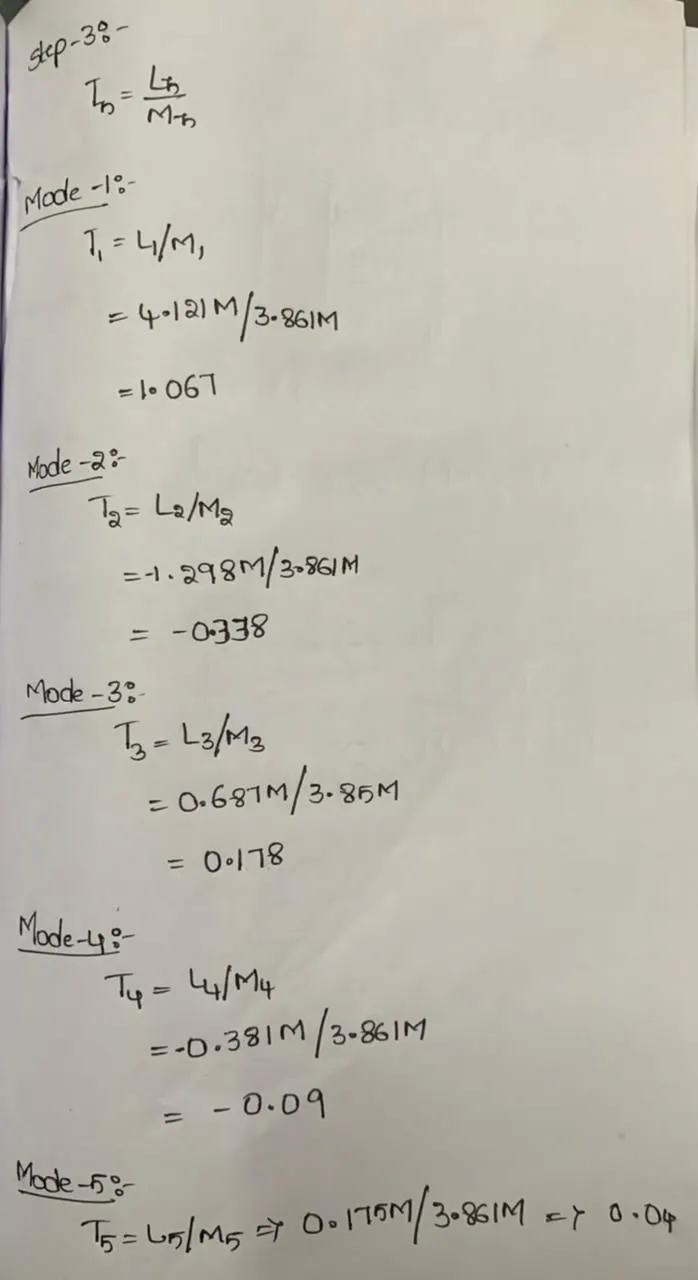

• Ln, Mn, Tn values are calculated for each of the 5 modes
• The base shear force for each of the 5 modes is obtained.

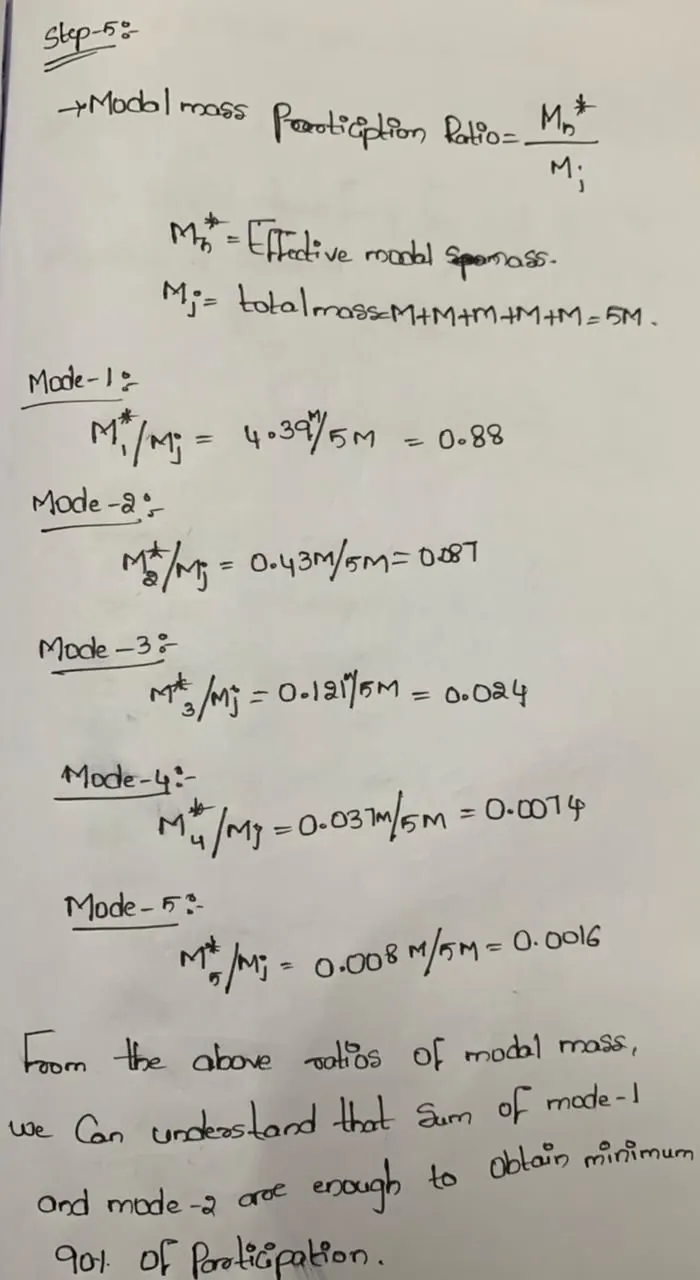

• Effective modal mass and the modal mass participating ratio for 5 modes are obtained
