Underbody Coating

Underbody coating

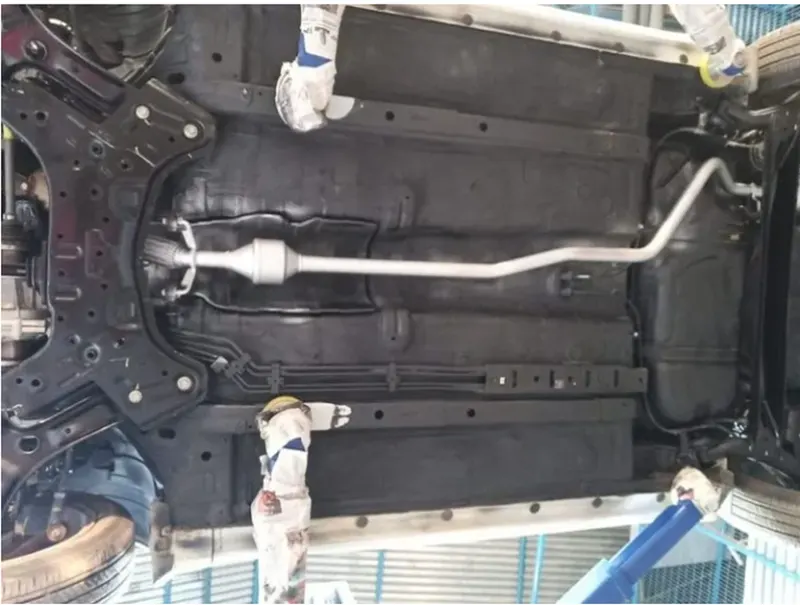

Underbody coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

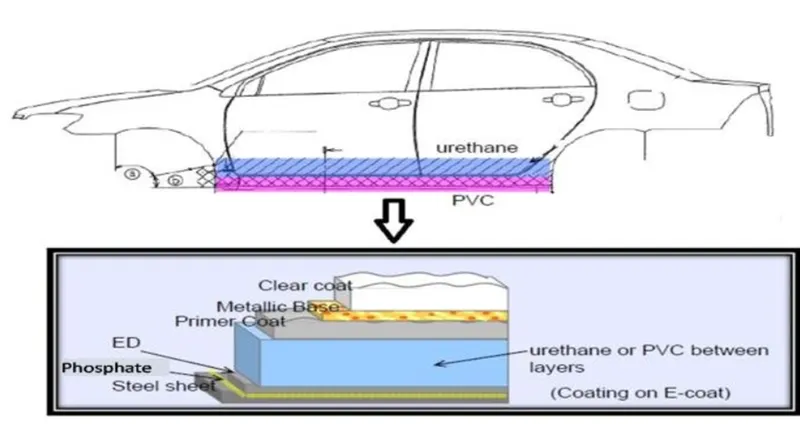

The Underbody Coating The third step is underbody coating & seam sealing using PVC.displays the lower door sections & rocker panel locations where PVC or urethanes are applied as an anti-chipping protection, & shows the cross section of this layer with respect to the other coatings on the body parts. During this third step, it is also typical to apply a soft tip primer coat that improves the chipping resistance. This layer is applied to the front edge of the hood, which is an area prone to chipping shock, using a high elastic resin that resides between the ED & primer coats.

Types of Underbody Coating

• Rubberized Underbody Coating
• Wax Based Underbody Coating
• Asphalt Based Automotive Undercoating
• Polyurethane Underbody Coating

Rubberized Underbody Coating

This is widely considered to be the best underbody coating for your car. It protects the underbody from scratches and keeps it properly. It’s also not difficult to apply this to the undercarriage. This can be done at the authorized service centre or by the local repair shop at a reasonable price. Rubberized coating is ideal if you want to keep the road noise to a minimum and rust and corrosion away.

Wax Based Underbody Coating

This transitory undercoating will, on the whole, fade away after a few months. On the plus side, wax-based undercoating is resistant to dampness. It is also the most cost-effective alternative.

Asphalt Based Automotive Undercoating

Suitable for Lorries, trucks, and other heavy vehicles. In comparison to rubber-based coatings, this gives a higher level of protection. Asphalt-based coatings, on the other hand, incorporate a small quantity of rubber for sound insulation. The application of this coating, however, takes some time.

Polyurethane Underbody Coating

This covering seals breaks and fractures in the vehicle’s underbody. It provides strong corrosion resistance and also binds to the metal. Unlike an asphalt-based coating, the polyurethane coating may be painted over.

Advantage of the Underbody coating

• Fights Rust

It has a crucial function in preventing corrosion. Underbody coating is particularly useful if you live near the sea, where there is excessive humidity and rust is a common occurrence. If you live somewhere where it snows in the winter, you should seriously consider undercoating. During the monsoon season, cars are at high risk of getting corrosion. If you want to extend your car’s life you should get an underbody coating.

• Absorbs Noise

Very strong undercoating, realize it or not, can attenuate noises that enter the cabin. The undercoating, which is frequently made of rubber, absorbs part of the rackets. The car’s occupants could avoid the road sounds — at least to some extent. So if you want a quite ride and pleasant experience it is always a good idea to consider getting an underbody coating

• Reinforcement

If your automobile already has an underbody covering, applying another one on top of it will not harm it. It will provide further protection for the underbody from water, road debris, gravel, and tiny stones. The factory coat would also have a lower risk of flaking away.

• Prolong Car’s Life

A good undercoat protects not just the underbody from corrosion, but also the engine and gearbox! Less corrosion combined with slower wear and tear can extend the life of your car by many years. On the undercarriage, there would be fewer dents, dings, and scratches to worry about.

Disadvantages of Undercoating

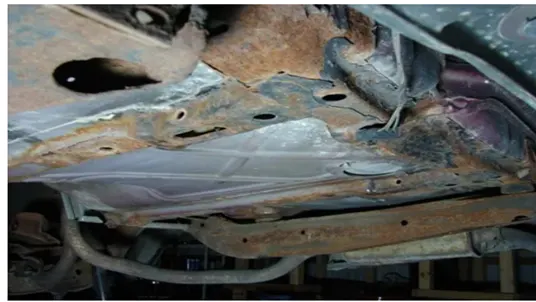

• Not Effective If Rust Is Already Present

This is the biggest turn-off about undercoating, in my opinion. You’ll have to be well prepared and undercoat your vehicle before it starts to rust.

If the corrosion has begun, undercoating is barely of any help. In fact, instead of providing protection, it will cause further damage.

• Needs Maintenance and Re-application

Unfortunately, even the best quality undercoat will need reapplication after a few years. This method is effective but isn’t the most durable. Some coats like those that are paraffin-based wear off just after a few months.
