Project 2 - Rankine cycle Simulator

AAkshay More25 Jun 2022

Aim Rankine cycle Simulator using MATLAB

Objective:

Understand the concept of Rankin cycle
Create a code for Rankin Cycle Simulator using OCTAVE/MATLAB
Extracting Steam and water properties from XSteam data
Calculating all state point of the cycle based on User inputs
Plot the corresponding T-s and h-s plots for the given set of inputs

Introduction

Rankins cycle

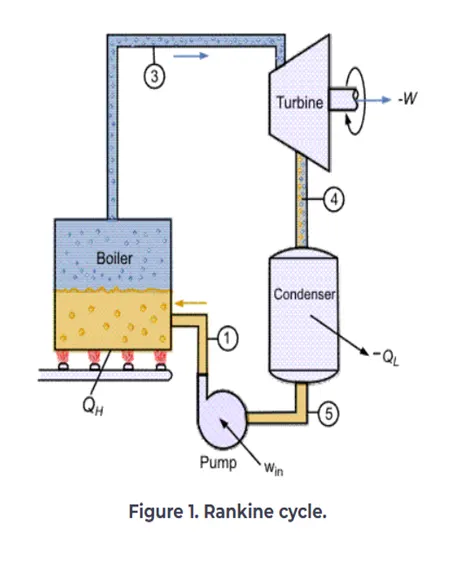

The Rankins cycle is the fundamental operating cycle of all power plants where an operating fluid is continuously evaporated and condensed. The selection of operating fluid depends mainly on the available temperature range. Figure 1 shows the idealized Rankins cycle.

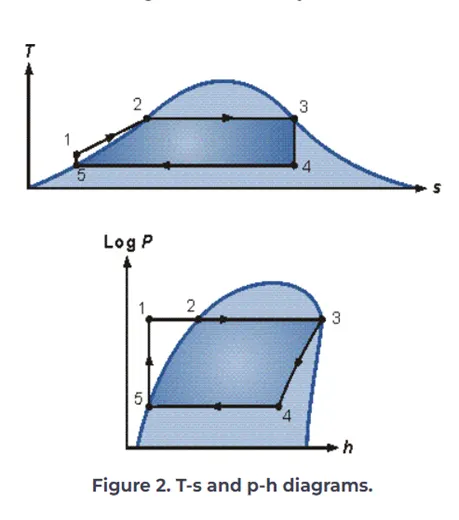

The pressure-enthalpy (p-h) and temperature-entropy (T-s) diagrams of this cycle are given in Figure 2. The Rankins cycle operates in the following steps:

1-2-3 Isobaric Heat Transfer. High pressure liquid enters the boiler from the feed pump (1) and is heated to the saturation temperature (2). Further addition of energy causes evaporation of the liquid until it is fully converted to saturated steam (3).
3-4 Isentropic Expansion. The vapour is expanded in the turbine, thus producing work which may be converted to electricity. In practice, the expansion is limited by the temperature of the cooling medium and by the erosion of the turbine blades by liquid entrainment in the vapor stream as the process moves further into the two-phase region. Exit vapour qualities should be greater than 90%.
4-5 Isobaric Heat Rejection. The vapours-liquid mixture leaving the turbine (4) is condensed at low pressure, usually in a surface condenser using cooling water. In well designed and maintained condensers, the pressure of the vapour is well below atmospheric pressure, approaching the saturation pressure of the operating fluid at the cooling water temperature.
5-1 Isentropic Compression. The pressure of the condensate is raised in the feed pump. Because of the low specific volume of liquids, the pump work is relatively small and often neglected in thermodynamic calculations.

Mathematical Equations

In general, the efficiency of a simple ranking cycle can be written as

The Thermodynamic efficiency of this cycle can be calculated by the following formula

Main Code for Rankine cycle

%%RANKING CYCLE
close all
clear all
clc

disp('RANKING CYCLE SIMULATOR')
disp(' ')
fprintf('process 1-2 : Isentropic expansion in the turbine \n')
fprintf('process 2-3 : Transfer of heat in the at condencerat constant pressure \n')
fprintf('process 3-4 : isentropic pumping processin the feed pump \n')
fprintf('process 4-1 : Transfer of heat in the at boiler constant pressure \n')

%%Enter the inputs
disp(' ')
T1=input('Enter the Turbine inlet temperature (in °C)\n');
p1=input('Enter the Turbine inlet pressure (in bar)\n');
p2=input('Enter the Condenser inlet pressure (in bar)\n');

%%Define the properties at every State by taking data  from XSteam file

%state 1

s1=XSteam('s_pT',p1,T1);% Entropy at state 1
h1=XSteam('h_pT',p1,T1);% Entalpy at state 1
%state 2
s2=s1;      %isentropic expansion
sf2=XSteam('sL_p',p2);
sg2=XSteam('sv_p',p2);
hf2=XSteam('hL_p',p2);
hg2=XSteam('hV_p',p2); %x2=(s2-sf2)/(sg2-sf2)
s2=sg2;
h2=hg2;                %hf2+(x2*(hg2-hf2));
T2=XSteam('T_hs',h2,s2);

%state point 3
T3=T2;
p3=p2;
s3=XSteam('sL_T',T3);
h3=XSteam('hL_T',T3);
v3=XSteam('vL_p',p2);

%state point 4
p4=p1;
s4=s3;
Cp4=XSteam('Cp_ps',p4,s4);
Cv4=XSteam('Cv_ps',p4,s4);
gamma=Cp4/Cv4;
r=(gamma-1)/gamma;
T4=T3*(p4/p3)^r;

%Calculate the W_net,Qs,N_per,steam_rate
Wt=h1-h2; %Turbine Work
Wp=v3*(p1-p2)*100%pump work
h4=Wp+h3 % Net Work Unit in kj/kg
W_net=Wt-Wp
Qs=h1-h4%heat Suppied
N_per=(W_net/Qs)*100 %Efficiency
Steam_rate=3600/(Wt-Wp)%Steam rate per sec

%state point 5
T5=XSteam('Tsat_p',p1);
T6=T5;
s5=XSteam('sL_p',p1);
h5=XSteam('hL_p',T3);

%state point 6
s6=XSteam('sV_p',p1);
h6=XSteam('hV_p',T3);

%Display The Result into coomand Window
fprintf('\n.......................RESULT..............\n')
fprintf('At State point 1:\n')
fprintf ('P1 is : %4.2f Bar \n',p1)
fprintf ('T1 is :%4.2f Degree Clelcius \n',T1)
fprintf ('H1 is : %4.2f KJ/kg \n',h1)
fprintf ('s1 is : %4.2f KJ/Kgk \n',s1)
fprintf('\n')

fprintf('At State point 2:\n')
fprintf ('P2 is : %4.2f Bar \n',p2)
fprintf ('T2 is :%4.2f Degree Clelcius \n',T2)
fprintf ('H2 is : %4.2f KJ/kg \n',h2)
fprintf ('s2 is : %4.2f KJ/Kgk\n',s2)
fprintf('\n')

fprintf('At 00State point 3:\n')
fprintf ('P3 is : %4.2f Bar\n',p3)
fprintf ('T3 is :%4.2f Degree Clelcius\n',T3)
fprintf ('H3 is : %4.2f KJ/kg \n',h3)
fprintf ('s3 is : %4.2f KJ/Kgk \n',s3)
fprintf('\n')

fprintf('At State point 4:\n')
fprintf ('P4 is : %4.2f Bar\n',p4)
fprintf ('T4 is :%4.2f Degree Clelcius\n',T4)
fprintf ('H4 is : %4.2f KJ/kg \n',h4)
fprintf ('s4 is : %4.2f KJ/Kgk \n',s4)
fprintf('\n')

fprintf('wt is : %4.2f KJ/kg\n',Wt)
fprintf('Wnet is : %4.2f KJ/kg\n',W_net)
fprintf('Ntherm is : %4.2f percent\n',N_per)
fprintf('Steam_rate is: %4.2f Kg/kwh\n',Steam_rate)

% plot T-S Diagram
subplot(1,2,1)
T_rankine=linspace(T5,T1,5000);
for i=1:length(T_rankine)
    s_rankine(i)=XSteam('s_pt',p1,T_rankine(i));
end
plot([s1 s2 s3 s4 s5 s6 s_rankine],[T1 T2 T3 T4 T5 T6 T_rankine],'linewidth',2,'color','r');
hold on
T_curve = linspace(1,400,500);
for i=1:length(T_curve)
s_l(i)= XSteam('sL_T',T_curve(i));
s_v(i)= XSteam('sv_T',T_curve(i));
h_1(i)= XSteam('hL_T',T_curve(i));
h_v(i)= XSteam('hV_T',T_curve(i));
end

plot(s_l,T_curve,'k','linewidth',1.5);
plot(s_v,T_curve,'k','linewidth',1.5);
text(s1,T1,'1','FontSize',15)
text(s2,T2,'2','FontSize',15)
text(s3,T3,'3','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','Top')
text(s4,T4,'4','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','bottom')
text(s5,T5,'5','FontSize',15)
text(s6,T6,'6','FontSize',15)
xlabel('Entropy in KJ/KgK');
ylabel('Temperature in Degree Celcius');

%plot H-S Digram
subplot(1,2,2)
plot([s1 s2 s3 s4 s1],[h1 h2 h3 h4 h1],'linewidth',2,'color','r')
hold on
plot(s_v,h_v,'color','k','linewidth',1.5)
plot(s_l,h_1,'color','k','linewidth',1.5)
text(s1,h1,'1','FontSize',15)
text(s2,h2,'2','FontSize',15)
text(s3,h3,'3','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','Top')
text(s4,h4,'4','FontSize',15,'HorizontalAlignment','right','VerticalAlignment','bottom')
xlabel('Entropy in KJ/KgK');
ylabel('Enthalpy in KJ/kg');

Step wise explanation of Main Code

The Creation of the ranking cycle simulator start with the clear all close all clc basic command of the mat lab
Using the input command to enter the given Value at different state in our case we use inlet pressure for turbine Temperature at inlet and pressure at condenser
Using the XSteam function file we get the value of enthalpy and entropy at very point
After getting all input we can calculate the turbine work work done by the pump total work done efficiency of the cycle using the above thermodynamic Formula

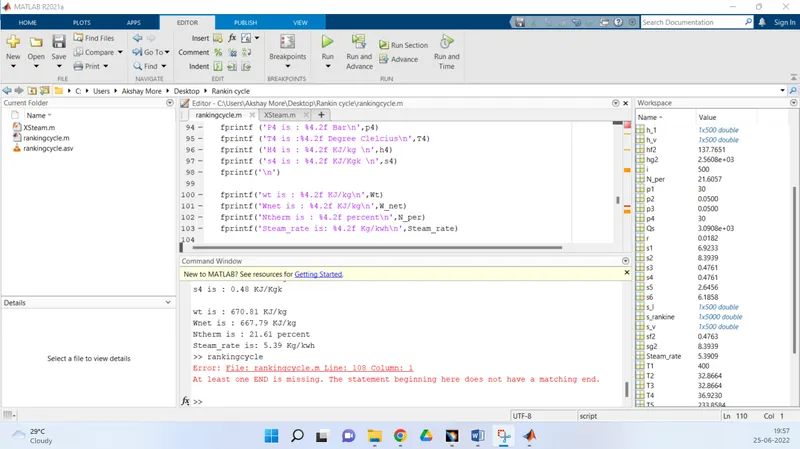

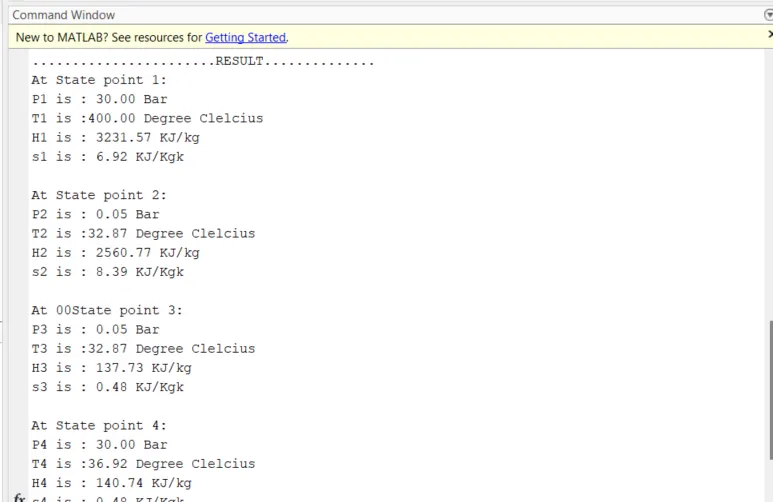

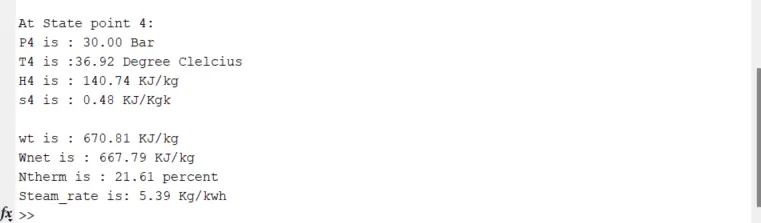

Using the fprintf command display the all input and result on the command window

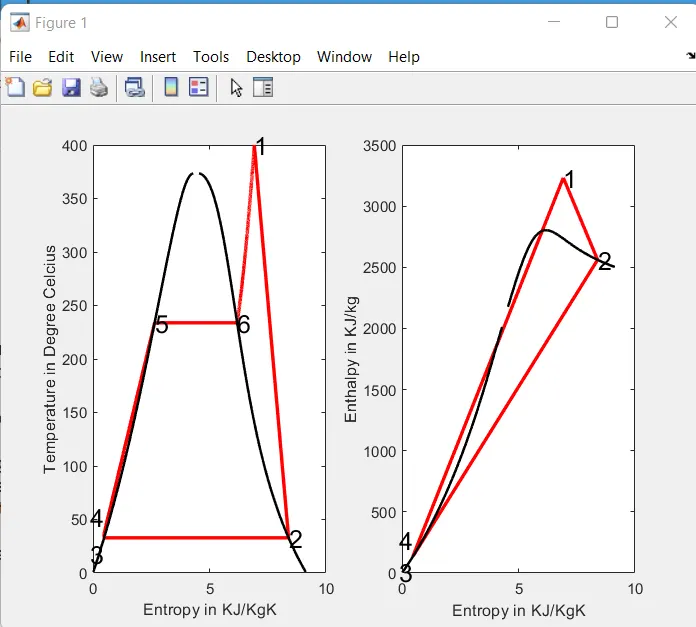

After that using the plot and subplot command showing the graphical output of the command
To obtain the smooth graph we use the linspace command between two points
And use for loop to calculate the each point value of the function
Using the text command to show the state point in plot
And Xlabel and Ylabel to assign the name to the x and y axis
