Underbody Coating

Aim:

To write a report on what is underbody coating, it's types in detail, and its pros and cons.

Introduction:

What is Under-Body Coating?

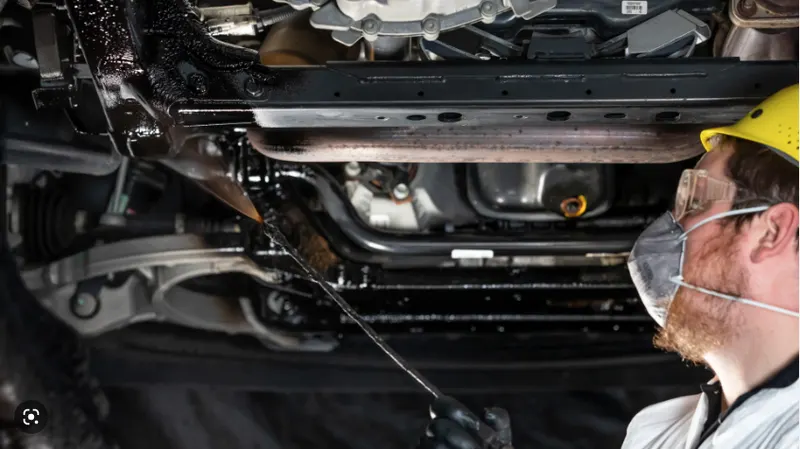

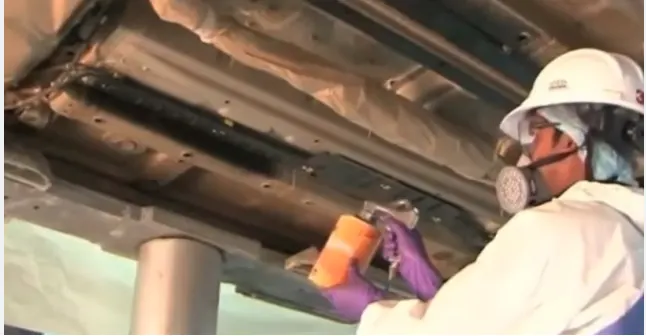

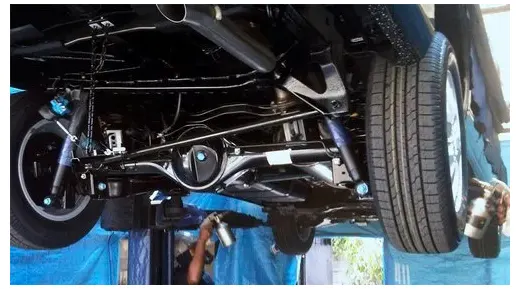

Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car's underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on.

Underbody coating is a thick resilient coating applie to the underbody or chassis of an automobile to protect against impact damage from small stones, which rapidly chip ordinary paint, allowing rsuting begin.

Underbody coating provides long term protection from corrosion to car's underbody. It is also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are ptonr to corrosion.

It protects the underbody substrares from:

• Environmental conditions
• Impacts
• Dampens sound and vibrations
• Insulates against cold and heat
• Protects against Corrosion
• Seals off seams
• Hides welds, repairs and bodywork with spray.

Purpose of underbody coating

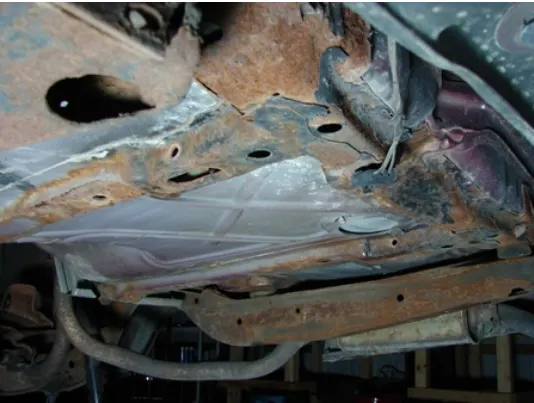

The main purpose of underbody coating is to check rust especially in the body components like frame rails along with other exposed metal parts. Underbody coating can also reduce wear and tear.

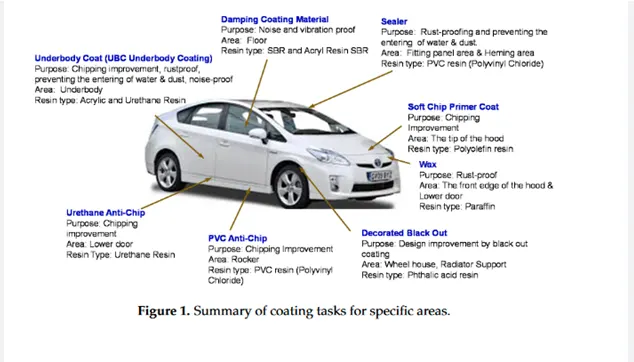

Types of underbody coating:

1. Rubberized Underbody Coating.
2. Wax based Underbody Coating.
3. Asphalt based Automotive Underbody Coating.
4. Polyurethane Underbody Coating.

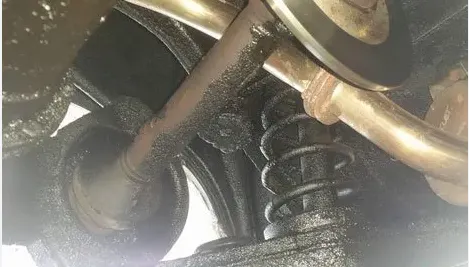

Rubberized Underbody Coating:

• This is widely considered to be the best underbody coating for your car. It protects the underbody from scratches and keeps it properly.
• It is also not difficult to apply this to the undercarriage. This can be the authorized service centre orby the local repairs shop at a reasonable price.
• Rubberized coating is ideal if you want to keep the road noise to a minimum and rust and corrosion away.

Wax based Underbody Coating:

• This transitory undercoating will, on the whole, fade away after a few months. On the plus side, wax-based undercoating is resistant to dampness.
• It is also the most cost-effective alternative.

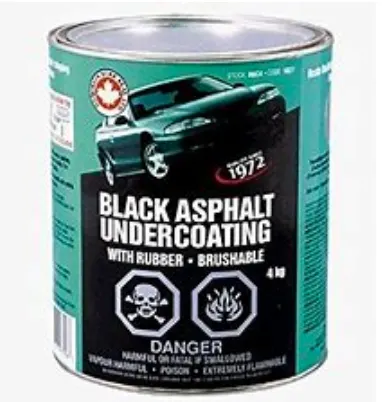

Asphalt based Automotive underbody coating:

• Suitable for lorries,trucks, and other heavy vehicles. In comparision to rubber-based coating, this gives a higher level of protection.
• Asphalt-based coatings, on the other hand, incorporate a small quantity of rubber for sound insulation.
• The application of this coating, however, takes some time.

Polyurethane Underbody Coating:

• This covering seals breaks and fractures in the vehicles underbody.It provides strong corrosion resistance and also binds to the metals.
• Unlike an asphalt-based coating, the polyurethane coating may be painted over.

Pros of undercoating:

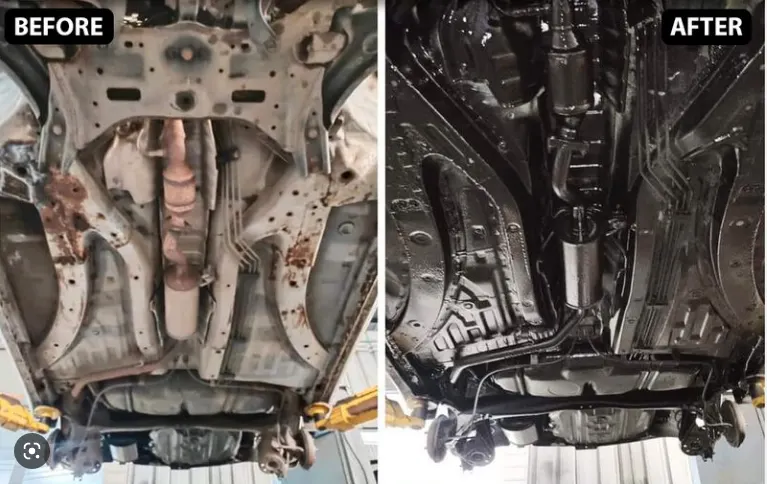

1. Fights Rust
2. Absorbs Noise
3. Reinforcement
4. Prolong Car's Life

Fights Rust:

• It has a crucial function in preventing corrosion. Underbody coating is particularly useful if you live near the sea,where there is excessive humidity and rust is a common occurrence.
• If you live somewhere where it snows in the winter,you should seriously consider undercoating. During the monsoon season, cars are at high risk of getting corrosion.
• If you want to extend your car’s life you should get an underbody coating.

Absorbs Noise:

• Very strong undercoating, realize it or not, can attenuate noises that enter the cabin. The undercoating, which is frequently made of rubber, absorbs part of the rackets.
• The car’s occupants could avoid the road sounds at least to some extent. So if you want a quite ride and pleasant experience it is always a good idea to consider getting an underbody coating.

Reinforcement:

• If your automobile already has an underbody covering, applying another one on top of it will not harm it.
• It will provide further protection for the underbody from water, road debris, gravel, and tiny stones.
• The factory coat would also have a lower risk of flaking away.

Prolong Car's Life:

• A good undercoat protects not just the underbody from corrosion, but also the engine and gearbox.
• Less corrosion combined with slower wear and tear can extend the life of your car by many years.
• On the undercarriage, there would be fewer dents, dings, and scratches to worry about.

Cons of undercoating:

• The biggest drawback is the cost.
• It adds weight to the vehicle.
• It must be re-applied every 3 to 5 years for the best results.
