Underbody Coating

AIM: To write a report on underbody coating, it's type and pros and cons.

UNDERBODY COATING AND ITS PURPOSE:

Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside.

When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on.

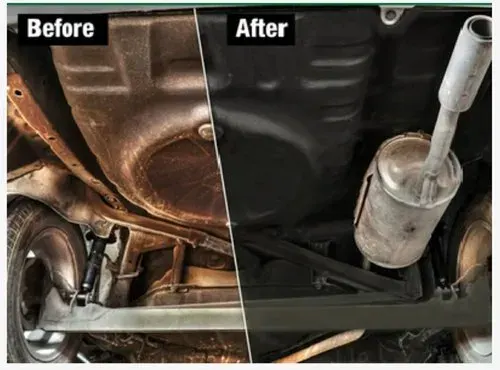

Underbody coating is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones,which would rapidly chip ordinary paint, allowing rusting to begin.

The main purpose of undercoating is to prevent rust especially in the body components like frame rails along with other exposed metal parts.

Underbody coating can also reduce wear and tear.

In Indian road conditions, a cars underbody is most prone to corrosion. Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

Types of underbody coating

1)Rubberized Underbody Coating
2)Wax or Paraffin Based Underbody Coating
3)Asphalt Based Automotive Underbody Coating
4)Polyurethane Underbody Coating

1)Rubberized Underbody Coating:

Rubberized underbody coating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.

In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps.

The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray.

Overall, rubberized underbody coating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.

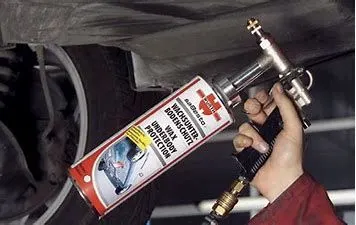

2)Wax or Paraffin Based Underbody Coating:

A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle.

However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties.

They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

3)Asphalt Based Automotive Underbody Coating:

For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.

Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise.

This type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

4)Polyurethane Underbody Coating:

This type of vehicle undercoating is a little bit quicker and easier to apply.

This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal.

It also sands quickly in case you'll need to perform bodywork and can be painted over.

On the otherside, this type of car undercoating generally requires a little bit more surface prep work before applying sanding and applying an etching primer to bare metals before using are generally recommended.

Advantages of Underbody coating:

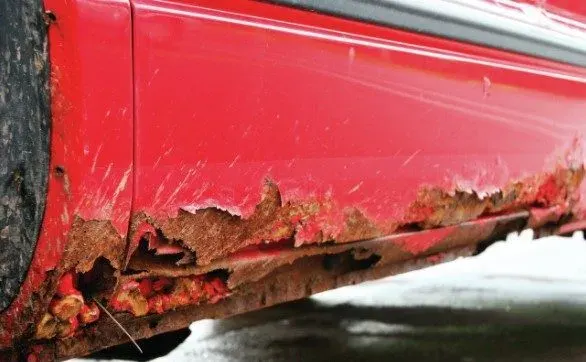

• FIGHTS RUST

It plays an important role in keeping corrosion at bay.

Underbody coating can come in handy especially if you live near the sea, where there is too much humidity, and rusting is just one of those everyday things.

You should also seriously consider undercoating if you reside in a place where it snows in winter.

• ABSORBS NOISE

On applying very thick undercoating can soften the noises that reach the cabin.

Since the undercoating is often made up of rubber it absorbs some of the rackets.

The occupants of the car could spare themselves of the road noises – at least up to a certain extend

• REINFORCEMENT

If your car comes with stock underbody coating, using another coating on top of it, is not going to hurt.

It will offer additional reinforcement, protecting the underbody from water, road debris, gravel and small pebbles.

There would also be a lesser chance for the factory coat to flake away.

• PROLONGS CAR'S LIFE

Good undercoating not only defends the underbody from corrosion but also protects the engine and transmission as well.

Less rusting coupled with slower wear and tear can surely add years to the lifespan of your vehicle.

There would be fewer dents, dings and scratches on the undercarriage for you to fear about.

Disadvantages of underbody coating:

• A used vehicle may already have residue on the bottom of the car or even have spots of rust and corrosion. Undercoating will not help you if corrosion already exists and the corrosion needs to be removed first before it can be applied, which can be expensive for us.
• The biggest drawback is the cost.
• It adds weight to the vehicle.
• It must be reapplied every 3 to 5 years for the best results.

CONCLUSION:

Here we studied about undercoating, its type, pros & cons and how it is necessory for automobile.
