Underbody Coating

What is Underbody coating?

Cars need to be given additional care, especially during monsoon seasons, the car’s underbody should be given extra care. A car’s underbody is exposed the most to muddy terrains, potholes, debris and stones, and wet and even flooded roads that lead to corrosion of the underbody. Since the underbody is hard for us to inspect by ourselves, it is important to have an underbody coating in order to ensure your car is protected during these times.

The coating helps in the below-mentioned factors.

Protection against corrosion:

The main reason for getting an underbody coating is to prevent rusting and corrosion. This is not only required during the monsoon season but also in hot and humid climatic conditions.

Protection of vital car components:

The car underneath holds vital components like the silencer, engine, and numerous other wires and small engine components for different purposes in the car. To avoid rusting issues, the antirust coating is a must for the underbody.

Reduces NVH (Noise Vibration Harshness) levels:

Roads filled with potholes, stones, debris, and uneven road leveling, the underbody coating prevents and absorbs all noise created by the contact of the surface of the road and the car by minimizing this. Underbody coating can also reduce wear and tear.

Car underbody coating prevents the paint from chipping:

When your car travels at high speed on a highway, the small stones and debris hit your car’s underbody in this process and may lead to chipping of the underbody paint.

Hence, it is advisable to have a thick layer of underbody coating to prevent paint from chipping.

Types of Underbody Coating:

• Rubberized Underbody Coating
• Wax-Based Underbody Coating
• Asphalt-Based Automotive Undercoating
• Polyurethane Underbody Coating
• Water-Based Underbody Coating
• Petroleum-Based Underbody Coating

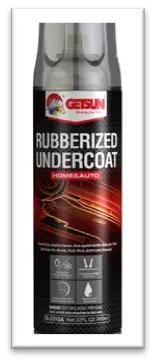

1. Rubberized Underbody Coating:

This is generally thought of as the best underbody coating for your car. It preserves the underbody well, protecting it from scratches.

Rubberized undercarriage coating involves applying a rubber agent to the underbelly to protect and cushion it against dents, dust, and moisture.

It can also be applied around wheel wells and quarter panels. Considered the best option for standard vehicles when it comes to the different types of undercoating.

Advantages:

• Quickly applied with no fuss
• The undercoat can be painted for a neat finish
• Provides satisfactory protection
• The simplest way to undercoat your car
• Safe to apply
• Truly dries to a soft rubbery finish that prevents further rust, damage, or moisture seepage

2. Wax-Based Underbody Coating:

This is more or less an ephemeral undercoating that will wear away in a few months’ time. On the upside, wax-based undercoating puts up a big fight against moisture.

It is the preferred undercarriage coating for cars often driven on highway and normal roads.

Advantages:

• Readily flows into seams to guarantee any exposed and prone surfaces are protected
• The most inexpensive undercoating option
• Conveniently available in spray guy canisters or aerosol cans

Disadvantages:

• Wears off quicker in comparison to other types
• Unlike the rubberized type, it does not really dry
• Needs to be stripped and reapplied at least once a year as soon as signs of wear and tear start to show

3. Asphalt-Based Automotive Undercoating:

This type is made of asphalt and generally also contains some rubberized material that sets up firmly and helps soften noise from the engine.

It reportedly has the most damage-resistant properties. Although asphalt-based undercoating is ideal for trucks, military, and all-terrain vehicles, it will also help protect your car, truck, motorcycle, and heavy machinery from the elements.

It last long and is best for endurance vehicles that have to undergo heavy road use.

Advantages:

• Formulated to protect from dirt, rust, and corrosion, it normally has a shelf life of up to two years. Sold in five-gallon containers
• Provides extra durability as it is the strongest and thickest undercoating available

Disadvantages:

• It takes time to harden and so requires more cure time than the other three types
• Unlike the other three, it is also, not paintable as such, not very aesthetically suitable for standard vehicles
• For best used only for the undercarriages of utility vehicles and trucks
• The only type of undercoating with a limited warranty

4. Polyurethane underbody coating:

This coating closes up splits and fractures on the underbody of the vehicle. It offers up good protection against corrosion and also bonds with the metal.

Uses a polyurethane-based sealant that comes in canisters ready to be loaded into a spray gun and sprayed to guard the undercarriage of your vehicle.

The polyurethane used in this product is a high-quality and durable material that is perfect for any weather condition. It is ideal for standard vehicles.

Advantages:

• It has a long lifespan and is resistant to wear and tear
• Easily and quickly applicable
• Trickles into cracks and rusty spots already present on the underbelly of your car and fill them, hence protecting the underlying metal
• Quick and simple to remove, as it stands easily
• Dislodges salt, moisture, and oozing around rusty areas to bond with and protect unoxidized metal
• Can be painted over

5. Water Based underbody coating:

Water-based undercoating is a protective layer that helps your car stay protected from harsh weather conditions. It is made from an advanced polymer that is non-toxic and environmentally friendly. Coming in an aerosol can, it can be purchased from most automotive shops. This product is easy to apply and can be done in a single day.

The product can be applied to any surface, including metal, plastic, rubber, and glass. It will keep your car protected from rust, salt, and moisture. This undercoating provides a protective barrier that lasts for only a year-depending on where you drive your car.

Advantages:

• Thin-set, it takes a short time to dry
• Can be done at home

Disadvantages:

• It requires frequent repetition as it’s not very durable
• It cannot repel ice and water like petroleum-based undercoating

6. Petroleum-Based Undercoating:

Petroleum-based undercoating is a heavy, viscous oil-based liquid product that provides an effective barrier against moisture and corrosion. Petroleum-based undercoating can be purchased from your professional vehicle servicing shops.

The liquid dries and hardens to provide tough, durable, and long-lasting protection against moisture and corrosion. This product is typically applied to the undercarriage of automobiles, trucks, and other vehicles.

Advantages:

• Has greater deflective abilities for road salts and grime
• Repels ice and water because of its petroleum base

Disadvantages:

• Requires annual replacement
