Underbody Coating

under body coating:-

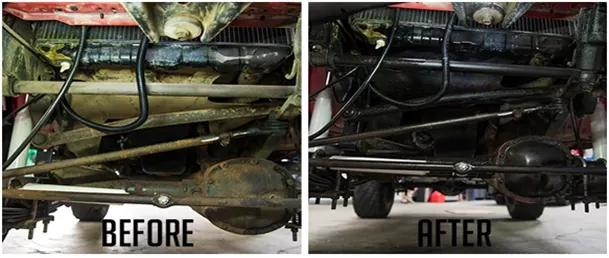

1) under body coating provides long term protection from corrosion to cars under body.

2) it also protects parts like internal body pannels frame rails and inner cavities that are not physically accessible but are prone to corrossion

3)underbody is thick resilient coatings applied to the underbody

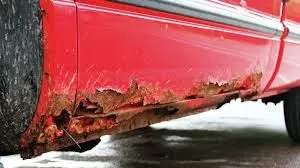

4)chassis of an automobile to protects against impact damage from small stones which will rapidly chip ordinary point,allowing rust to begin

5)underbody coating protecting the underbelly of the car should be our top priority,especially during maonsoon when heavy particitation cause the roads to become mini rivers and our cars are left stranded there

6)this make them prone to heavy corrosion in the underbody region

protects the underbody substrates:-

1) environmental conditions

2)sound and vibration

3)hides spot welds repair works

purpose of under body coatings:-

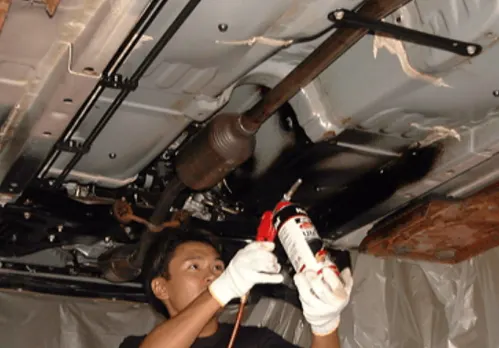

under coatings is the sprayed applications of a wax or rubberbased composite onto the entire underside the vehicle

and it designed to create a rust proof layer between the underside of the vehicle and the water

ice and salt of the road,under coating provides a more comprehensive protective for vehicles.

types of underbody coatings:-

1)Rubberized underbody coatings

2)Asphalt based underbody coatings

3)polyurethane underbody coatings

4)Wax or paraffin based underbody coatings

1) Rubberized underbody coating:-

Rubberized undercoating is easy to apply and generally offers the best protective coating for cars under carriages.it cushions surface against moisture,rust,dings and dents.Rubberized coatings is safe to use on quarter pannel and wheel well and dries a soft rubbery finish

2)Asphalt based underbody coating:-

Asphalt based underbody coating offers a high level of protection suitable for large trucks,reworked vehicles and heavy mechinary,its formlated with bits of rubberized material to aid in noise reduction,and it is not paintable

3)Polyurethene underbody coating:-

it is a easy to apply and works by sealing up cracks and seems.the compound displaces salt and moisture and protects the unoxidixed metal from rust.however it requires some surface preparation,work before application like degreasing

4) Wax or paraffin based underbody coating:-

Wax or paraffin based coatings sparys are the cheapest and quickest options available and their results dont last long,and may have to apply fresh coat after only a few months in addition the wax isnt every adhesive on metal surface ,it main adavantage is that seeps qucikly into cracks and seams

Advantages of underbody coatings:-

1)protects against from rust and corrosion

2)prevent from stone chip

3)reduce the NVH( noise vibrations harshness)level

4)prevent paint chipping

5)extrnal influence

Disadvantages of underbody coatings:-

1)added some extra weight

2)high cost

3)re applied condition is required after time
