Underbody Coating

UNDER-BODY COATING:-

Under Body Coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessibe but are prone to corrosion.

Under body is thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, whic will rapidly chip ordinary point, allowing rusting to begin. It is also used to protect parts like internal body pannel, frame rails.

PURPOSE OF UNDER-BODY COATING:-

Under coating is the sprayed application of a wax or rubber-based composite onto the entire underside of the vehicle. It's designed to create a rust-proof layer between the underside of the vehicle and the water, ice and salt of the road, Undercoating provides a more comprehensive protective layer for your vehicle.

TYPES OF UNDER-BODY COATING:-

1. Rubberized Undercoating.
2. Asphalt-Based Undercoating.
3. Polyurethane Undercoating.
4. Wax Or Paraffin-Based Undercoating.

1. RUBBERIZED UNDERCOATING:-

Rubberized undercoating is easy to apply and generally offers the best protective coating for your car's under carriage. It cushions surface against moisture, rust, dings, & dents. Rubberized undercoating is safe to use on quarter panel & wheel wells and dries with a soft rubbery finish.

2. ASPHALT-BASED UNDERCOATING:-

Asphalt-based undercoating offers a higher level of protection suitable for large trucks, recreational vehicles, and heavy machinery. It's formulated with some bits of rubberized material to aid in noise reduction. It offers extra protection against chips and moisture but is not paintable and, therefore, only suitable for under carriages.

3. POLYURETHANE UNDERCOATING:-

polyurethane coating is easy to apply and works by sealing up cracks and seams. The compound displaces salt and moisture and protects the unoxidized metal from rust. It's often sold in canisters that are ready to preload into an application gun. It, however, requires some surface prep. work before application, like degreasing, and applying an etching primer to the bare metal.

4. WAX OR PARAFFIN-BASED UNDERCOATING:-

Wax or paraffin-based undercoating sprays are the cheapest and quickest options available. However, their results don't last long, and you may have to aaply fresh coat after only a few months. In addition, the wax isn't bvery adhesive on a metal surface. Its mai advatage is that it seeps quickly into cracks and seams, and offers moderate protective properties against moisture.

ADVANTAGES OF UNDER-BODY COATING:-

• Prevent from stone chip.
• Prevent paint chipping.
• protects against rust & corrosion.
• External influence.
• Protects vital components.
• Keep the value.
• Reduce NVH (Noise Vibrations Harshness) levels.

DISADVANTAGES OF UNDER-BODY COATING:-

• Add weight.
• Fail to protect existed rust.
• High cost
• Damage risk.
• Re-application is required after time.

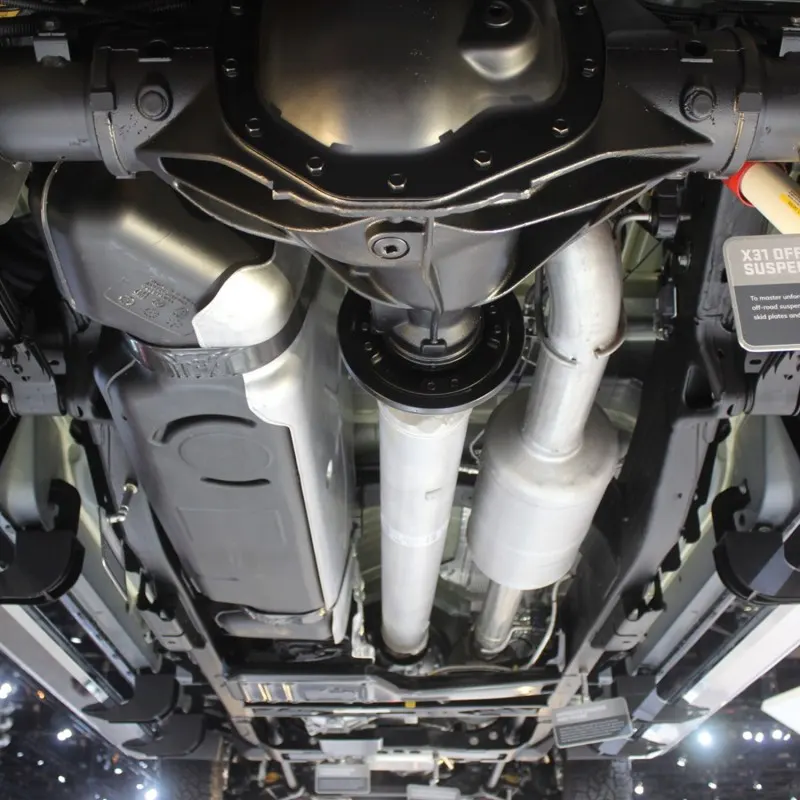

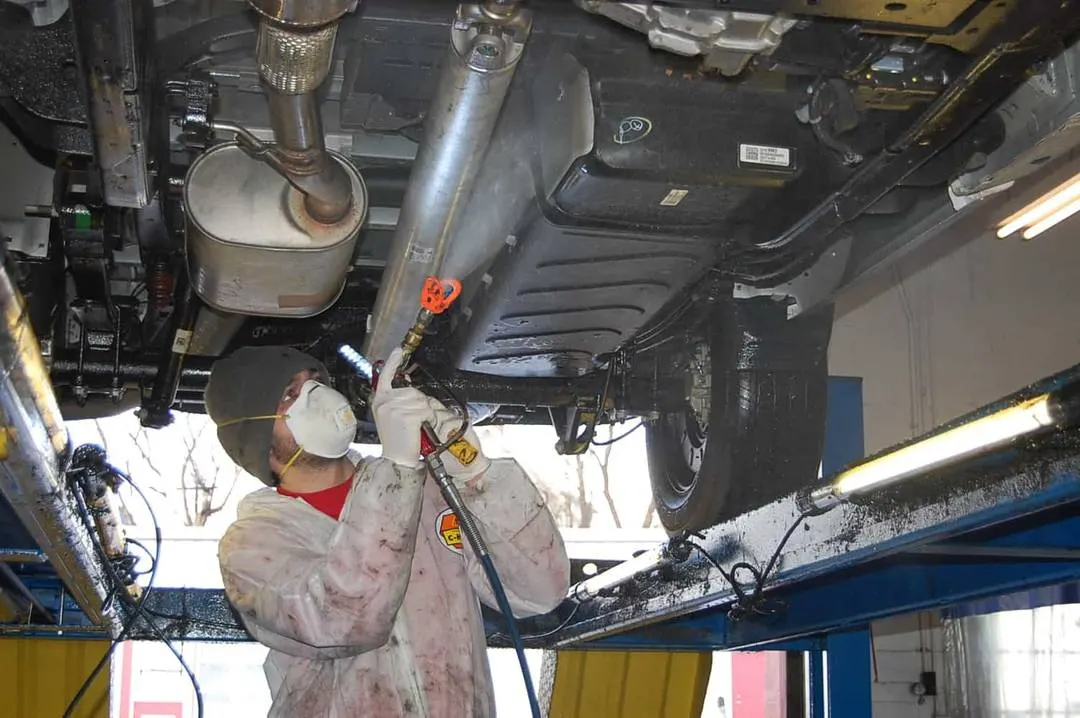

UNDER-BODY COATING IMAGE:-
