Tool Test 1

AIM:This tool test carries two models (i.e. Plastic model, Sheet metal model). For both the models, Mid surface should be taken and meshed as per below quality criteria. Thickness should be assigned to both the models. (Refer “Model Requirements” in “Grading Policy” to know what to be done in the model)

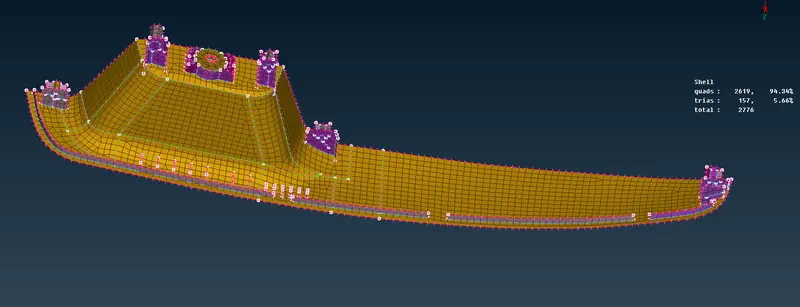

First one is Plastic Component so i am showing the picture of that after meshing

here we get some off elements because of triple coons.

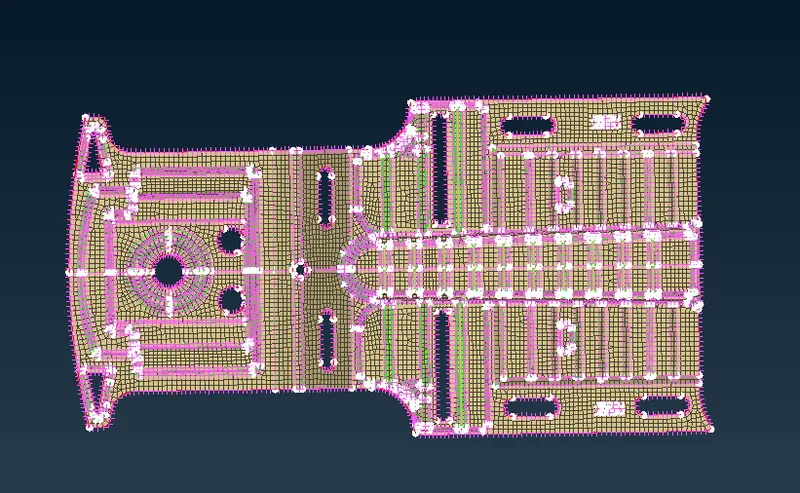

Second one is sheetmetal and after meshing the image is below
