To calculate the dead , live and wind load for RC residential structure and to apply them using TSD

1.

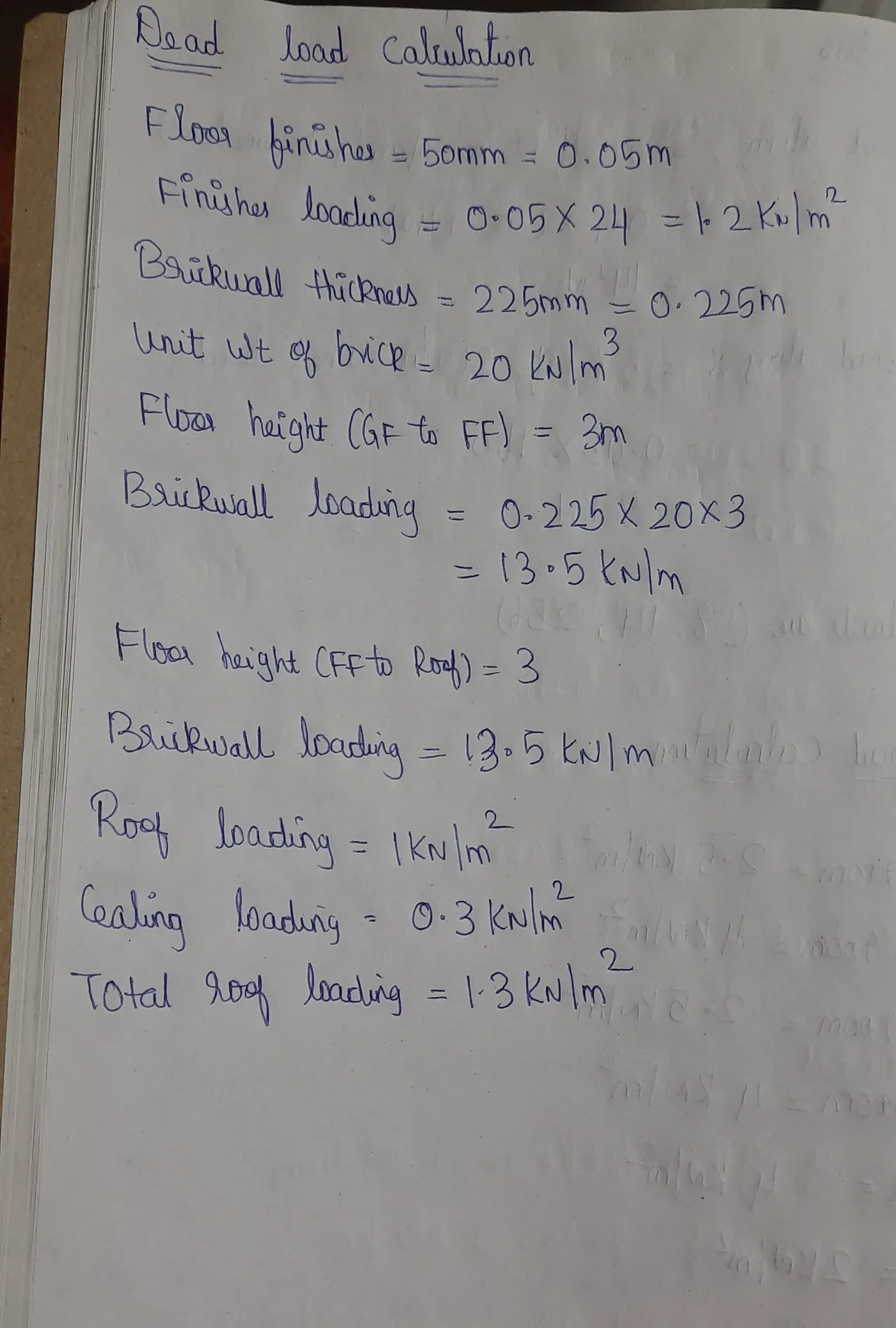

Aim:

To calculate dead load and apply it on the model.

Procedure:

After calculating dead load apply dead loadd as area load from ground level apply load on all the slab.Apply brickwall loading for area required.

2.

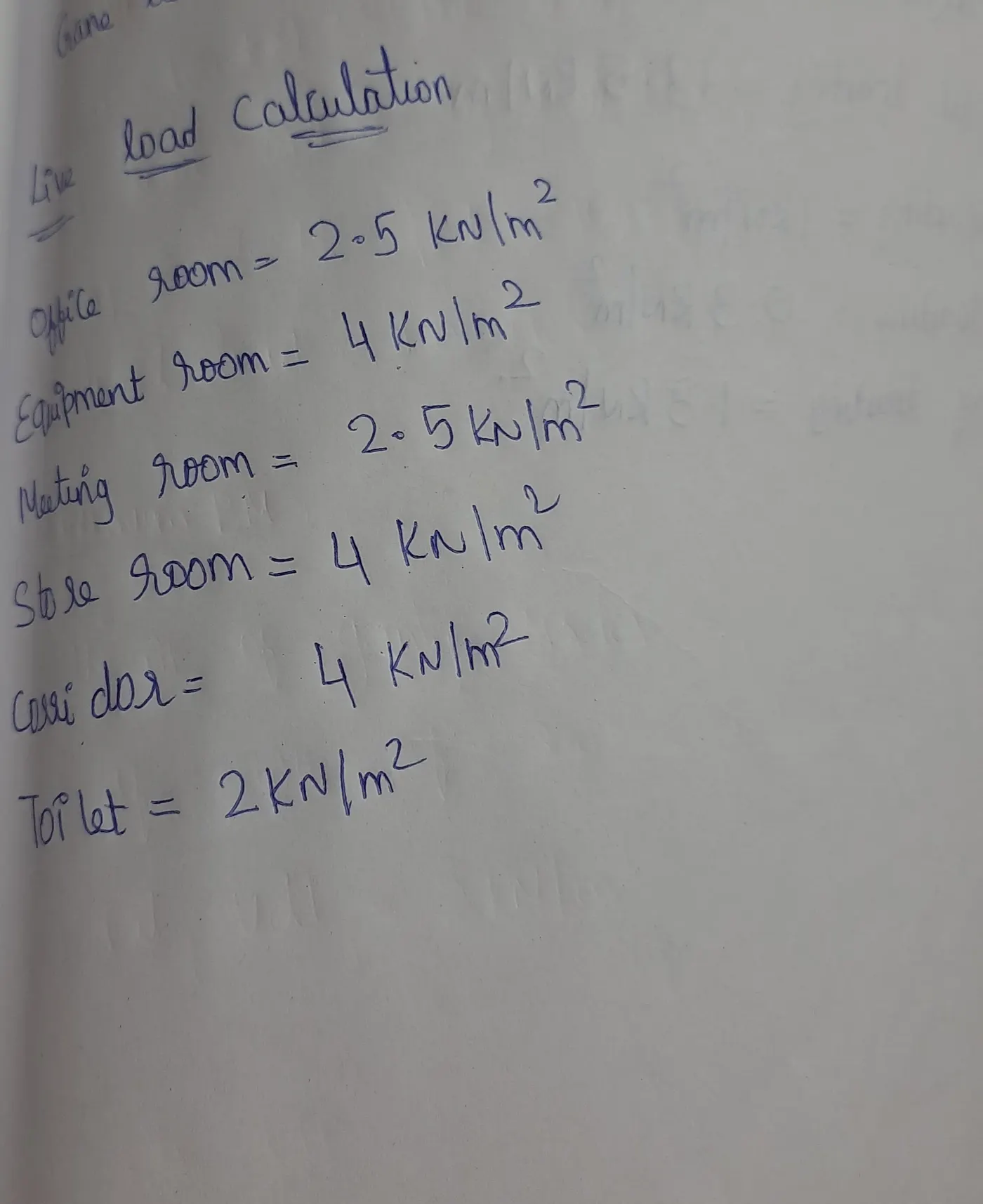

Aim:

To calculate live load and apply it in the model.

Procedure:

Apply live load as area load in all slab .

3.

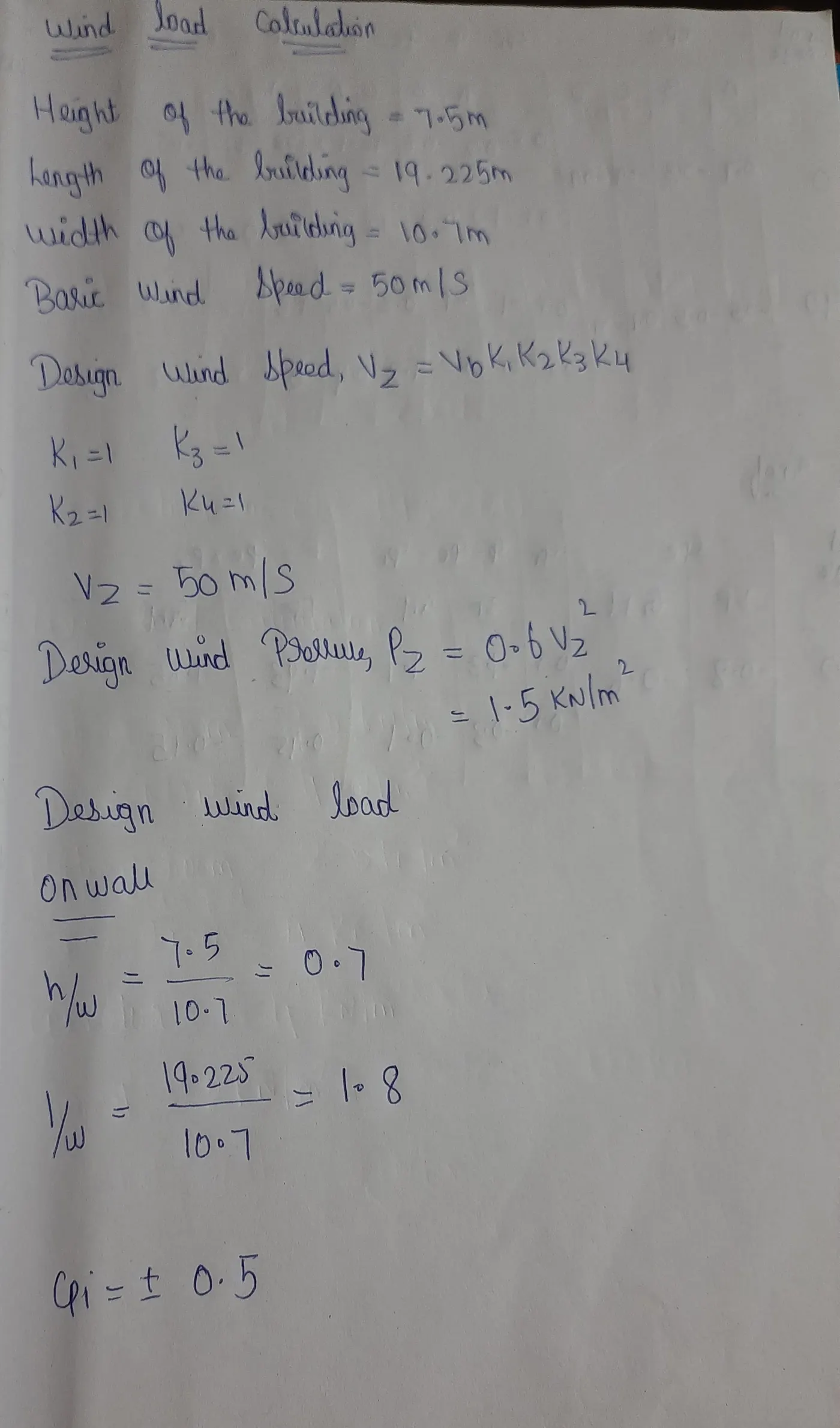

Aim:

To calculate wind load.

4.

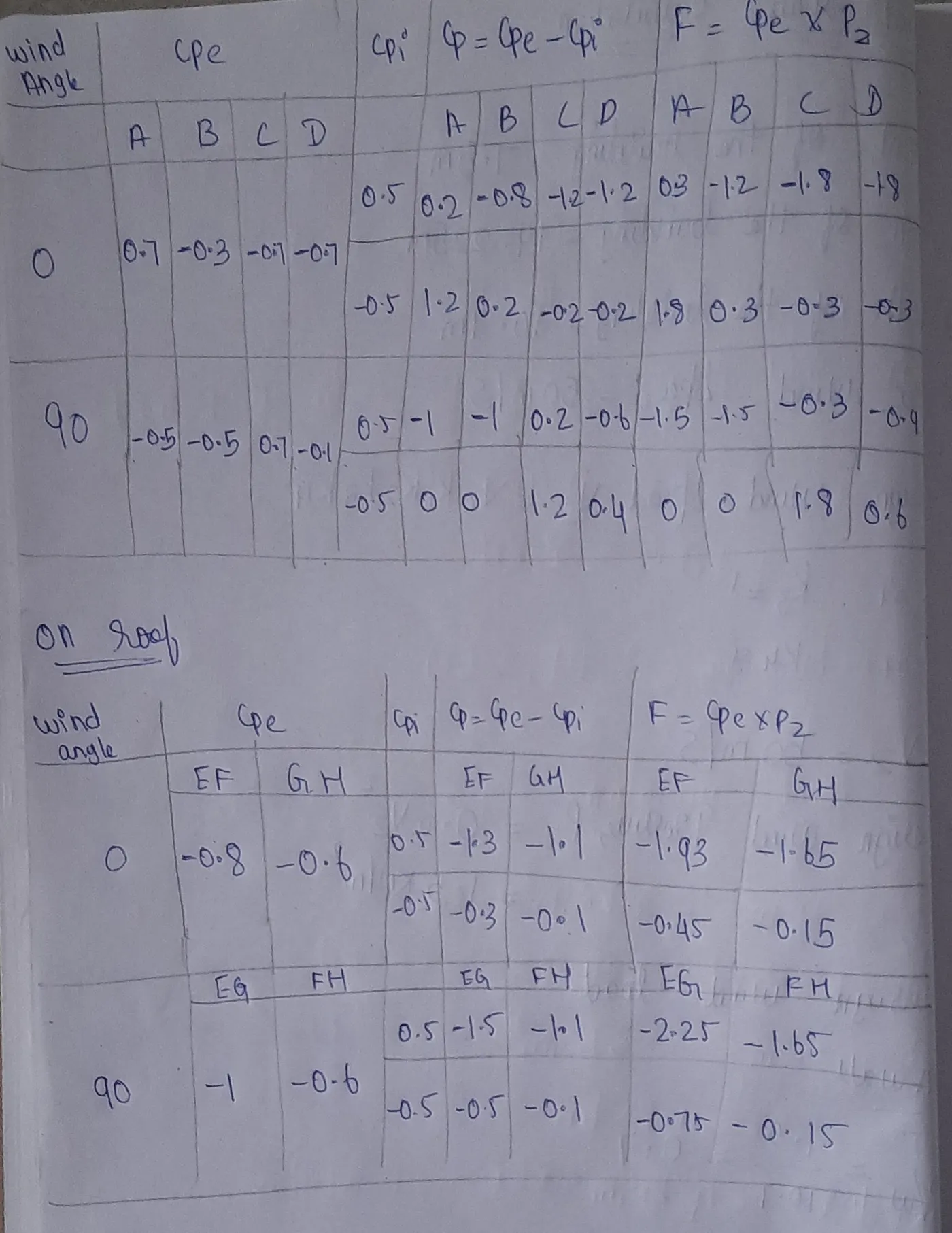

Aim:

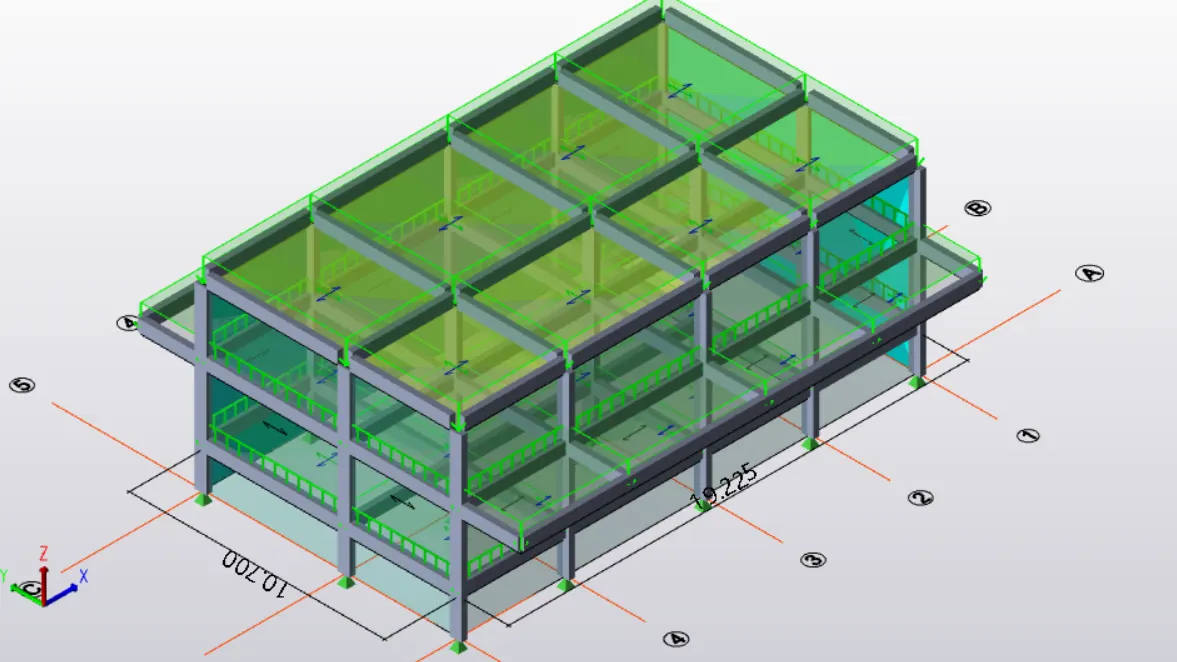

To apply wind load in the model.

Wind load to apply on wall as well as on the roof as area load.

First create wall and roof panels and from global axis apply it on the model according to the valuess has been calculated.

Longer side is considered as A

For all wind load cases apply it.
