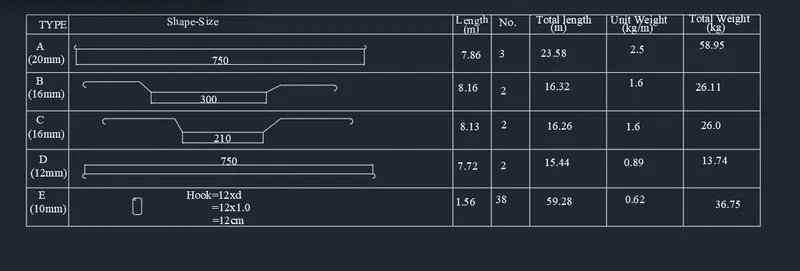

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Aim:

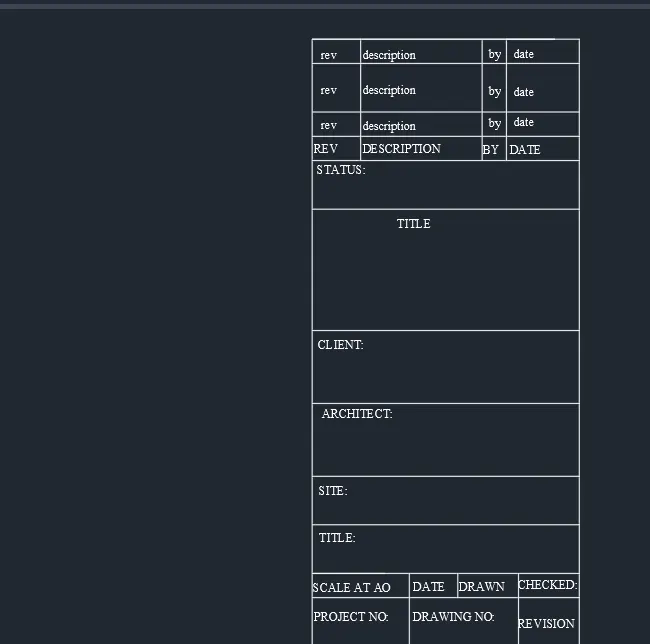

To create the template.

Procedure:

• Take a line command and draw a line.
• And offset the other lines.
• Use text command to write the text.
• And block it using block command B.
• And save the block.

Result:

Aim:

To create door type for warehouse.

Procedure:

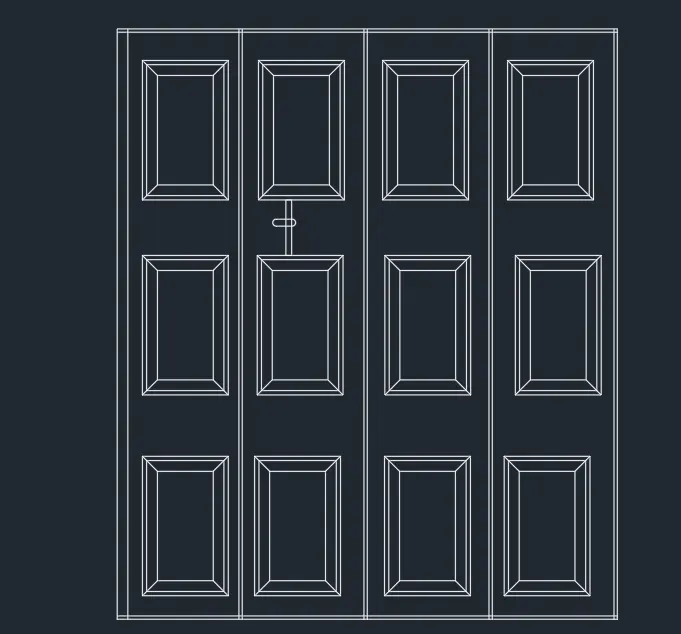

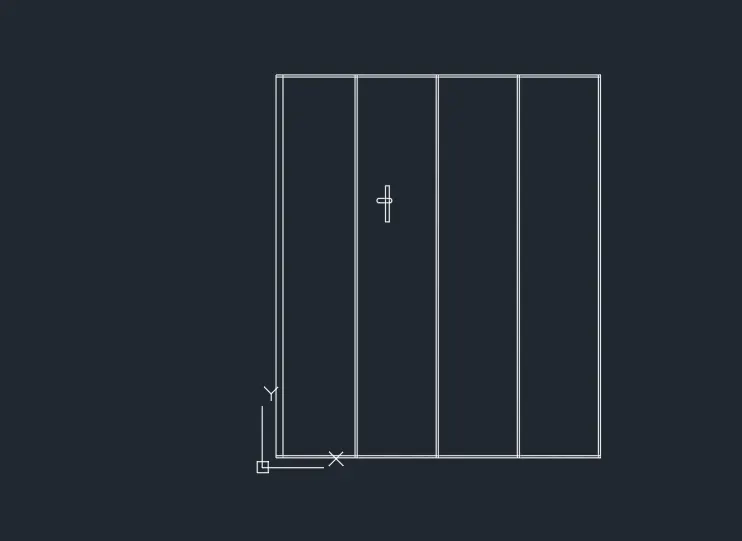

• Draw a line of length and width of 2330,2750 and create a rectangle.
• And offset other lines and draw a doors.
• And block the objects.

Result:

Aim:

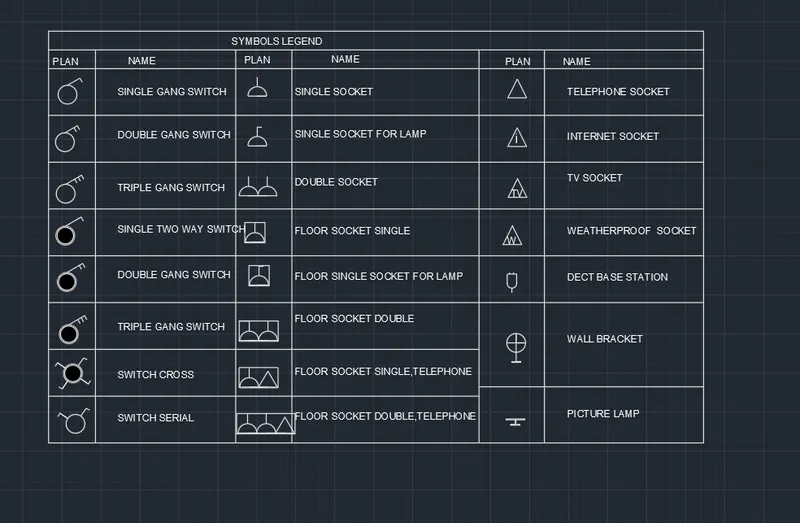

To create symbols.

Procedure:

• Draw a symbol using line command
• And block it.

Result:

Aim:

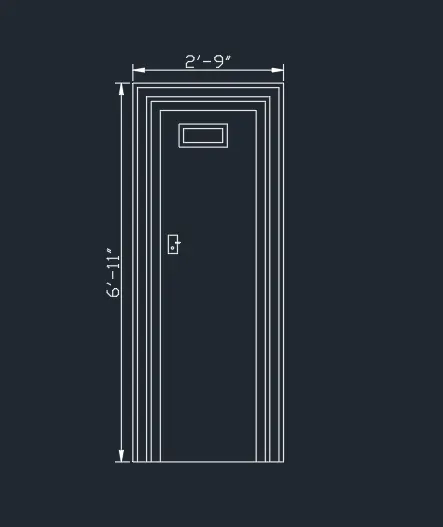

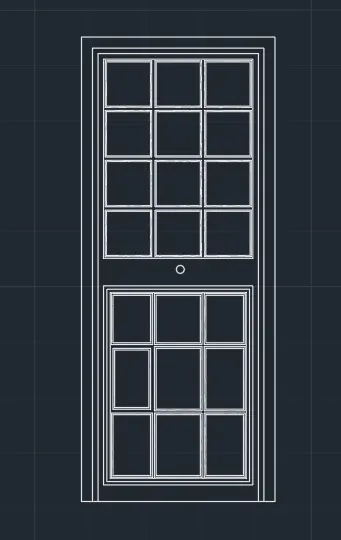

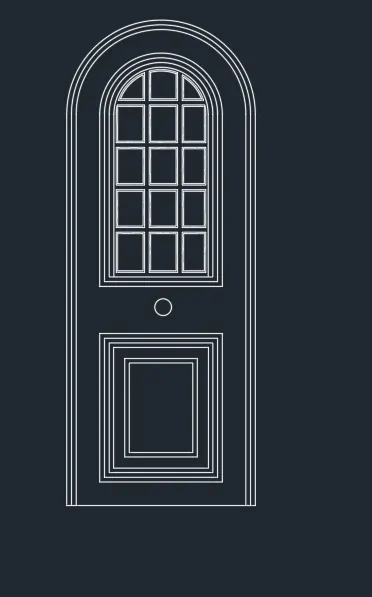

To create the door type for residential building as a block.

Procedure:

• Draw a line L of their length and height.
• And off their sides.
• And repeat the same for all types of door.

Result:

D1

D2

D3

D4

D5

D6
