Challenge

To calculate the dead , live and wind load for RC residential structure and to apply them using TSD

Q1:

Aim: To provide the Dead load for the structure.

Procedure:

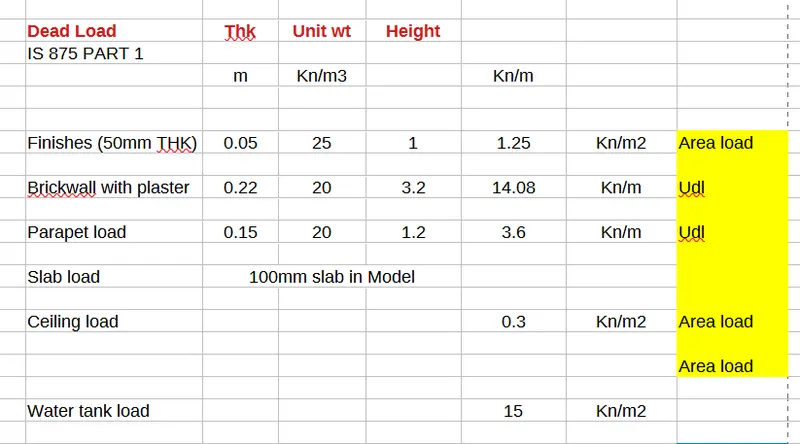

Step:1) Use IS 875 part 1 for unit weight of materials

Step:2)

Obtain the dead load to be provided in the structure

Result: Dead load for the structure is calculated.

Q2:

Aim: To provide the Live load for the structure.

Procedure:

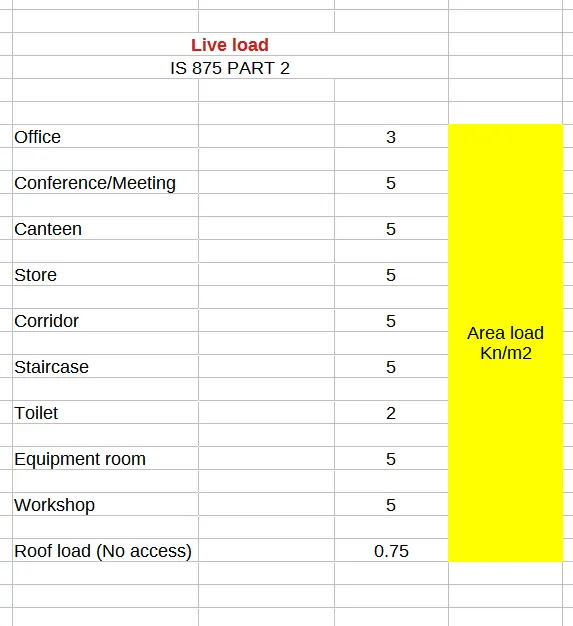

Step:1) Use IS 875 part 2 for Live load on each room types

Step:2)

Obtain the Live load to be provided in the structure

Result: Live load for the structure is provided

Q3:

Aim: To obtain the windload to be provided on the structure.

Procedure:

Step :1) IS 875 Part 3

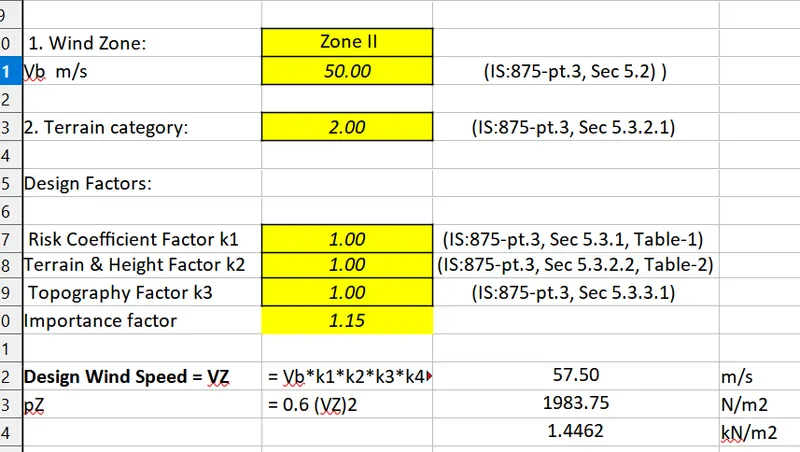

Basic wind speed = 50m/s

Terrain category = 2

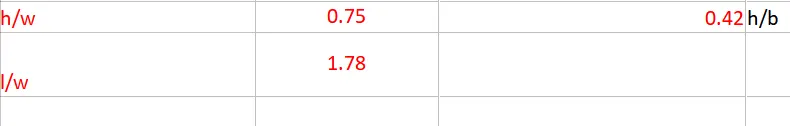

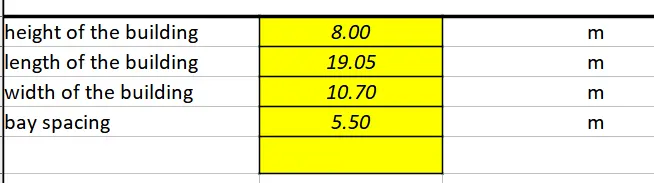

Building Measurements

Step :2) Code values

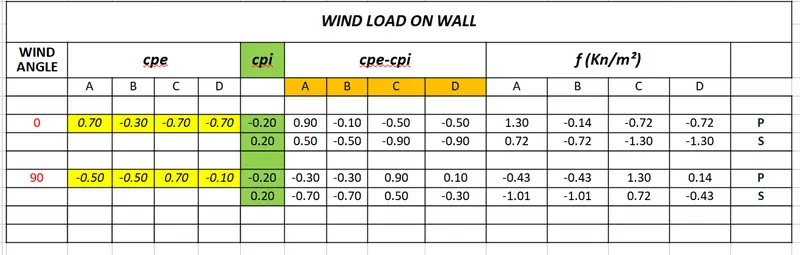

Step :3) For wall

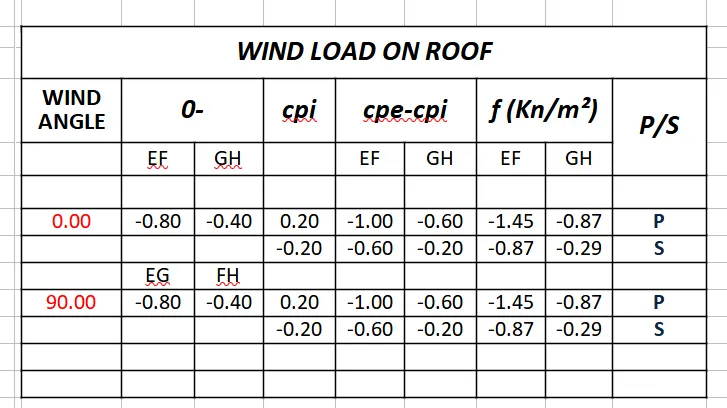

Step :4) For roof

Result: The wind load is created

Q4:

Aim: To provide the Dead, Live & Wind load in model

Procedure

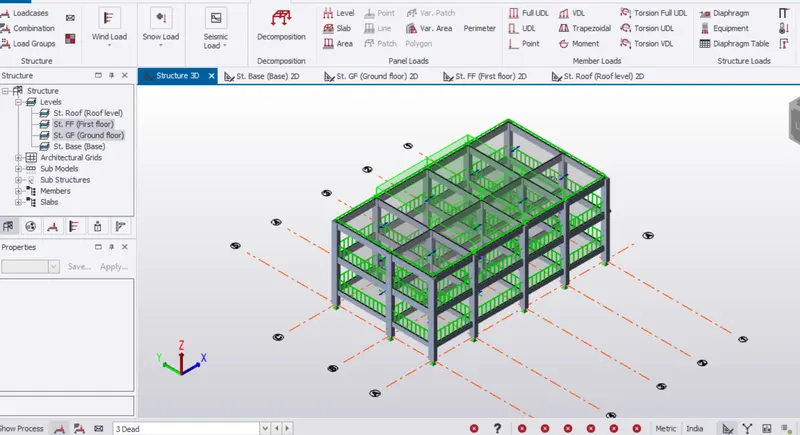

Step:1)

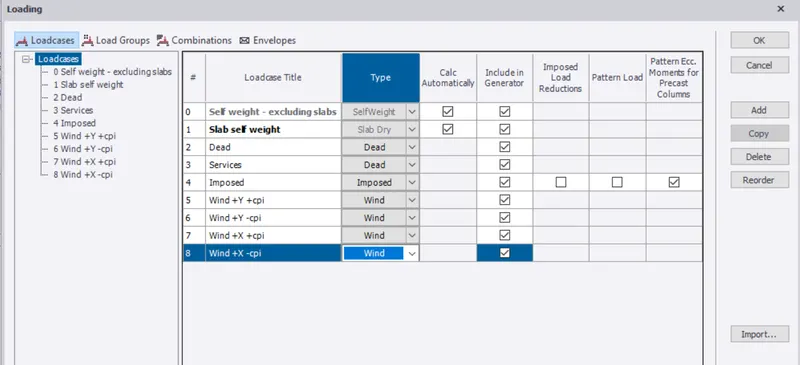

Loadcases for the structure

Step:2)

Dead load on structure

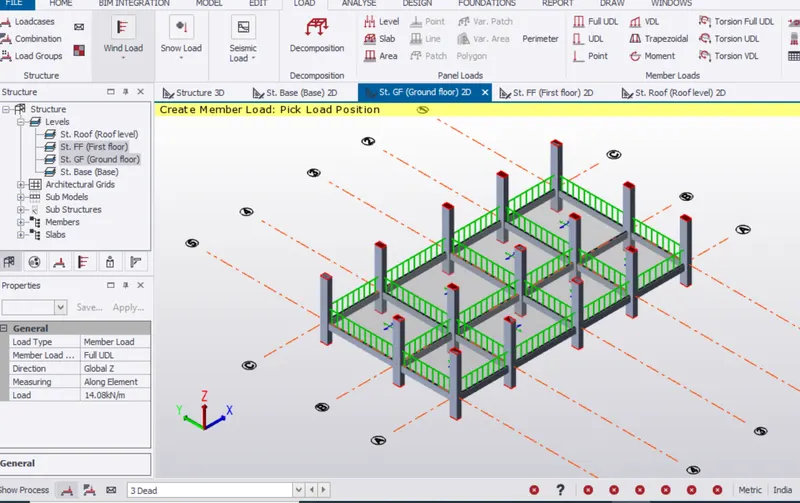

Ground floor -wall load

Parapet load

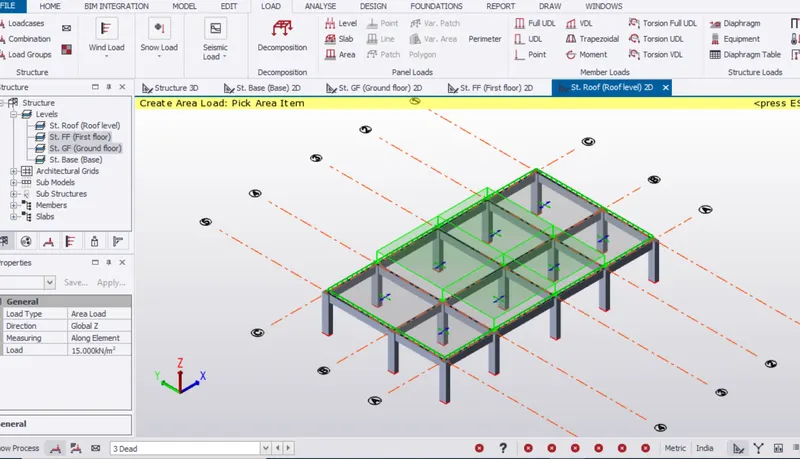

Roof load -water tank

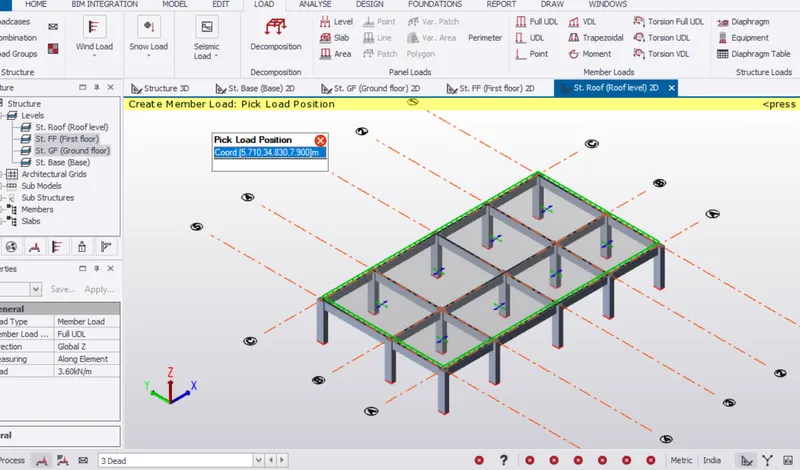

Step:3)

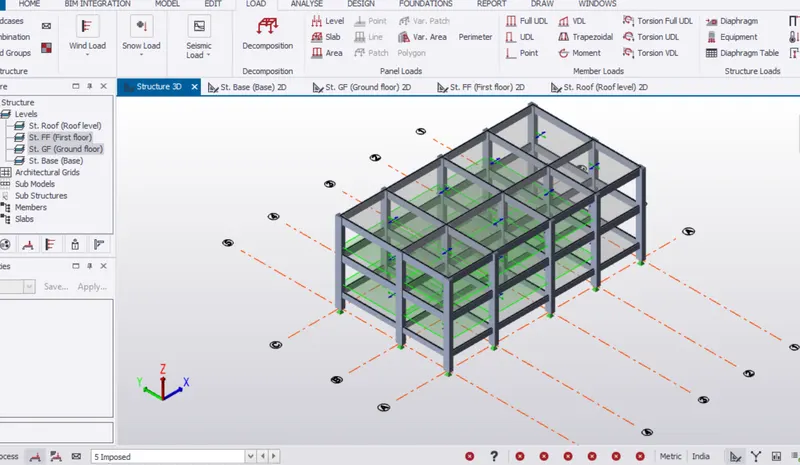

Live load on structure

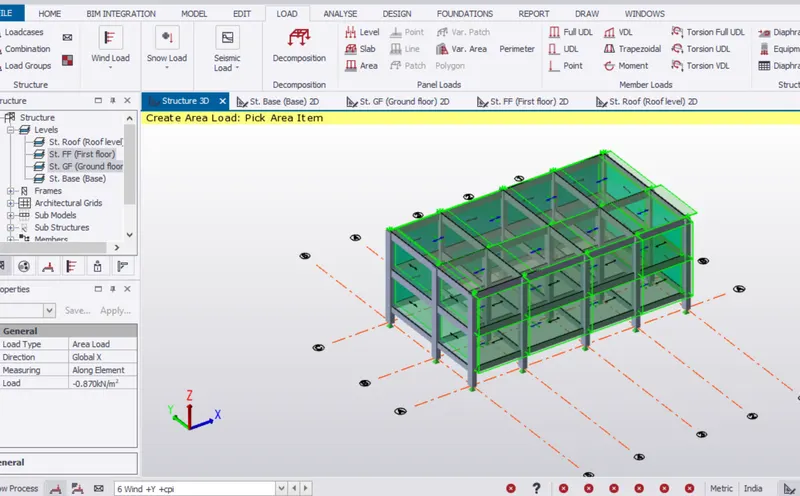

Step:4) Wind load

Result:Windload is applied on model
