3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Question:1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Aim: To create ceiling for ground floor

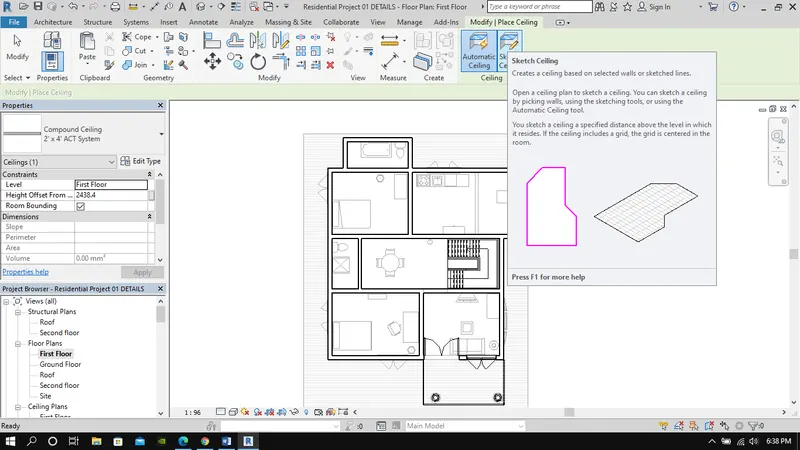

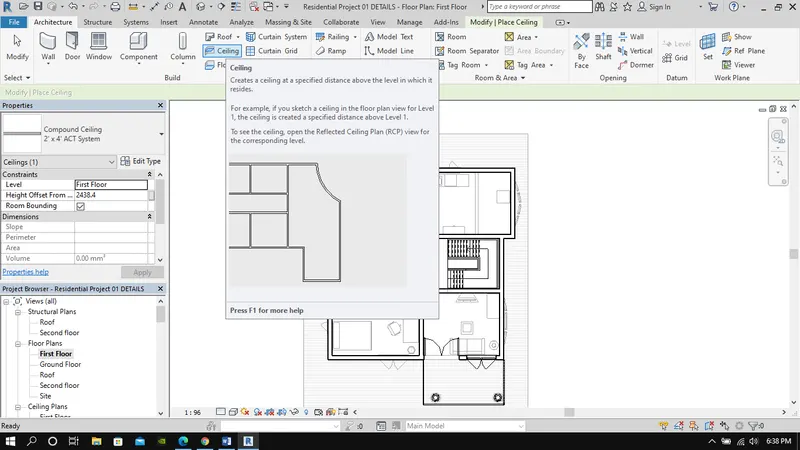

Step :1) Architecture > Ceiling >Sketch ceiling > Draw profile " First floor level"

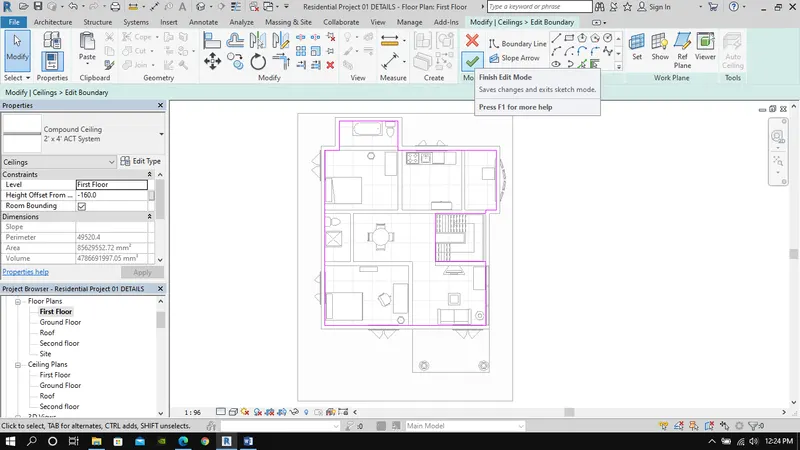

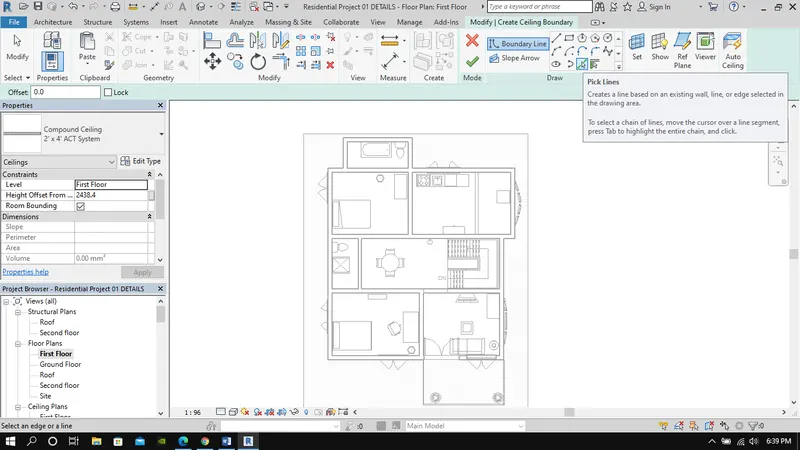

Step :2) Draw profile >pick wall (inside line) > Opening for stair > Finish edit mode " green tick"


Result:) Ceiling layout was created for ground floor

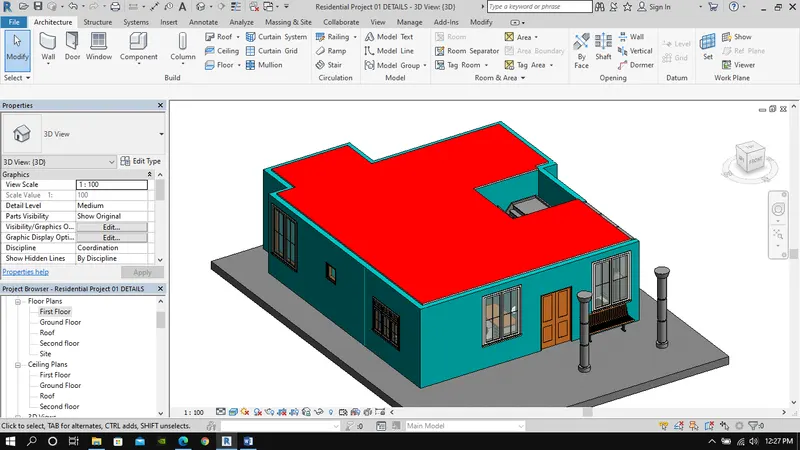

Question:2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Aim: Creating a roof for first floor (2 level roof)

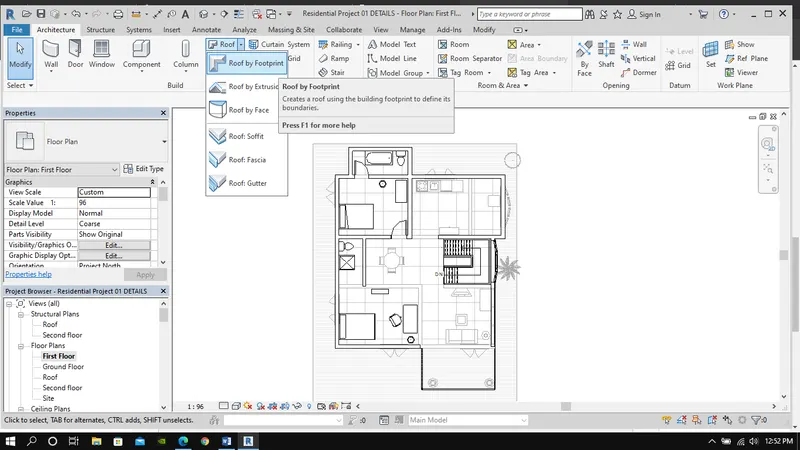

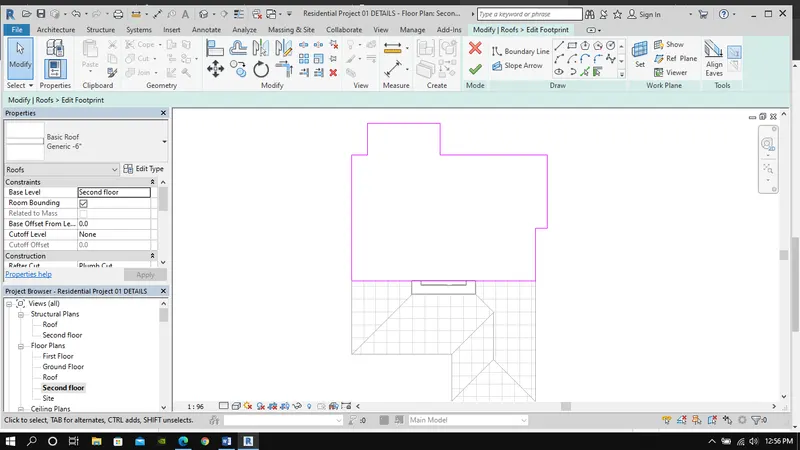

Step 1:) Architecture > Roof > Roof by footprint

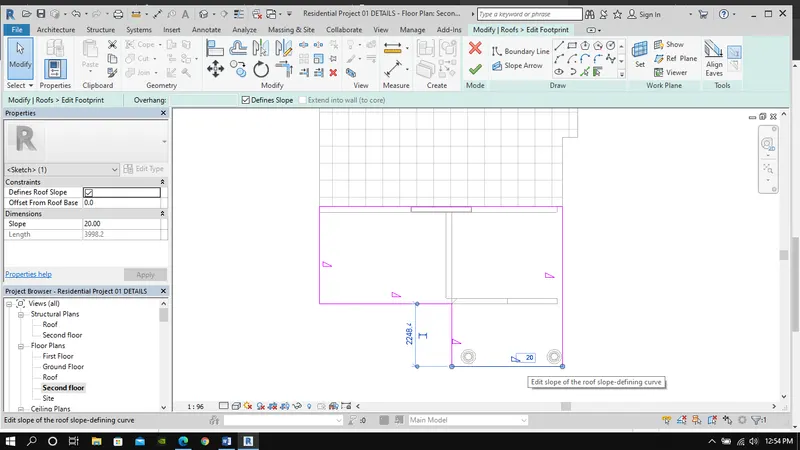

Step 2:) Draw > Slope to 20 deg ( for 2 step roof)

Step 3:) Draw Flat roof back portion

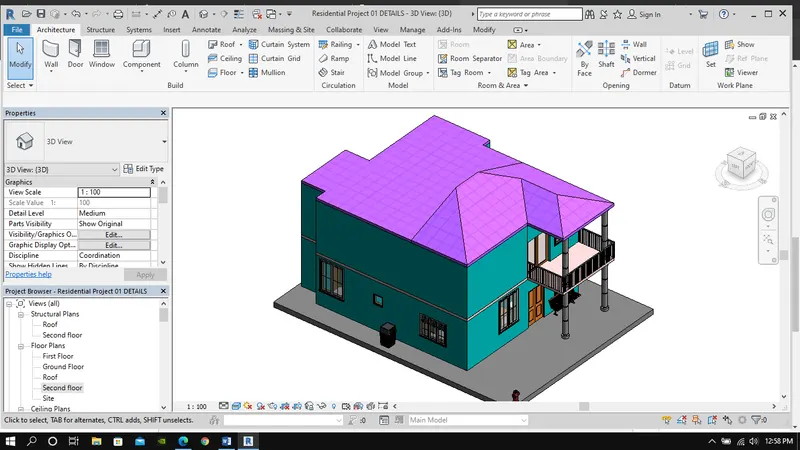

Result : First floor roof was created

Question:3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
Aim : Archiecture & Structural plans

Step 1:) Ground floor plan view ( Architectural)

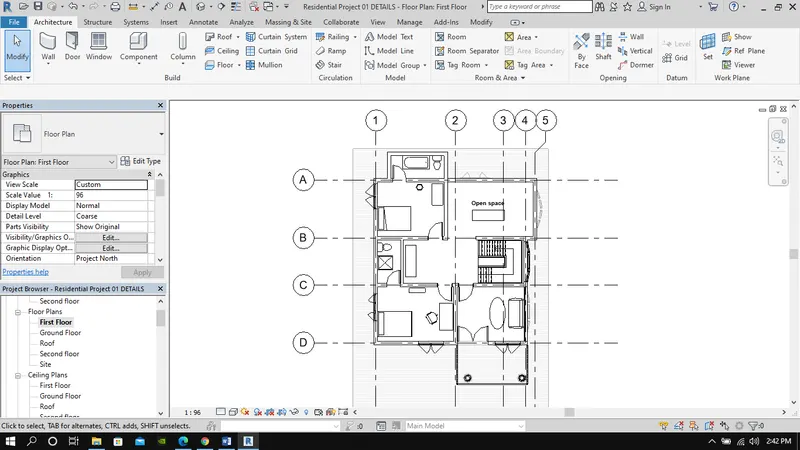

Step 2:) First floor plan view ( Architectural)

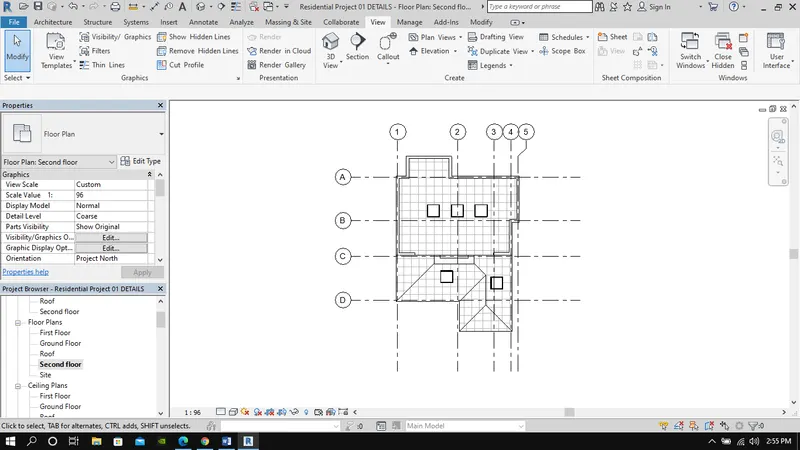

Step 3:) Second floor plan view ( Architectural)

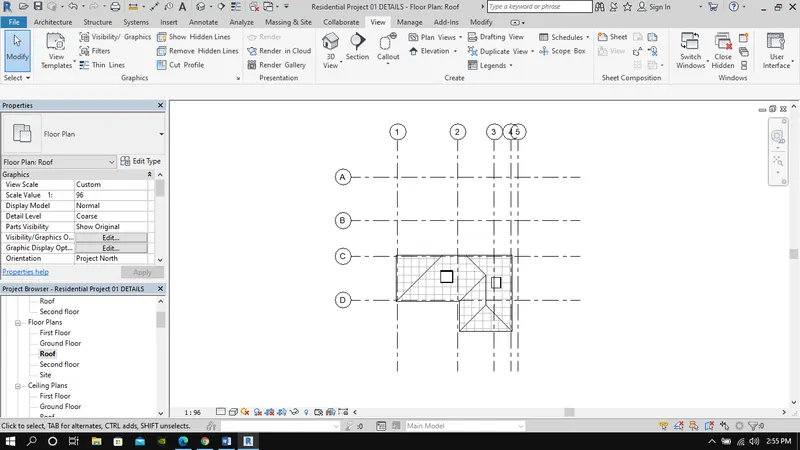

Step 4:) Roof plan view ( Architectural)

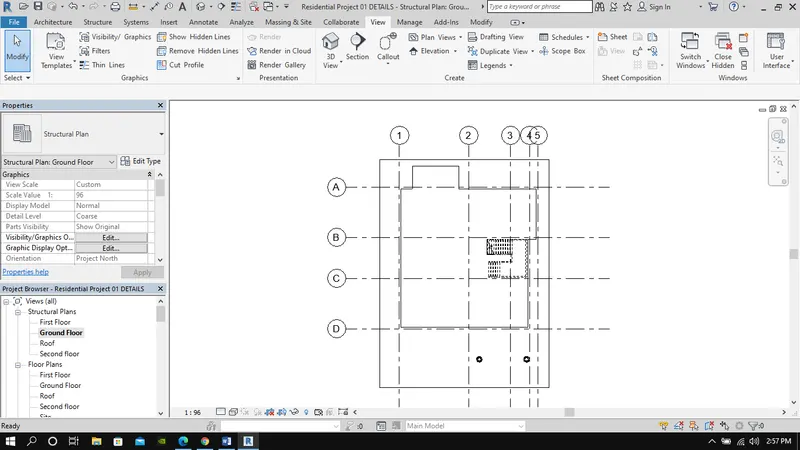

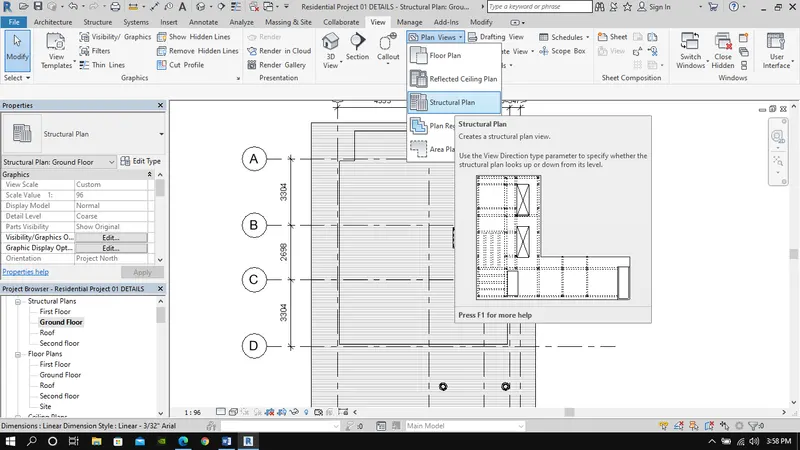

Step 5:) Ground floor plan view ( Structural)

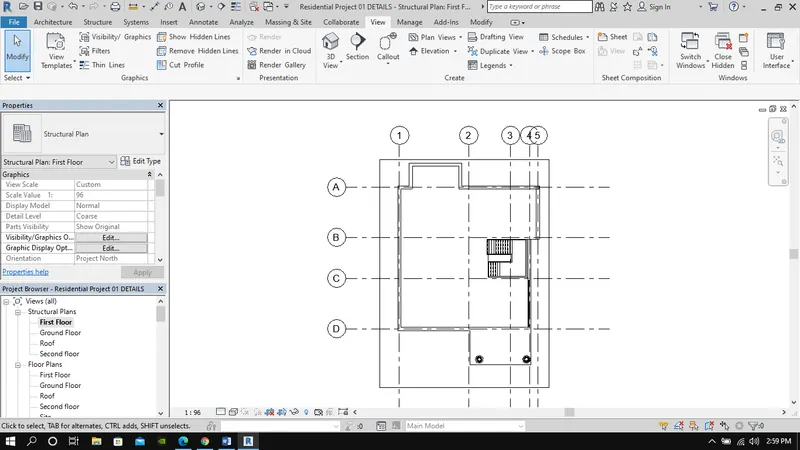

Step 6:) First floor plan view ( Structural)

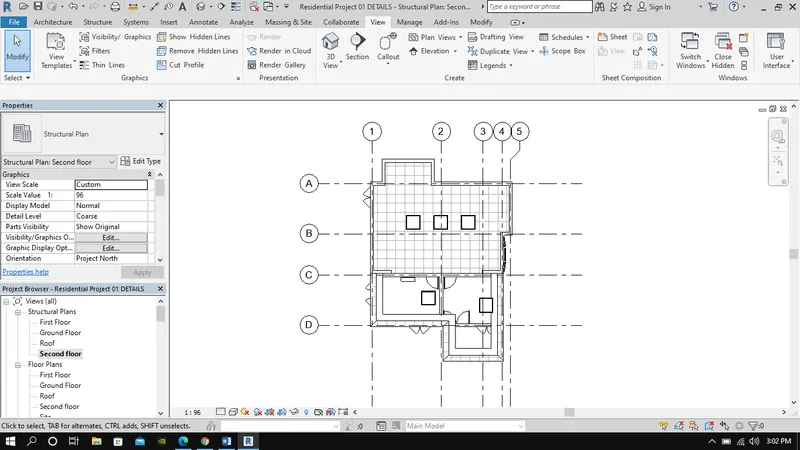

Step 7:) Second floor plan view ( Structural)

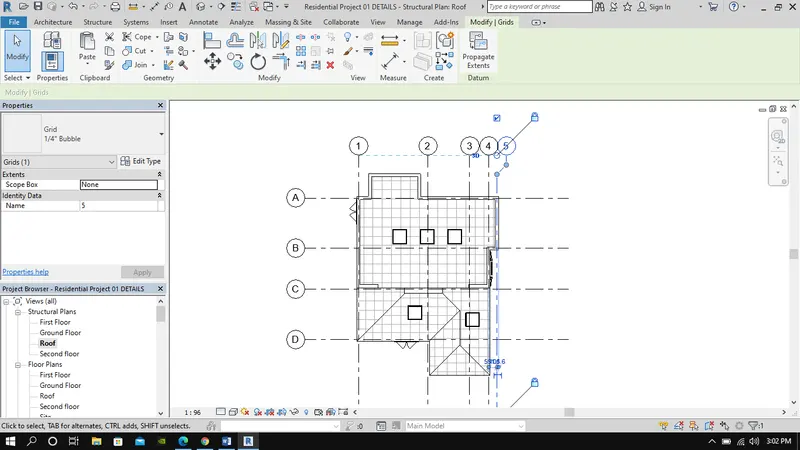

Step 8:) Roof plan view ( Structural)

Step 8:) Architectural & Structural plans created
Question:4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

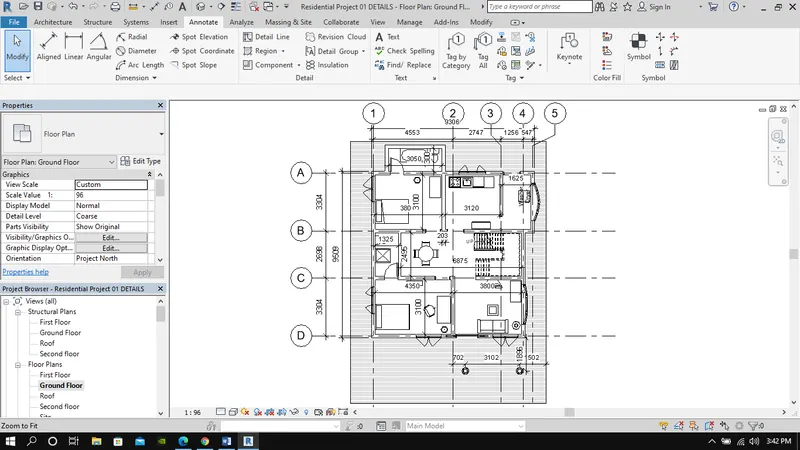

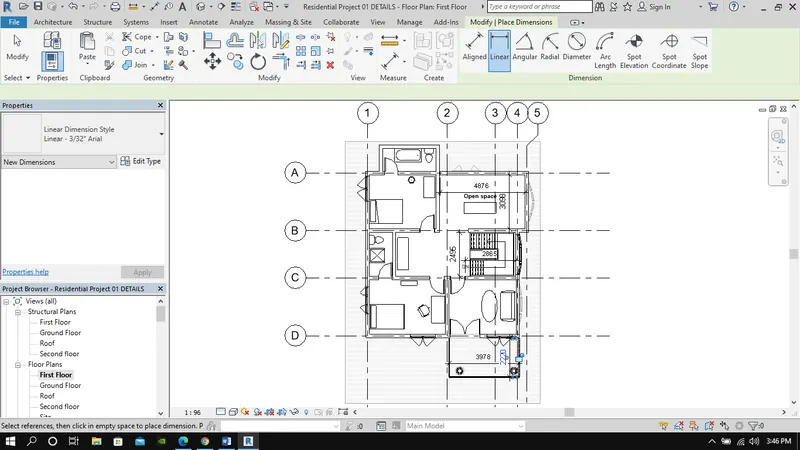

Aim: Add dimension to architectural & structural plans w.r.t grid lines

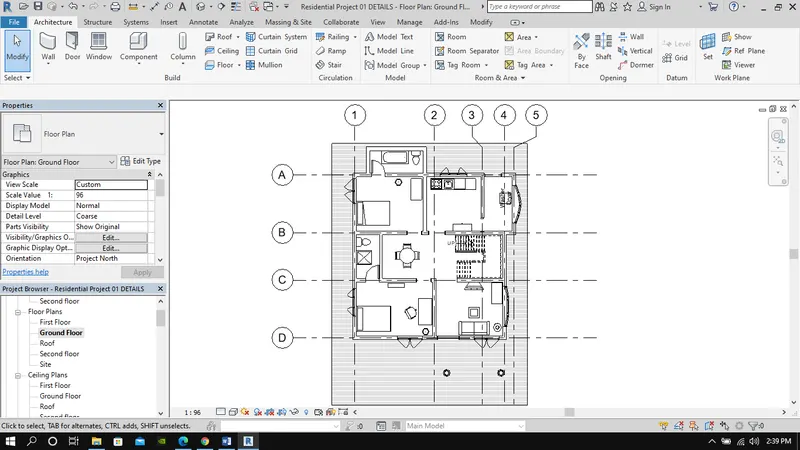

Step 1:) Ground floor plan Architectural

Step 2:) First floor plan Architectural

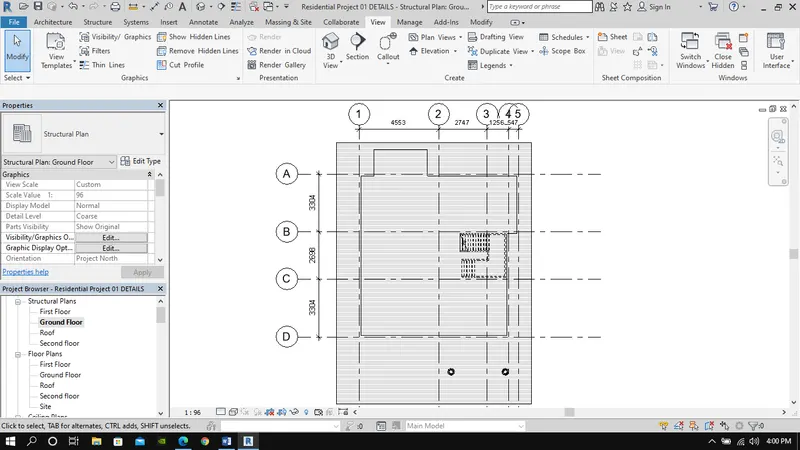

Step 3:) Ground floor plan Structural

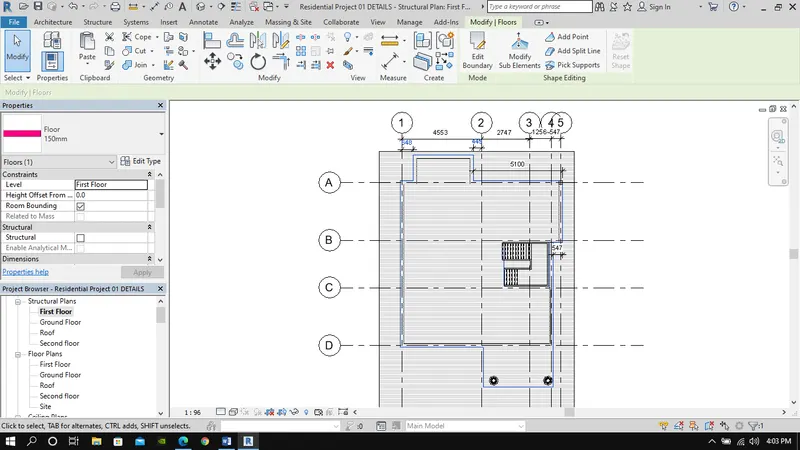

Step 4:) First floor plan Structural

Result : Dimensions added in architectural & structural plans
Question:5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Aim: To create a sheet template

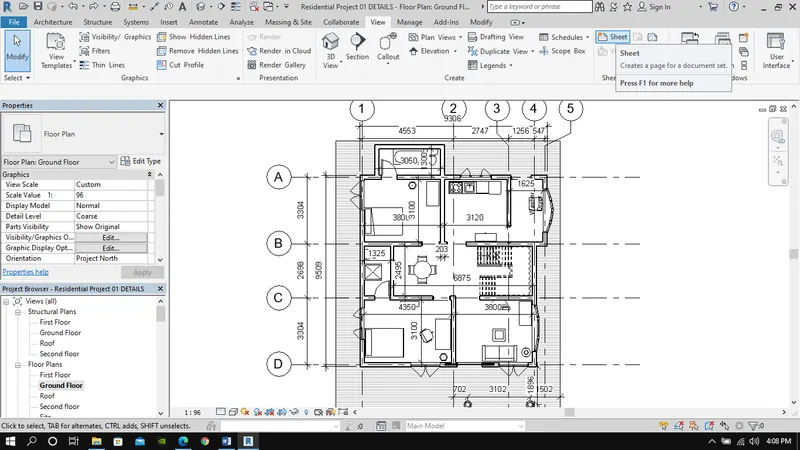

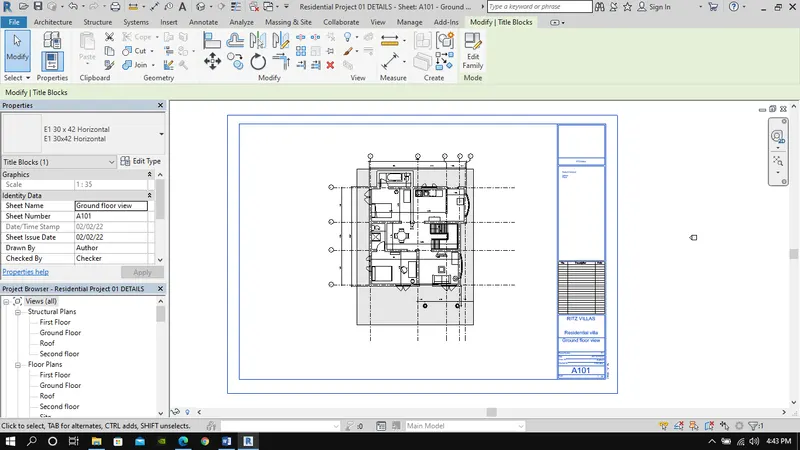

Step 1:) Architecture > View > Sheet

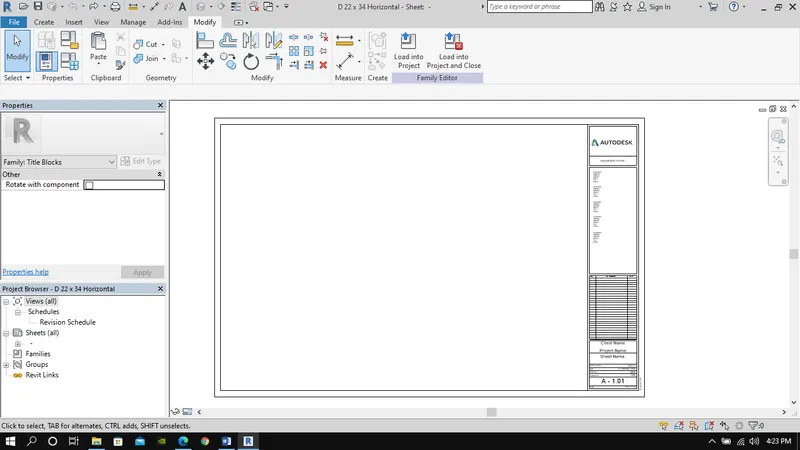

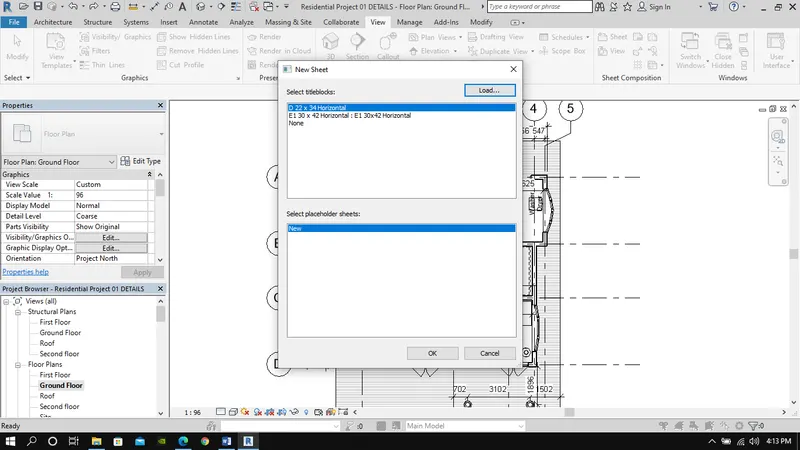

Step 2:) New Sheet > Select Title block >Ok


Step 3:) Drag ground floor view & add to sheet

Result: Sheet tab with ground floor layout was created
Question:6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Aim: To create elevation views

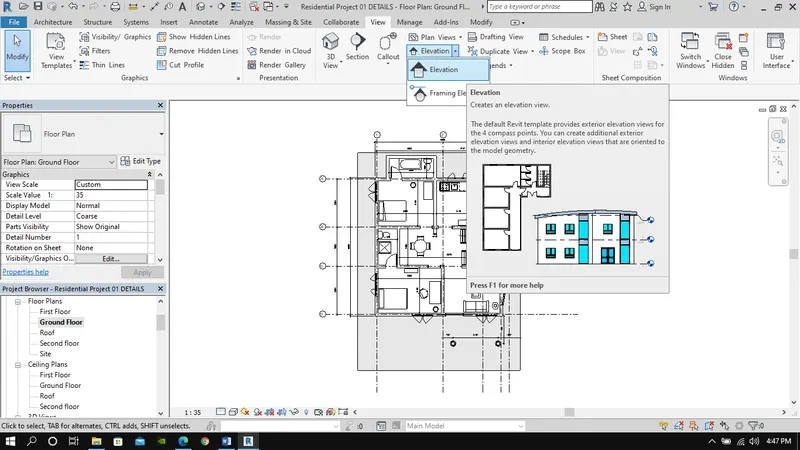

Step:1) View > Elevation > Place on selected side of building

Step:2) North side elevation

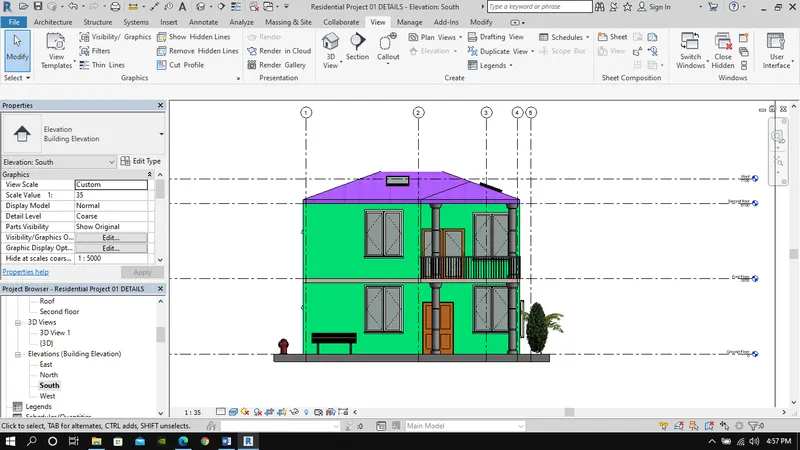

Step:3) South side elevation

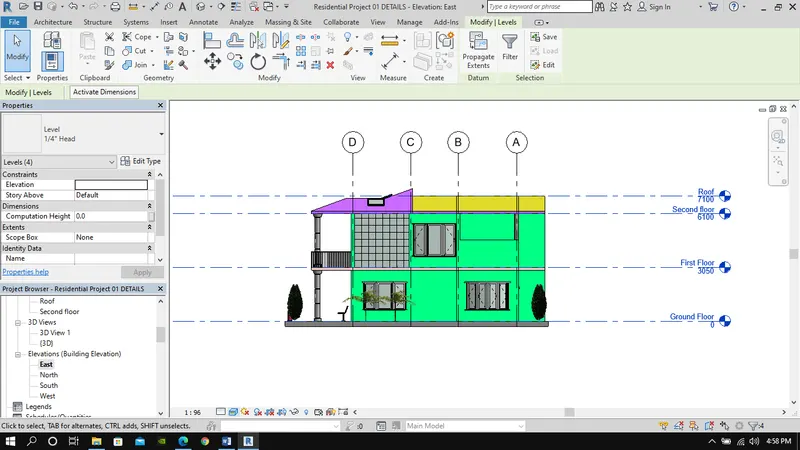

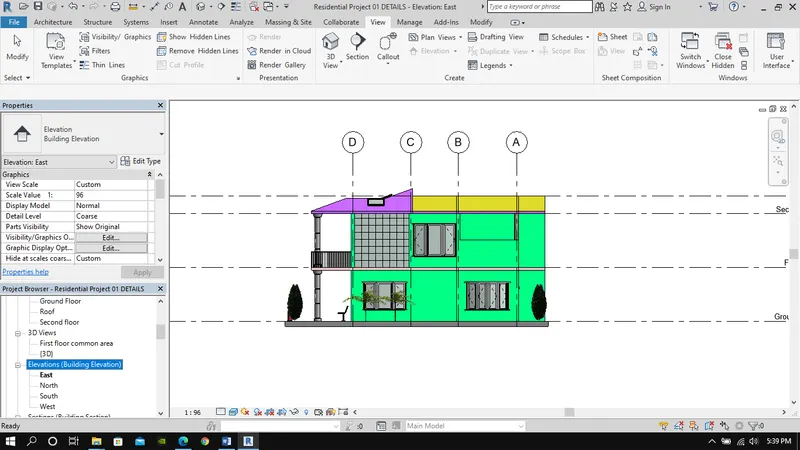

Step:4) East side elevation

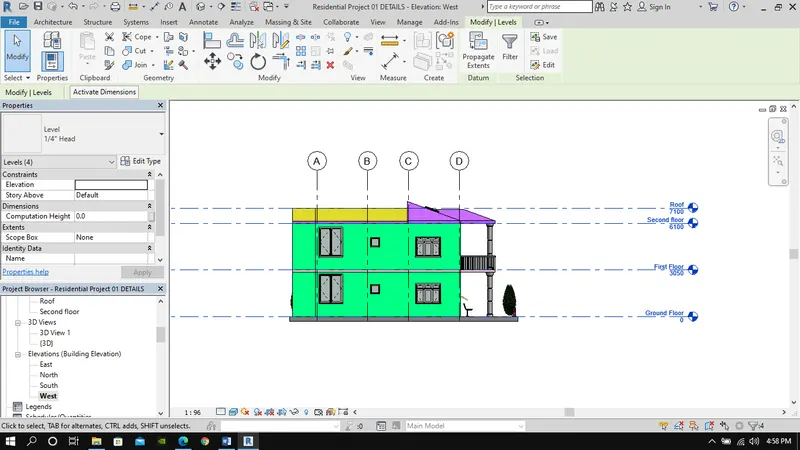

Step:5) West side elevation

Result:) Elevations for 4 sides created
Question:7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Aim: To create section view

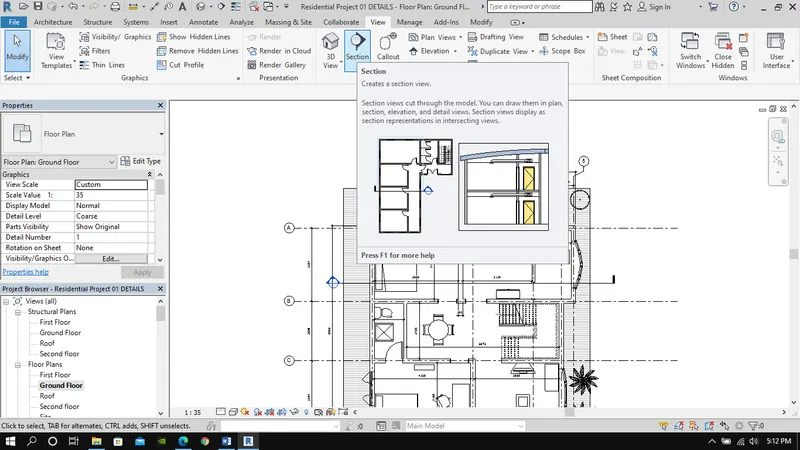

Step:1)View > Section

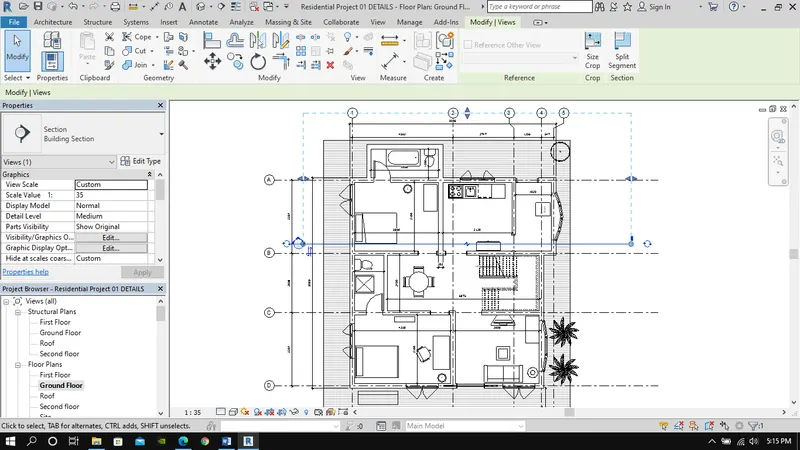

Step:2) Section > draw section line

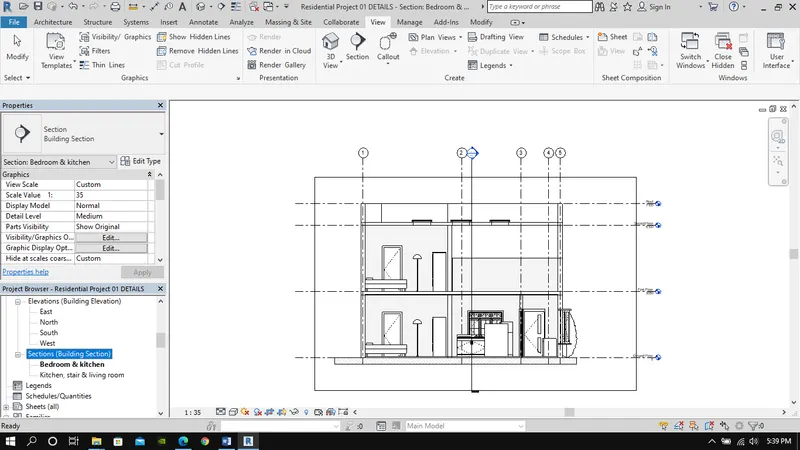

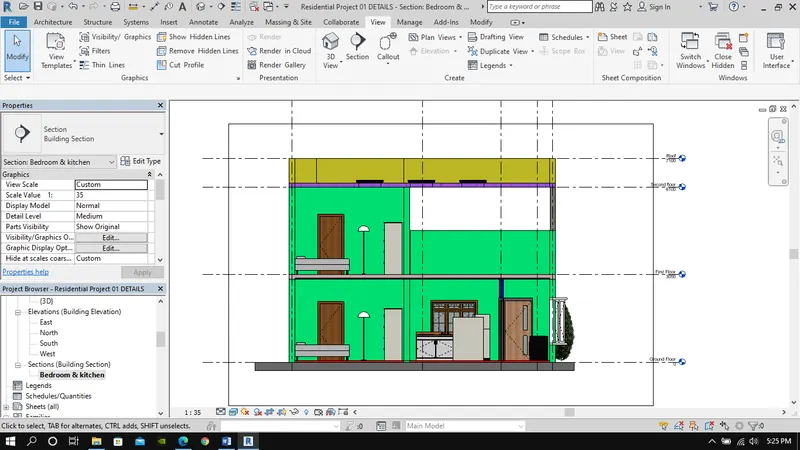

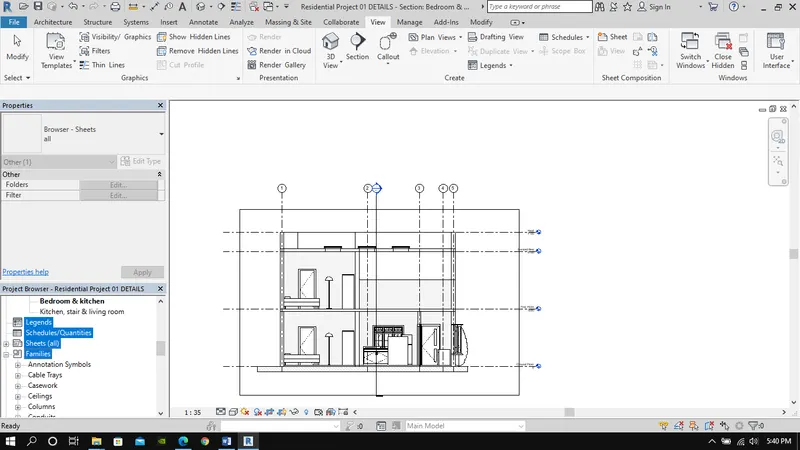

Step:3) Section of bedroom & kitchen

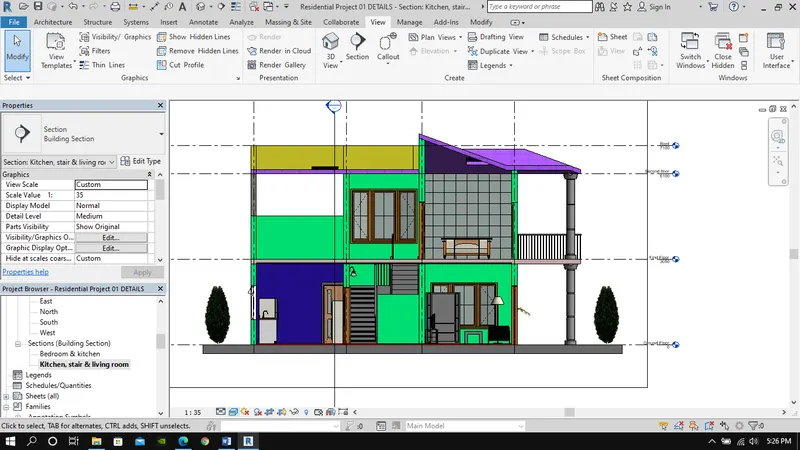

Step:4) Section of Kitchen, Stair & Living room

Result : Section views created

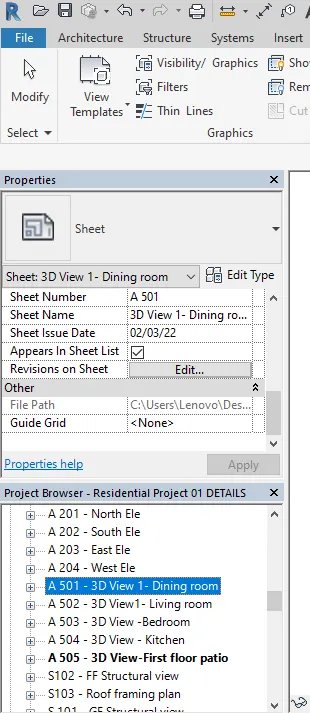

Question:8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Aim: Classify various views from property browser
Step 1:) Structural Plan view

Step 2:) Floor Plan view

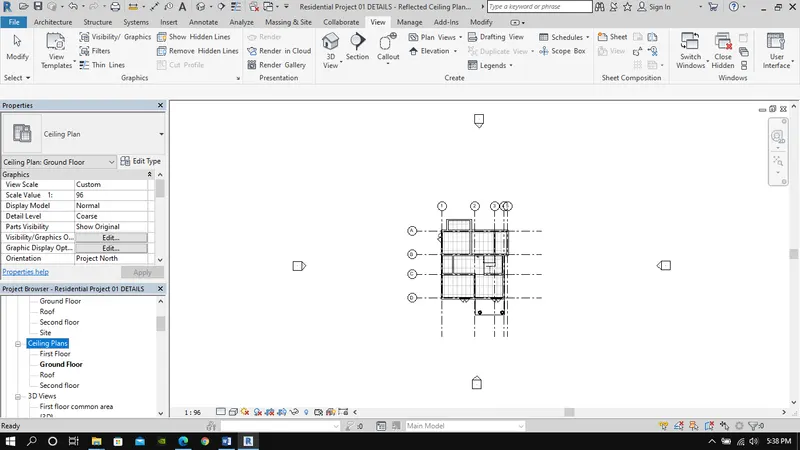

Step 3:) Ceiling Plan view

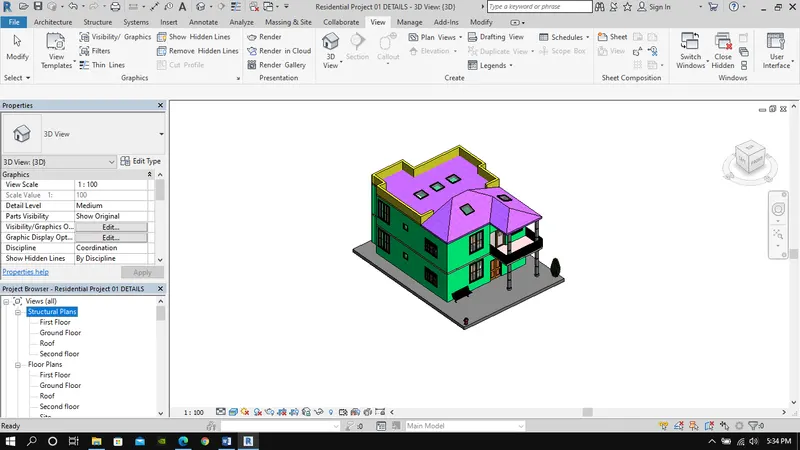

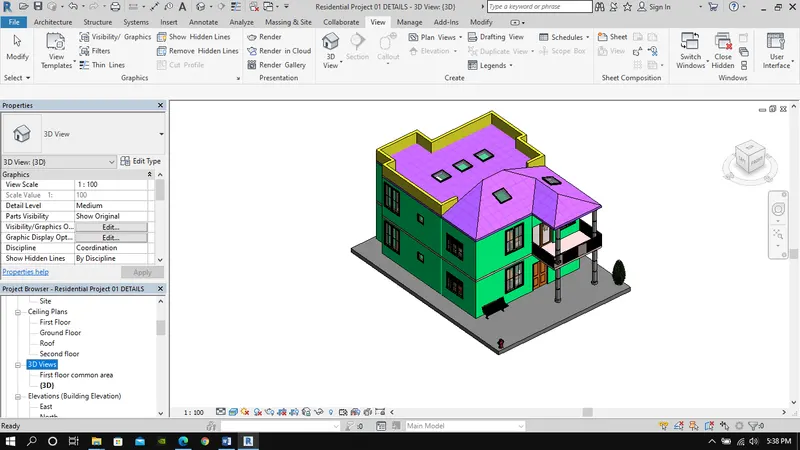

Step 4:) 3D view

Step 5:) Elevations

Step 6:) Sections

Step:7) Doucuments - Sheets & schedules

Result; project browser classifications were reviewed

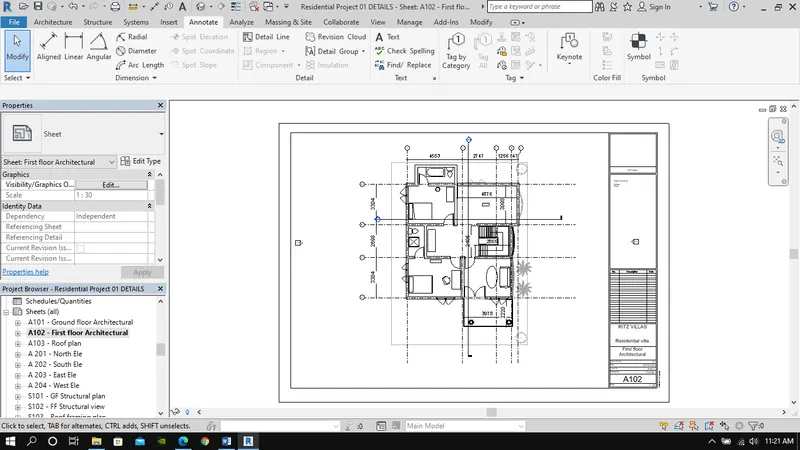

Question:9) Using the sheet template produced create multiple sheets as follows

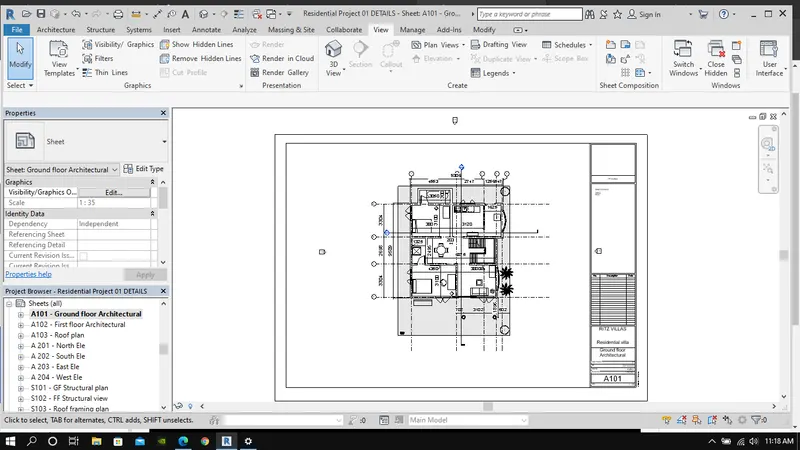

a. A 101- Ground Floor Architecture Plan

b. A 102- First Floor Architecture Plan

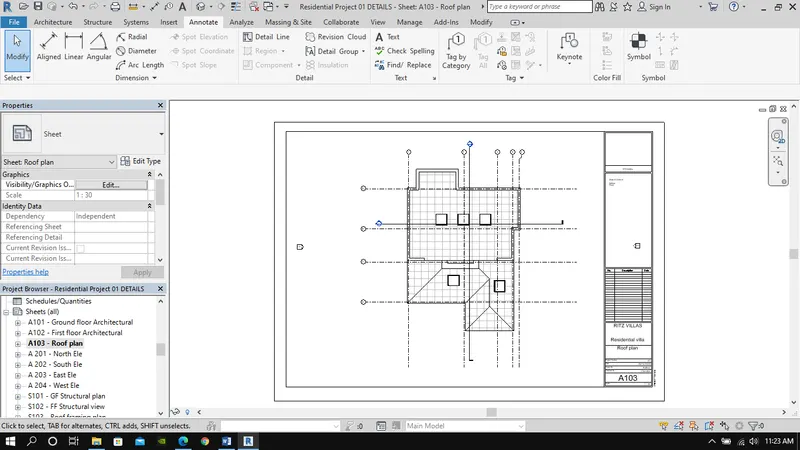

c. A 103- Roof Plan

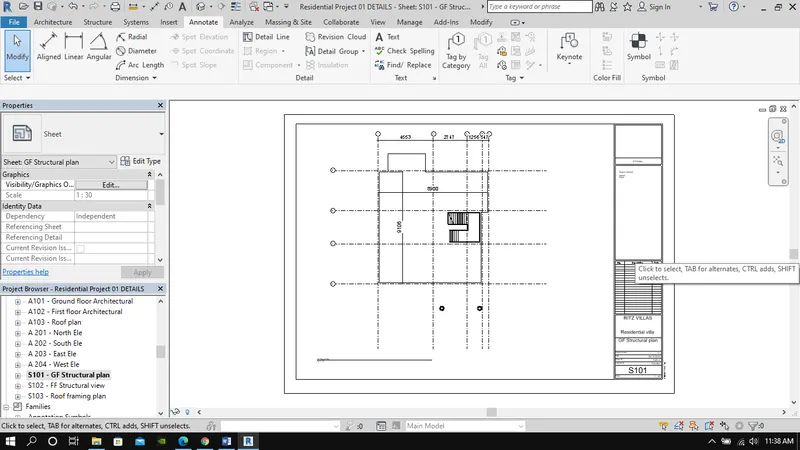

d. S 101- Ground Floor Structural Plan

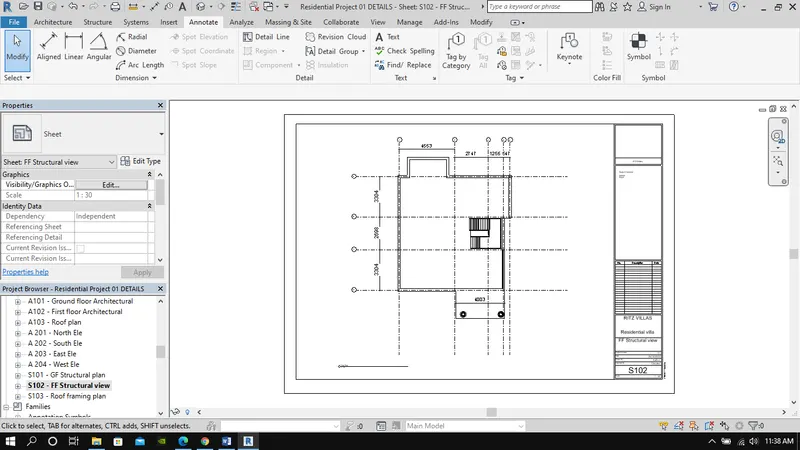

e. S 102- First Floor Structural Plan

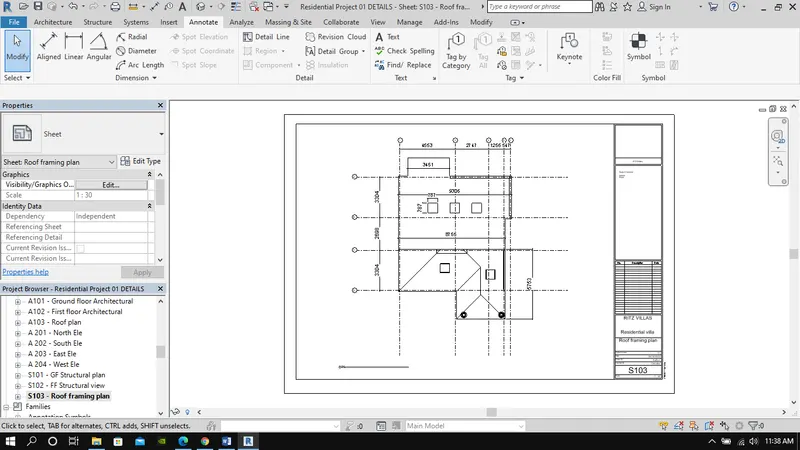

f. S 103- Roof Framing Plan

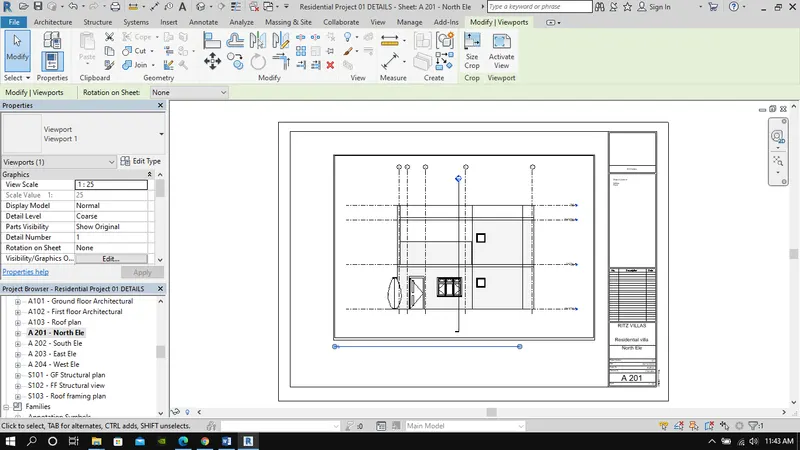

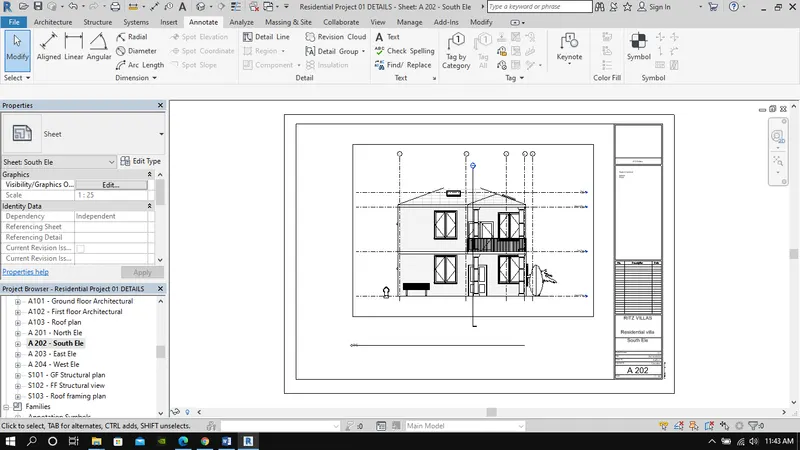

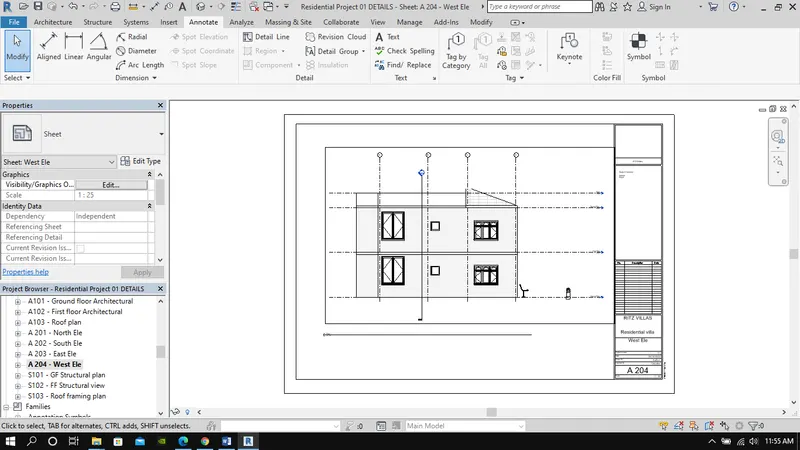

g. A-201- North-South Elevations

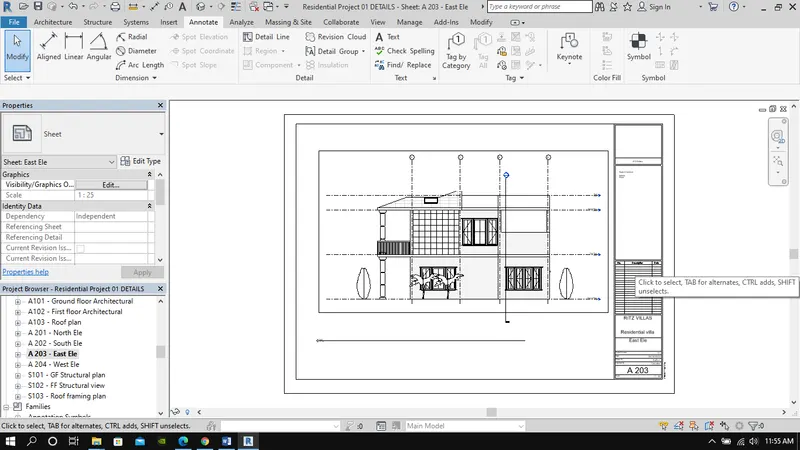

h. A-202- East-West Elevations


Result: Sheet layout for various view are created

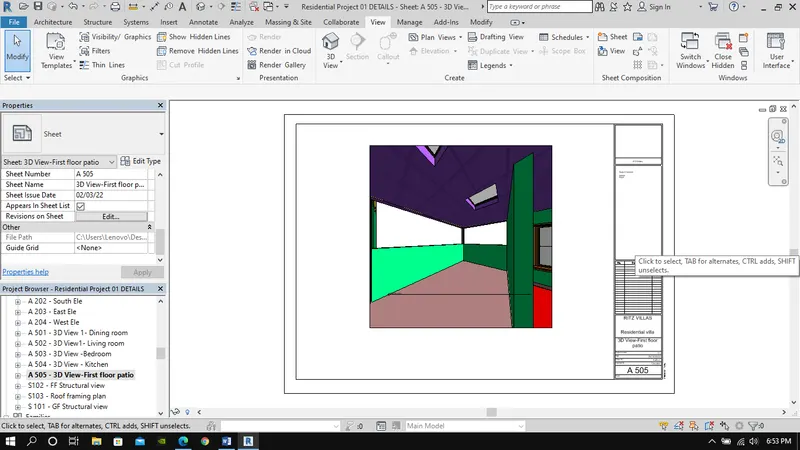

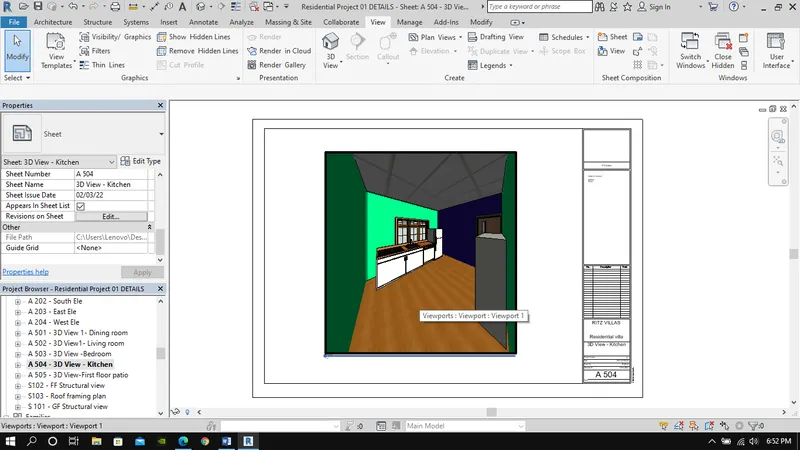

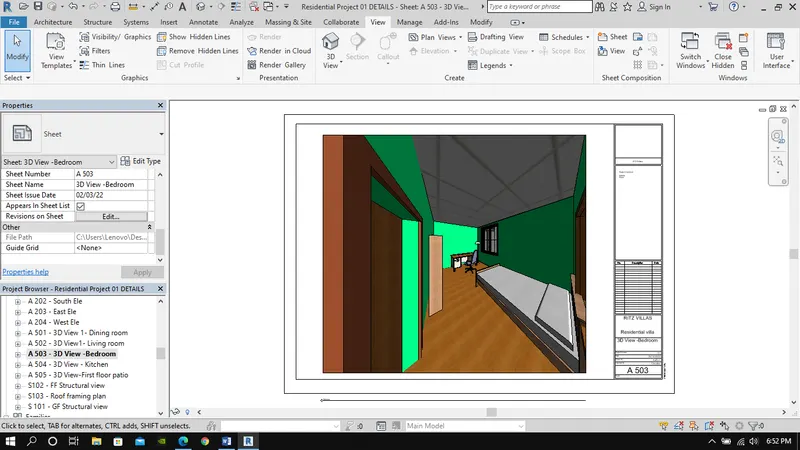

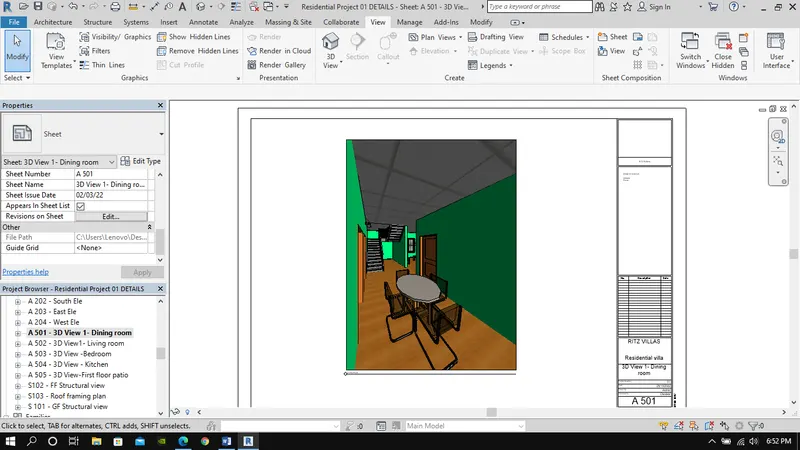

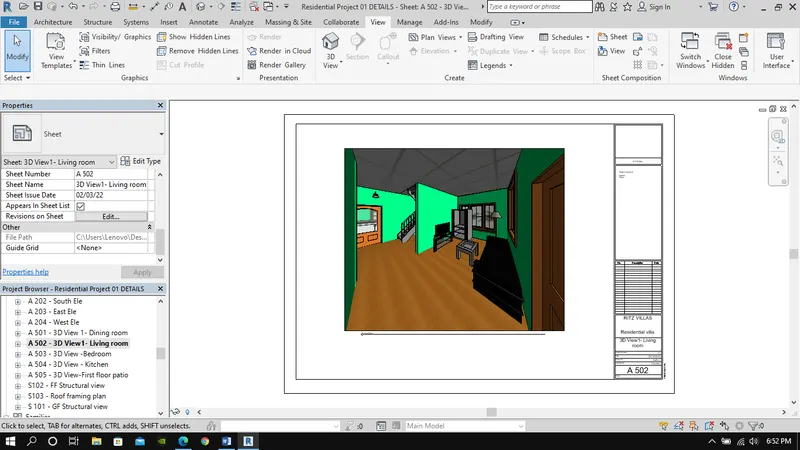

Question:10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Aim: To create 3D view sheets
Step1:) Drag 3D view to sheet created

Step 2;) 3D Views




Result: Sheets created for drafting
