To calculate dead and live load for industrial steel structures and to apply them using TSD

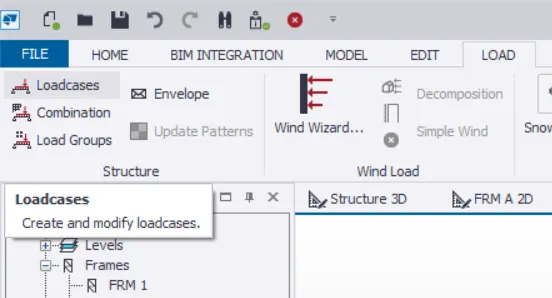

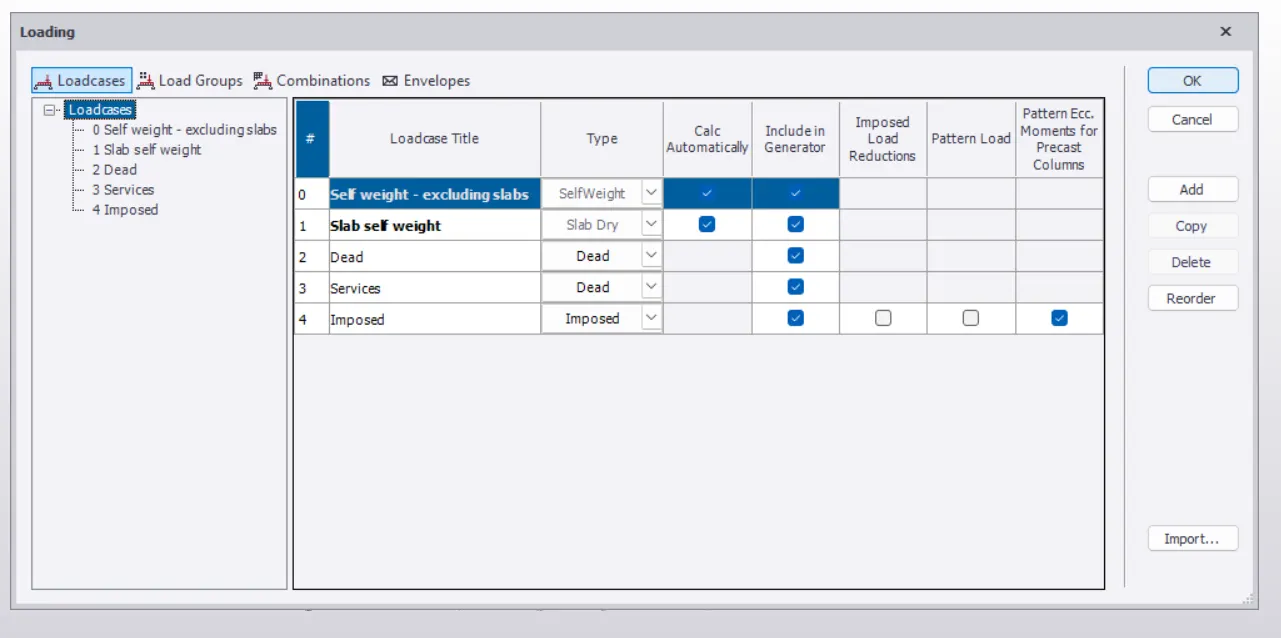

After the entire modelling part,we continue with the application of the loads.We then go to LOAD Tab>Loadcases.

Where we then add the required load cases.

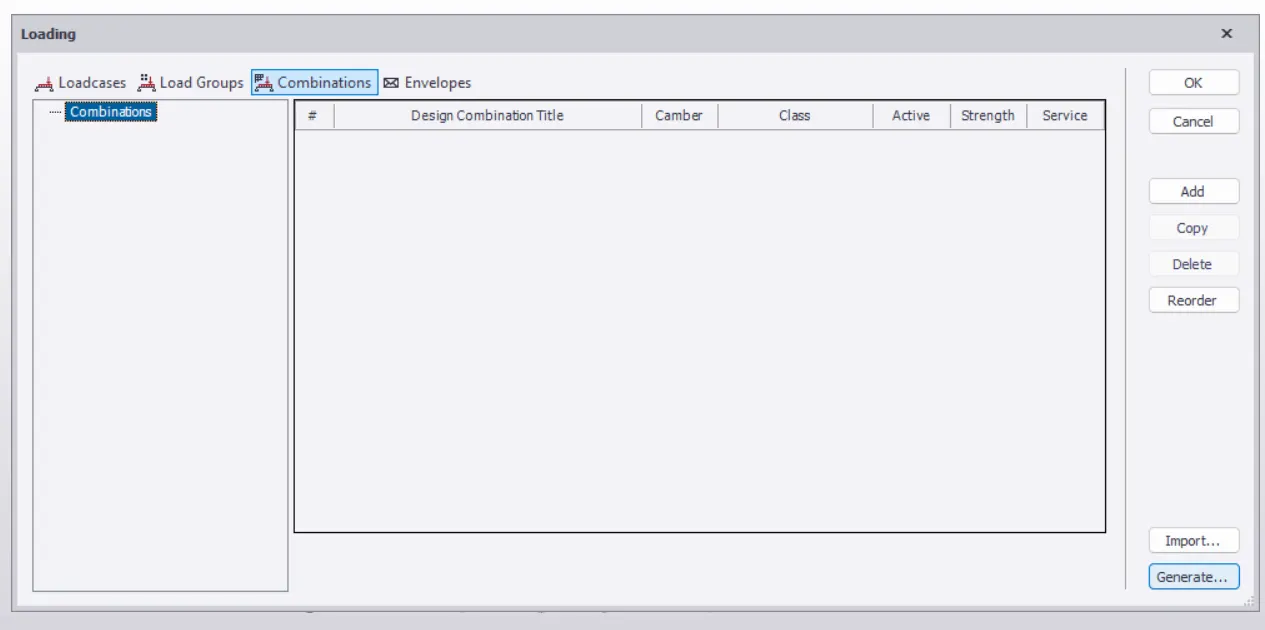

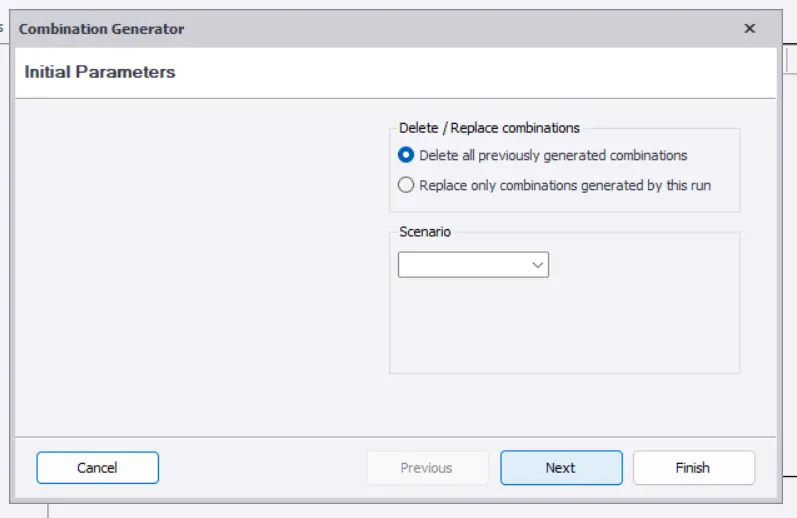

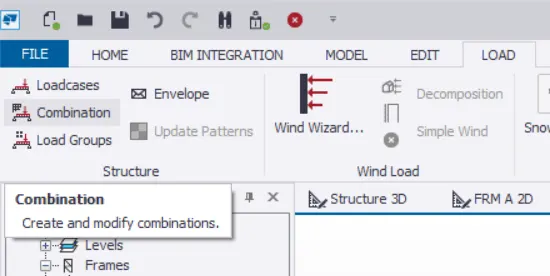

Then,we add the required combinations by LOAD Tab>Combination>Generate...>Delete all previously generated combinations>Next.

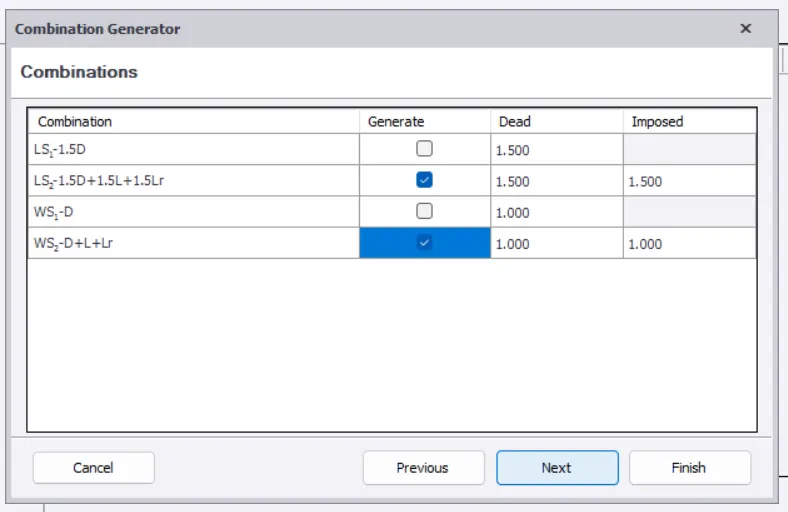

And then we select the required combinations.

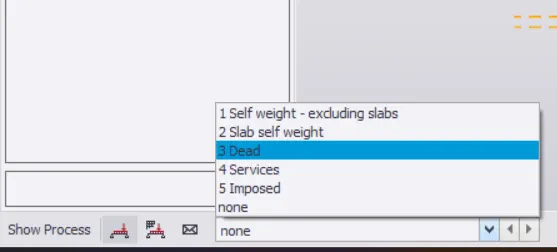

Then,we proceed with the application of the loads created.Where select the required load case under which we apply the loads.

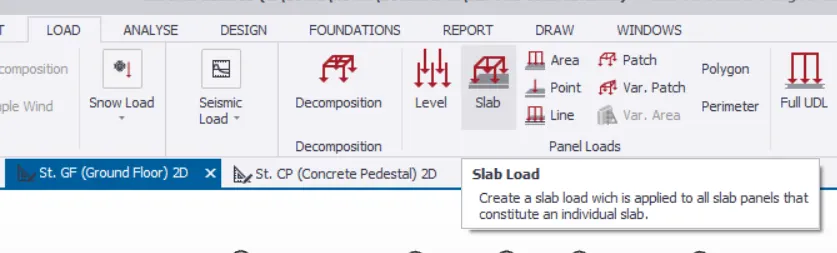

Then,we use the different options available to apply the loads on to the model.

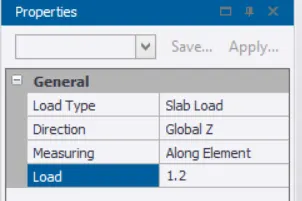

Where after the selection of the relevant tool to apply the load,we give the loading intensity.

In this manner,we apply all the required loads such as the dead loads,live loads,etc.

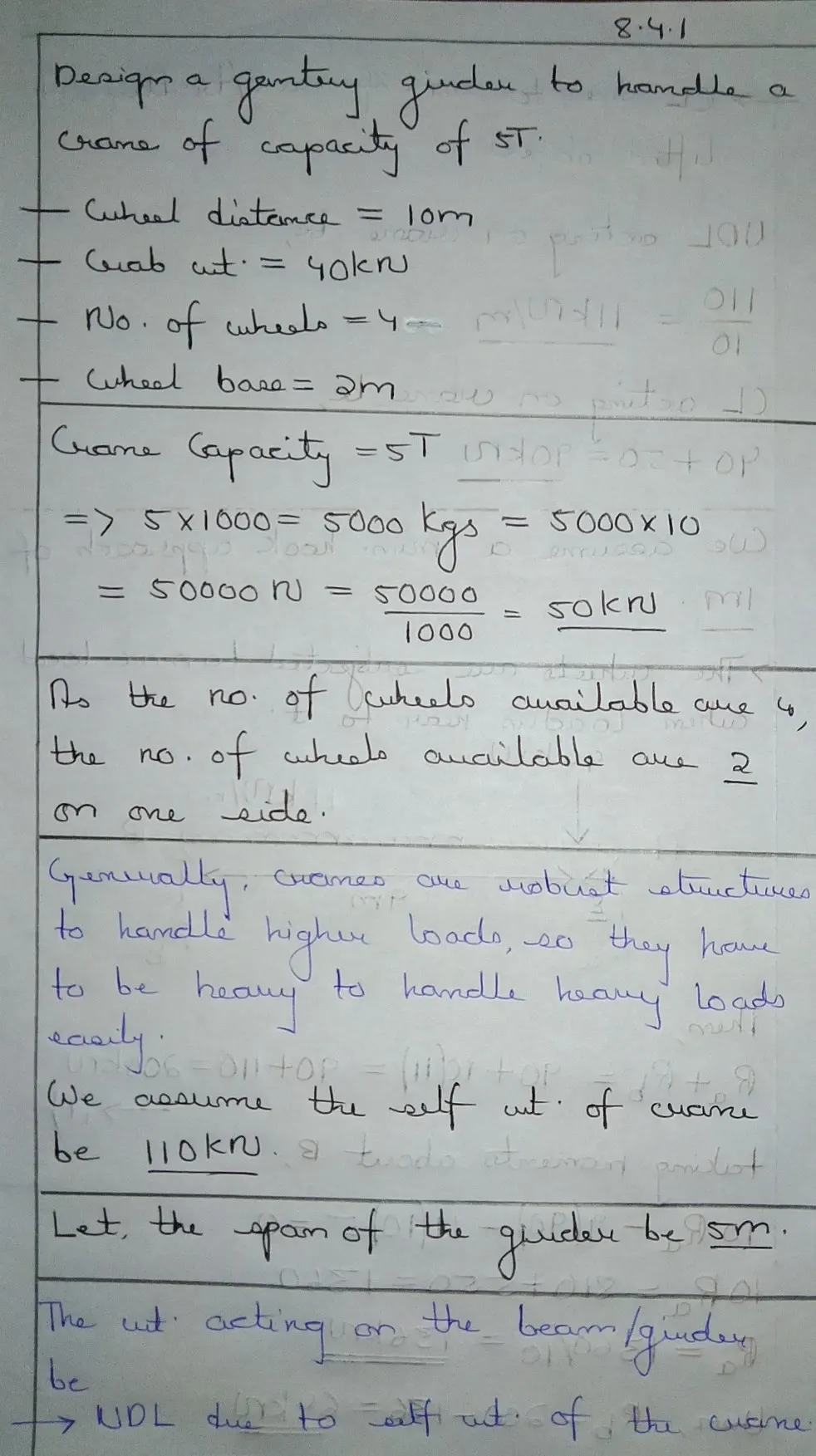

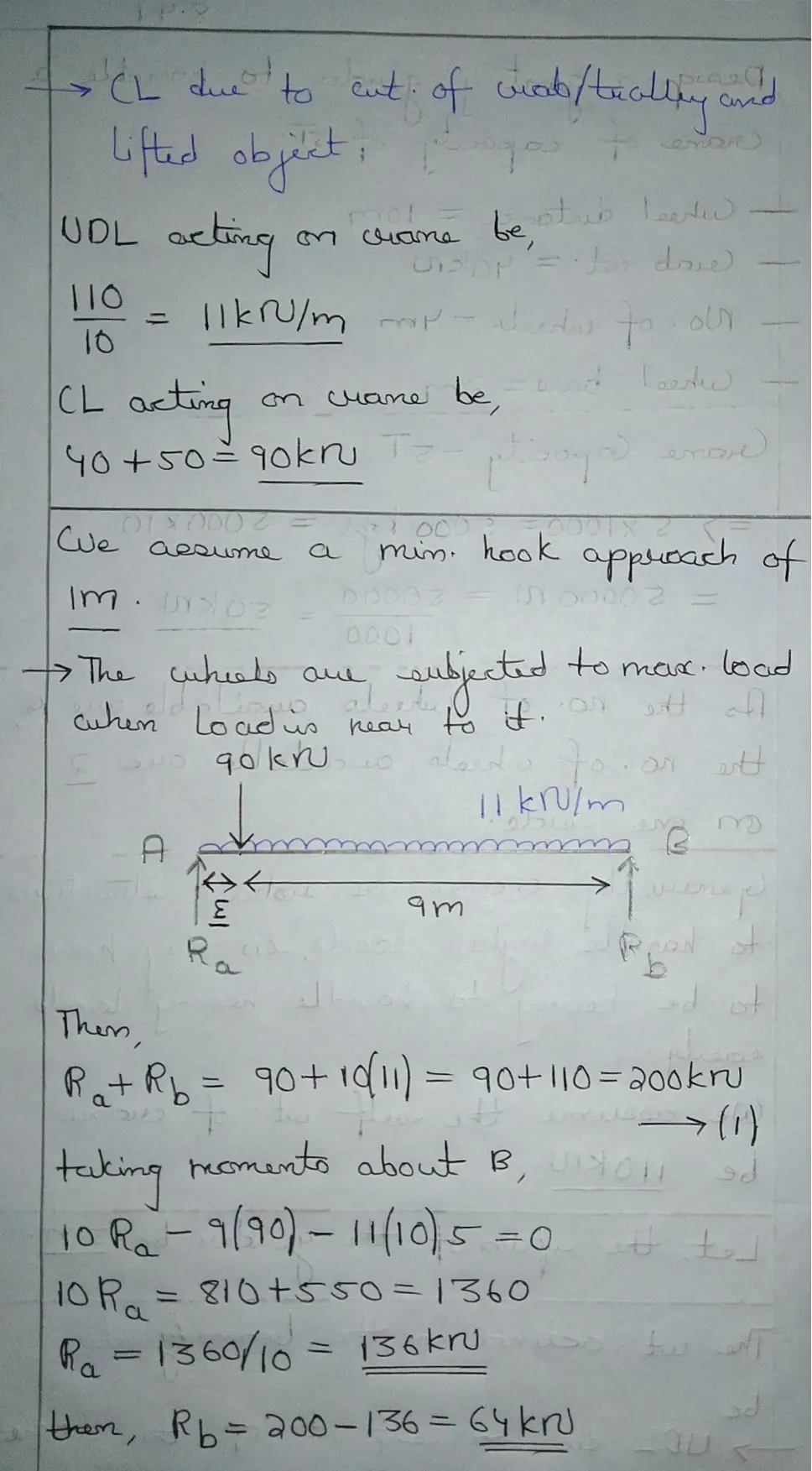

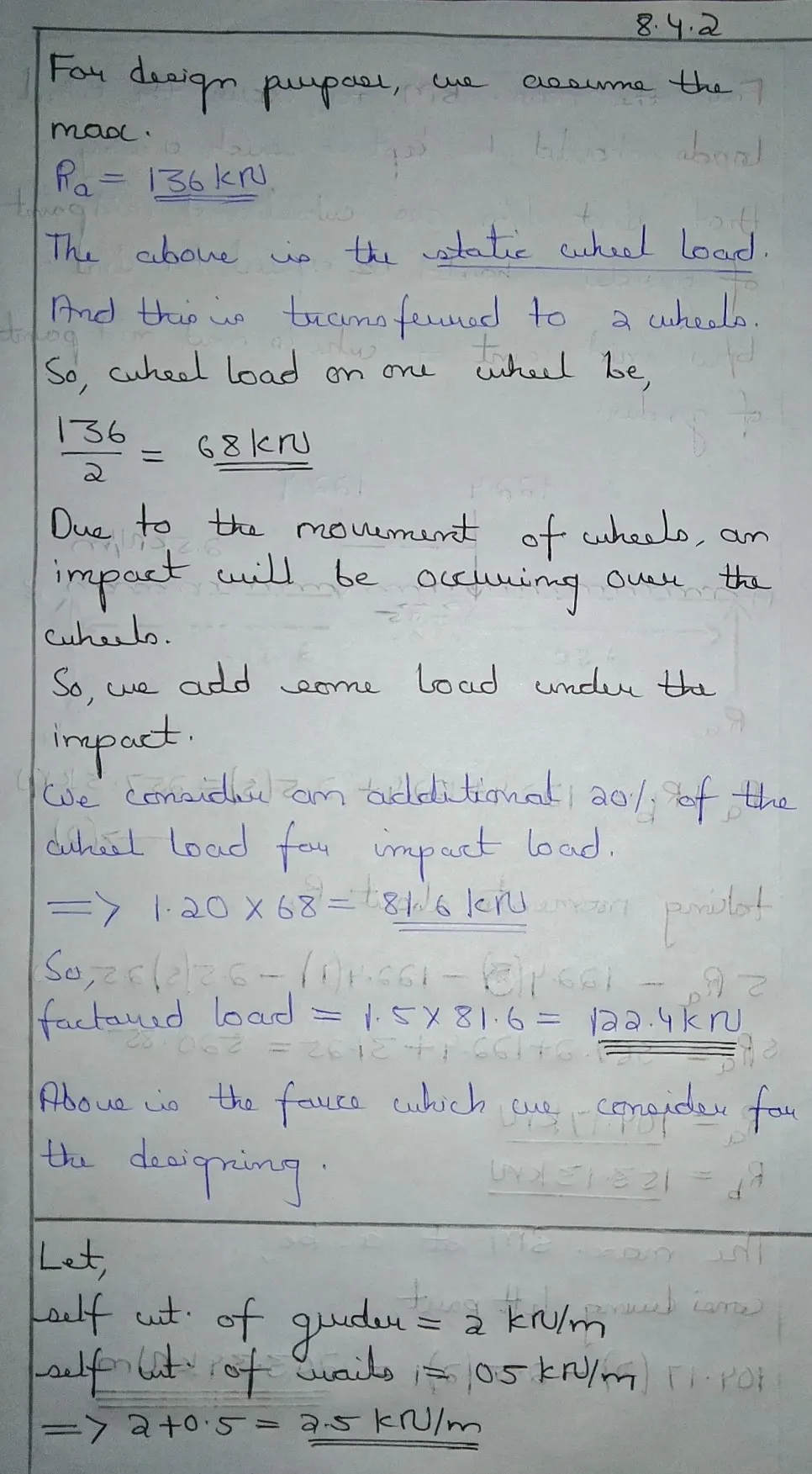

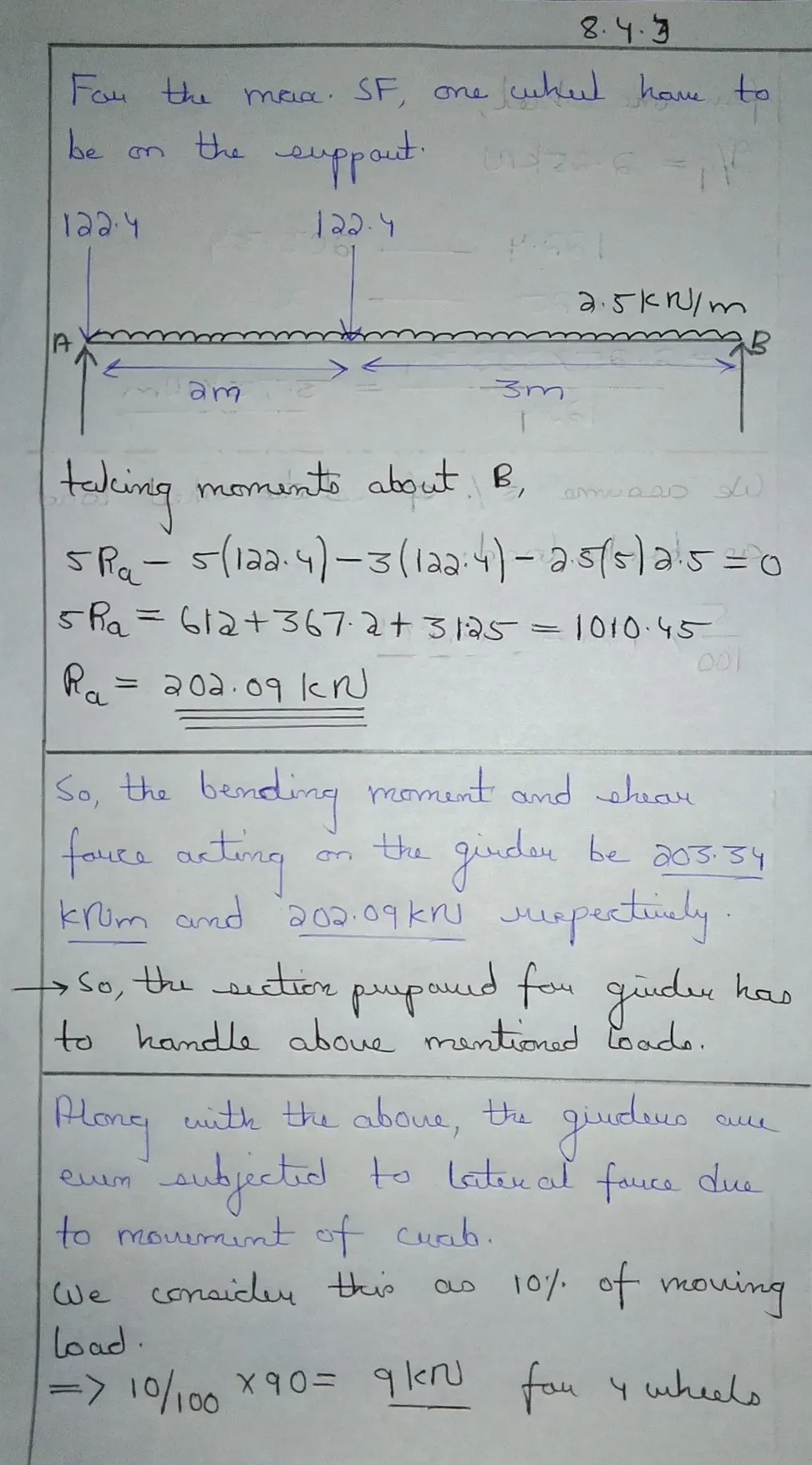

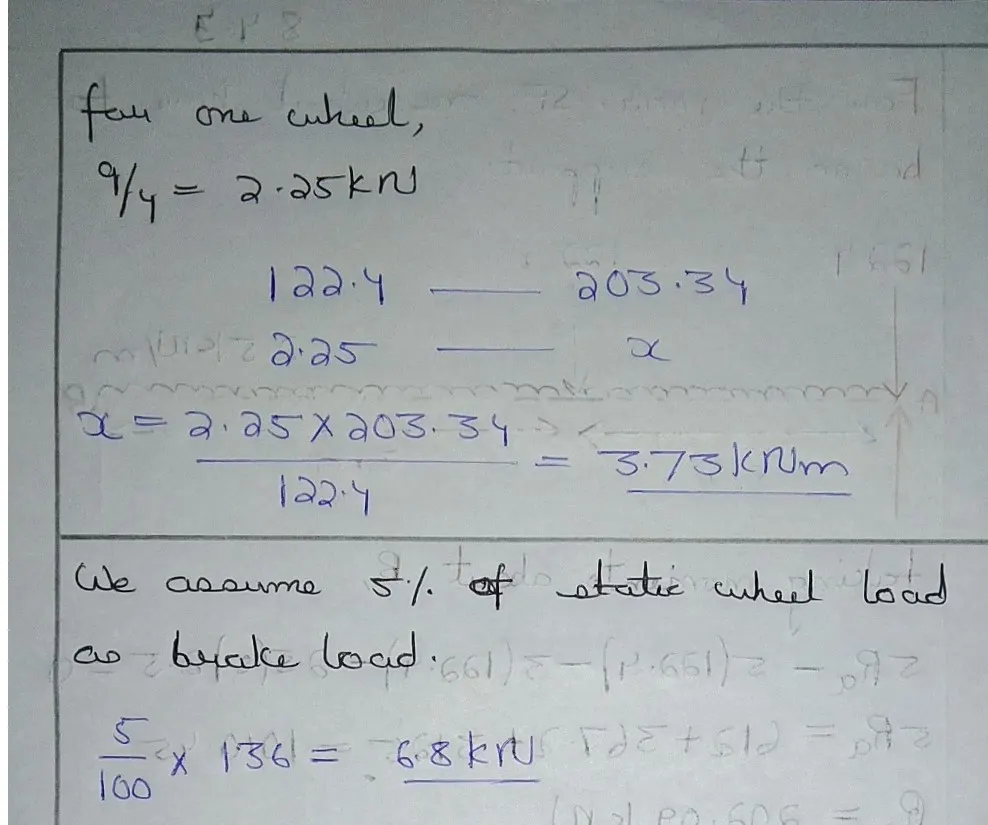

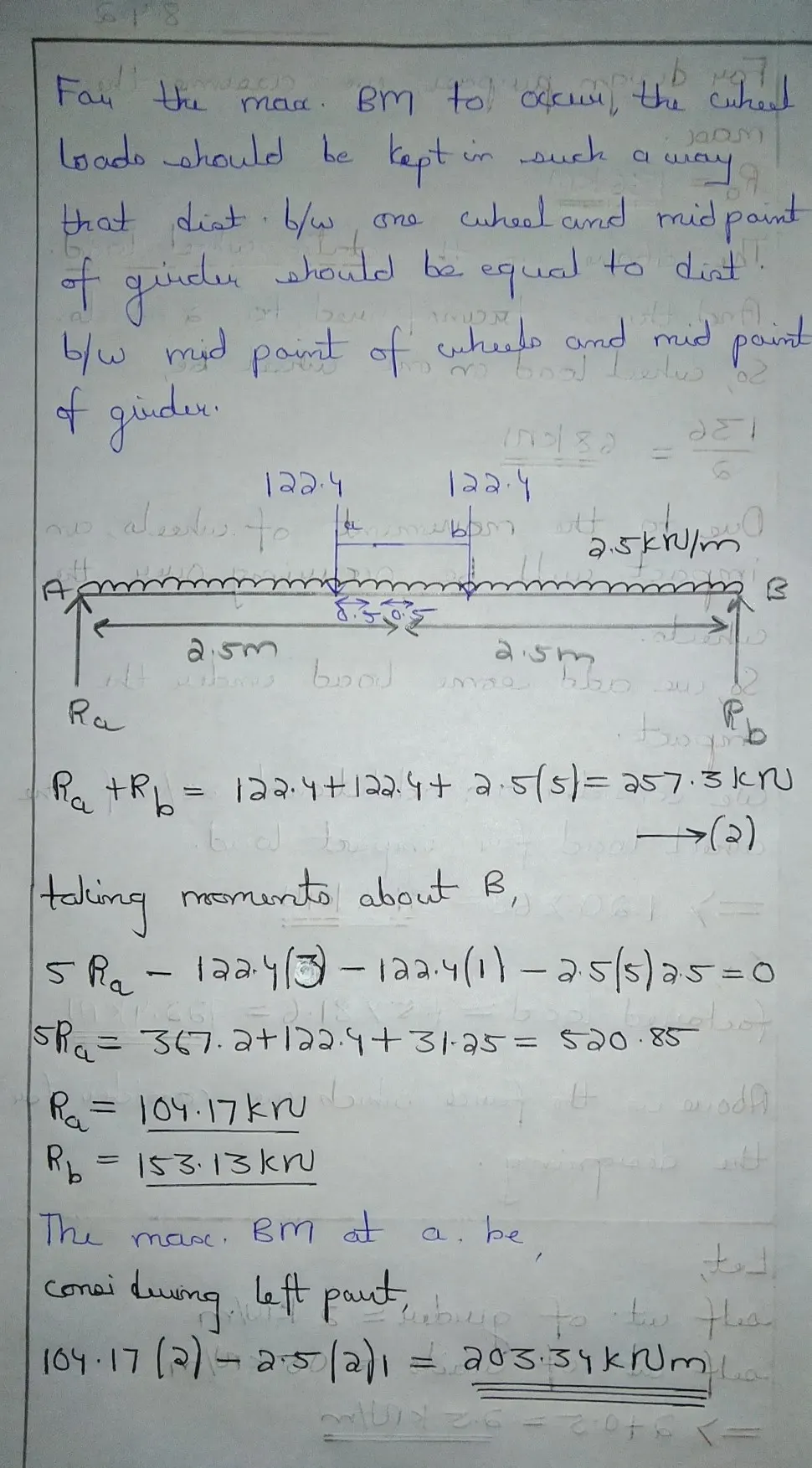

We then design the Gantry Girder.
