Challenge

To calculate dead and live load for industrial steel structures and to apply them using TSD

1)

Aim - 1) Calculate dead load in design report based on IS code and apply dead load on the model

i) Finishes of 50mm

ii) Slab as per design

iii) Brickwall 150mm thickness

iv) Roofing load based on purlin size

v) Ceiling loading 0f 0.3KN per sq m

Introduction -

i) Dead loads comprise the weight of the structure itself as well as things like mechanical equipment, ceiling and floor finishes, cladding,

ii) The dead load is the amount of permanenet weight that a building must support at all times.

iii) The load is usually classified as either dead load or live load.

iv) Dead loads, also known as permanent or static loads, are those that remain relatively constant over time.

Procedure -

Step 1) Dead load calculation

To Calculate dead load in design report based on IS code and apply dead load on the model

i) Finishes of 50mm

ii) Slab as per design

iii) Brick wall 150mm thickness

iv) Roofing load based on purlin size

v) Ceiling loading 0f 0.3KN per sq m

1) DEAD LOADS

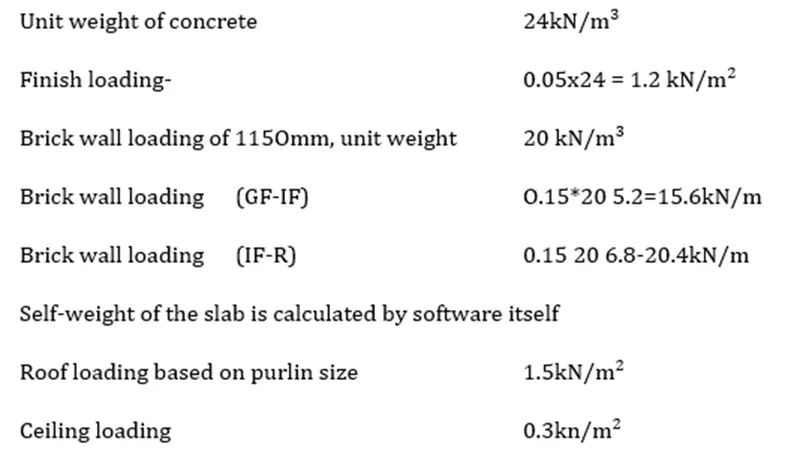

i) Initially based on IS 875 part I, all the dead loads in the steel structure were calculated as follows

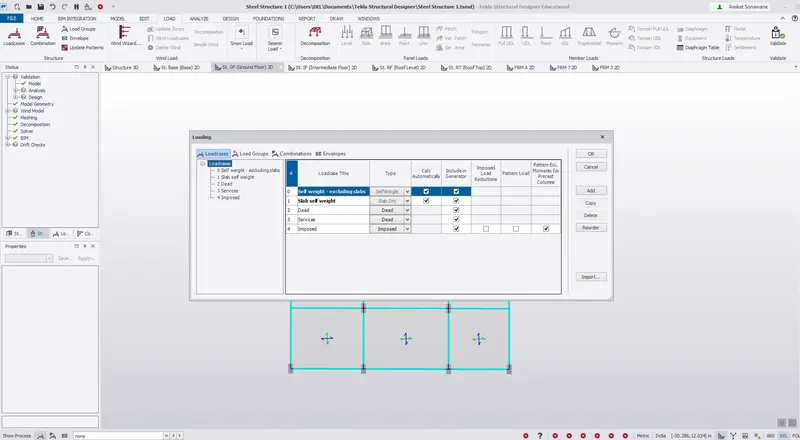

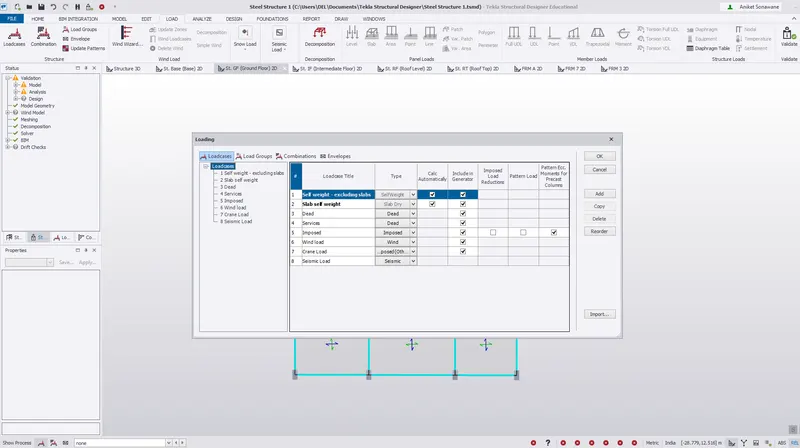

ii) The Load tab click on load cases option at the top left corner to open the loading dialogue box.

iii) Now add new loadings like wind load , crane load and seismic loads click on Okay.

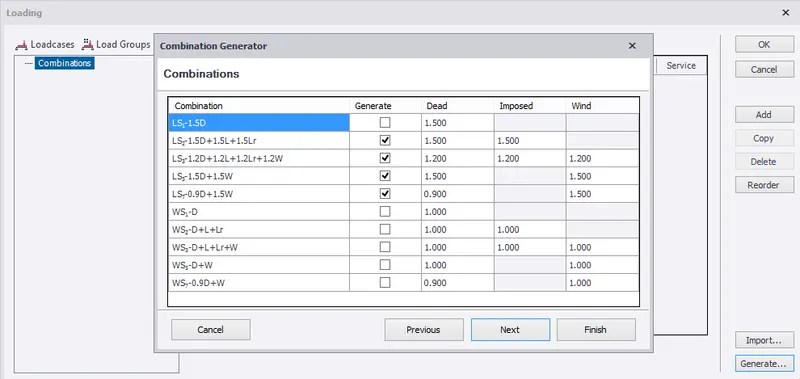

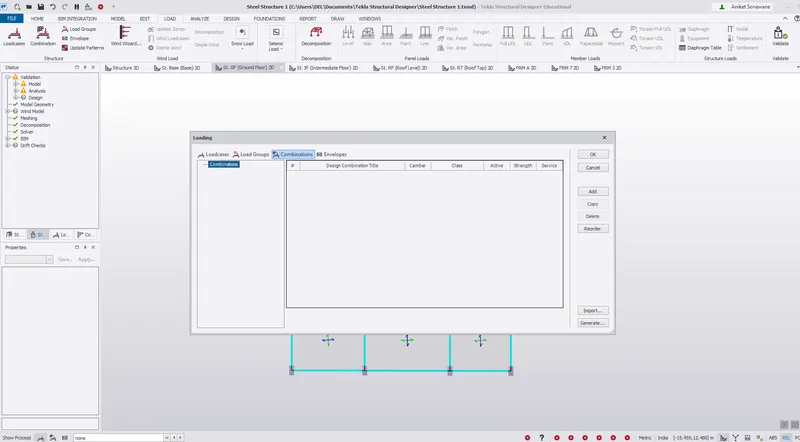

iv) Now in loading tab click on combinations tab and to generate load combinations click on generate option below.

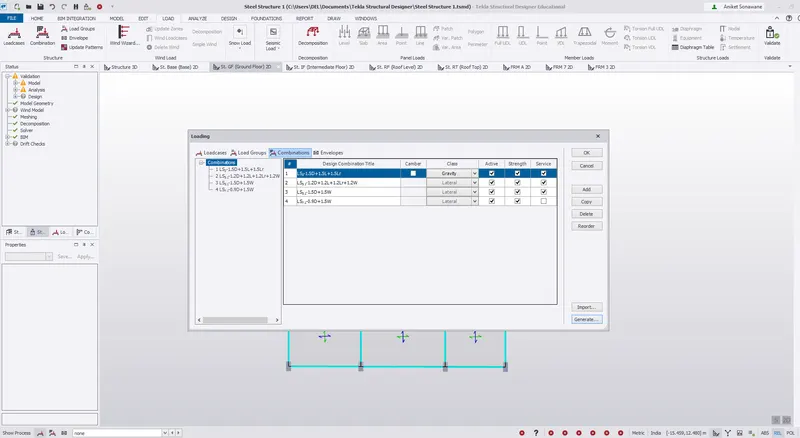

v) The load combinations will be generated as shown and we can further add and delete combinations as required.

Step 2) Application of Dead load

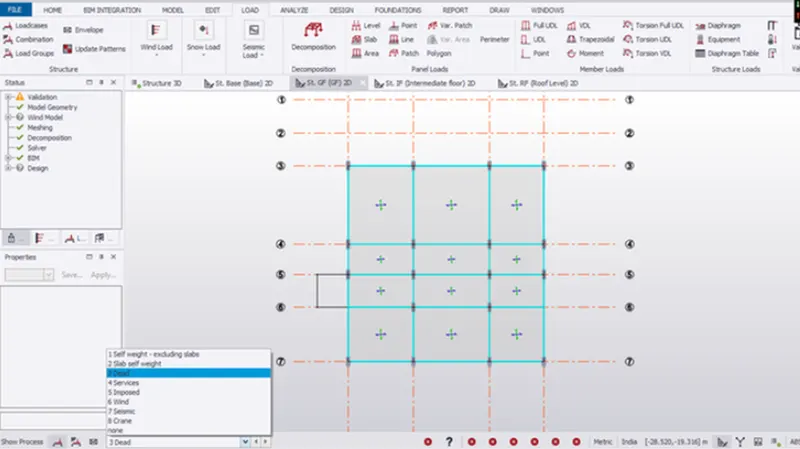

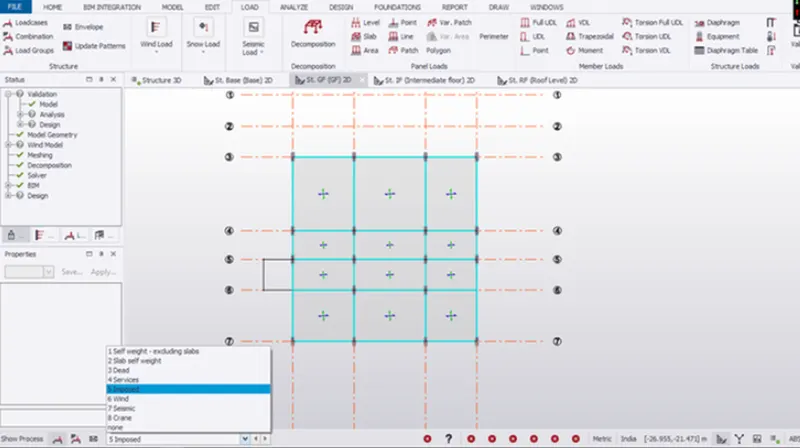

i) Select the dead loads option from the drop-down list as shown.

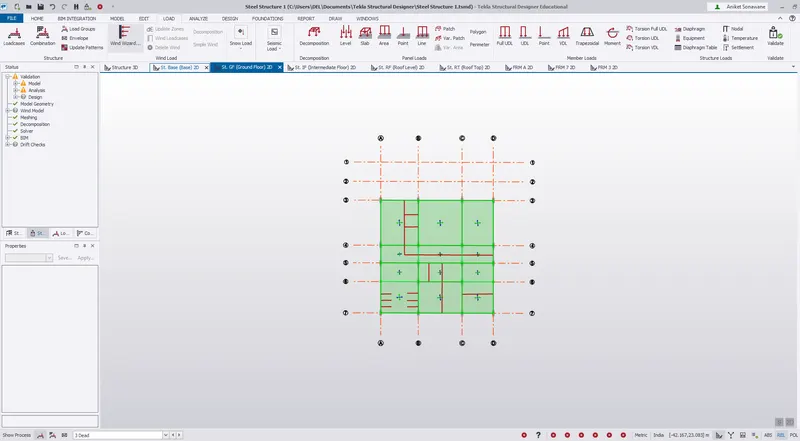

ii) Open a ground floor plan

iii) In the Loading list, select an a Dead Load

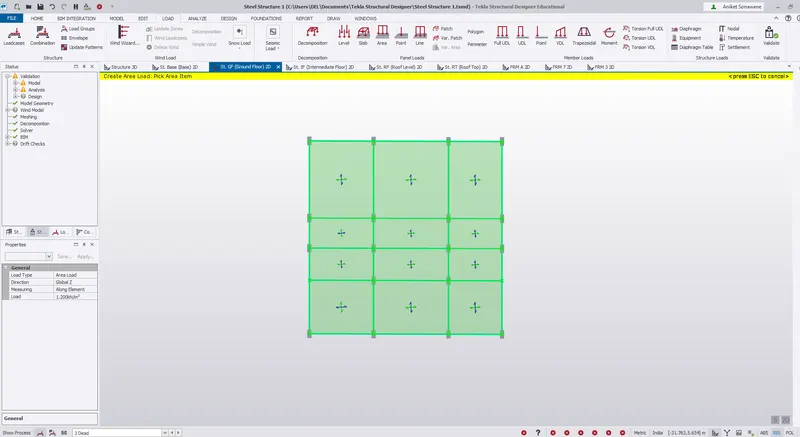

iv) On the Load tab, click Area Load.

v) In the Properties window insert the value as 1.2 Kn/m^2

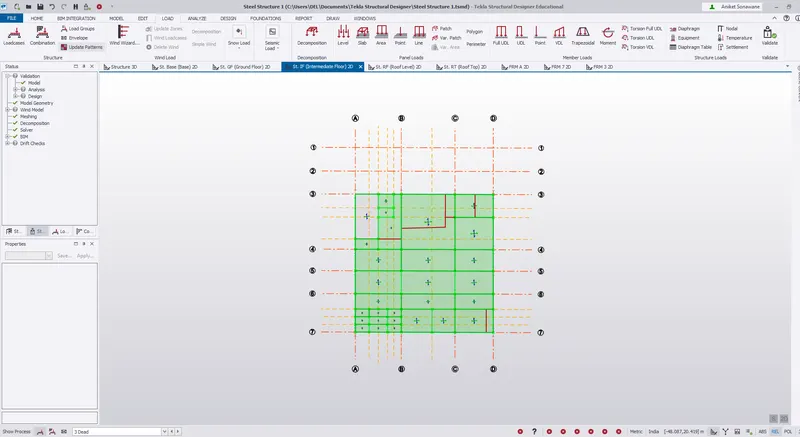

vii) Now Intermediate floor/ First floor - similalrly follw the same procedure ( Except the Staircase area)

viii) Roof level -

ix) Now Validate the model to check any error

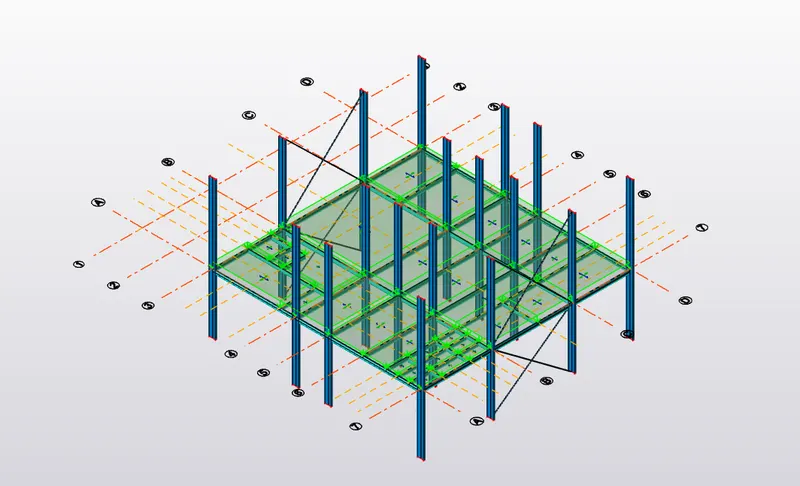

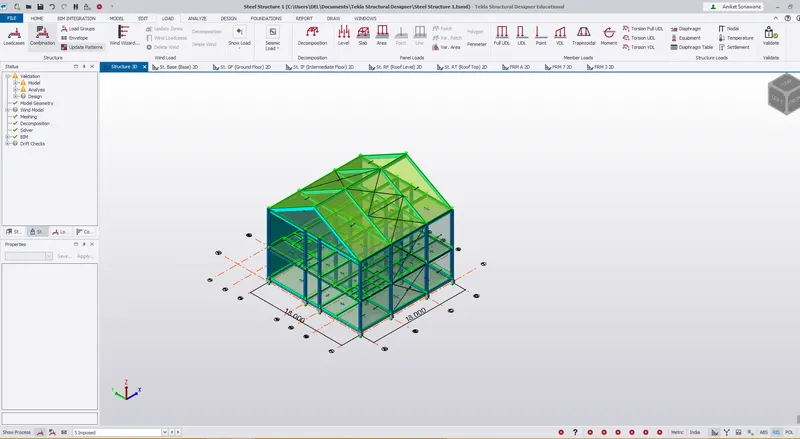

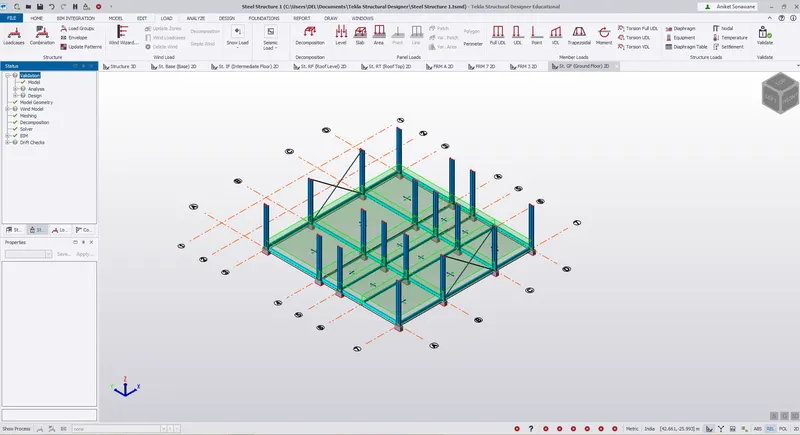

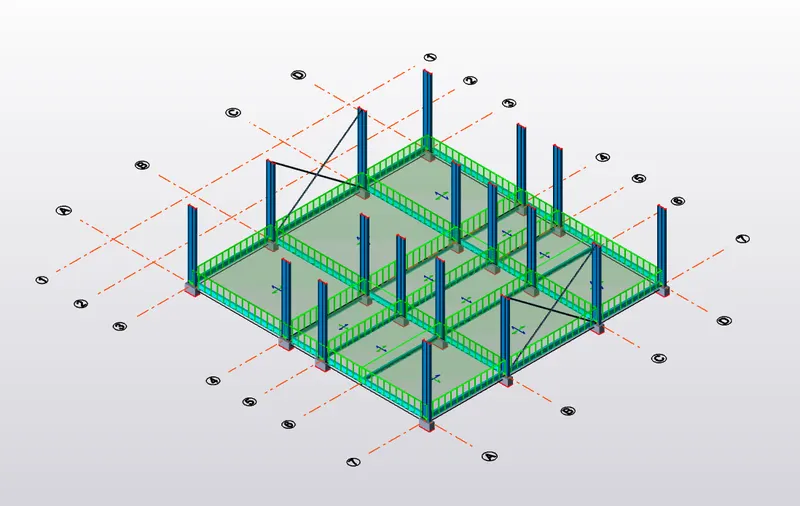

3D view of Dead load

Step 3) Application of Brick wall load

i) Open a ground floor level within which you want to apply thebrick wall load

ii) In the Loading list, select an Dead load case

iii) On the Load tab, click Full UDL. ( Brick wall comes under UDL loading)

iv) In the Properties window,insert the load value 15.6 kN/m upto 1st floor

v) Click the beams to which we want to apply the load.

vi) Now for the partition brick wall , Line Load option there

vii) Open a ground floor level

viii) In the Loading list, select Dead load

ix) On the Load tab, click Line load option.

x) In the Properties window,insert the load value as 15.6 kN/m

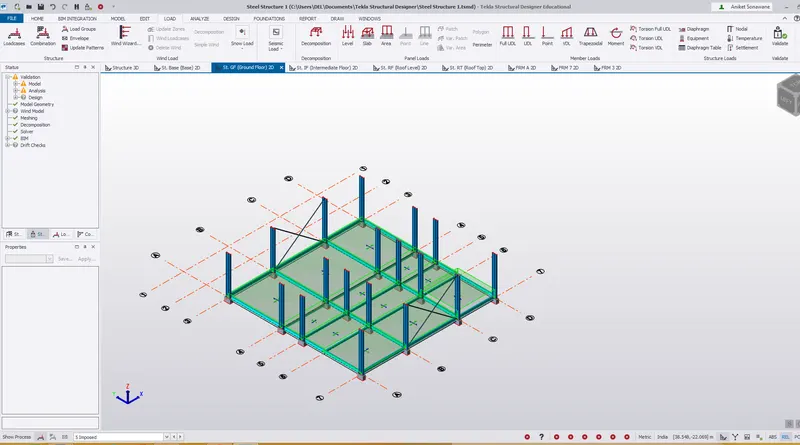

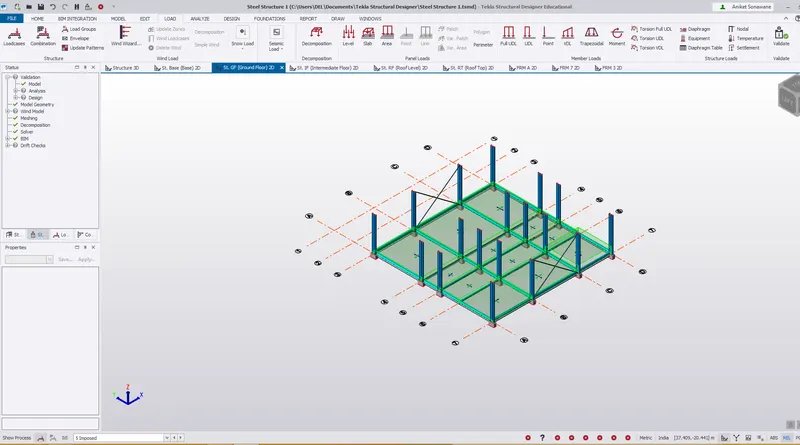

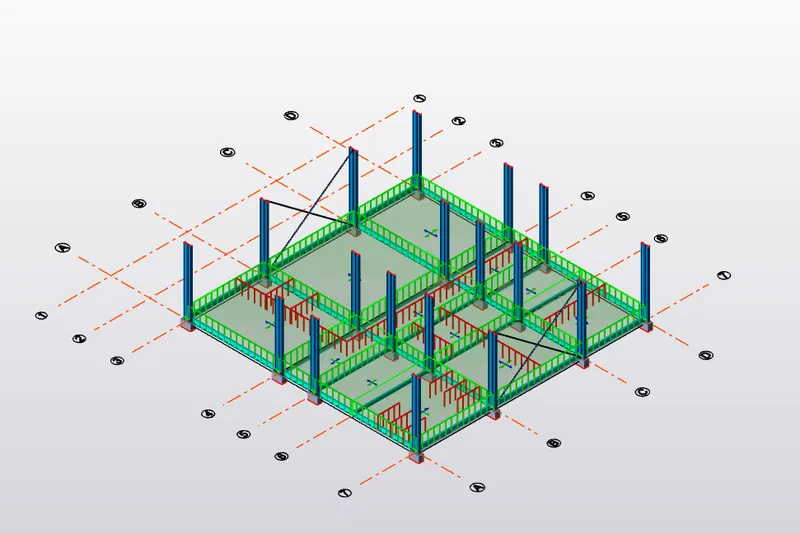

xii) 3D view of the Ground floor

xiii)Follow the same procedure for first to Roof level.

xiv) Insert the load value as 20.4 Kn/m

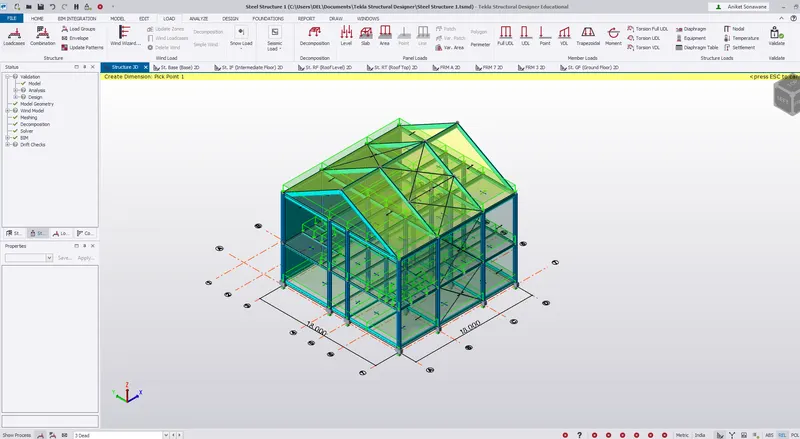

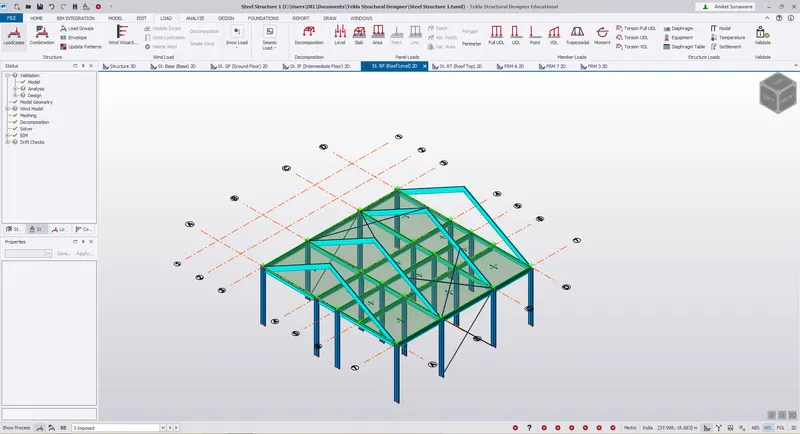

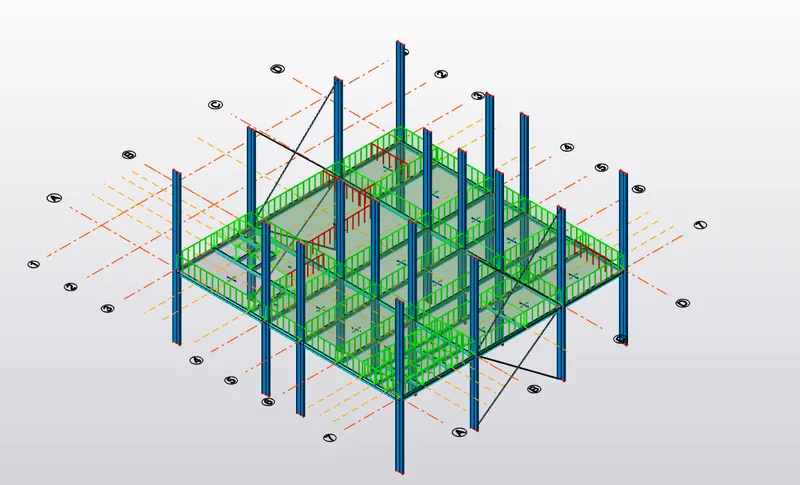

3D view of the first floor

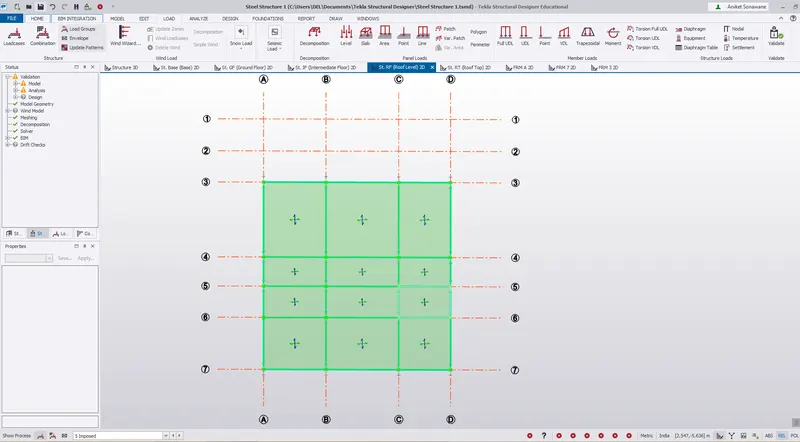

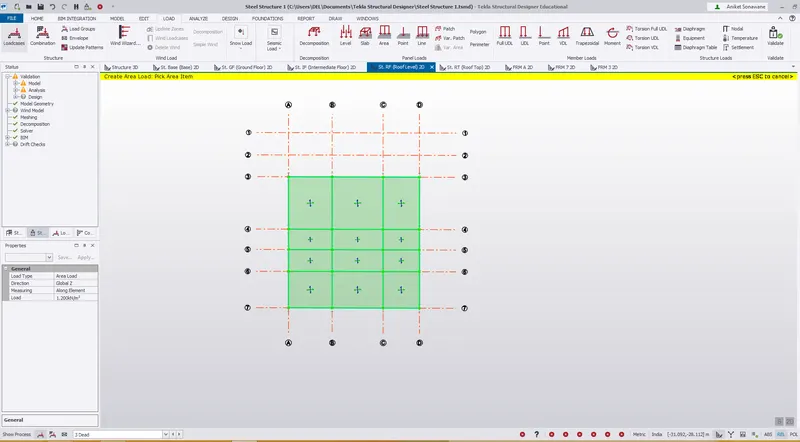

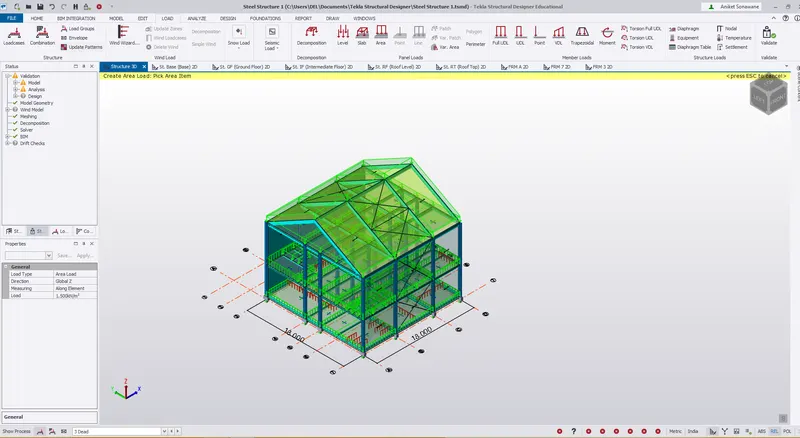

xv) Next the roof load was applied

xvi) On the Load tab, click Area Load.

xvii) In the Properties window, adjust the load details according to your needs 1.5 kN/m^2

xviii) Click the roof panel

xix) Check the model to see if any error

Result - Dead load is calculated and applied on model successfully

2)

Aim - To Calculate live load in design report based on IS code and apply live load on the model

i) Assume the loading based on IS 875

ii) Roof loading

iii) Consider equipment loading as 5KN per sq m

Procedure -

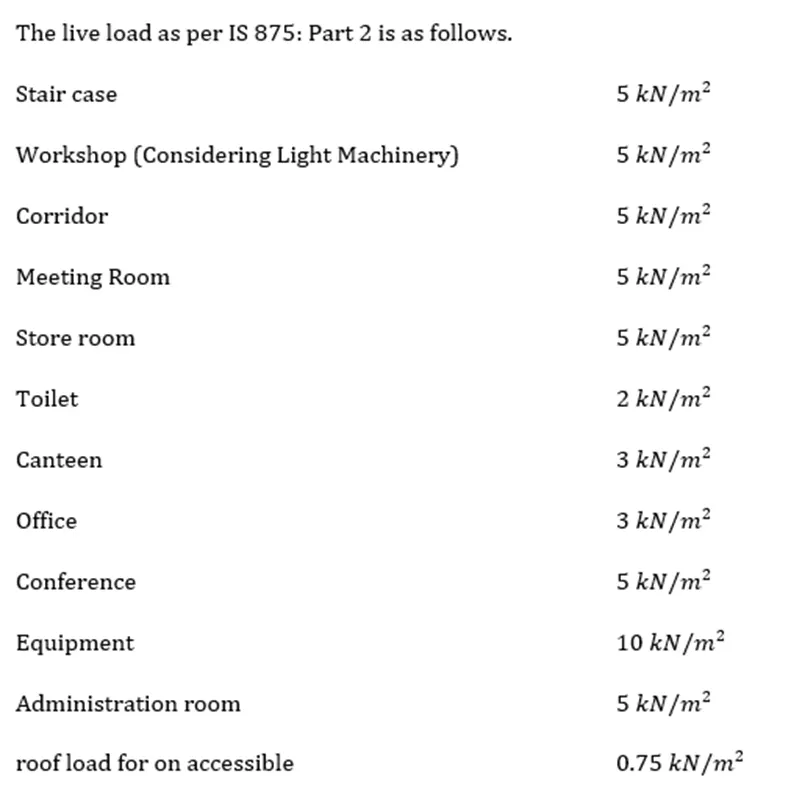

Step 1) Live load as per IS 875 part 2

ii) In the drop-down list select imposed as load case

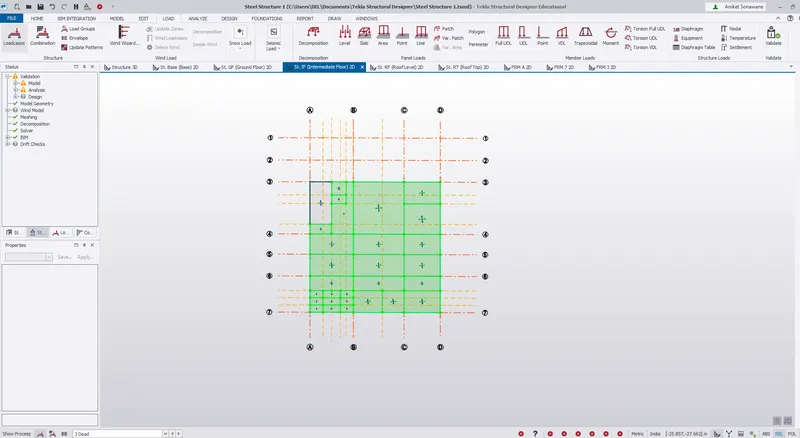

iii) Open a ground floor level

iv) In the Loading tab, select an Imposed loa case

v) On the Load tab, click on Area Load.

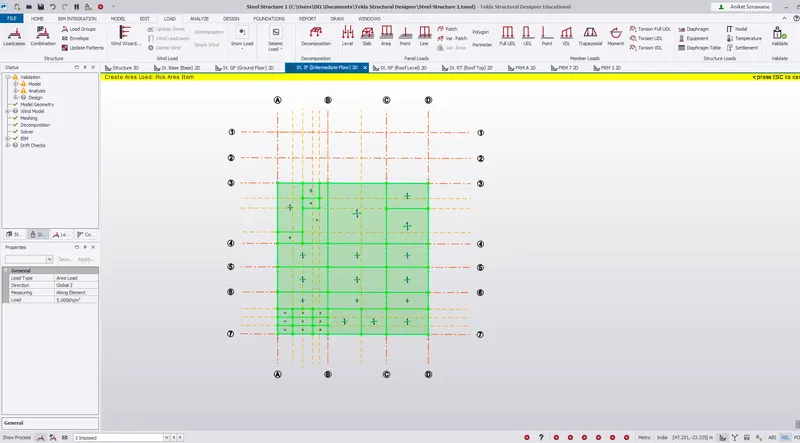

vi) In the Properties window, insert the loading value according to functionality of rooms

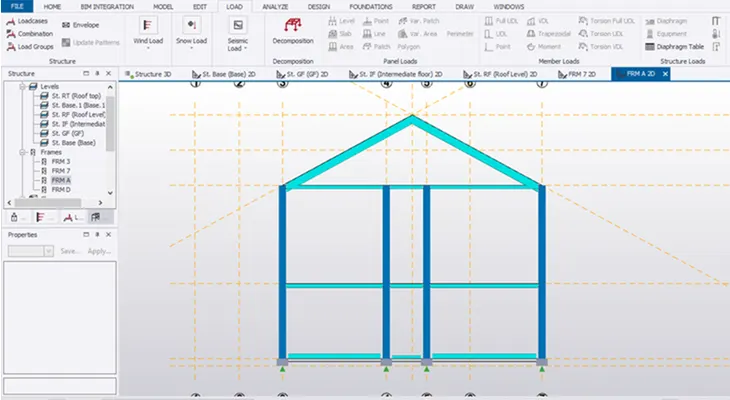

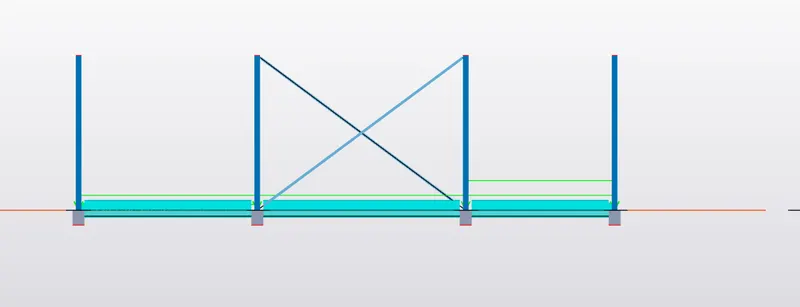

vii) Click on Front view to see the loading intensity difference

vii) Check the model

viii) Follow the same procedure for first floor and Roof level also

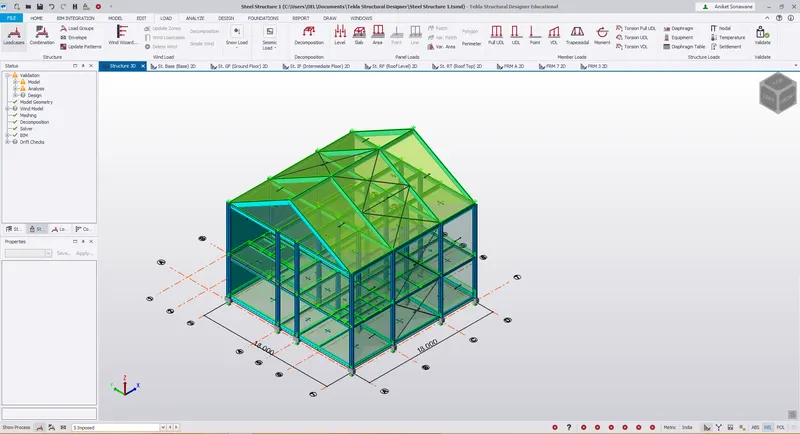

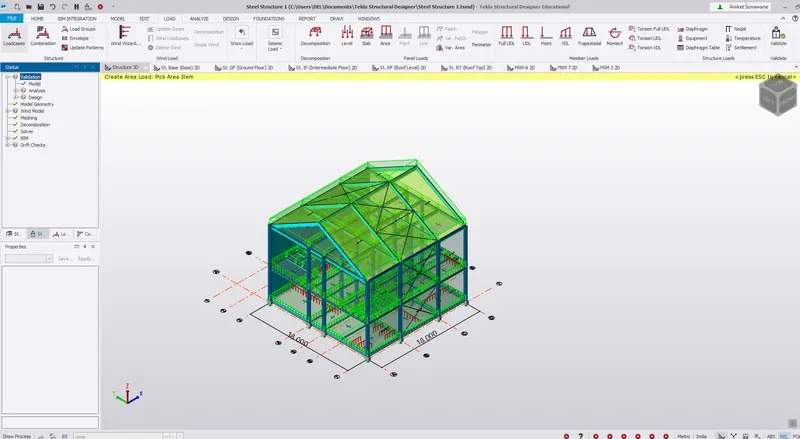

3D view

ix) Similarly live loads, the loads were applied on roof level.

x) As the roof level doesn’t carry much load only .75kN/m^2 is applied for all rooms.

xi) Validate the model to check for any errors

xii) Now we have to apply live loads of the roof. As the slope of roof is greater than 10 degree a load of 0.750kN/m^2 was applied.

Result

i) Live load is calculated as per IS 875 part 2 and applied on model successfully

3)

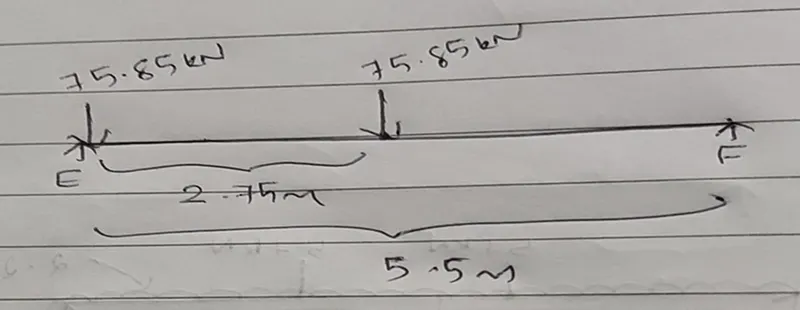

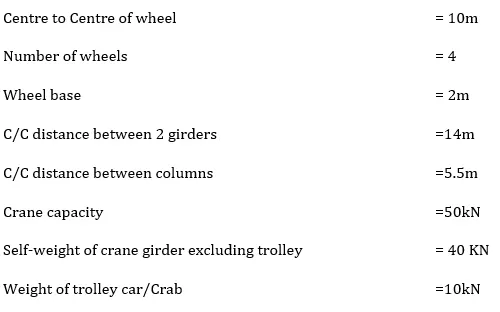

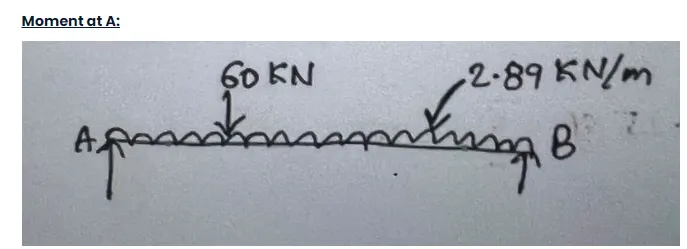

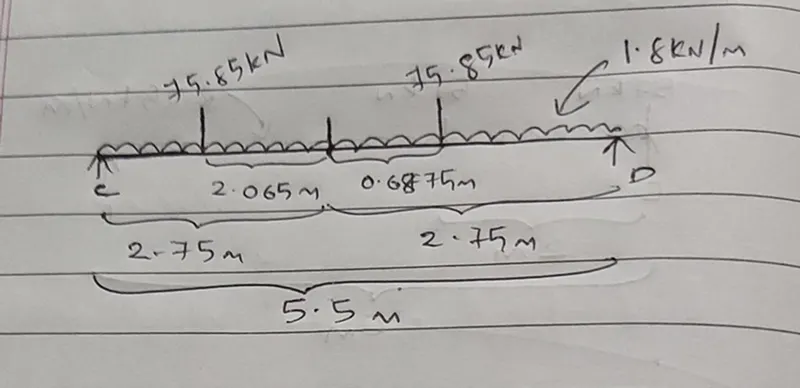

Aim - To generate a calculation for 5T crane loading based on following inputs

i) Centre to Centre of wheel = 10m

ii) Weight of crab = 40 KN

iii) Number of wheels = 4

iv) Wheel base = 2m

Procedure -

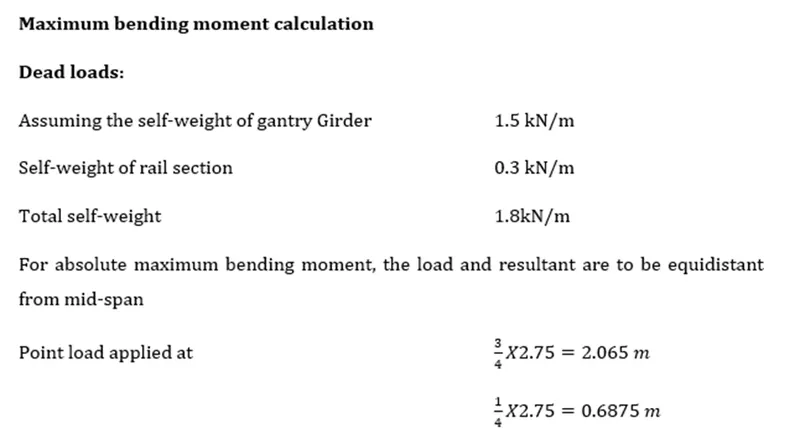

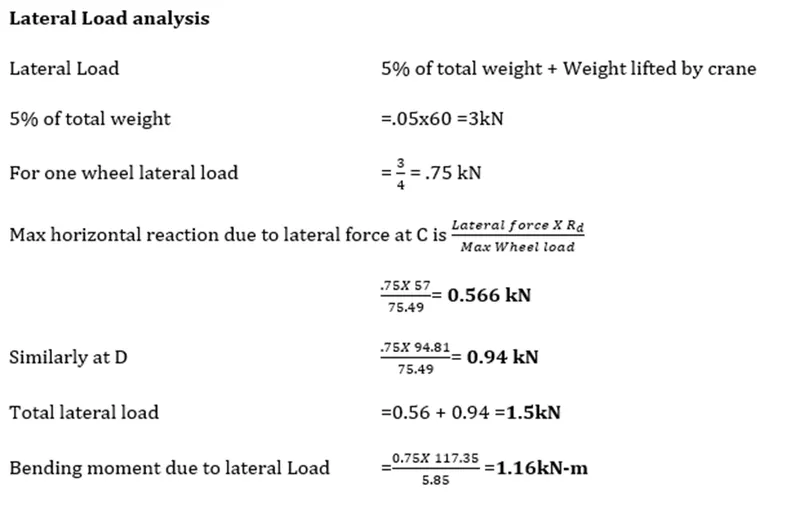

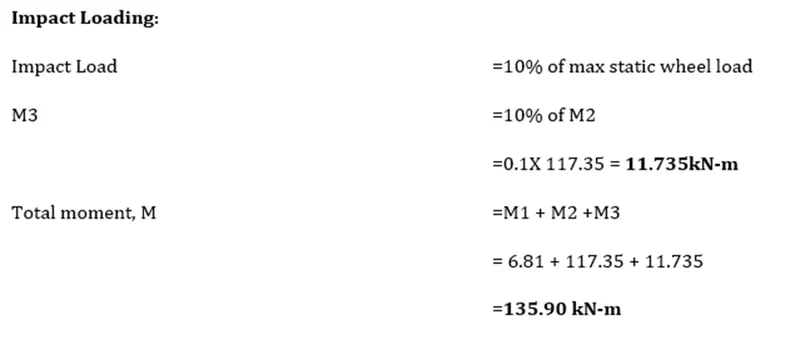

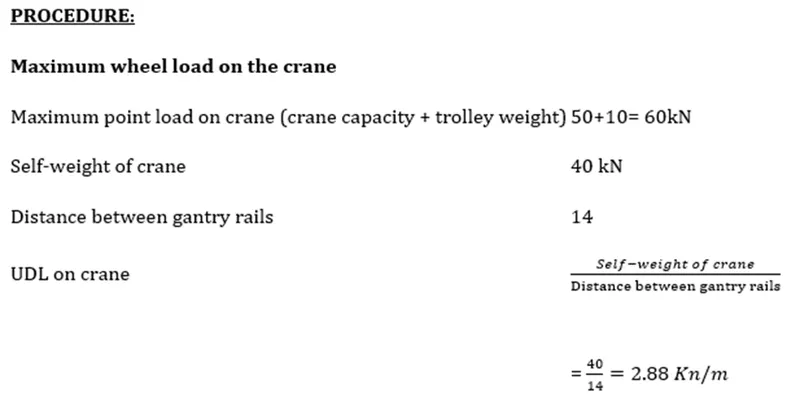

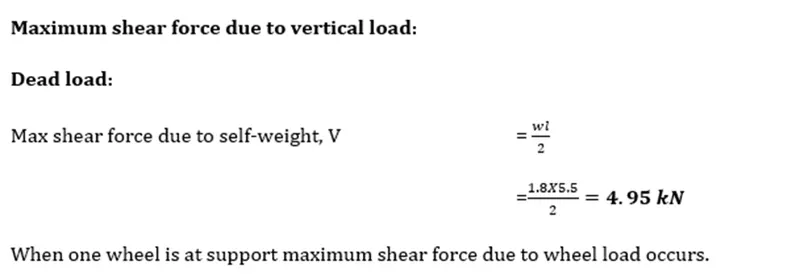

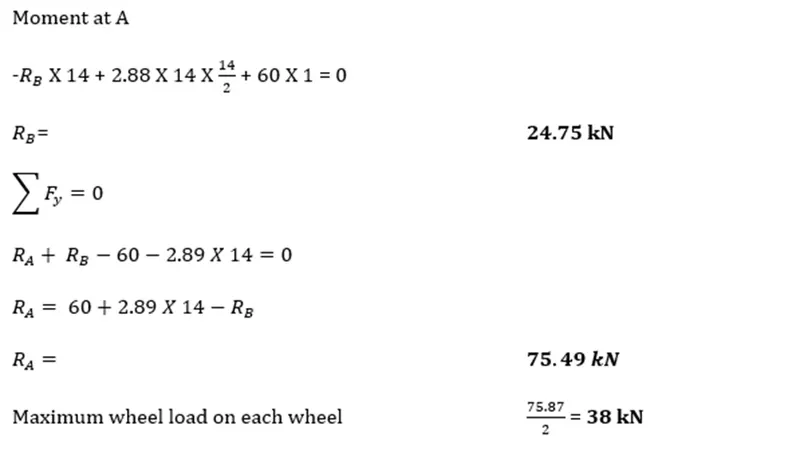

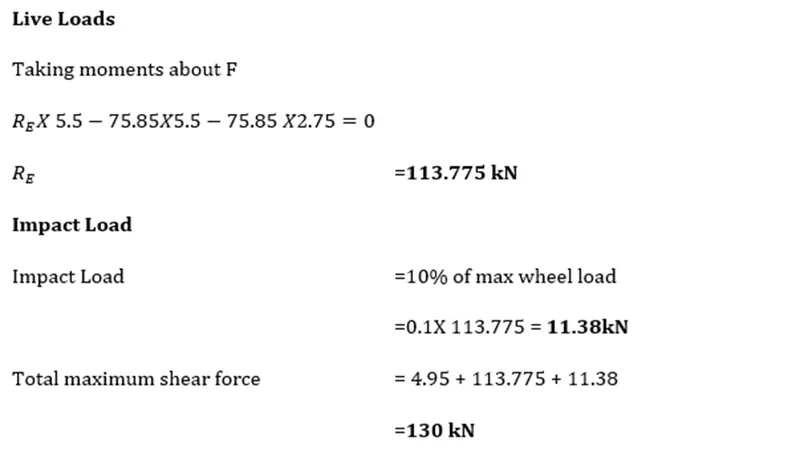

Step 1) Data

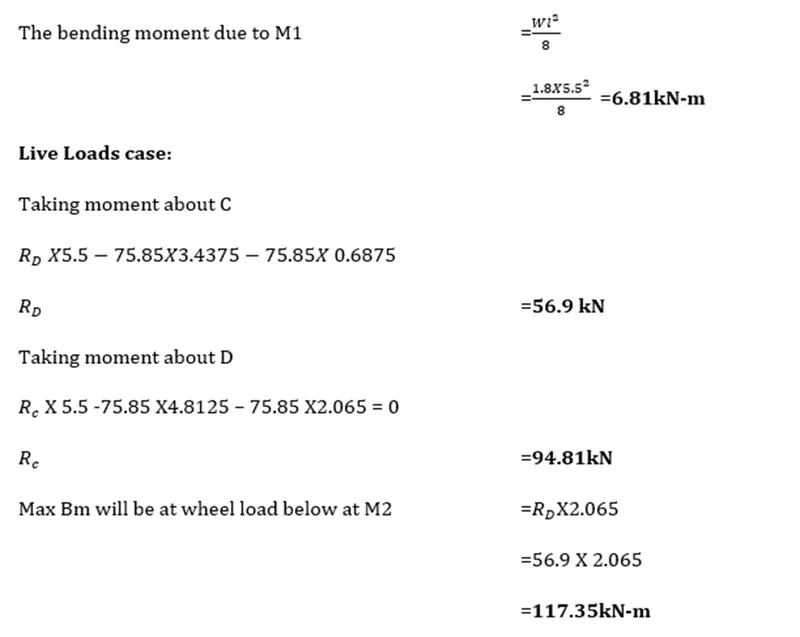

Result - A 5T crane loadings is manually calculated .
