Creation of geometries by Coordinate system methods using AutoCad
Aim - i) Create the geometries from P1 to P2 using all the coordinates system methods.
ii) Civil Related Problems -
a) Draw the profile and the trusses using any coordinate system methods.
Introduction - i) In autocad there are two coordinate system i.e
a) Cartesian system
b) Polar system
ii) To these there are Absolute coordinate and Relative coordinate system
iii) There are three types of coordinate system -
a) Absolute Coordinate system -
b) Relative Coordinate system - i) Relative Rectangular Coordinate
ii) Relative Polar Coordinates
c) Direct Distance Entry -
iv) Commands used -
i) Line Command - L
ii) Cicrlce command - C
iii) Dimension Command - DIM
iv) Text command - T
Procedure -
1) Pb - 1 by Absolute Coordinate Coordinate System
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) Similarly by we can draw line by using other points .
iv) Measure the dimension and check the dimension as per given problem
v) Give the text as Pb 1 by Absolute Coordinate system -

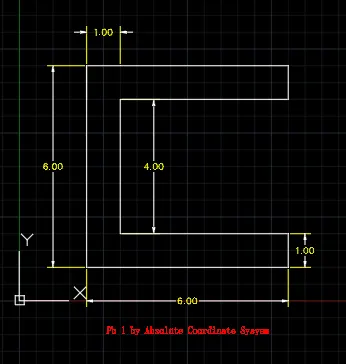

PB -1 ( Absolute Coordinate Sysyem )
Pb 1 by Relative Coordinate System -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point used (@6 , 0) and similary for others points
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 1 by Relative Coordinate system -

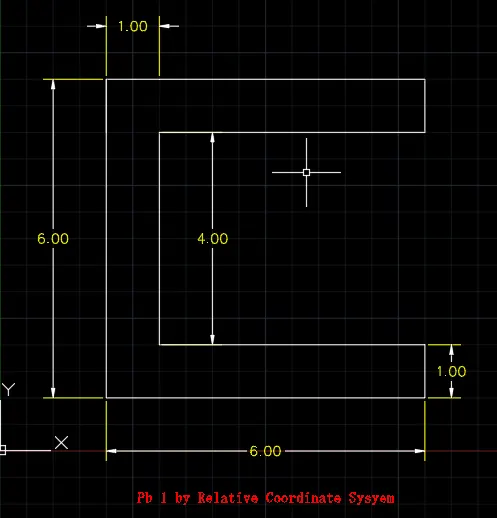

Pb -1 ( By Relative Coordinate System )
Pb 1 by Direct Distance Entry -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point used pjut directly 6 to get line of 6 units and similary for others points
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 1 byDirect Distance Entry -

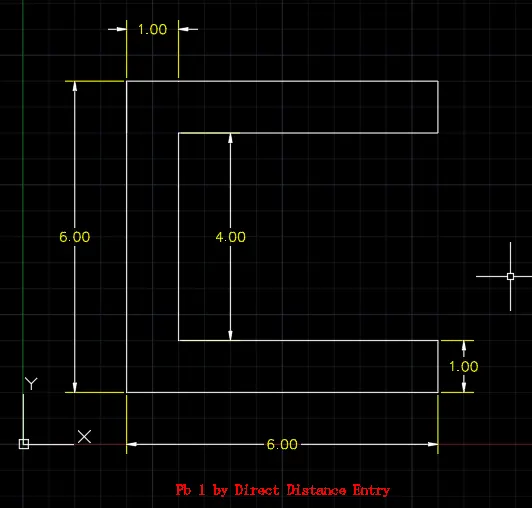

Pb 1 - by Direct Distance Entry
Pb 2 by Absolute Coordinate System -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point enter (5,1) we get line . Similarly by we can draw line by using other points .
iv) Measure the dimension and check the dimension as per given problem
v) Give the text as Pb 2 by Absolute Coordinate system -

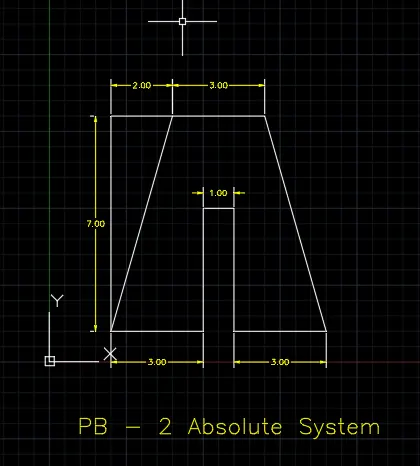

Pb 2 - Absolute Coordinate System
Pb 2 by Relative Coordinate System -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point used (@3 , 0) and similary for others points
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 2 by Relative Coordinate system -

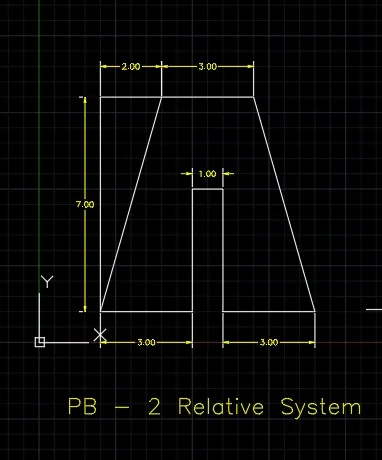

PB-2 - Relative System -
Pb 2 by Direct Distance Entry -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point put directly 3 to get line of 3 units and similary for others points .
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 2 by Direct Distance Entry -

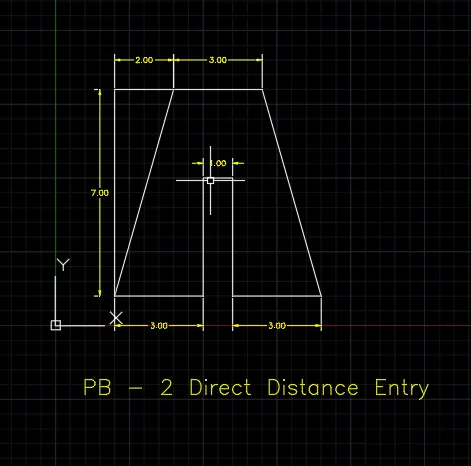

Pb 2 - Direct Distance Entry

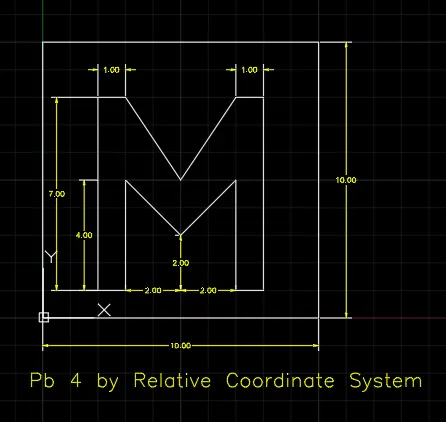

3) Pb 4 By Relative Cordinate System -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point used (@1 , 0) and similary for others points
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 4 by Relative Coordinate system -

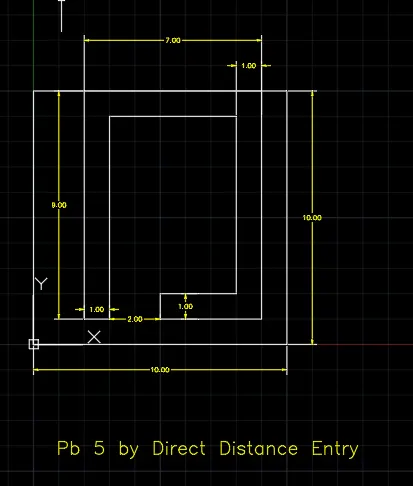

4) Pb -5 by Direct Distance Entry -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) For 2nd point put directly 1 to get line of 1 units and similary for others points .
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 5 by Direct Distance Entry -
5) Pb -7 by Direct Distance Entry -
i) Draw the line by using command L .
ii) Give the point ( 2,1) , will get first point
iii) Draw a rectangle of points ( 8,6) for outer rectangle . and similarly for inner rectangles .
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 7 by Direct Distance Entry -

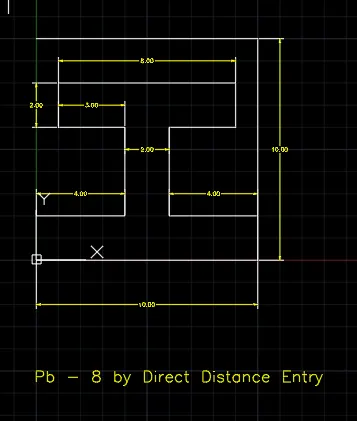

6) Pb 8 by Direct Distance Entry .
i) Draw the line by using command L .
ii) Give the point ( 0,0) , will get first point
iii) Draw a points ( 10) and similarly for other points.
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 8 by Direct Distance Entry -

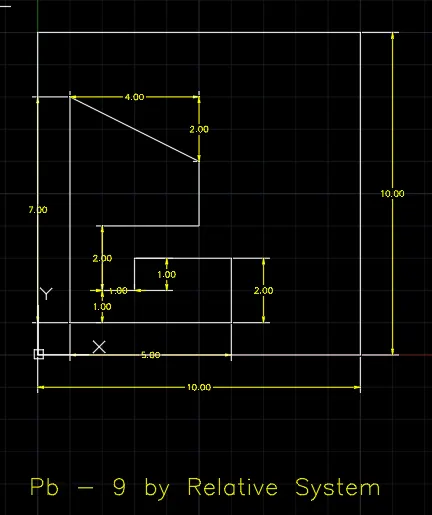

7) Pb - 9 by Relative Coordinate System -
i) Draw the line by using command L .
ii) Give the point ( 1,1) , will get first point
iii) For 2nd point used (@5 , 0) and similary for others points
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 9 by Relative Coordinate system -
8) Pb 10 by Direct Distance Entry -
i) Draw the line by using command L .
ii) Give the point ( 1,1) , will get first point
iii) Draw a points directly ( 2) and similarly for other points.
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Pb 10 by Direct Distance Entry -
Pb 10 - by Direct Distance Entry ( Text is incorrect)
B) Civil Related Problems -

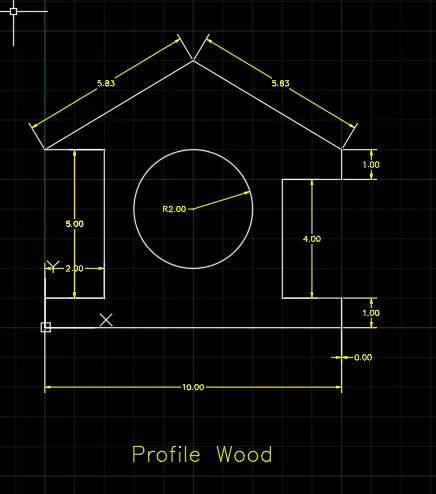

1) Profile Wood - By Direct Distance Distance
i) Draw the line by using command L .
ii) Give the point ( 0,0) , will get first point
iii) Draw a points directly ( 10) and similarly for other points.
iv) Draw circle at coordinate (5,4) of radius 2 .by using command C (Circle)
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Profle Wood by Direct Distance Entry -

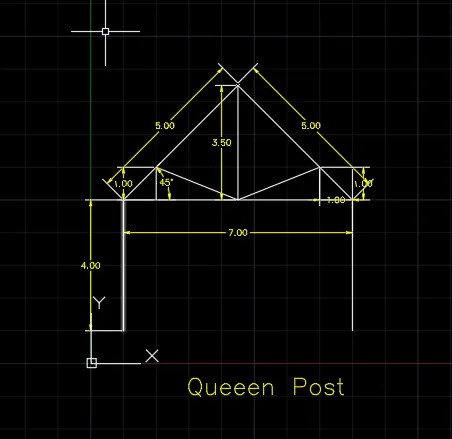

2) Queen Post Truss -
1) Queen Post - By Direct Distance Distance
i) Draw the line by using command L .
ii) Give the point ( 1,1) , will get first point
iii) Draw a points directly ( 4) and similarly for other points.
iv) Draw a line at point (@5<45 ) by relative method
v) Measure the dimensionand check the dimensions as per given problem
vi) Give the text as Queen Post by Direct Distance Entry -

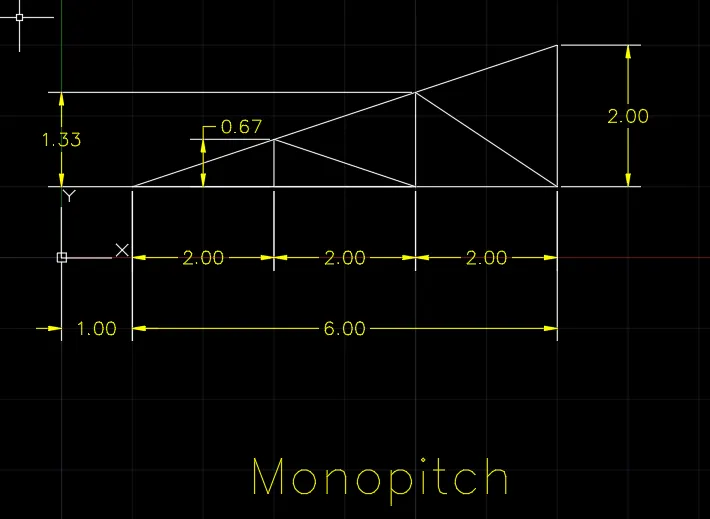

3) Mono Pitch -
1) Mono Pitch - By Direct Distance Distance
i) Draw the line by using command L .
ii) Give the point ( 1,1) , will get first point
iii) Draw a points directly (2) and similarly for other points.
iv) Measure the dimensionand check the dimensions as per given problem
v) Give the text as Queen Post by Direct Distance Entry -
