Challenge

To Analysis and Design of Steel Structures using TSD

AIM :To Analysis and Design of Steel Structures using TSD

1.Summarize your study for the bending moment, shear force and deflection diagrams for the elements of the model

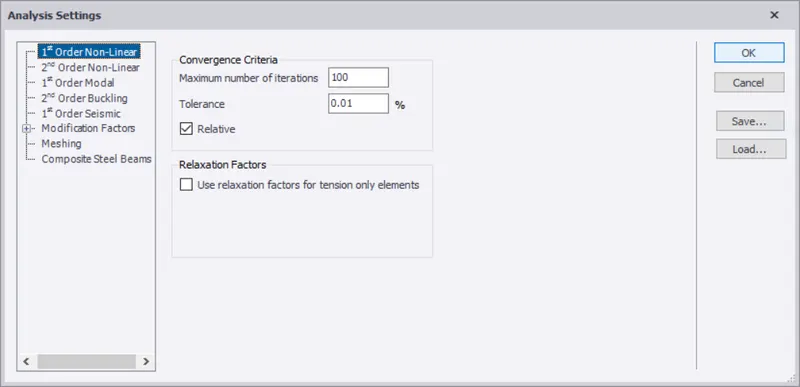

OPEN THE MODEL then go to the analyze tab then select analyze settings.
after that 1st order nonlinear to be ok.

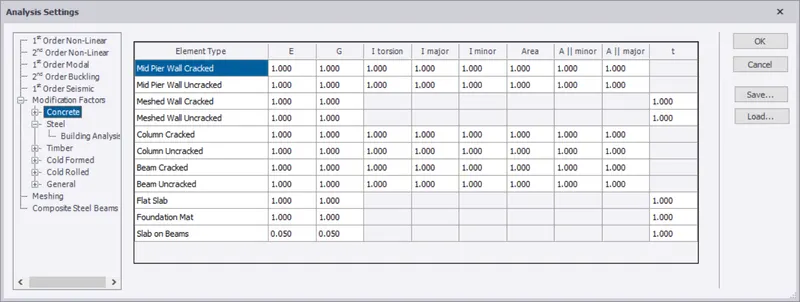

then check the all concrete factors to be 1 .by default.

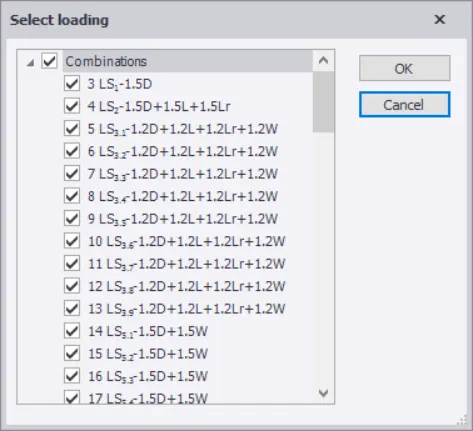

next go to analyze tab under that select the 1st order linear option to check all loadings to be applied.
click on ok it will analyze the model.

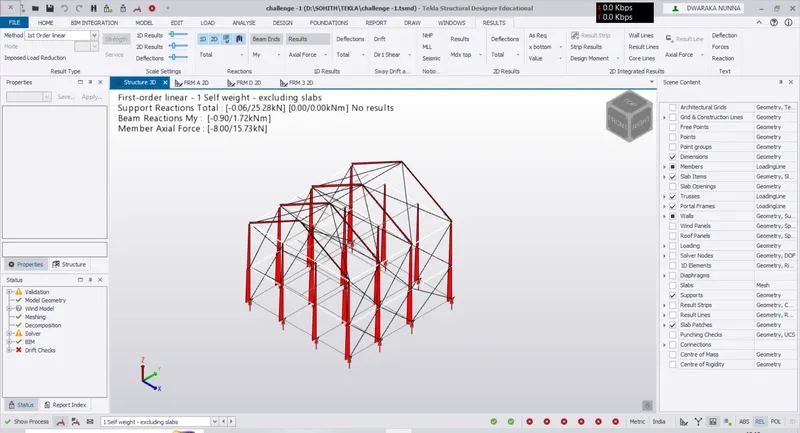

after that go to results tab we can check and study bending moment,shear force ,deflection ,forces reactions all other results.

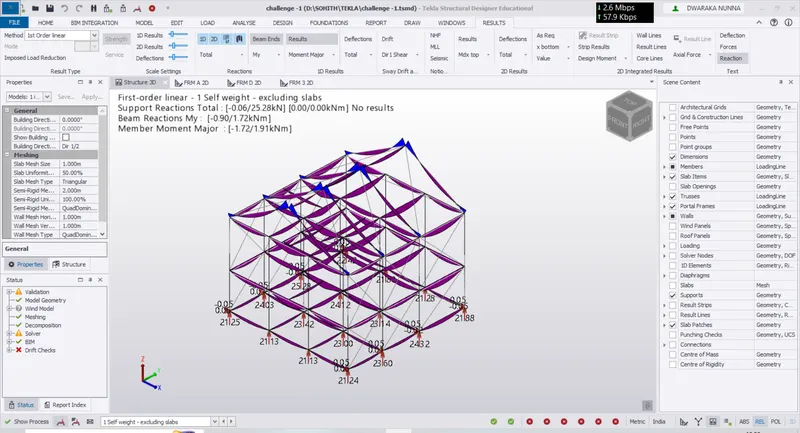

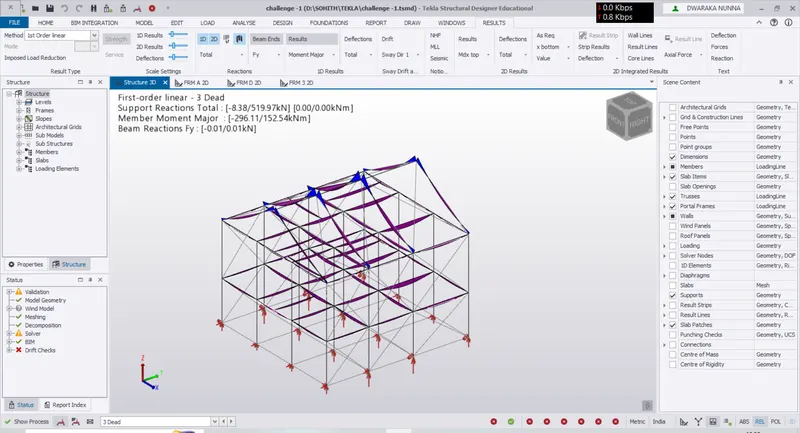

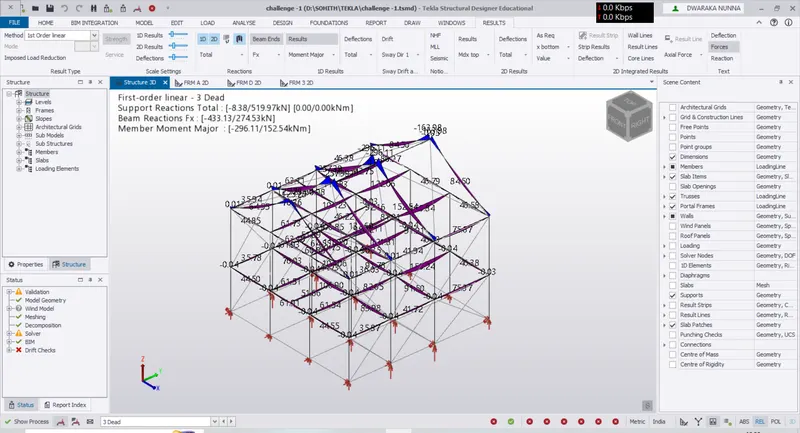

BENDING MOMENT :

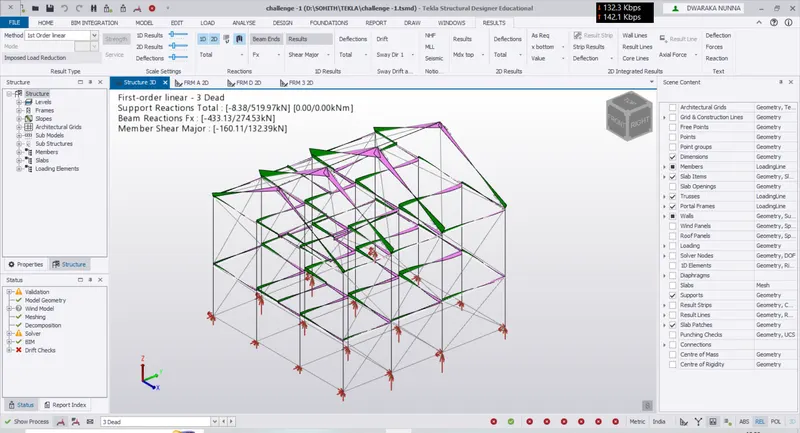

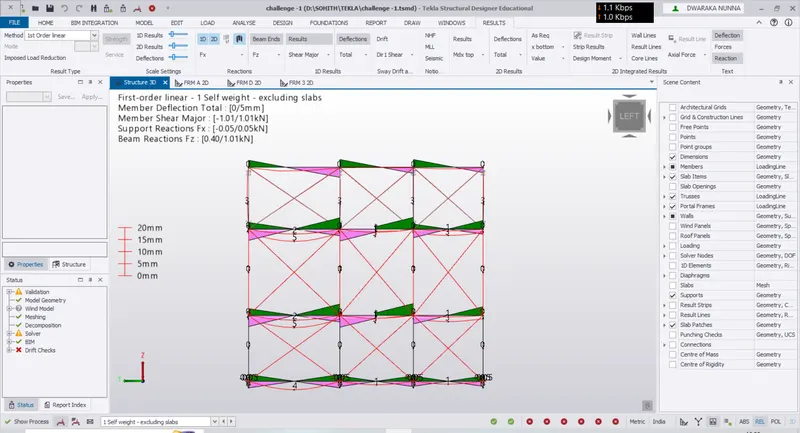

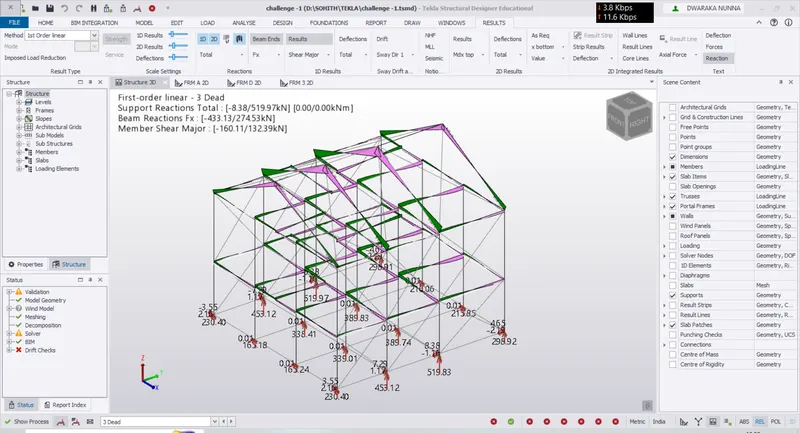

SHEAR FORCE :

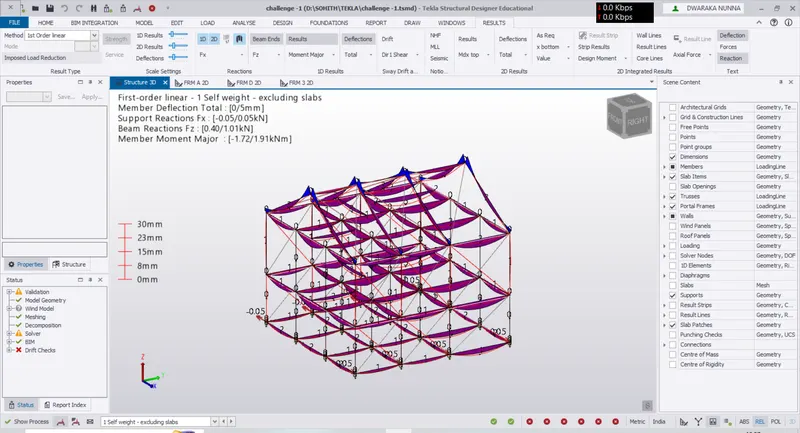

DEFLECTION:

2.Based on the analysis design the members and outline the thought process in selecting the member sizes along with the foundation design

next and finish

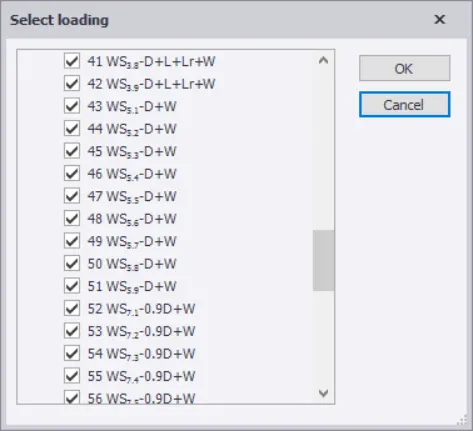

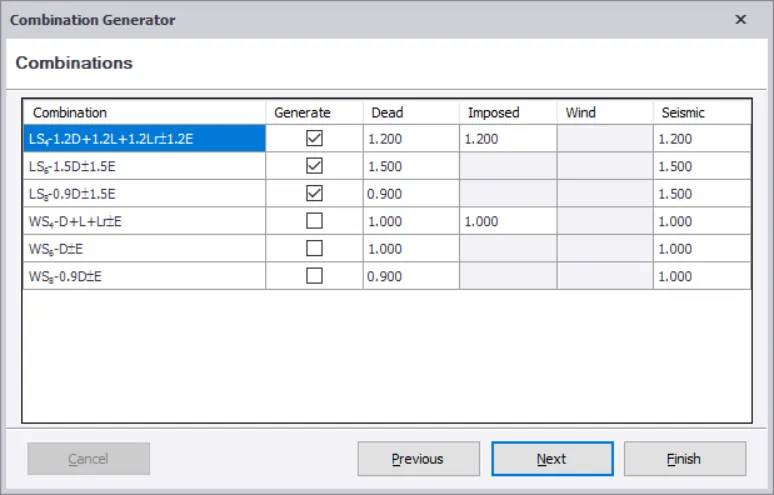

after that select load combinations go to analyze tab select 1st order and selct the loads.click ok .
the analysis will be done after click ok.

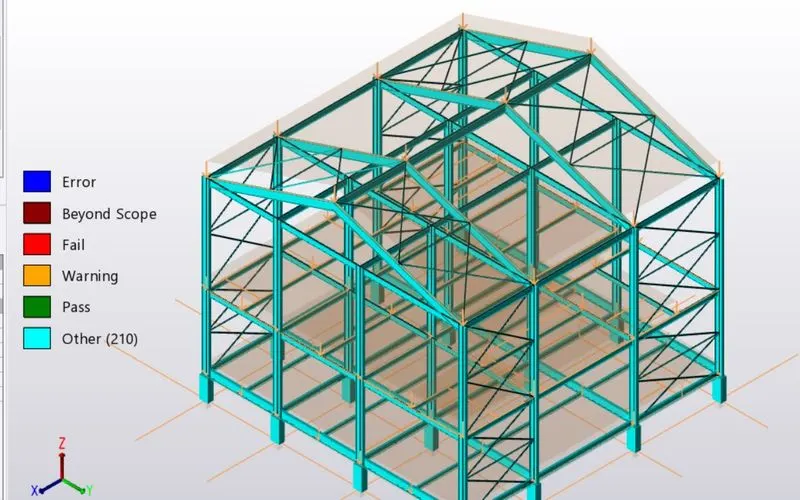

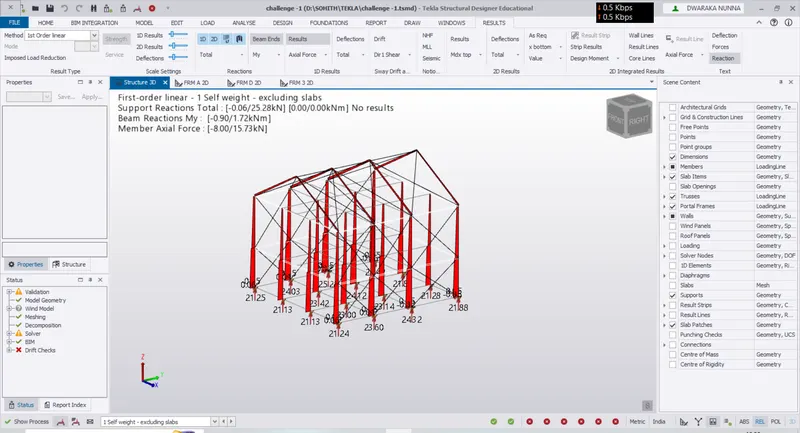

Results :

we can check the results at the results tab ;below here are the produced results.
