Structural analysis of a buidling using Robot Structural Analysis

Ans.1.

HVAC systems :-

HVAC stands for Heating, Ventilation, and Air Conditioning.

HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings.

They are the systems that keep us warm and cozy in the winter and feeling cool and fresh in the summer.

They also are the systems that filter and clean indoor air to keep us healthy and maintain humidity levels at optimal comfort levels.

They are essential in the modelling of building due to the following reasons :-

HVAC systems control the overall climate in the building. They also make the proper adjustments whenever we experience changes in outdoor temperature.

During the winter season, the HVAC systems work to keep the indoor temperature at a comfortable level. In hotter times of the season, the HVAC systems regulate air temperature by providing the necessary cooling to keep the entire building comfortable.

Having a comfortable office climate increases the level of productivity and increases morale amongst the workers and employees.

HVAC systems not only regulate the temperature inside the building, they also improve the quality of air.

The quality of air pertains to humidity, and a typical HVAC system will reduce the amount of humidity in the air.

Proper HVAC systems are a worthy investment for any business or building owner because it gives us energy savings also.

HVAC systems today are automated, which means we no longer have to manually adjust the temperature settings or the time settings of each machine.

Automated HVAC systems can also sense when workers or employees are no longer in the building. It will then automatically decrease the amount of energy used to maintain proper indoor temperatures.

Ans.2.

AIM :-

To design HVAC system for each floor to cover the topic included in class and also attach required HVAC components

INTRODUCTION :-

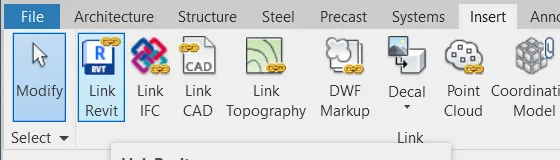

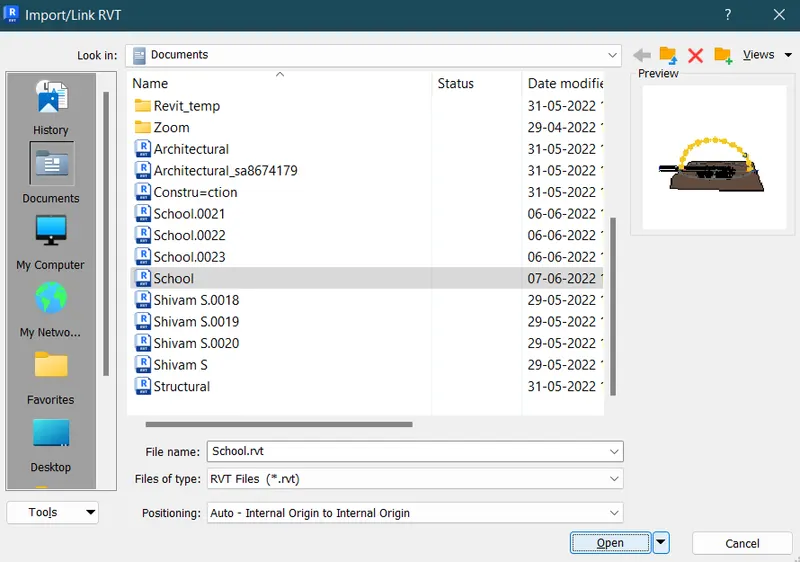

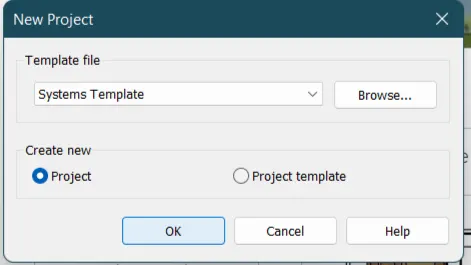

After opening the system template go to the insert tab and then click on the link revit option

Then link the document which you want to open

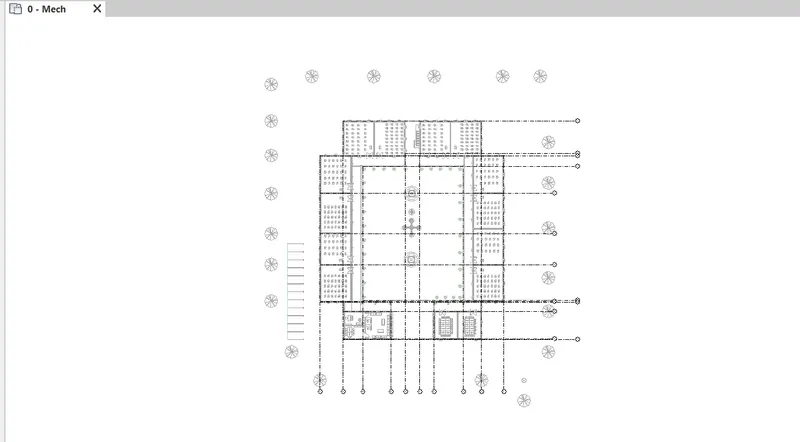

I have open my previous project which I have created and hence it has been linked now

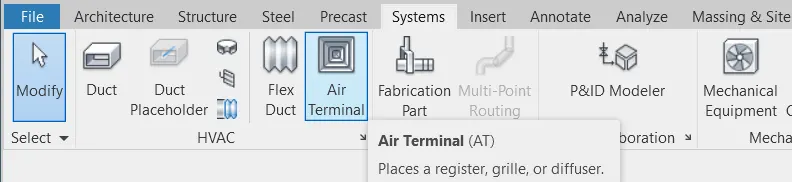

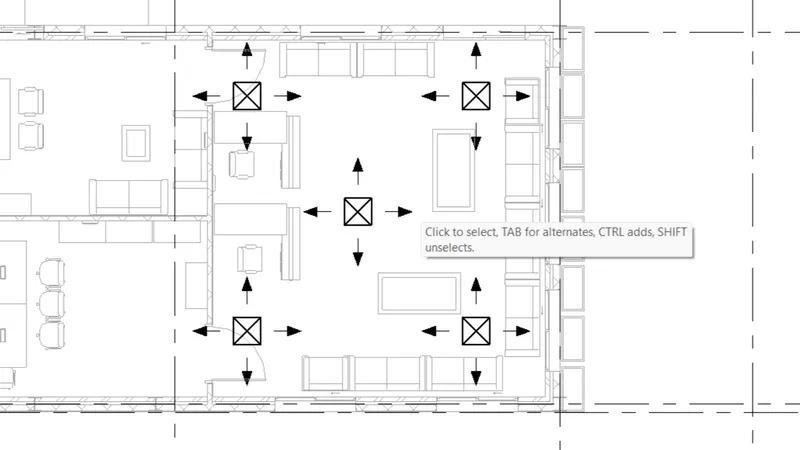

After linking go to the system tab and then select on the air terminal option to provide the air terminals in your building

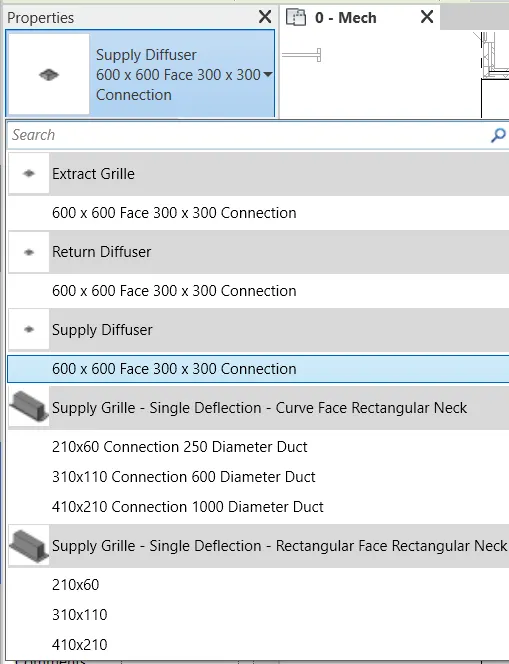

Then select the type of air terminal which you want to attach in your building as applied diffuser or extract grill or return diffuser.

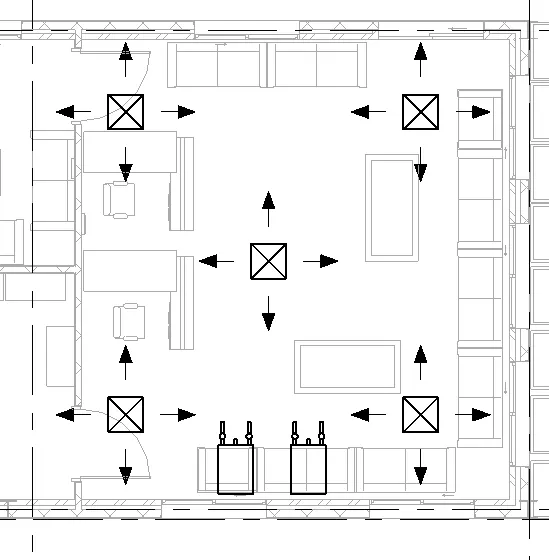

Place the component in the model in which place you want to attach them

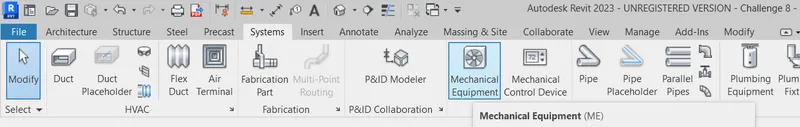

After blessing the air terminal go to the system tab again and they are you will find a mechanical equipment option

Click on that option

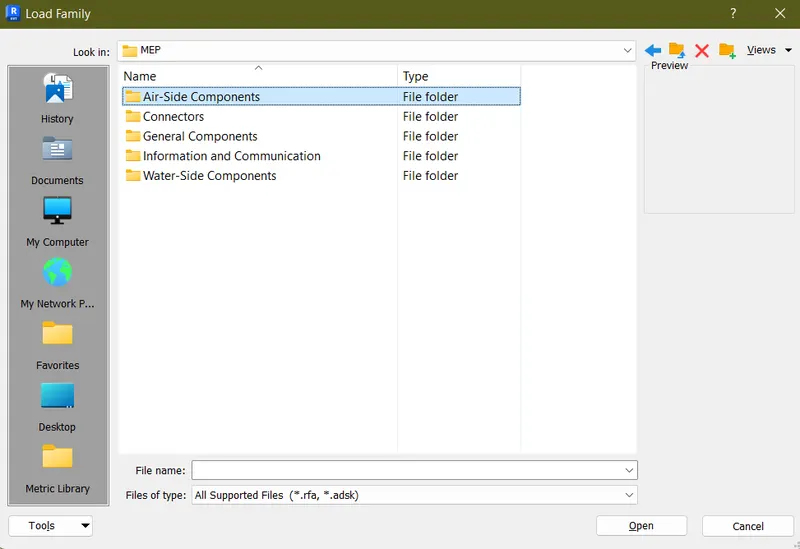

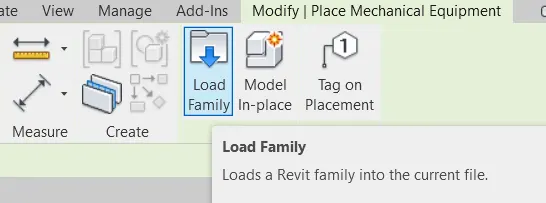

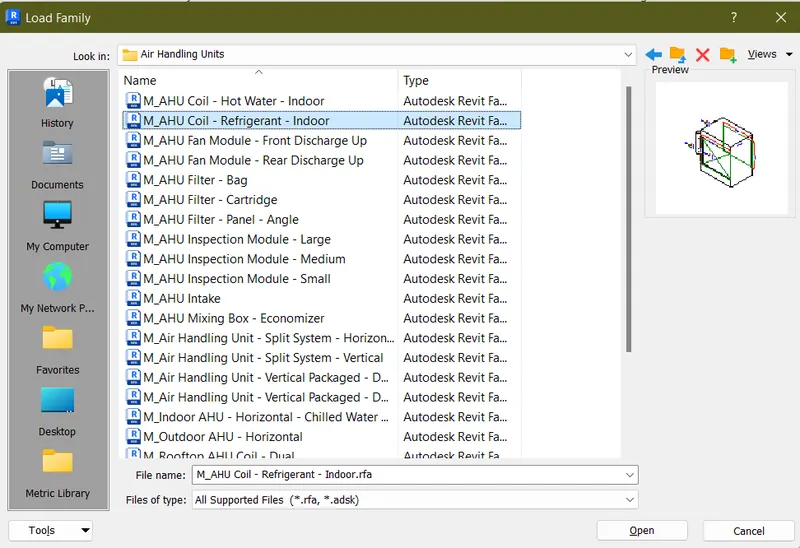

Then go to the load family option

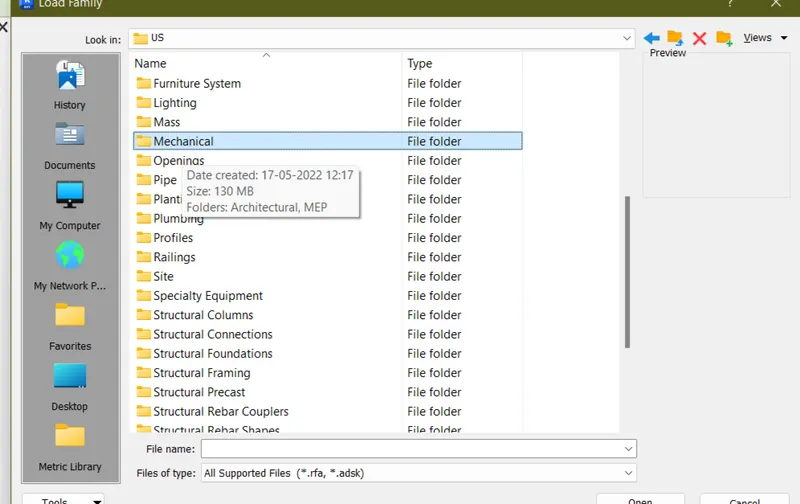

After clicking on the load family go to the mechanical option which opens in a dialogue box

Then click on the air side components

And select the component which you want to attach in your building or model

Hence the model has been attached in our building with the air terminals

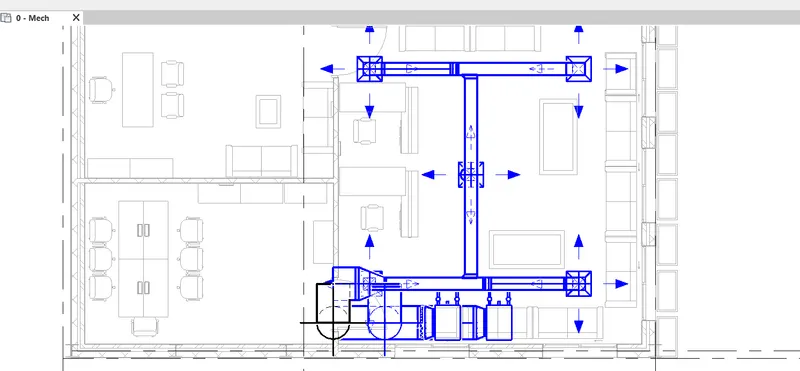

Now to connect the Air terminal and the model which we have placed

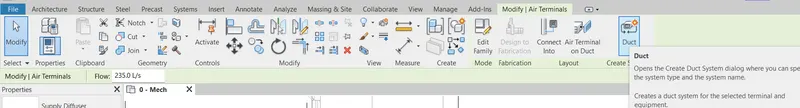

Go to the duct option which is available on the modify tab

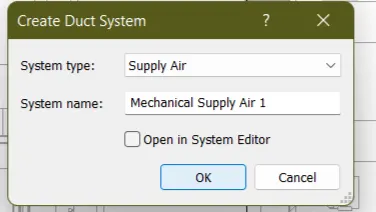

After clicking on the the option there open the dialogue box then click on the type which you want to give and click ok to proceed

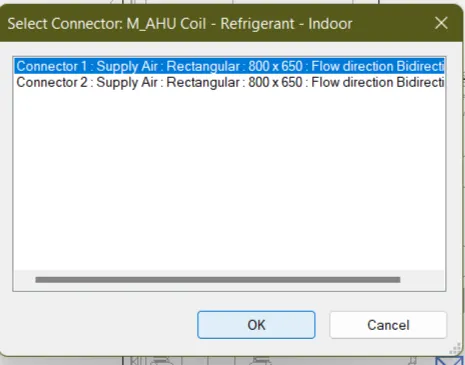

Then select the connector which you want to apply and click ok

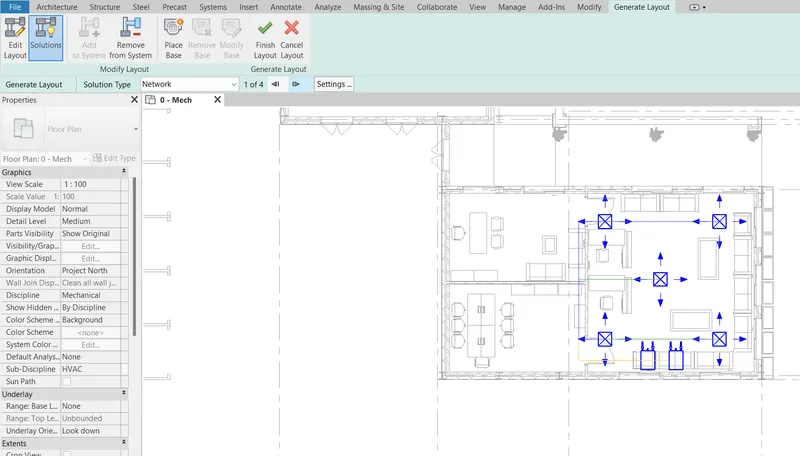

After that there will offer a new Ribbon tab in which we have the type of possibilities of duct which we can provide and then click on the finish layout after selecting the type of duct placing

And hence our duct has been up to connected

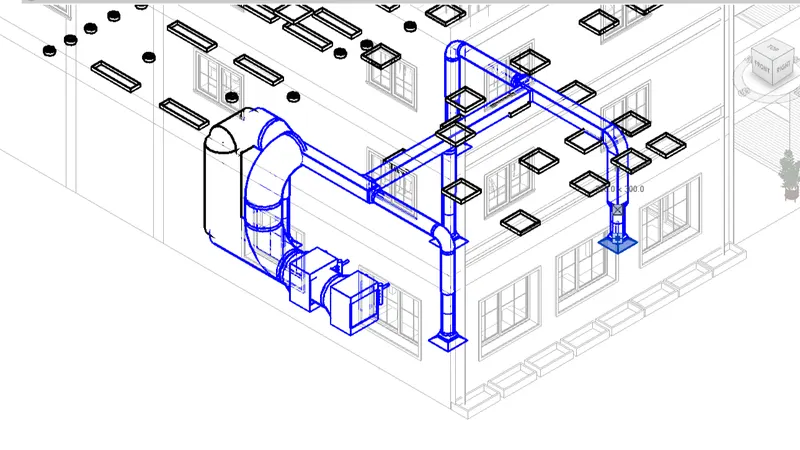

To cross check it go to the 3D view of your model and you can see the duct and air terminals in your model

RESULT :-

Hence the HVAC system has been applied to our model which we have created earlier as a project and also the different types of collector Ducts and blower are also attached

ANS.3.

AIM :-

To load plugin for robot analysis software using the add ins tab

INTRODUCTION :-

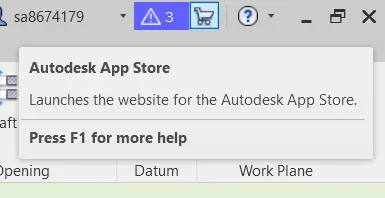

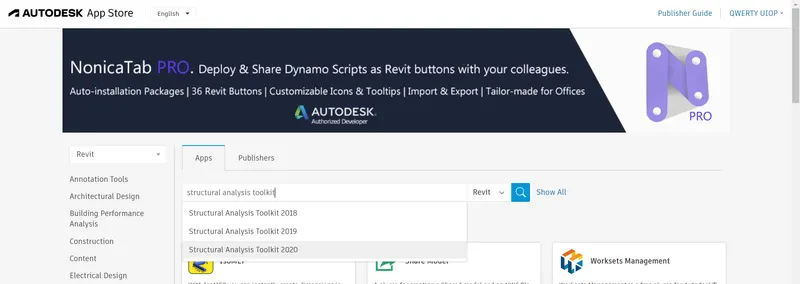

Aap clicking on that Autodesk App Store then there will open a new home page in a browser

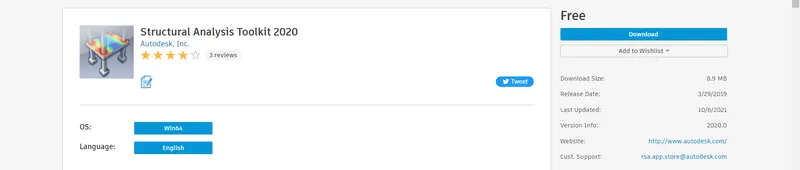

Search for Structure Analysis Toolkit for the version of your software which you are using and then click on the search option

After that the search app will be appeared on the screen then select the relevant setting and then go to the free download option to download the application

After downloading the application run the application as administrator and install it

Then go to your software again and you will find a robot Structure Analysis tool kit in the analyse tab

RESULT :-

Hence robot Structure Analysis tool has been added to our software with the help of the plugin

ANS.4.

The objective of analysis of stability of a structure is to determine the loads on a structure, which leads to presence of new forms of equilibrium.

The objective of analysis of a structure from the viewpoint of its stiffness is the determination of the displacements at specified points of a structure as a result of external exposures.

The objective of analysis of a structure from the viewpoint of its vibration is to determine the frequencies and correlative shapes of the vibration.

These data are necessary for analysis of the forced vibration caused by loads like earthquake,windetc.

Analysis of any structure is based on some assumptions. These assumptions consider the purpose and features of the structure, type of loads and operating conditions, properties of materials, etc.

The objective of analysis of a structure from the viewpoint of its strength is calculating internal forces, which will arise in all members of a structure as a result of external exposures.

ANS.5.

AIM :-

To export the analytical model which we have created earlier in our project and also to do the robot Structure Analysis of the attached file with different conditions.

INTRODUCTION :-

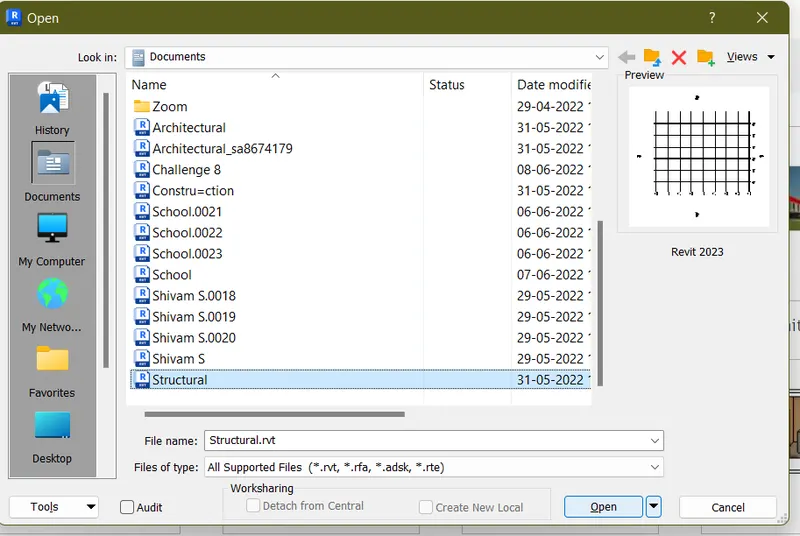

Go to revit software and then open the file which you want to attach.

Here I am opening the structural file which we have created earlier in our project

As you can see the file has been opened

Now select the appropriate beams and columns and create the structural beams and structural column for the model

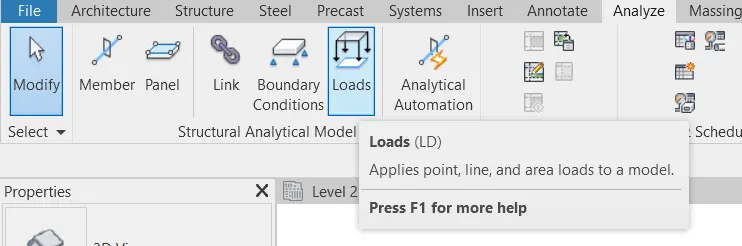

After that go to the analyse tab and then click on the load option which is available there

Then the Ribbon tab will be changed and then select the appropriate load which you want to give in the model

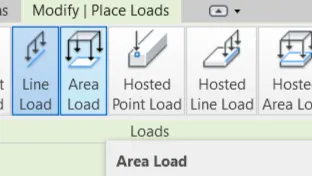

Here I have selected the area load

Then select the method which you want to place the load in the model

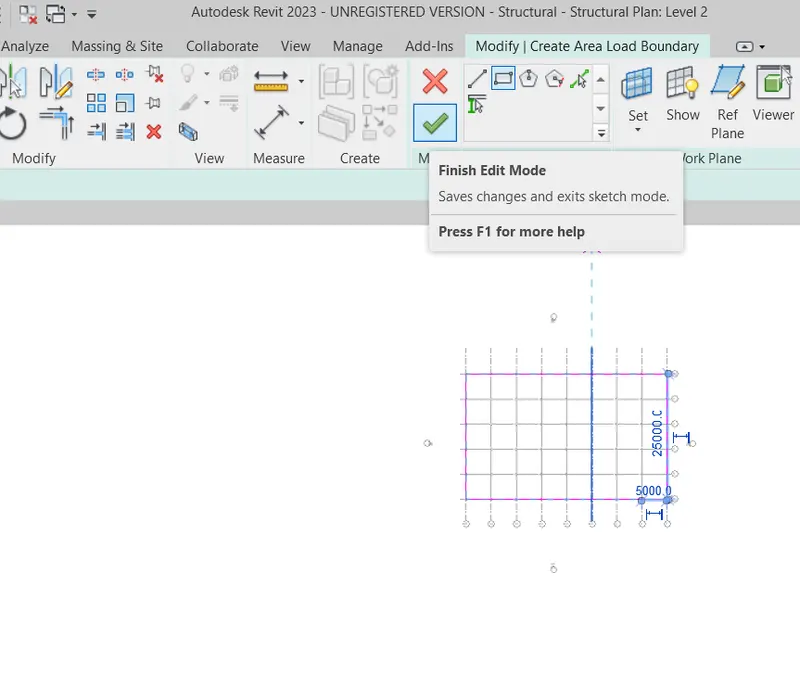

After selecting the model click on the finish option to create the area load boundary

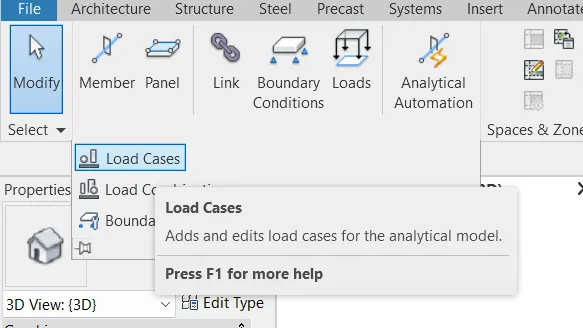

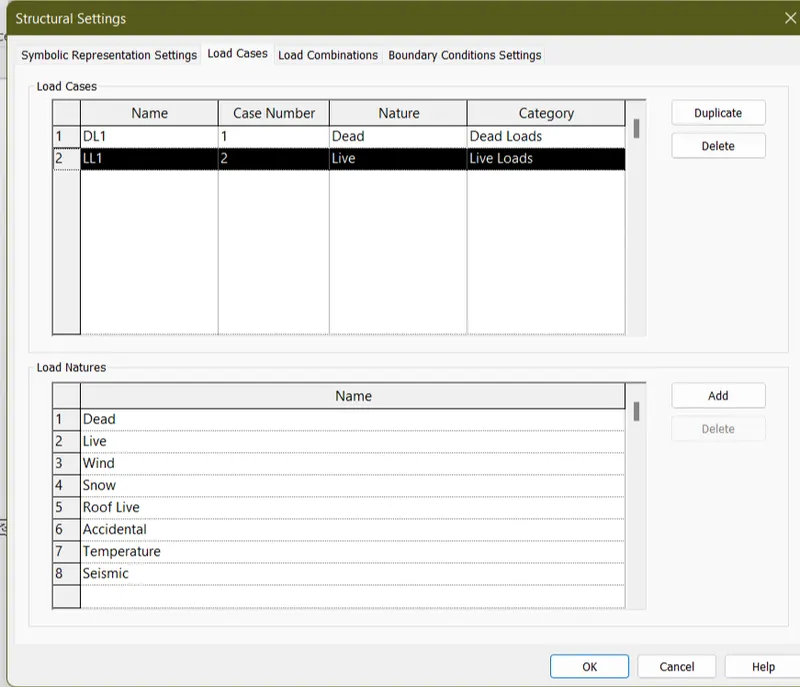

Then again go to the analyse tab where you will find out the load cases option click on that

Then the dialogue box will open where you can delete all the previous load that have been present in the software and enter the type of load which you want to give

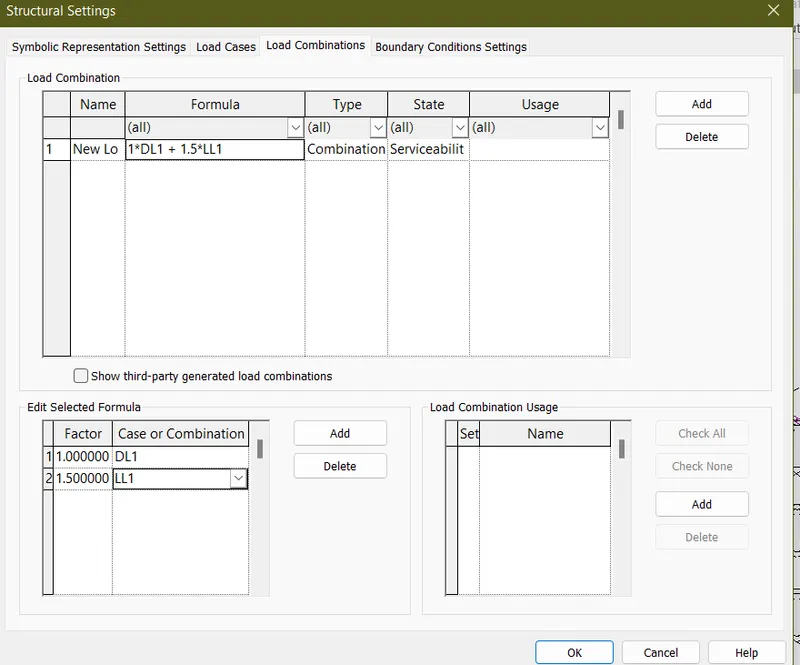

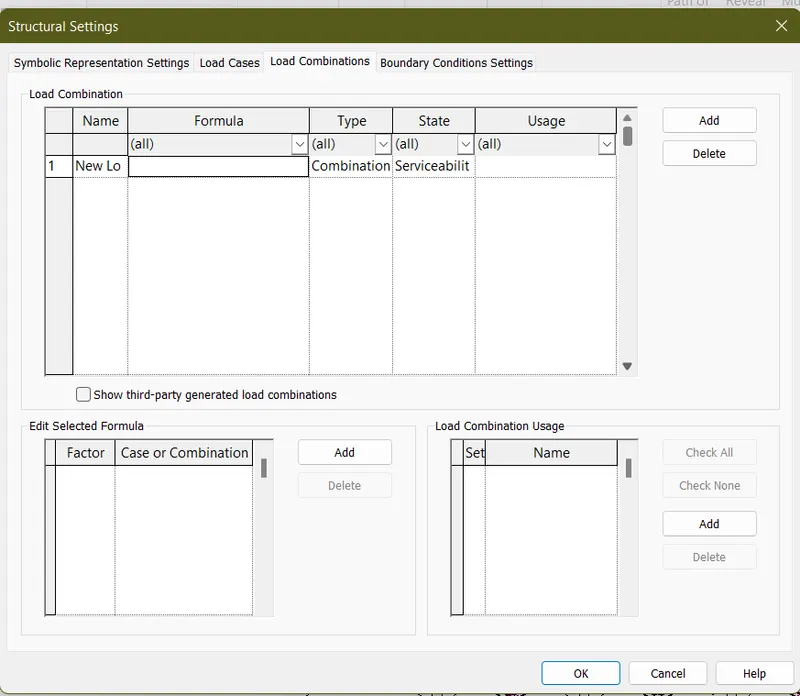

Then go to the load combination option to provide the combination of loads in your building

Then provide the required formula which you want to give and required combination which you want to enter in your project

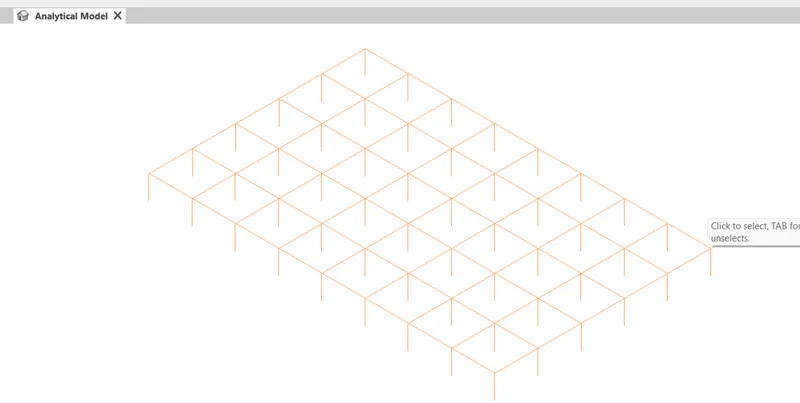

Hence the analytical model will look like this

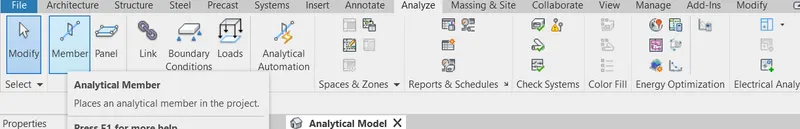

Now to draw the analytical members go to the analyse tab again where you will find a member option

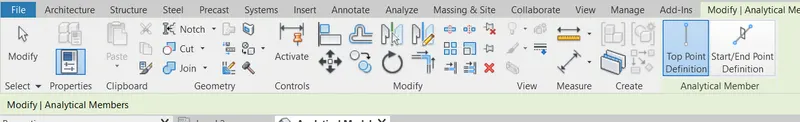

After clicking on the member option there occurs two different types of method to draw the beams and column analytical member

Click on the top point definition and draw all the columns

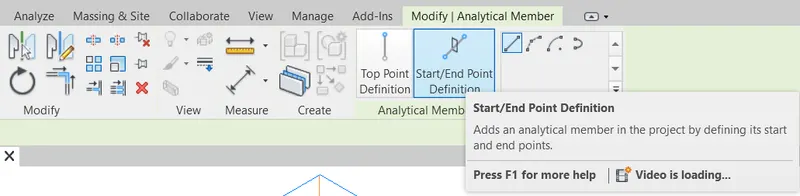

Then for same procedure for drawing the beams click on the start and point definition

And hence draw the beams

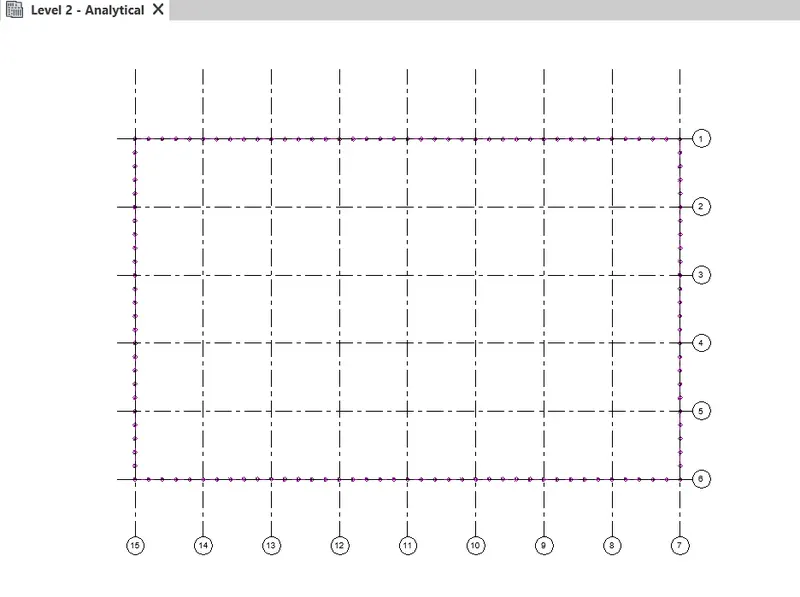

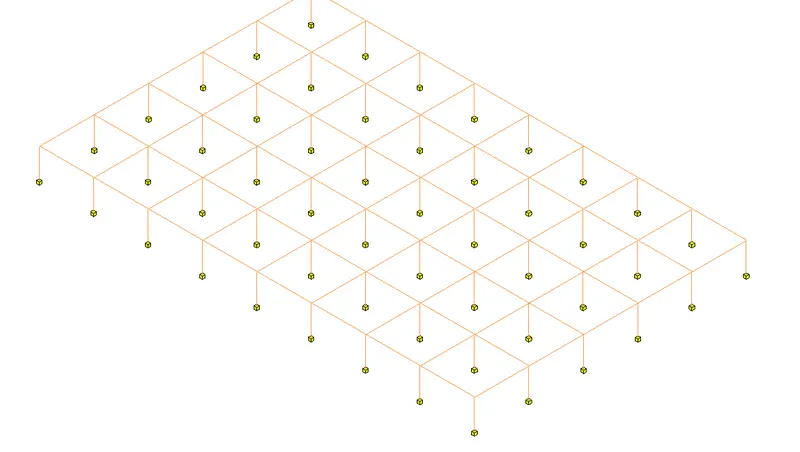

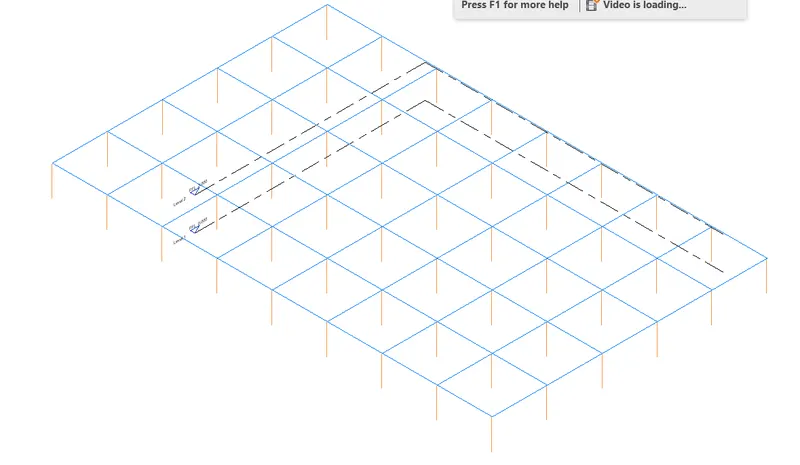

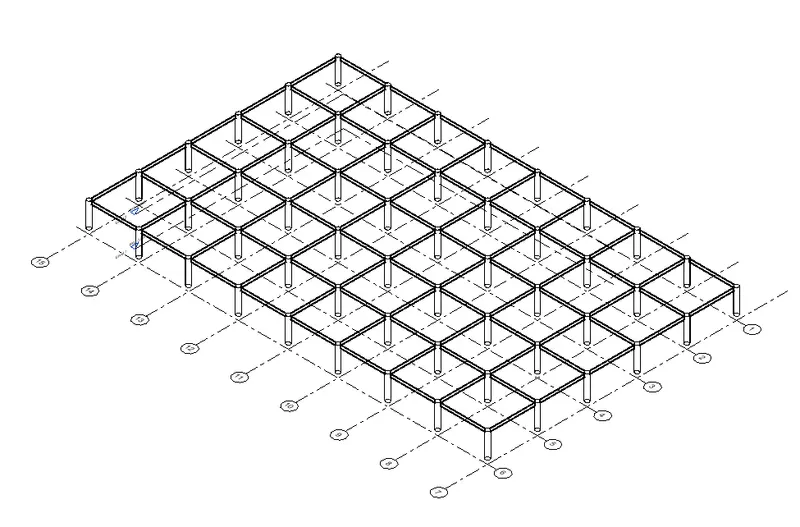

The columns and beams drawn will look like this in the analytical model now

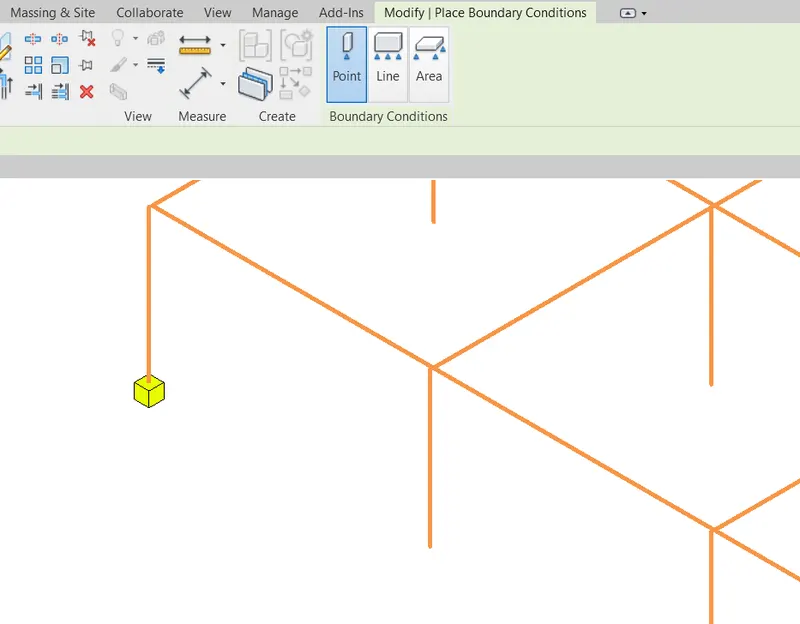

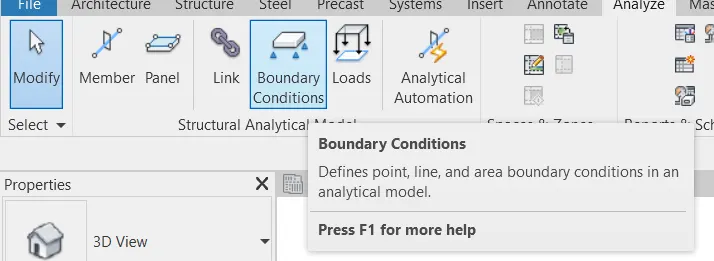

After that go to the boundary condition option on the analyse tab and click on that

Then select the type of load which you want to provide

Click on the point option to proceed

Hence boundary loads have been provided.

Now to do the robot structural analysis

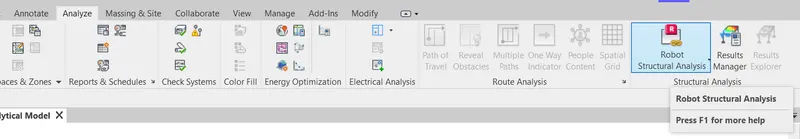

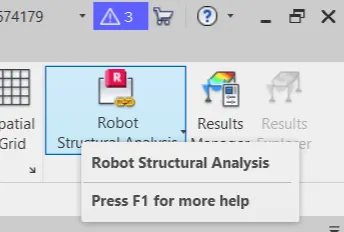

Go to the analyse tab where you will find out the robot structural analysis link

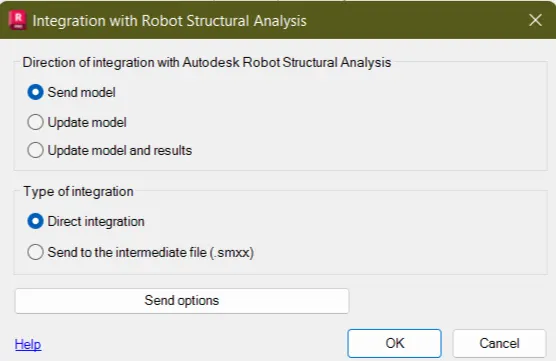

After clicking on that there open a new dialogue box and then click on the send model option

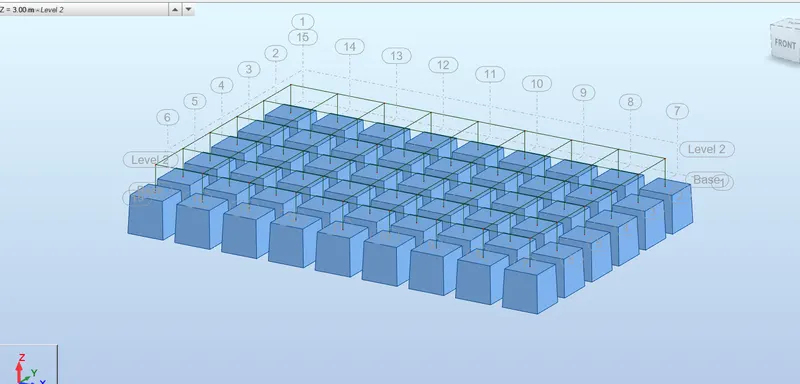

Now open your robot analysis software any will see the model

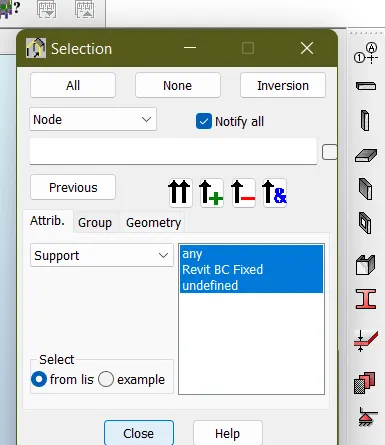

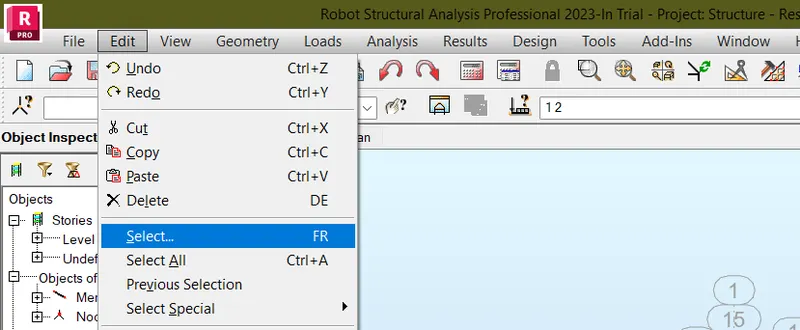

Now go to the edit option in click on select option available there

Now select the three points which we are given in a new dialogue box and then close the dialogue box

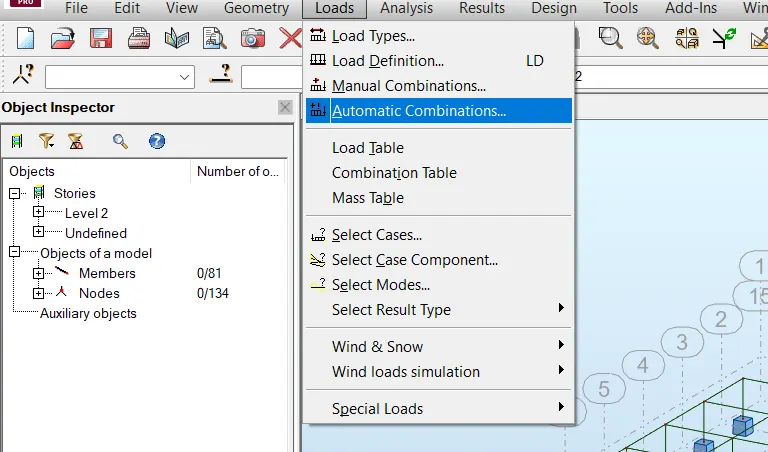

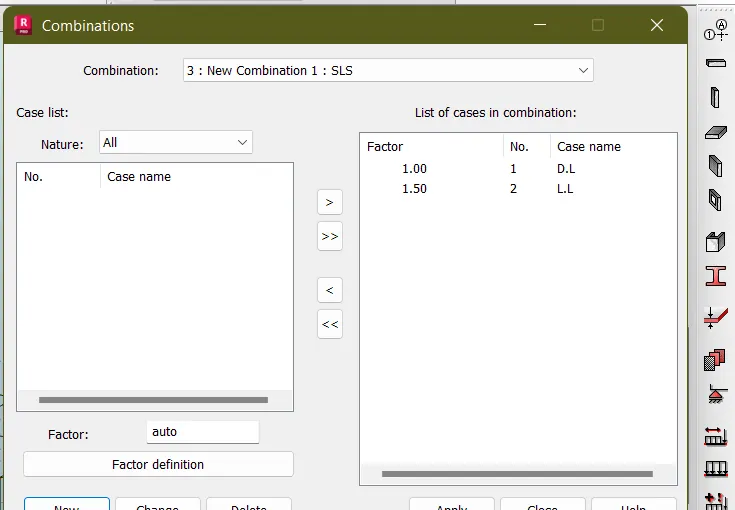

After that go to the load option and choose the type of load combination you want to provide

Then go to the manual combination as you have provided early at the load combination in our previous project model only

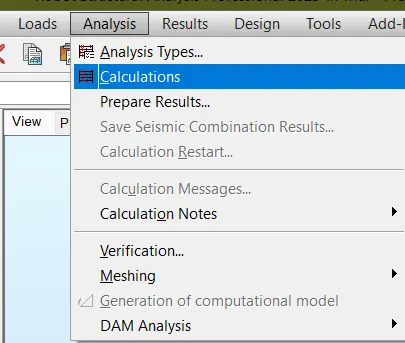

After doing so go to the analysis tab where you will find the calculation option

Click on the calculation option and hence your model will be calculated as per your design

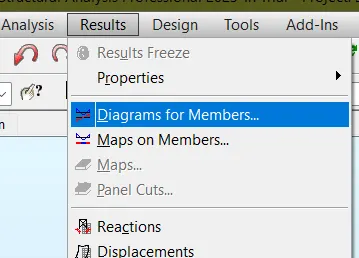

After the calculation has been done then go to the result tab where you will find the diagrams for member option

Click on that

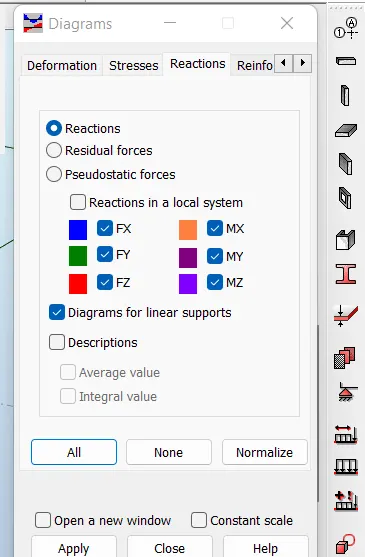

On diagram for members option go to the reactions and then select the things which you want to have as the result of your model

RESULT :-

hence our model has been analysed by the help of the robot Structure Analysis and hence the export of model is also successful.

After the analysis of our model we got a fair idea to how to analyse our structural model which we have created and hence it gives us the results in the form of calculations through which we can find out the load movement stress which are acting upon avar building or model.

ANS.6.

ENERGY ANALYSIS :-

Energy analysis provide designers with the ability to analyze the performance of their designs, leading to more-efficient buildings and sustainable practices

Energy analysis is the most common method for evaluating energy conversion systems.

It is based on the first law of the thermodynamics that is expression of conversion of the energy.

This analysis makes an energy balance for any energy conversion system and usage of the energy source while losses can be determined.

It is the process of analyzing a building's energy performance by calculating how well the integration of that building's form, systems, and envelope perform under the surrounding environmental conditions.

Factor of sustainability improves the quality of design in following steps :-

Sustainable design seeks to reduce negative impacts on the environment, and the health and comfort of building occupants, thereby improving building performance.

The basic objectives of sustainability are to reduce consumption of non-renewable resources, minimize waste, and create healthy, productive environments.

Sustainable design principles include the ability to:

optimize site potential

minimize non-renewable energy consumption

use environmentally preferable products

protect and conserve water

enhance indoor environmental quality

optimize operational and maintenance practices.

Utilizing a sustainable design philosophy encourages decisions at each phase of the design process that will reduce negative impacts on the environment and the health of the occupants, without compromising the bottom line.

It is an integrated approach that encourages compromise and tradeoffs. Such an integrated approach positively impacts all phases of a building's life-cycle, including design, construction.
