Roof Design

Aim:

For the Given Roof styling, create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements.

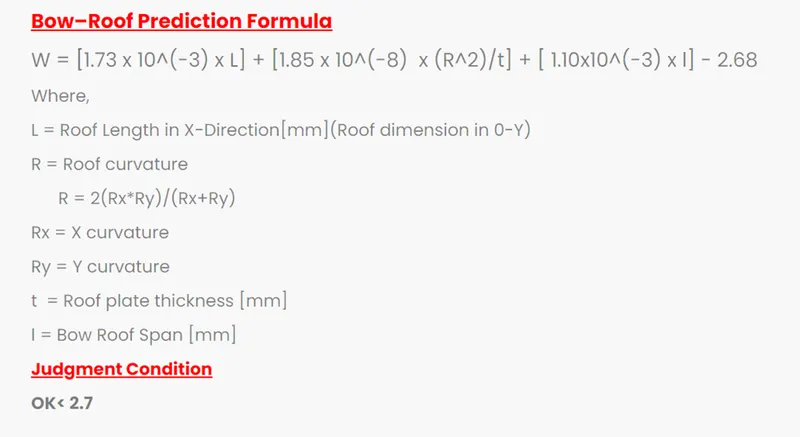

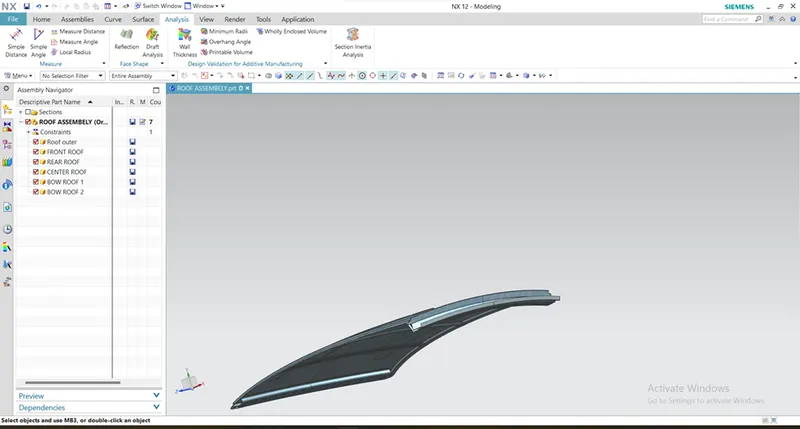

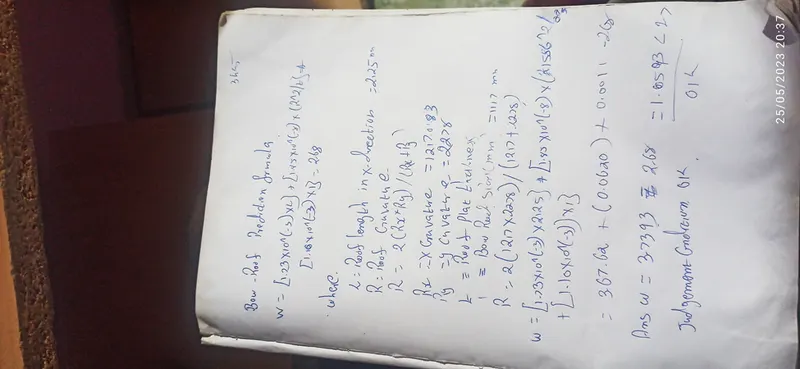

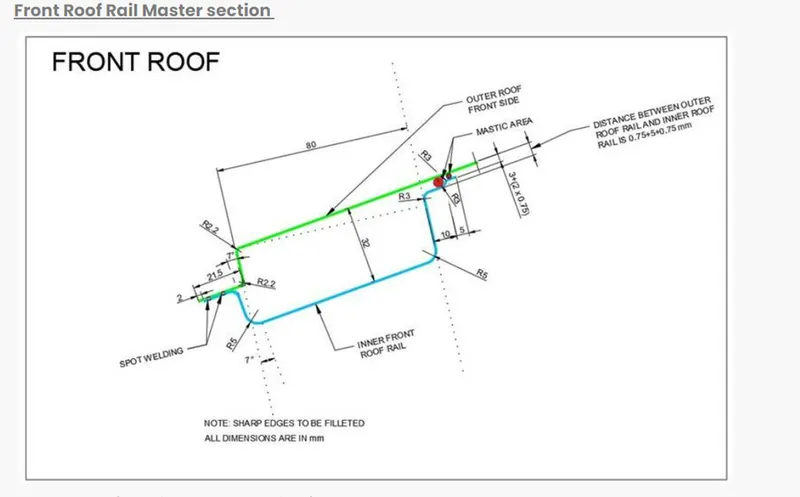

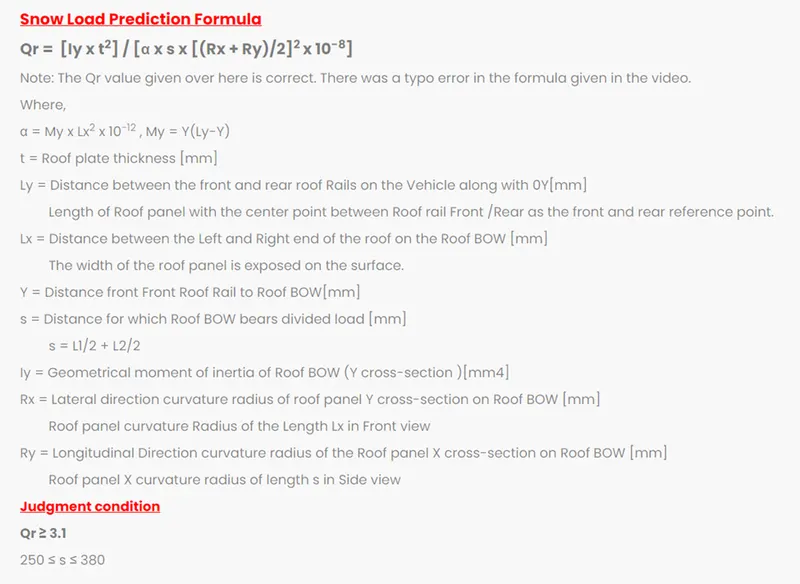

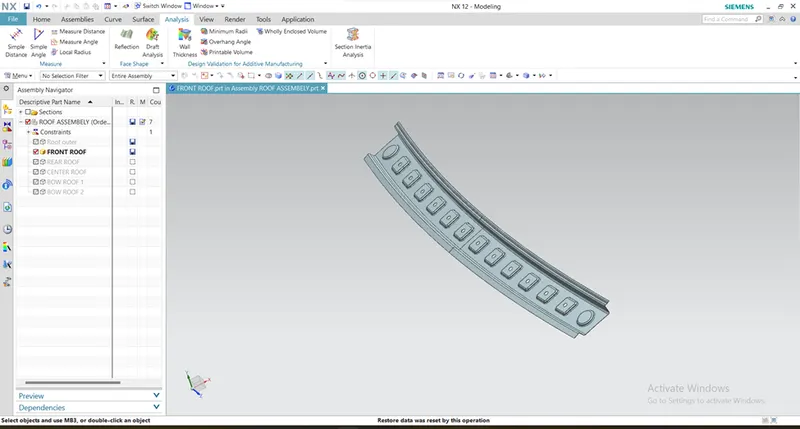

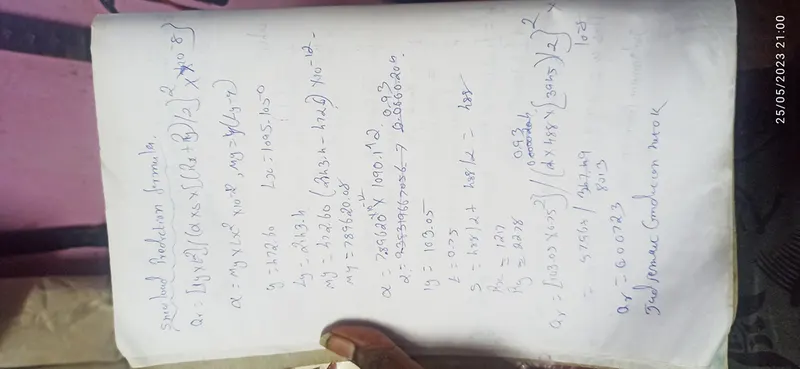

Step 1 :First create the front roof with the help of given master section.

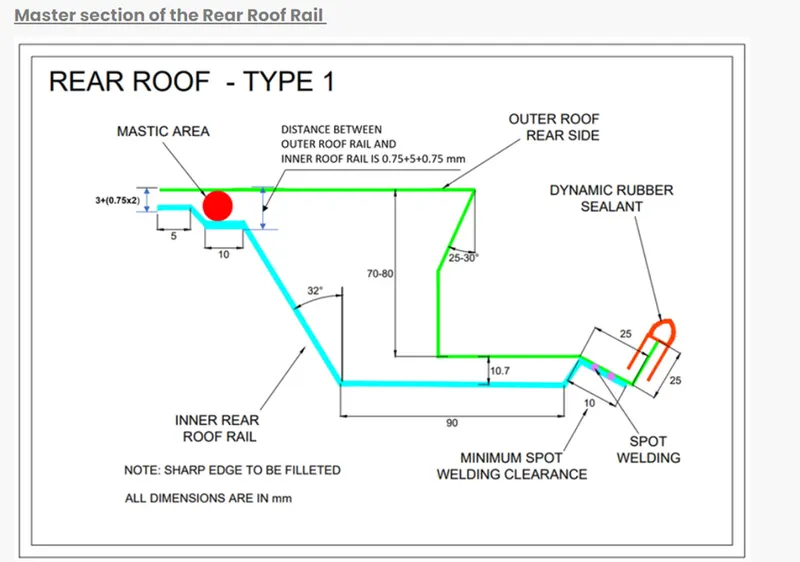

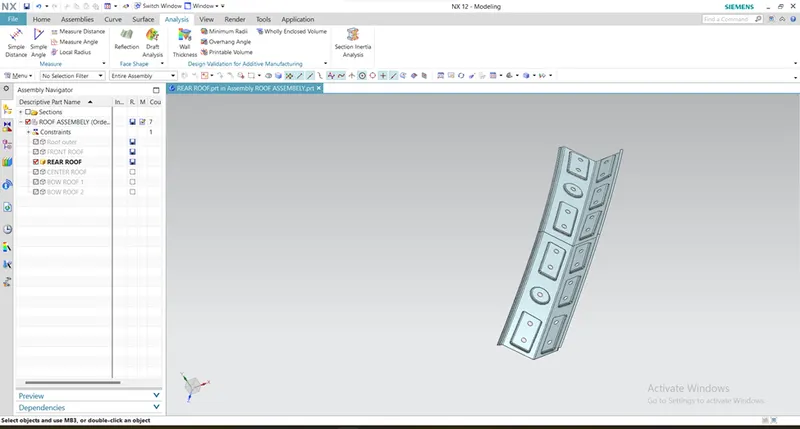

Step 2 : create a rear roof with the help of master section given.

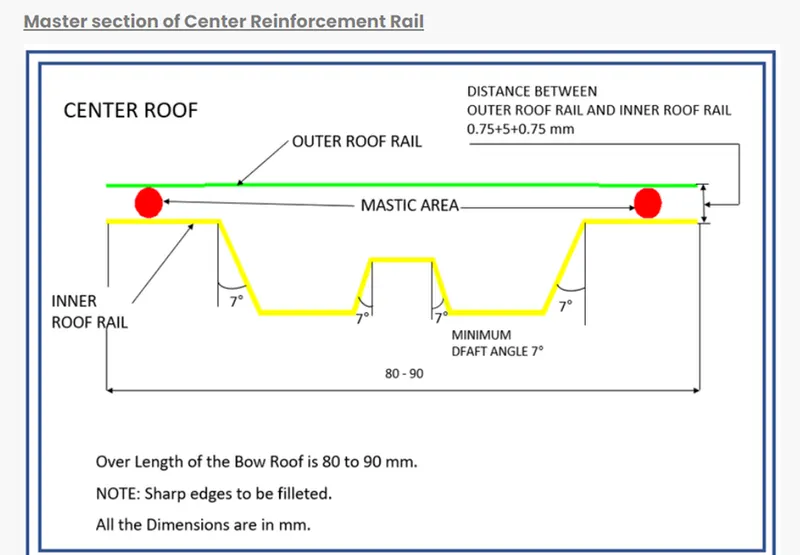

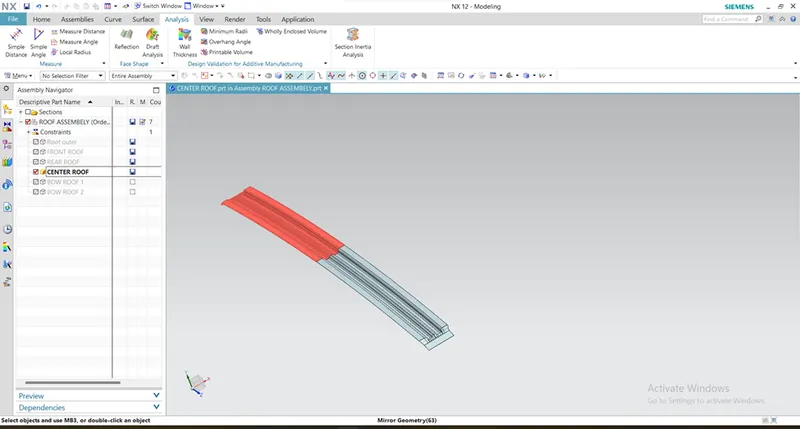

Step 3 : create the center roof by using given master section.

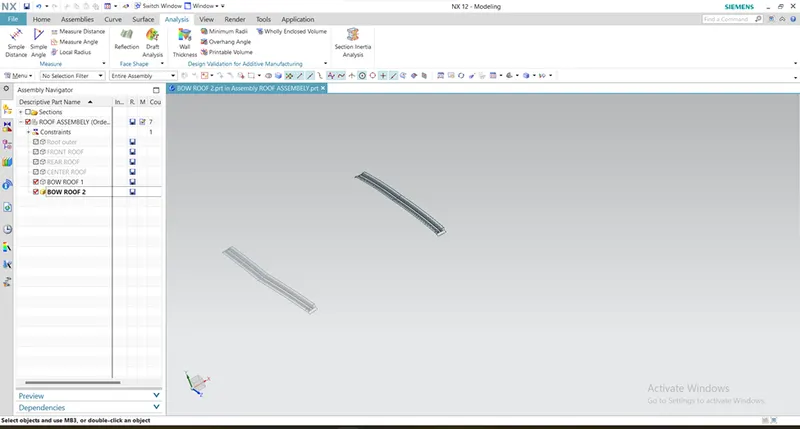

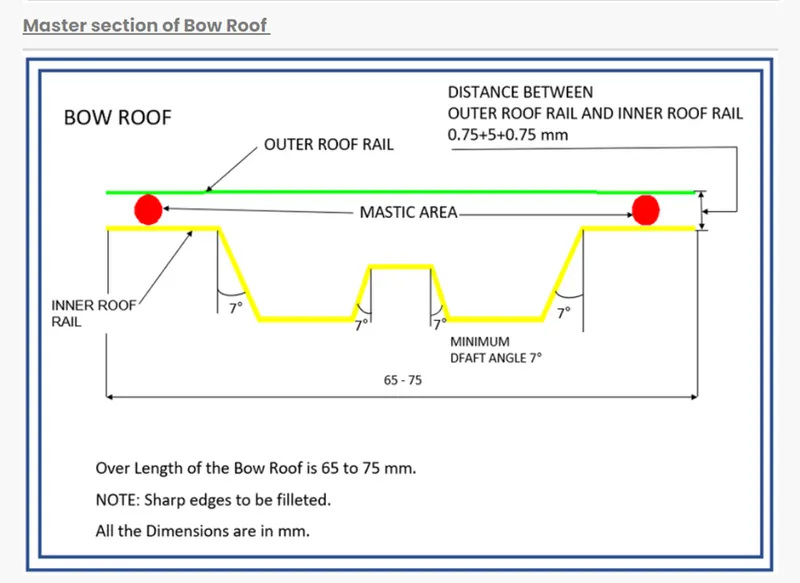

Step4:create the bow roofs from the master section.

step 5 : then assemble together with the outer roof panel roof panel.

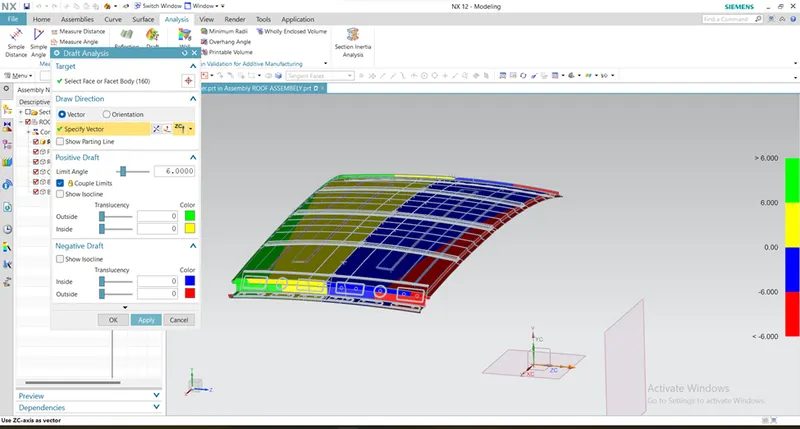

Step 6 : do the draft analysis for the roof .

step7 :
