Roof challenge

Aim:

To create the roof structure of the automobile, with the respective members consisting of FRONT ROOF RAIL, REAR ROOF RAIL, REINFORCEMENT and BOW ROOF RAILS.

Definition:

A roof is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements.

Parts Of Roof:

Generally, the roof consists of 4 parts, namely

* Front Roof Rail

* Rear Roof Rail

* Reinforcement Roof Rails

* Bow-roof Rails

Procedure:

* Class-A surface is given, and is downloaded.

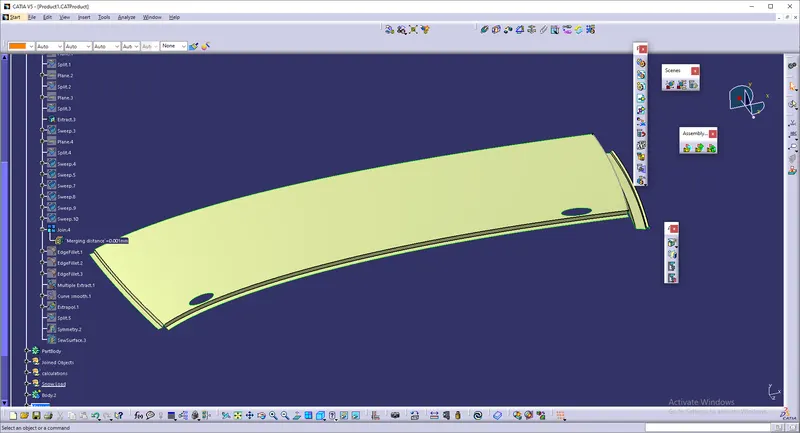

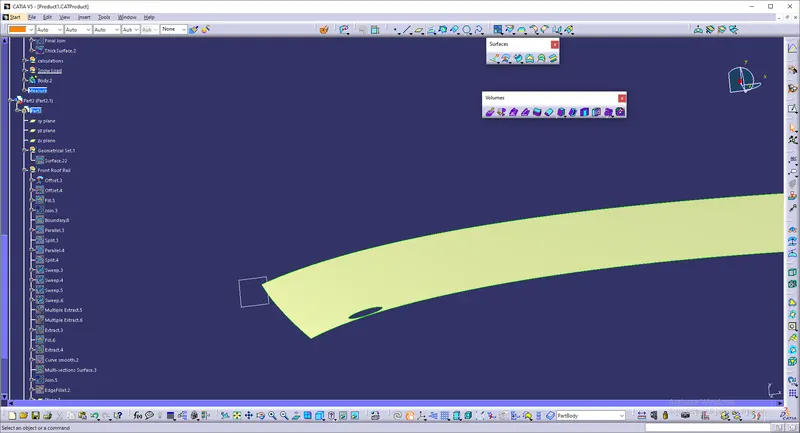

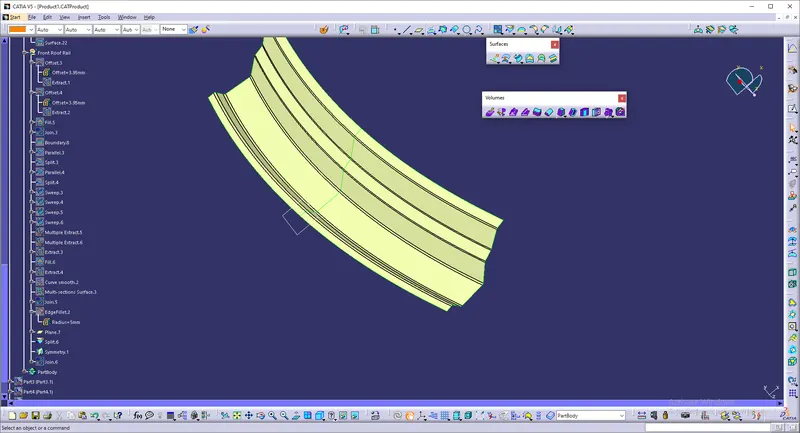

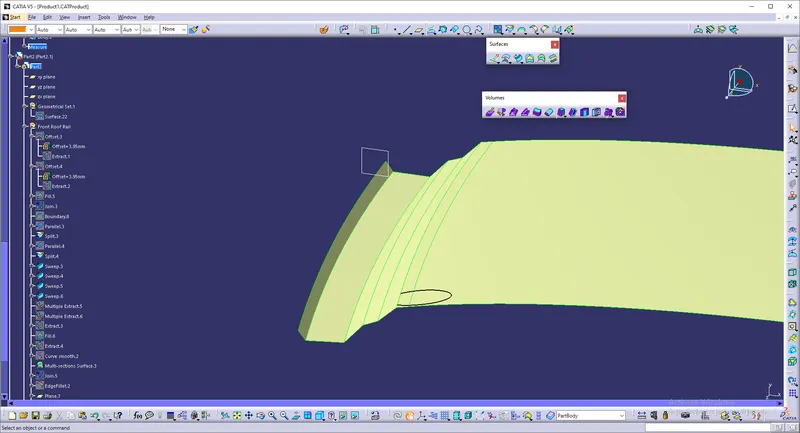

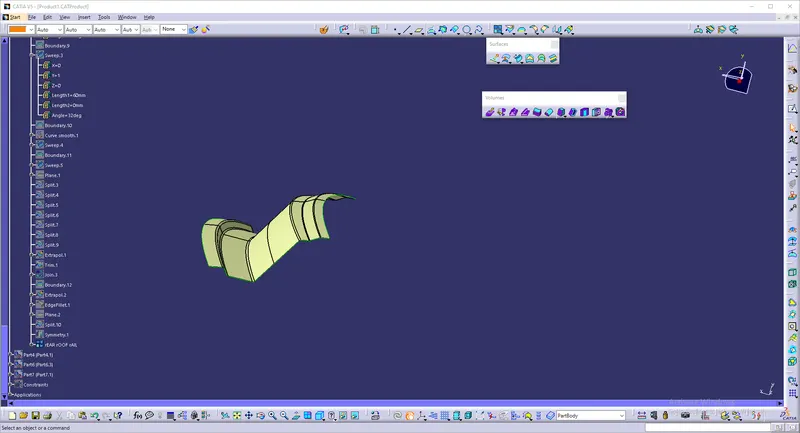

Making Of Front Roof Rail:

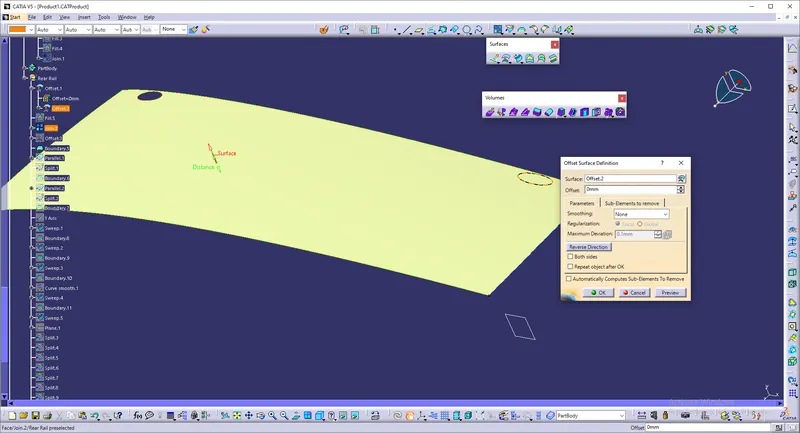

* From the Class-A surface, The OFFSET is then performed with Half of the surface.

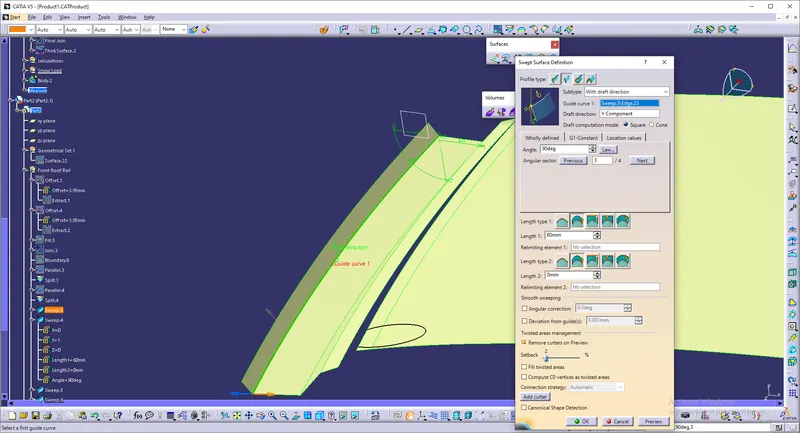

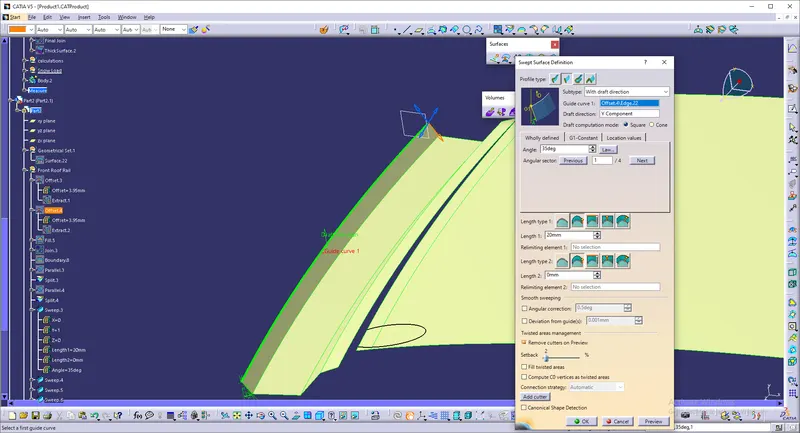

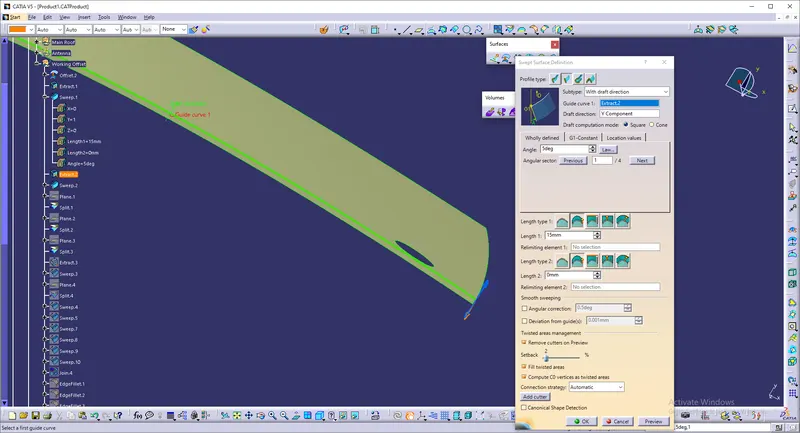

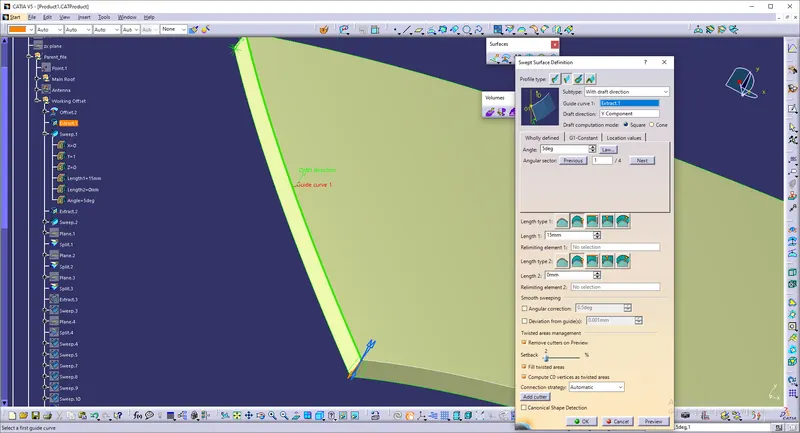

* Use EXTRACT to extract the edges and use SWEEP for 5 degrees.

After Sweeping the surfaces, Join the surfaces using JOIN command.

* Use Edge Fillet to make the surface into curvy edges.

* Use "Symmetry" option to Mirror the surface.

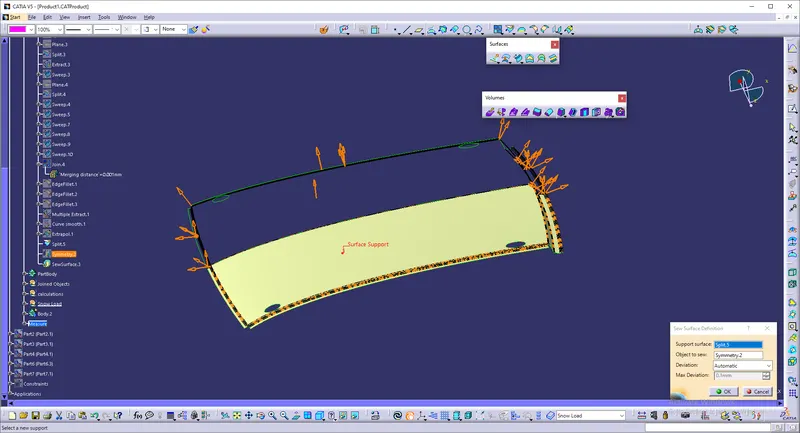

* Give SEW-SURFACE to join the surface, so that there will be no boundary gap.

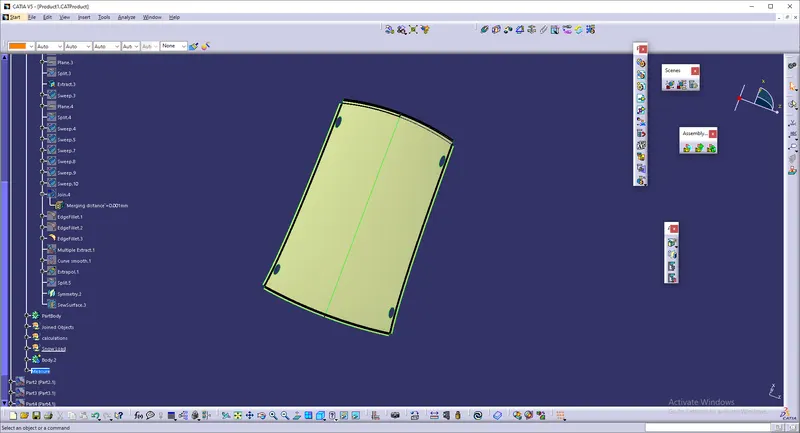

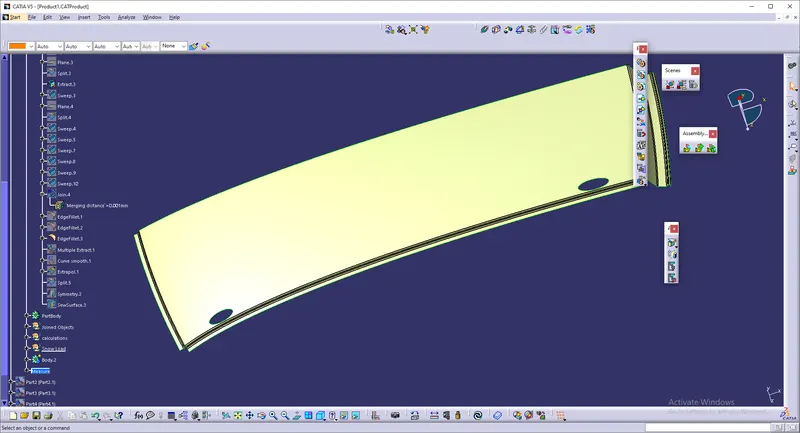

* The Final Product is Obtained.

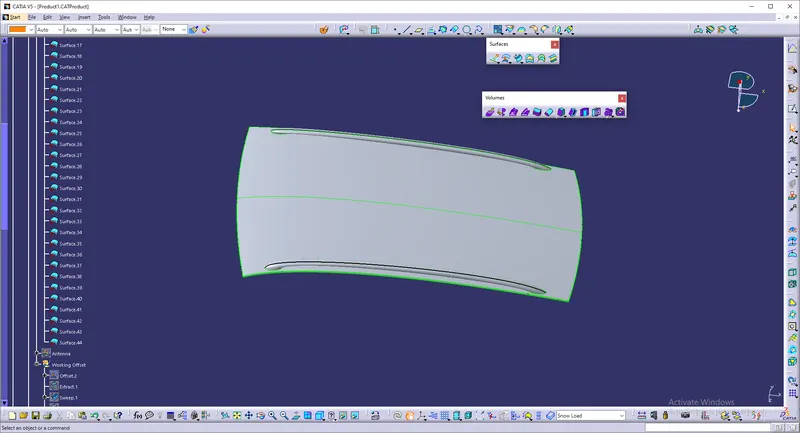

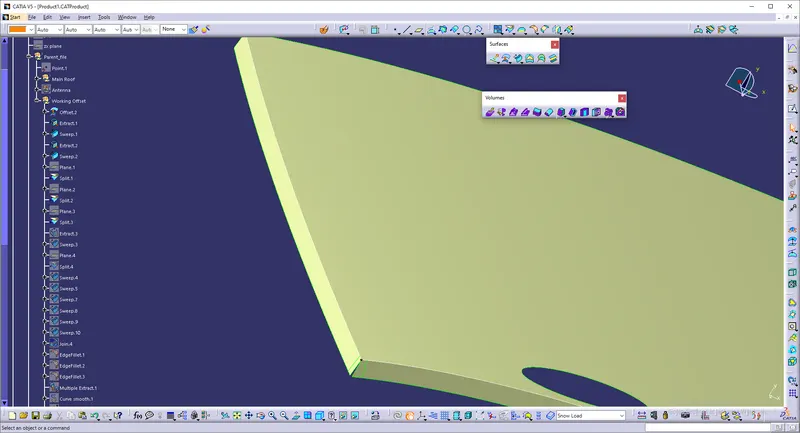

* Make the Roof into Solid Part.

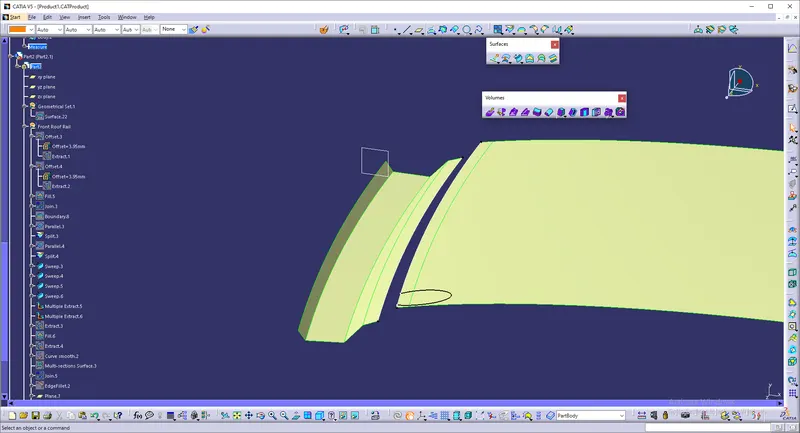

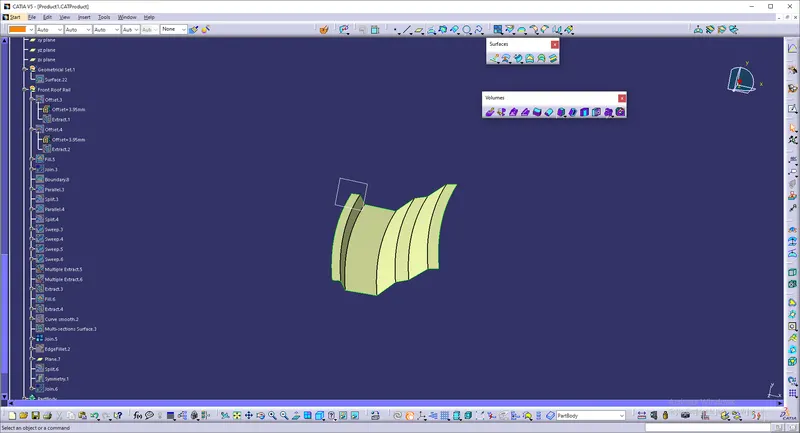

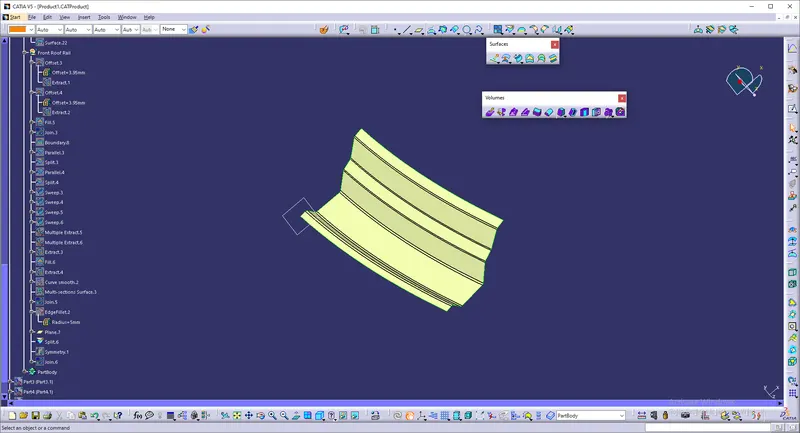

Creation Of Front And Rear Roof Rails:

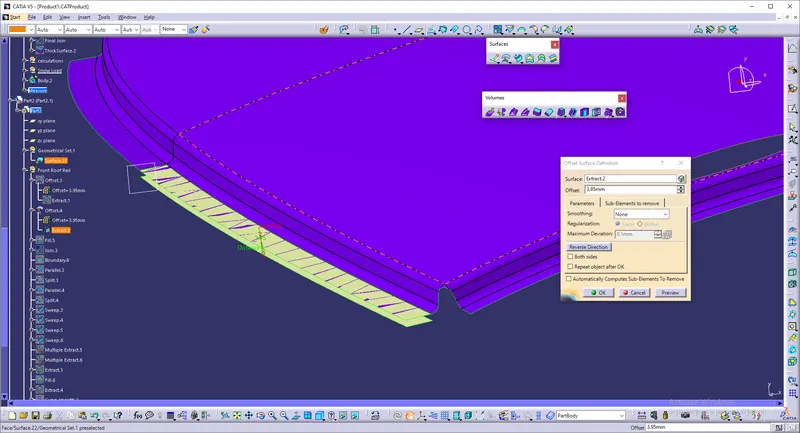

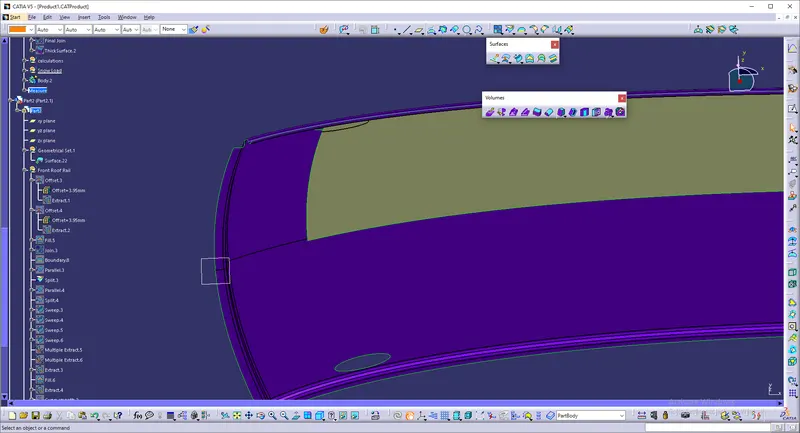

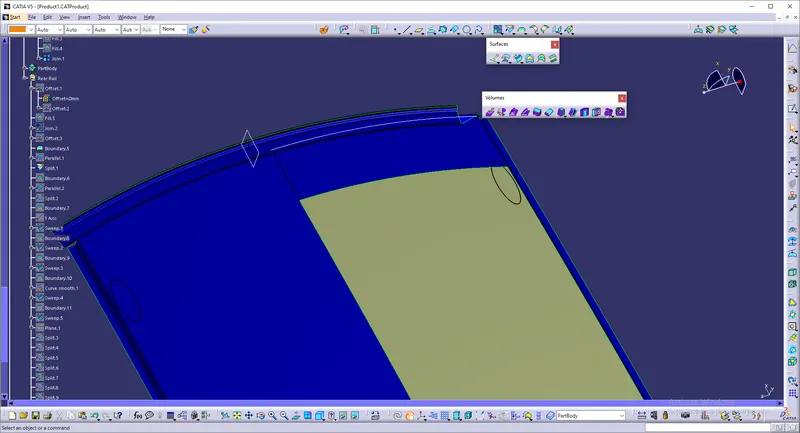

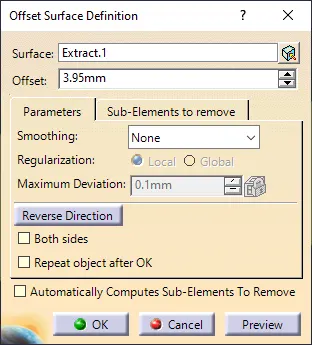

* Offset the surfaces as given below.

* Use Split to split the excess surfaces.

* Do the same for another surface.

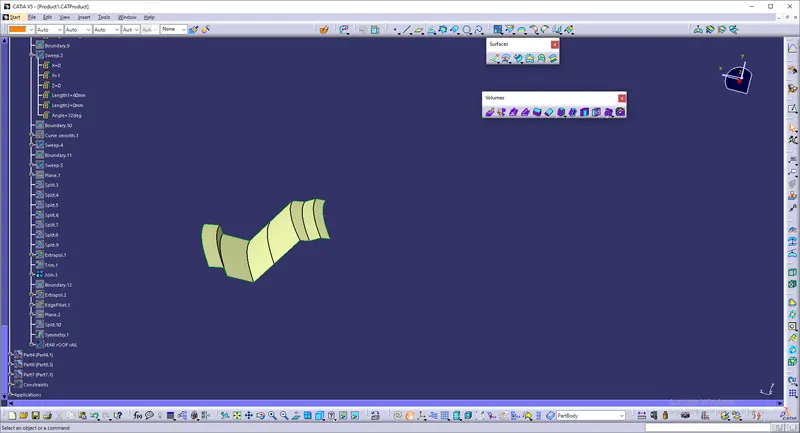

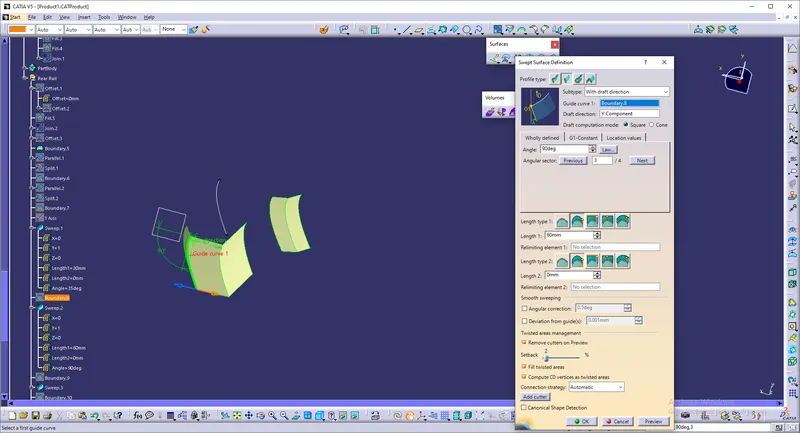

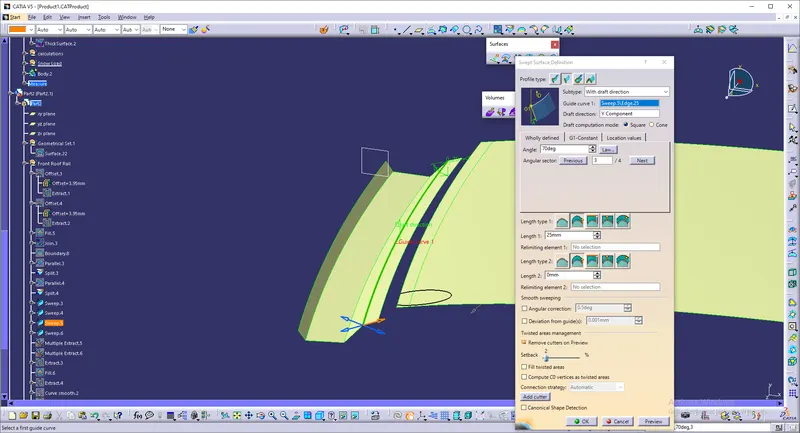

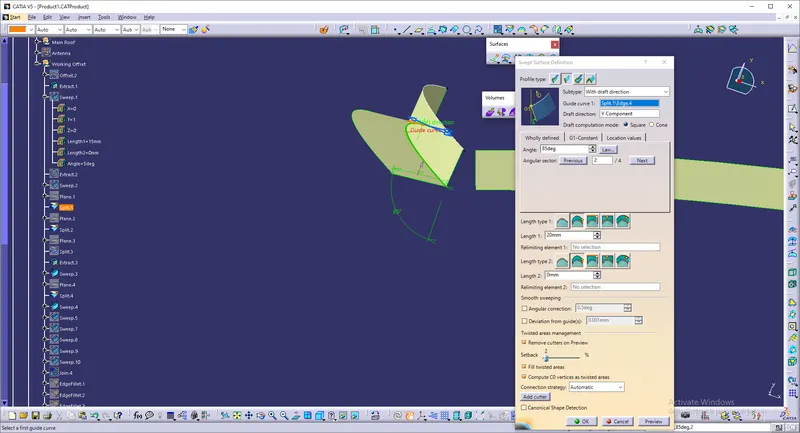

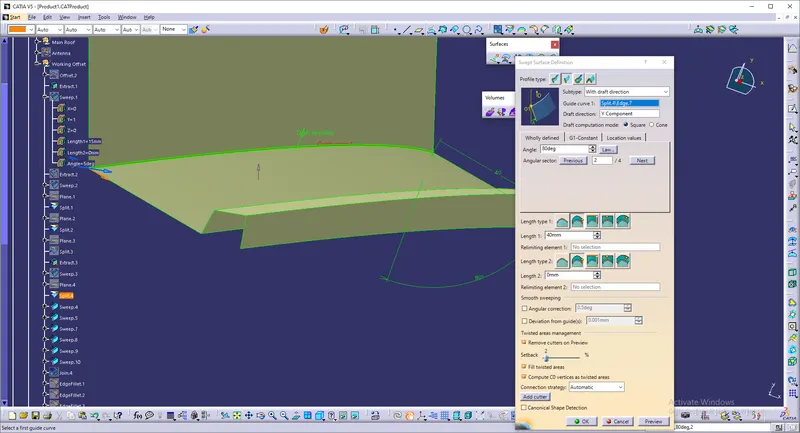

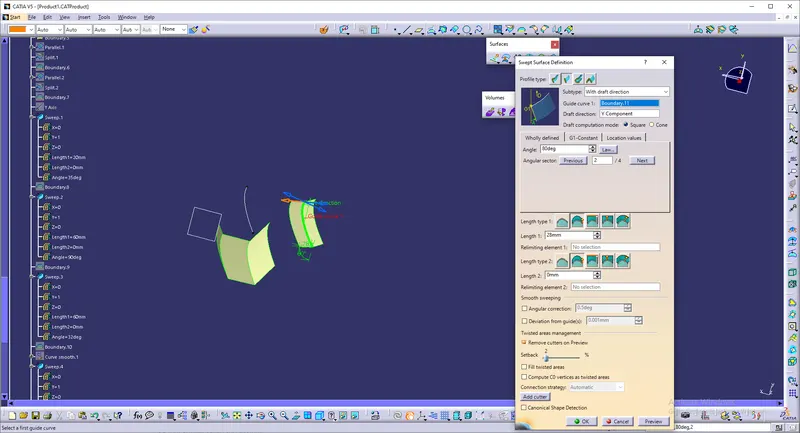

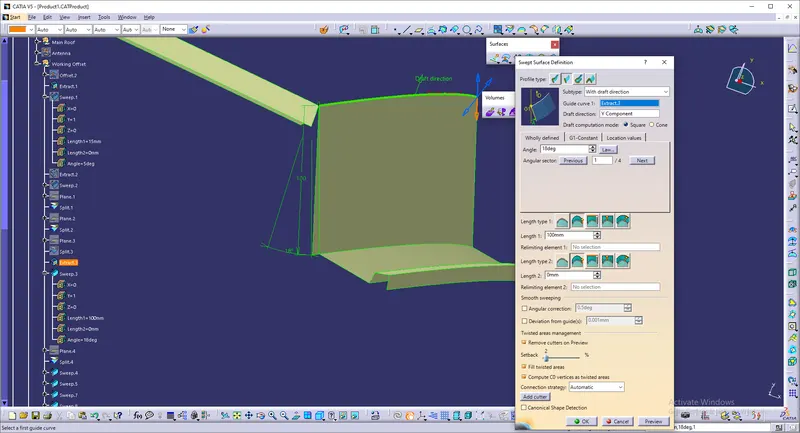

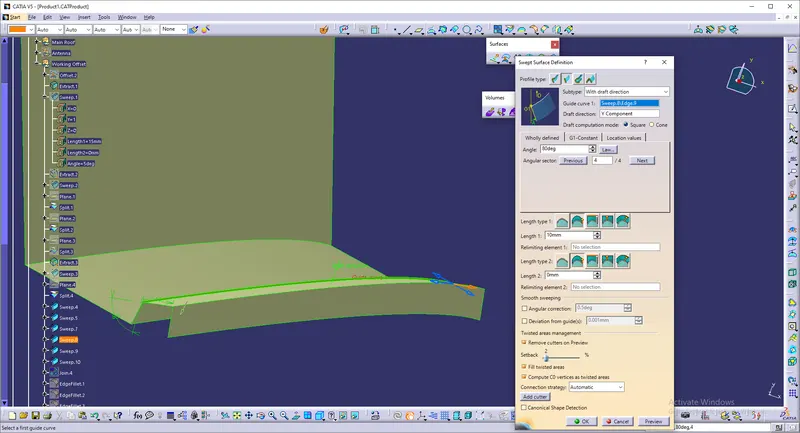

* Sweep the surfaces as given below.

* Use Multiple Extract to create the MULTI-SECTION solids.

* Join the Surfaces.

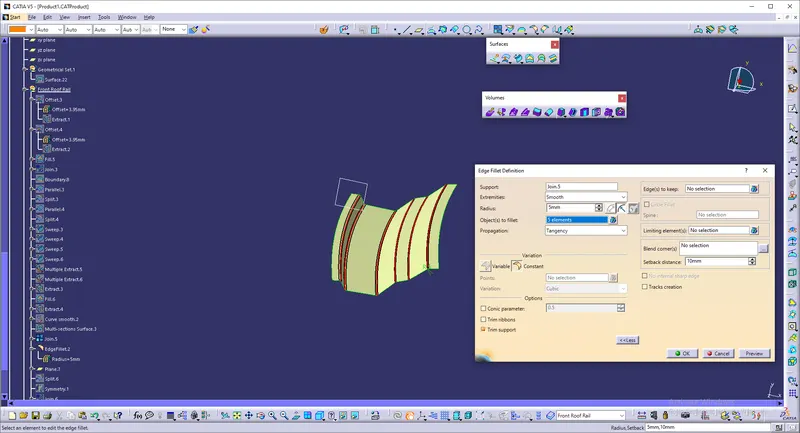

* Use Edge Fillet.

* Create the Plane to split the surface which are in excess one.

* Create the Symmetrical plane and join the surfaces.

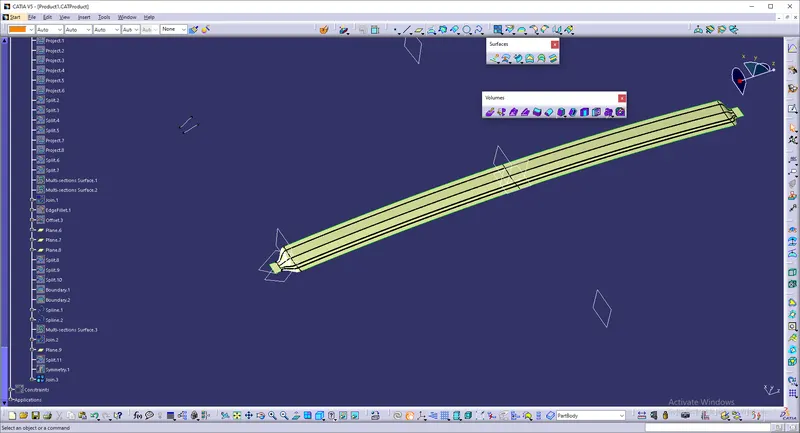

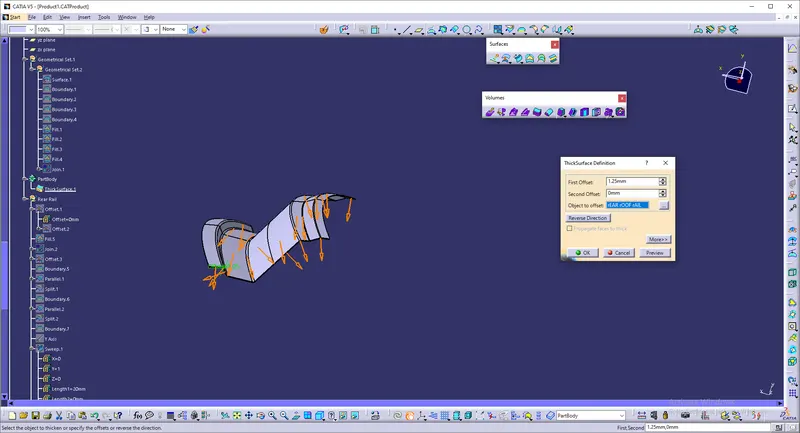

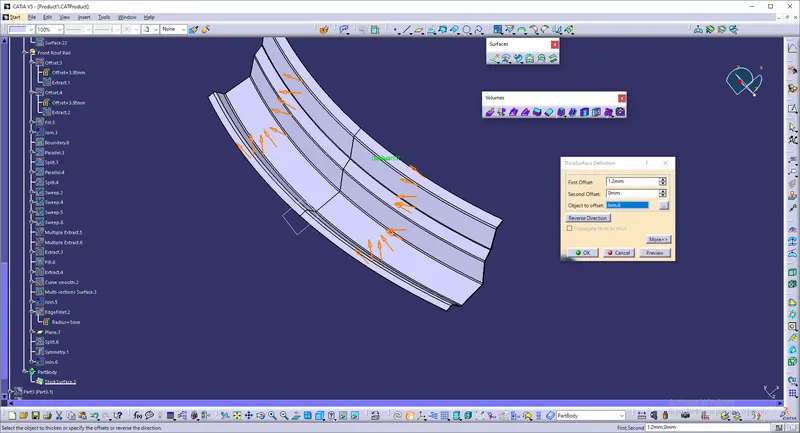

* Thicken the surface.

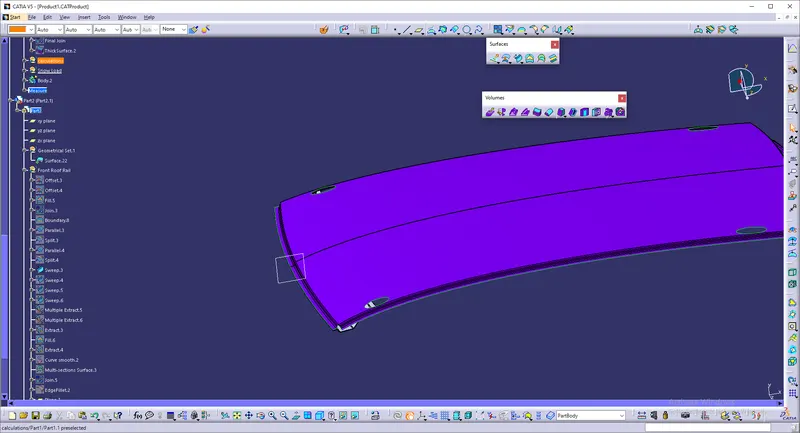

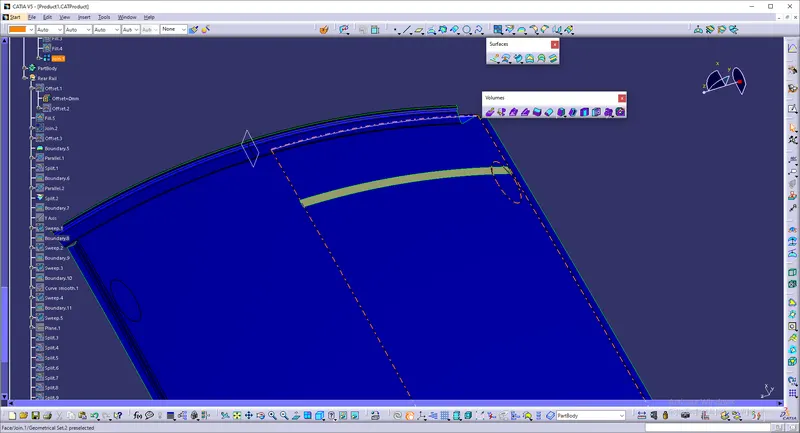

* Repeat the process for creating the rear roof rail.

* Join the surfaces as given in the diagram and use edge fillets.

* Thicken the Surface.

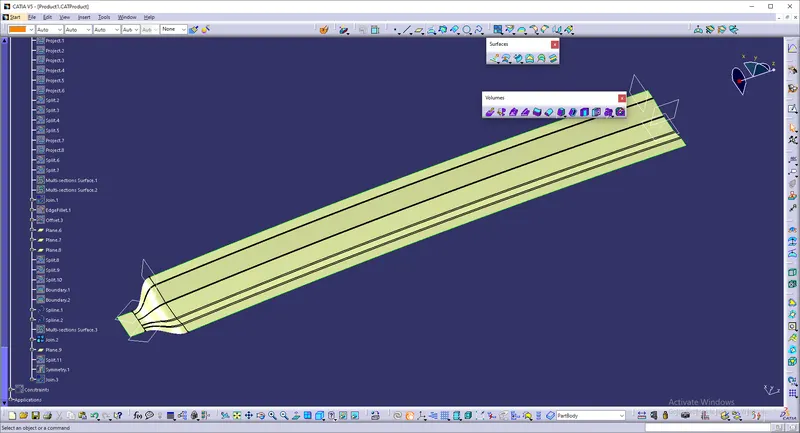

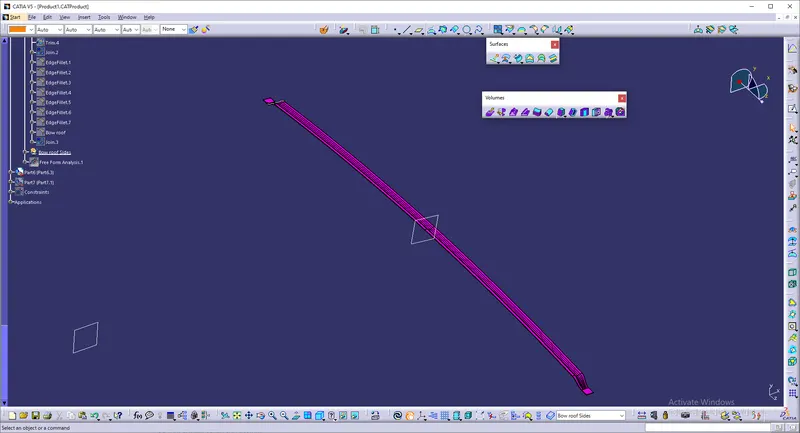

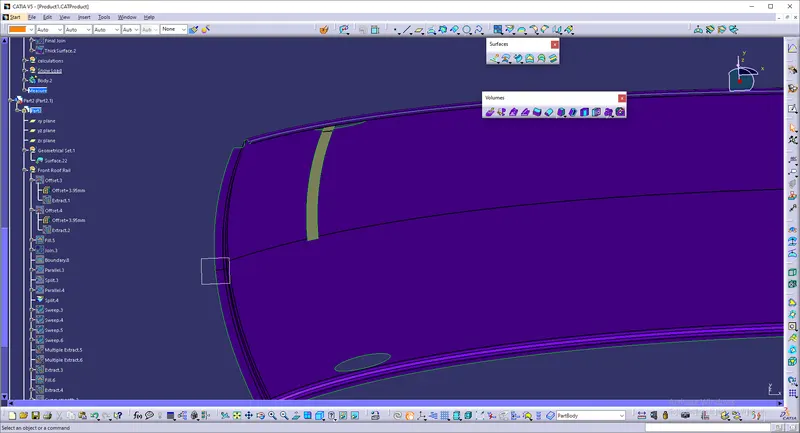

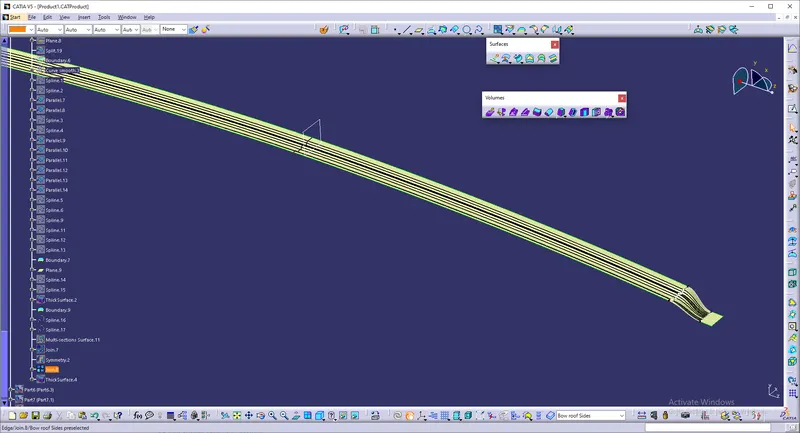

* Creation of Bow-roof:

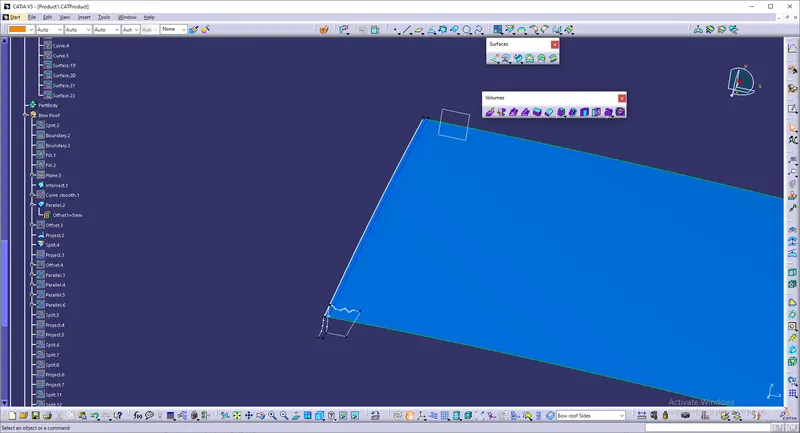

* Split the extracted surface.

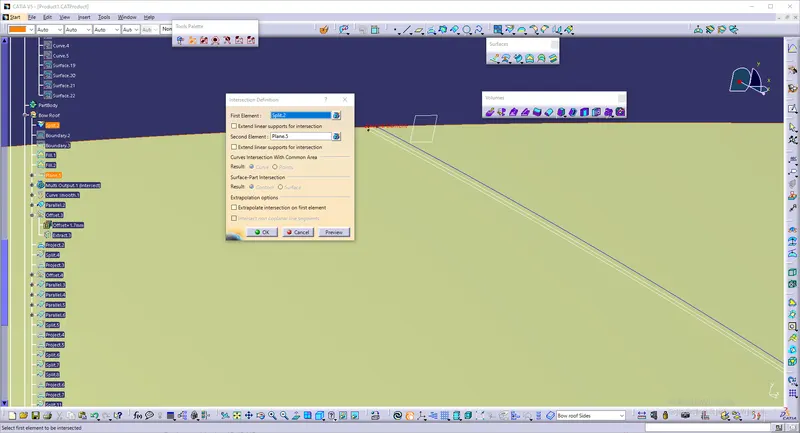

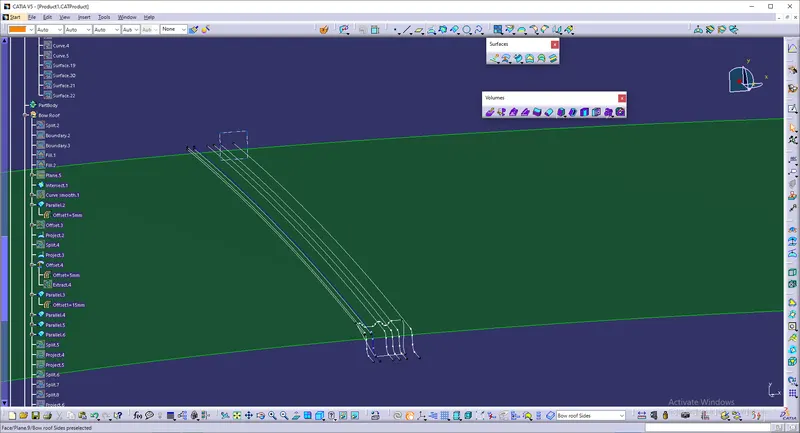

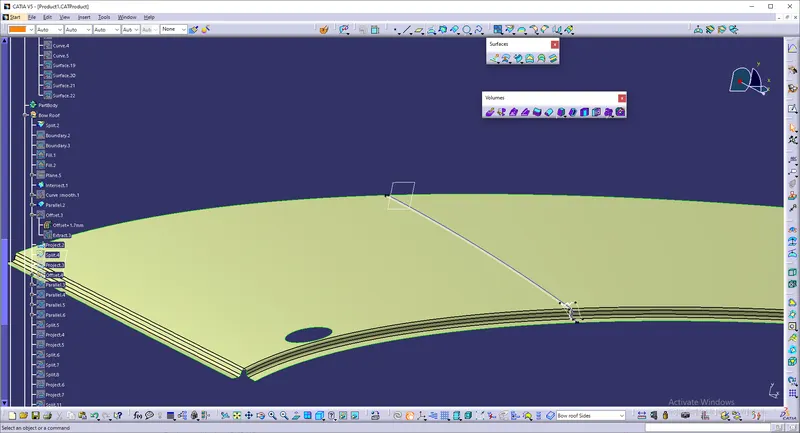

* Use Intersect option to create the line for bow roof.

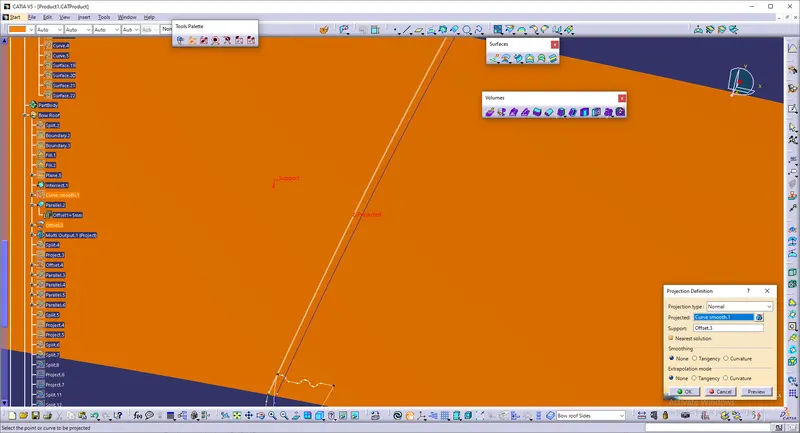

* Project the lines on the offset surface.

* Split the surface to remove the excess surface.

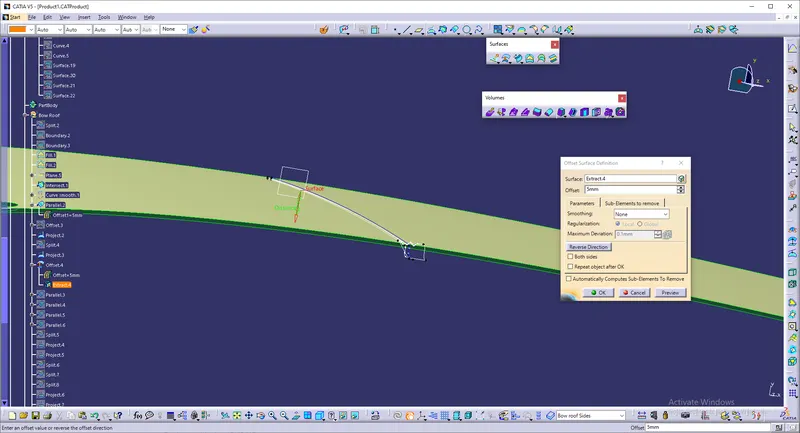

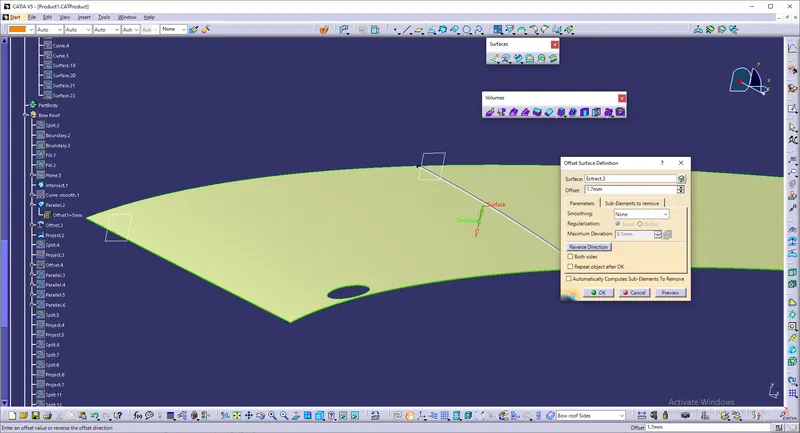

* Again Offset the surface .

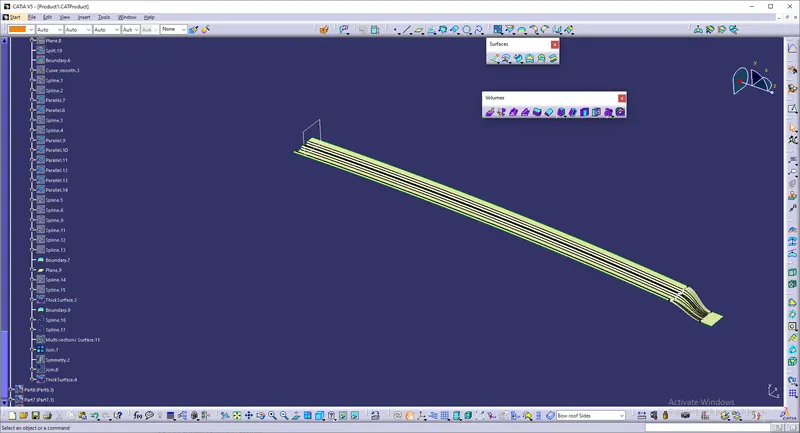

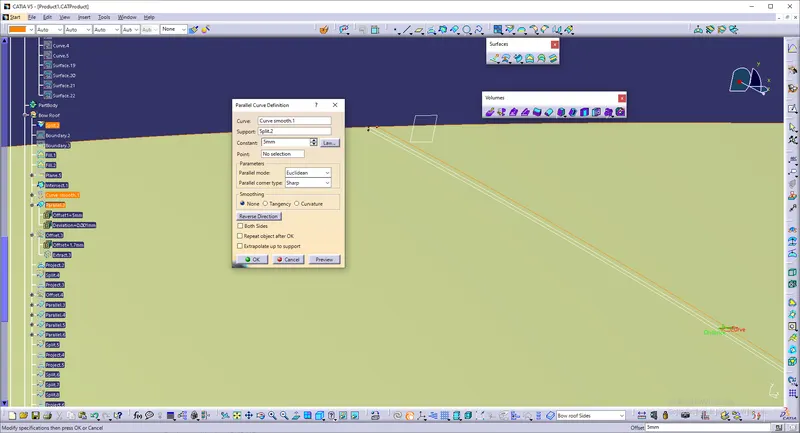

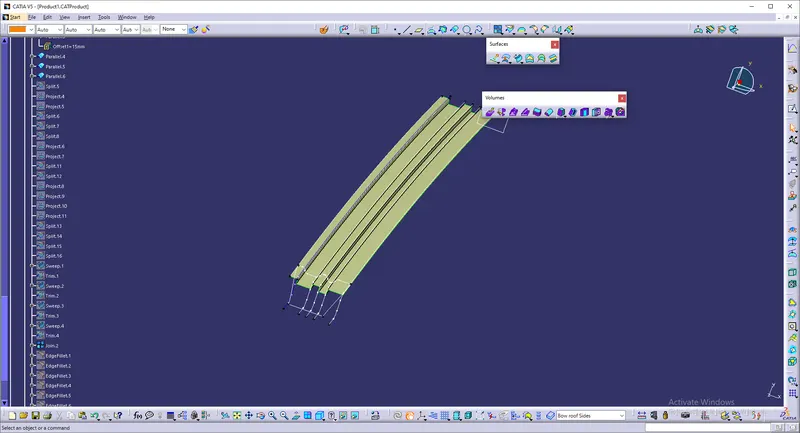

* Create the Parallel curves of 5 mm each.

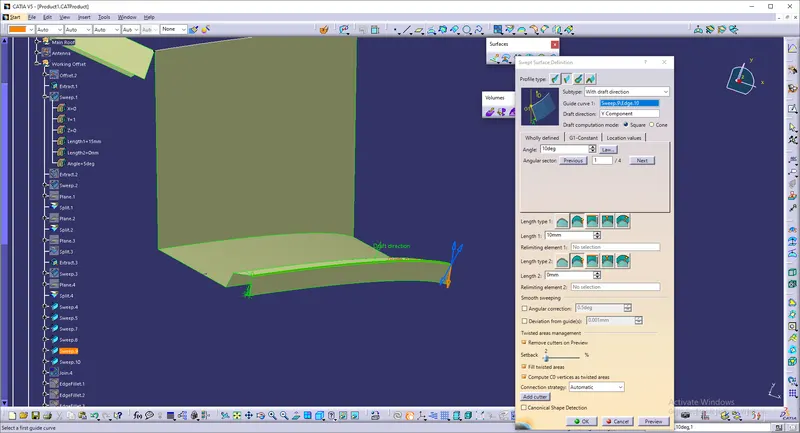

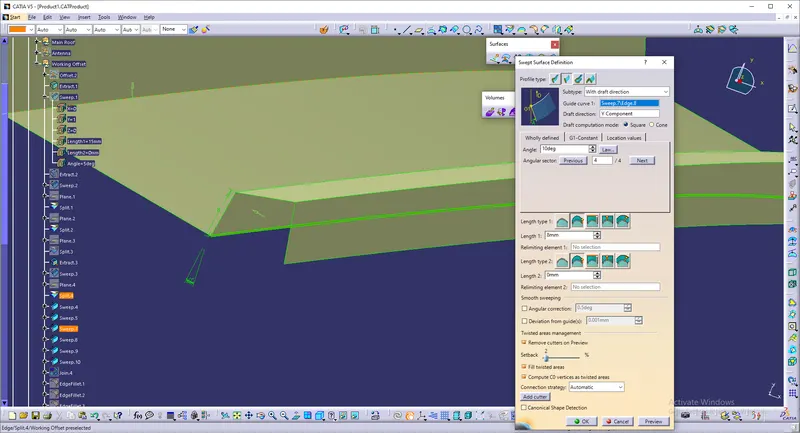

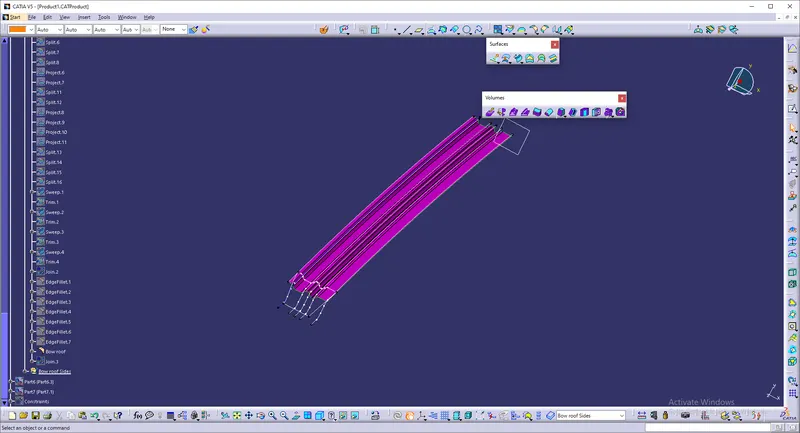

* Use split to remove the unwanted faces, and use sweep about the degree of 3, to create the joining surfaces.

* Use edge fillets of 2.2mm on this surface.

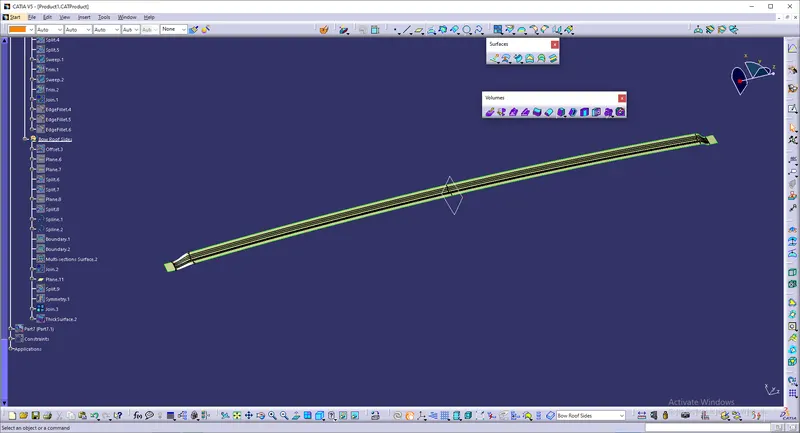

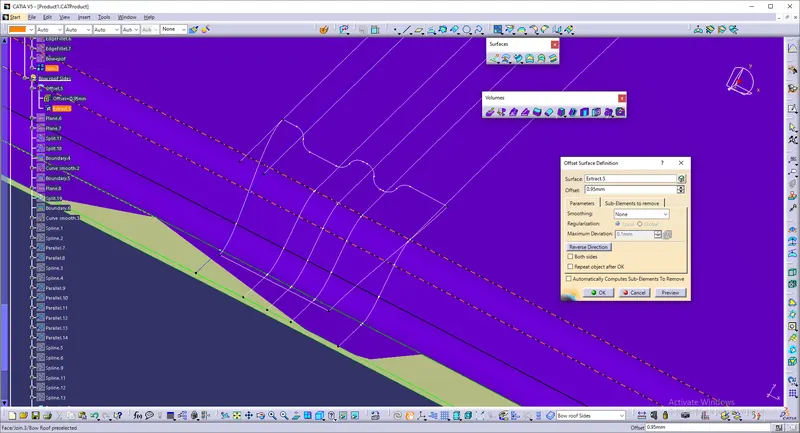

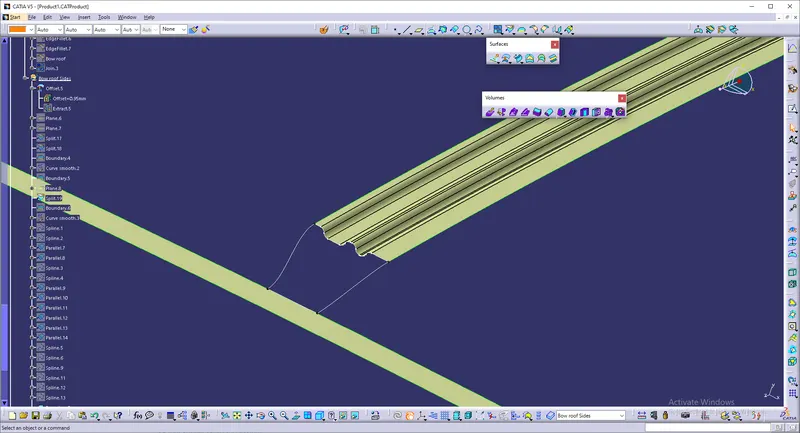

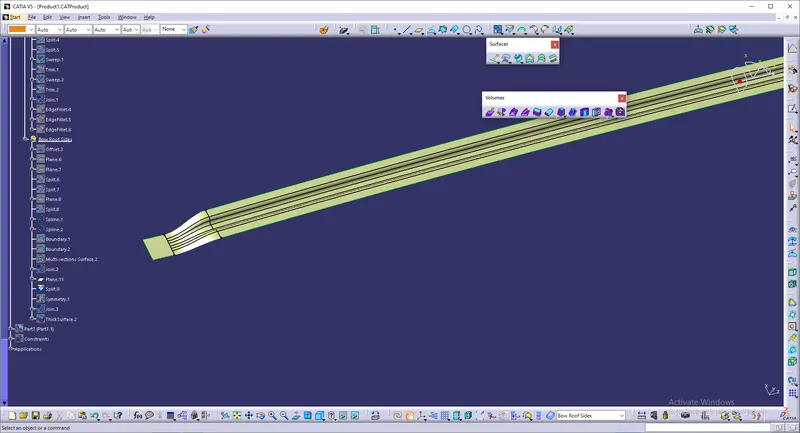

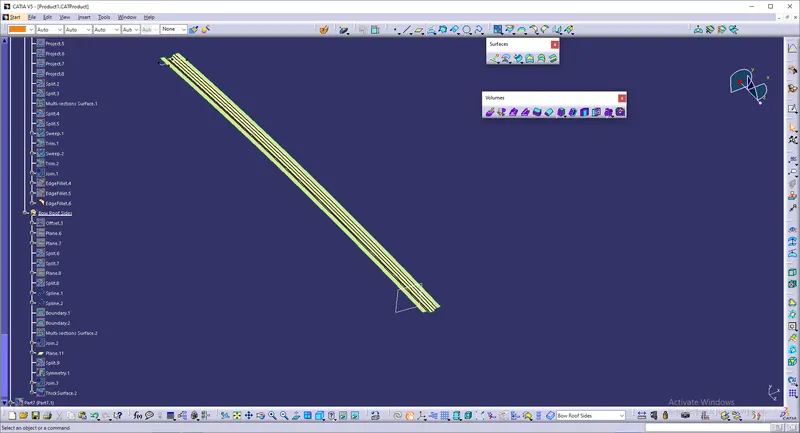

* To create the Bow roof sides, offset the surface about 0.95 mm

* Split the excess part of the rails in order to bring the proper connection between the rail and the extracted part.

* Create the spline for bringing the curved surface as reference.

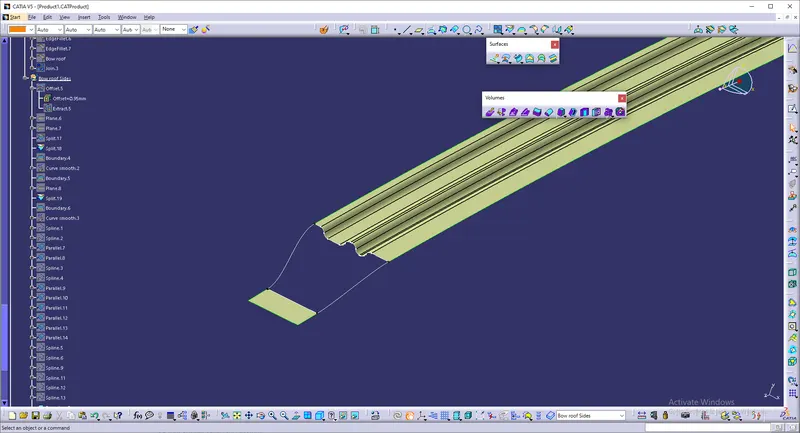

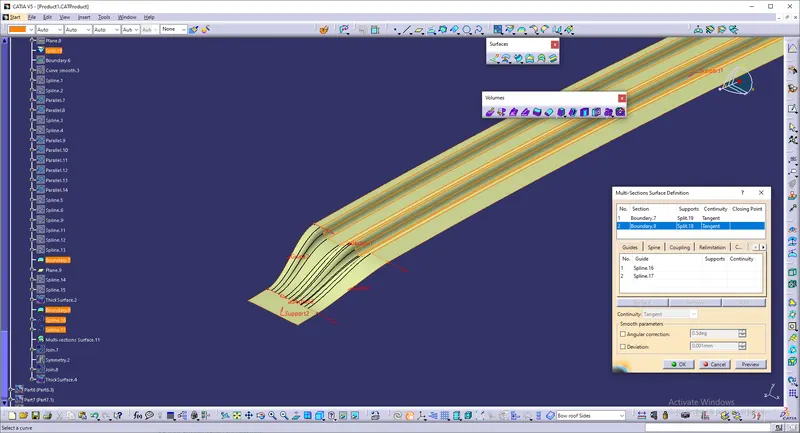

* Create the multi-section surface using these splines as guide curves.

* Join those surfaces.

* Use Symmetry to create the mirror image and join those surfaces.

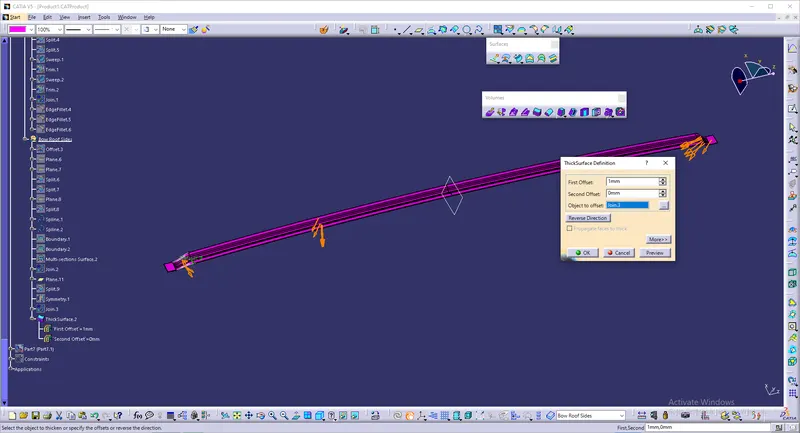

* Thicken the surface.

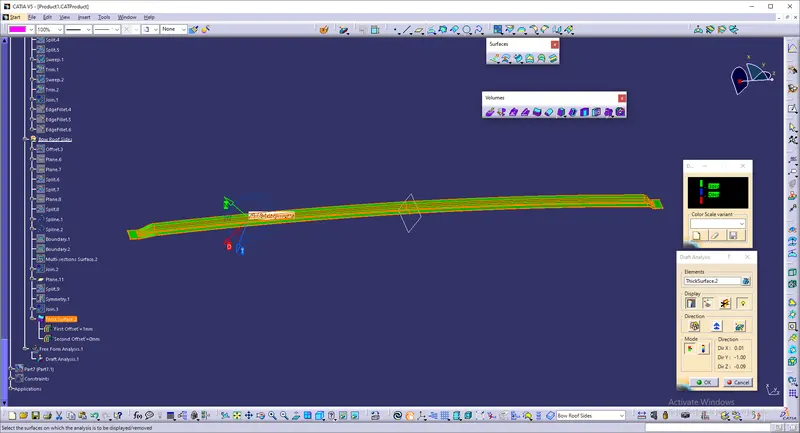

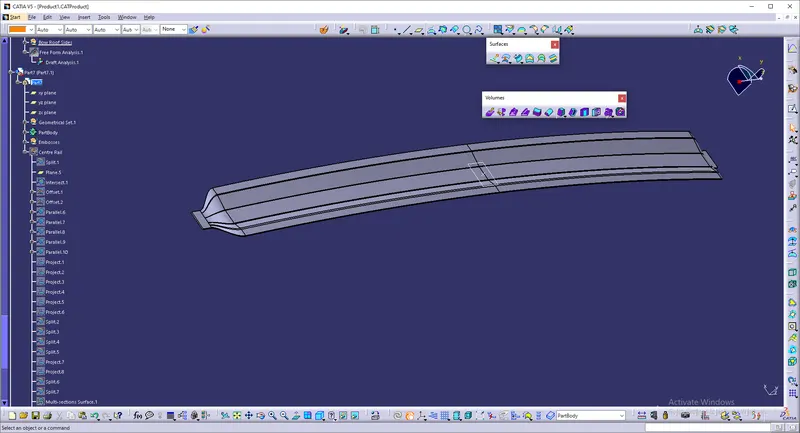

* Repeat the same method for creating the another Bow-Roof and the Centre-roof rails.

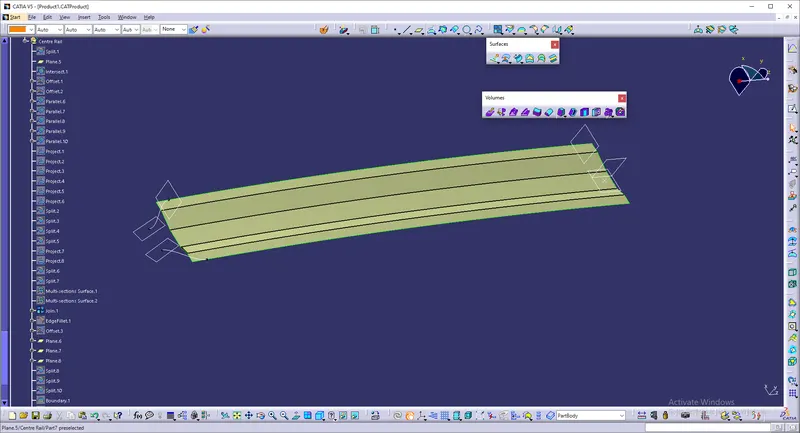

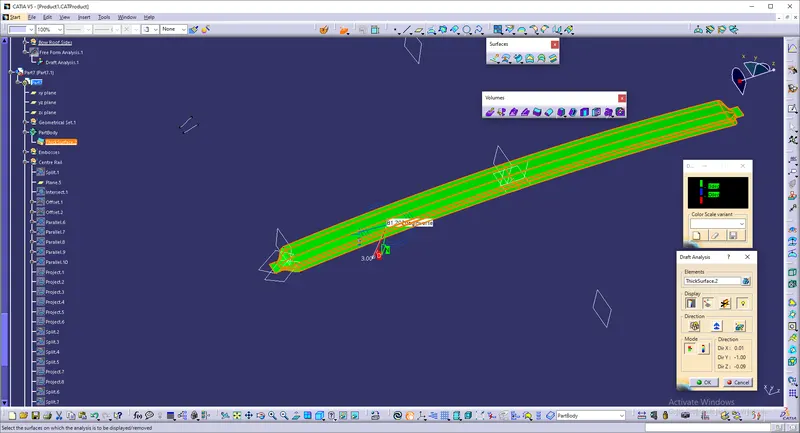

For Centre Roof Rail:

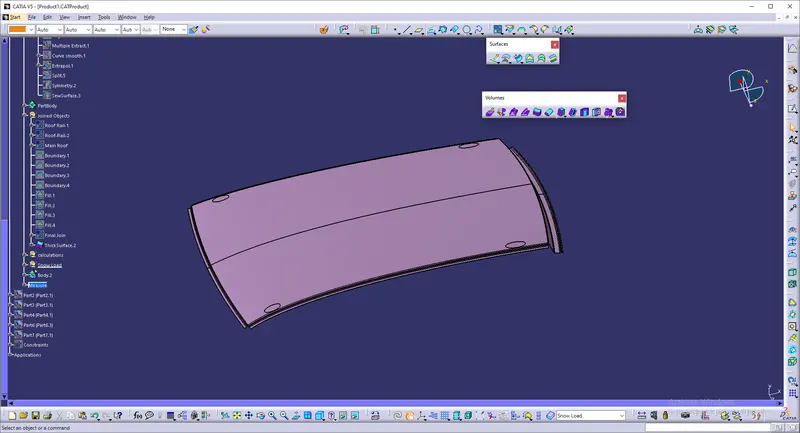

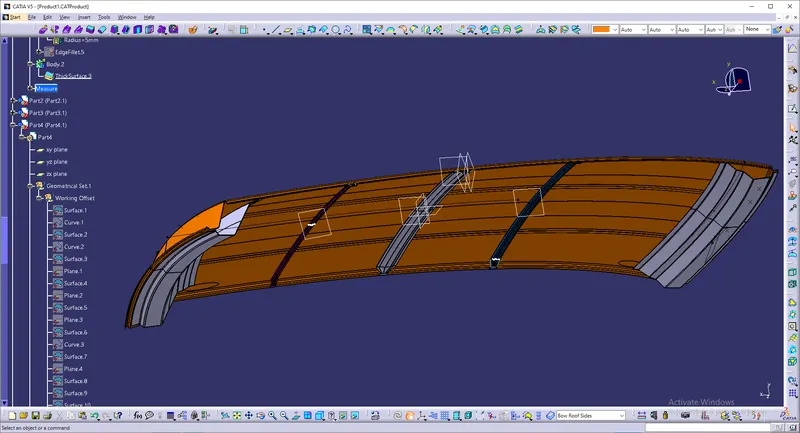

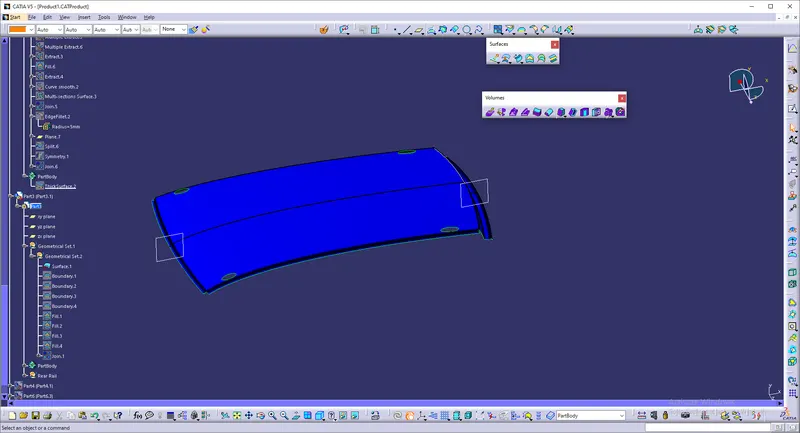

* Roof Assembly:

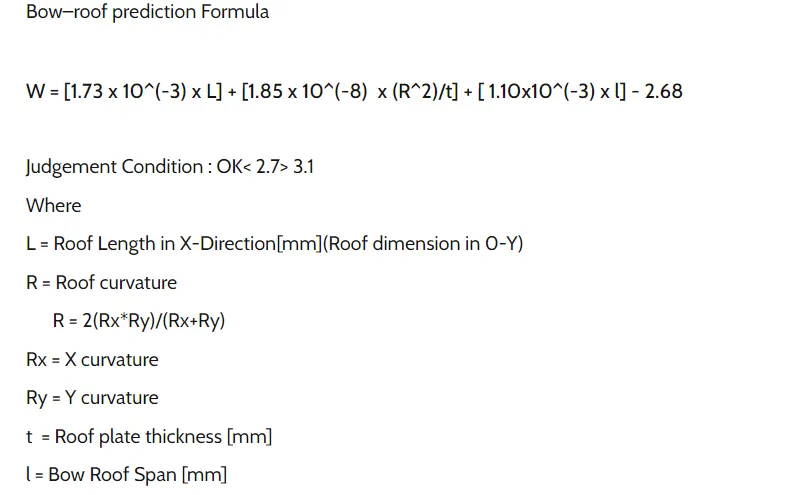

Calculation:

i) Heat distortion Formula:

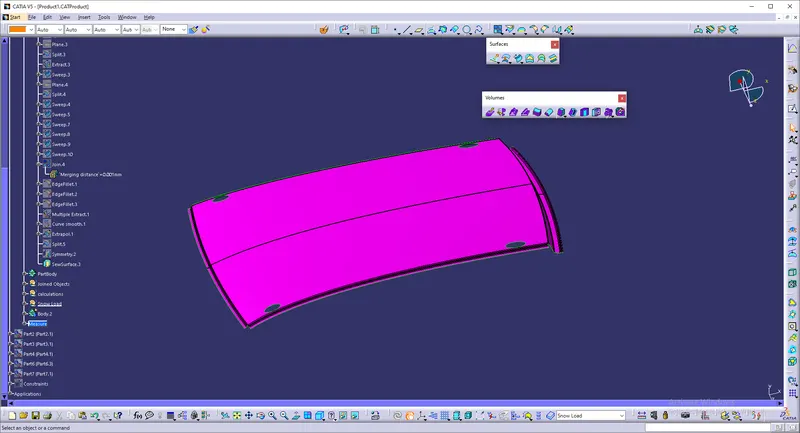

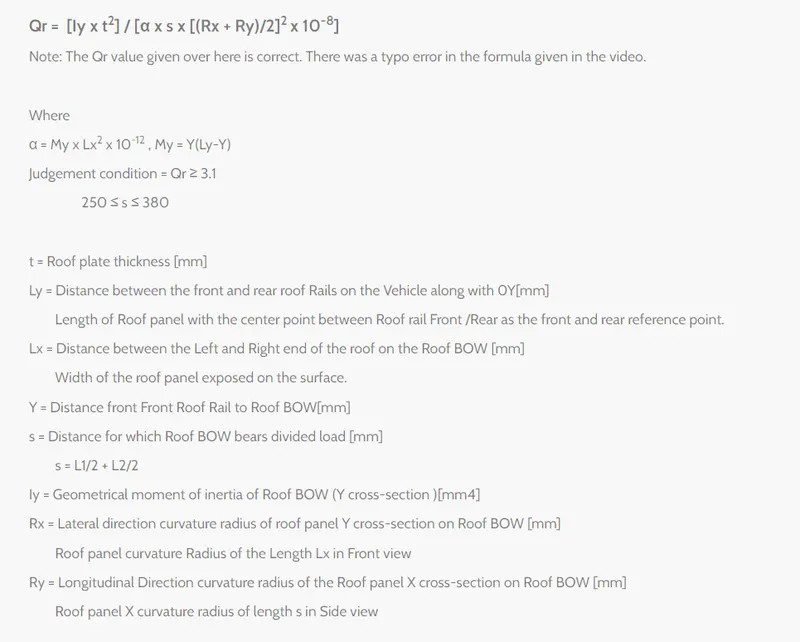

ii) Snow Load Formula:

Result:

Hence, from the above calculations, the Roof which is designed satisfies these conditions.
