Roof challenge

- Aim: To design the Automotive roof rail and all the necessary components to improve the strength of the roof as per the master section. - Method: - An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other…

    • Neel sanap

      updated on 22 May 2021

    - Aim: To design the Automotive roof rail and all the necessary components to improve the strength of the roof as per the master section.

    - Method:

    - An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements.

    Roof Challenge : Skill-Lync

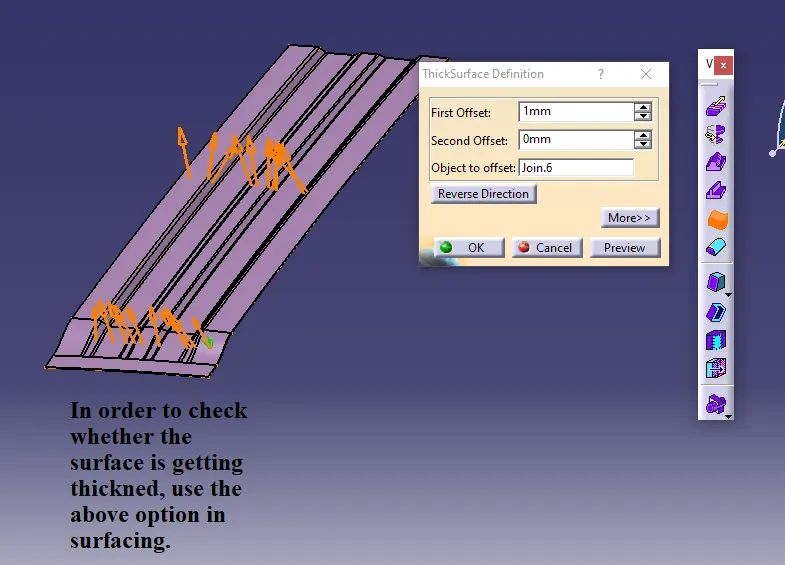

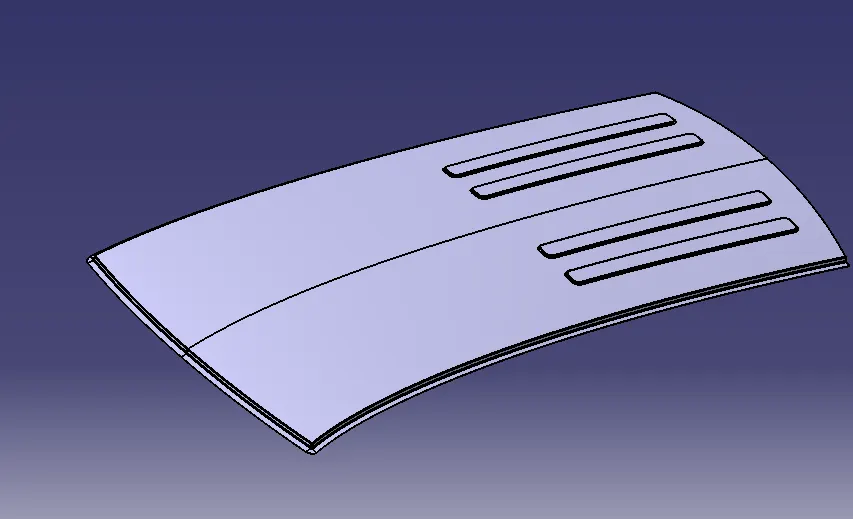

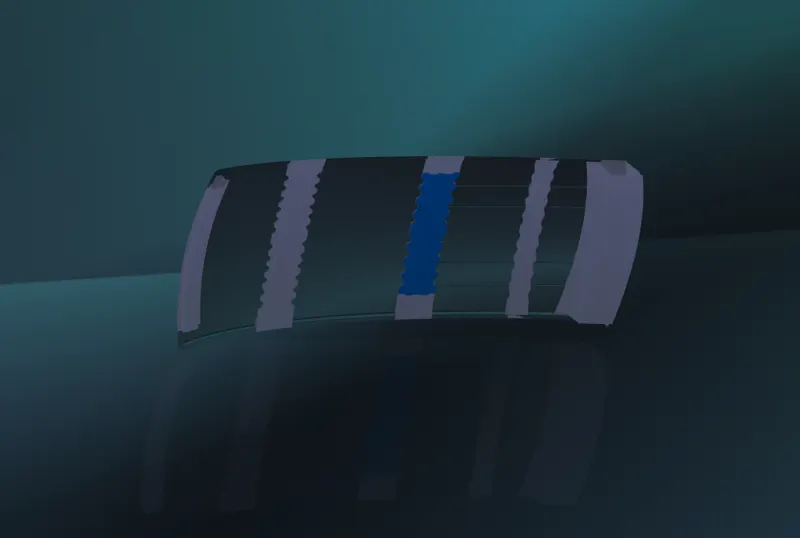

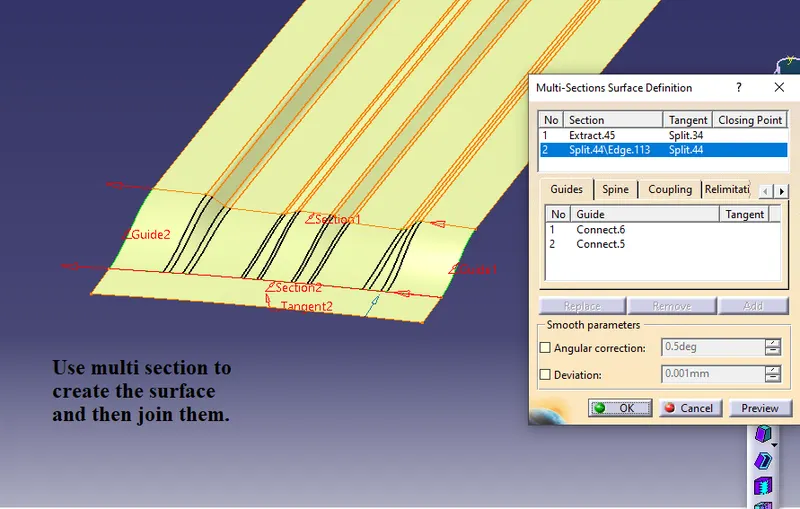

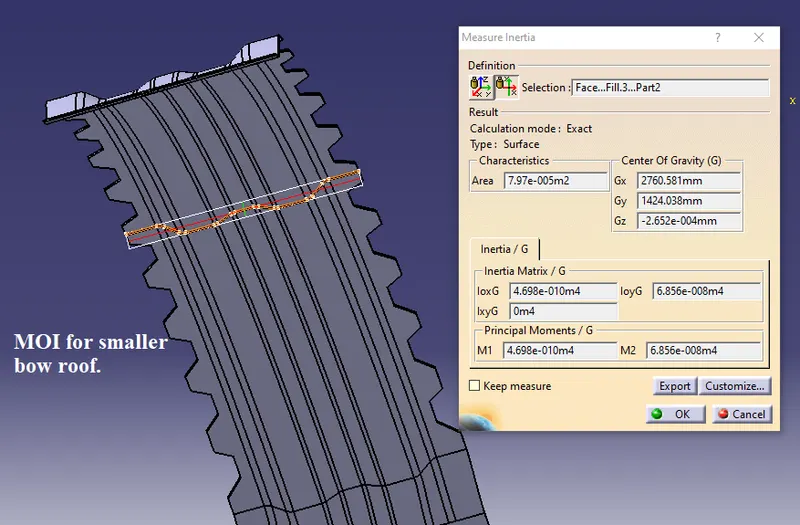

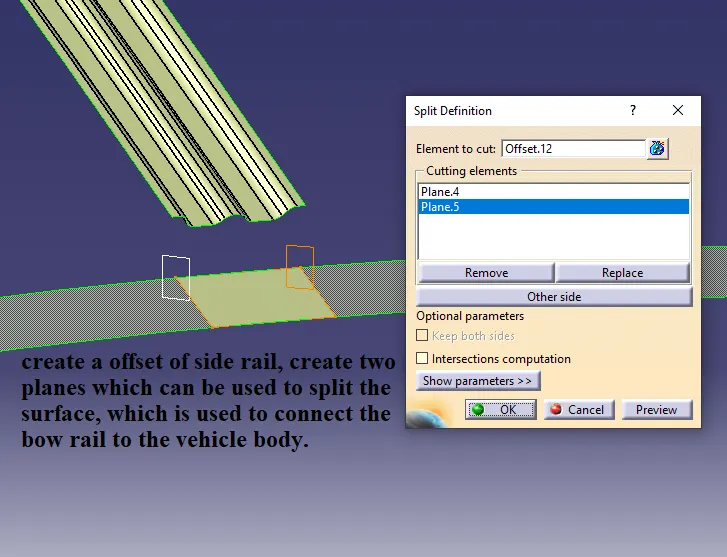

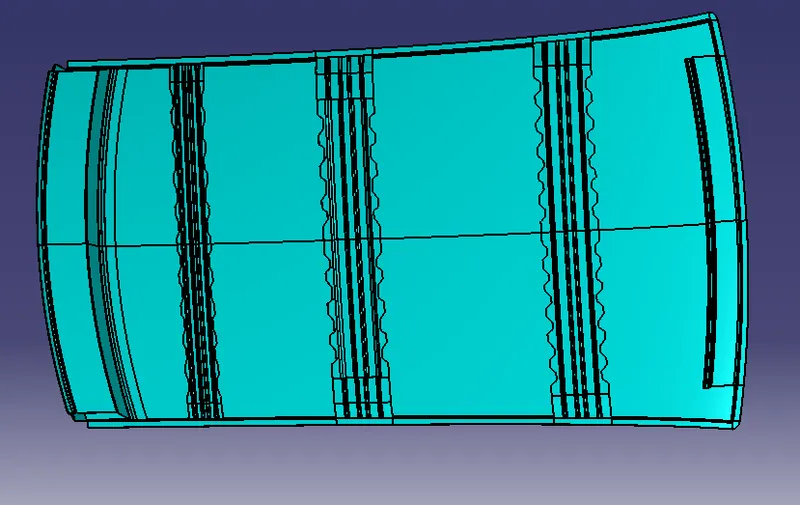

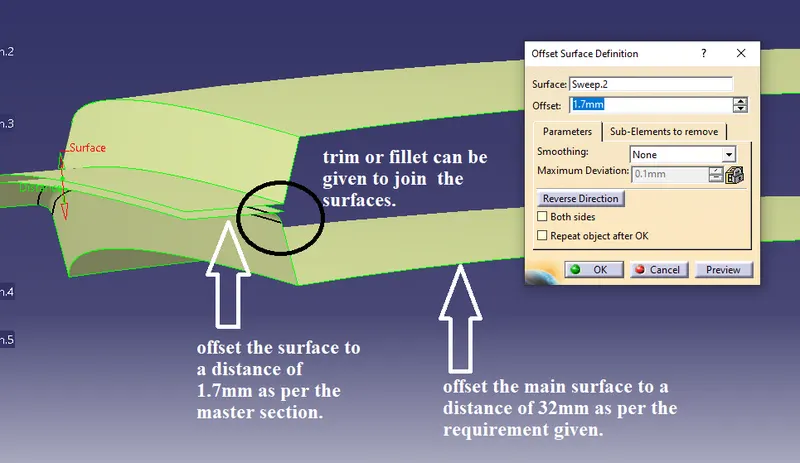

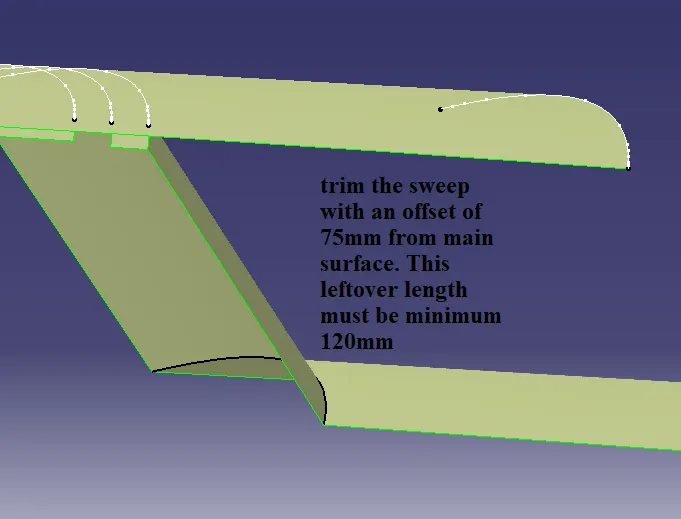

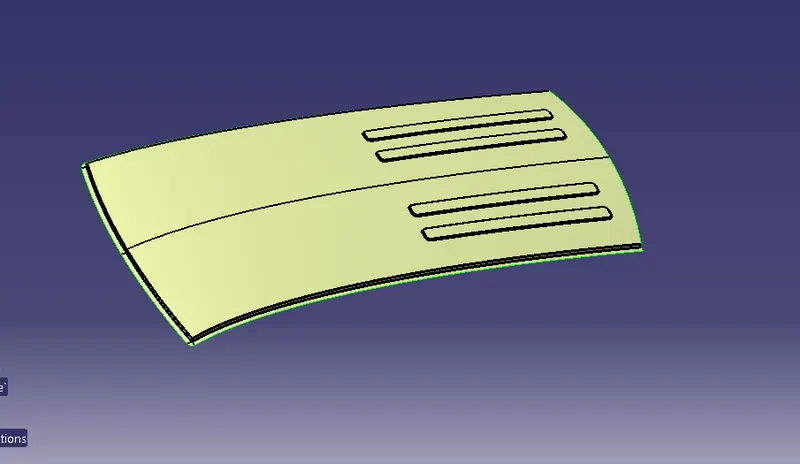

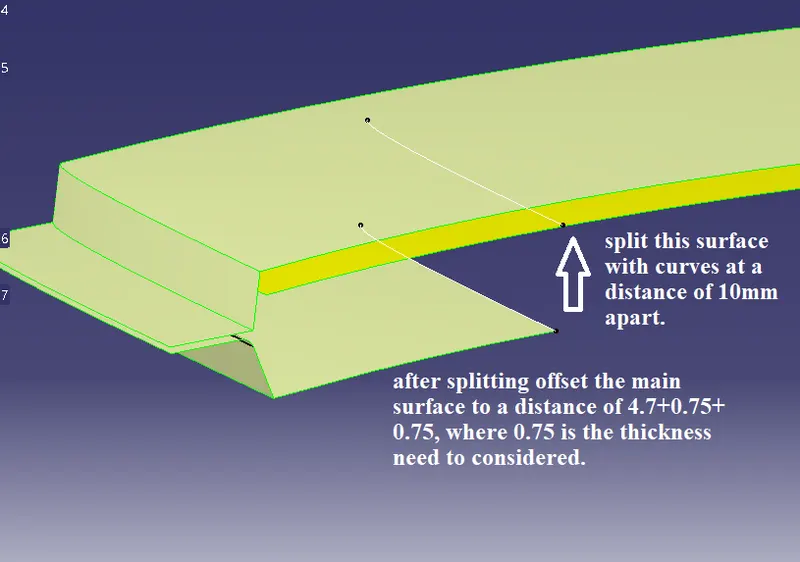

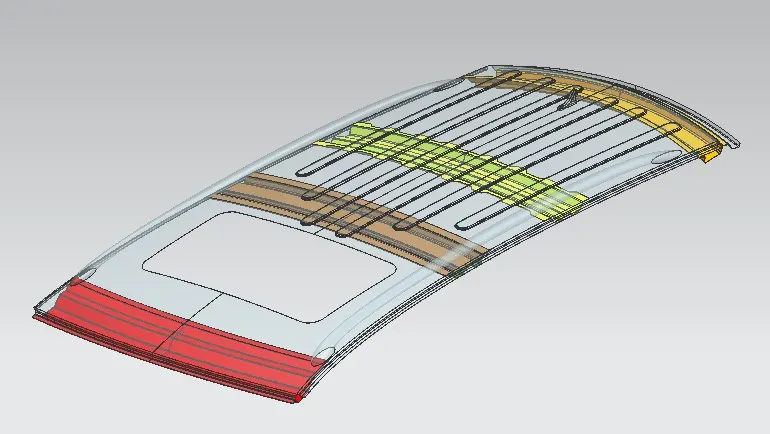

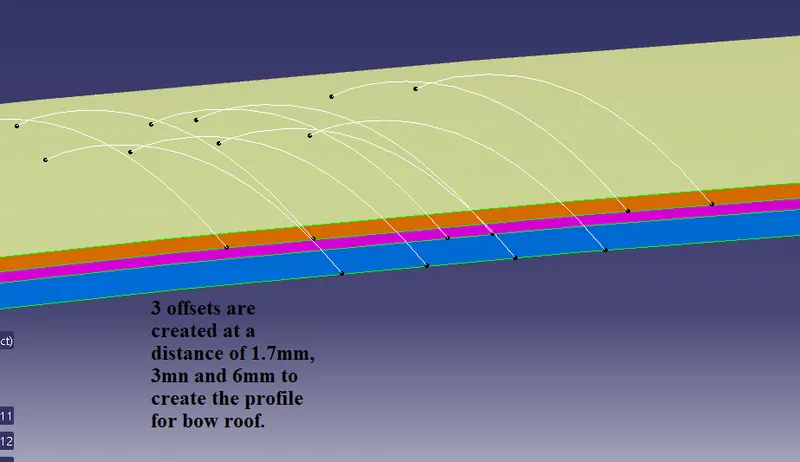

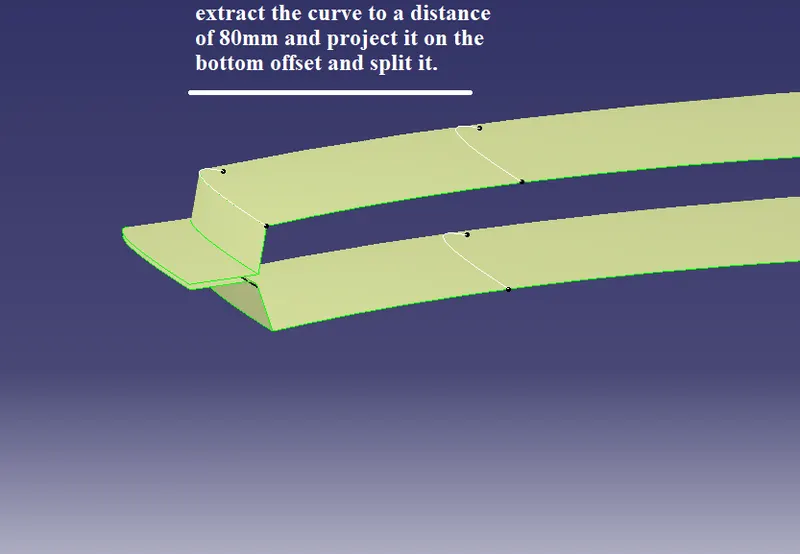

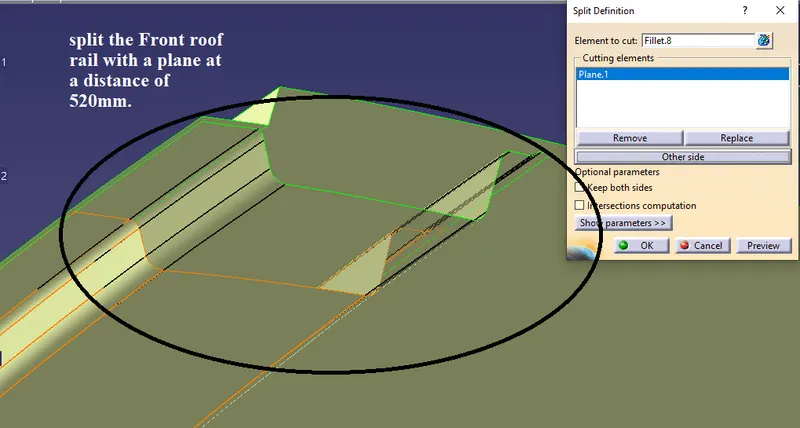

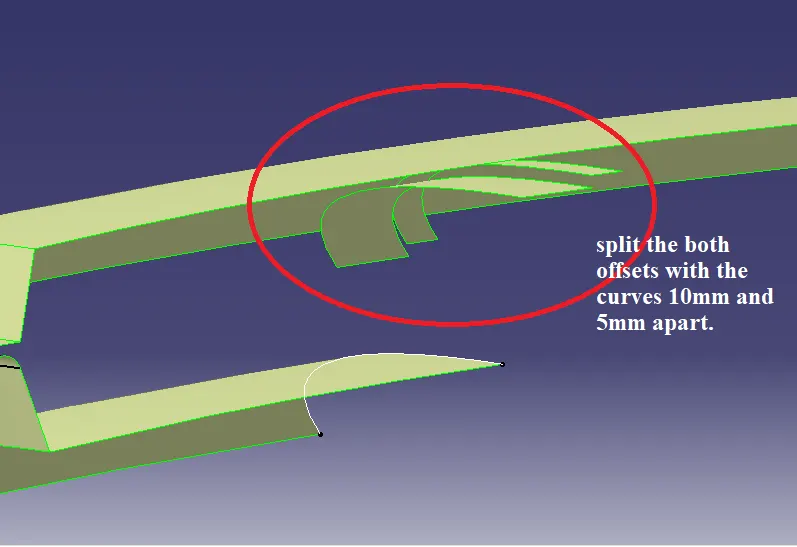

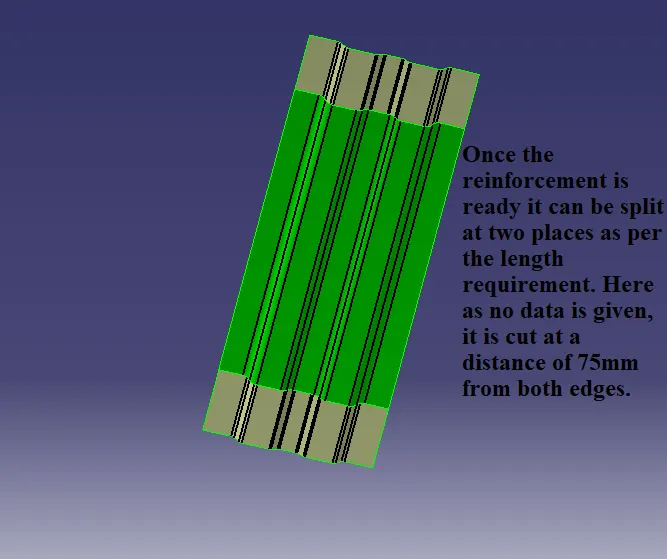

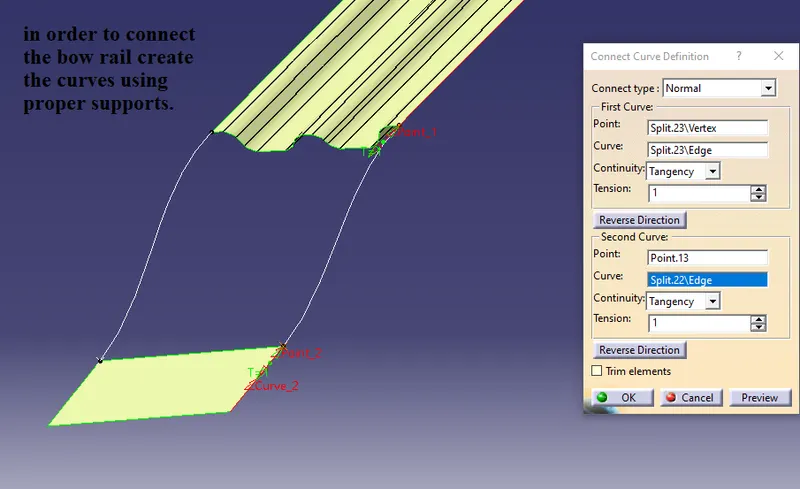

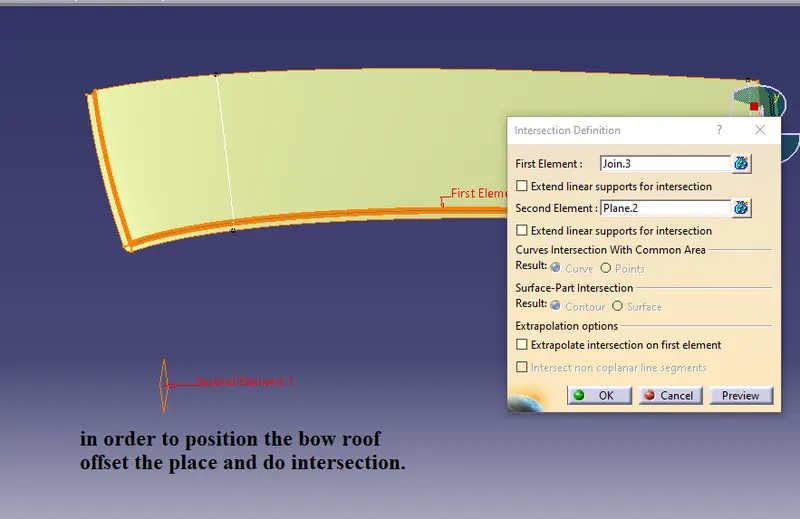

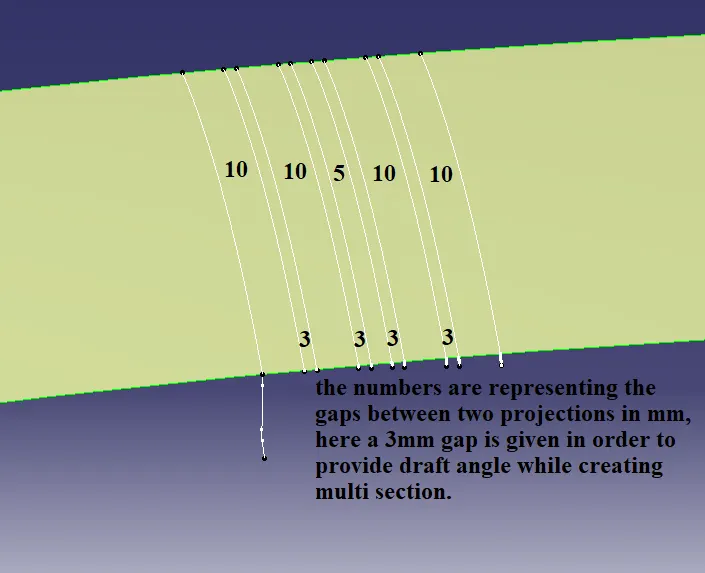

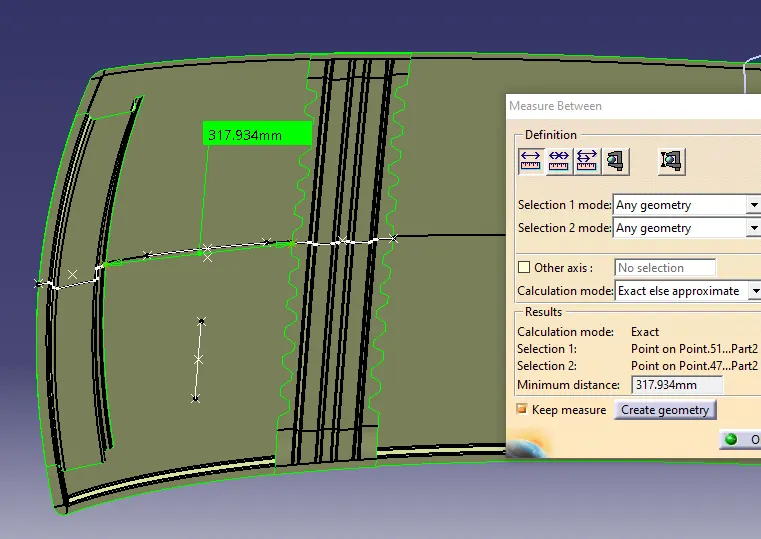

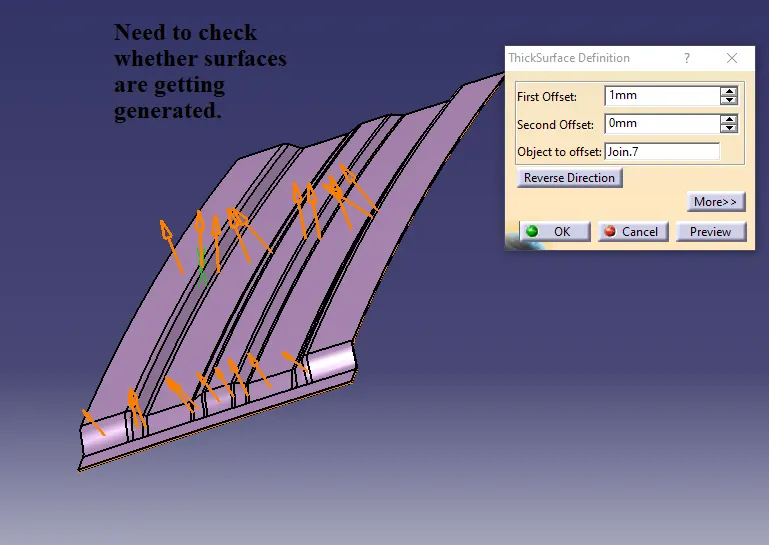

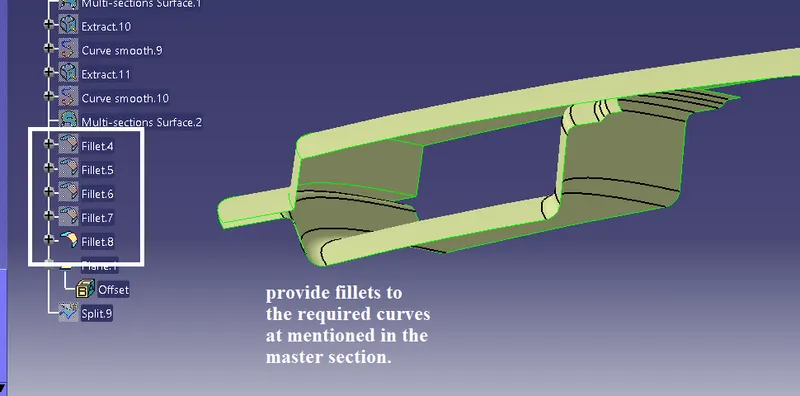

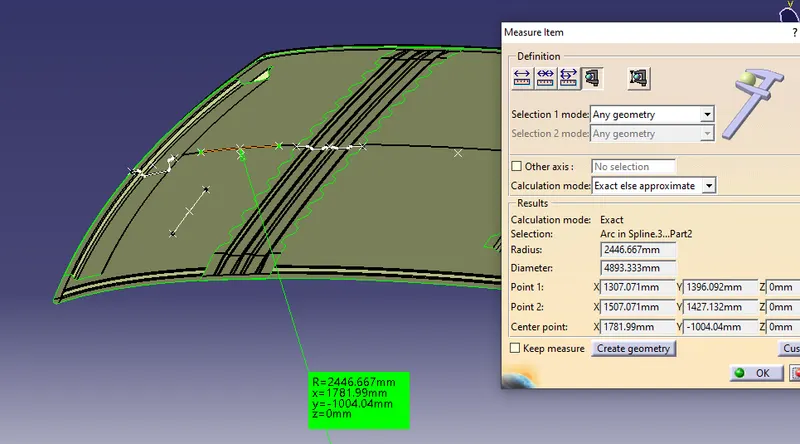

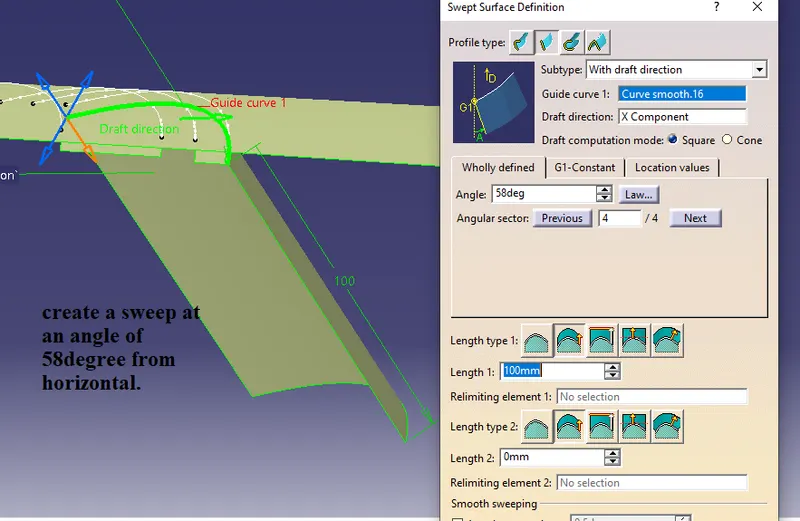

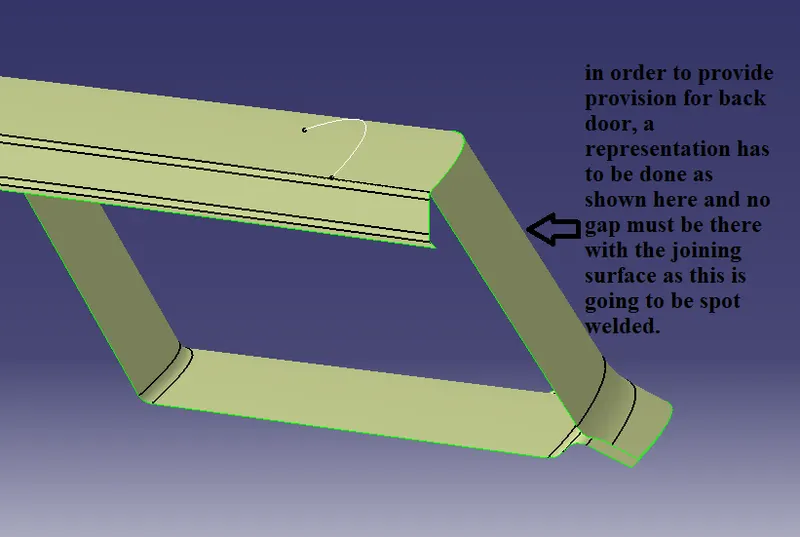

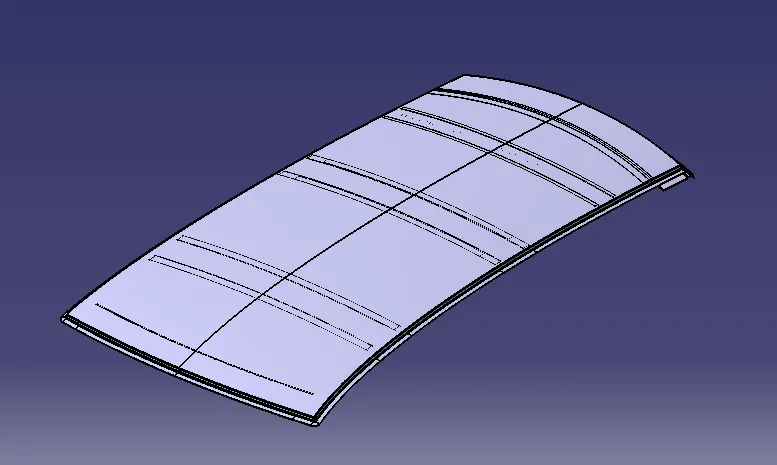

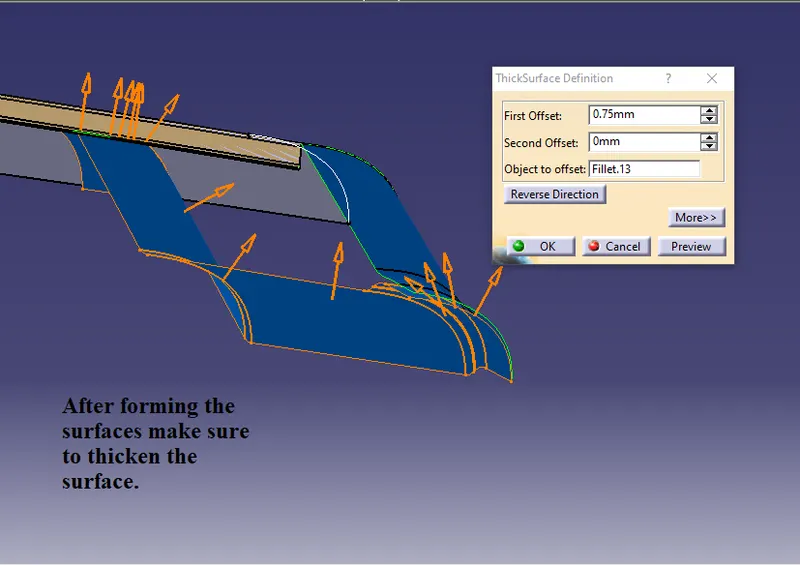

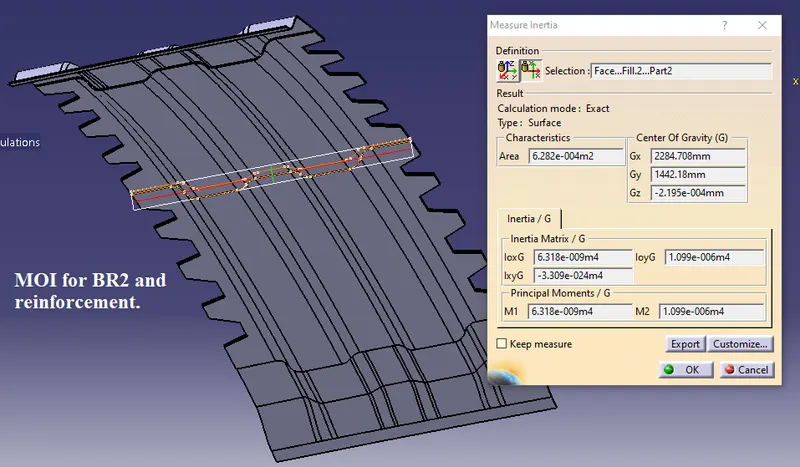

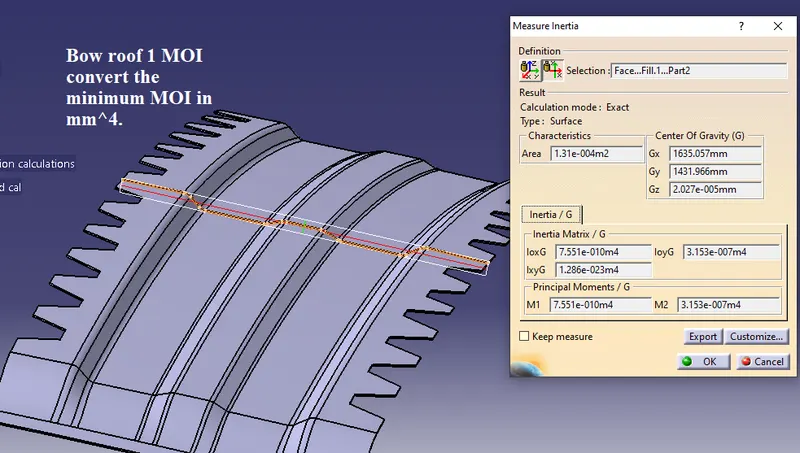

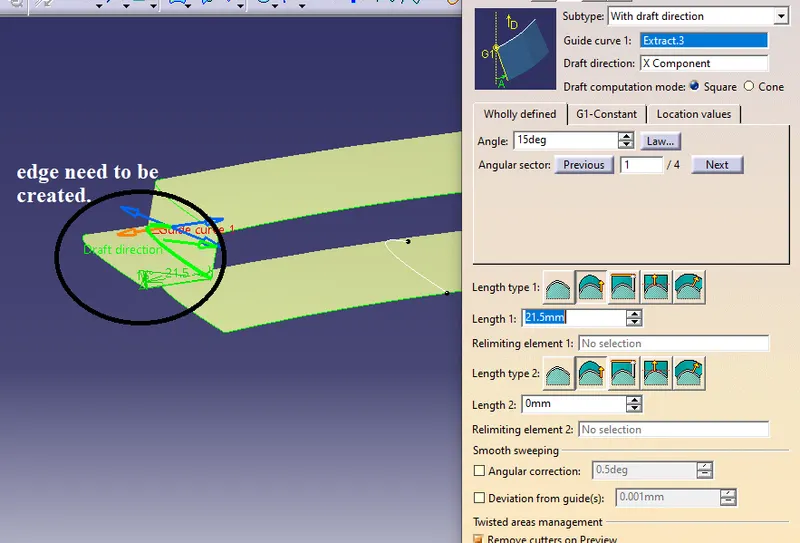

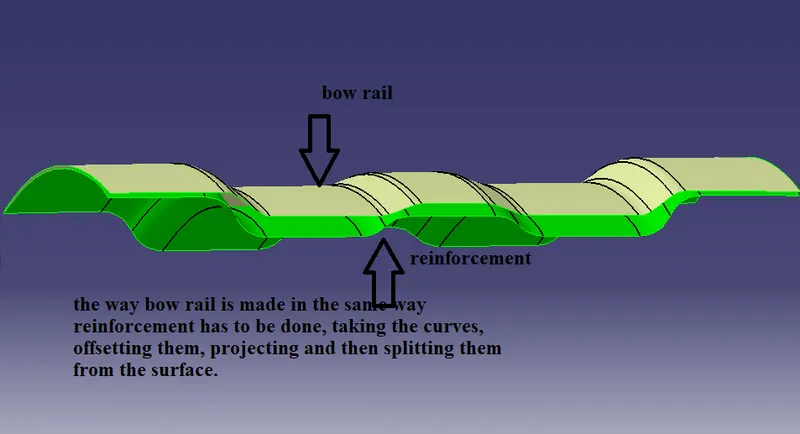

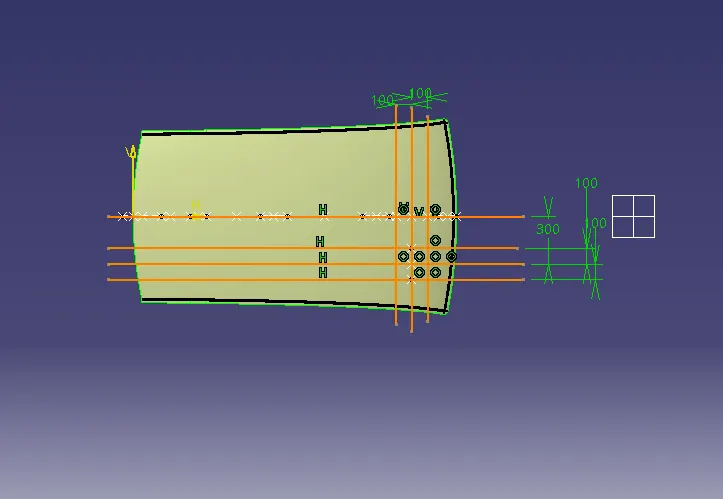

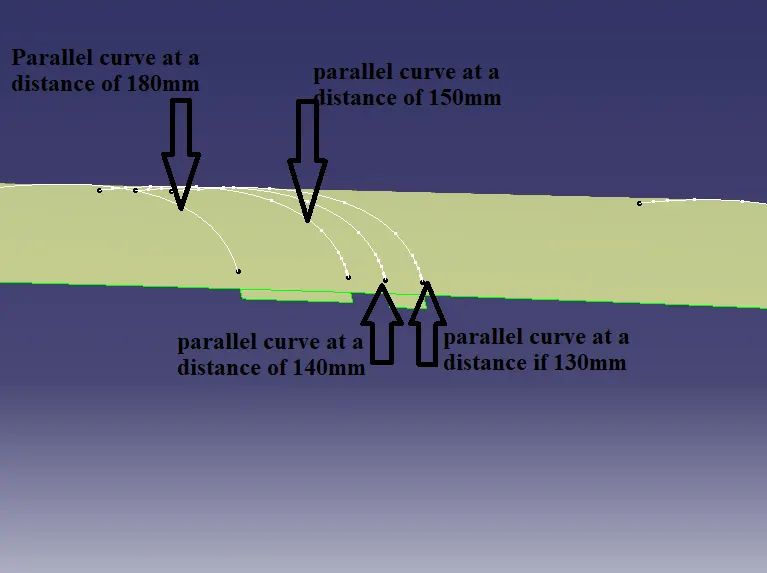

    - Following images show the steps to be followed in order to complete the design.



    In order to improve the Qr value, either the Rx & Ry values need to be charged from the styling team, or another option is to improve the strength in that area using mastics or emboss need to be given.

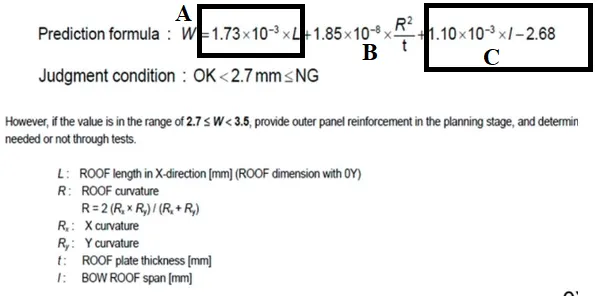

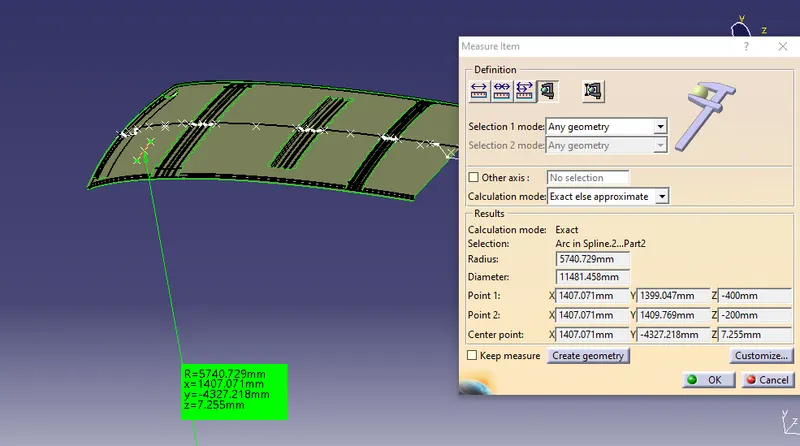

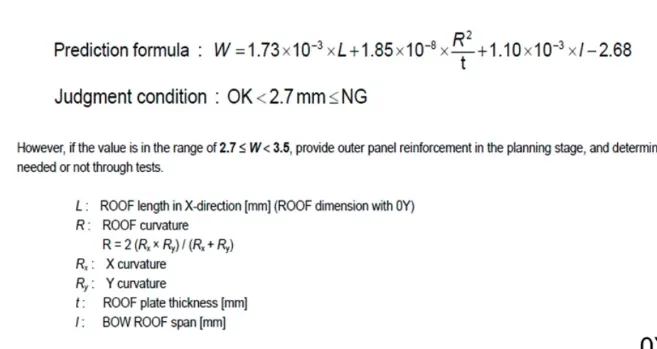

     - Heat Distortion Criteria Calculations:

    roof length Rx Ry R Thickness I A B C W status
    FRR & BR1 2045.02 5740.729 2446.667 3431.042593 0.75 317.934 3.5378846 0.2903773141 -2.3302726 1.497989314 ok
    BR! & BR2 2045.02 4851.51 6614.38 5597.425183 0.75 480.3 3.5378846 0.772835494 -2.15167 2.159050094 ok
    BR2 & BR3 2045.02 3800.315 12243.357 5800.244889 0.75 340.61 3.5378846 0.829856739 -2.305329 2.062412339 ok
    BR3 & RR 2045.02     #DIV/0! 0.75 186.57   #DIV/0! -2.474773 #DIV/0!

    The formula for W is broken into A, B, C and then calculated for ease of calculations.

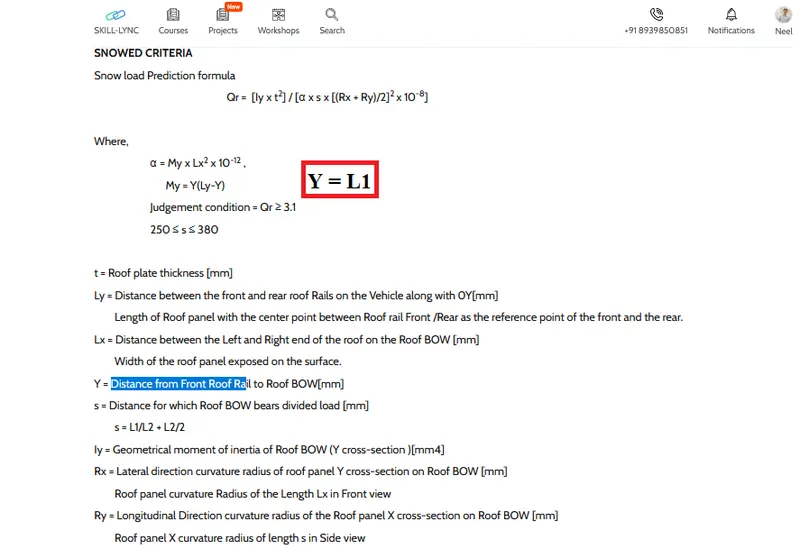

     - Snow load Prediction calculation:

    Snowed calculations
              250< s < 380

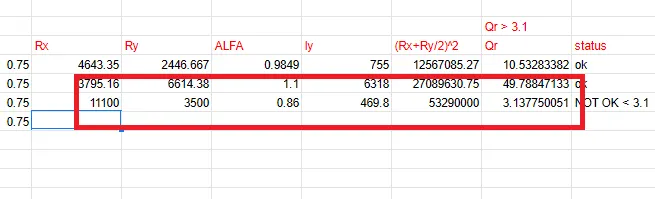

    area Ly Lx L1 L2 S Thickness Rx Ry ALFA Iy (Rx+Ry/2)^2 Qr status
    FRR & BR1 2055.8 1156.158 462.442 650.097 325.7598431 0.75 4643.35 2446.667 0.9849 755 12567085.27 10.53283382 ok
    BR1 & BR2 2055.8 1,098.96 650.097 476.35 239.5397465 0.75 3795.16 6614.38 1.1 6318 27089630.75 49.78847133 ok
    BR2 & BR3 2055.8 1,072.04 476.35 364.928 183.769326 0.75 12243.35 4334.12 0.86 469.8 68703127.9 2.433814956 NOT OK < 3.1
    BR3 & RR 2055.8   364.928   #DIV/0! 0.75

     - As it can be seen that the value of Qr is below the required value for a certain area and in order to improve it and improve the strength of the roof, embossing has to be done.
