REVIT_ Scheduling & Estimation_Week 9

1.Question: 1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Ans) a. Using 3D model create a section box:

=> Click BX on the keyboard for the option to select and that will create section box.

b. To create similar doors and windows in a floor plan layout:

=> Click CS on the keyboard for the option to select and that will create similar doors and windows in the floor layout.

c. To reduce the thickness of lines visible in plan views:

=> Click TL on the keyboard for the option to select and that will reduce the thickness of lines that are vsible in the plan.

d. To apply override settings to a floor in the model section view:

=> Click EOD on the keyboard for the option to select and that will override settings to a floor in the model section view.

e. To increase the range of visibility in a plan view:

=> Click VR on the keyboard for the option to select and that will increase the range of visibility in a plan view.

f. To select the previously selected items:

=> Click Ctrl + < on the keyboard for the option to select and that will select the previously selected items.

g. To add annotations to the model views:

=> Click DI on the keyboard for the option to select and that will add annotations to the model views.

h. To bring the model elements in line:

=> Click AL on the keyboard for the option to select and that will bring the model elements in line.

i. To rotate the model elements:

=> Click RO on the keyboard for the option to select and that will rotate the model elements.

j. To move an object to another location:

=> Click MV on the keyboard for the option to select and that will move an object to another location.

k. To copy a model element:

=> Click CO on the keyboard for the option to select and that will copy a model element.

l. To mirror an element about an axis:

=> Click MM on the keyboard for the option to select and that will mirror an element about an axis.

m. To create an array of model elements:

=> Click AR on the keyboard for the option to select and that will create an array of model elements.

2.Question: Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Ans)AIM:To create the schedules of the walls,doors,windows and material like concrete or wood.

TOOLS USED:

View -> schedule -> schedule quantities -> schedule properties

PROCEDURE:

• Firstly open the file containing a residential plan with architectural template.

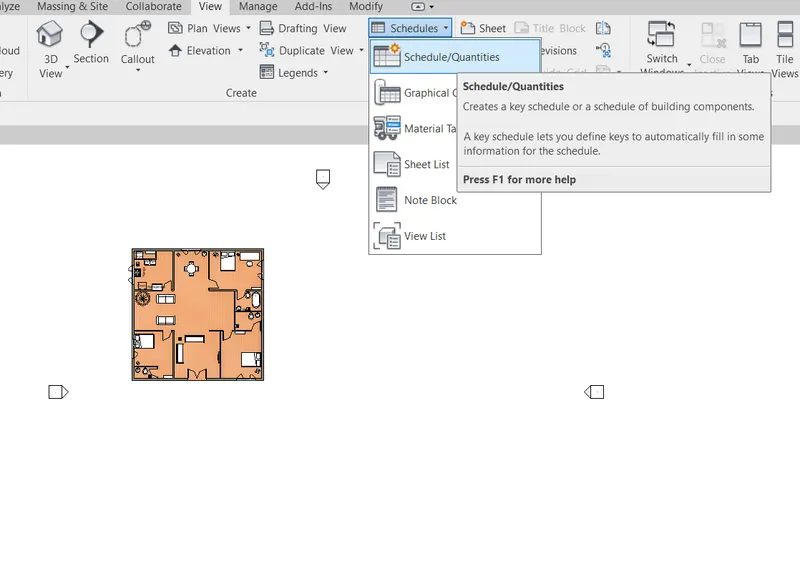

• Now click on the view tab and go to the schedule icon.

• Now click on the schedule quantities and then you will be directed to a dialog box and there select the components such as window,door,walls and flooring depending upon the type.

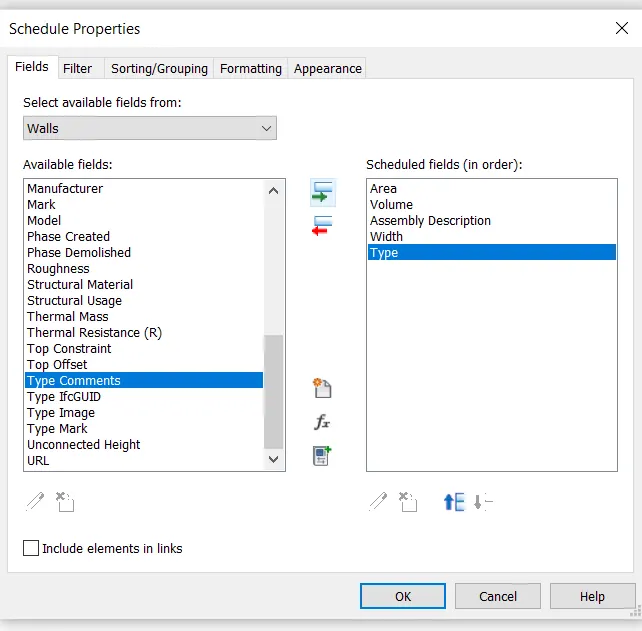

• Now schedule properties tab will be seen on the screen and now select the types that you wanted it to display in the schedule area such as area,volume etc.

• Now click ok.

RESULT:

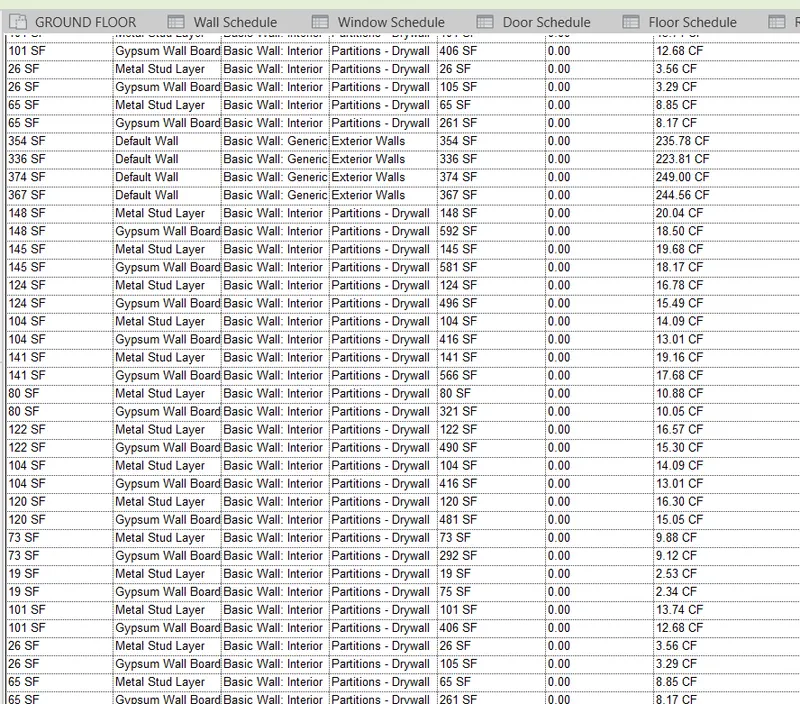

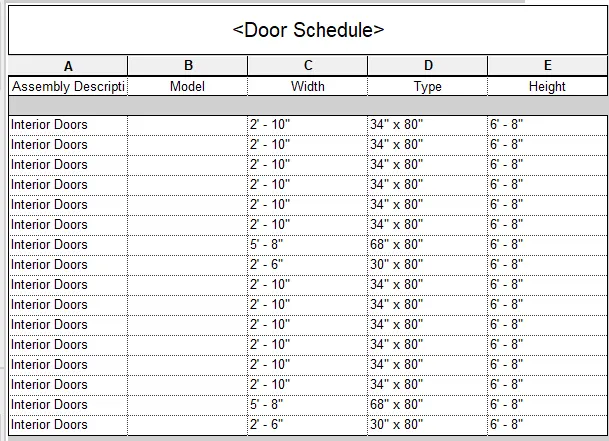

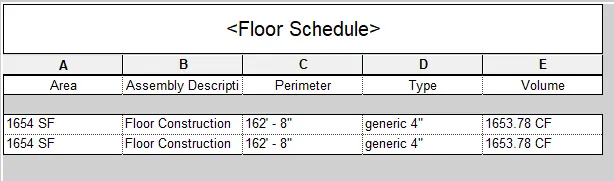

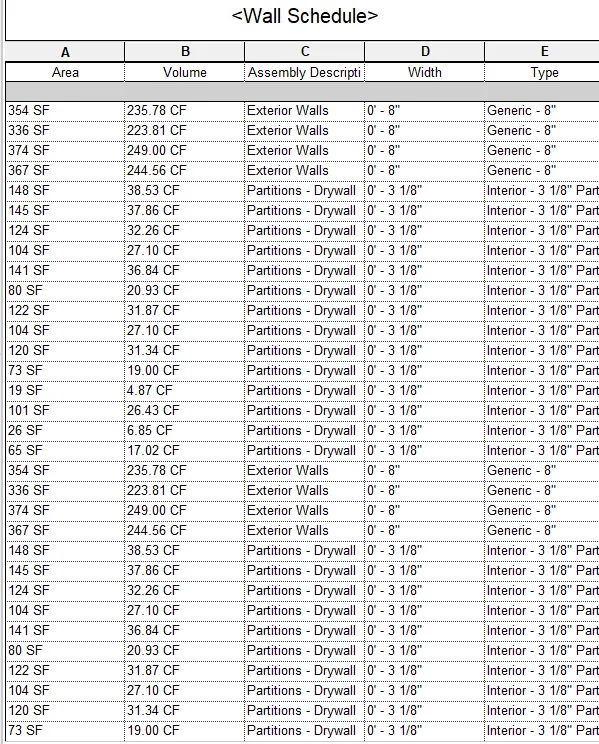

Hence the schedules of the walls,doors,windows and material like concrete or wood are seen on the screen.

3.Question:Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Ans) AIM:Calculate area and volume of each room in the model using Revit.

TOOLS REQUIRED:

View -> schedule -> schedule quantities -> schedule properties

PROCEDURE:

• Firstly open the file containing a residential plan with architectural template.

• Now click on the view tab and go to the schedule icon.

• Now click on the schedule quantities and then you will be directed to a dialog box and there select the component room.

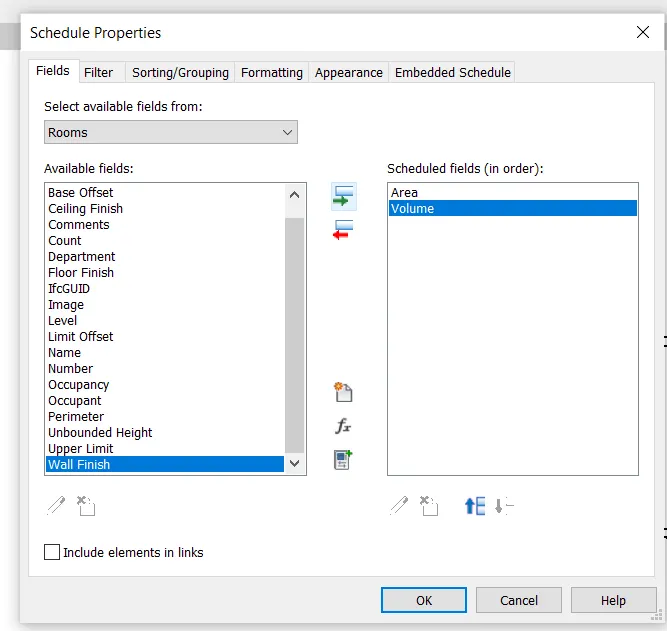

• Now select the parameters like area and volume and click ok.

RESULT:

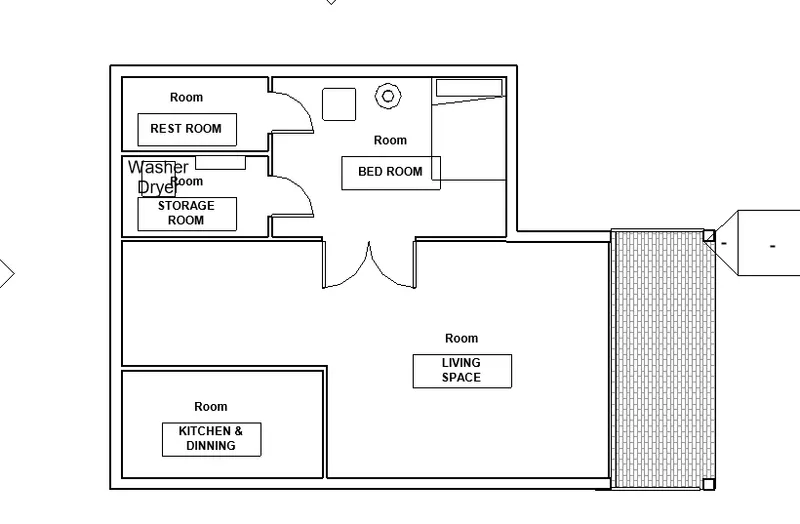

Hence rooms are scheduled with appropriate room tags applied to each room.

4.Question: Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Ans) AIM: To create a schedule for total cost of materials.

TOOLS REQUIRED:

View -> schedule -> material takeoff

PROCEDURE:

• Firstly open the file containing a residential plan with architectural template.

• Now click on the view tab and go to the schedule icon.
• Now select the material takeoff and secify the material their.

• Now select the parameters such as area and volume that you desired to show.
• Now select the the total cost and select the calculated and defined formule for total cost.

RESULT:

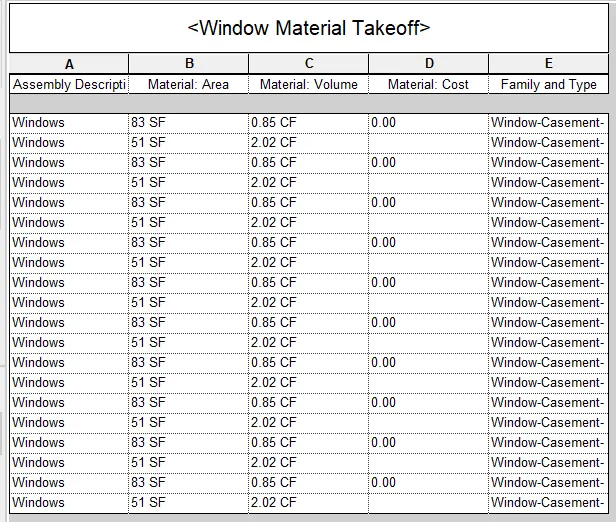

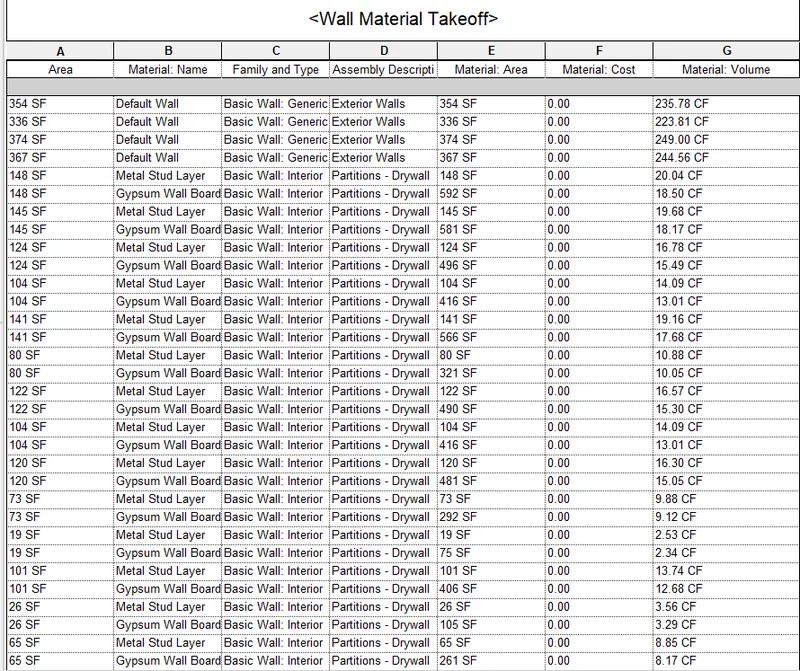

Hence the schedule for total cost of materials is been show here.

5.Question: Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project.

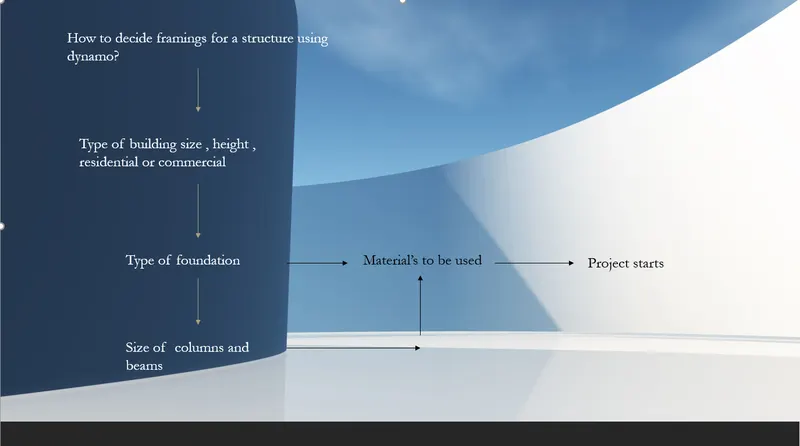

Ans) a.Flow chart of framing structure of a building:

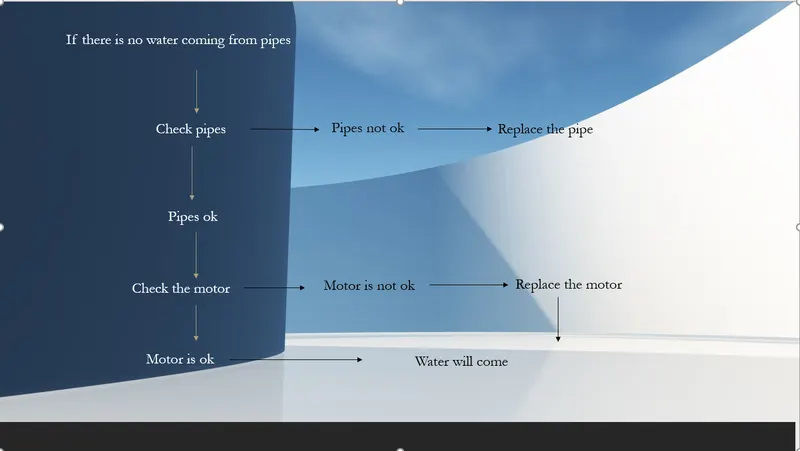

b. Flow chart for pipes :

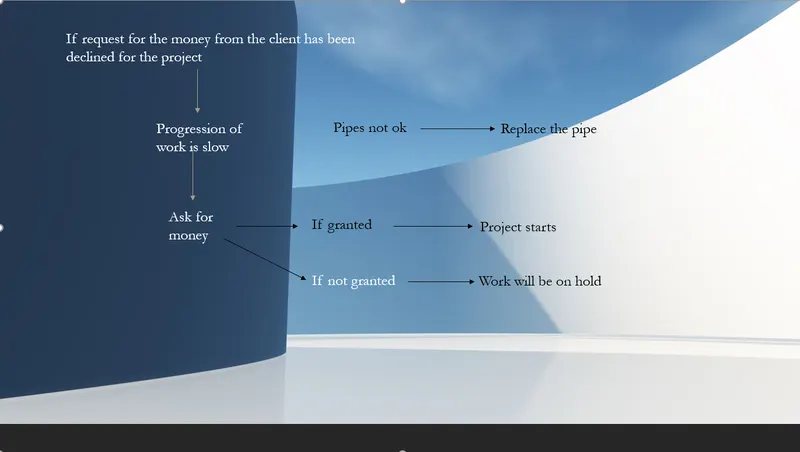

c. Flow chart for request of money from clients for a project :

6.Question: List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Ans) The parameters associated with each model element are:

a. Wall

• Types of wall
• Lenght
• Width
• Height
• Material used
• Cost
• Thickness

b. Floor

• Type of Floor
• Lenght
• Width
• Area
• Volume
• Cost
• Thickness

c.Doors

• Height of sill
• Length
• Width
• Materials used
• Type of doors
• Height og inlet
• Thickness

d.Windows

• Height of sill
• Length
• Width
• Materials used
• Type of doors
• Height og inlet
• Thickness

e.Table

• Materials used
• Purpose of table
• Length
• Width
• Material
• Height

f.Building

• Type of building
• Number of loads
• Height
• Width
• Area
• Material
• Loads on the buildings
• Location
