REVIT_Naviswork_Project- 4
1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class?
A)
AIM:- To export architectural/structural model to navisworks cache file.
TOOLS/COMMAND REQUIRED:-
File
Export
Navisworks (NWC)
PROCEDURE:-
- Open an architectural model which was drawn and saved earlier.
- Click on 3D view.

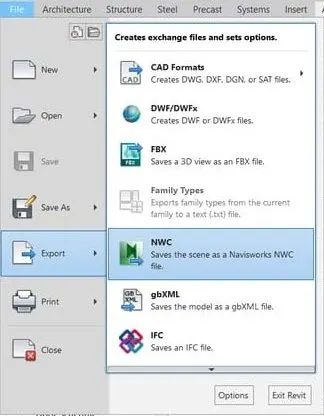

- Go to file and select export option.
- Different options will be appeared by the side.

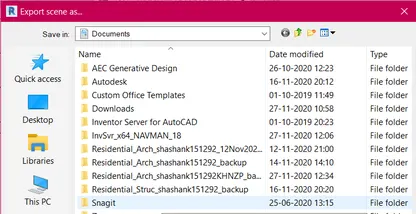

- Select NWC from the options available.

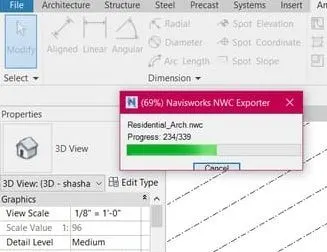

- Your model gets converted into into NWC.
- Repeat the same process for structural model .
RESULT:-
An architectural/structural model was exported to navisworks cache file successfully.
2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file?
A)
AIM:- To Use Navigate Tool to walk around the model and walk through the rooms created and To record our moving as animation in our Navisworks file.
TOOLS/COMMAND REQUIRED:-
Navisworks
View point
Walk
Record
Stop
PROCEDURE:-
- Open an architectural and structural model which was exported to naviswork previously.
- Give a click on view point and select a view from where you want to start.
- In viewpoint you can find record option. Select that.

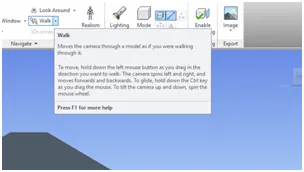

- You can find a 'walk' option in navagation tool bar in the top.
- Select that walk option.

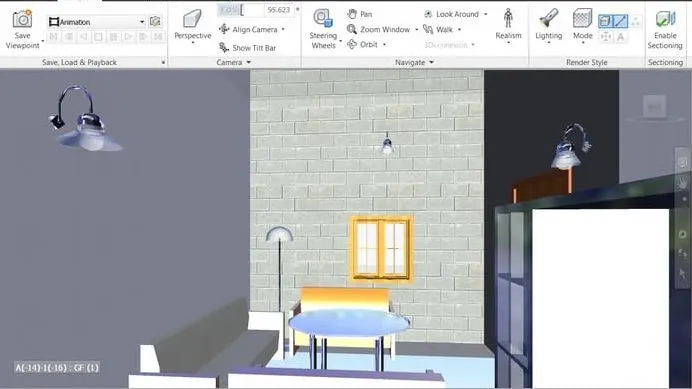

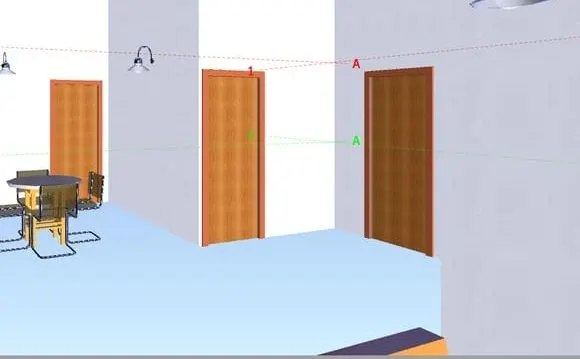

- Now go into different rooms in your model.
- Stop after covering all the rooms.
RESULT:-
Navigation tool bar is used to walk around the model successfully.
3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file?
A)
AIM:-To Use Navigate tool to use Realism feature to walk through the model and To record your moving as animation in Navisworks file.
TOOLS/COMMAND REQUIRED:-
Viewpoint
Realism
PROCEDURE:-
- Open an architectural and structural model which was exported to naviswork previously.
- Give a click on view point and select a view from where you want to start.
- In viewpoint you can find record option. Select that.

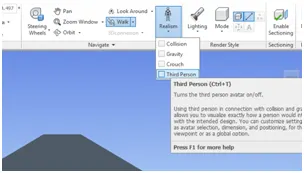

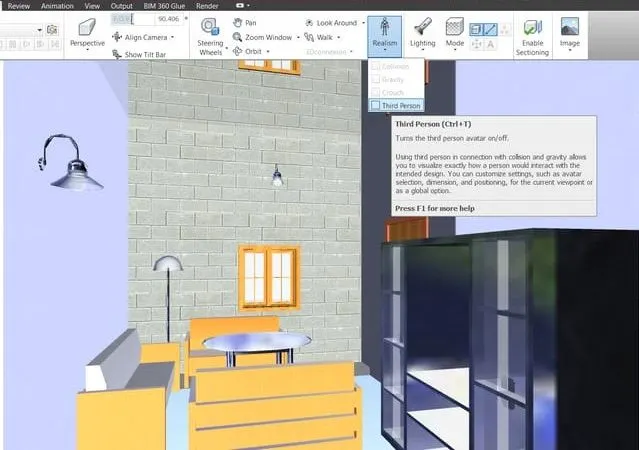

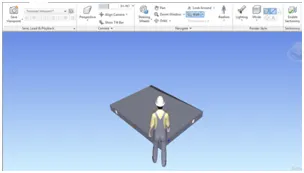

- Now select the 'realism' and click on the 'third person' option in the top menu bar.
- Click on record and start the process.

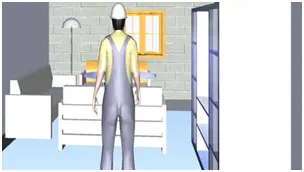

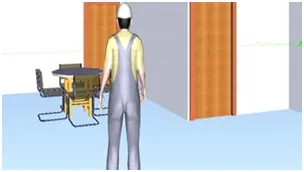

- Now go into different rooms in your model.
- Stop after covering all the rooms.
- Stop option will be available at the top right corner.
RESULT:-
Realism feature in navisworks file is used successfully to walk through the rooms.
4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
A)
AIM:- To perform analysis of clashes to architectural and structural model in navisworks.
TOOLS/COMMAND REQUIRED:-
Navis work
Home
Clash detective
Add test
PROCEDURE:-
- Open naviswork manage.
- Now open an architectural and structural model which was exported to naviswork previously.
- Click on home tab.

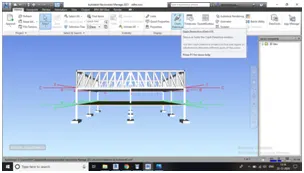

- Choose 'clash detective' from the available options in the topmost menu bar.
- Then a new tab appears on your screen.

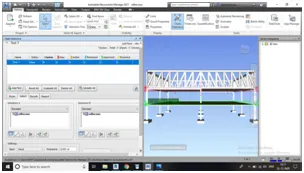

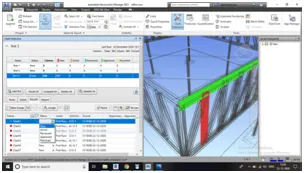

- It consists of two parts. They are section A and section B.
- Now click on add test and rename it as 'Architecture vs Structure'.
- Now select the surfaces and then click on 'run test'.

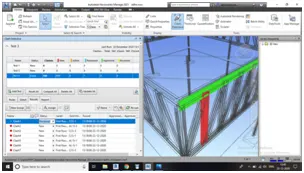

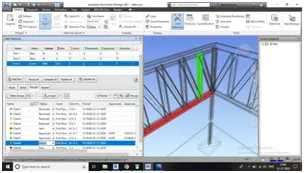

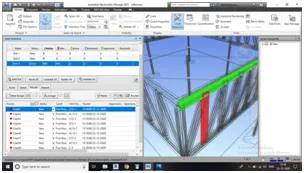

- Now different clashes will be appeared which consists of few details like status , level and found etc.

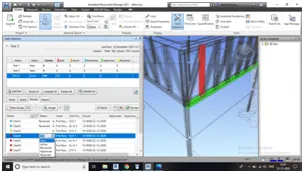

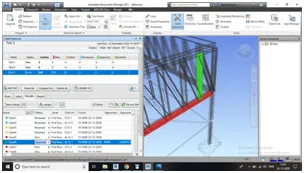

- By clicking on each clash , image of that clash will be appeared in the right side.
- The status of the clash can be changes can be changed by clicking on it.
- By default the status of all the clashes will be mentioned as new.
- Now list which of the clashes are perfect and can be approved.
- Now list the clashes which are unnecessary and can be neglected.
- Now list the clashes can be resolved.
RESULT:-The analysis of clashes was done successfully in navisworks.
5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file?
A)
AIM:-
To create a schedule in navisworks by using timeliner feature.
TOOLS/COMMAND REQUIRED:-
Naviswork
Timeliner
Add task
Attatch
PROCEDURE:-
- Open naviswork manage.
- Now open a structural model which was exported to naviswork previously.
- Click on home tab.

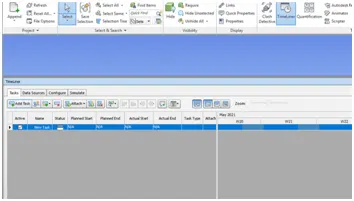

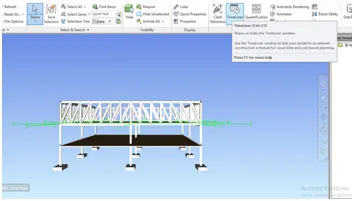

- Choose 'timeliner' from the available options in the topmost menu bar.

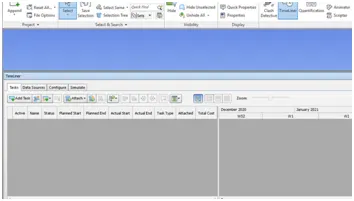

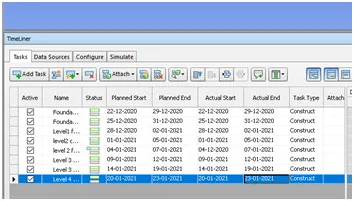

- Then a small window appears on your screen which consists of two columns.
- At the left corner you can see selection tree .
- By clicking on that different components of your model will be loaded.
- Now go to scheduling section , you can find add task in that.

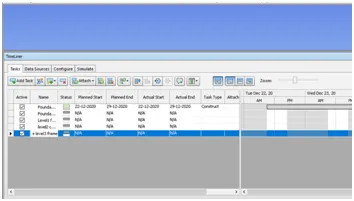

- Then select name section and give a name of the component which you want to start first.
- And the next four columns consists of planned start, planned end, actual start and actual end.
- Those four columns should filled with dates.
- And the next column is 'task type'. There we can mention the type of task.
- It is of three types. They are construct , demolish and temporary.
- Start with foundations and go to levels , columns, floors , framings etc.
RESULT:- Schedule was prepared successfully in naviswork by using timeliner.
