REVIT_Naviswork_Project- 4

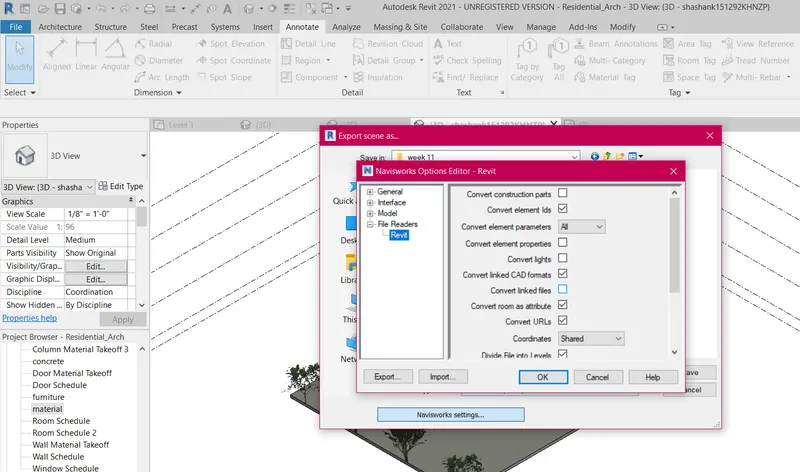

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
AIM:- To export the Revit architectural and structural model to Navisworks
Commands used:-
File
Export
NWC
Procedure:-

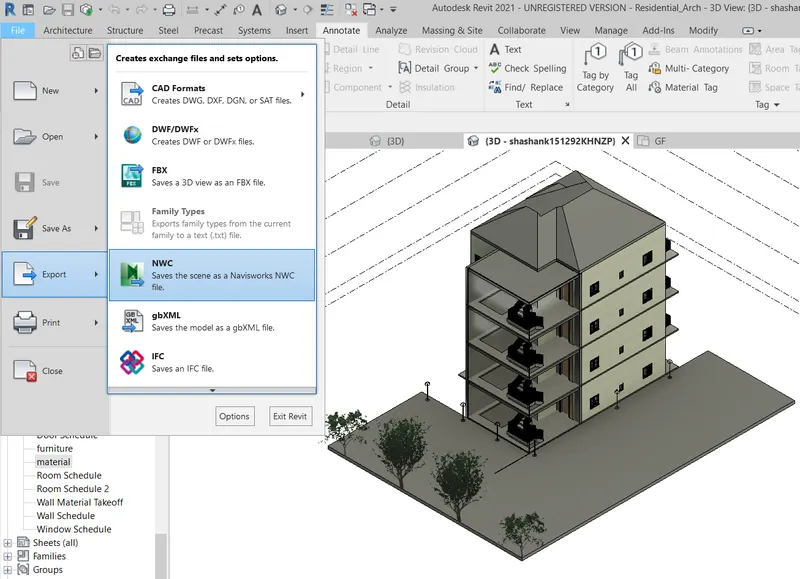

Open the architectural file of the project
Go to the default 3D view

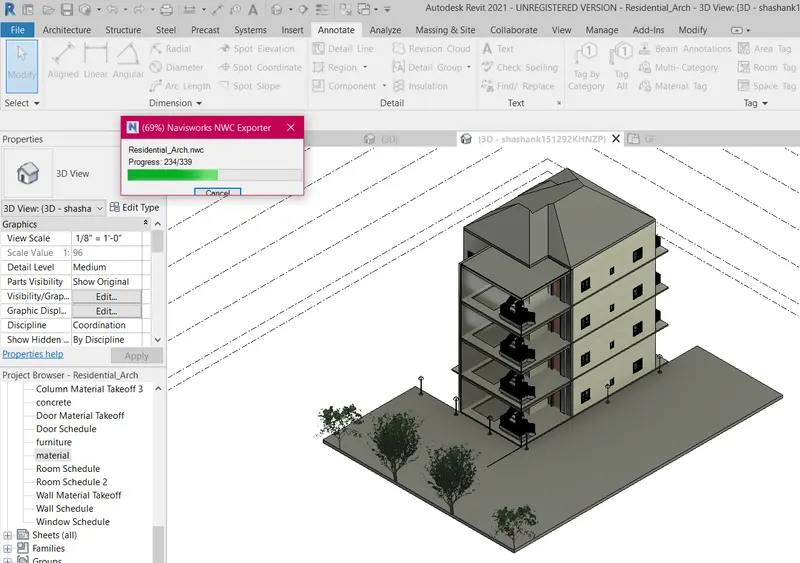

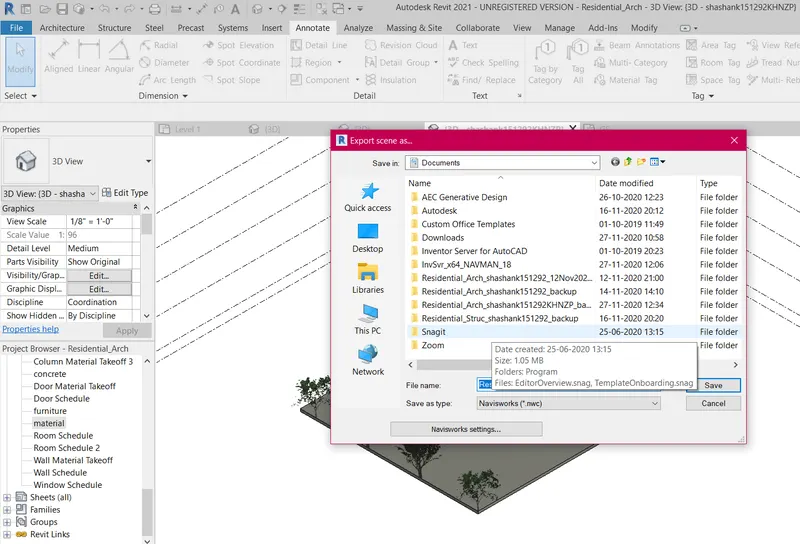

Select the file command and then select export and then select nwc
The architectural file will be exported to the naviswork in nwc format

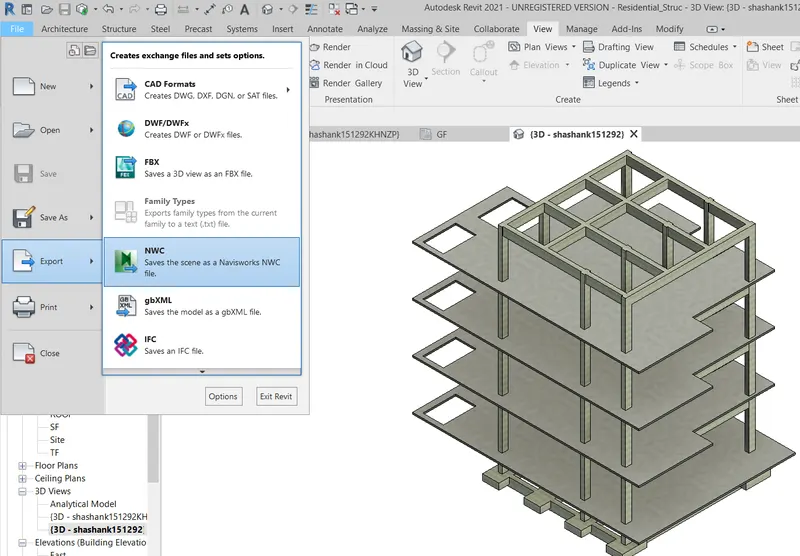

Open the Structural file of the project
Select the file command and then select the export and then select nwc
The structural file will be exported to the naviswork in nwc format
Results:-

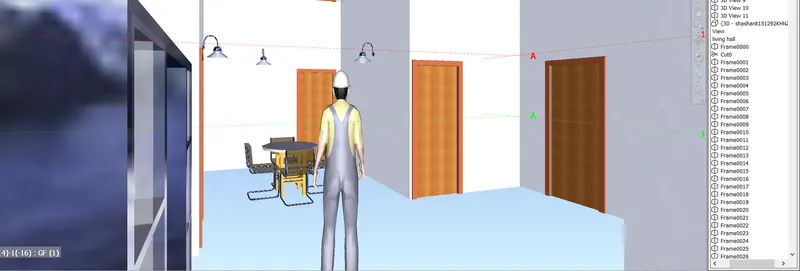

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
AIM:- Use the Navigate tool to walk around the model and walk through the rooms created and record your moving amination in your Navisworks file
Commands used:-
Navisworks
Viewports
walk
Record
stop
Procedure:-

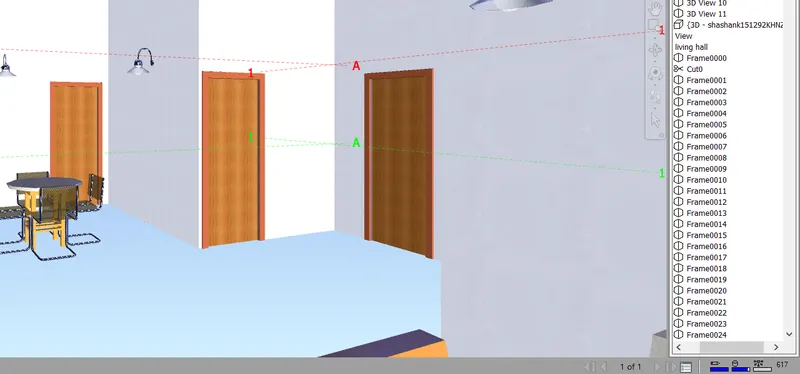

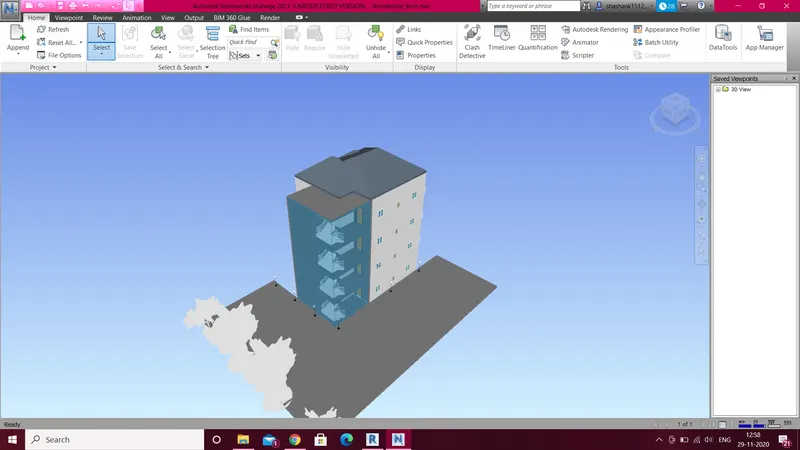

Open the architectural file in naviswork which was exported from revit
Click the viewpoint and select the view (as views are exported from revit as whole project was exported)
select the record option in viewpoint and select walk
Now walk through the rooms , halls, bathroom of the project
Click the stop button after walk is done
In the right side animation will pop up in which amination is recorded for the rooms and halls
Results:-

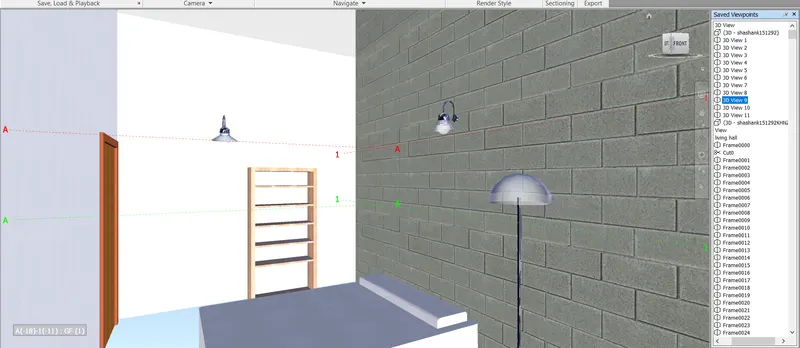

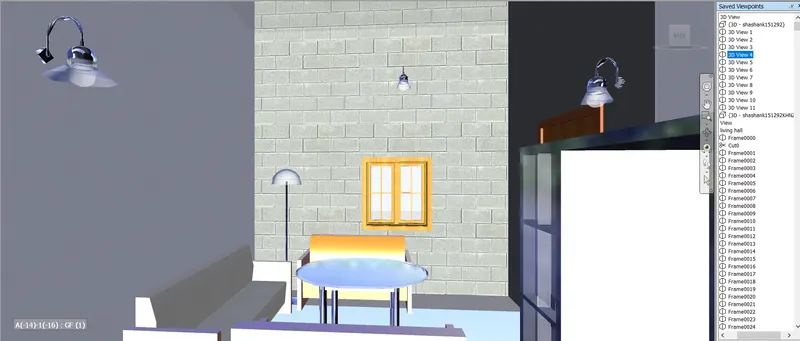

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
AIM:- Use the Realism feature to walk through the model and record your moving
Commands used:-
Viewpoints
Realism
walk
stop
Procedure:-

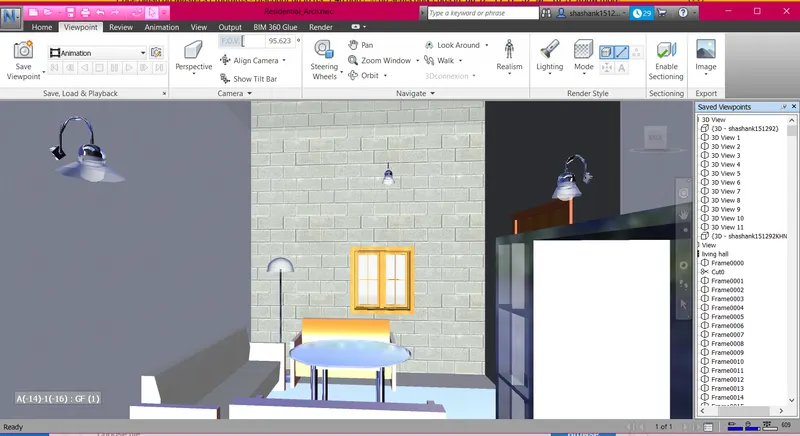

Open the architectural file in naviswork which was exported from revit
Click the viewpoint and select the view (as views are exported from revit as whole project was exported)

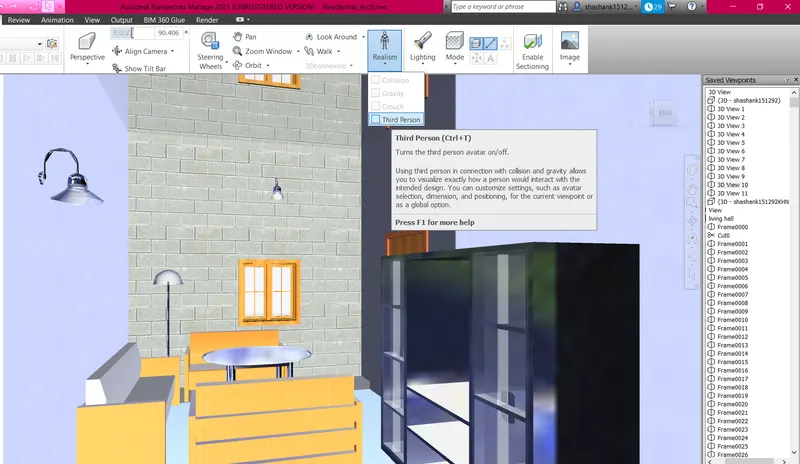

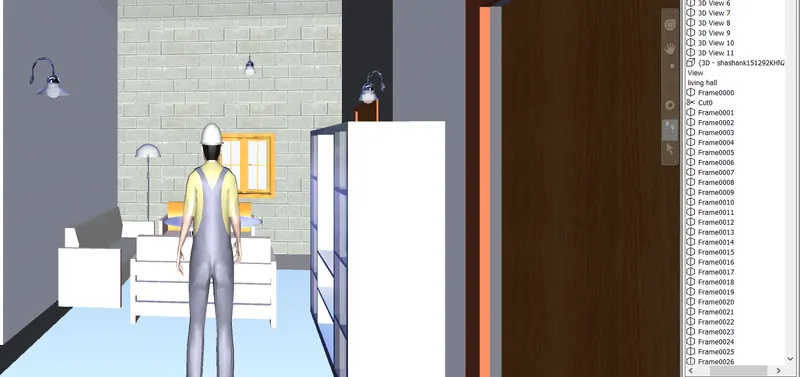

select the realism and check on the third person and ten select the record and then select walk
Start walking in the rooms of the project
Click the stop button on the top right
The animation will be created
Results:-

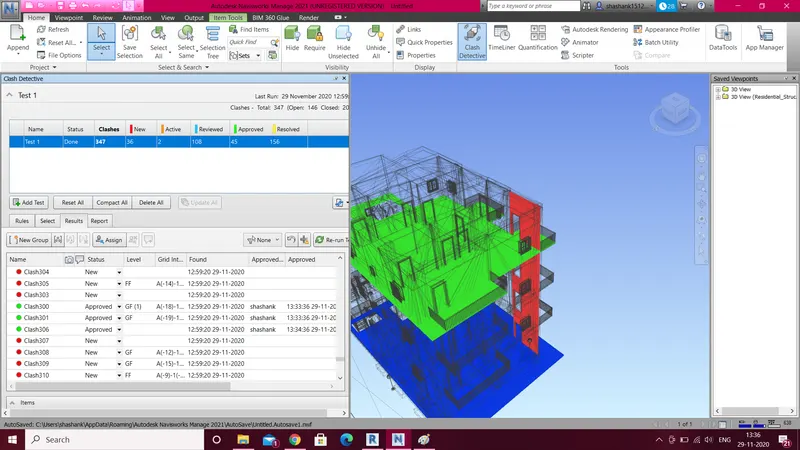

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
AIM:- Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Commands used:-
Home
open
Append
clash detection
Run test
Procedure:-

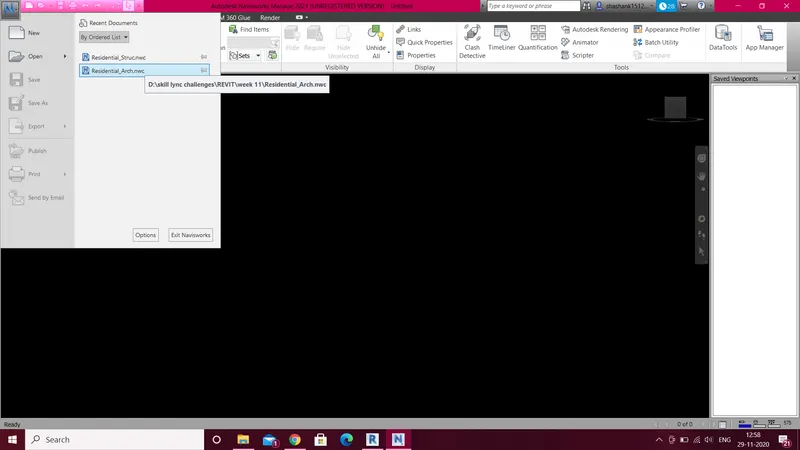

Open the archtitectural file in the naviswork

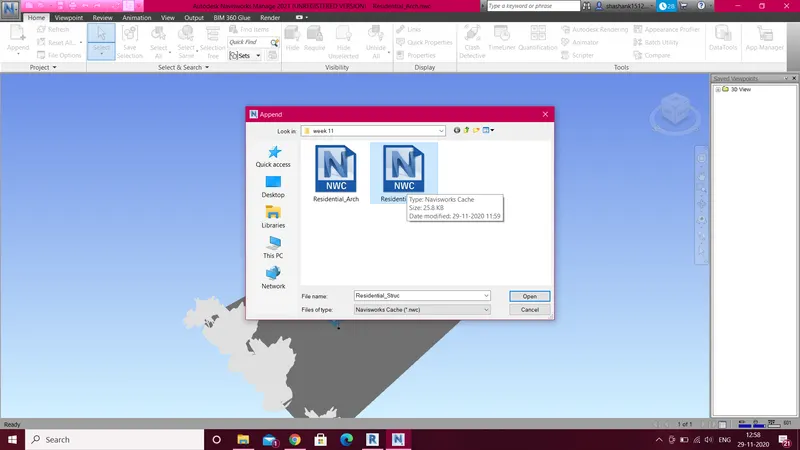

click the append icon in the home button
click the new test and rename the test if you want
select the arch and struc file
select the surface for both the file

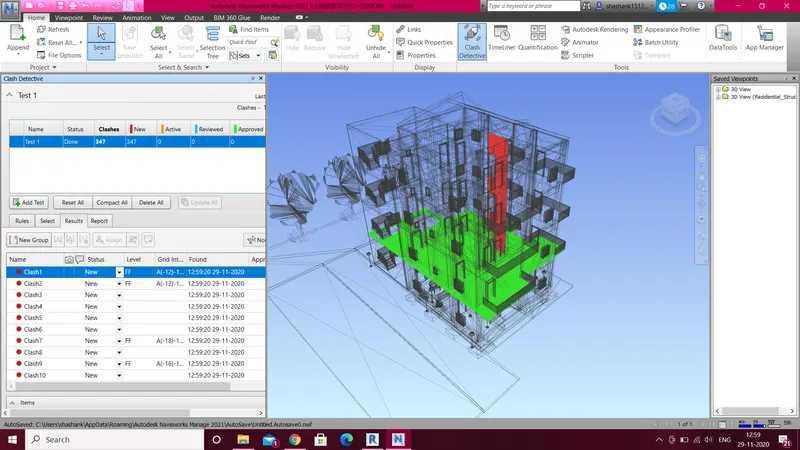

click the run test
Clash detection test is completed
After the test study the detection (what is clashing with what ) eg beams and columns or columns and walls etc)

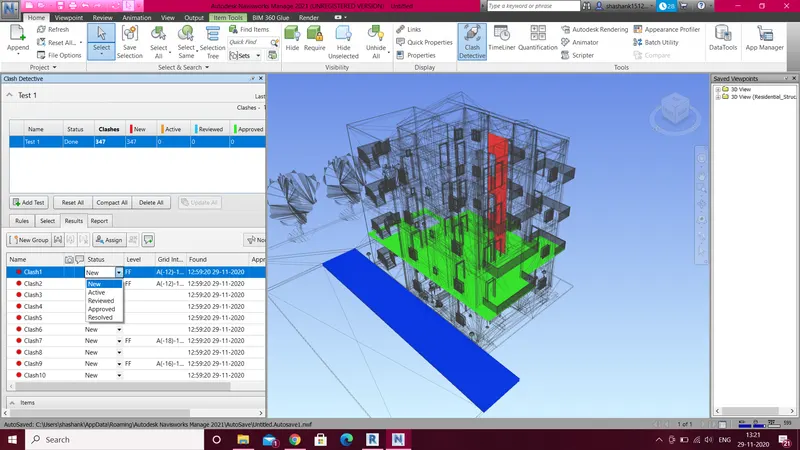

List the clash which can be approved with the drop down menu in the status and select as approved
List the clash as reviewed which can be taken care later
List the clash as resolved which clash has been resolved from the drop down menu in status
After the action taken it will be color coded and then save it with appropiate name
Results:-

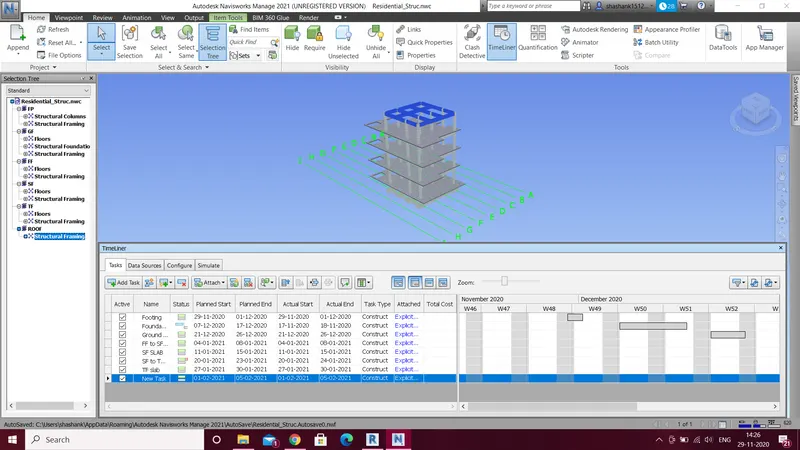

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
AIM:- Use the Timeliner feature in Navisworks to prepare a schedule of the project
Commands used:-
Home
Timeliner
Add task
Attach the materials(columns, walls etc)
Procedure:-

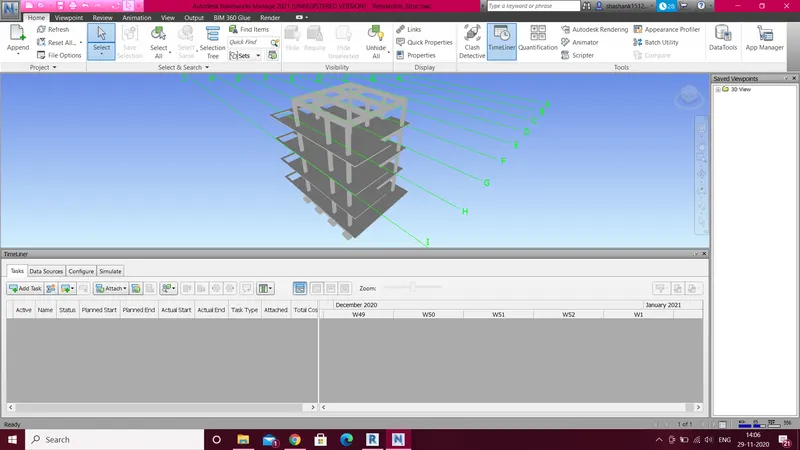

open the structural file in naviswork which was exported from revit
Select the home tab and select timelinear
add the tasks and attach the tasks in it
update the actual dates ike start and finish date to the task
Do it for complate building

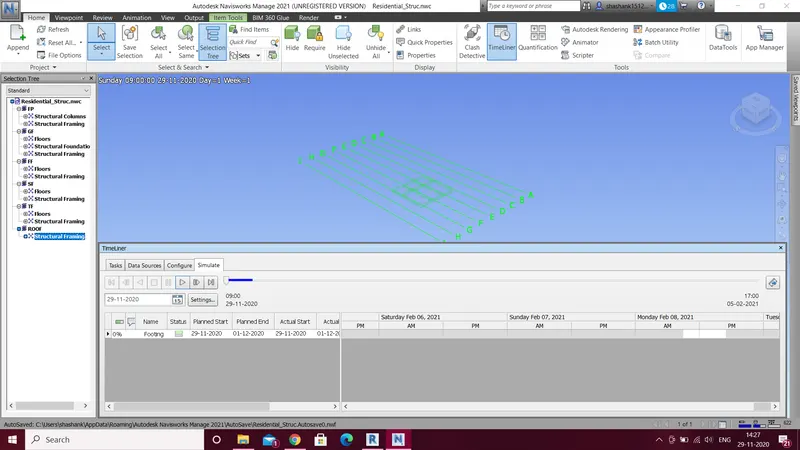

Click on the stimulate to play the recorded task (progress of the building will be shown)
Save the project
Results:-
