AutoCAD_Detailing of Wardrobe, Floor Plan, Kitchen Layout and Column Details_Week 6

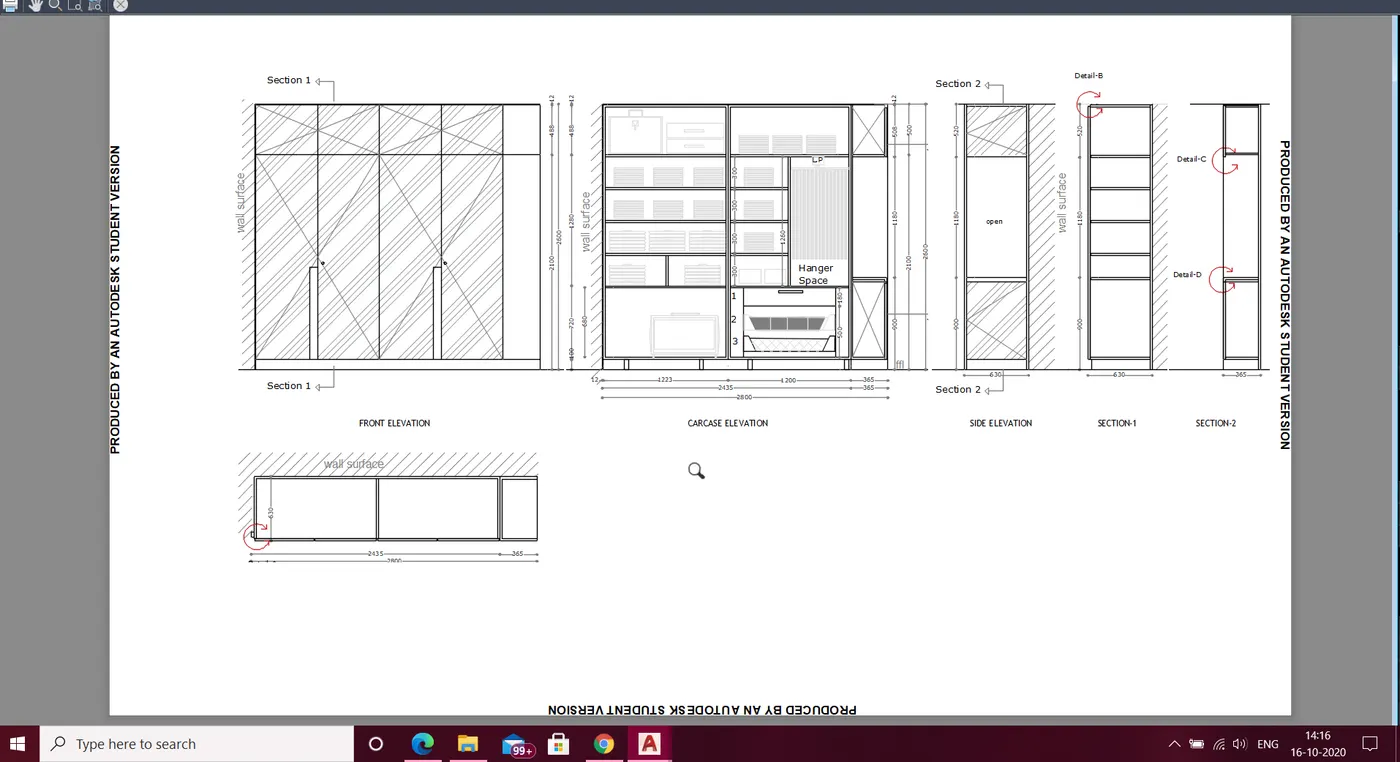

1. Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to document it. Also, assume dimensions, wherever needed.

1. Open the Autocad

2. Type units and select the decical unit and precission as 0.00

3. Type Limits and specify the lower and upper limits

4. Type Z (Zoom) enter and A enter. Now we are ready for drafting.

5. Type L enter and specify the point with ortho on draw 2800 in x axis and 2600 in y axis

6. Type offset in command prompt and type 12 enter draw the offset

7. Type offset in command prompt and type 1223 enter draw the offset

8. Type offset in command prompt and type 1200 enter draw the offset

9. Type offset in command prompt and type 365 enter draw the offset

10. Type offset in command prompt and type 100 enter draw the offset from bottom line

11. Type offset in command prompt and type 611.5 enter draw the offset

12. Type offset in command prompt and type 600 enter draw the offset

13. Insert the hatch command from ribbon bar and do the hatching

14. Front Elevation is obtained

15. For carcase elevation

16. Type L enter and specify the point with ortho on draw 2800 in x axis and 2600 in y axis

17. Type offset in command prompt and type 12 enter draw the offset

18. Type offset in command prompt and type 1223 enter draw the offset

19. Type offset in command prompt and type 1200 enter draw the offset

20. Type offset in command prompt and type 365 enter draw the offset

21. Type offset in command prompt and type 100 enter draw the offset from bottom line

22. Type offset in command prompt and type 680 enter draw the offset horizontally

23. Type offset in command prompt and type 300 enter draw the offset 4 times

24. Type offset in command prompt and type 500 enter draw the offset

25. Draw a line at the mid point of the cabinet space (2nd right side of the cabinet from bottom)

27. Select the layer option and insert new layer as cloths

28. With the help of line ,polyline, circle command draw the folded cloths as shown in the question/figure

29. Select the layer option and insert new layer as bags

30. With the help of line ,polyline, circle command draw the trolly bags as shown in the question/figure

31. Type dimstyle in the command prompt and go to symbols and arrow and select arrow heads as dot small and enter

32. Give the desired dimension with help of dimension command in ribbon bar

33. Select the text (single line) and type hanger space

34. carcase elevation is obtained from the following

35. Draw a side elevation draw a line of 630 in x axis and 2600 in y axis

36. Type offset in command prompt and type 900 enter draw the offset

37. Type offset in command prompt and type 1180 enter draw the offset

38. Type offset in command prompt and type 520 enter draw the offset

39. Select the hatching property from ribbon bar and do the hatching

40. Use the text command and right the wall surface

41. for the section 1

42. Draw a side elevation draw a line of 630 in x axis and 2600 in y axis

43. Type offset in command prompt and type 900 enter draw the offset

44. Type offset in command prompt and type 300 enter draw the offset 4 times

45. Type offset in command prompt and type 520 enter draw the offset

46. for section 2

47. Draw a side elevation draw a line of 365 in x axis and 2600 in y axis

48. Type offset in command prompt and type 900 enter draw the offset

49. Type offset in command prompt and type 1180 enter draw the offset

50. Do the finish and the drawing is obtained.

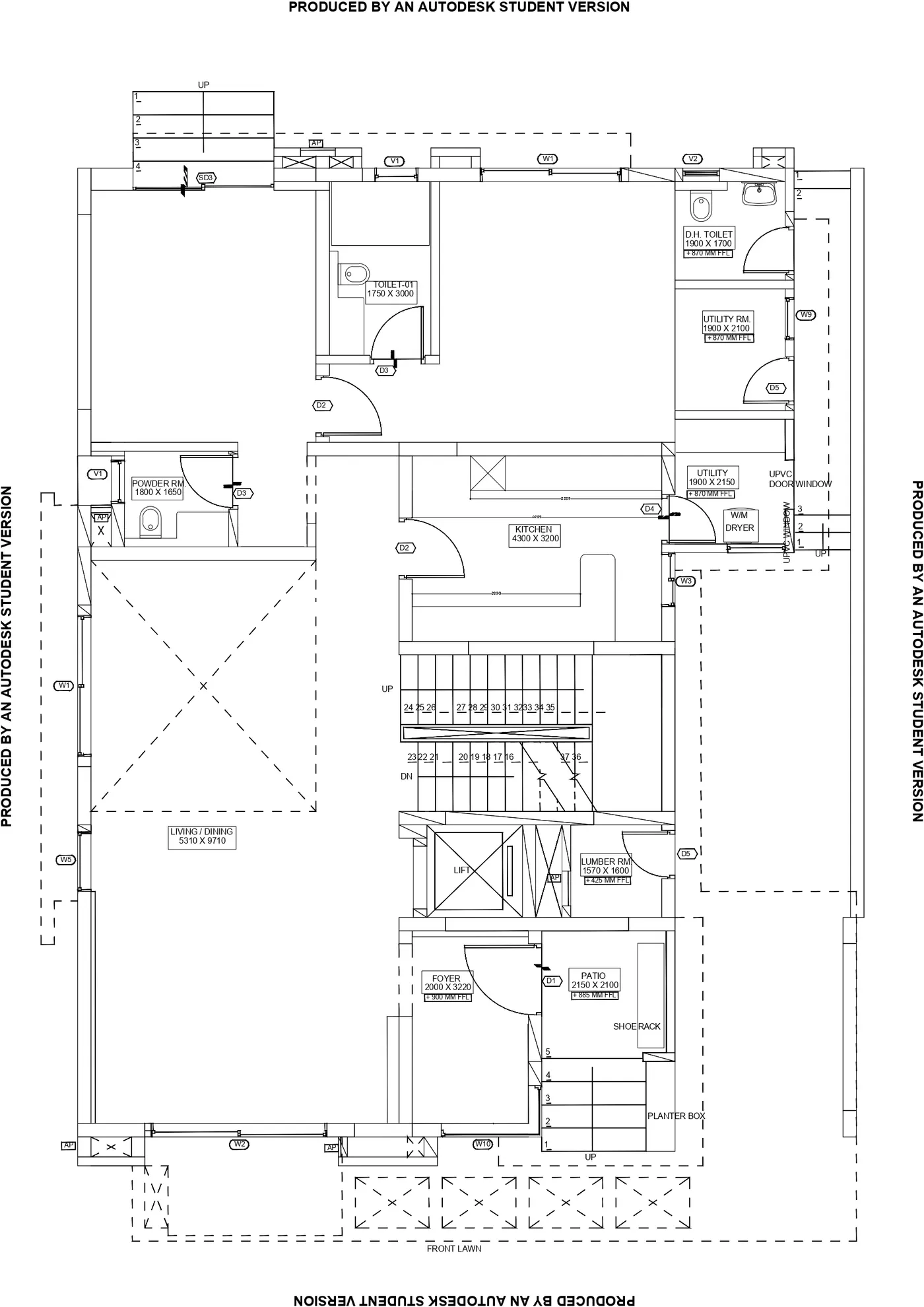

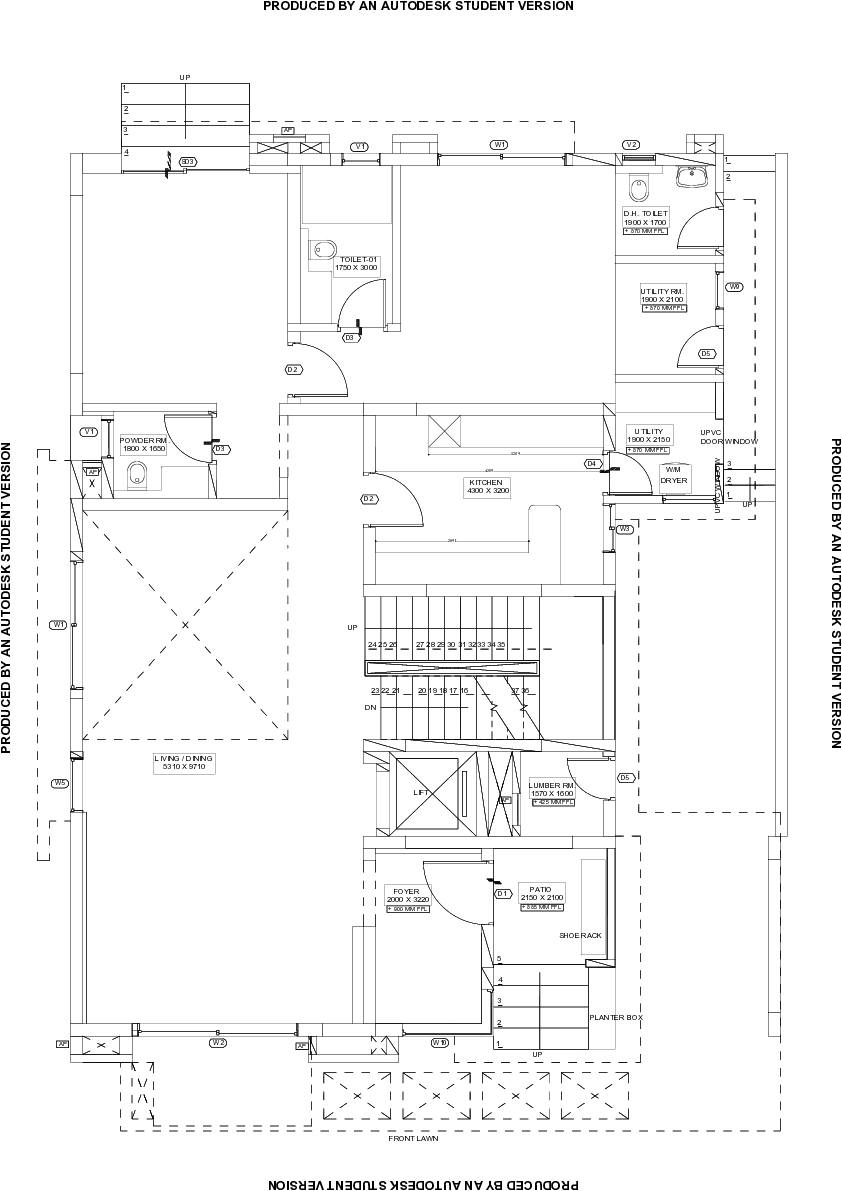

Q2. Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture. You need to draw the floor plan with the following:

1. Open the Autocad

2. Type units and select the decical unit and precission as 0.00

3. Type Limits and specify the lower and upper limits

4. Type Z (Zoom) enter and A enter. Now we are ready for drafting.

5. Type L enter and specify the point with ortho on draw 13000 in x axis and 16470 in y axis and join the outer lines from all sides

6. Type offset in command prompt and type 230 enter draw the offset (from top right left)

7. Type offset in command prompt and type 3880 enter draw the offset

8. Type offset in command prompt and type 150 enter draw the offset

9. Type offset in command prompt and type 1750 enter draw the offset

10. Type offset in command prompt and type 150 enter draw the offset

11. Type offset in command prompt and type 3830 enter draw the offset

12. Type offset in command prompt and type 150 enter draw the offset

13. Type offset in command prompt and type 1900 enter draw the offset

14. Type offset in command prompt and type 4350 enter draw the offset (horizontally)

15. Type offset in command prompt and type 1650 enter draw the offset

16. Type offset in command prompt and type 3200 enter draw the offset

17. Type offset in command prompt and type 3220 enter draw the offset from bottom line

18. Type offset in command prompt and type 1600 enter draw the offset

19. with all the inner wall make 150mm offset and draw the offset

20. with the line type select dotted line and make the front lawn portion with the help of line command

21. Draw the stair with 150mm riser with offset command

22. Draw the door with the help of line command and circle where ever mentioned in the drawing

23. trim the excess circle

24. Draw the window with the help of line command with ortho on. where ever mentioned in the drawing

25. Draw the toilet with the help of polyline and line command

26. Select the text command and write down the details such as bedroom. toilet and its dimension

27. Trim all the intersecting lines in the all corners of the line and join the lines where ever necessary

28. Draw the kitchen counter slab to the length of 2890 in x direction and 500 in y direction

29. use the fillet command to join the corner of the two lines for curved finish

30. Draw the cut outs with the help of line command

31. draw the ventilators where ever required

32. draw the planter box with the help of line command of width 1075mm

33. Draw a line at the midpoint

34. Desired drawing is obtained

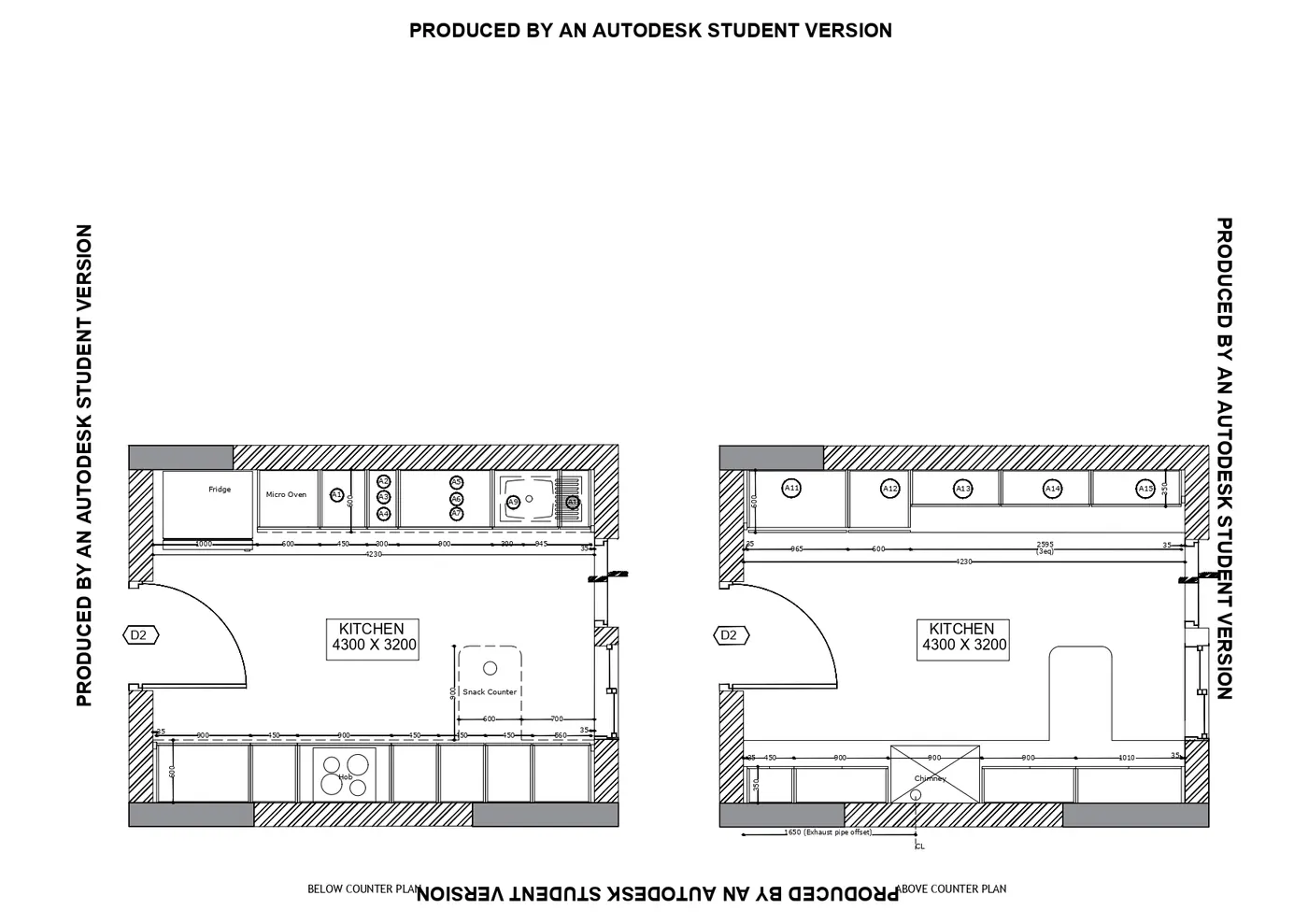

Q3. Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

1. Open the Autocad

2. Type units and select the decical unit and precission as 0.00

3. Type Limits and specify the lower and upper limits

4. Type Z (Zoom) enter and A enter. Now we are ready for drafting

5. Type L in command prompt and draw 4300 in x direction and 3200 in y direction

6. Type offset in command prompt and type 250 enter draw the offset towards outside

7.join the lines

8. Draw a line 4300 in x direction with 600 in y direction for slab

9. Type offset in command prompt and type 35 enter draw the offset

10. Type offset in command prompt and type 900 enter draw the offset

11. Type offset in command prompt and type 450 enter draw the offset

12. Type offset in command prompt and type 900 enter draw the offset

13. Type offset in command prompt and type 450 enter draw the offset 3 times

14. Type offset in command prompt and type 560 enter draw the offset

15. Draw the snack counter of 900 in y direction and 600 in x direction with the help of dotted/dashed line

16. Draw a circle in the snack counter(middle)

17. draw the offset on the other side also with the offset

18. Type offset in command prompt and type 1000 enter draw the offset

19. Type offset in command prompt and type 600 enter draw the offset

20. Type offset in command prompt and type 450 enter draw the offset

21. Type offset in command prompt and type 300 enter draw the offset

22. Type offset in command prompt and type 900 enter draw the offset

23. Type offset in command prompt and type 1145 enter draw the offset

24. Type offset in command prompt and type 35 enter draw the offset

25. Insert the text command and do the detaling

26. Do the dimensions with the help of dimension command

27. Do the hatching on the outer wall with the help of hatching command

29. type the mirror command and select the object and do the mirror of the same drawing and keep the original

30. Do the offset as per the drawings

31. Remove the dotted line of snack table and make it with solid line

32. Draw circle in each cabinet and type the details as mentioned in the drawing

33. Required drawing is achieved

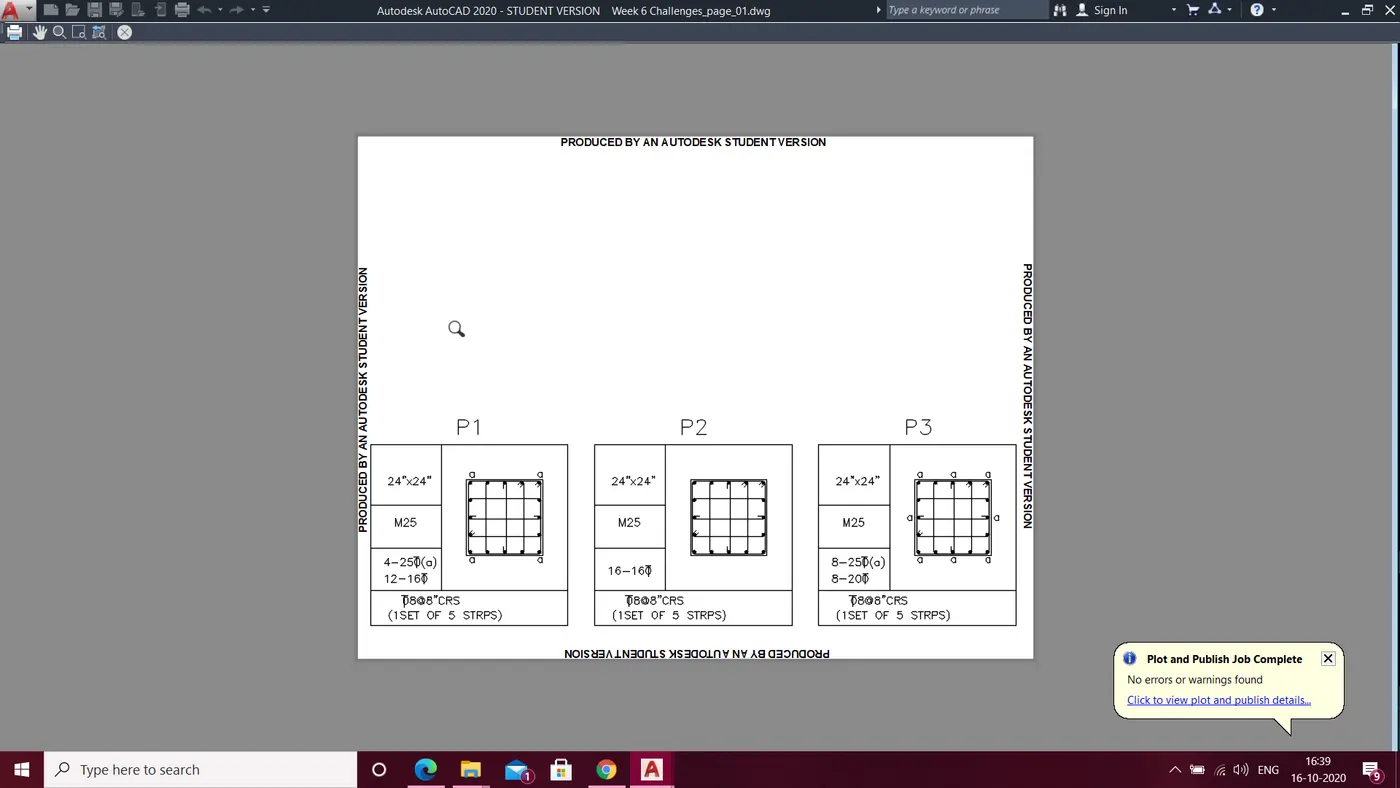

Q 4. Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

8mm ---- 0.31 Inches

25mm--- 1 inches

16mm—0.62 inches

1. Open the Autocad

2. Type units and select the engineering unit and precission as 0'0"

3. Type Limits and specify the lower and upper limits

4. Type Z (Zoom) enter and A enter. Now we are ready for drafting

5. Type L in the command prompt and make the desired shape as given in the question/picture

6. Draw a square using line command of 24"*24"

7. Type offset and enter 6" and do the offset both vertically and horizontally

8.join the lines to its edge

9. draw circle at every corner

10. use the fillet command and make the hooks as given in the picture

11. Using text command write the details as given.

12. Copy the entire object and paste and edit the details such as 16-16dia and so on

13. All the three required columns schedule is obtained

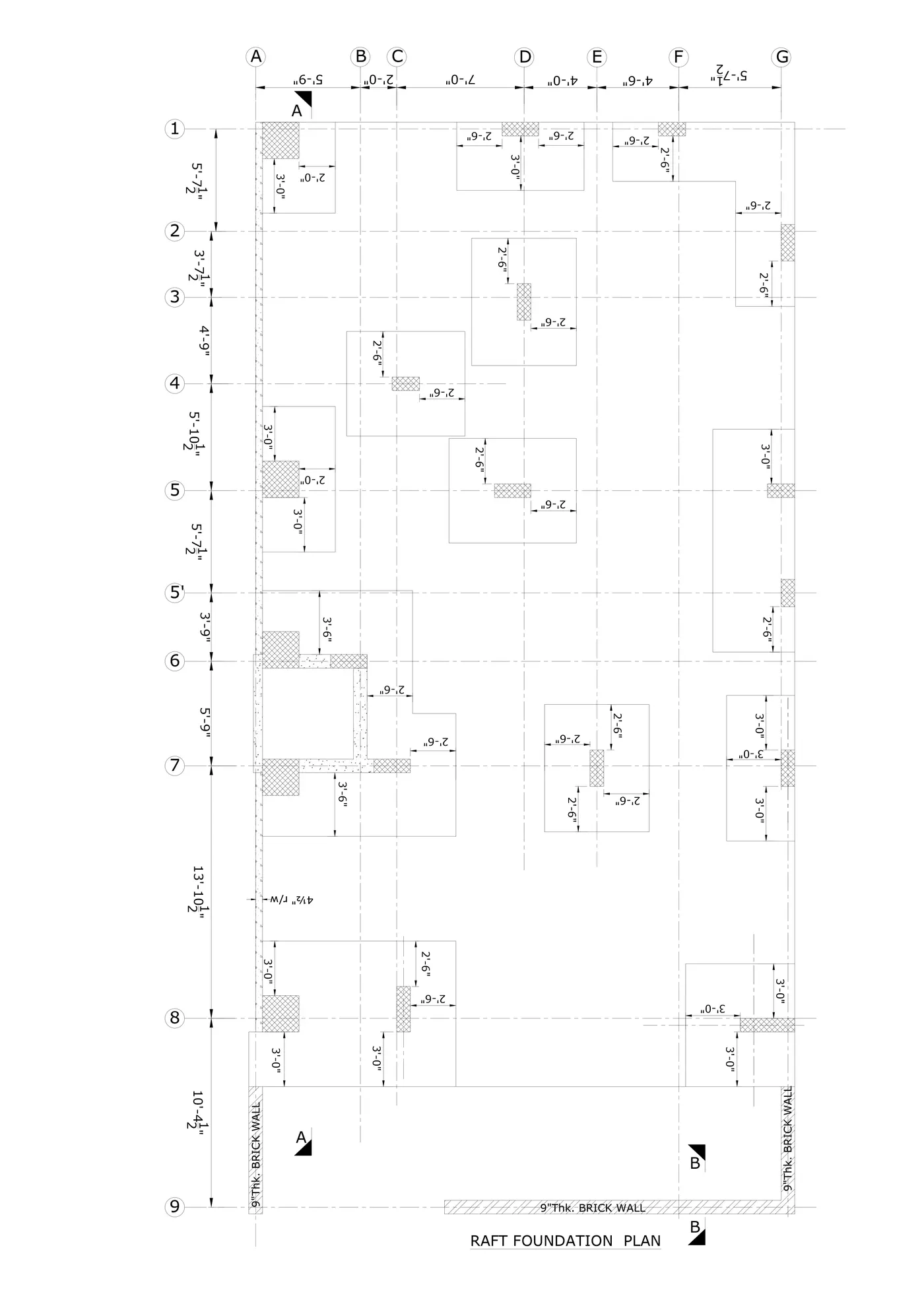

Q5. Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.

1. Open the Autocad

2. Type units and select the architectural unit and precission as 0'0"

3. Type Limits and specify the lower and upper limits

4. Type Z (Zoom) enter and A enter. Now we are ready for drafting

5. Type L in the command prompt and make the desired shape as given in the question/picture

6. Draw the different footings/pedestral of the desired size as given

7. Hatch the portions of the footings as per the desired dimension

8.Draw line of 9" thick and hatch it with brickwork hatch

9. on the grid by right clicking on the grid and then given the spacing between the girds
