REVIT_3D Rendering of a House plan_Project 1

KKurra Rachana17 Nov 2020

1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level.

AIM: To model a ceiling from architectural tab above walls at first floor.

TOOLS USED:

ARCHITECTURAL
CEILING
SKETCH CEILING
3D VIEW

PROCEDURE:

STEP-1:

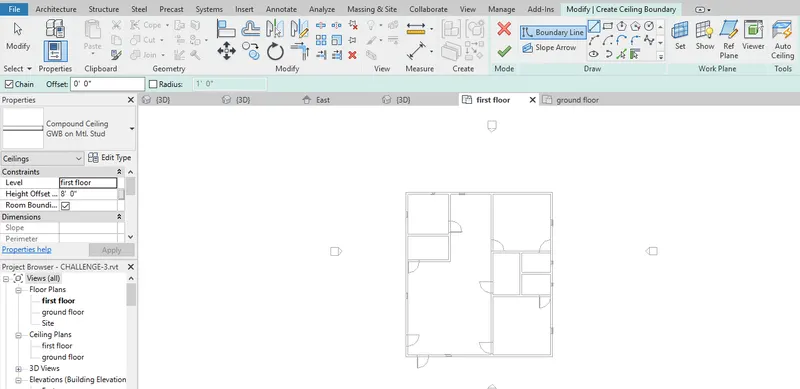

open the revit file
select the first floor plan
click on architectural tab
select ceiling command
click on sketch ceiling

STEP-2:

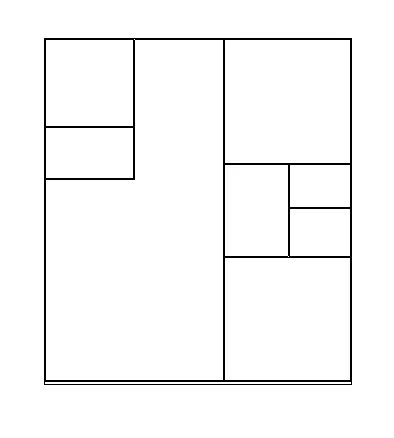

select type of ceiling from proprties
select the lines and click ok
click on view and select 3D VIEW.

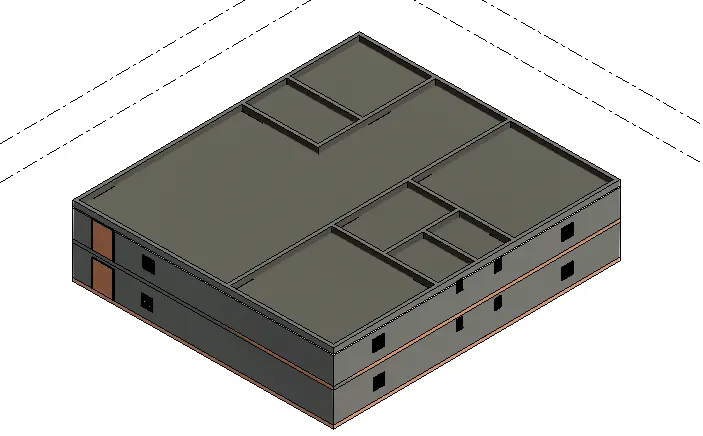

RESULT: Ceiling has been created by following above procedure

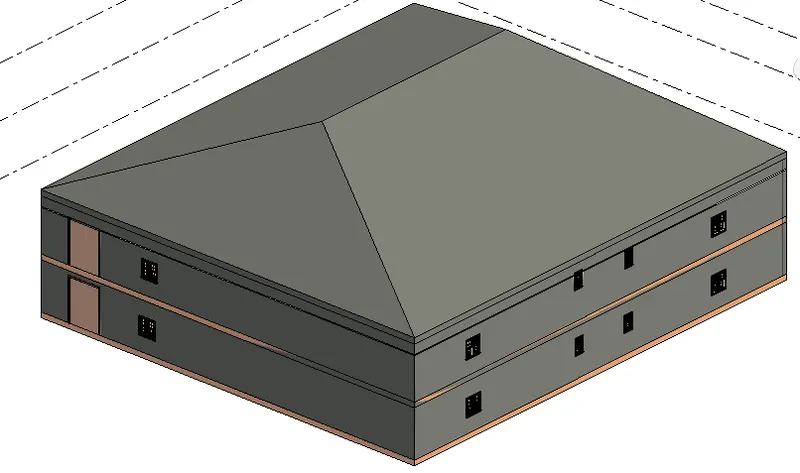

2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees.

AIM: To create a roof above ceiling by selecting the footprints of ceiling.

TOOLS USED:

ARCHITETURAL TAB
ROOF BY FOOT PRINTS
MANAGE
PROJECTS UNITS

PROCEDURE:

STEP-1:

open the revit file

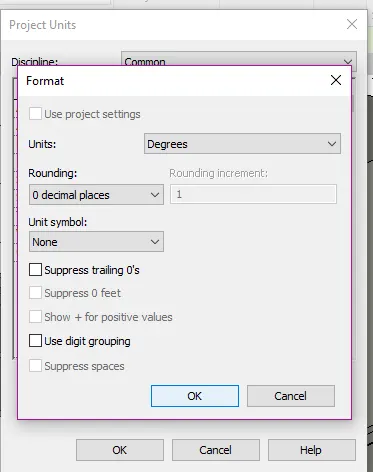

click on manage tab
select project units,click on slope and select degree

STEP-2:

click on architectural tab
select roof by foot prints
create a roof level by selecting elevations to make the roof more efficient
pick the border lines and click on correct mode
adjust the height of the roof acoordingly

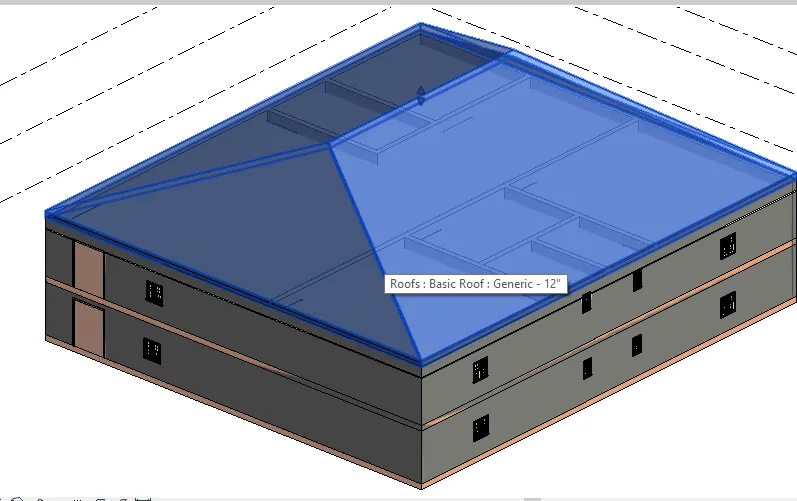

RESULT: roof has been created by arranging the levels,units,and picking up the border lines properly.

the roof is created with the slope of degree.

3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls , floors and all the components placed within the building

AIM: To Create the architectural plan that has walls,floors and all the components placed within the building

TOOLS USED:

OPEN
VIEW
PLAN VIEWS
FLOOR PLAN

PROCEDURE:

STEP-1:

open the file in revit

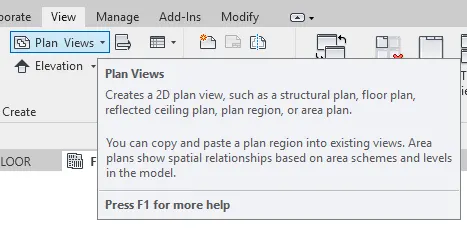

click on the view toolbar
select the plan view

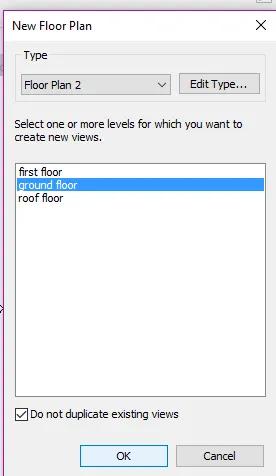

select floor plan

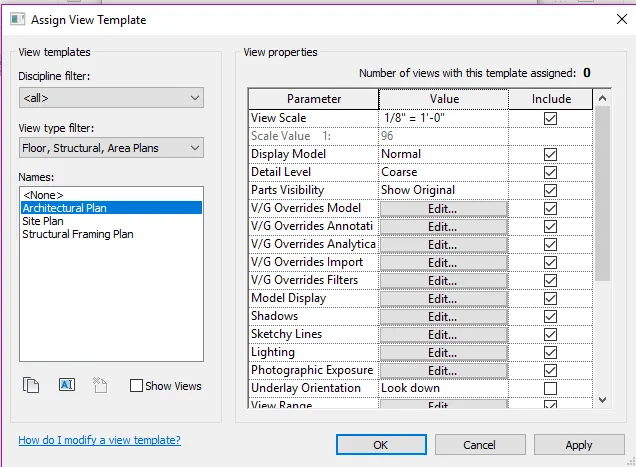

Go to edit type and click on architectural plan

Click apply for both ground floor and first floor

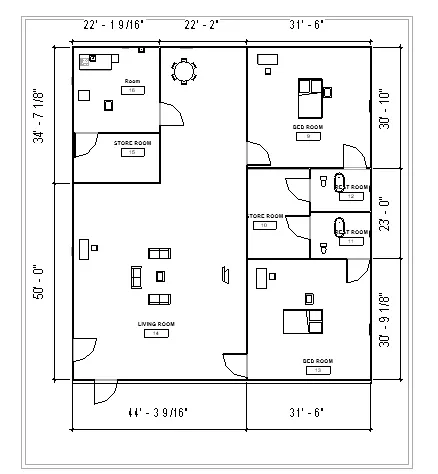

the archtectural floor plan of the residential buildings as it contains all the components of the buildings as doors,windows,beds,sofa,kitchen tols,lighting,plumbing components ect., are placed in the building.

RESULT: arcitectural plan is shown with all the components in ground floor and first floor

GROUND FLOOR:

FIRST FLOOOR:

B). Structure plan must have details of only walls, floors and columns

AIM: To create the structural plan

TOOLS USED:

VIEW
PLAN VIEW
STRUCTURAL PLAN

PROCEDURE:

click on view tab
select view plan and select structural plan
click edit type and select structural plan
apply it for both ground and first floor

RESULT: structural plan is shown as

GROUND FLOOR:

FIRST FLOOR:

RESULT:THE PLAN VIEW FOR GROUND FLOOR AND FIRST FLOOR LEVEL ARE SHOWN IN ARCHITECTURAL AND STRUCTURAL VIEW PLANS.

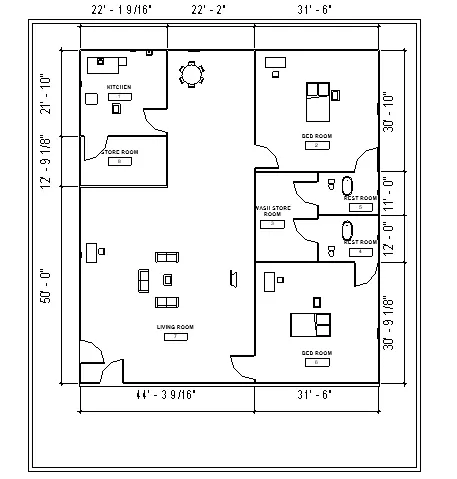

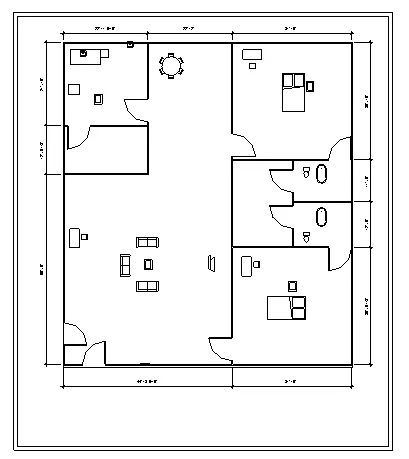

4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

AIM: to add dimensions to the project

TOLS USED:

OPEN
ARCHIECTURAL
TAG ROOMS
ANNOTE
ALLIGNED

PROCEDURE:

STEP-1:

open the file

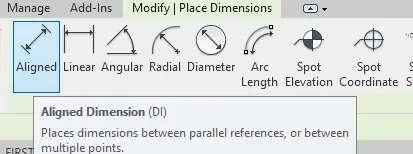

click on annote tool bar and select alligned
give the overall deminsions
select architectural tab and tag rooms as sepecified
APPLY IT FOR BOTH GROUND FLOOR AND FIRST FLOOR

RESULT:

GROUND FLOOR

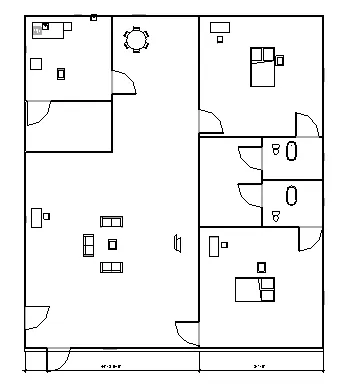

FIRST FLOOR:

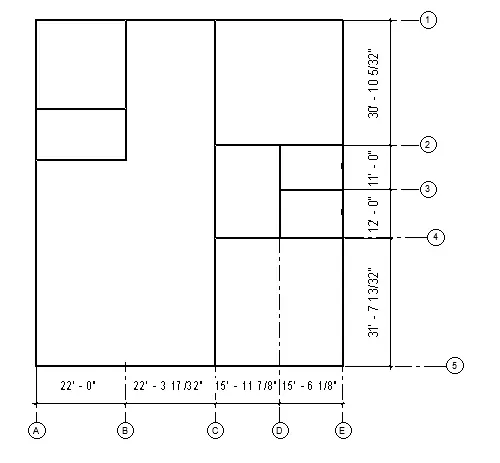

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM: to add dimensions and grids to the structural plan

PROCEDURE:

click on architectural tab
select grids and draw grids at the walls associated
apply it for both ground and architectural floor

RESULT: grids and dimensions are added to strcutural plans

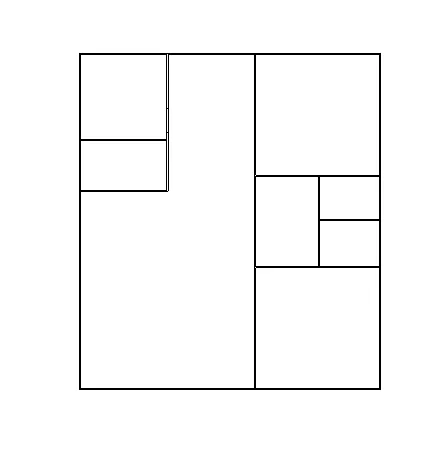

GROUND FLOOR:

FIRST FLOOR:

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM: To create a sheet template feom view tab and to adjust parameters.

TOOLS USED:

OPEN
VIEW TAB
SHEET TEMPLATE
ADD VIEW

PROCEDURE:

open the file
select the view tab

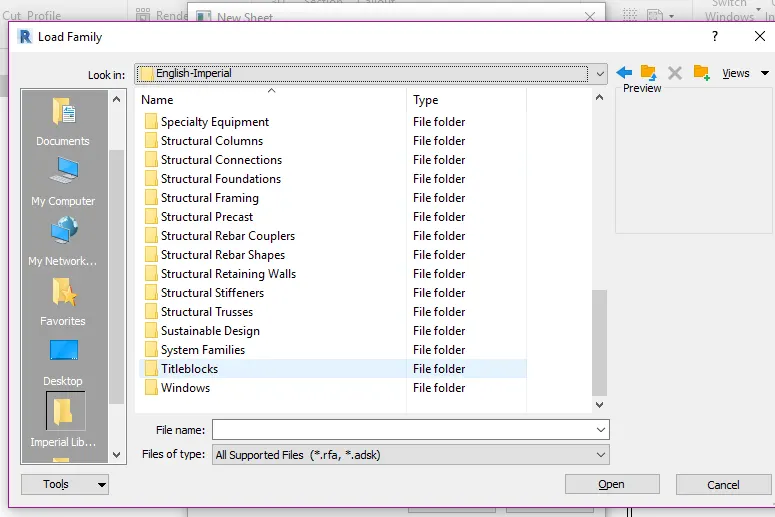

select sheet template and select load and click on title blcks
click on place view in view tab
Add for 3D view,ground floor,first floor by adjusting parameters

RESULT: sheet template is added for all the views.

GROUND FLOOR:

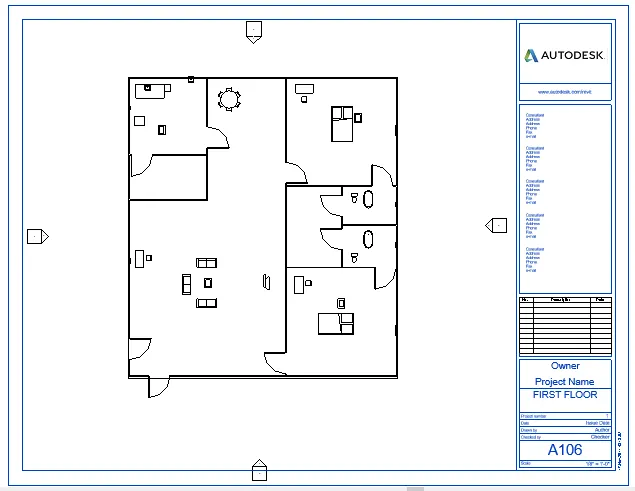

FIRST FLOOR:

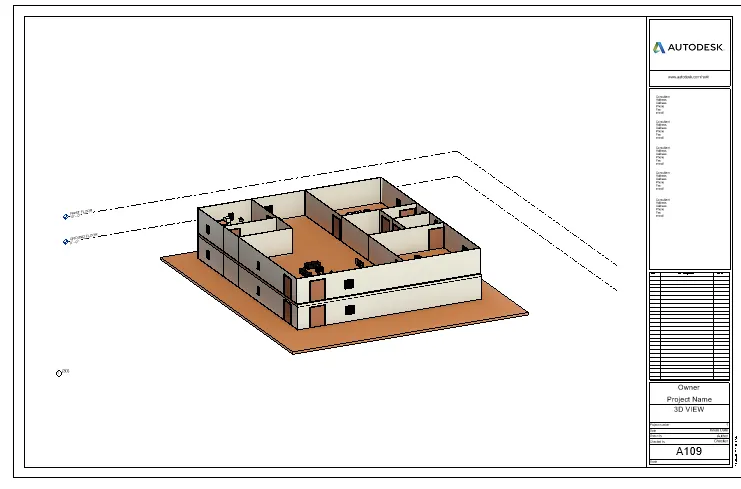

3D VIEW:

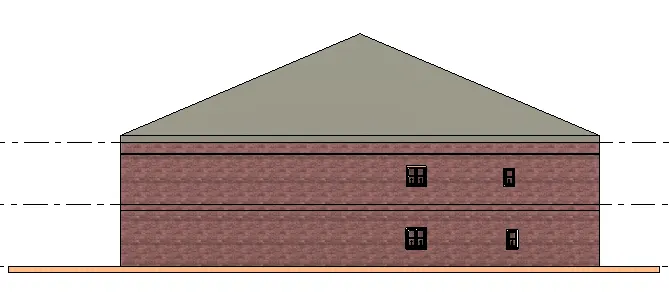

6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West

AIM: To create the elevation views

TOOLS USED:

OPEN
PEOJECT BROWSER
ELEVATIONS
EAST
WEST
NORTH
SOUTH

PROCEDURE:

open the file
go to prject browser
click on elevations
click east for east elevations,simillarly for orther elevations.

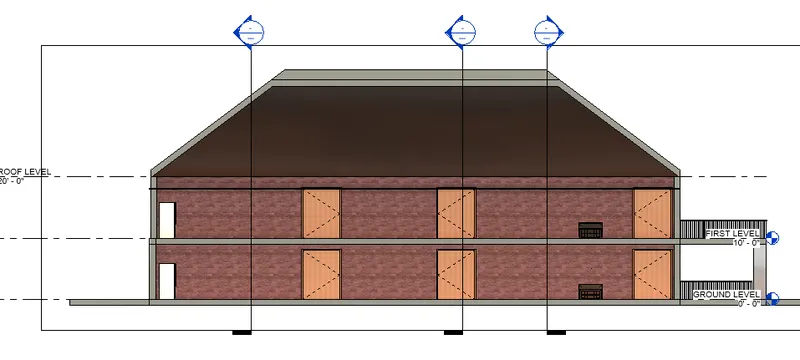

RESULT: elevation views of respective building are shown below

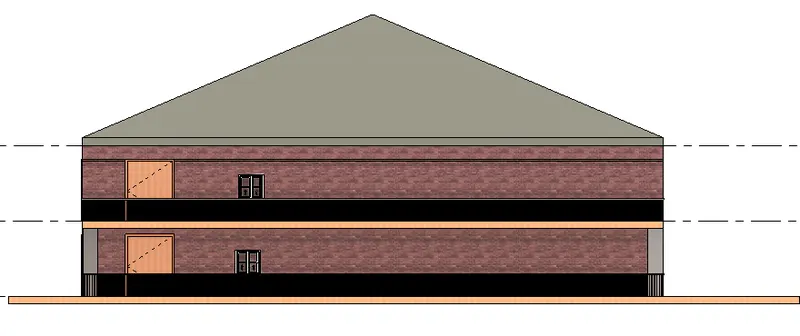

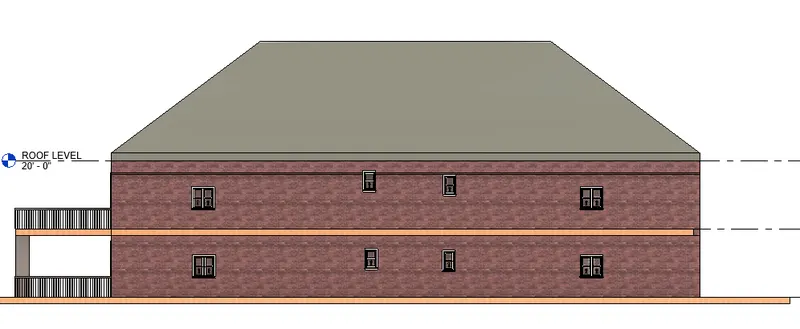

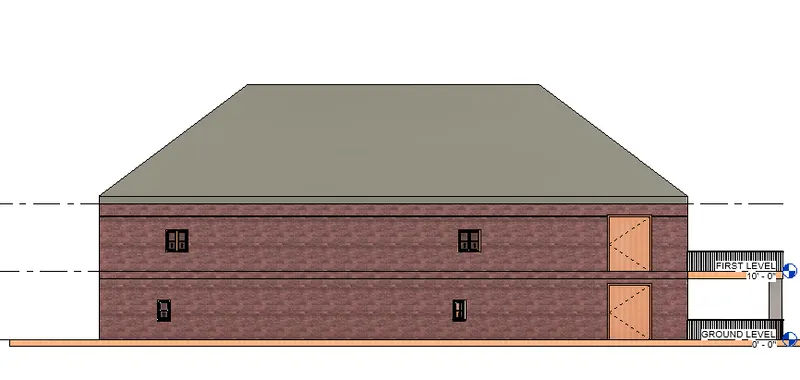

EAST

WEST

NORTH

SOUTH

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM: To produce section cut through each room

TOOLS USED:

VIEW
SECTION
RIGHT CLICK
GO TO VIEW

PROCEDURE:

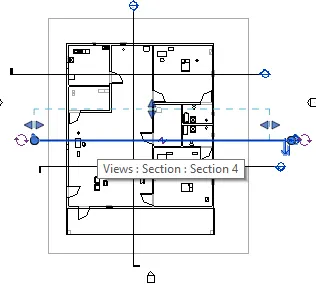

Open the file

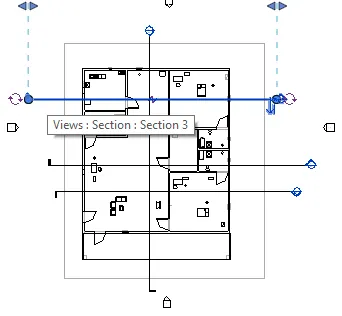

click on view tab

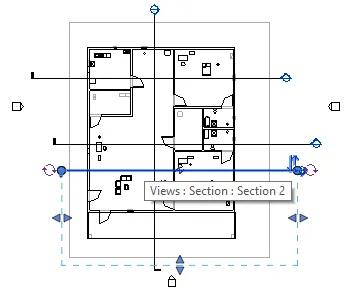

select the section view

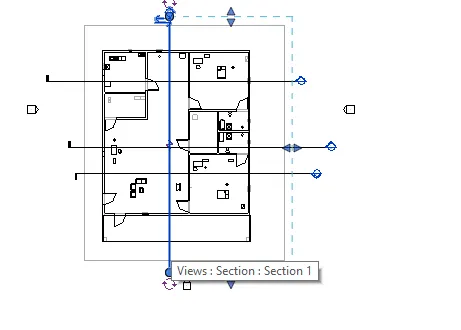

drwa the section between the rooms

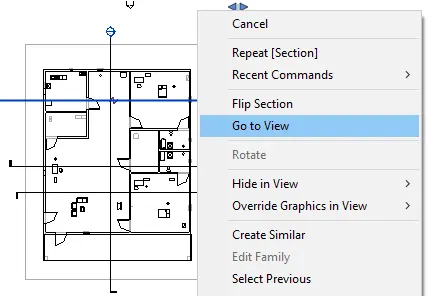

click right on the section and select go to view
required sectional view is developed

RESULT: sectional view between the roms has been created

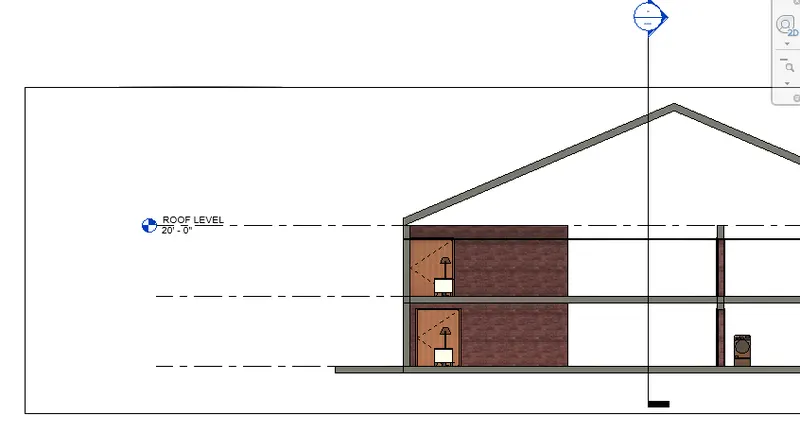

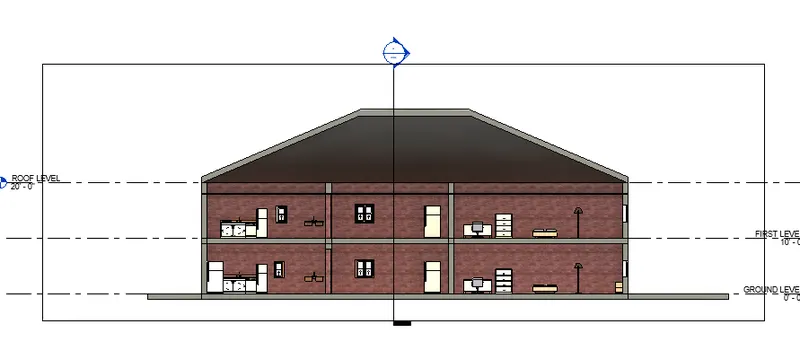

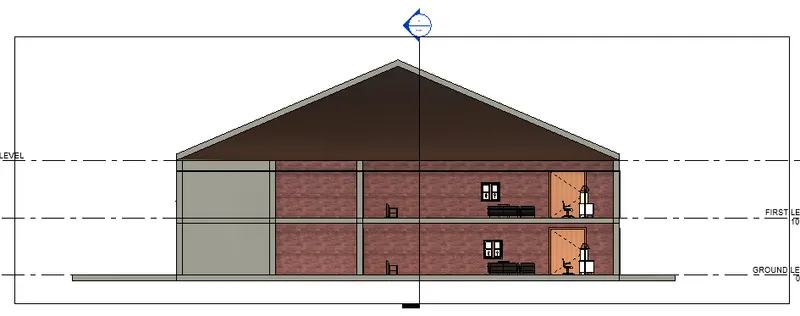

SECTION-1:

SECTION-2:

SECTION-3

SECTION-4:

8) Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser

ans: Views are defined as how we are able to see our 3D model.

PLAN VIEW:

floor plans are alwys related with different levels that are ceated in the project

it includes: FLOOOR PLANS- it creates views that represnt a horizontal cut of a model.

REFLECTED CEILING PLAN- it creates a ceiling view

STRUCTURAL PLAN-it is to represnt structures

PLAN REGION- it is to a plan region different in view range

AREA PLAN-it shows spatialrealationship based on area schemes

SECTION VIEW:

it defines the intersection of the created drwing and the model

it contains n number of views

ELEVATION VIEW:

to show the elevation in four elevations EAST,WEST,NORTH,SOUTH

9) Using the sheet template produced create multiple sheets as follows

AIM: to create sheet template

TOOLS USED:

OPEN
VIEW
SHEET TEMPLATE

PROCEDURE:

open the file
click on view tab
select sheet templates as required
rename the templateS as,A101,A102,A103,S101,S102,S103,A201,A202
click on place view and choose as mentioned

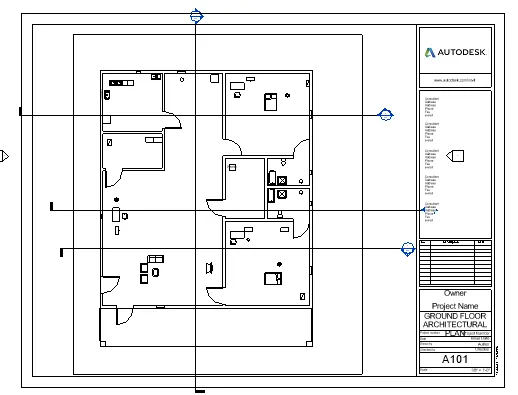

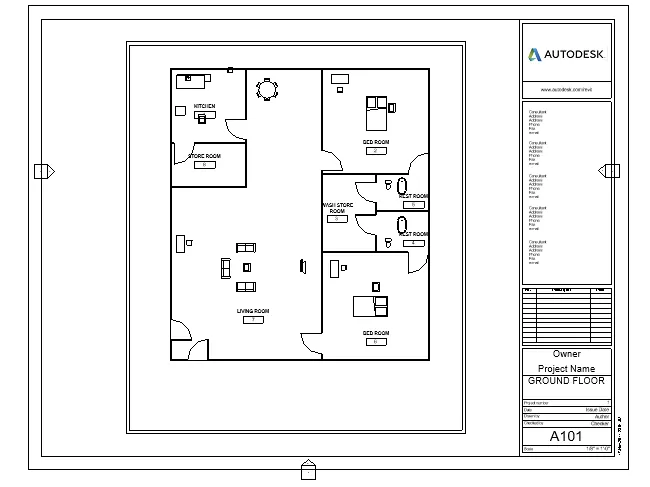

a. A 101 – Ground Floor Architecture Plan
RESULT:

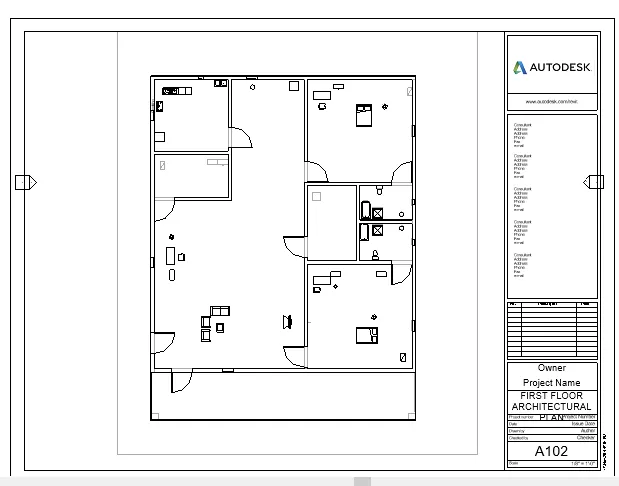

b. A 102- First Floor Architecture Plan

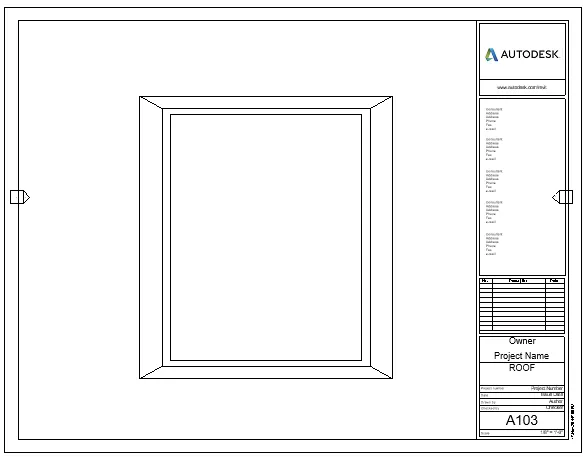

c. A 103- Roof Plan

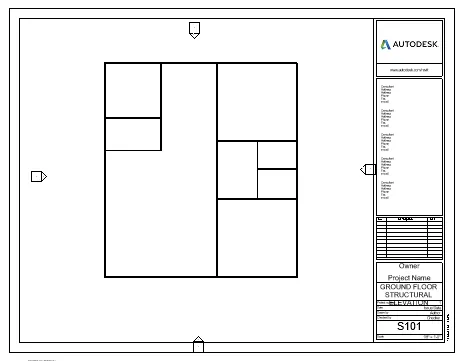

d. S 101- Ground Floor Structural Plan

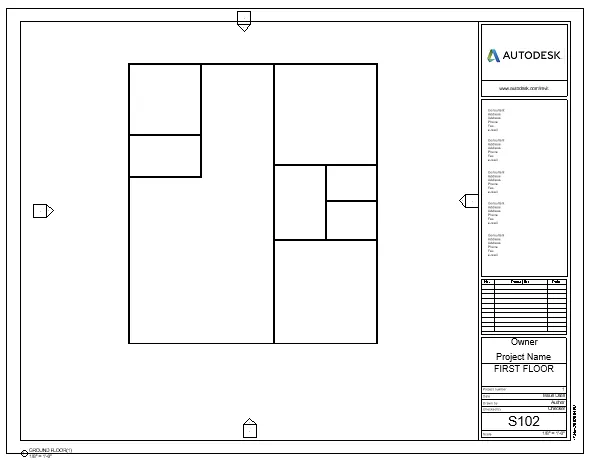

e. S 102 – First Floor Structural Plan

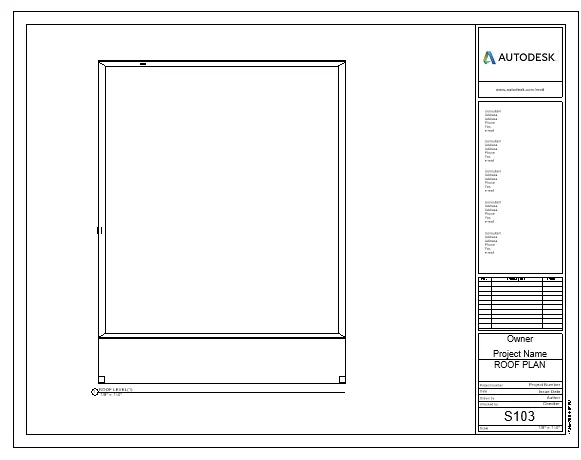

f. S 103- Roof Framing Plan

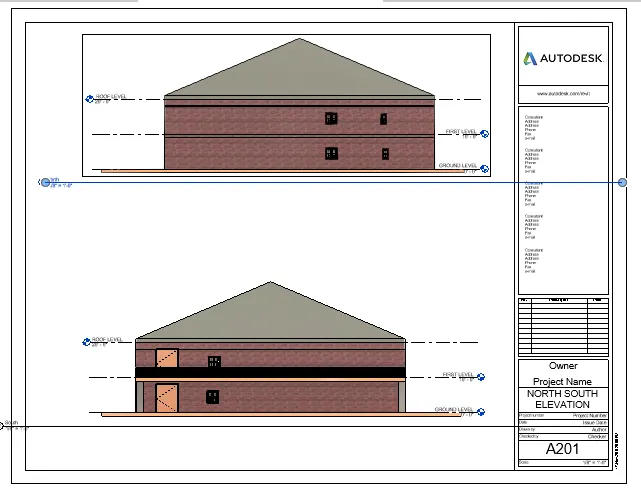

g. A-201 – North South Elevations

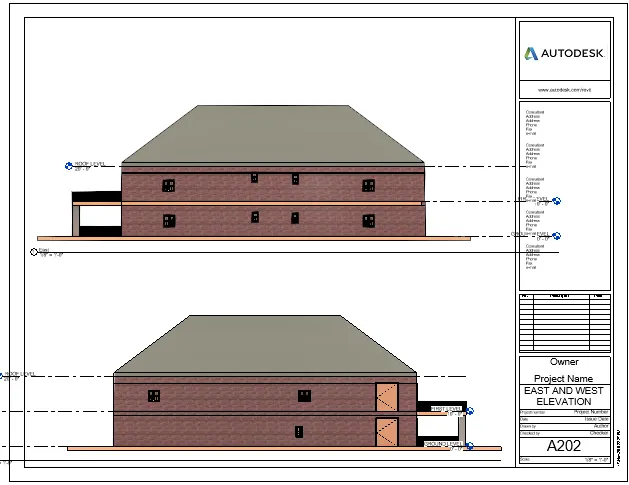

h. A-202- East West Elevations
RESULT: multiple sheets templates has been created

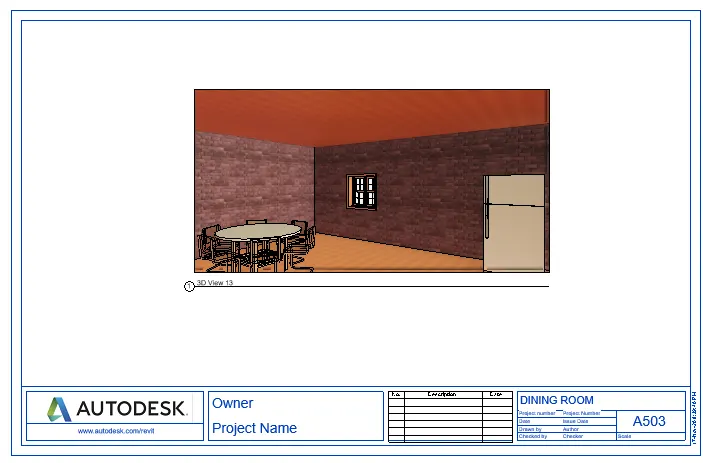

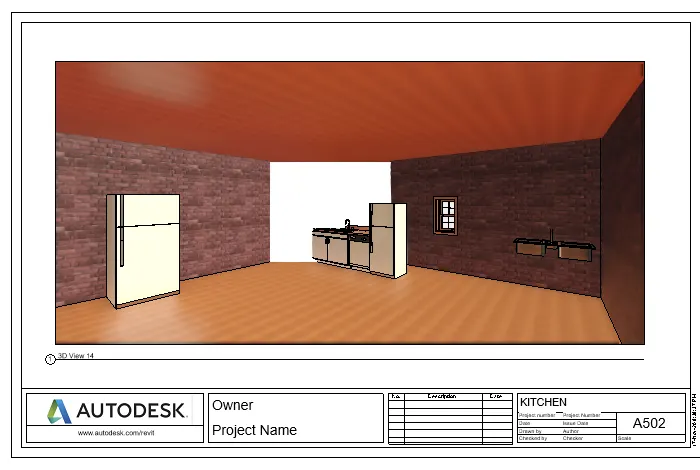

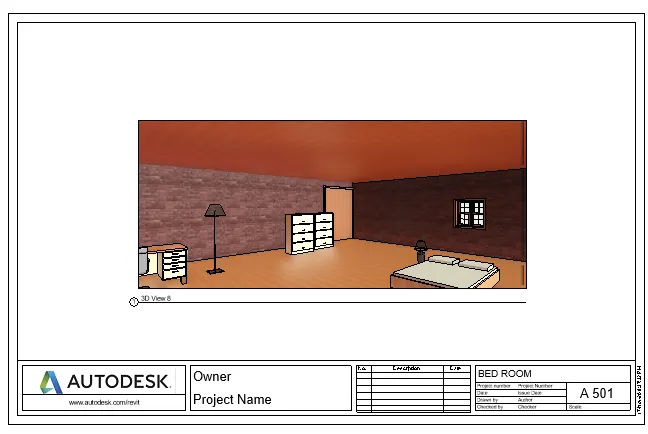

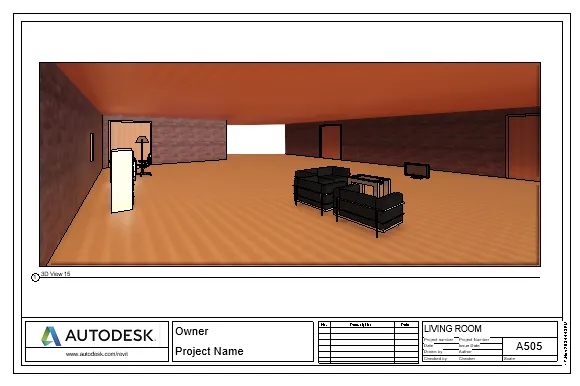

10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.

AIM: To create 3D view in each room using cameras and to create sheet template of that views

TOOLS USED:
