Project - A project on design of road from a given topographic data

1. Point creation and grouping them with the help of description.
2. Preparation of surface and importance of break lines.
3. Horizontal alignment design and adding super elevation.
4. Vertical profile design.
5. Cross section template creation based on proposed conditions.
6. Corridor modelling and extraction of finished surfaces.
7. Cross sections production based on corridor modeling.
8. Earthwork quantities and material quantities takeoff.

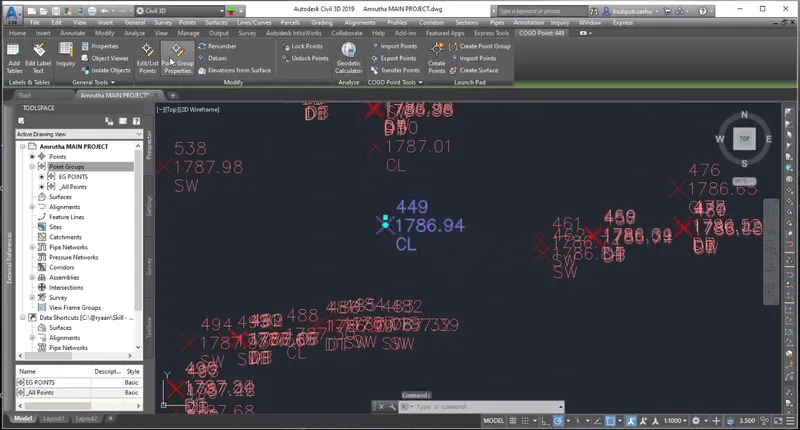

1. POINT CREATION AND GROUPING THEM WITH THE HELP OF DESCRIPTION.

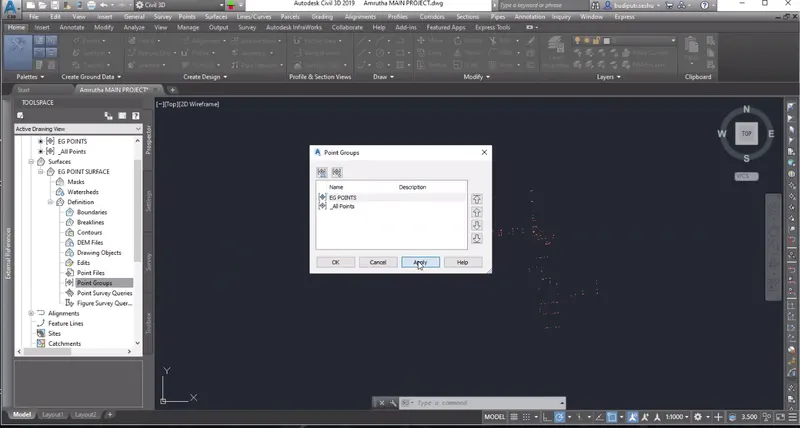

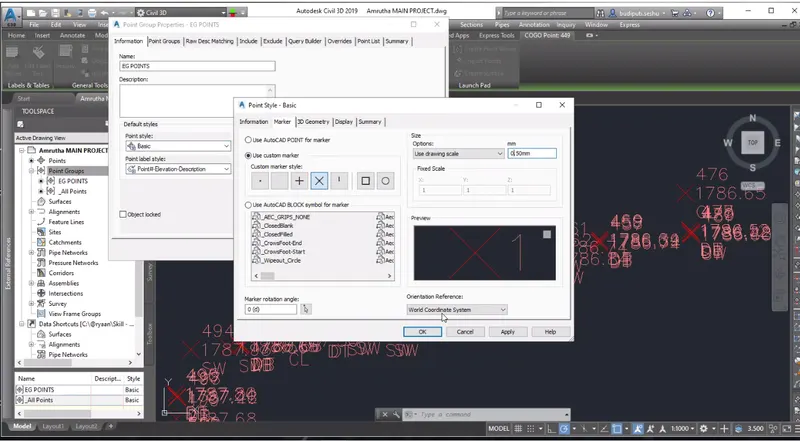

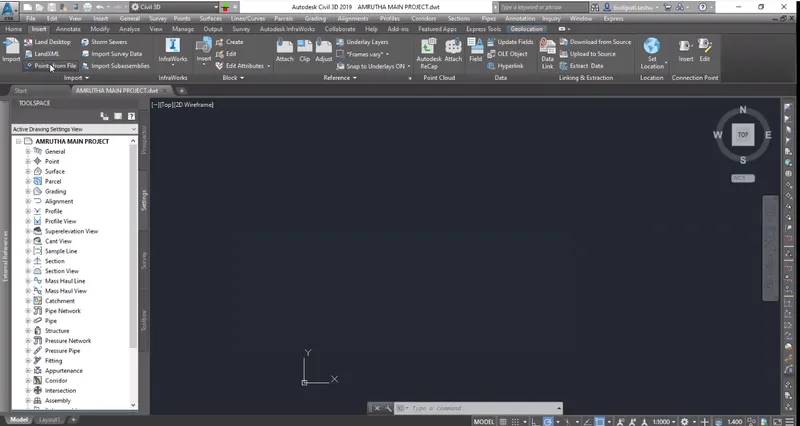

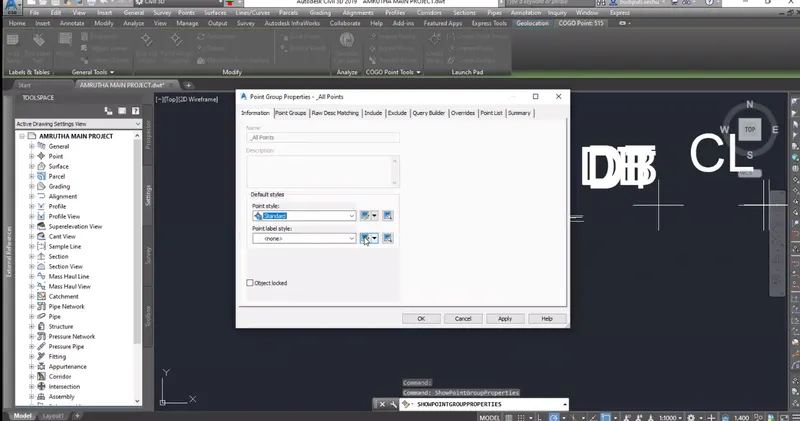

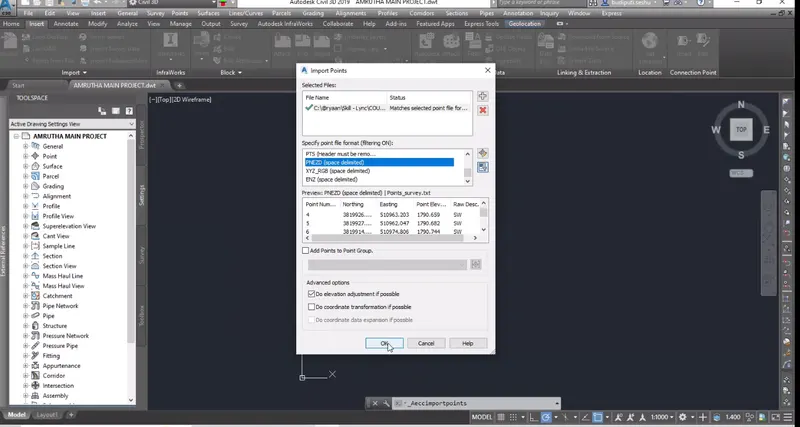

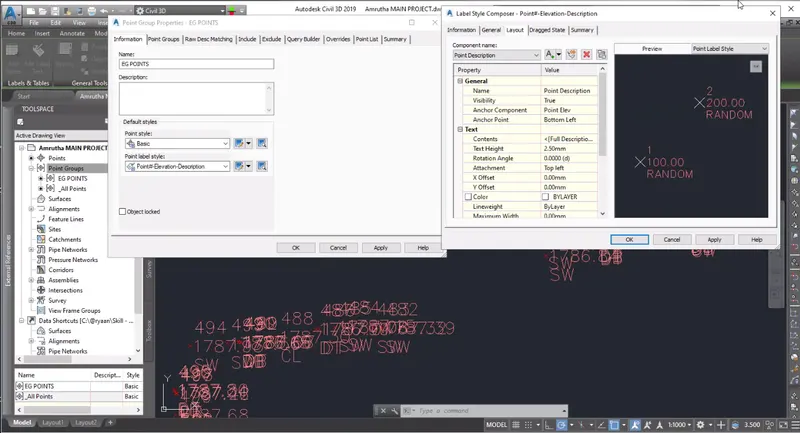

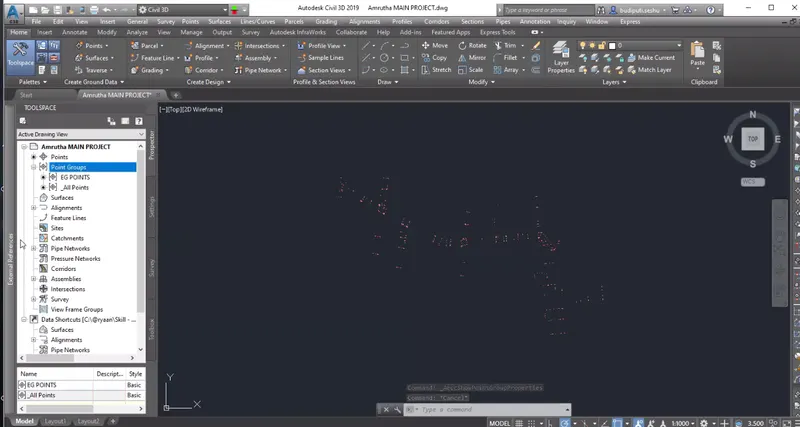

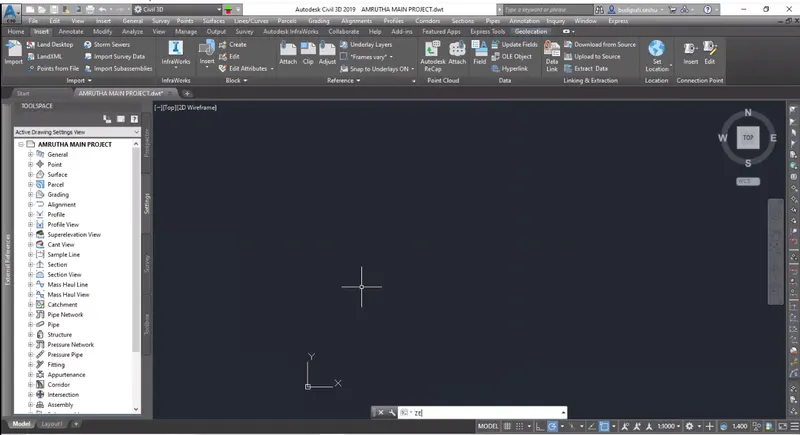

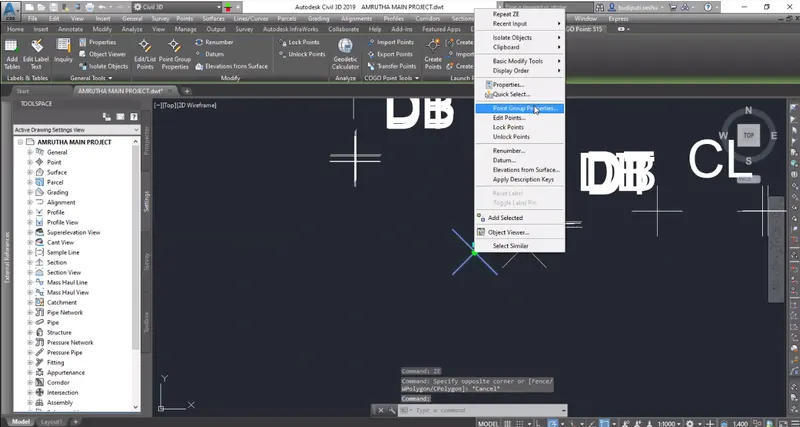

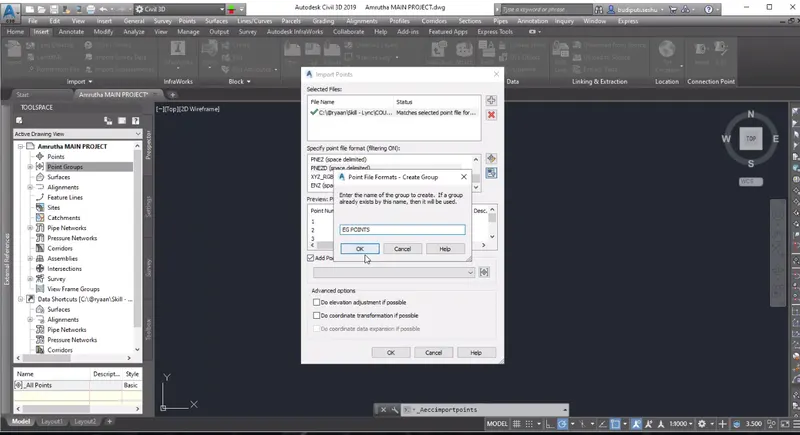

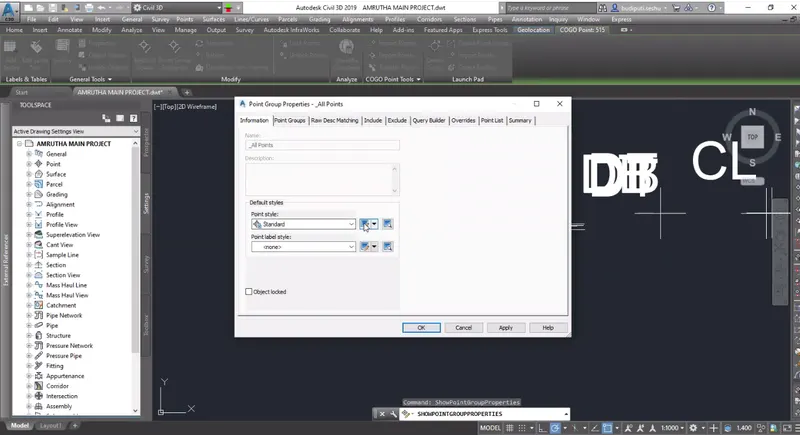

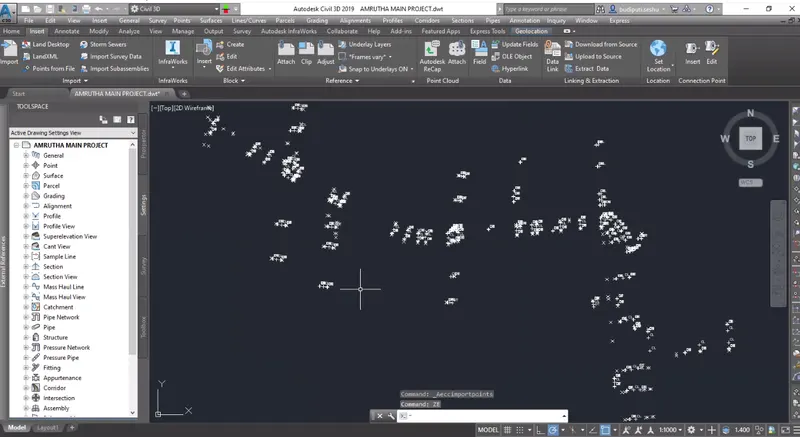

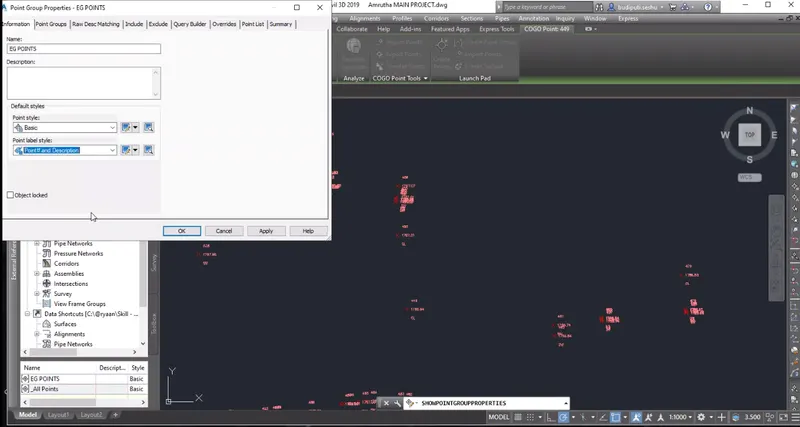

OPEN CIVIL 3D – IMPORT PONT FILE FROM INSERT - OPEN POINTS SURVEY.DWG file from support files – CHANGE TO PNEZD FORMAT-ENTER THE POINT FILE FORMAT NAME -select Points – RIGHT CLICK – POINT GROUP PROPERTIES – CHANGE POINT STYLE- CHANGE MARKER STYLE – SESLECT POINT LABEL STYLE – CHANGE IT AS DESCRIPTION ONLY – OK – GROUP ALL POINTS AS PER THE DESCRIPTION.

2. PREPARATION OF SURFACE AND IMPORTANCE OF BREAK LINES.

Create surface from the given SURVEY DATA file.

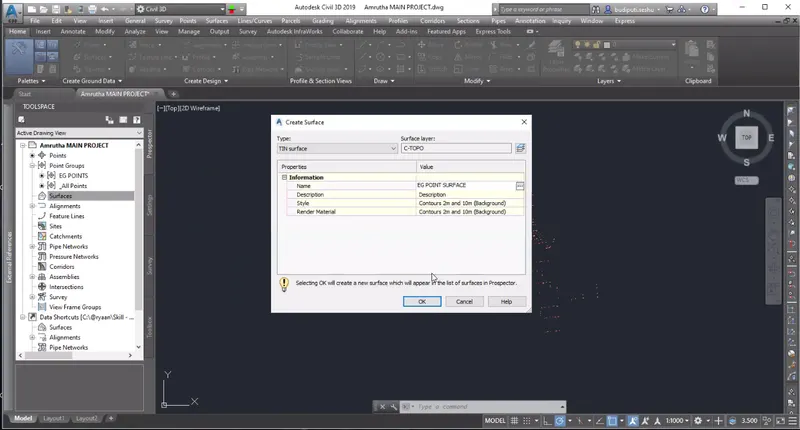

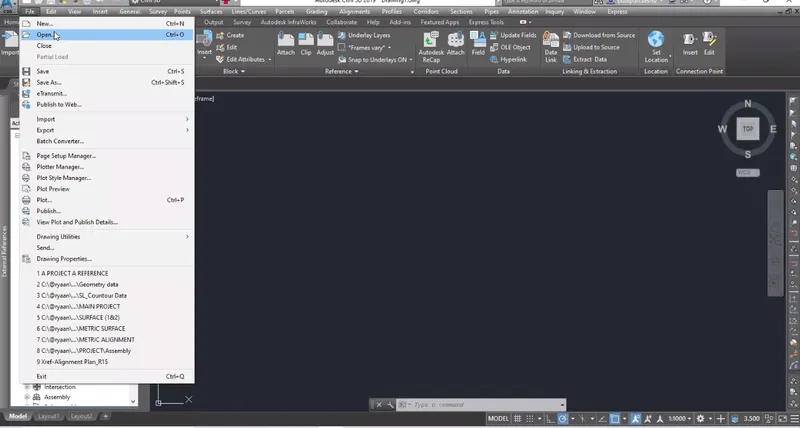

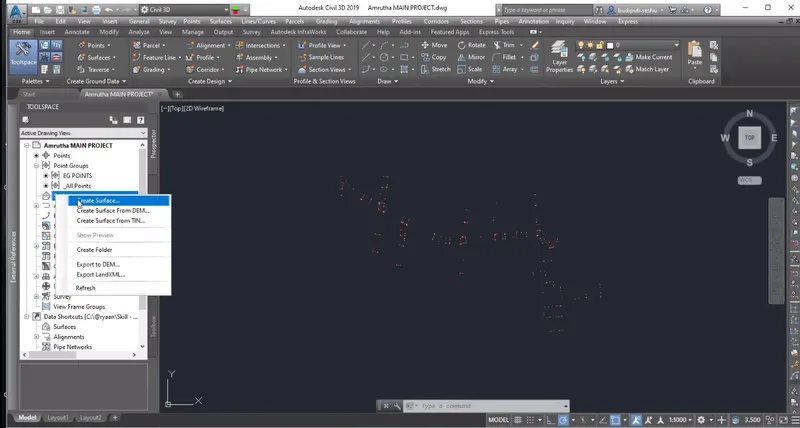

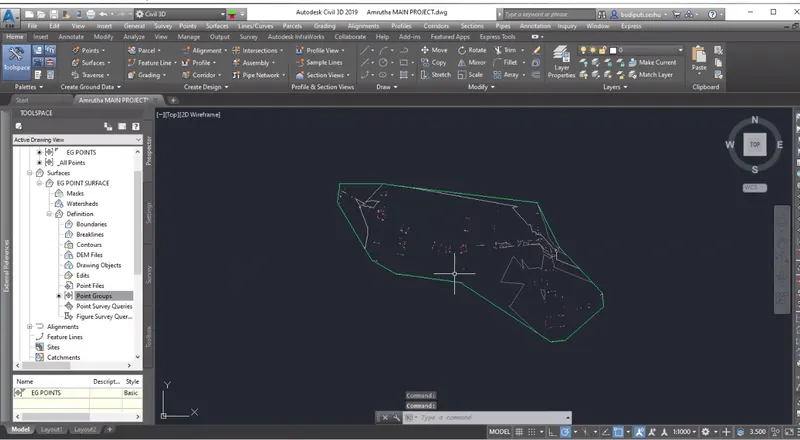

OPEN CIVIL 3D – OPEN POINTS SURVEY.DWG file from support files – select Points – prospector tab – surfaces – CREATE SURFACE – GIVE NAME OF THE SURFACE- OK.

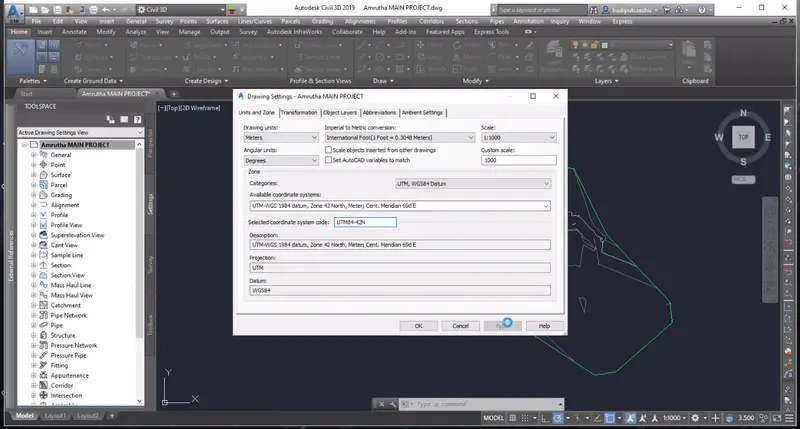

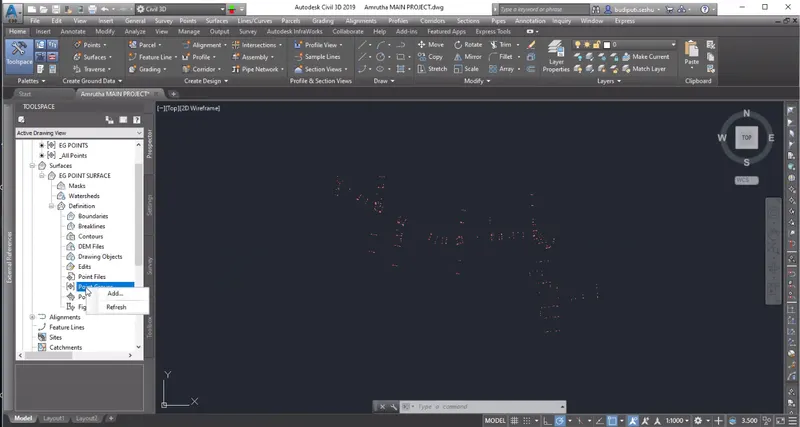

PROSPECTOR TAB – SURFACE – EXPAND- DEIFINITION – EXPAND – SELECT POINTS – RIGHT CLICK – ADD – ADD ALL – OK – SURFACE HAS BEEN CREATED – SAVE THE FILE- TOOL SPACE – SETTINGS – SELECT NAME OF THE FILE – RIGHT CLICK – EDIT DRAWING SETTINGS – CHANGE THE CO-ORDINATES TO UTM84-42N – OK.

Break lines are line data that can improve a surface. They provide more information to the surface and influence how it is triangulated. Adding a break line forces the surface to create triangles connecting the vertices on the break line.

3. HORIZONTAL ALIGNMENT DESIGN AND ADDING SUPER ELEVATION.

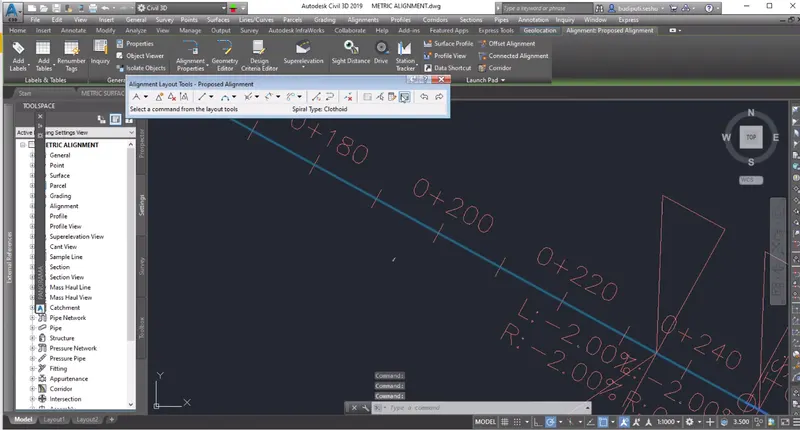

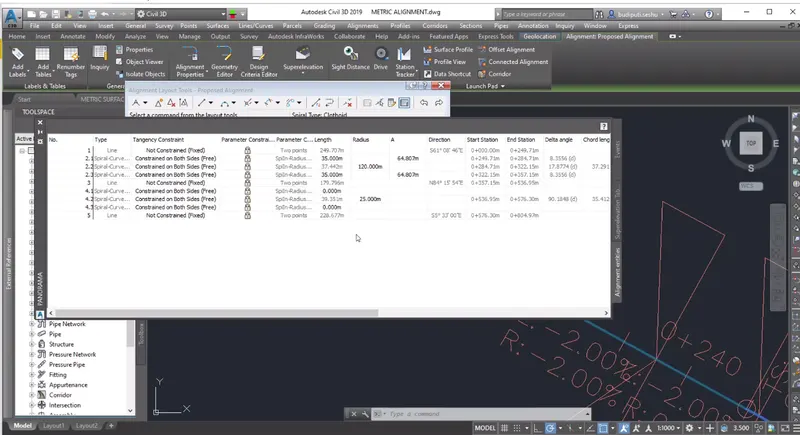

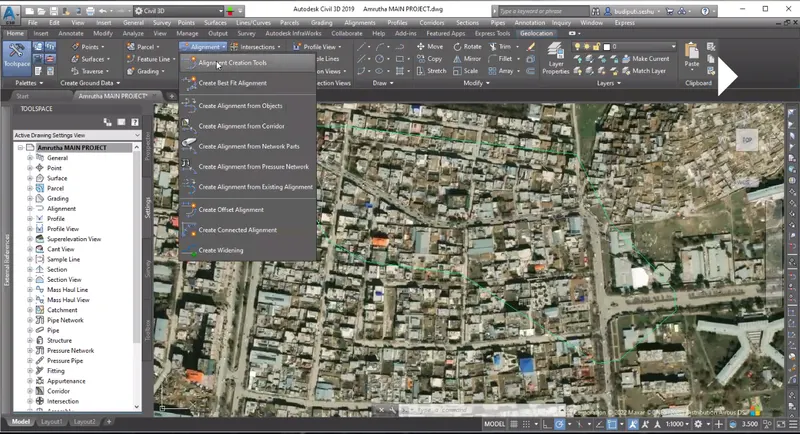

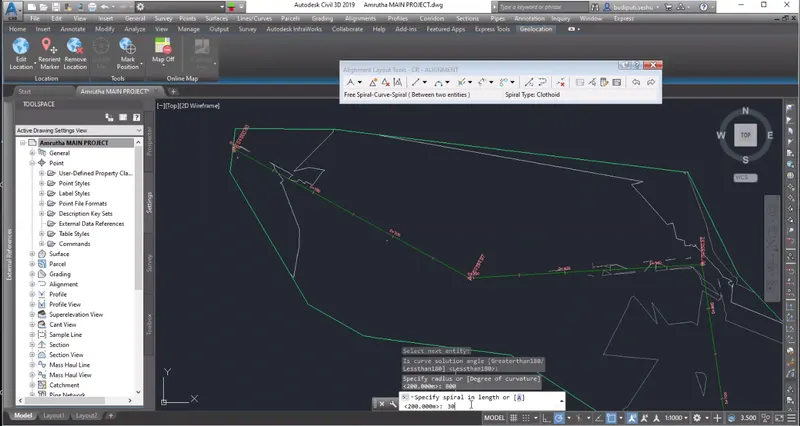

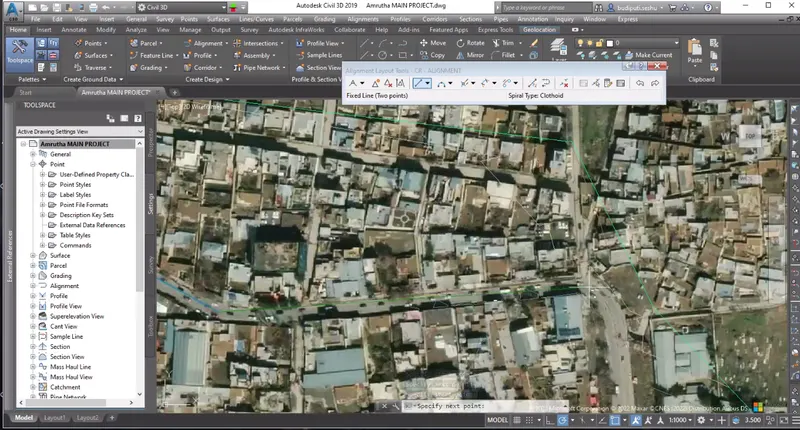

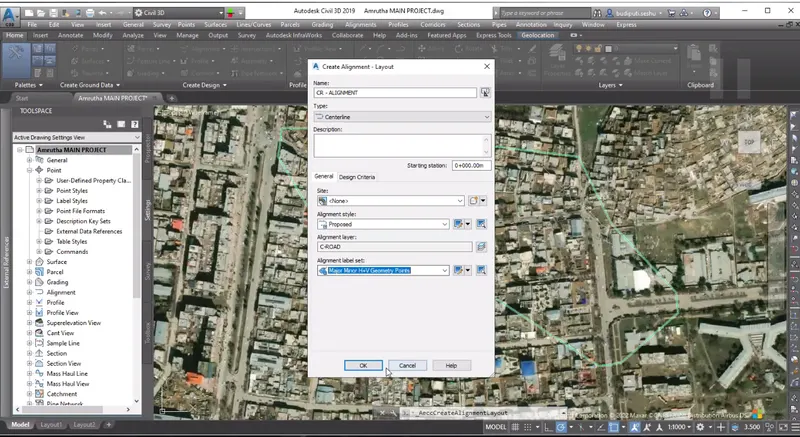

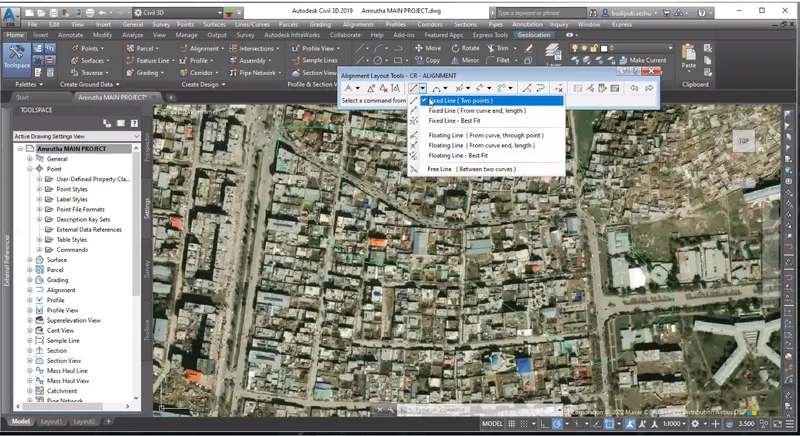

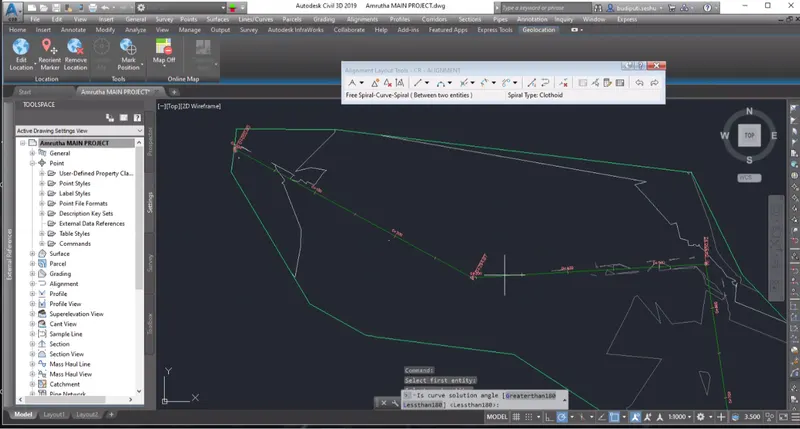

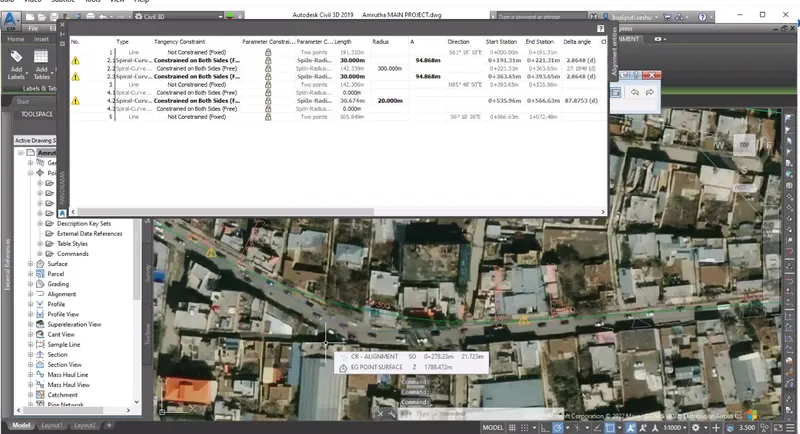

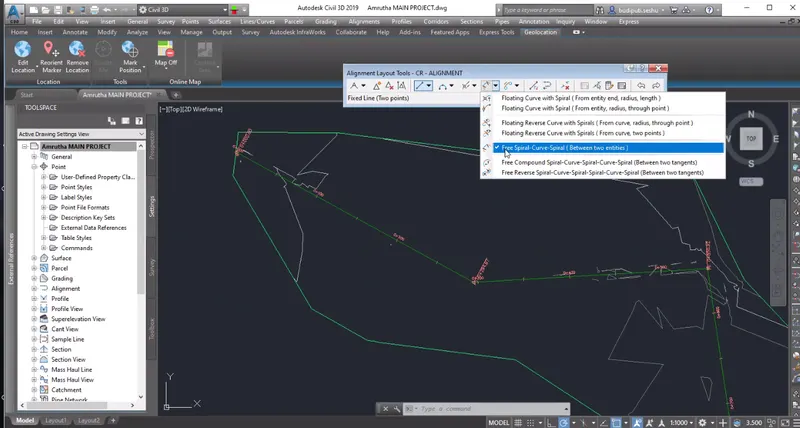

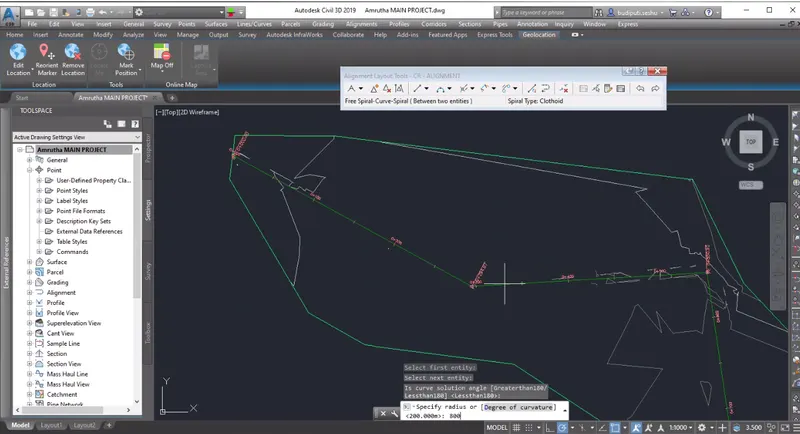

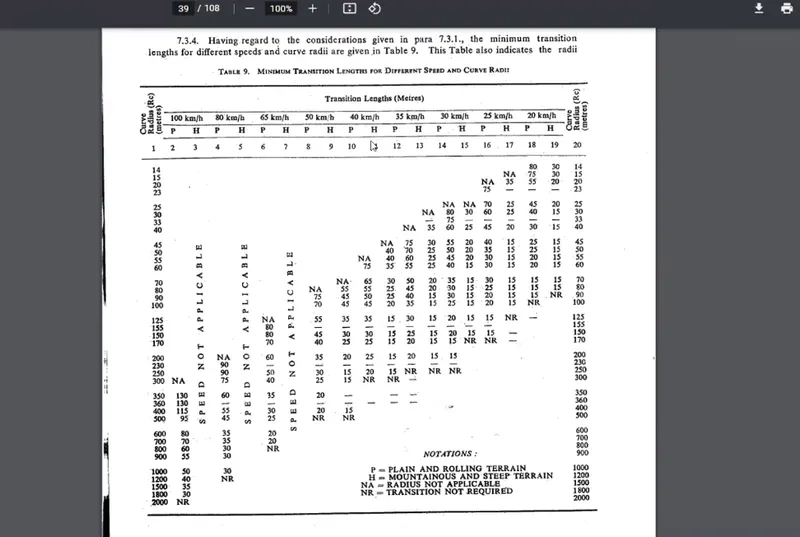

OPEN CIVIL 3D – OPEN SKILL-LYNC PROJECT TEMPLATE file from support files – IMPORT SURFACE – TURN ON GEOLOCATION – RIBBON BAR – ALIGNMENT – SELECT ALIGNMENT CREATION TOOLS – GIVE NAME OF THA ALIGNMENT AS VR-ALIGNMENT – CHANGE THE ALIGNMENT STYLE- CHANGE THE ALIGNMENT LABEL SET – OK -SELECT ALIGNMENT DRAW TOOL FIXED LINE (TWO POINT)-DECIDE THE FIRST POINT OF ALIGNMENT – DRAW ALIGNMENT WITHOUT ANY SPACE – PROVIDE ( PI ) WHERE ALIGNMENT NEED CURVES - SELECT ALIGNMENT DRAW TOOL FOR CURVES – SELECT FREE SPIRAL CURVE SPIRAL (BETWEEN TWO ENTITIES) – SELECT FIRST ENTITY OF 1^ST CURVE- SELECT 2^ND ENTITY – PRESS ENTER – ENTER CURVE RADIUS( 800) - ENTER TRANSITION IN & OUT VALUE AS PER THE IRC – OPEN ALIGNMENT GRID VIEW – VERIFY TRANSITION LENGTH VALUES & CURVE RADIUS – ( if transition length is not required for a larger radius of curve enter IN & OUT values as 1 in tool & change them as 0 in alignment grid view table).

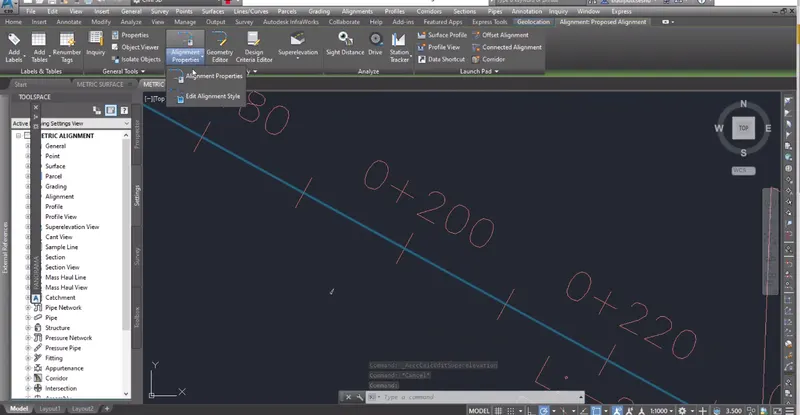

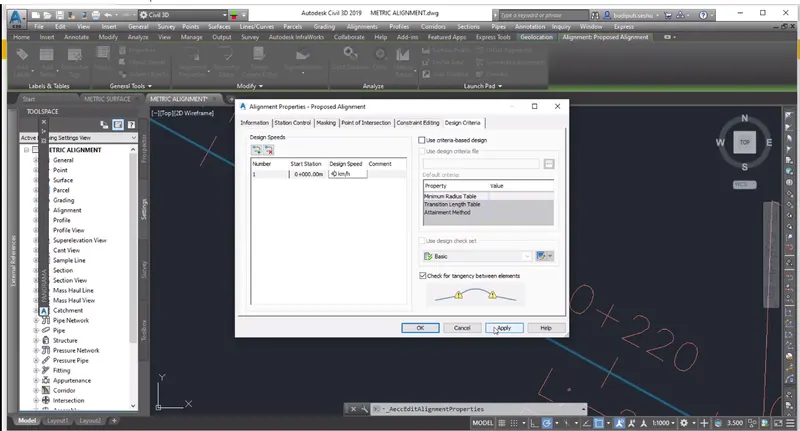

SELECT ALIGNMENT – CONTEXUAL RIBBON BAR – ALIGNMENT PROPERTIES – DESIGN CRITERIA – CHECK MARK FOR USE CRITERIA BASED DESIGN – CHANGE DESIGN SPEED AS 80KMPH – APPLY – OK.

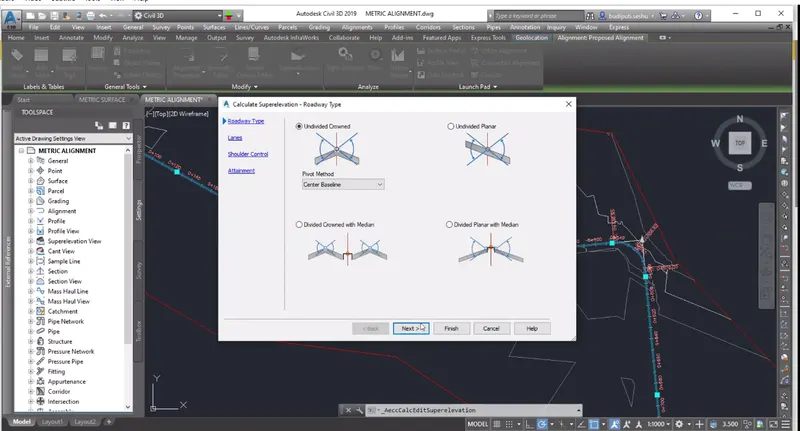

super elevation:

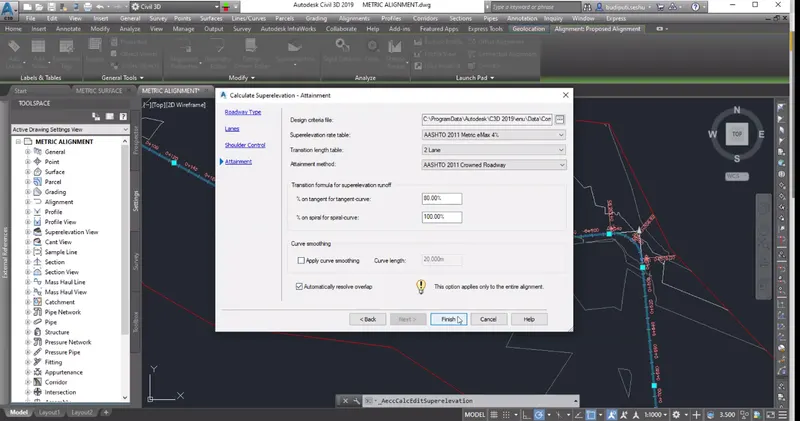

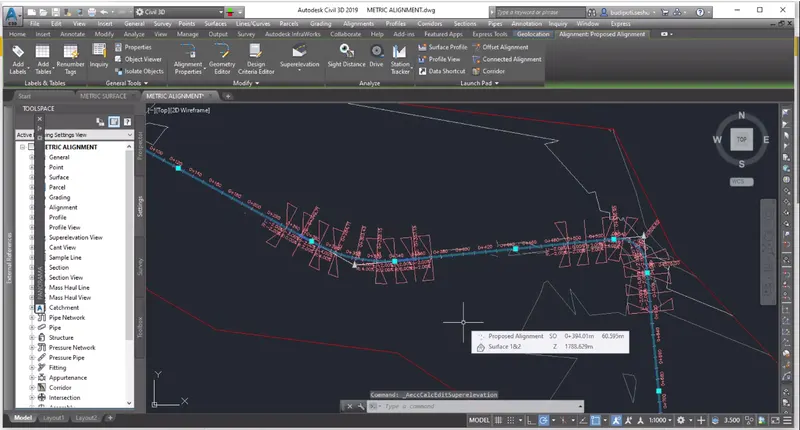

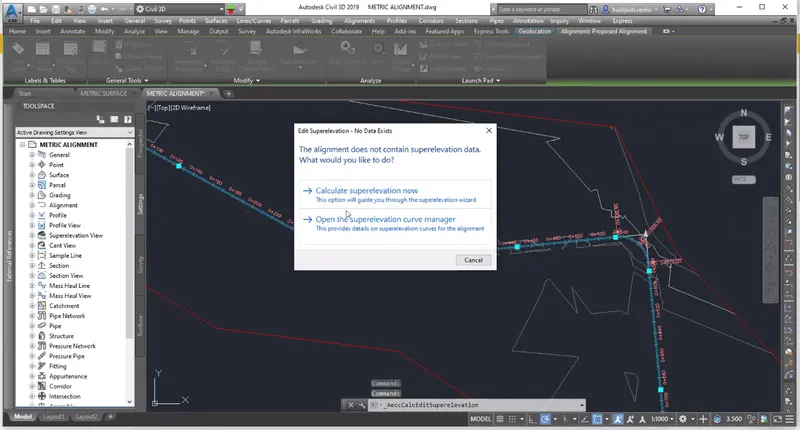

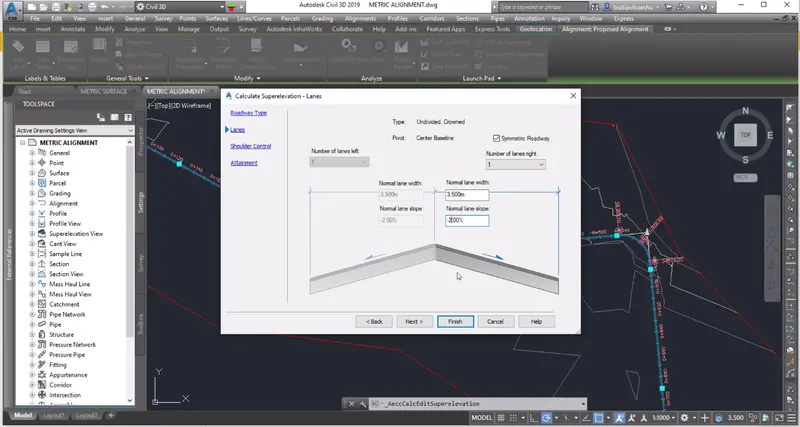

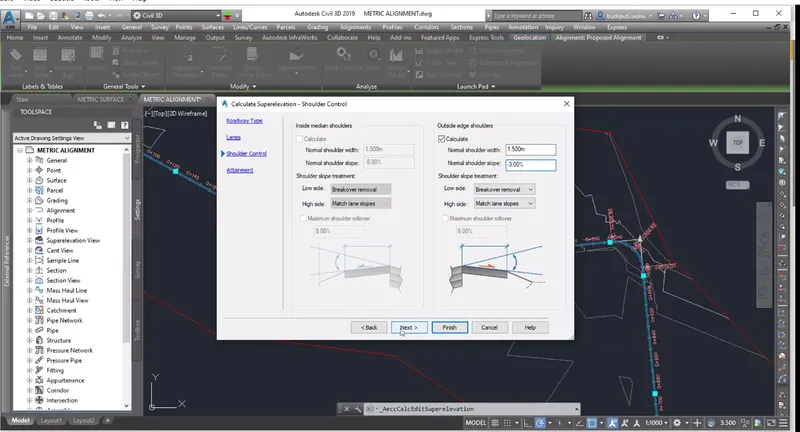

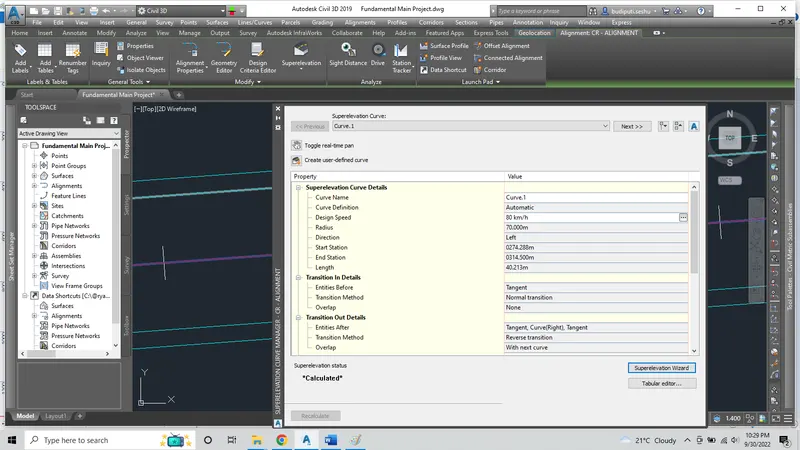

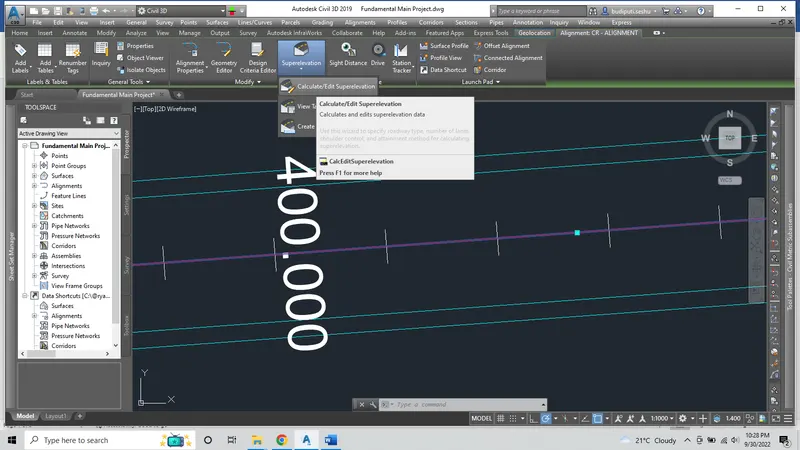

SELECT ALIGNMENT – CONTEXUAL RIBBON BAR – SUPER ELEVATION – CALCULATE /EDIT SUPER ELEVATION – CALCULATE SUPER ELEVATION NOW – NEXT – ENTER WIDTH OF LANE & SLOPE – NEXT – ENTER OUTSIDE EDGE SHOLUDER VALUE – NEXT – CHECK MARK FOR AUTOMATICALLY RESOLVE OVERLAP – FINISH.

4. VERTICAL PROFILE DESIGN

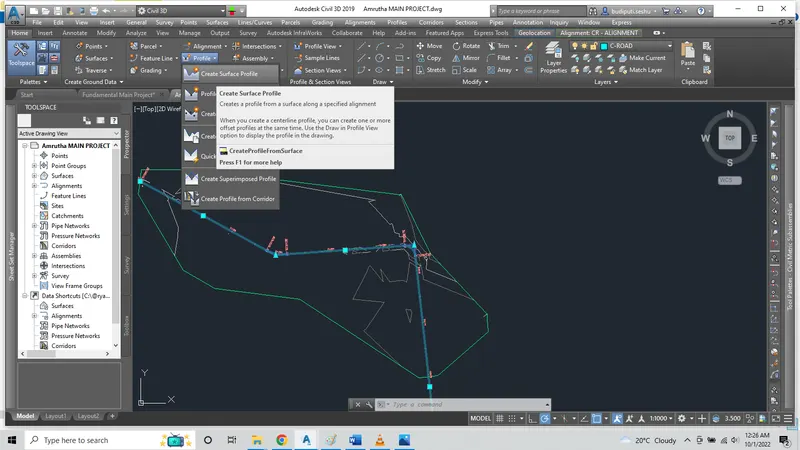

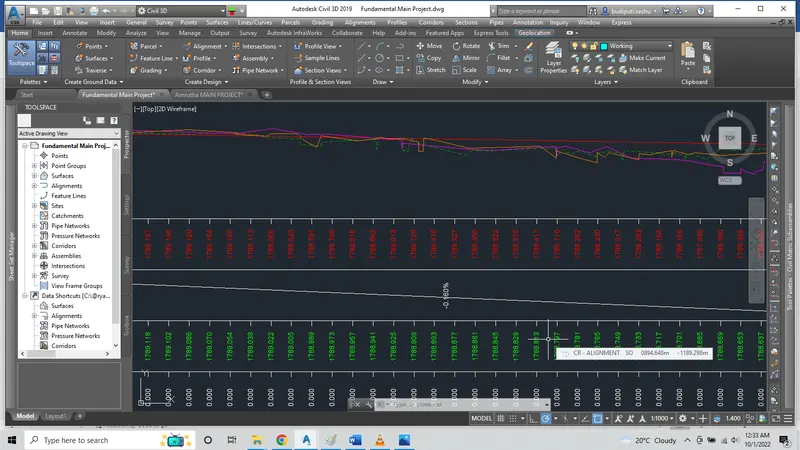

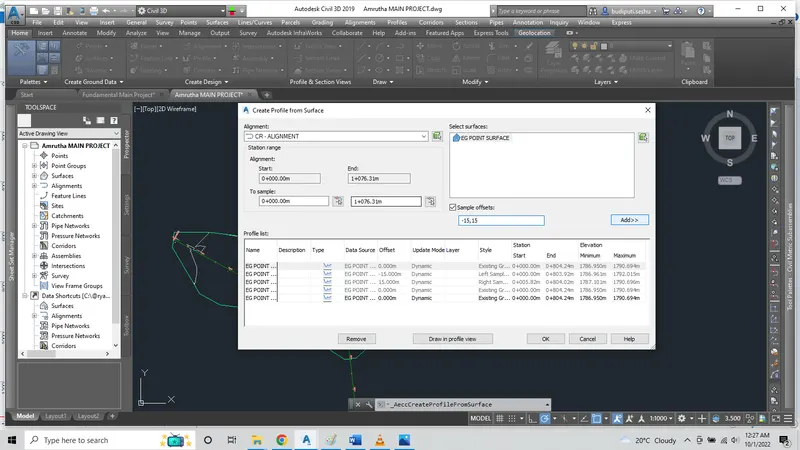

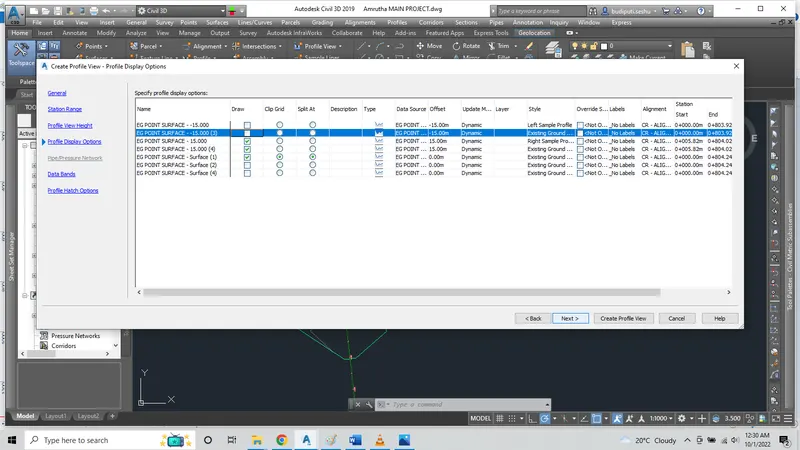

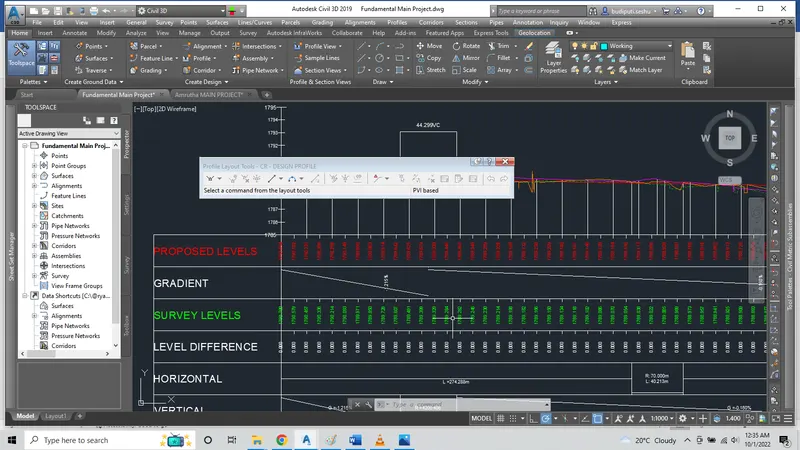

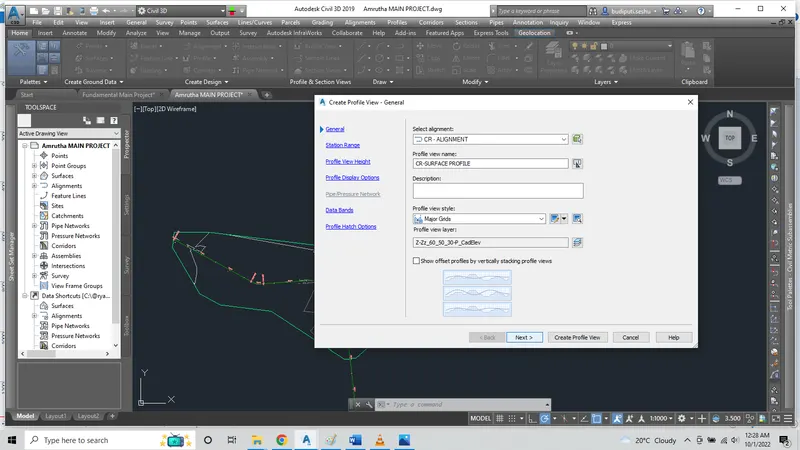

SELECT ALIGNMENT - RIBBON BAR – PROFILE – CREATE SURFACE PROFILE – GIVE NAME OF PROFILE – SELECT THE ALIGNMENT – SELCT THE SURFACE – ADD – CHECK MARK FOR OFFSET – ENTER OFF SET VALUES AS -15,15 – ADD – DRAW IN PROFILE VIEW – ENTER PROFILE VIEW NAME - SELECT PROFILE VIEW STYLE – NEXT – NEXT – SELECT BAND SET – CHANGE THE BAND PROPERTIES (STYLE, PROFILE-1, PROFILE-2) – NEXT – CREATE PROFILE VIEW – SELECT THE POINT FOR PROFILE VIEW - SURFACE PROFILE APPEARED ON SCREEN

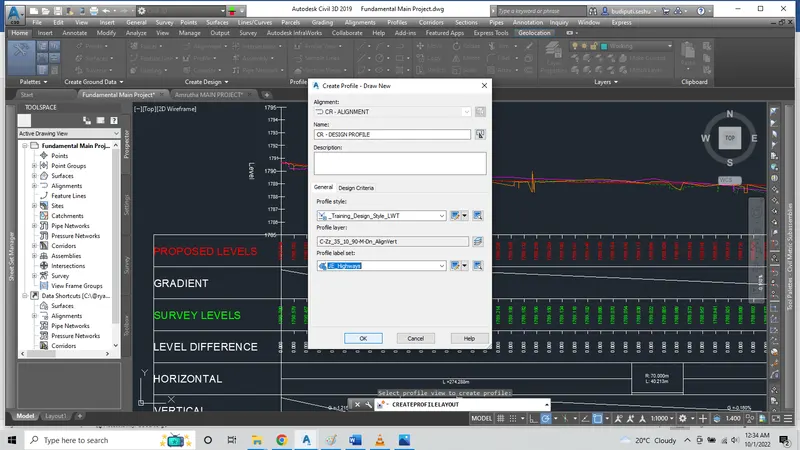

NOW DRAW DESIGN PROFILE:

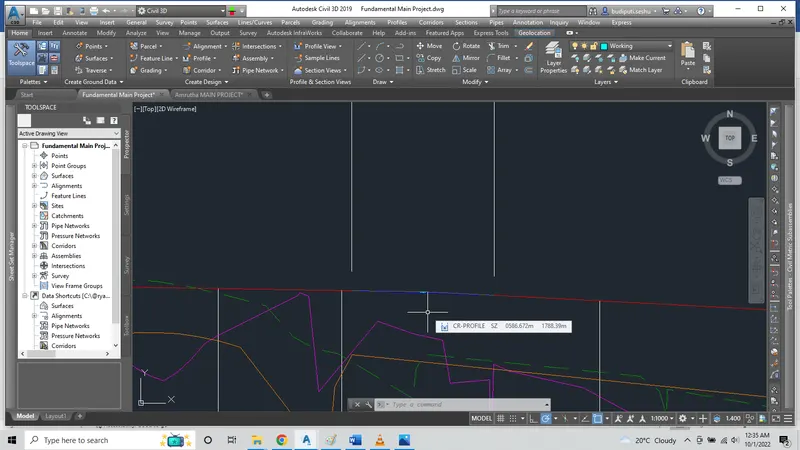

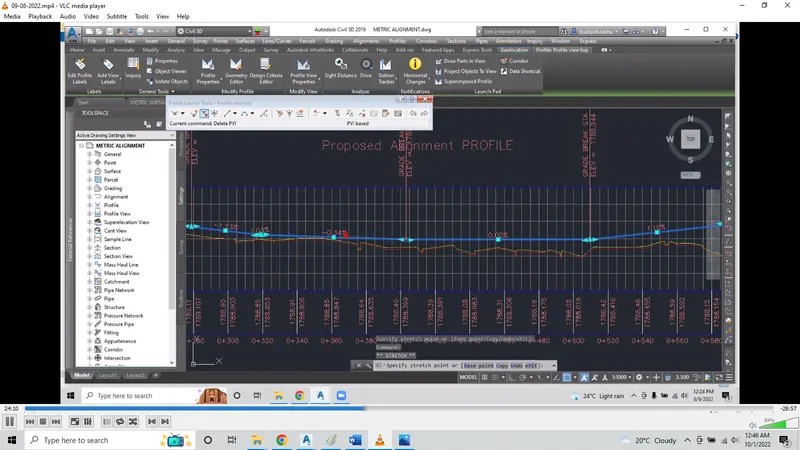

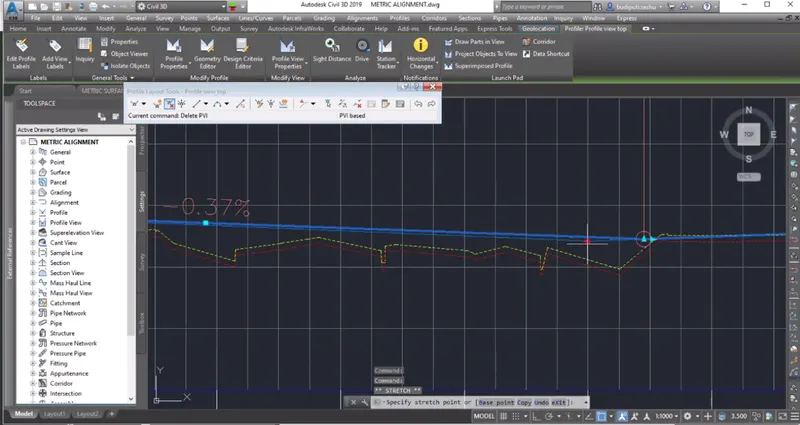

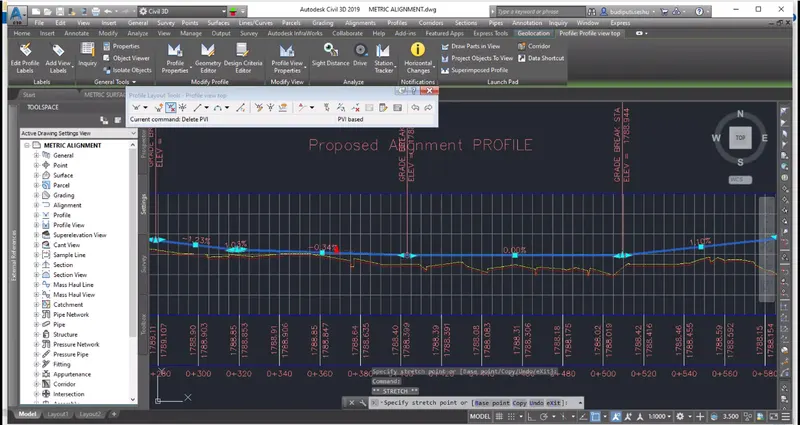

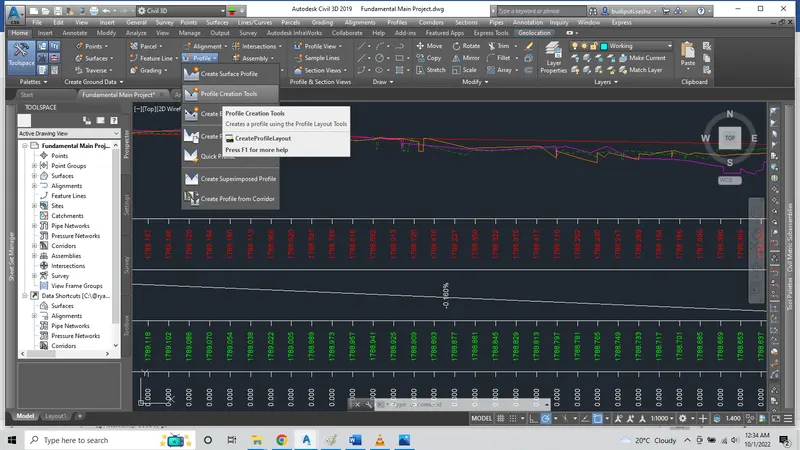

Select ALIGNMENT – RIBON BAR – PROFILE – select PROFILE CREATION TOOLS – select LABEL OF SURFACE PROFILE – NEW WINDOW OPENS – CREATE PROFILE – DRAW NEW – NAME IT AS PROPOSED PROFILE – OK – PROFILE LAYOUT TOOL OPENS IN NEW WINDOW – select FIXED TANGENT TWO POINTS – FREEZE GRID LINES OF EXISTED PROFILE – DRAW TANGENT for PROFILE – OK -ENTER – connect TANGENTS USING CURVES – select FREE VERTICAL CURVE (PARABOLA) – select ENTITIES – enter K value.

5. CROSS SECTION TEMPLATE CREATION BASED ON PROPOSED CONDITIONS.

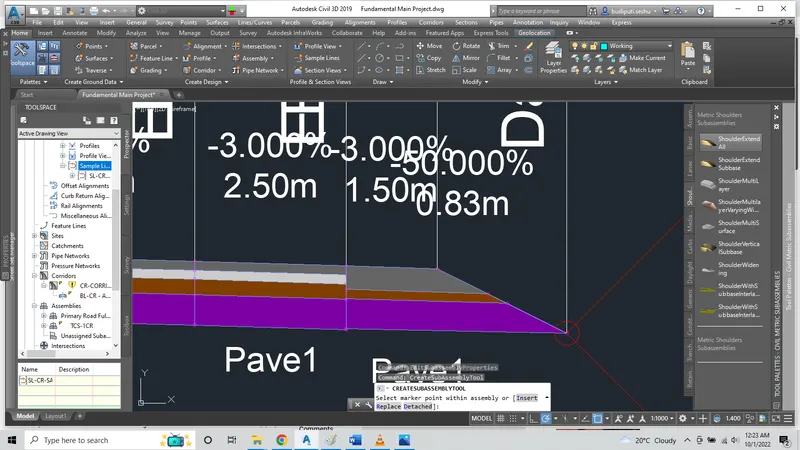

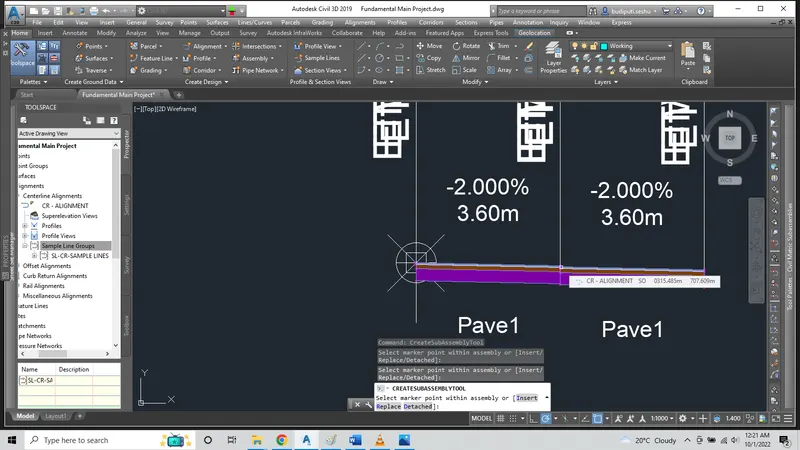

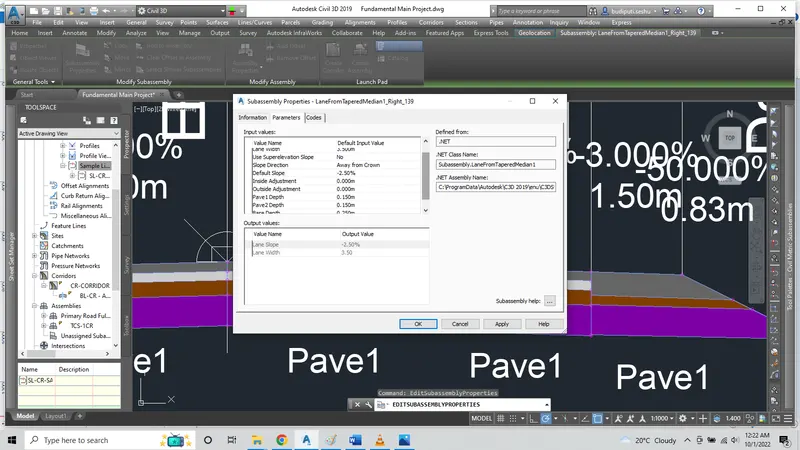

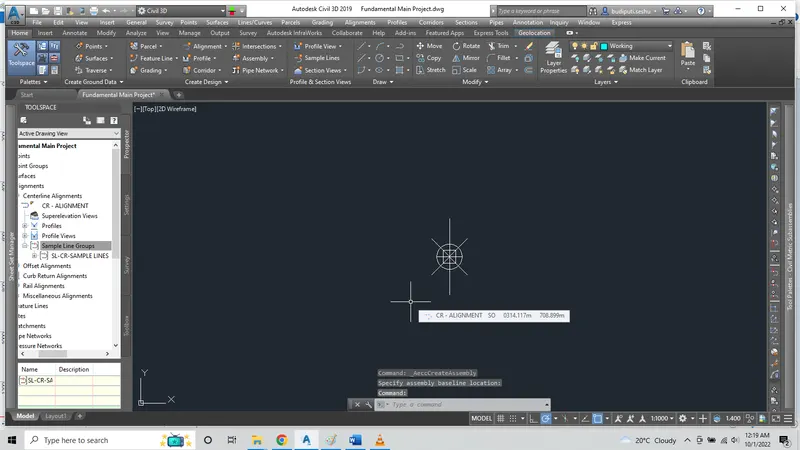

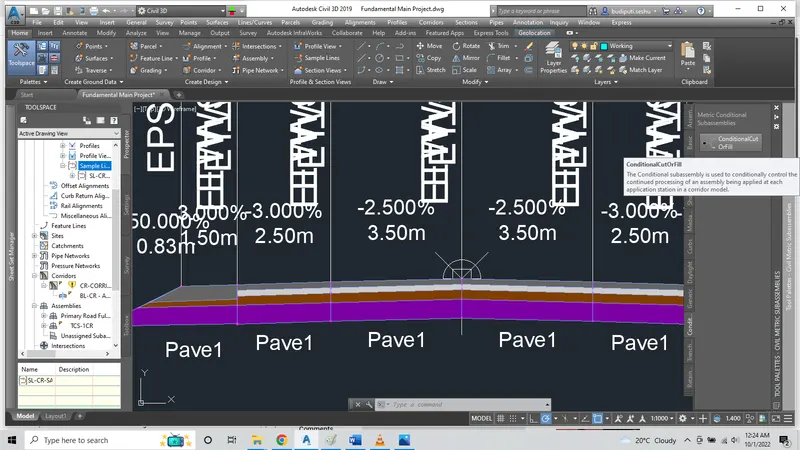

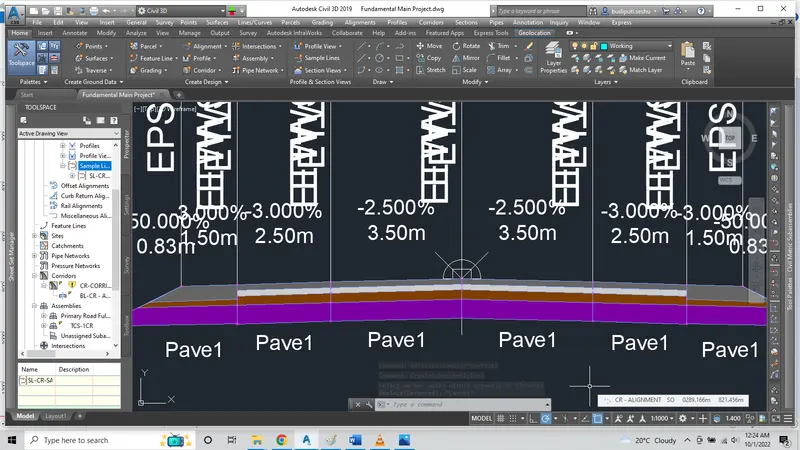

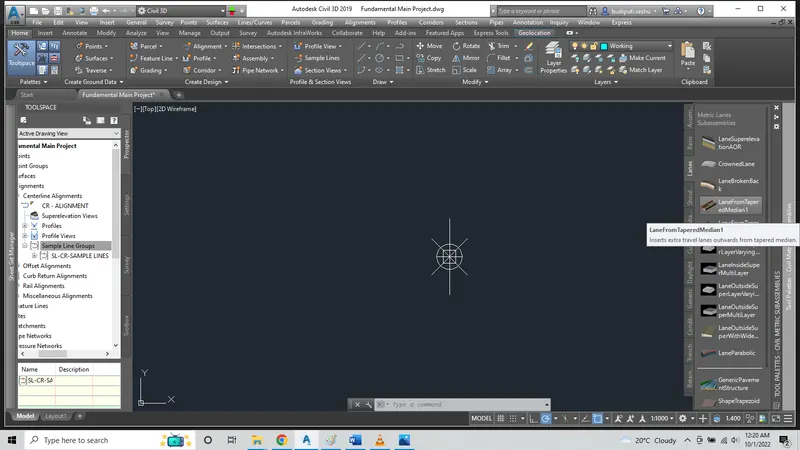

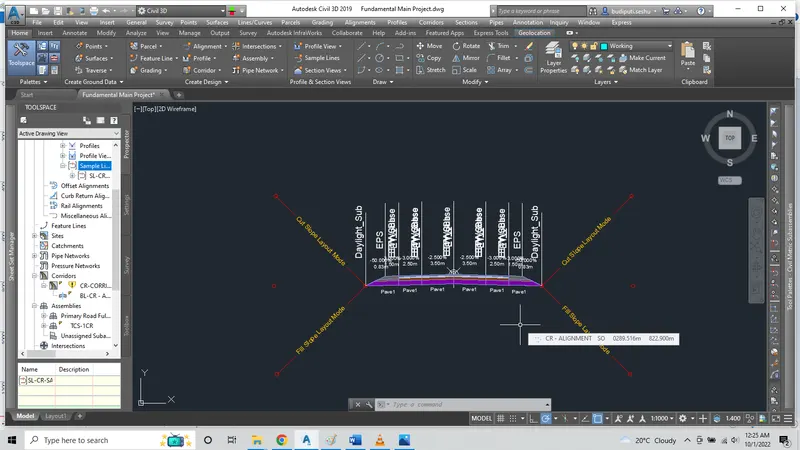

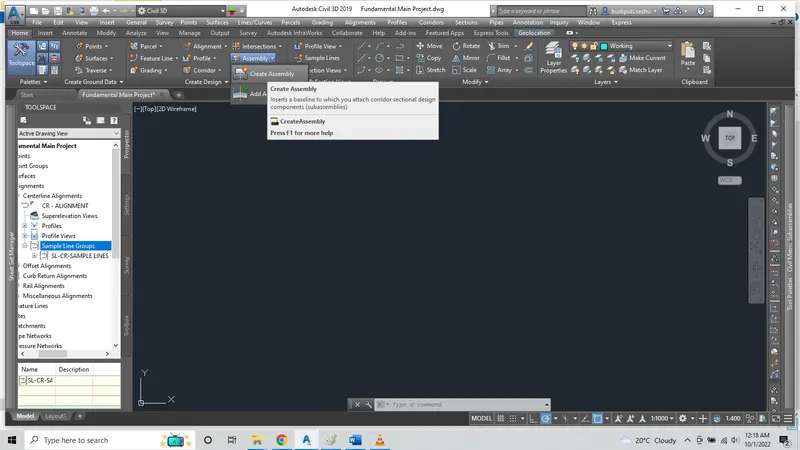

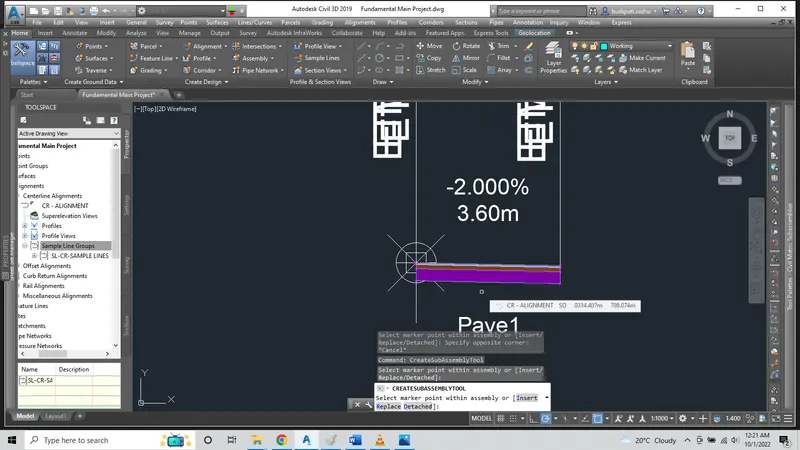

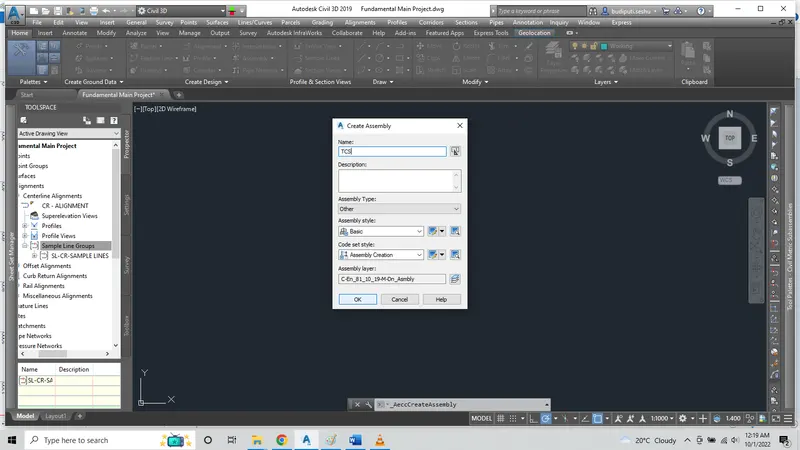

HOME – ASSEMBLIES – CREATE ASSEMBLIE – PLACE IT IN RECTANGLE - name it as TYPO1(STD)- RIGHT CLICK – INSERT FIELD – select as OBJECTS – NAME -OK - Open tool pellets using CTRL+3 – go to LANES – LANE SUPER ELEVATION – use appropriate dimensions to create a lane in PROPERTIES WINDOW – place it IN CENTRE OF CREATED ASSEMBLIE - To create SHOULDERS – go to GENERIC in TOOL PALLETE – select LINK WIDTH & SLOPE – use appropriate dimensions to create a SHOULDER – place it next to LANE in ASSEMBLY.

6. CORRIDOR MODELLING AND EXTRACTION OF FINISHED SURFACES.

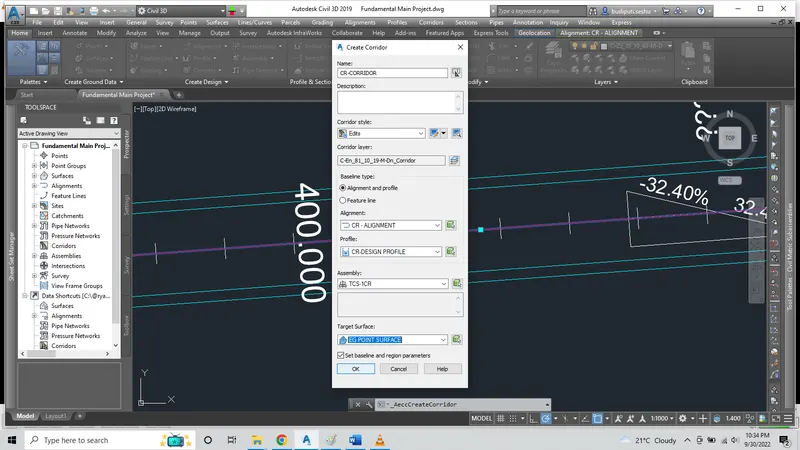

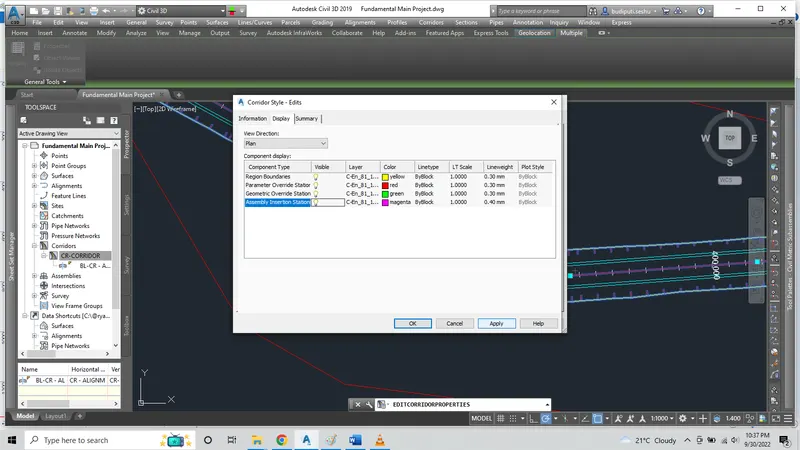

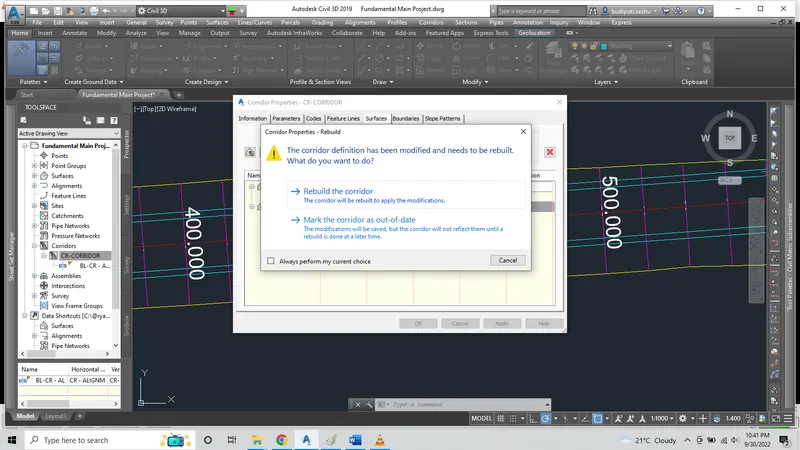

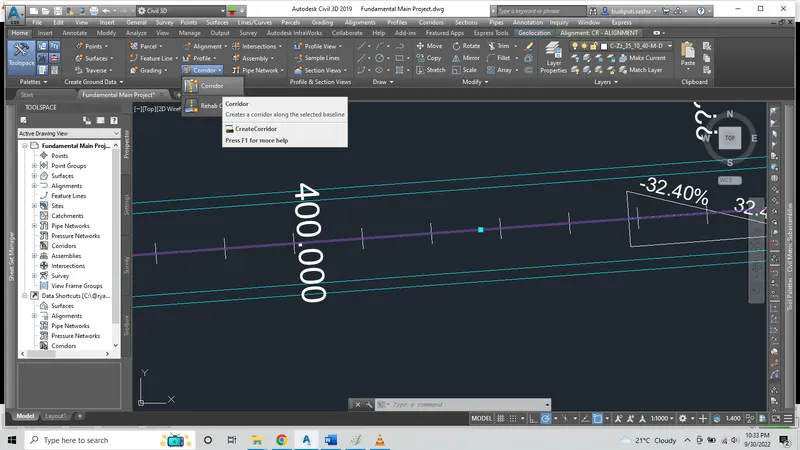

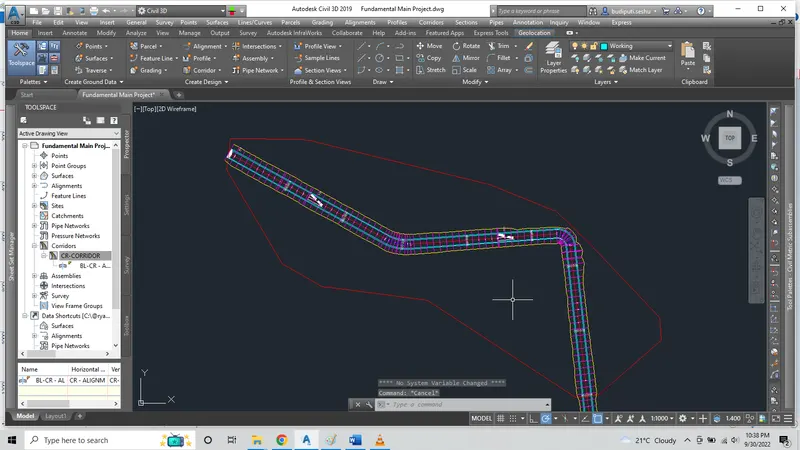

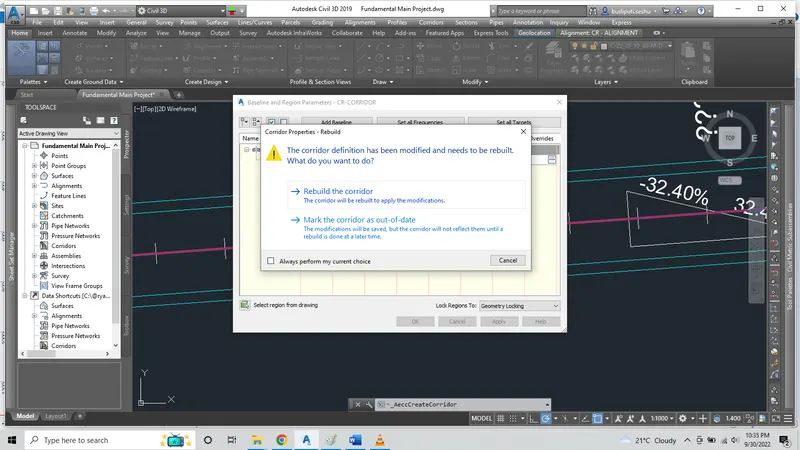

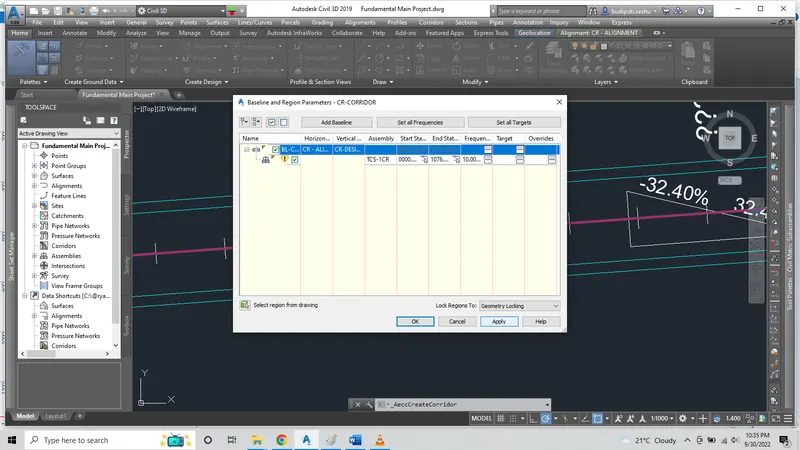

In PROJECT file – HOME – select CORRIDOR – new window opens – name it as Corridor– use assembly TPC-TARGET SURFACE is SELECT EG – OK – APPLY – OK REBUILD THE CORRIDOR.

Extraction of finished surfaces.

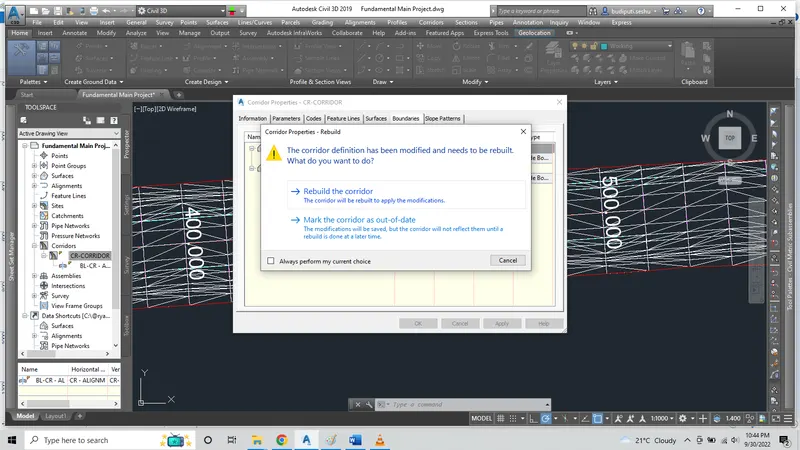

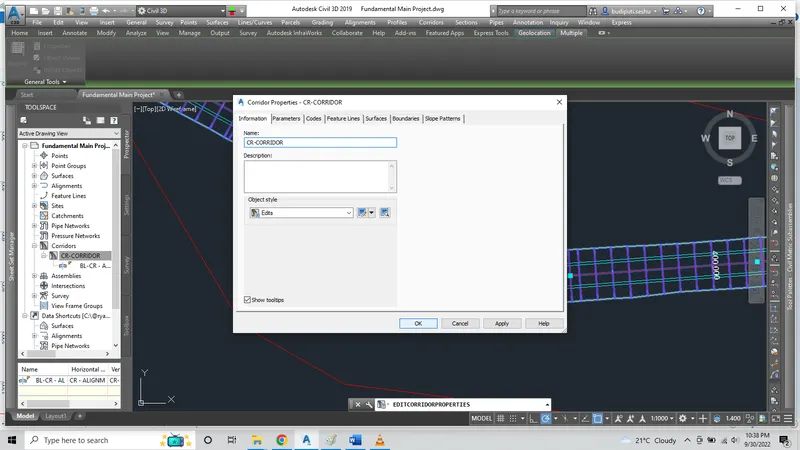

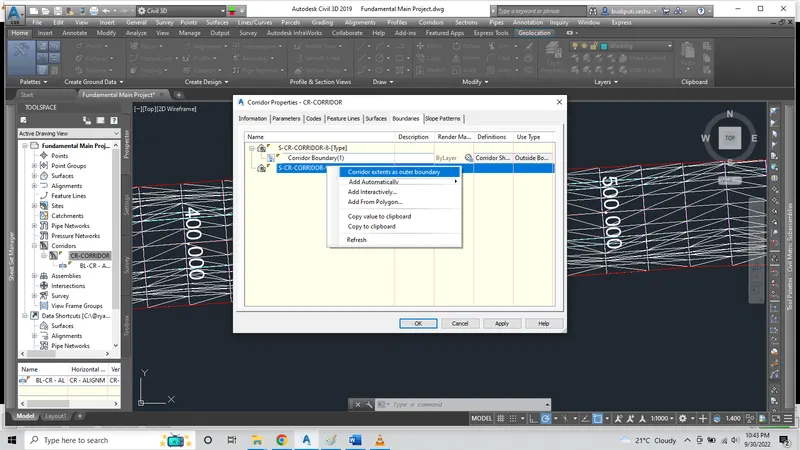

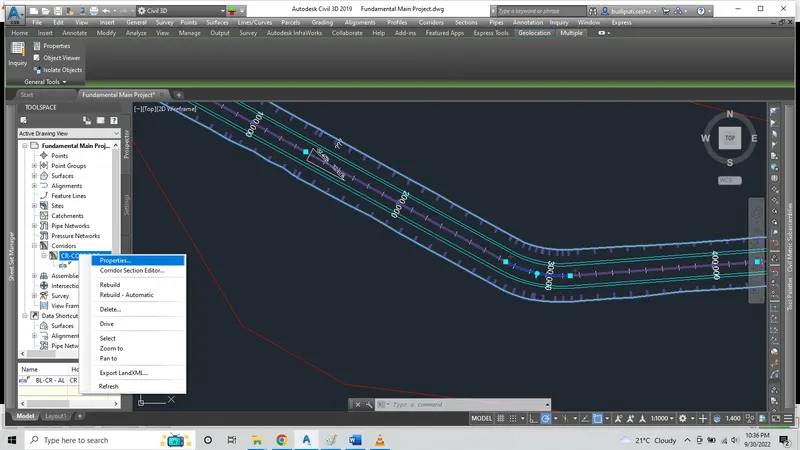

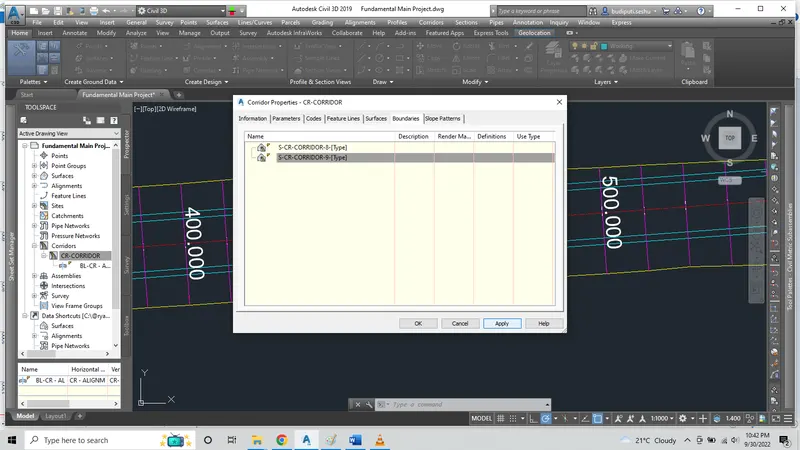

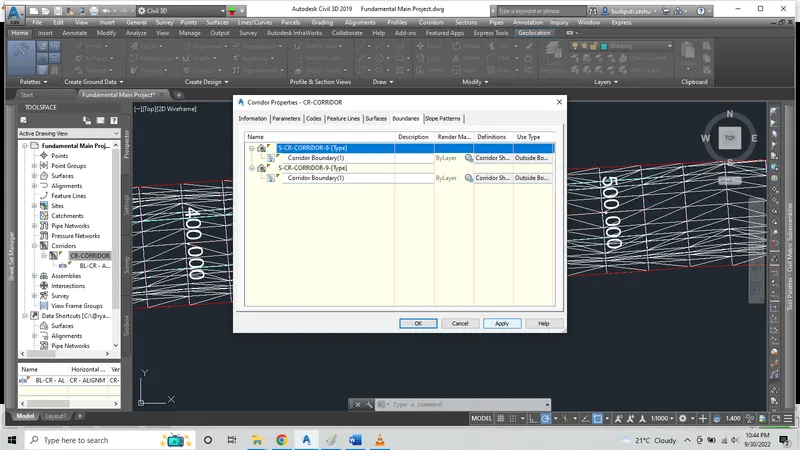

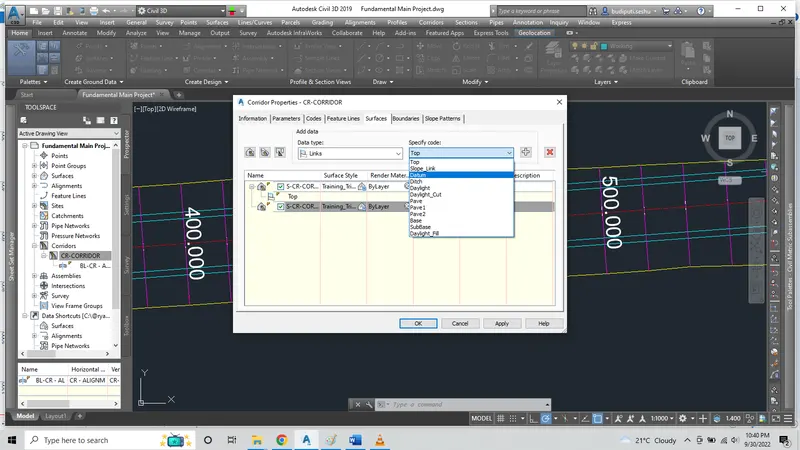

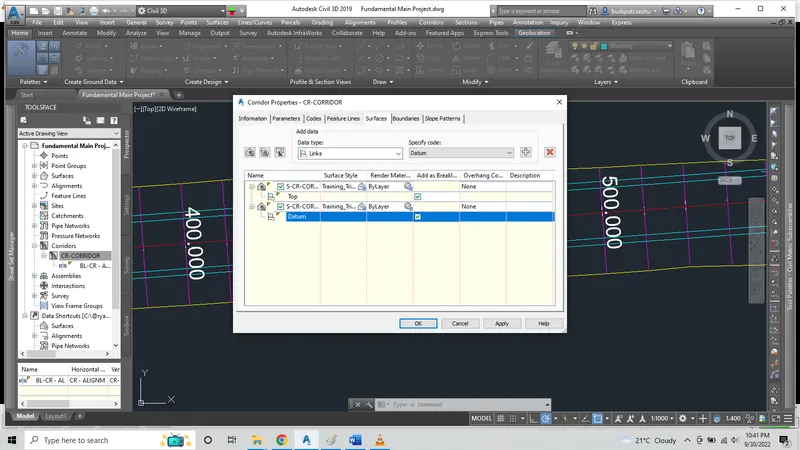

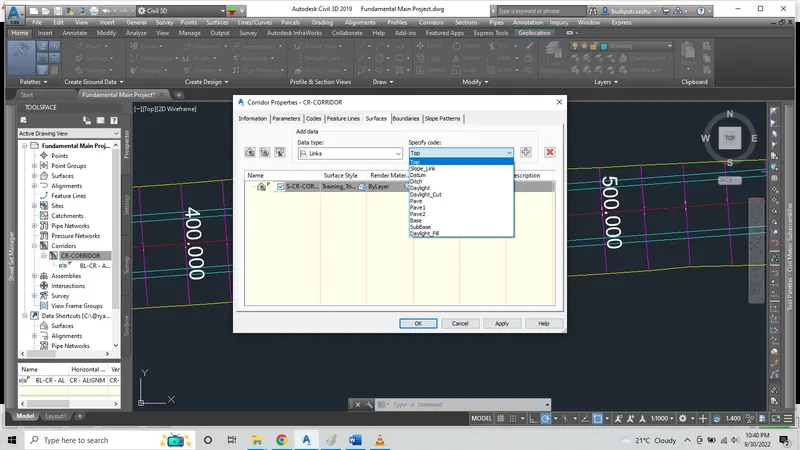

PROSPECTOR – CORRIDOR – VR CORRIDOR – RIGHT CLICK – PROPERTIES – SURFACES – CREATE A CORRIDOR SURFACES (1^ST OPTION) – 1^ST SURFACE HAS BEEN CREATED – NOW SPECIFY CODE AS TOP & PRESS + BUTTON – AGAIN CLICK ON CREATE A CORRIDOR SURFACES (1^ST OPTION) – 2^ND SURFACE HAS BEEN CREATED – NOW SPECIFY CODE AS DATUM & PRESS + BUTTON – NOW MODIFY OVER HANGING PROPERTIES AS TOP LINKS & BOTTOM LINKS RESPECTIVELY – NOW CHECK MARK FOR BOTH THE ADD BREAKLINES – NOW GO TO BOUNDARIES – BOTH THE SURFACES ARE REFLECTED – SELECT & RIGHT CLICK – SELECT CORRIDOR EXTENDED AS OUTER BOUNDARIES – APPLY & RE BUILD THE CORRIDOR – OK.

7. CROSS SECTIONS PRODUCTION BASED ON CORRIDOR MODELING.

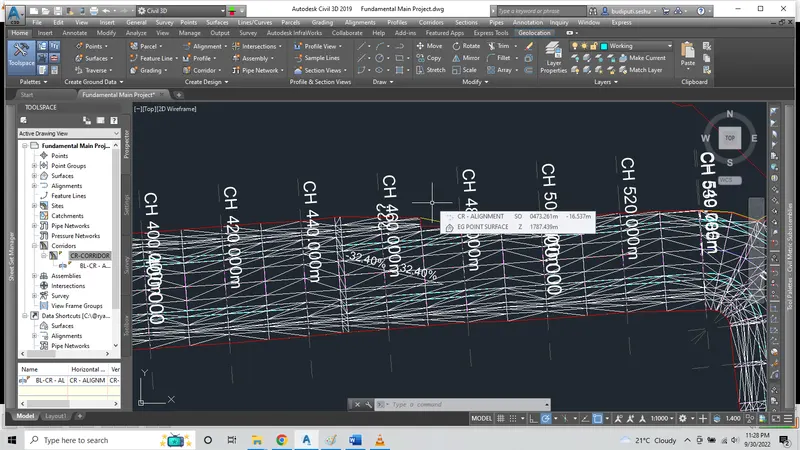

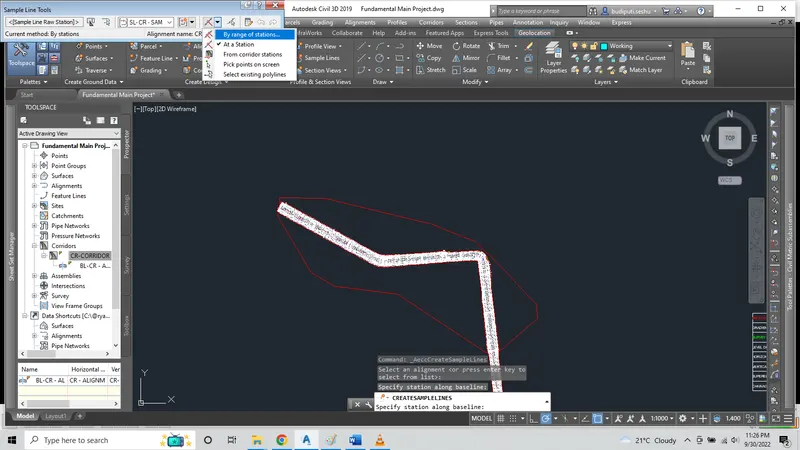

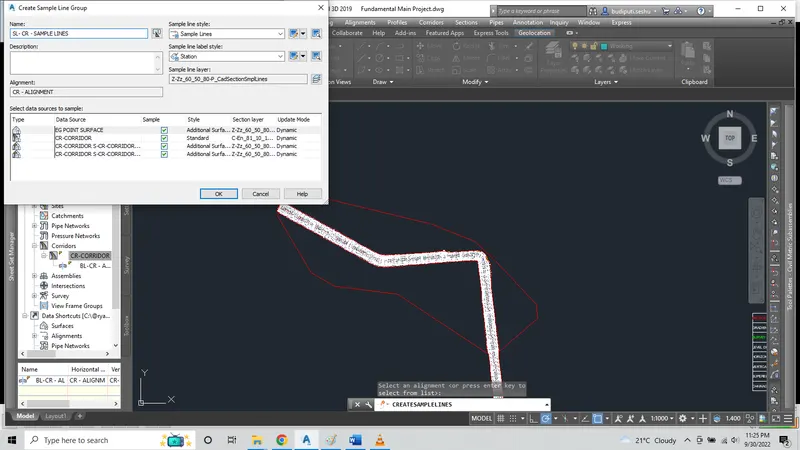

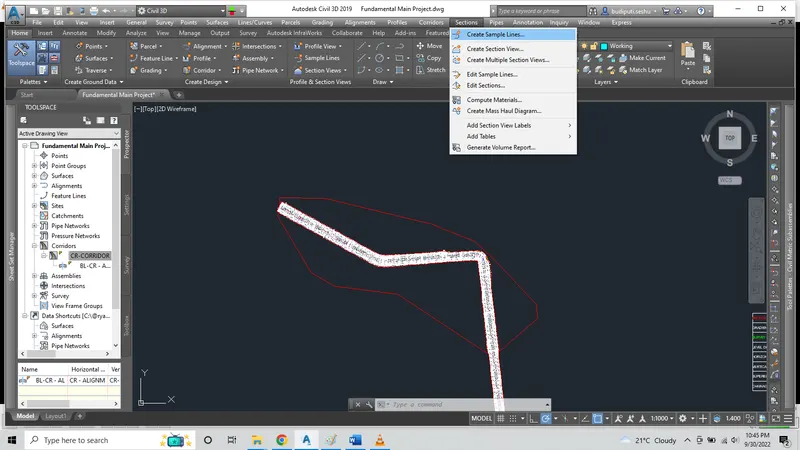

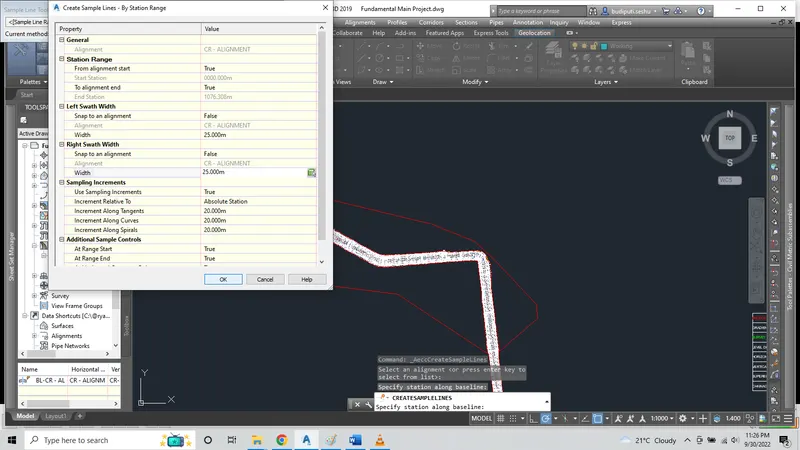

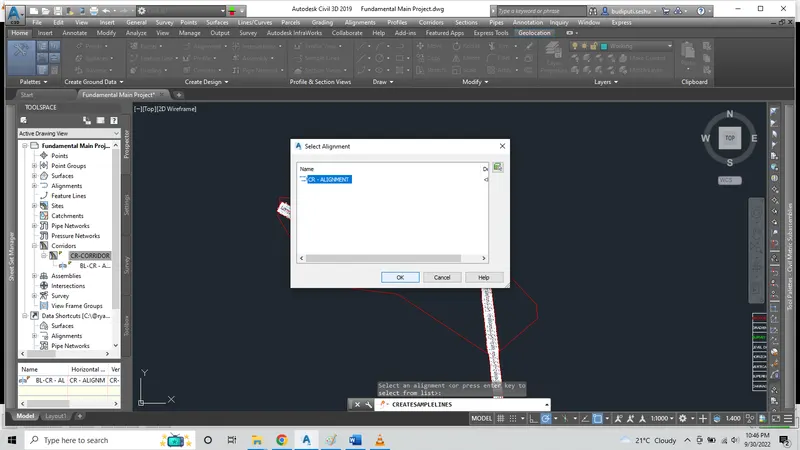

PROJECT FILE – MENU BAR – SECTIONS – CREATE SAMPLE LINES – ENTER – SELECT ALIGNMENT BOX -OK – ENTER -GIVE NAME OF SAMPLE ALIGNMENT – CHECK SURFACES & PROFILES & ALIGNMENTS – OK – SAMPLE LINE TOOLS OPENS – SELECT STATION BY RANGE – SELECT LEFT AND RIGHT WIDTH AS PER ROW – MENTION SAMPLING INCREMENT AS 10 – OK – RIGHT CLICK ON SCREEN – SECTION LINES ARE CREATED – SAVE THE FILE.

CROSS SECTION:

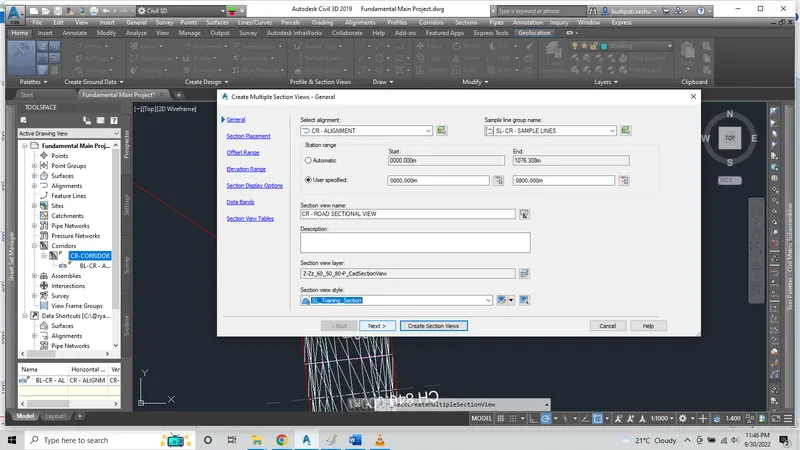

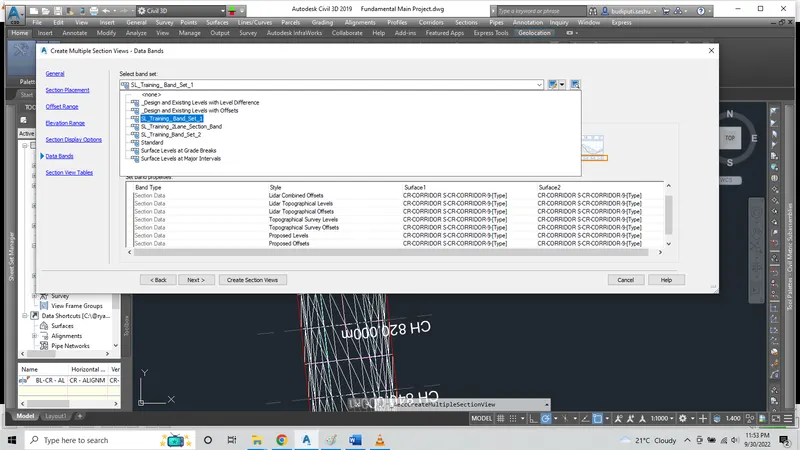

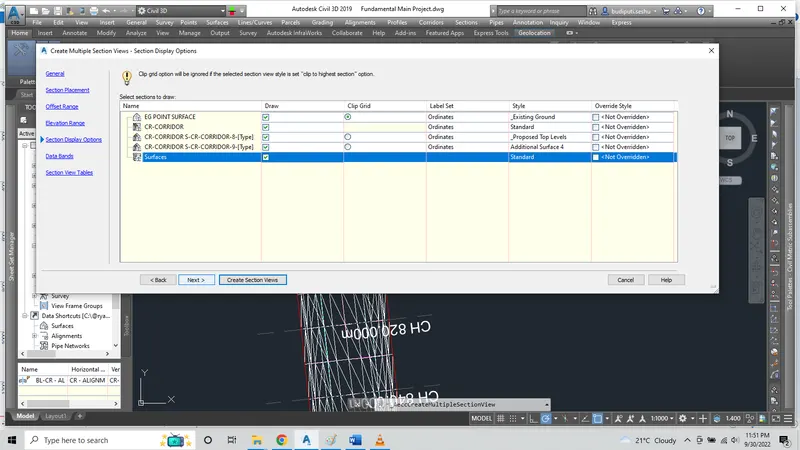

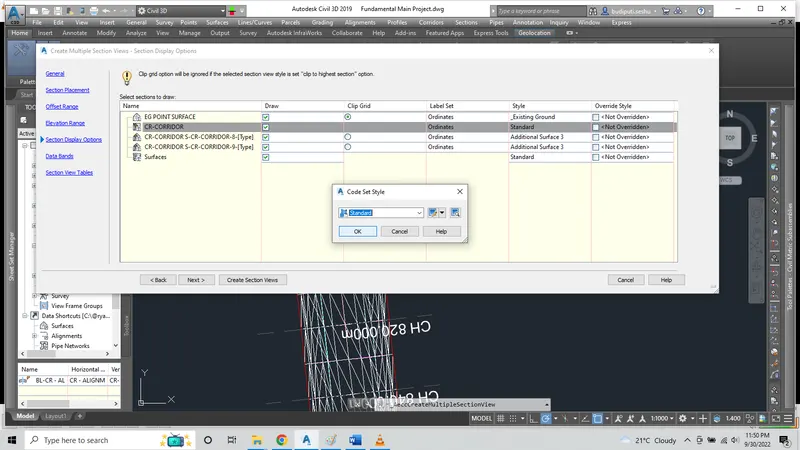

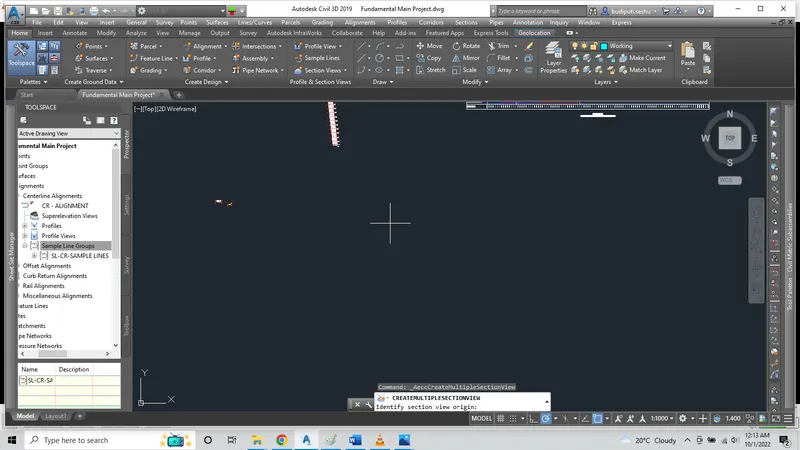

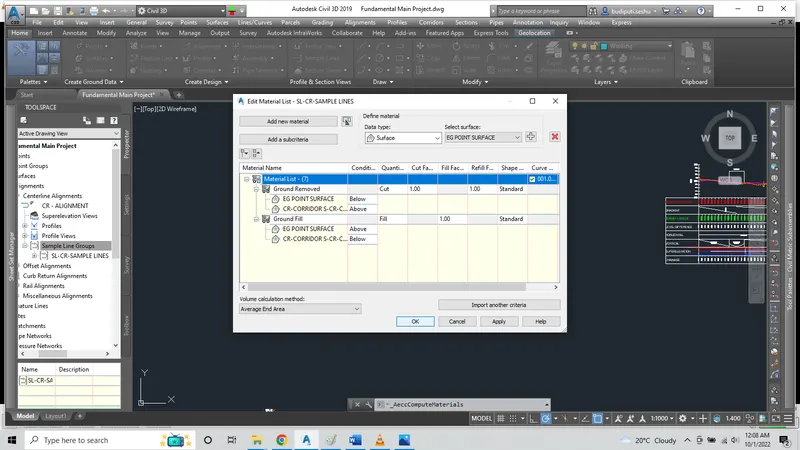

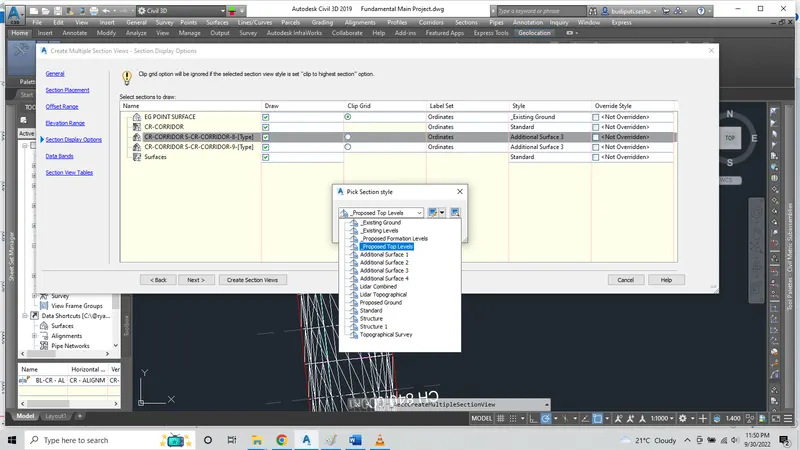

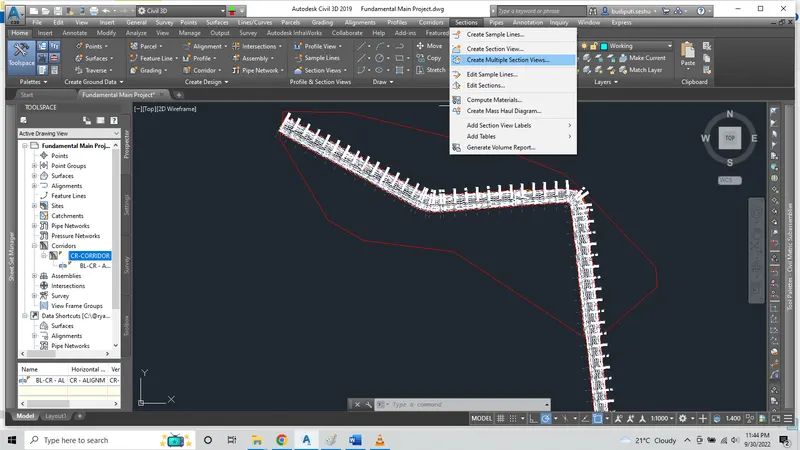

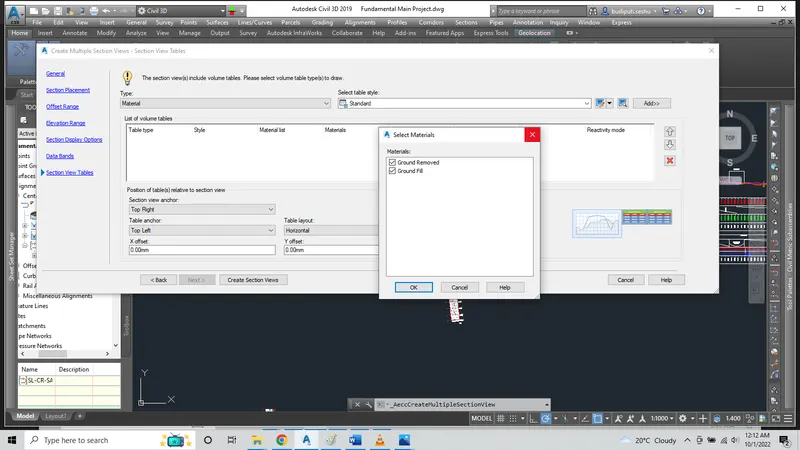

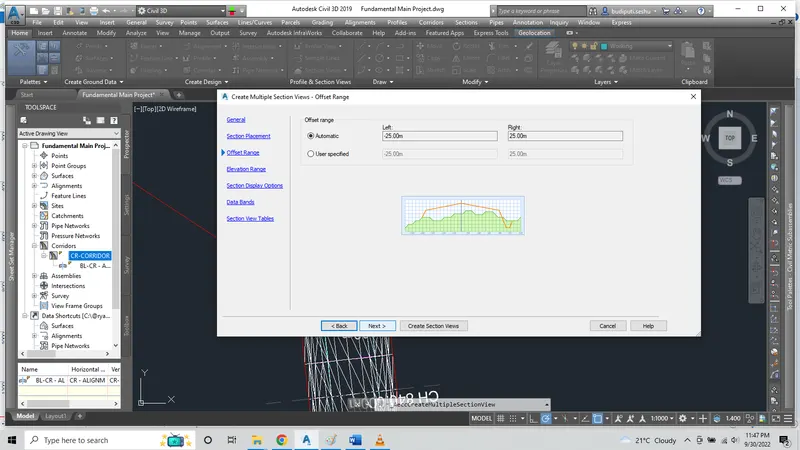

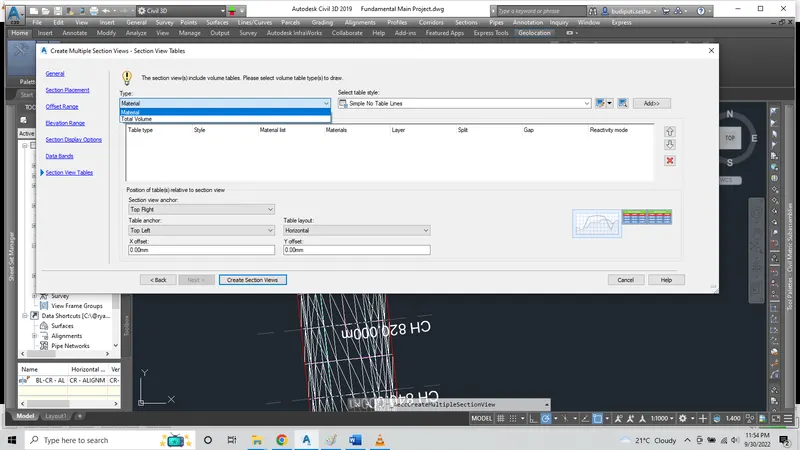

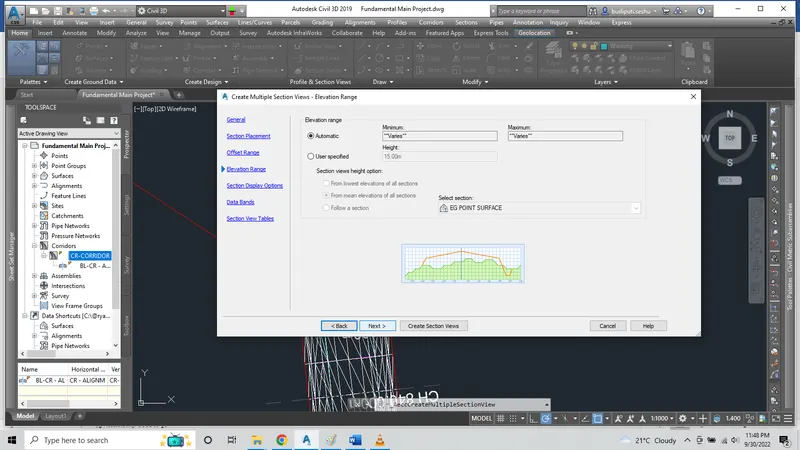

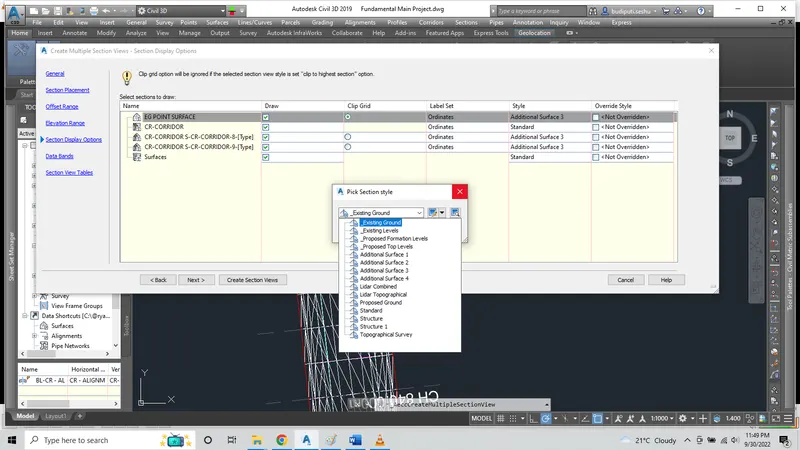

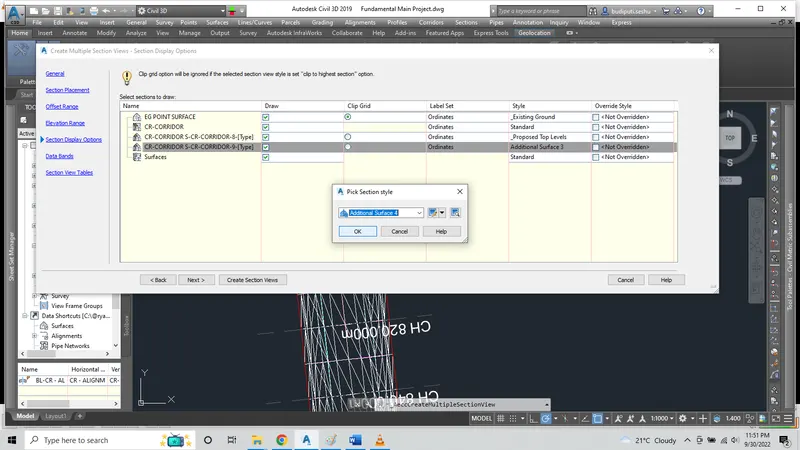

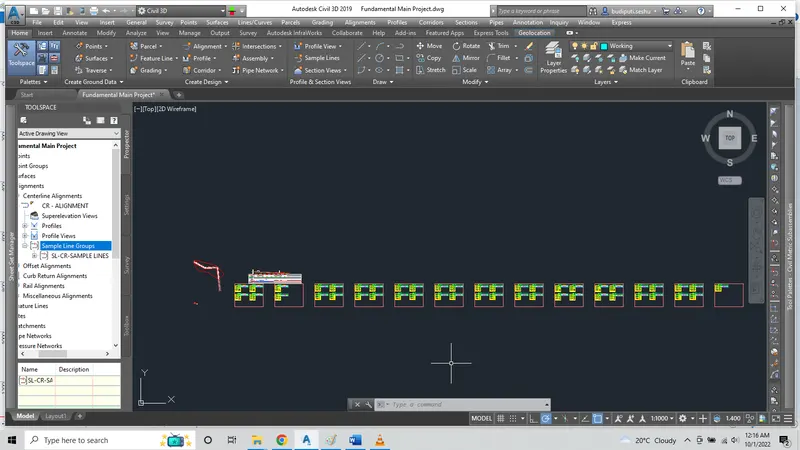

PROJECT FILE – MENU BAR – SECTIONS – CREATE MULTIPLE SECTIONAL VIEWS – ENTER – SELECT PROPER ALIGNMENT & SAMPLE LINE GROUPS – CHANGE SECTION VIEW STYLE- NEXT – CHANGE THE BAND SET – NEXT – CHANGE THE MATERIAL TYPE AND LABEL STYLE – CLICK ON ADD- CHECK MARK FOR GROUND FILL & CUT – OK -NEXT – CREATE SECTION VIEWS – IDENTIFY SECTION VIEW ORIGIN – ALL SECTION VIEWS ARE CREATED.

8. EARTHWORK QUANTITIES AND MATERIAL QUANTITIES TAKEOFF.

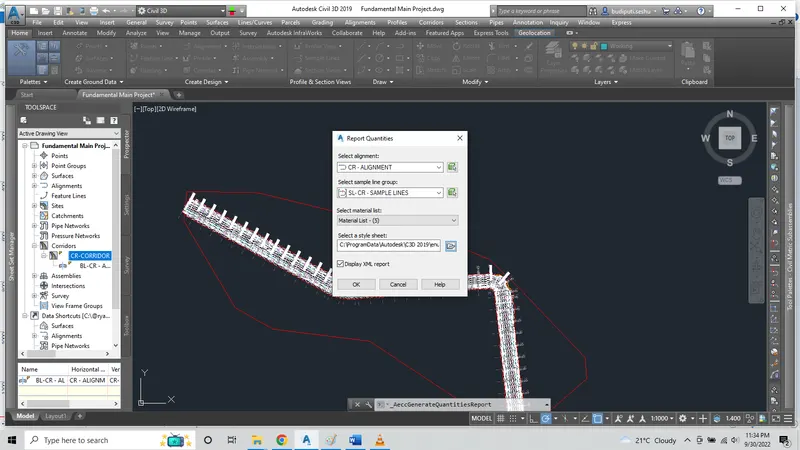

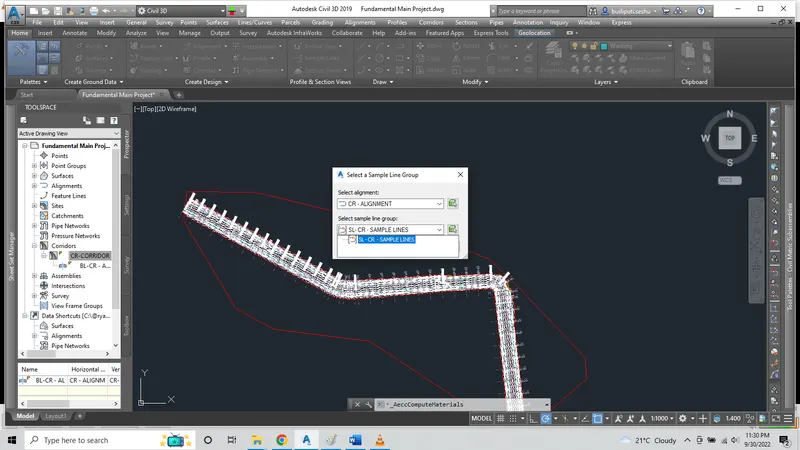

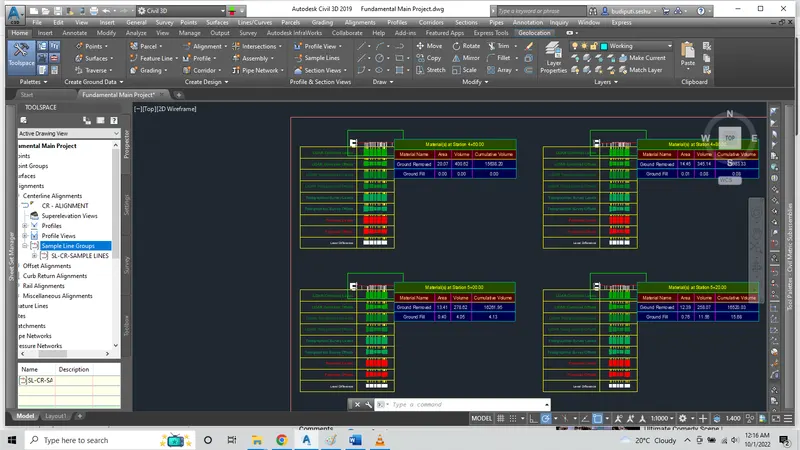

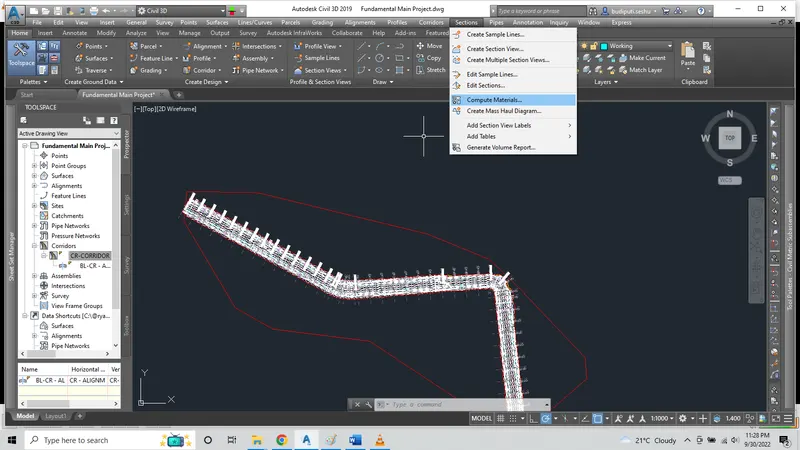

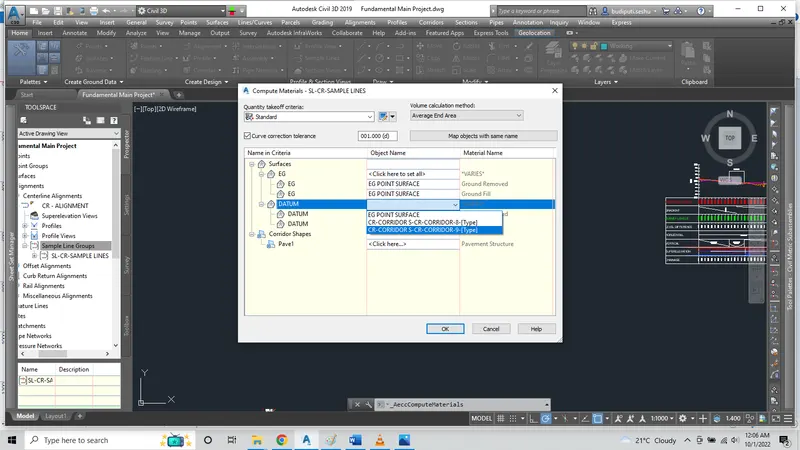

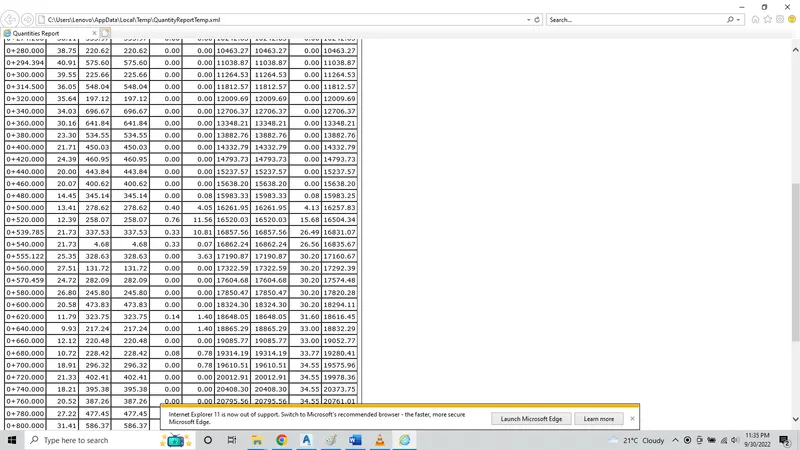

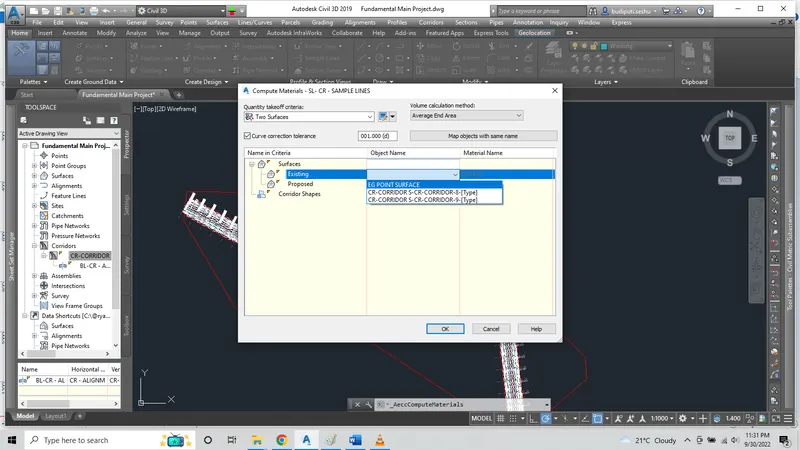

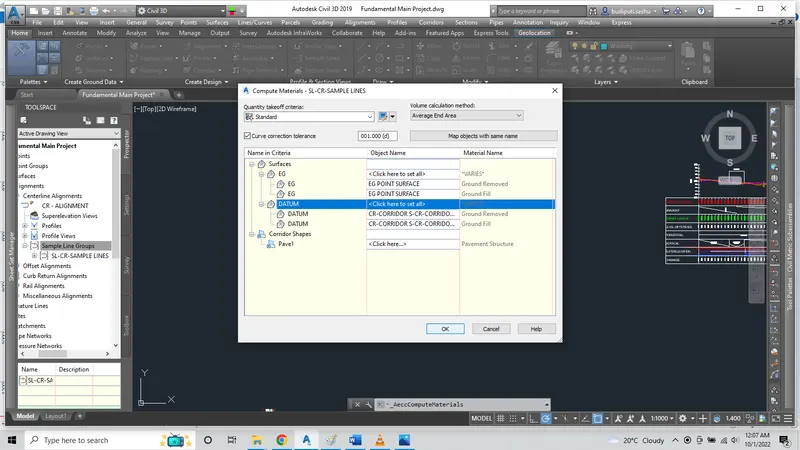

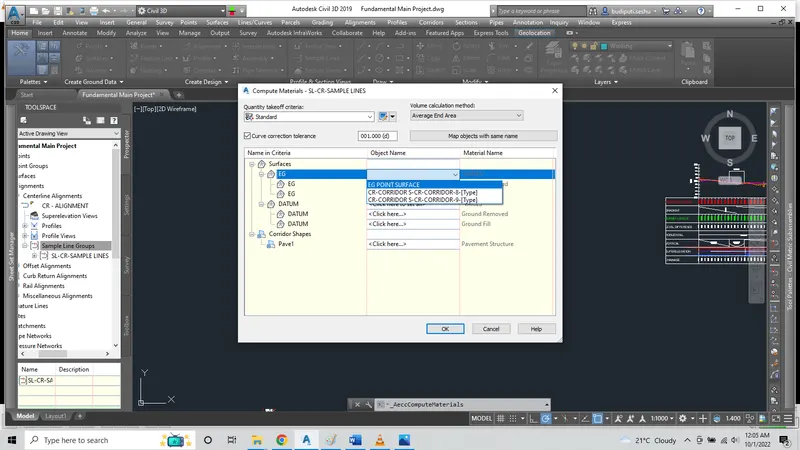

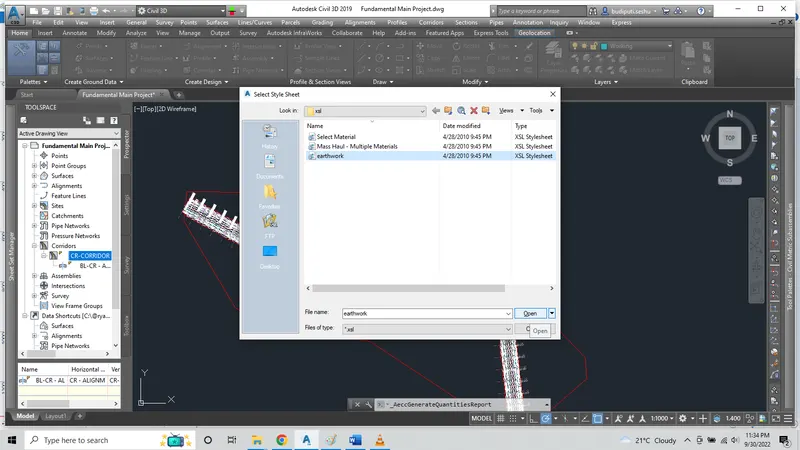

RIBBON BAR – HOME – ANALYZE – CLICK ON SECTIONS – COMPUTE MATERIALS – SELECT ALIGNMENT IN NEW WINDOW – SELECT VR ALIGNMENT – SELECT SAMPLE LINE GROUP – OK – ENTER – SELECT EXISTING & PROPOSED SURFACES – OK – SECTIONS – COMPUTE MATERAILS – SLECT ALIGNMENT -SELECT SURFACES – OK – SECTIONS – GENERATE VOLUME REPORT – OK – UNCHECK CREATE XML REPORT – OK – LOAD EARTH WORK .XML – OK- MATERAL REPORT CREATED – SAVE IT IN XL FORMAT.
