Aim : Drtail analysis of simulation of an all-terrain vehicle.

Objective :

Continuous Variable Transmission (CVT)

• A continuously variable transmission (CVT) is an automatic transmission that can change seamlessly through a continuous range of gear ratios. This contrasts with other transmissions that provide a limited number of gear ratios in fixed steps. The flexibility of a CVT with suitable control may allow the engine to operate at a constant RPM while the vehicle moves at varying speeds.
• CVTs are used in automobiles, tractors, motor scooters, snowmobiles, and earthmoving equipment.
• The most common type of CVT uses two pulleys connected by a belt or chain, however, several other designs have also been used at times.

Types of CVT

• Pulley-based

• Toroidal

• Ratcheting

• Hydrostatic/Hydraulic

• Electrical

• Cone

• Epicyclic

1) Simscape model of BAJA ATV without dashboard

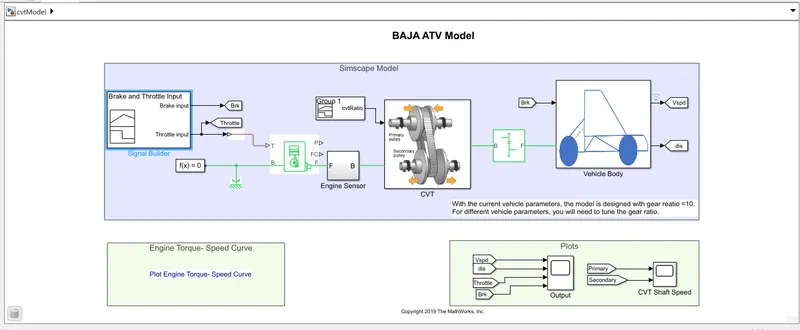

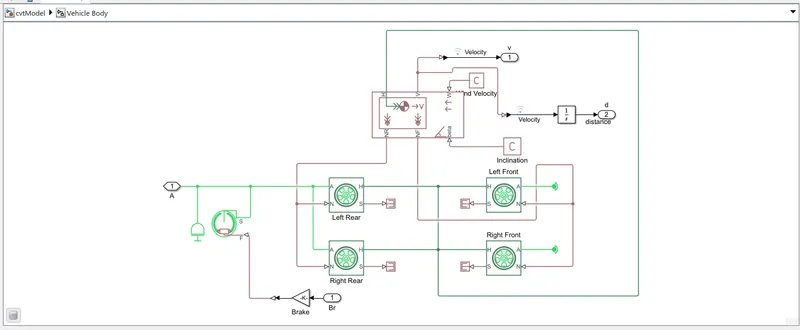

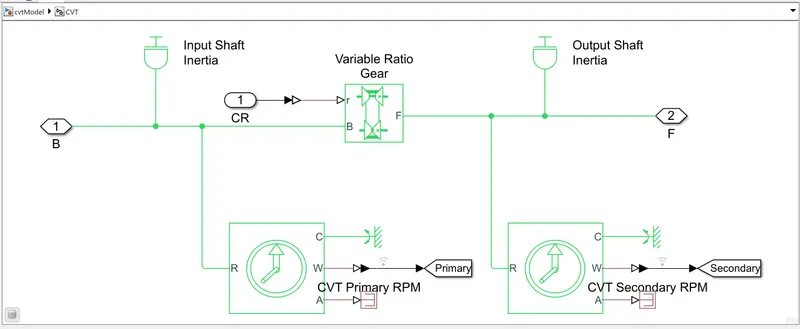

• By using simscape model of CVT consists of Signal builder, generic engine, motion sensors, vehicle transmission, vehicle body tyres and solver configuration blocks etc as shown in figure-1. The CVT subsystem includes Transmission block, input and output shaft inertia and motion sensors as shown in figure-2 The vehicle body subsystem includes vehicle body block, double drum brake and tyres as shown in figure-3 The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly

CVT SUBSYSTEM

Vehicle Subsystem

Signal Builder

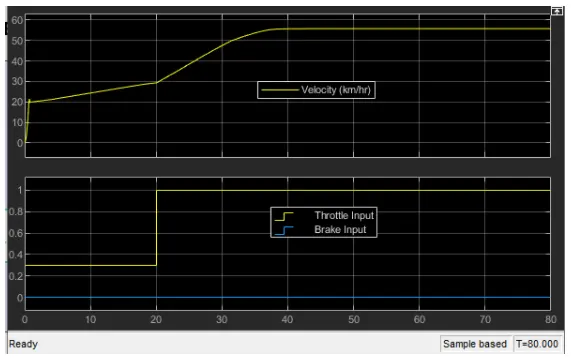

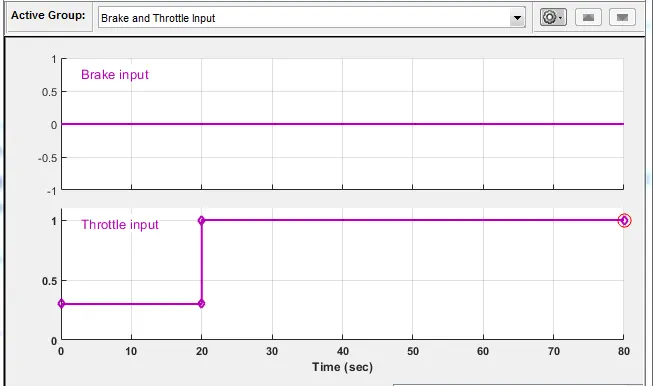

The signal builder is used as input for brake, throttle and gear ratio. Brake input is maintained as O for overall simulation. The throttle input is given as 0.3 for 20 secs and increases to 1 for overall simulatuion. The throttle valve is mainly to control the flow or amount of fuel into the engine, if the throttle value increases the flow of fuel increases to the IC engine which inturn increases the power of the engine. The gear ratio is maintained as 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure (4-5).

2) Simscape model of BAJA ATV with dashboard

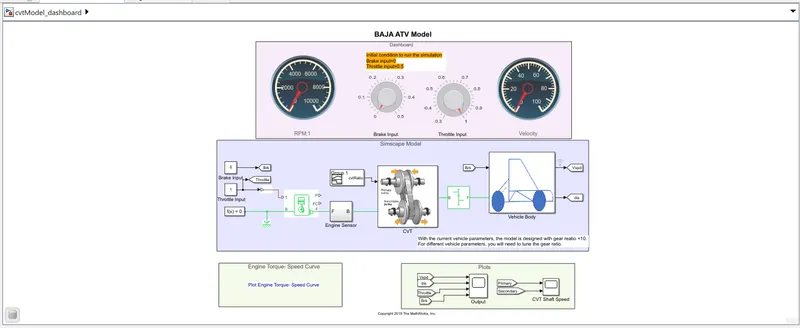

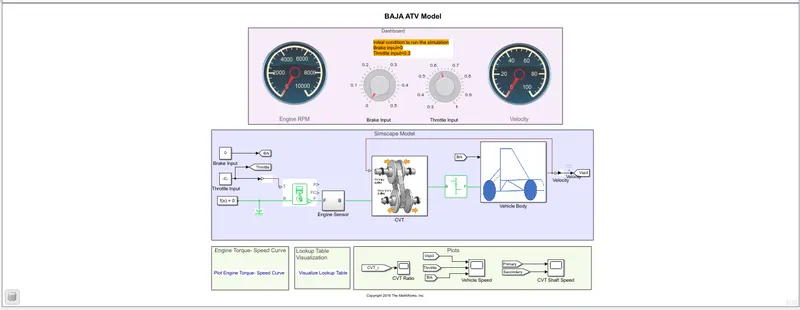

• In this model instead of signal builder given a throttel meter and brake input in the dashboard. remaninig all blocks and subsystem are same as previous model. BAJA ATV model with dashboard gives study of result by varing of input of brake and throttel which is shows velocity and speed of engine.
• The gear ratio is 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure 5. As the brake input varies from 0-0.5. the velocity and speed decreases accordingly. By increasing the throttle, the velocity and speed of the engine & shaft increases.

3) Simscape model of BAJA ATV using lookup chart without dashboard

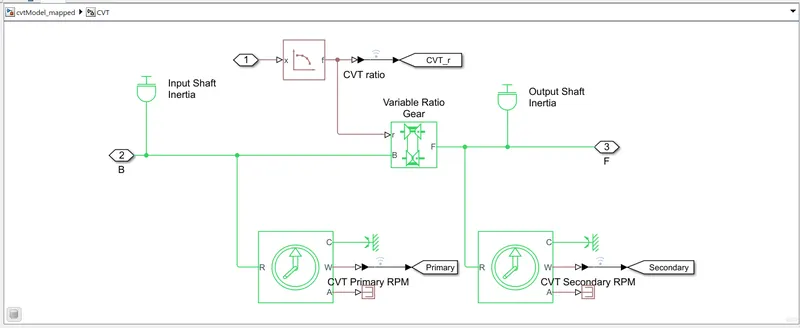

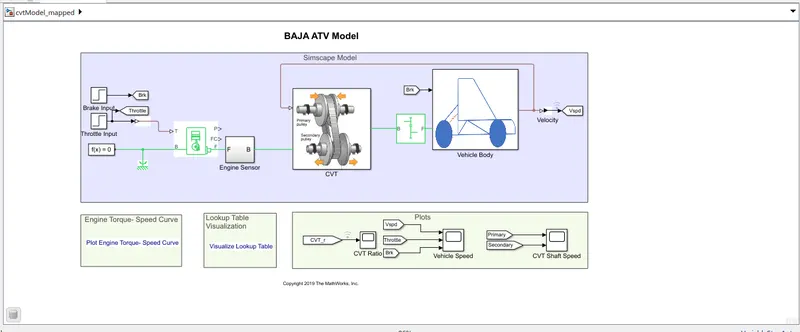

• By using simulink model of CVT consists of step time, generic engine, motion sensors, vehicle transmission, vehicle body,tyres and solver configuration blocks etc. The CVT subsystem includes look up table, Transmission block, input and output shaft inertia and motion sensors as shown in figure-8. The vehicle body subsystem includes vehicle body block, double drum brake and tyres. The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly.
• A lookup table is an array of data that maps input values to output values, thereby approximating a mathematical function. Given a set of input values, a lookup operation retrieves the corresponding output values from the table. If the lookup table does not explicitly define the input values. simulink can estimate an output value using interpolation, extrapolation, or rounding, where An interpolation is a process for estimating values that lie between known data points . An extrapolation is a process for estimating values that lie beyond the range of known data points. A rounding is a process for approximating a value by altering its digits according to a known rule.

CVT SUBSYSTEM

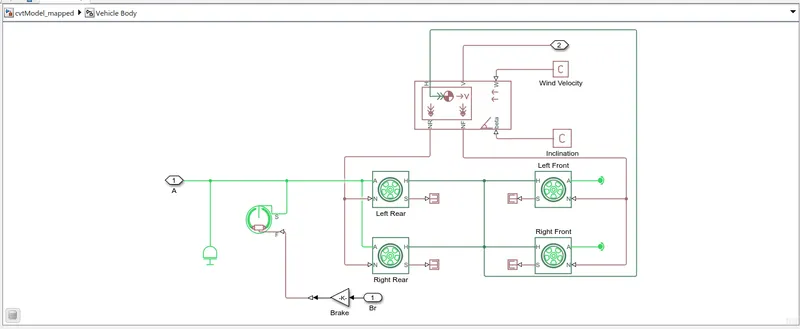

Vehicle body Subsystem

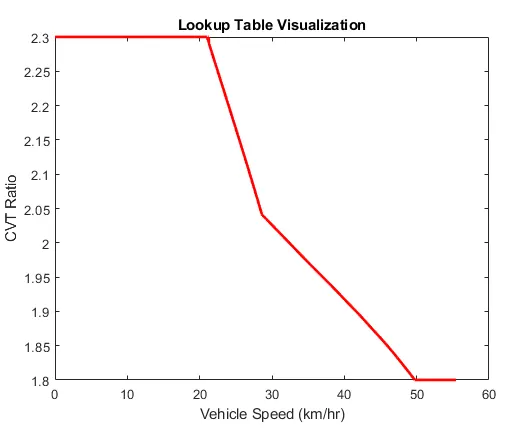

The brake input and throttle input is given by step time, which depends on the run time and varies accordingly. By using Lookup table for gear ratio which takes as input to the CVT and works according to the input gear ratio and obtained the output. This method is very effective which can avoid the unusual torque at the certain speed and very easy to achieve greater velocity & engine speed. It works as closed loop when the input is given by lookup table. The simulink get the input value from lookup table and obtain the result according to the input values of gear ratio. The gear ratio varies from 2.3 to 1.8 as taken as input and output interms of velocity. The maximum velocity reached as 57 kmph approximately.

4) Simscape model of BAJA ATV using lookup chart with dashboard

• The above figure shows 'Baja ATV with dashboard model using lookup table which consists throttle meter and brake input in the dash board and indicated as constant block. Rest of the blocks and subsystems are common in the above baja ATV model without dash board.
• The main concept of using dash board is study the result by varying the input of brake and throttle, which shows that the variation of velocity and speed of the engine. The gear ratio is given by lookup table, simulink get the input value from the lookup table and obtain the result according to the lookup table. As the brake input varies from 0-0.5, the velocity and speed decreases accordingly which inturn the gear ratio also decreasing. By increasing the throttle, the velocity and speed of the engine & shaft increases. The transmission as primary pulley and secondary pulley, in which the radius of primary pulley increses by compacting and the radius of secondary pulley decreases. As the gear ratio varies, the torque also varies. Gear ratio is directly proportional to the torque, which increases by increasing the gear ratio. At the max torque, the speed and velocity is decreases.

Result analysis

Output Of Simscape model of BAJA ATV without dashboard

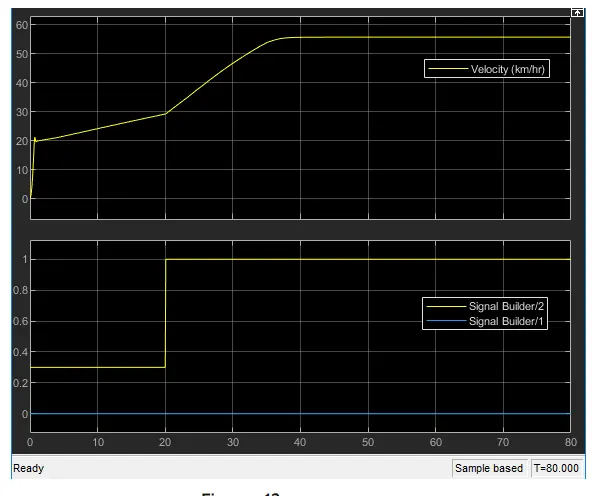

• In the above result the brake is maintained as constant and in throttle increases which shows increase in velocity.
• From above result shows flow of fuel is increses when the throttle increases from 0.3 to 1 thus the power in the engine increases.
• The torque reaches approximately 7N-m at 1.8 gear ratio which defines that gear ratio is directly proportional to the torque.
• By this gear ratio the speed & velocity can achieve maximum.

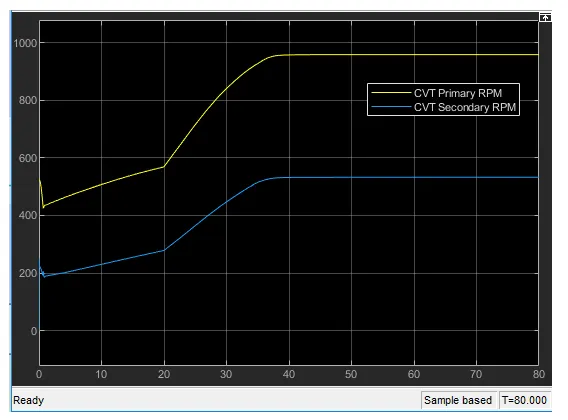

• In the CVT output, the primary shaft reaches high speed and secondary shaft as low rotational speed because the radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases.

Output Of Simscape model of BAJA ATV using lookup chart with dashboard

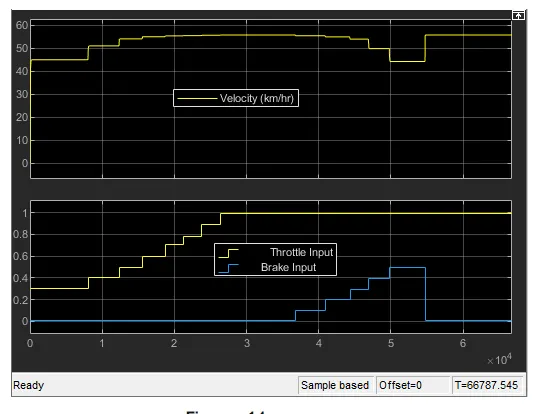

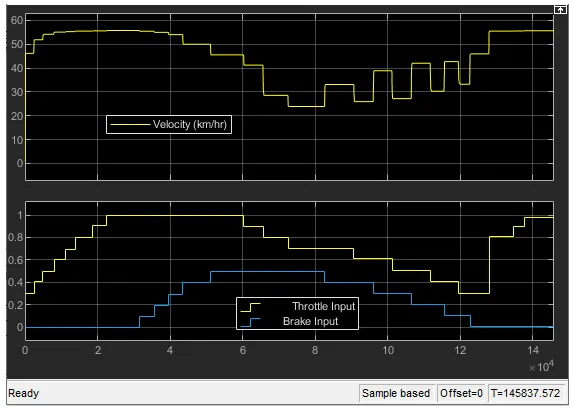

• In the above figure, the velocity of the vehicle is maintained as constant for constant throttle value as 0.3 and varying by increasing the value of throttle which increases the velocity of vehicle. By increasing the brake input, the velocity of the vehicle decreasing accordingly which is shown

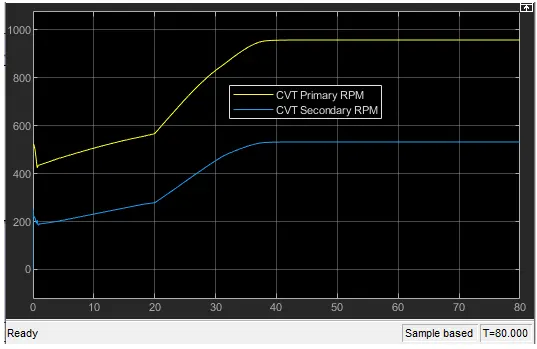

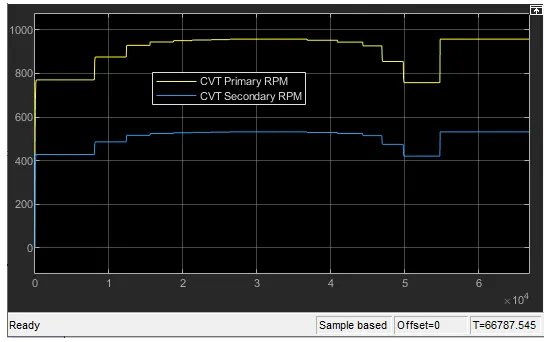

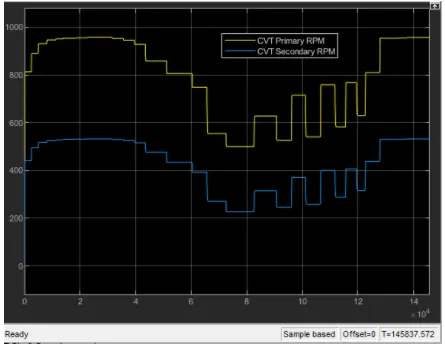

• In the above CVT output, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases

Output of Simscape model of BAJA ATV using lookup chart without dashboard

• In the above figure, the brake is maintained as constant and increase in throttle which shows increase in velocity. The flow of fuel is increses when the throttle increases from 0.3 to 1, thus the power in the engine increases. The torque reaches approximately 7N-m at 1.8 gear ratio, which defines that gear ratio is directly proportional to the torque. By this gear ratio, the speed & velocity can achieve maximum. The gear ratio is assigned in lookup table and given as input to the simulink which reads every input value and obtain the result according to the input.
• In the above CVT output, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases.

Output of Simscape model of BAJA ATV using lookup chart with dashboard

• In the above figure, the velocity of the vehicle is maintained as constant for constant throttle value as 0.3 and varying by increasing the value of throttle which increases the velocity of vehicle. By increasing the brake input, the velocity of the vehicle decreasing accordingly which shown in figure18. By using lookup table, it works as closed loop by recording the velocity value and we can get at any particular value of gear ratio which is beyond the range or any random value within the range by using extrapolation and interpolation by lookup table
• the above CVT output, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases. The throttle value and brake input value can be varying in dashboard, so we can get any particular value for input
