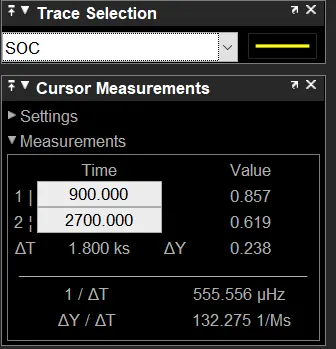

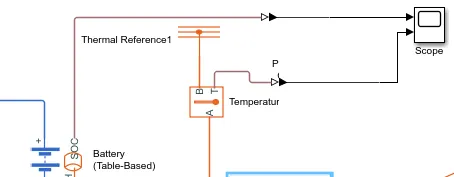

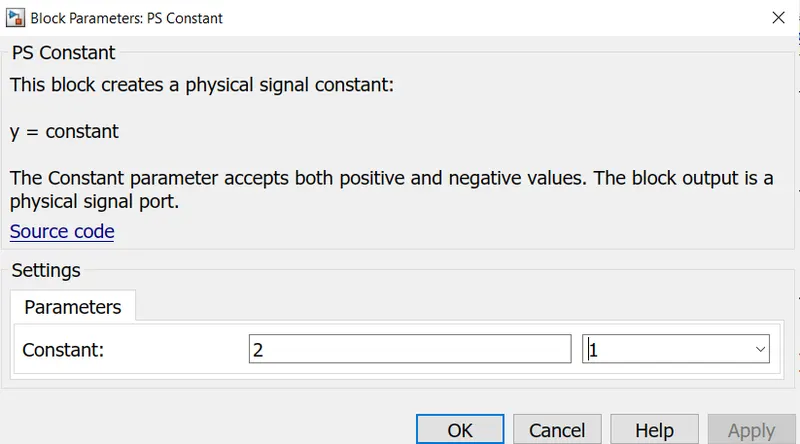

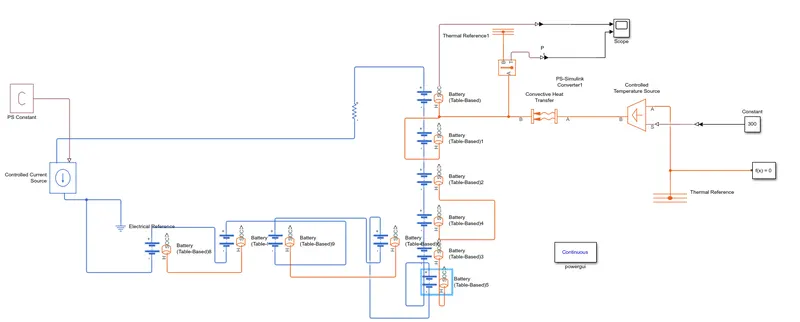

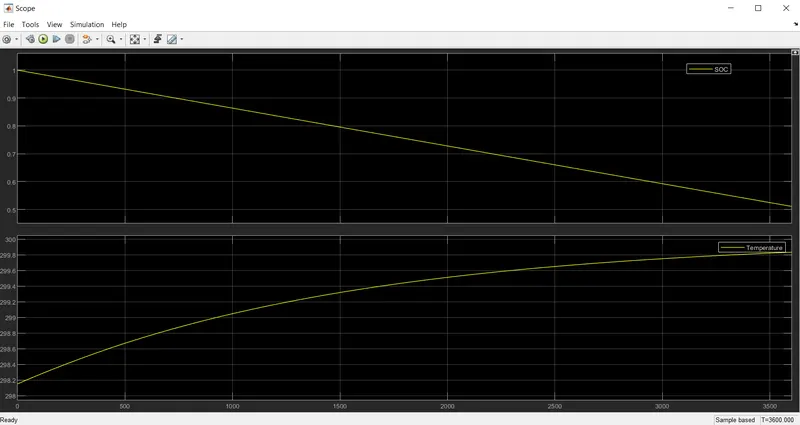

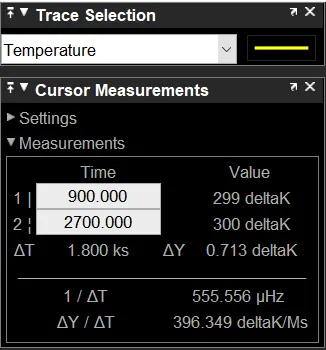

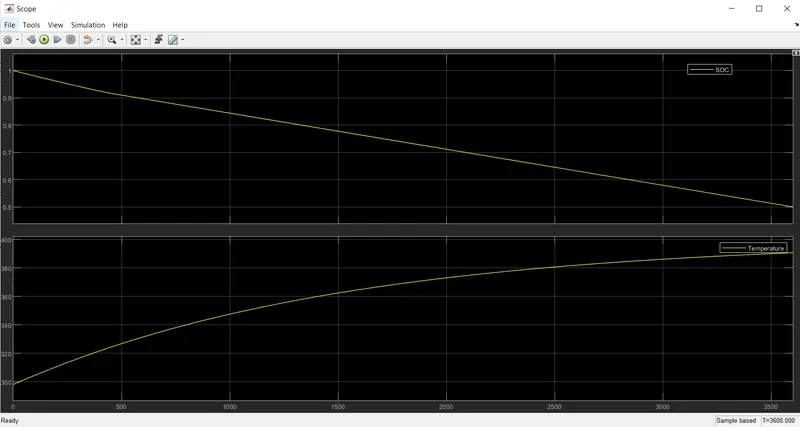

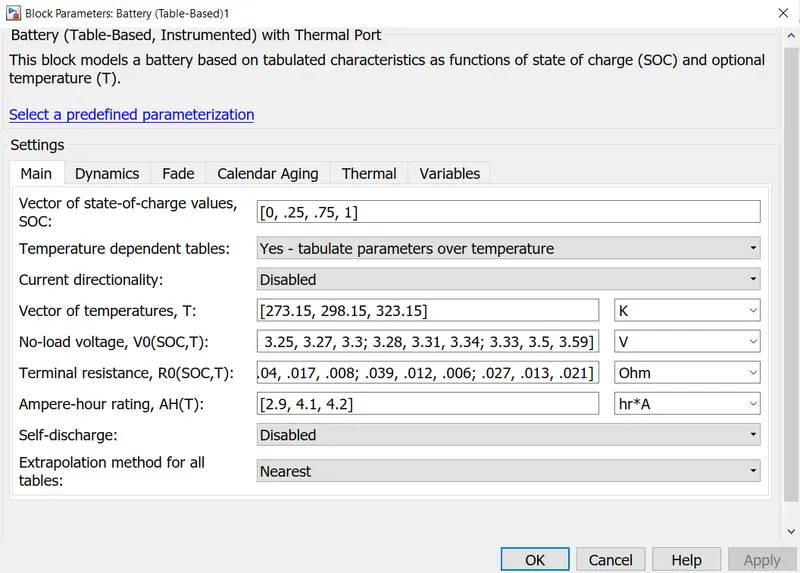

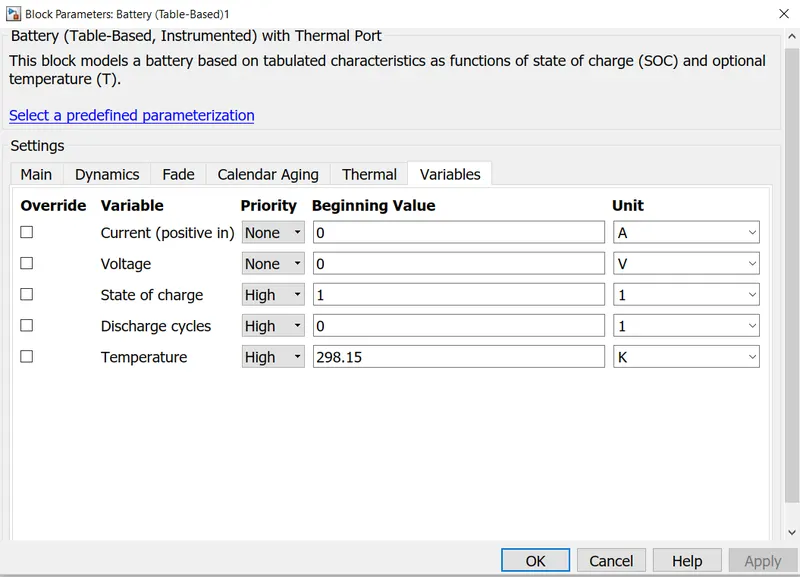

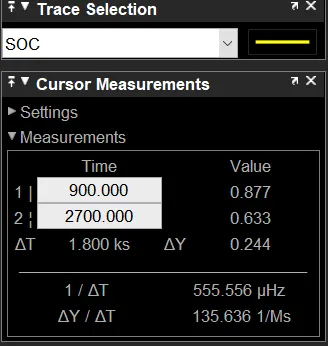

For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB. Ans- Putting the constat parameter of PS contant to 3  Battery parameters can be changed from the below figures.   The SOC and temperature…

Volume of cell =3.14*r^2*h                      =3.14*0.013^2*0.065                      =0.000034429m^2 Volume of the cell is 0.000034429m^2 Single cell energy = Cell capacity*Cell voltage      …

1.Simulate the 3 test cases from harness dashboard and write a detailed report on the results To simulate the 3 test cases from the harness dashbord first we have to download the file from the below given link https://in.mathworks.com/matlabcentral/fileexchange/72865-design-and-test-lithium-ion-battery-management-algorithms and…

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it 2.Compare the differences between each type of Li+ion batteries based on their characteristics
