Project 2 - Modeling of 3 phase Induction Motor Drive

AIM:-



1. Model 3 Phase Inverter using Simulink (model the parasitic as well) with a switching frequency of 10Khz using 3 phase Squirrel Cage Induction motor, using V/F method, open loop

Design Parameters:

1. Power = 100 HP
2. DC Voltage = 800 V
3. Output Voltage = 460 VRMS – line to line
4. Initial Speed = 1500 RPM
5. Final Speed = 1000 RPM
6. Initial Load Torque = 10 Nm
7. Final Torque=20 Nm
8. Torque Step Time = 0.1 secs

For Induction Motor model – use Asynchronous Machine from Simulink with Squirrel Cage Preset Model – 05 , for 100HP Motor

For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

Plot speed, stator voltage (line to line) and frequency.

Plot stator line voltage, phase current

    2. Use the 3 phase inductor motor theory to derive the transfer function of 3 phase Induction Motor

    3. Model 3 phase induction motor with a 3 phase inverter using Direct Torque control using an Average Model, Implement both torque and flux control to achieve desired power.

Design Parameters:

1. Initial Speed = 0 RPM
2. Flux Target = 2.5 webers
3. DC Voltage = 500 V;
4. Fundamental Frequency = 60 Hz
5. Speed Step Time = 0.01 secs
6. Determine fundamental speed based upon fundamental frequency
7. Determine the switching sequence for direct torque control
8. Moment of Inertia = 0.1 Kgm^2
9. Load Torque Initial = 0 Nm
10. Final Load Torque = 50 Nm
11. Torque Step Time = 0.03 secs

Motor Parameters: (Create an Average Model)

1. Stator Resistance = 0.5 Ohms
2. Rotor Resistance = 0.2 Ohms
3. Stator Leakage Inductance = 20 mH
4. Rotor Leakage Inductance = 10 mH
5. Magnetizing Inductance = 200 mH
6. Number of Poles = 4
7. Torque to Speed

1. Model 3 Phase Inverter using Simulink (model the parasitic as well) with a switching frequency of 10Khz using 3 phase Squirrel Cage Induction motor, using V/F method, open loop

Design Parameters:

1. Power = 100 HP
2. DC Voltage = 800 V
3. Output Voltage = 460 VRMS – line to line
4. Initial Speed = 1500 RPM
5. Final Speed = 1000 RPM
6. Initial Load Torque = 10 Nm
7. Final Torque=20 Nm
8. Torque Step Time = 0.1 secs

For Induction Motor model – use Asynchronous Machine from Simulink with Squirrel Cage Preset Model – 05 , for 100HP Motor

For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

Plot speed, stator voltage (line to line) and frequency.

Plot stator line voltage, phase current

initial speed =1500 rpm

final speed=1000 rpm

torque=10 N-M

For Induction Motor model – use Asynchronous Machine from Simulink with Squirrel Cage Preset Model – 05 , for 100HP Motor

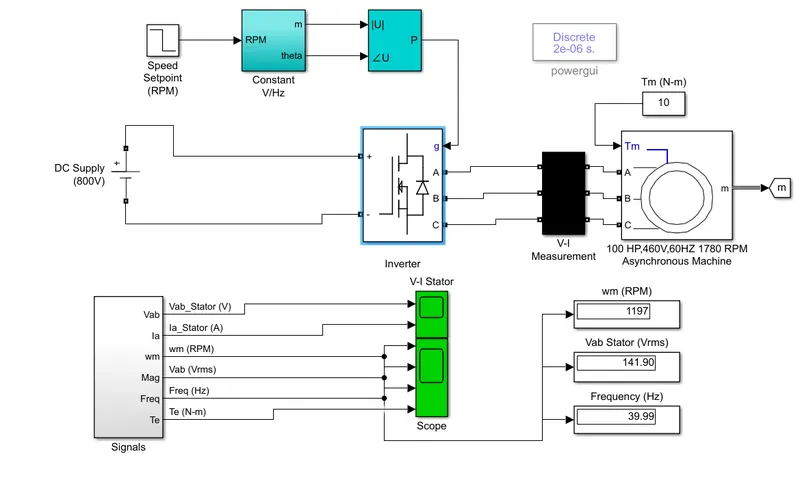

Simulink model:-

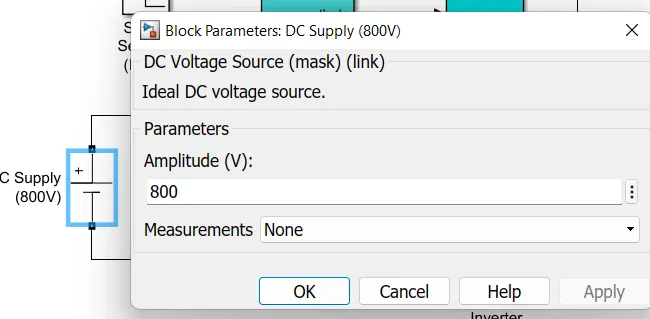

Voltage:-

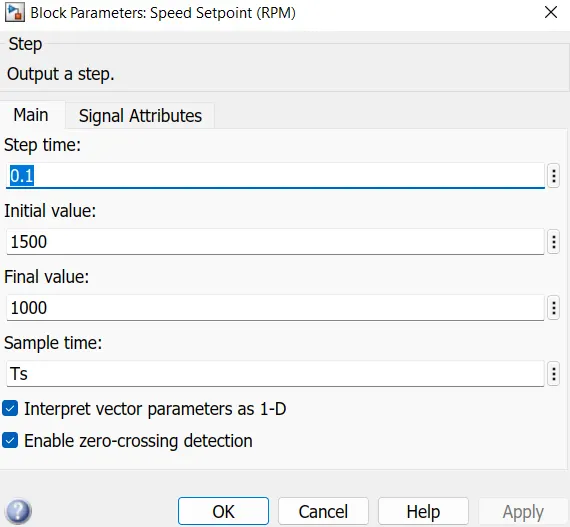

Step:-

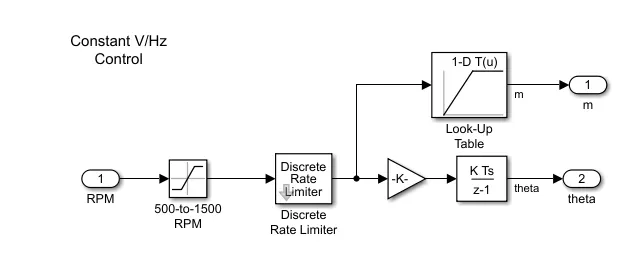

V/HZ control:-

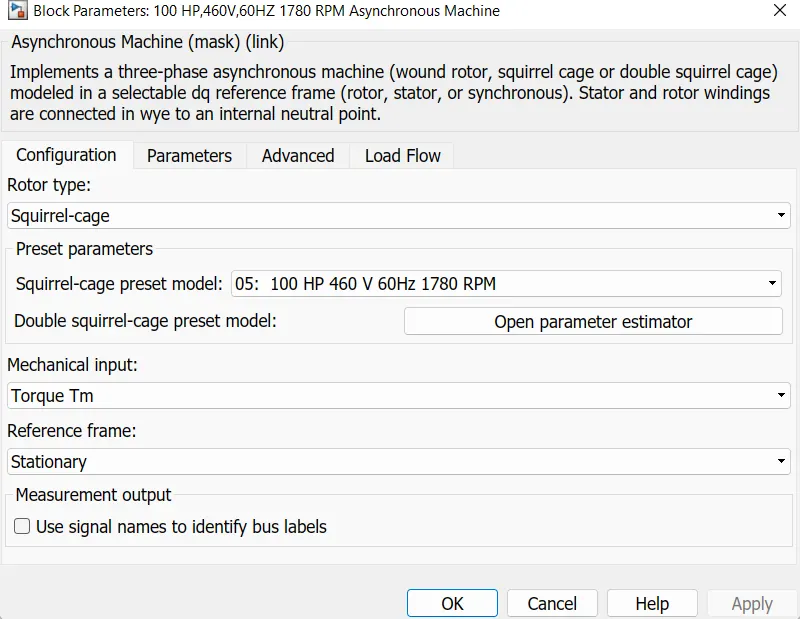

 Asynchronous machine:-

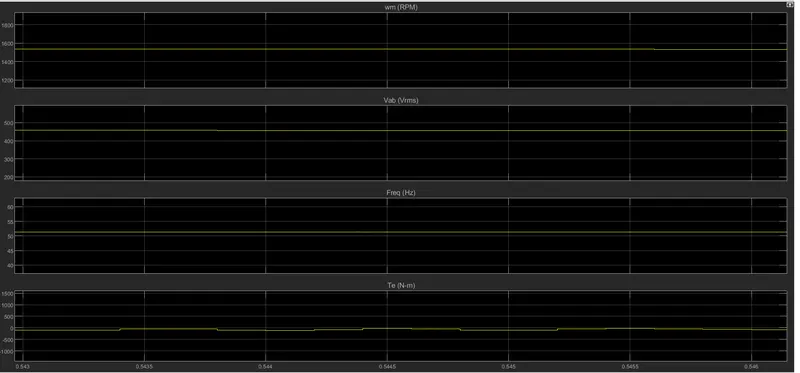

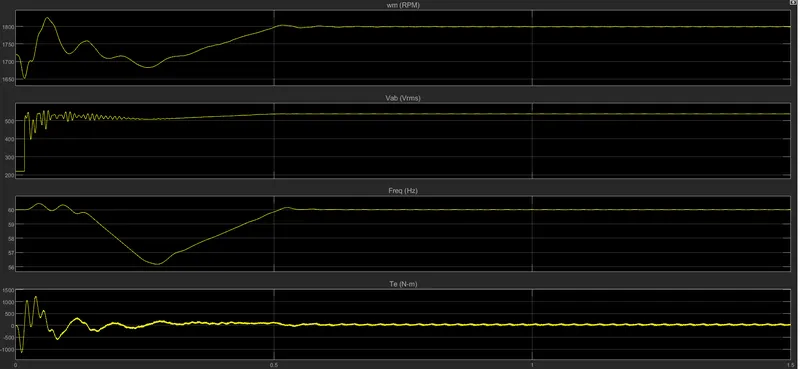

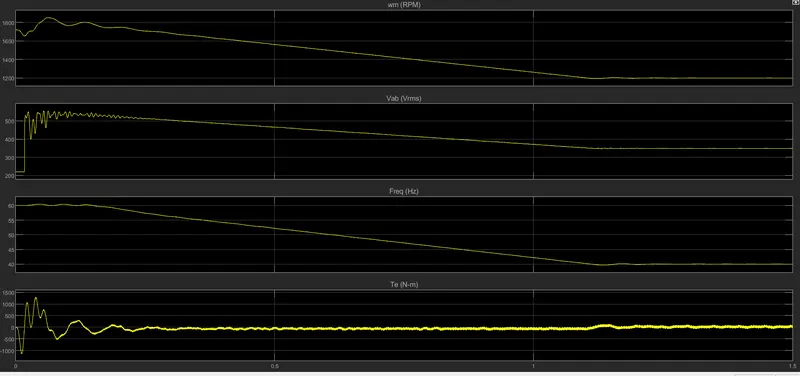

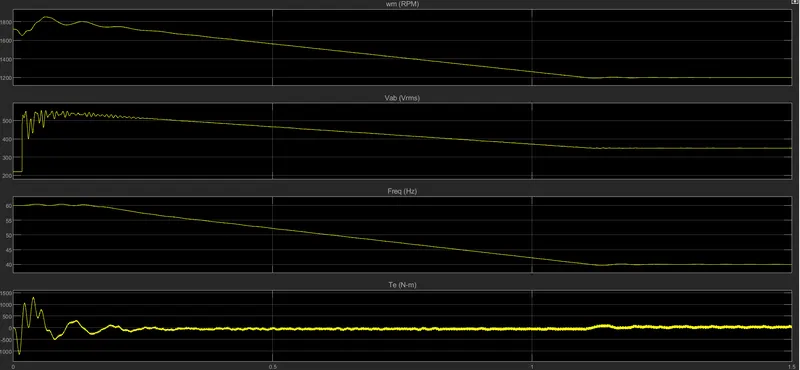

Ootput waveform:-

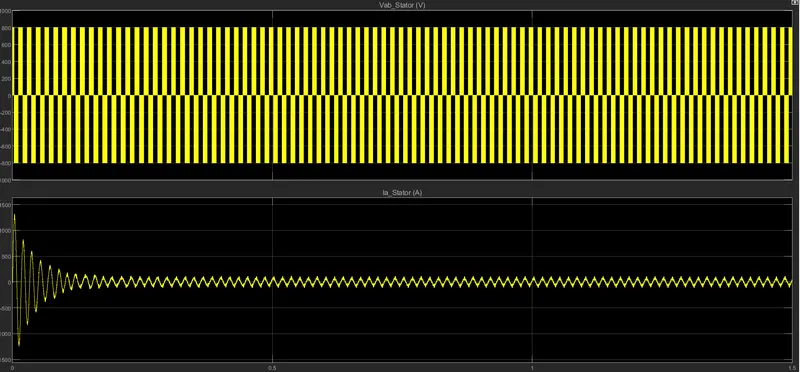

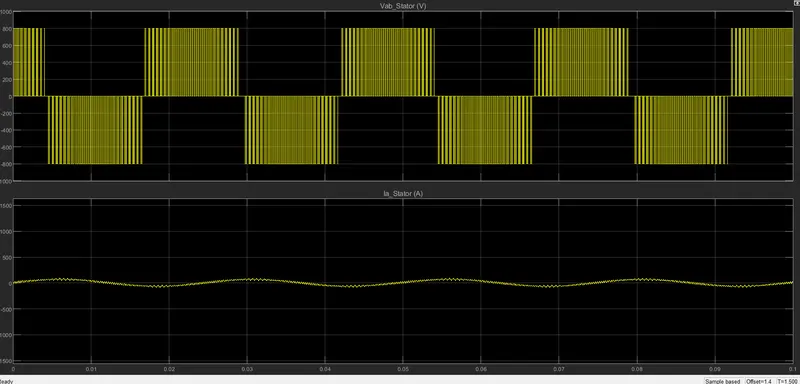

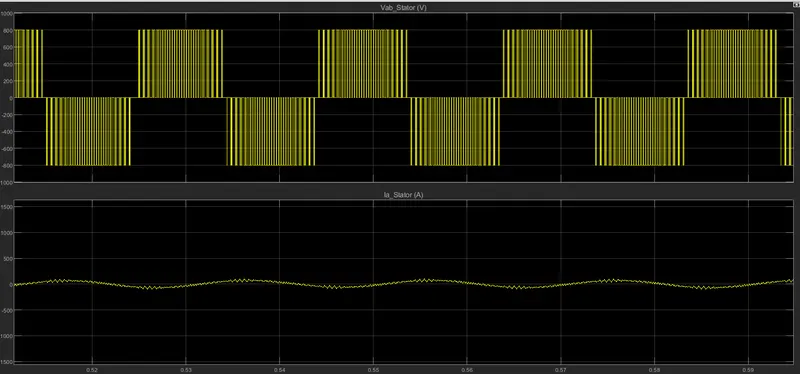

            V-I STATOR

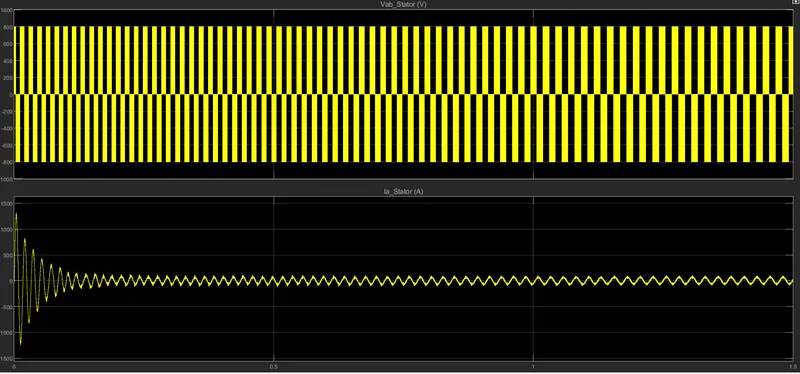

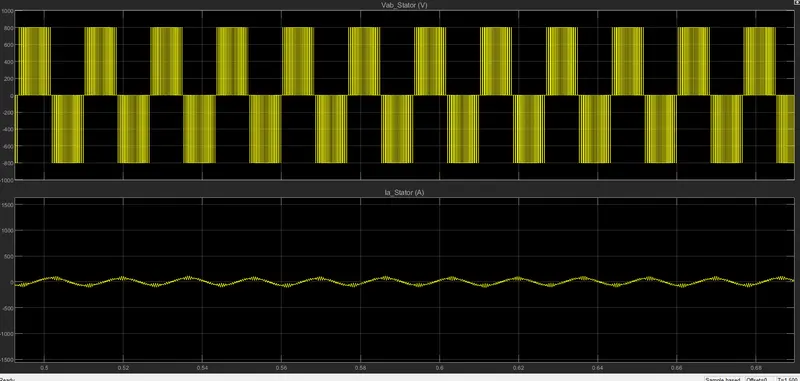

WHEN CONSTANT TORQUE AT 20 N-M







For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

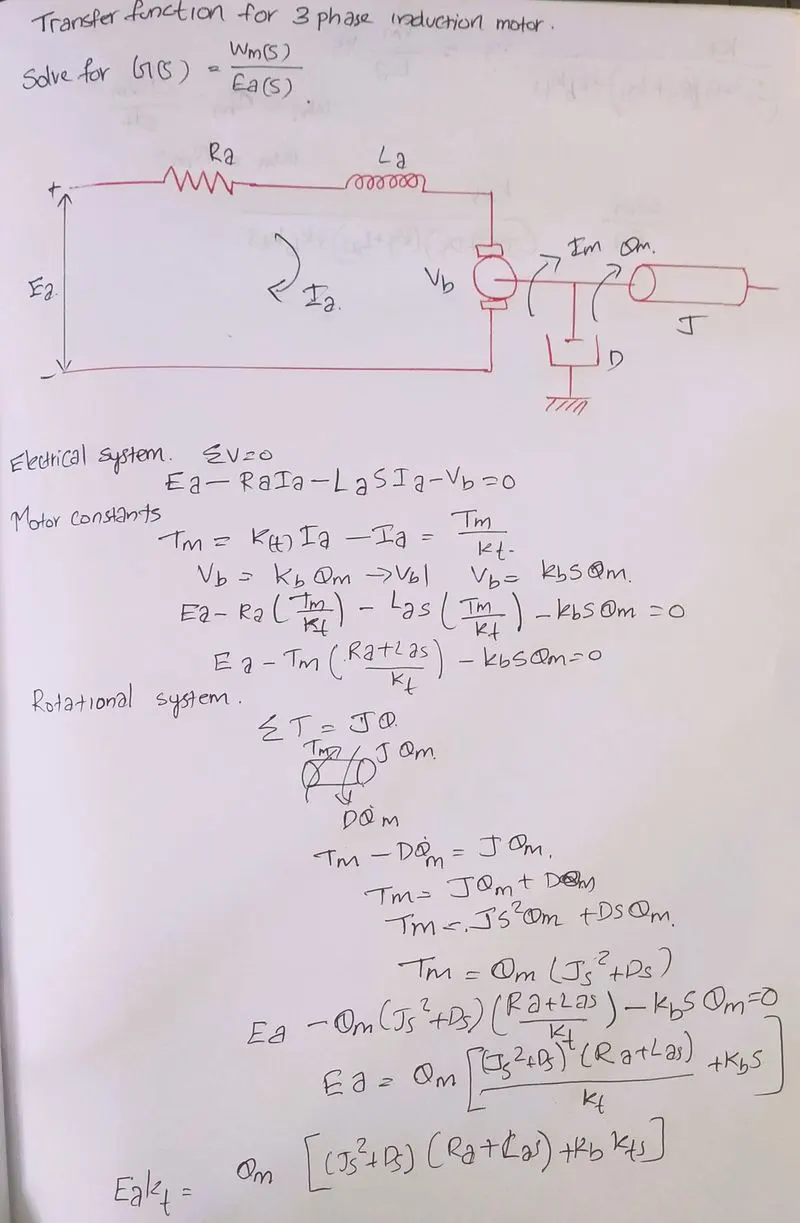

 2. Use the 3 phase inductor motor theory to derive the transfer function of 3 phase Induction Motor





3. Model 3 phase induction motor with a 3 phase inverter using Direct Torque control using an Average Model, Implement both torque and flux control to achieve desired power.

Design Parameters:

1. Initial Speed = 0 RPM
2. Flux Target = 2.5 webers
3. DC Voltage = 500 V;
4. Fundamental Frequency = 60 Hz
5. Speed Step Time = 0.01 secs
6. Determine fundamental speed based upon fundamental frequency
7. Determine the switching sequence for direct torque control
8. Moment of Inertia = 0.1 Kgm^2
9. Load Torque Initial = 0 Nm
10. Final Load Torque = 50 Nm
11. Torque Step Time = 0.03 secs

Motor Parameters: (Create an Average Model)

1. Stator Resistance = 0.5 Ohms
2. Rotor Resistance = 0.2 Ohms
3. Stator Leakage Inductance = 20 mH
4. Rotor Leakage Inductance = 10 mH
5. Magnetizing Inductance = 200 mH
6. Number of Poles = 4
7. Torque to Speed

DTC motor drive:-

    DTC is emerging technique for controlling PWM inverter -fed induction motor IM drives. it allows the precies and quick control of the IM flux and torque without calling of complex control algoritham.

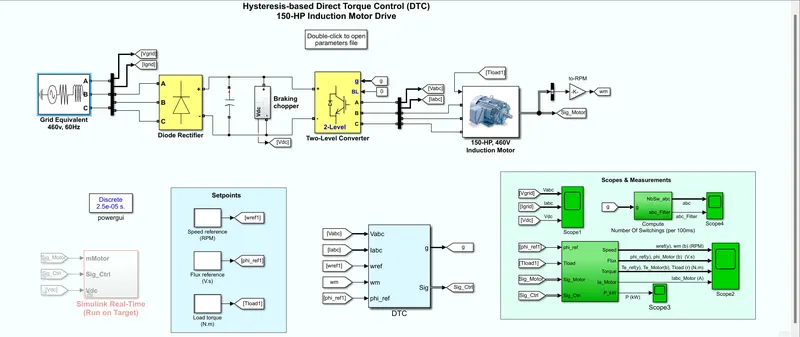

Simulink model:-

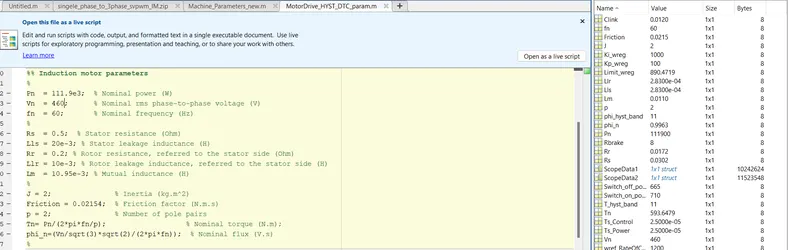

Command window:-

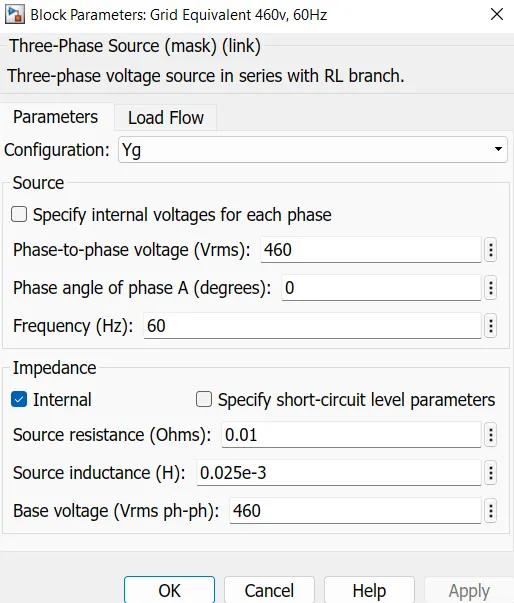

Three phase ac source:-

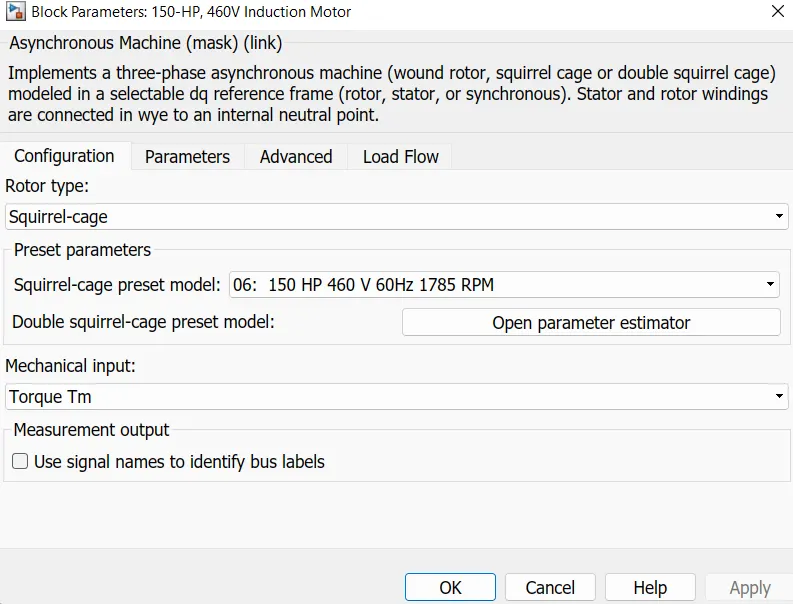

Asynchronous motor:-

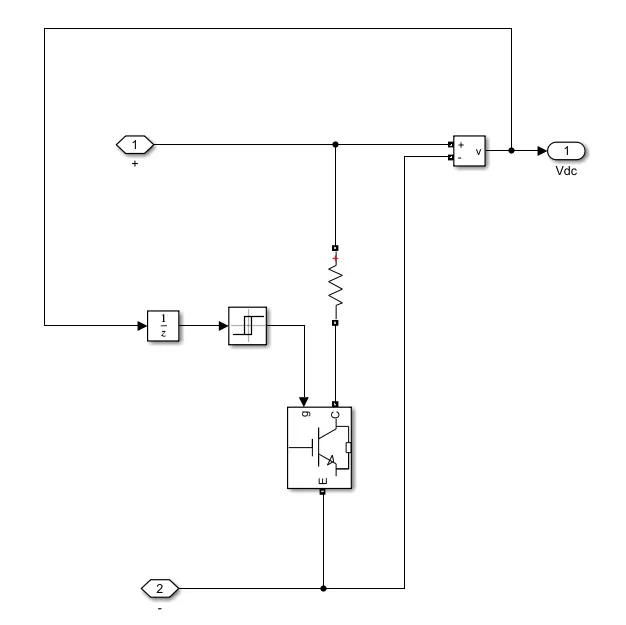

 Braking choper:-

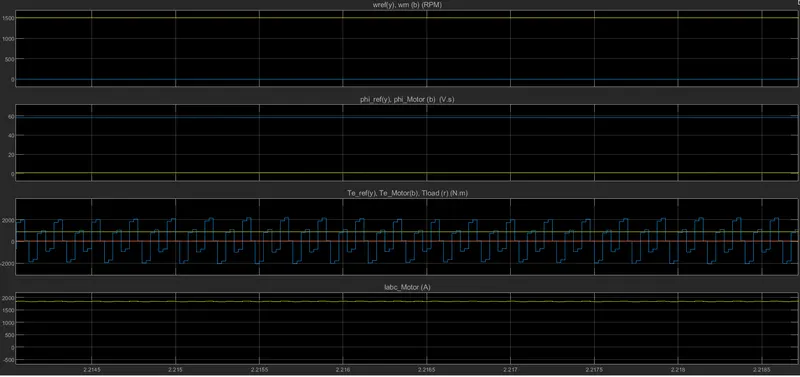

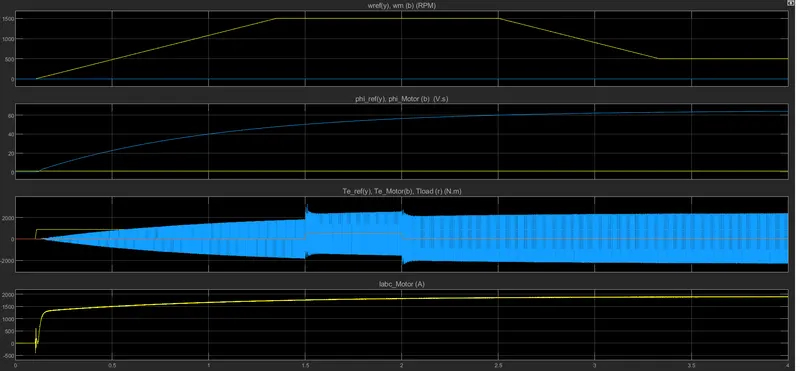

Results:-

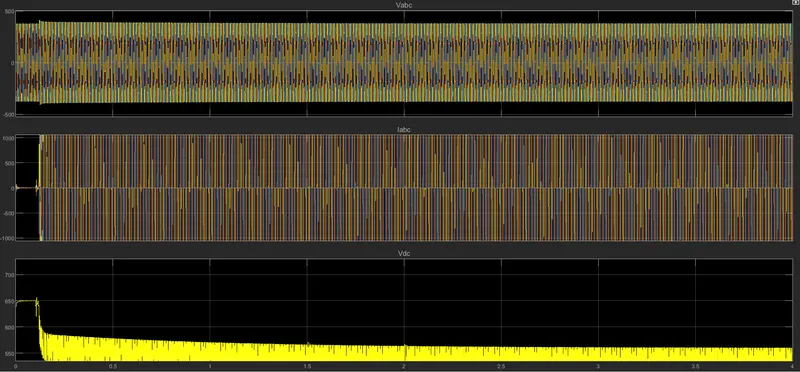

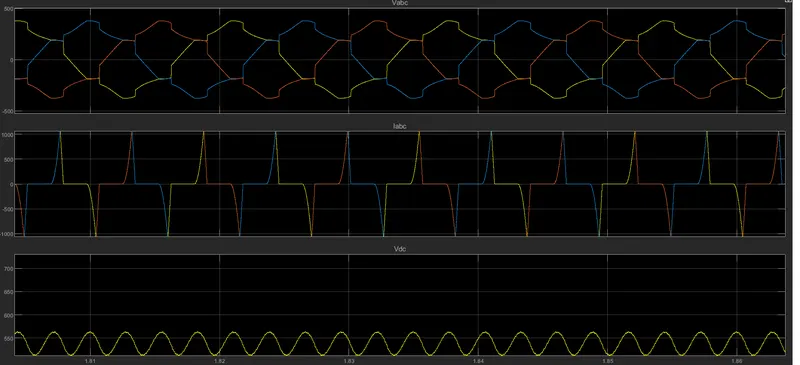

1. Vabc,Iabc and Vdc

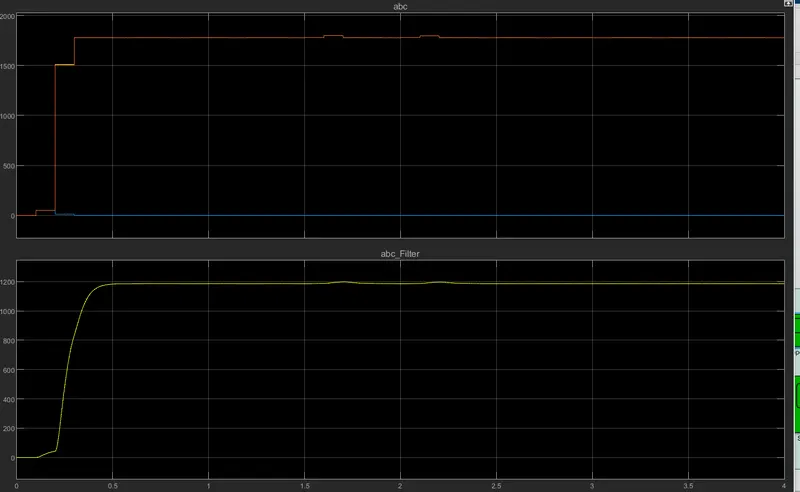

   2.     abc,and abc_filter



3.
