Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

-------------------------------------------------------LIVE BATCH-----------------------------------------------------

AIM:-Implement the Code for controlling the retraction and extension of Airplane’s landing gear.

• Overview of the project:-

• In this project, controlling the retraction and extension of Airplane's landing gear can be implemented using Finite state Machine(FSM). FSM is the most efficient algorithm which is mathematical model of computation.

• Problem Statement:-

• Implement the Code for controlling the retraction and extension of Airplane's landing gear

• Description of the Hardware:-

• Actually an airplane has gears for landing:

1. Nose Gear
2. Left Gear
3. Right Gear

• There is a hydraulic pump which is exerting pressure to the gears to bring it down or pull it up and that pump is electrically driven.

• Limit switches:-

• Every leg of the gear has one limit switch.
• Nose gear has one extra Squat Switch to determine whether the airplane is in ground or no

Switch State	State of Gears
Limit Switch CLOSED	Gear is UP
Limit Switch OPENED	Gear is DOWN

Switch State	State of Airplane
Squat Switch CLOSED	Airplane is grounded and Gears are locked
Squat Switch OPENED	Airplane is taking off / landing / airborne

• Consider this cases:-

• There is a possibility that the plane is about to take off and emergency comes where pilot has to abort the take off.
• When taking off,to ensure that its right time to raising the gear.Check for at least 4 seconds that squat switch is open.

• Contant:

• When the airplane is parked at the bay and nose gear is down,then the nose gear is always experiencing a pressure on it due to airplane weight,weight of luggage and weight of passengers boarding on the airplane.
• Hydraulic mechanism is monitoring the pressure exerted on the nose gear and to neutralize that pressure its applying a pressure on the opposite direction.
• Hydraulic Control can detect the rising edge and falling edge of pilot's lever.
• In case of Hydraulic system failure,there are two gas pressurized springs by which gears can be extended
• The case of failure of Squat Switch is ignored.

• key Highlights of the project:-

• A direction valve is controlled by the software to allow the hydraulic pressure to either raise or lower the landing gear.
• In this project we have created NINE files.
• There are,EIGHT '.c' file and ONE "h' file.

1. main.c file
2. states.h file
3. init state.c file
4. gear down.c file
5. checking befor takeoff.c file
6. raising gear.c file
7. gear up.c file
8. checking befor landing.c file
9. lowering gear.c file

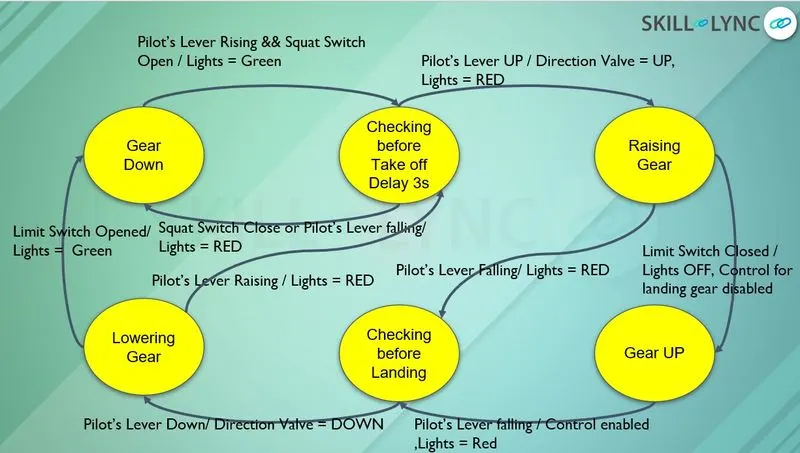

• CODE:-

• main.c:-

#include"states.h" //states header file

static void(*state_table[])(void)={s_gear_down,
s_checking_before_take_off,
s_rising_gear,
s_gear_up,
s_checking_before_landing,
s_lowering_gear};

// array of function pointer declaration and initialization.
//it can change accordingly airplane landing gear are called

int main() //main function
{
init_state_machine(); //function call for initial state
while(1) //infinite loop
{
state_table[current_state](); //state table function call based on current state
}
}

• states.h:-

#ifndef STATES_H_
#define STATES_H_

#include<stdio.h>
#define P printf
#define S scanf

typedef enum //creating user define data type
{
gear_down, //different type of states
checking_before_take_off,
rising_gear,
gear_up,
checking_before_landing,
lowering_gear
}state_type;
state_type current_state; //state_type is declared as current_state

typedef enum //user defined data type for switch input
{
open,
close
}switch_condition;

static volatile switch_condition limit_switch; //declaring two switches
static volatile switch_condition squat_switch;

typedef enum //for lever position
{
rising,
falling,
up,
down,
}pilot_lever;

pilot_lever lever_position;

typedef enum //for hydrolic pump input
{
working,
malfunctioning
}hydrolic;
hydrolic pump_status;

typedef struct //state table attributes declaration
{
char* current_status_indication;
char* lights_status;
char* direction_valve_status;
char* hydrolic_pump_control_status;
char* gas_spring_status[2];
}State_table;

//state table formation
static State_table state_machine[6]={
{"gear down","green","down","enabled",{0,0}},
{"checking before take off","green","down","enabled",{0,0}},
{"rising gear","red","up","enabled",{"disabled","enabled"}},
{"gear up","off","NULL","disabled",{0,0}},
{"checking before landing","red","down","enabled",{0,0}},
{"lowering gear","green","down","enabled",{"disabled","enabled"}}
};

void init_state_machine(); //declaration of function prototype for all states
void s_gear_down();
void s_checking_before_take_off();
void s_rising_gear();
void s_gear_up();
void s_checking_before_landing();
void s_lowering_gear();

#endif /* STATES_H_ */

• init_state.c:-

#include"states.h" //including states header file

void init_state_machine()
{
current_state=gear_down;
P("current status_indication:- %s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);
}

• gear_down.c

#include"states.h"

void s_gear_down()
{
current_state = gear_down;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position); //asking user to give lever position and squat switch
P("Enter squat switch input:-");
fflush(stdout);
S("%d",&squat_switch);
if(lever_position == rising && squat_switch == open) //condition statement for next state
{
current_state=checking_before_take_off;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);

}
else
{
s_gear_down(); //function call
}
}

• checking_before_take_off.c:-

#include"states.h"

void s_checking_before_take_off()
{
current_state=checking_before_take_off;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position);
P("Enter squat switch input:-");
fflush(stdout);
S("%d",&squat_switch);
P("enter the hydrolic pump status:-");
fflush(stdout);
S("%d",&pump_status);

if(lever_position == up && squat_switch == open && pump_status == working) //condition for rising gear state
{
current_state=rising_gear;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s",state_machine[current_state].direction_valve_status);
P("\ngas spring status:-%s\n",state_machine[current_state].gas_spring_status[pump_status]);

}
else if(lever_position == up && squat_switch == open && pump_status == malfunctioning) //condition for rising gear state
{
current_state=rising_gear;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s",state_machine[current_state].direction_valve_status);
P("\ngas spring pump status:-%s\n",state_machine[current_state].gas_spring_status[pump_status]);
}
else if(lever_position == falling && squat_switch == open) //condition for gear down state
{
current_state=gear_down;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);
}
}

• rising_gear.c:-

#include"states.h"

void s_rising_gear()
{
current_state=rising_gear;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position);
P("enter limit switch input:-");
fflush(stdout);
S("%d",&limit_switch);

if(lever_position==up && limit_switch == close) //condition for gear_up state
{
current_state=gear_up;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);
}
else if(lever_position==falling && limit_switch==open) //condition for checking before
{
current_state=checking_before_landing;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);

}
else
{
s_rising_gear(); //function call
}
}

• gear_up.c:-

#include"states.h"

void s_gear_up()
{
current_state=gear_up;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position);

if(lever_position == falling) //condition for checking before landing state
{
current_state=checking_before_landing;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s",state_machine[current_state].direction_valve_status);
P("\npump status:-%s\n",state_machine[current_state].hydrolic_pump_control_status);
}
else
{
s_gear_up(); //function call
}
}

• checking_before_landing.c:-

#include"states.h"

void s_checking_before_landing()
{
current_state=checking_before_landing;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position);
P("enter the hydrolic pump status:-");
fflush(stdout);
S("%d",&pump_status);

if(lever_position == down && pump_status == working) //condition for lowering gear
{
current_state=lowering_gear;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s",state_machine[current_state].direction_valve_status);
P("\ngas spring status:-%s\n",state_machine[current_state].gas_spring_status[pump_status]);

}
else if(lever_position == down && pump_status == malfunctioning)
{
current_state=lowering_gear;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s",state_machine[current_state].direction_valve_status);
P("\ngas spring pump status:-%s\n",state_machine[current_state].gas_spring_status[pump_status]);
}
else
{
s_checking_before_landing(); //function call
}
}

• lowering_gear.c:-

#include"states.h"

void s_lowering_gear()
{
current_state=lowering_gear;
P("\nenter the position of lever:-");
fflush(stdout);
S("%d",&lever_position);
P("enter limit switch input:-");
fflush(stdout);
S("%d",&limit_switch);

if(lever_position==down && limit_switch == open) //condition for gear down
{
current_state=gear_down;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);
}
else if(lever_position==rising && limit_switch==close) //condition for checking before take off
{
current_state=checking_before_take_off;
P("\ncurrent state indication:-%s",state_machine[current_state].current_status_indication);
P("\nlight status:-%s",state_machine[current_state].lights_status);
P("\ndirection valve status:-%s\n",state_machine[current_state].direction_valve_status);

}
else
{
s_lowering_gear(); //function call
}
}

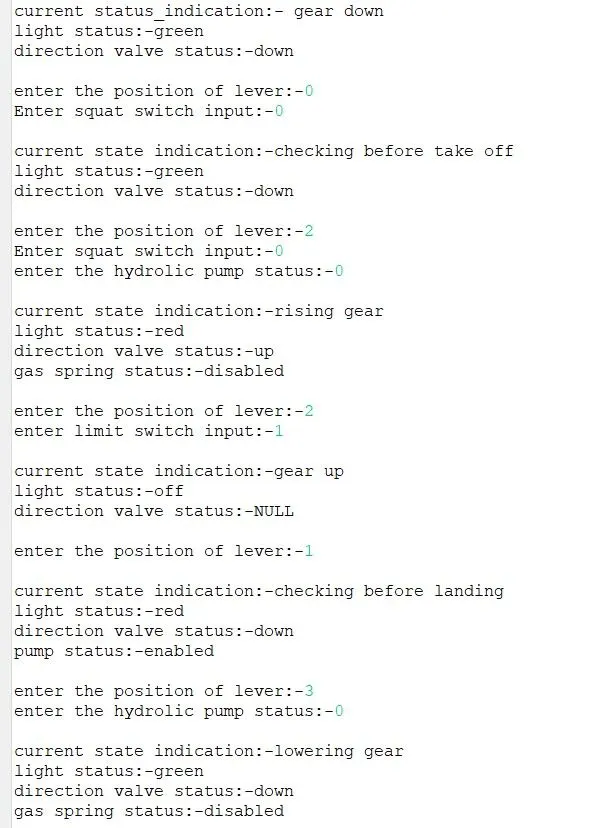

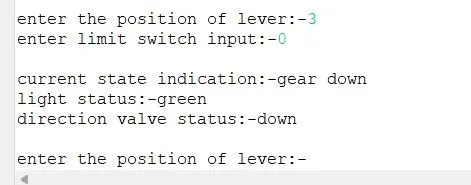

• RESULT:-

• CONCLUSION:-

• Thus a program code is created to control retraction and extension of airplanes landing gear implementation using finite state machine(FSM).
